Devine WMD-168MKII-B User manual

WMD-168MKII-B
Bodypack kit with headset
User manual
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 1.0 Creation date + author initials: 03-04-2019 RV Revision date + author initials: -

Sa ety instructions
This unit must be operated by, or under the supervision of an adult. This device is not suitable for children.
Every person involved with the installation, operation and maintenance of this device has to:
- Be qualified
- Follow the instructions of this manual
- Be wary of any damage to the bodypac , caused by transport or handling wear. If the bodypac or headset
seems damaged from the outside, do not use it and contact your dealer for more information.
- To ma e sure the device remains in perfect condition and for safe operation, the user must follow the
instructions and warning notes of this user manual.
- Damage caused by improper use or modifications to the device are not covered by the warranty.
- This device does not have any user-serviceable parts inside. This device must be serviced by qualified
technicians.
Important notes regarding sa ety and health:
- Never remove any warning or informative labels from the unit.
- Do not open the device and do not modify any hardware or software.
- Do not switch the system on and off frequently, as this will reduce the lifespan of the device.
- Do not drive the inputs of the device with a signal greater than required to wor at full performance.
- Only use this device indoors, avoid contact with water, moisture and other liquids. Do not place items filled
with liquids on top of the unit.
- Avoid nearby flames or heat sources, do not place this device near flammable liquids, gas or flammable
items.
- Never use other types of cables than specified in the manual, do not use defective or malfunctioning
cables. Contact your dealer if the included or required cables do not wor properly with this device.
- If the device has been exposed to considerable temperature changes (for example, transport from outdoors
to indoors), do not connect the device immediately. Do not activate the unit until it has reached room
temperature, as moisture might build up inside the unit, which may cause short-circuiting and/or electric
shoc s.
Guidelines and types o use:
- This device is intended to be used by professionals on stage, in theatres, clubs and similar venues.
- This device is not suitable for use by children and must always be operated by an adult.
- Only use the device when the environment is suitable and will not cause any damage. Do not use the
product in moist or dusty environments, or where long-term damage may occur such as:
- Indoor swimming pools where chlorine is used.
- Beaches, where sand and salt are present.
- Outdoors.
- Indoor areas where intense heat sources are present or where the temperature exceeds levels that
are comfortable for humans.
- Familiarise yourself with the functions of the device before use. Do not allow operation of the device by
uns illed or unqualified people.
- Use of the device in other ways than described in this user manual may cause damage and injury. Devine
cannot be held responsible for any damage or injury caused by improper use.
- Always chec your local government for allowed radio frequency band allocation and maximum allowed
frequency radiation power (ERP, e.i.r.p.) before setting up your microphone system. This bodypac and the
paired receiver might use frequency bands that are prohibited by local law.
Storage and transport:
- This device is intended for mobile use as well as fixed installations. During transport, properly store the
device in a fitting, preferably padded, carrying case or flightcase compartment.
- This device is not intended for continuous use. Operation brea s will ensure that the lifespan of the device
is not reduced.
- If the device is not used for a longer period of time, store it in a fitting (flight)case.
- Store the device dry and indoors, and do not expose the device to extreme temperature changes.
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 1.0 Creation date + author initials: 03-04-2019 RV Revision date + author initials: -

Housing:
- Inspect the housing of the device frequently. Severe dents, crac s and missing screws should be
ac nowledged and dealt with accordingly. Do not use the device when the housing is not in optimal
condition. Contact your dealer or a s illed technician when in doubt about the state of the device.
- Chec the device and screws for corrosion. Corrosion should not be present on the device. Contact your
dealer or a s illed technician when corrosion is found on the device.
- The headset connector should be mounted tightly. Do not use the device when the connector is loose.
- Prevent the build-up of dust and dirt. Clean the exterior of the device every month with a dry or damp cloth.
If the device is intensively used, the cleaning frequency must be increased. Disconnect the device when it is
going to be serviced.
Batteries:
CAUTION:
- Danger of explosion if batteries are incorrectly replaced.
- Replace only with the same or equivalent type of batteries.
- Keep new and used batteries away from children.
- If the battery compartment does not close securely, stop using the product and eep it away from children.
- Do not expose batteries to excessive heat such as sunshine, fire and the li e.
- Do not leave batteries in an extremely high-temperature environment, as this may cause explosions or
lea age of flammable liquids or gas.
- Do not burn batteries, do not place batteries in a hot oven, and do not crush or cut batteries, as this may
cause explosions.
- Do not expose batteries to extremely low air pressure (high altitudes), as this may cause explosions or
lea age of flammable liquids or gas.
- If the equipment is not used for an extended period of time (e.g. a few months), batteries should be
removed.
- Instantly remove empty batteries from the equipment.
- Replace all batteries at the same time. Mixing old and new batteries or mixing different types (such as
al aline and zinc carbon) will reduce overall performance and may cause lea age or rupture.
- Do not store loose batteries or carry them in your poc et or purse. Contact with metal objects li e coins and
eys, etc. may cause them to lea , rupture or short-circuit.
Recycling:
Do not dispose of batteries in general household waste. Batteries can contain substances that may harm the
environment. If they are properly recycled, used batteries are a valuable source of reusable materials.
Contact your local government for information on battery disposal.
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 1.0 Creation date + author initials: 03-04-2019 RV Revision date + author initials: -

Symbol clari ication:
WEEE: Dispose of this product properly. This product is part of the WEEE directive – the
Waste Electrical and Electronic Equipment directive. The requirements stated in this directive
apply to all manufacturers and producers of electronic equipment in the EU.
Do not dispose of this product together with regular household rubbish. Contact your local
government for more information about proper disposal and recycling of electronic products in
your region. By recycling this product properly after use, we can wor together to enjoy these
products and also protect our environment from being polluted.
CE: The CE mar indicates that the product complies with applicable European directives and
regulations.
Indoor use only: This device is designed to only be used indoors. The maximum ambient
temperature should not exceed 40 degrees Celsius (104 degrees Fahrenheit)
Contact:
Devine pro audio and studio products
Verrijn Stuartweg 18
4462 GE Goes
The Netherlands
Please do not send any products directly to this address. If you wish to return a product for a refund or
repair, please contact your local dealer for an RMA (Return Material Authorisation)
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 1.0 Creation date + author initials: 03-04-2019 RV Revision date + author initials: -

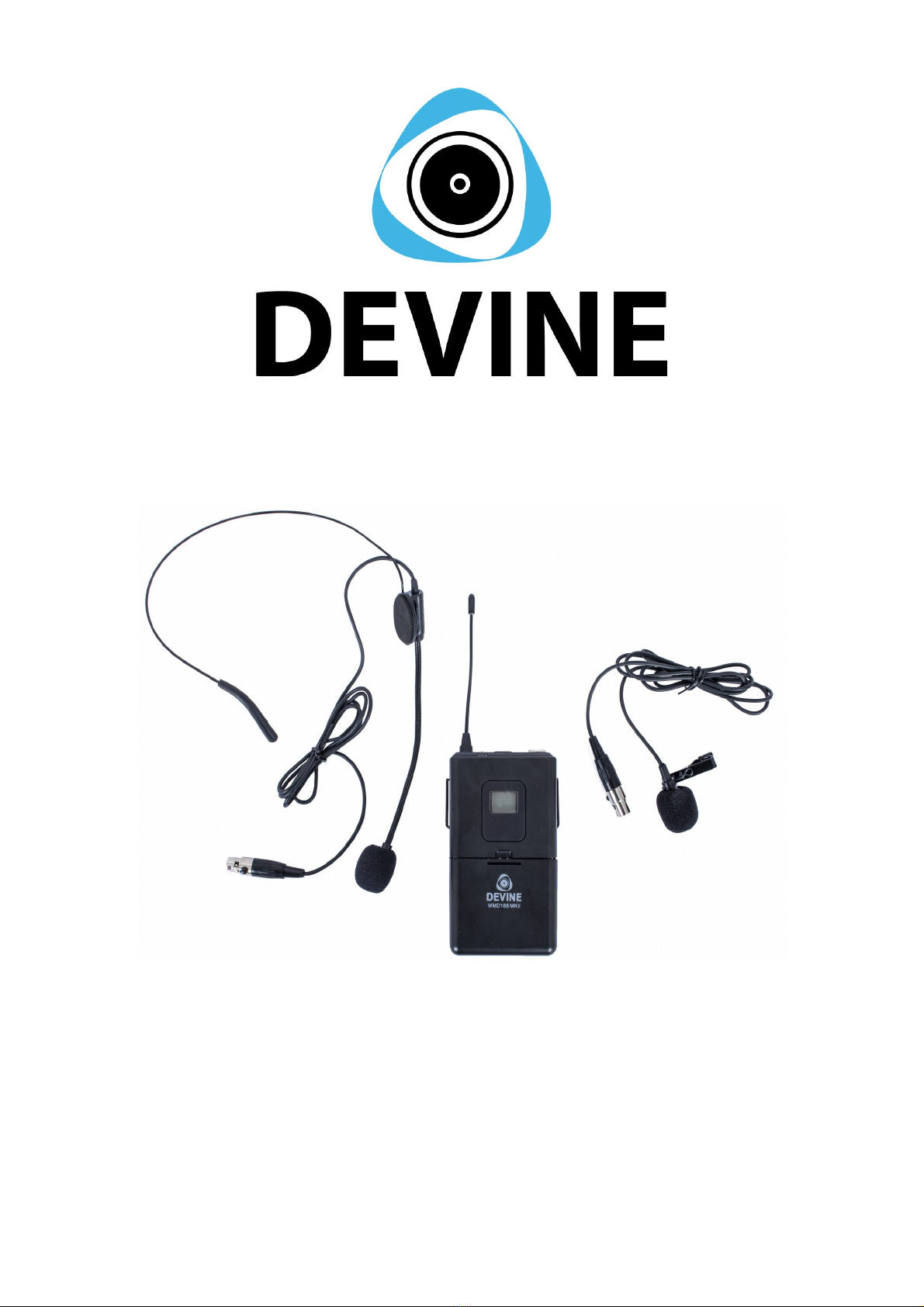

Box contents
Box contents:
1x bodypac with antenna
1x headset microphone with antenna and mini XLR-cable
1x lavalier microphone with clip and mini-XLR cable
1x user manual
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 1.0 Creation date + author initials: 03-04-2019 RV Revision date + author initials: -

Preparing the system
Inserting batteries
The bodypac requires 2 AA 1.5V batteries. Always use quality batteries, as the lifespan may vary. This may
result in an operation lifespan varying from 7 to 10 hours. To access the battery compartment, push down on
the compartment cover and open. Insert the batteries according to the polarity shown in the compartment.
There is an on/off button at the top of the bodypac , also functioning as a mute switch. Holding the button will
power up the device. The LCD screen of the bodypac will turn on.
Setting up the bodypack
The WMD-168MKII-B bodypac it comes with two types of microphones; a lavalier and a headset. They
both feature the same specifications, the choice depends on the way the user wants to wear the microphone.
Both are handsfree microphones. The user could opt to conceal the cable under clothing, and the bodypac
itself can also be worn discretely using the belt clip. Hiding the cable under clothing is always recommended
to prevent the cable from catching on to any objects, possibly damaging the microphone and disrupting live
activity.
When using the headset, the microphone is designed to be on the left side of the head, so that the ear hoo
on the other end of the headset fits comfortably around the user’s right ear. The headset features a soft
padding on the microphone side to reduce strain.
The clip-on lavalier can be used when discrete application of the microphone is preferred. The microphone
can clip on to a collar or lapel for comfortable use. Always try to prevent the microphone from scratching to
clothing in a live situation, as unwanted noise might get pic ed up and amplified.
Connecting the bodypack to the receiver
The WMD-168MKII-B bodypac is meant to be used in combination with the Devine WMD-168MKII wireless
microphone system. To connect the bodypac , hold the infrared sensors on both the receiver and the
bodypac in close proximity and press the ‘set’ button on the desired microphone channel (1 or 2). If needed,
open the battery compartment to enhance the sensor exposure of the bodypac . The devices will now pair in
a selected frequency. If the synchronisation is successful, the display of the bodypac will light up and show
the newly set channel and frequency. The receiver display will show the signal strength as indicated by ‘RF’.
For more information regarding the receiver, refer to the Devine WMD-168MKII user manual.
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 1.0 Creation date + author initials: 03-04-2019 RV Revision date + author initials: -

Volume adjustment
The front of the WMD-168MKII receiver features separate volume nobs per microphone channel. These are
used to change the microphone signal level. Set the audio level (indicated by ‘AF’) by turning the volume
nob so that the spea er can tal at a comfortable level with enough headroom on the signal level for clean
amplification. When the signal exceeds its maximum level, the audio will become distorted. This could cause
damage to connected spea ers and/or hearing. Try to have the spea er tal at a constant level, to prevent
distortion when the level is too high or inaudible speech when the level is too low.
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 1.0 Creation date + author initials: 03-04-2019 RV Revision date + author initials: -

Technical speci ications
Technical speci ications:
- frequency: 612-692 MHZ
- channels: 160
- oscillation-mode: PLL
- frequency stability: +/- 10 ppm
- modulation mode: FM
- max radio frequency power transmitted: 10 mW
- audio frequency response: 50 ~ 16.000 Hz
- distortion: < 0.5%
- batteries: 2x AA, 1.5V
- using time: 7-10 hours (depends on battery quality)
Dimensions:
- Length: 102 mm, width: 63 mm, height: 20 mm
Weight:
81 g
Included in delivery:
1x lavalier microphone mini-XLR
1x headset microphone mini-XLR
1x WMD-186MKII-B bodypac
