Devine MPS 1000 User manual

MPS 1000
Dual phantom power supply unit
User manual
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:26-01-2016 RV Date of revision and author's initials:28-07-2016 RV

Introduction
Thank you for purchasing the MPS 1000 phantom power supply unit. We advise that you read this user
manual in its entirety before unpacking the contents of the bo , so that you are familiar with all of the
functionality that this product has to offer. Please be sure to check that all of the parts and accessories listed
below under 'bo contents' are included in the package. In the event that the MPS 1000 does not function
properly, or if you have any issues while operating it, please remove the plug from the power socket and
contact your dealer for assistance.
Box contents:
- Devine MPS 1000 dual phantom power supply unit
- power adapter to CEE 7/16
Please inspect the device and the included accessories.
Should you discover that either the device or one or more of the included parts were damaged or rendered
defective while in transit, please contact your dealer directly.
Please note that the pictures in this user manual serve illustrative purposes only and may differ from the
product you receive.
ontact:
Devine Pro Audio Products
Verrijn Stuartweg 18
4462 GE Goes
The Netherlands
Please do not send any products to this correspondence address.
Should you wish to send in a product for repairs or for a refund, please contact your dealer for an RMA
re uest (Return Merchandise Authorisation).
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:26-01-2016 RV Date of revision and author's initials:28-07-2016 RV

Safety instructions
Everyone involved with the installation, operation and maintenance of this device must:
- Be qualified
- Be skilled
- Have read the instructions in this user manual
- Be sure that neither the device nor the included accessories are damaged. Should the device or the
included accessories be damaged, please contact your dealer for more information.
- Ensure that the device is in good working condition and is safe to operate. Please follow the advice and
instructions as they are described in this user manual.
Damage caused by misuse and/or modifications made to the device are not covered by the warranty.
This device does not contain any parts that need to be repaired or replaced by the user. Should maintenance
or repairs be necessary, they must be handled by a qualified technician.
Important information regarding safety and health:
- Do not remove any labels or stickers from this device.
- Do not allow any cables to lie about.
- The device should not be opened up, and any hardware or software that may be present should not be
modified.
- The inputs on the device should not be fed with a signal higher than necessary to achieve optimal
performance.
- The device should only be used indoors; contact with water, rain and moisture should always be avoided.
Do not place any objects containing liquid on top of the device.
- Remove any nearby flames or heat sources; do not place the device near flammable fluids, gasses or
objects.
- Disconnect this device from the power supply if it will not be used for a longer period of time, if maintenance
is necessary, or if the device needs to be cleaned.
- Do not pull on the cable to remove a connector, as it can cause damage.
- Do not use any cables other than the ones described in this manual. Do not use defective cables. Please
contact your dealer if the included or necessary cables do not function properly with this device.
- In the event that the device is e posed to e treme temperature changes (e.g. transported through a cold
outside environment into a warm indoor environment), it should not be turned on until it has reached room
temperature. This is necessary to prevent moisture from forming in the device, which could lead to
dangerous electric shock.
Guidelines and operation of this device:
- This device is intended for use by professionals on stage, in theatres, in clubs, and in similar entertainment
locations.
- This device is not suited for use by children, and should always be operated by an adult.
- This device may only be used in a suitable environment where no damage to the device can occur. Do not
use the device in moist or dusty environments such as:
- indoor swimming pools where chlorine is used
- beaches where there are sand and salt
- outside
-inside in spaces where intense heat sources are present, or where it reaches temperature levels
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:26-01-2016 RV Date of revision and author's initials:28-07-2016 RV
WARNING!
Keep this device away from moisture, water and rain to avoid the chance of dangerous electric
shocks.

that would be considered uncomfortable for a person
- Avoid impact and collisions during use and transport. Do not transport the device while it is in use. Avoid
using e cessive force when installing and operating the device.
- The user should become familiar with the functions of the device before using it.
- Should the device not be used after the manner described in this user manual, damages or even injuries
could occur. Devine cannot be held responsible for any injuries or damages that occur as a result of improper
use of this product.
Storage and transport:
- This product was designed for mobile use. Please only transport the device in the original packaging, or in
a flight case with a suitable foam inlay.
- This device was not designed for permanent (24/7) use. The e pected lifespan of the device will not be
affected by occasionally turning the device off. Disconnect the device or turn off the power when it is not
actively in use.
- If the device will not be used for a longer period of time, it should be disconnected and stored in a dust-free
environment.
- Do not e pose the device to e treme temperature differences.
Housing
- Inspect the device's housing frequently, and always just before use. Avoid operating the device if there are
large dents or cracks, or if screws are missing. Do not use the device if the housing is not in good condition.
Contact your dealer or a qualified technician if you are unsure about the state of the device.
- Check the device and the screws for corrosion. Corrosion must not be present on this device. Contact your
dealer or a qualified technician if you find any corrosion on the screws.
Every power and signal connector should be securely mounted. Do not use the device if the connectors are
not secure.
- Avoid dust and dirt build-up. Clean the device once a month by disconnecting it from the power supply and
wiping it down with a dry or slightly moist cloth. If the device is used frequently, the cleaning intervals should
increase.
Symbol explanation:
WEEE: Ensure that this device is disposed of properly. This product falls under the WEEE
(Waste Electrical and Electronic Equipment) directive. The requirements of this directive apply
to all manufacturers and producers of electronic devices in the EU. Do not throw this product
away with regular rubbish. Please contact your local government for more information about
how to recycle and dispose of these products in your region. By recycling this product in the
proper manner, we can work together to ensure that we can continue to enjoy these kinds of
products and still protect the environment as much as possible from pollution.
E: The CE logo indicates that this product meets the European norms and requirements to
which it must legally conform.
Only suitable for indoor use: this product was only designed for indoor use. The ma imal
environmental temperature must not e ceed 40 degrees Celsius (104 degrees Fahrenheit).
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:26-01-2016 RV Date of revision and author's initials:28-07-2016 RV

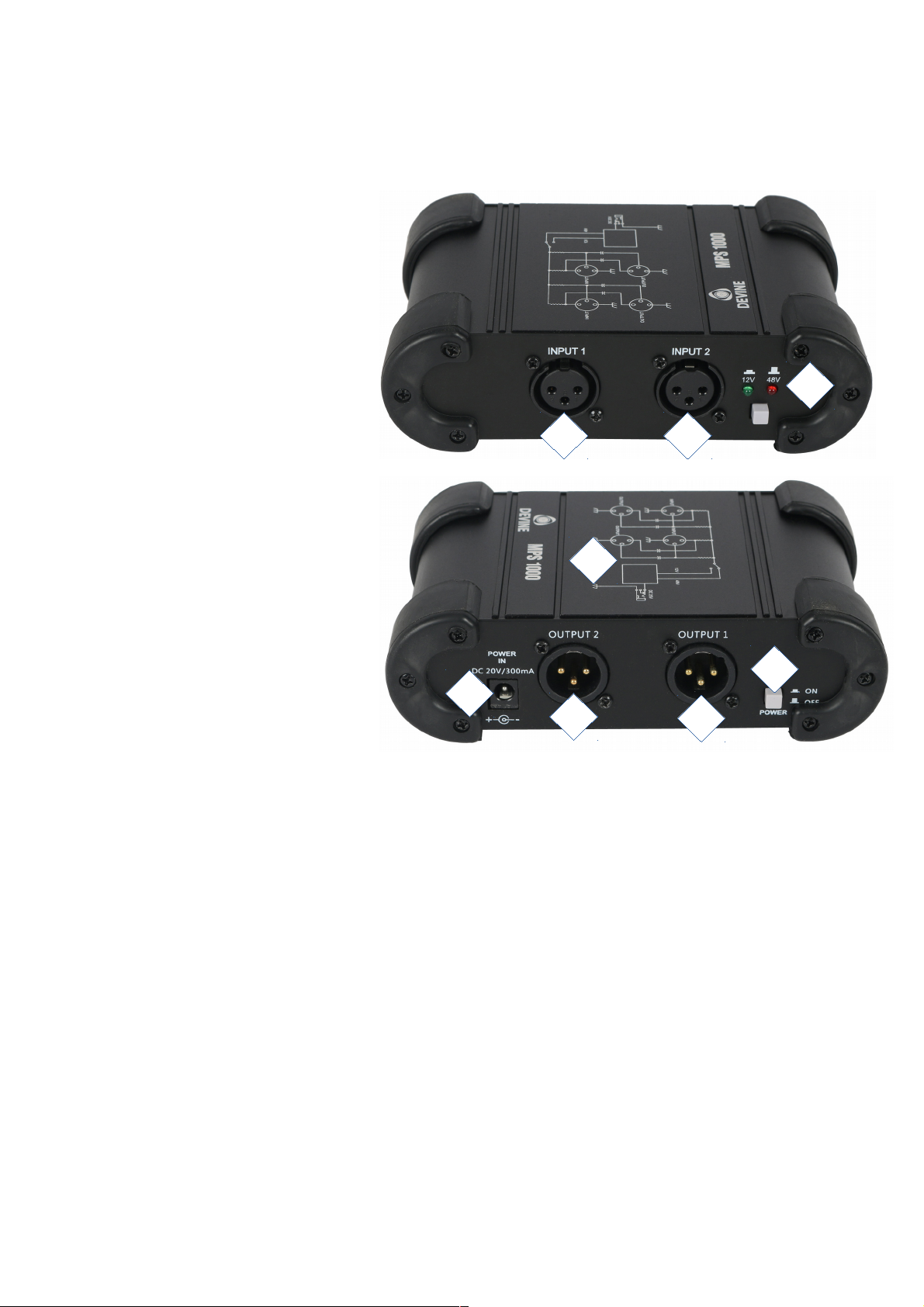

4
1 2
5
6
8
3
7
Guidelines and operation of this device
1. Phantom power input 1
2. Phantom power input 2
3. +12V or +48V DC
phantom power switch with LED indicator
4. circuit diagram
5. power adapter input
6. phantom power output 2
7. phantom power output 1
8. power switch (on/off)
Operating the device
The MPS 1000 is a compact phantom power supply for a ma imum of 2 audio sources. The MPS 1000 is
usually used in combination with microphones. This product is intended to supply a stable +12 V or +48 V of
power to microphones and similar devices that need it in order to function properly. Given that not every PA
mi er, audio interface or recorder is equipped with (sufficient) phantom power inputs, the MPS 1000 can
provide the perfect solution.
The MPS 1000 is the ideal solution for the following situations:
- The PA mi er, interface or recorder does not have (sufficient) phantom power.
- The PA mi er, interface or recorder can only provide a group of inputs with phantom power, and there are
one or more devices that could be damaged if phantom power is activated.
- The PA mi er, interface or recorder provides phantom power, but it is not powerful enough to deliver the full
48 volts.
- The PA mi er, interface or recorder only supplies 48 volts, and you would like to supply the device with 12
volts of power.
The MPS 1000 inputs are suitable for balanced signals, and the outputs are also balanced.
In most cases, a standard 3-pin XLR cable will be used to connect a microphone to one of the MPS 1000
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:26-01-2016 RV Date of revision and author's initials:28-07-2016 RV

inputs. Then, the microphone will be supplied with phantom power by the MPS 1000, and the balanced
microphone signal will be transmitted via the corresponding XLR output so that it can be transmitted to the
mi er, interface or recorder via the same type of 3-pin XLR cable.
The phantom power can be adjusted via a button on the front of the device, located to the right of the inputs.
You can easily see the currently selected voltage via the LED status indicators. You can choose between
+12V and +48V power. It is not possible to choose different phantom power voltage values per channel.
aution: Ensure that the voltage indicator is in the correct position before connecting a device. It is possible
that incorrect voltage could damage the inputs of the connected device.
The MPS 1000 is equipped with a switch to turn the device on and off. This device should be powered by the
included power adapter, which should be connected to the device and a suitable power socket.
Ensure that the power outlet can be reached at all times, so the power adapter can be removed from the
socket immediately in case of emergency. It is also possible to use a power switch system, which shuts off
the power supply to the power adapter quickly.
The robust metal housing ensures that the MPS 1000 can be used in rougher conditions, such as on stage.
Rubber corner protectors work to minimise damage to the device as much as possible, and they also make it
possible to stack multiple MPS products and save valuable floor or table space.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:26-01-2016 RV Date of revision and author's initials:28-07-2016 RV

Phantom power troubleshooting
Should you encounter problems with your phantom power supply unit, please consult this troubleshooting
section for possible solutions. If the suggestions below do not solve your problem, please contact your dealer
for assistance.
This troubleshooting section contains the most frequently occurring issues, and is not a complete list of all
possible errors, defects or solutions. This section contains subjects that are based on phantom power supply
units. As such, it may be that not all of the problems, causes or solutions listed are applicable to your
situation, because product details may differ.
Problem Possible ause Solution
The connected microphone does
not work (well)
Phantom power unit is not turned
on
Turn on the phantom power supply
unit via the on/off switch
Device is not being powered Check whether the power adapter
is plugged into an active power
socket and is securely plugged
into the power connector on the
unit.
Switch is in the wrong position You can check if the switch is in
the correct position by looking at
the LED status indicators ne t to
the device inputs.
Microphone cable is not properly
connected or is defective
Check if the signal cables are
properly connected to the source
unit, the phantom power unit, and
the target device. Try using a
different cable if the previous
solution does not work.
Input or output defective Try using a different input and
output as a test, or try connecting
a different phantom power unit, in
order to rule out the possibility that
the device is defective.
Mute function is active on the
mi er, interface or recorder
Check the input channel on the
mi er, interface or recorder
Microphone is defective Try connecting a different
microphone to rule out the
possibility that the problem is with
the microphone.
Channel input is defective Try using a different input channel
on the mi er, audio interface or
recorder.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:26-01-2016 RV Date of revision and author's initials:28-07-2016 RV

Specifications
- two-channel phantom power supply
- provides +12 V or +48 V of phantom power
- two inputs, two outputs
- separate channels, suited for 2 mono
- suitable for use with phantom powered microphones and other phantom powered products
- 3-pin XLR balanced inputs
- 3-pin XLR balanced outputs
- can be connected to PA mi ers, audio interfaces and recorders
- on/off switch
- powered via AC power adapter
- rugged metal housing
- rubber corner protectors
- space-saving stacking option
Technical details:
- dimensions: 160 110 50 mm
- power supply: 100-240 V AC, 50/60 Hz
- power consumption: 0,2 A
- operating voltage: 20 V DC, 300 mA
- DC connector: 5,5 mm 2,1 mm (centre negative)
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:26-01-2016 RV Date of revision and author's initials:28-07-2016 RV
