DEWALT®TOUGHSYSTEM™2.0 RADIO + CHARGER
The DEWALT®TOUGHSYSTEM™2.0 RADIO + CHARGER includes a built-in FM radio, Bluetooth®
support, 3.5mm AUX connector port to play audio/music from an external appliance, and an intuitive
application for remote controlling the system via a Bluetooth® - enabled smartphone or tablet. The
system includes charging capabilities for DEWALT®slide pack batteries.
The TOUGHSYSTEM™2.0 RADIO + CHARGER will charge most DEWALT®Li-ion batteries. Batteries
sold separately.
KEY FEATURES
• FM-stereo with manual/auto scanning and memory preset of stations
• Favorites – preset digital stations. 12 FM stations.
• Bluetooth® connectivity
• Dynamic Range control (DRC) - enables to switch between dedicated Indoor/Outdoor sound
settings with a push of a button
• 3.5mm Auxiliary input jack for connecting external audio devices
• USB power/charging port (5V/2.1A)
• Large Color LCD illuminated display
• Illuminated, soft-touch buttons
• Four mid-range speakers, a subwoofer and an assisted bass resonator for rich sound
performance
• Volume control and sound tone adjustment
• Heavy-duty design
• Compatible with both TOUGHSYSTEM™& TOUGHSYSTEM™2.0 portable storage systems
• Water and dust resistant – IP54 tested
• iOS and Android mobile app for complete remote control of the appliance.

5
EN
EN
TECHNICAL DATA
POWER SUPPLY UNIT (AC/DC POWER ADAPTOR)
Power input 100–120VAC 50-60 Hz (Class II)
Power output 24 VDC
Current output 2 A
Weight 0.73 lb. (0.33 kg)
APPLIANCE
Power input 24 VDC
Power output USB charge (5V/2.1A)
Networked standby mode
standby mode power consumption
< 3W
IP rating IP54*
Weight 14.5 lb. (6.57 kg) not including battery pack
Stacking weight (gross) 132 lb. (60 kg)
BATTERY PACK CHARGER
Battery packs voltage 12 VDC / 20 VDC (including XR®FLEXVOLT®
Battery Packs)
Battery type Lithium-ion Slider Packs 12V Max and 20V
Max**, FLEXVOLT®Battery Packs.
Approx. charging time 90–300 min
Charge current 1.5A
AUDIO CHARACTERISTICS
Audio source Bluetooth®, FM Radio, 3.5mm
Auxiliary input jack
Sound SPL 100 dB @ 1 m
Sound power 55 W (class D)
Operation time 8 hours (approx.) for a fully-charged Premium
5Ah 20V Max Lithium-ion battery pack
BLUETOOTH®CHARACTERISTICS
Operating Frequency 2402–2480 MHz
Transmit 4dBm max
*Help protect from work-site dust, debris and light rain
** indicating 18.2V when inserted into tool.

6
EN
EN
The denitions below describe the level of severity for each signal word. Please read the
manual and pay attention to these symbols.
Danger: Indicates an imminently hazardous situation which, if not avoided, will result
in death or serious injury.
Warning: Indicates a potentially hazardous situation which, if not avoided, could result
in death or serious injury.
Caution: Indicates a potentially hazardous situation which, if not avoided, may result
in minor or moderate injury!
Notice: Indicates a practice not related to personal injury which, if not avoided, may
result in property damage.
IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT THIS OR ANY DEWALT®TOOL,
CALL TOLL FREE AT: 1-800-DEWALT (1-800-433-9258)
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS,
DANGER – TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
CARFULLY FOLLOW THESE INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Pay attention and follow all warnings.
4. Follow all instructions.
5. DO NOT use this appliance near water.
6. This appliance shall not be exposed to direct water and no objects lled with liquids, such as
bottles, shall be placed on the appliance.
7. Clean only with a dry cloth.
8. Do not block any ventilation openings.
9. To protect the appliance from water or dust, always close the compartment cover, and the
rubber cover of the DC power input port.
10. Use in accordance with the manufacturer’s instructions.
11. DO NOT place near any naked ame sources, such as lighted candles, heat sources such as
radiators, heat registers, stoves or other apparatus (including ampliers) that produce heat.
12. Protect the power cord from being walked on or pinched particularly at plug and receptacle.
13. Only use attachments/accessories specied by the manufacturer.
14. When a cart is used, use caution when moving the cart/appliance combination to avoid
injury from tip-over. Use only with a cart, stand, tripod, bracket, or table specied by
the manufacturer, or sold with the apparatus.
15. The AC/DC power adaptor should only be used as the power source for the appliance and for
battery charging. To disconnect the appliance completely, the AC/DC power adaptor should
be disconnected from the outlet.
16. Unplug this appliance during lightning storms or when unused for long periods of time.
WARNING: Read all safety warnings and all instructions. Failure to follow the warnings
and instructions may result in electric shock, re and/or serious injury.
WARNING: To reduce the risk of injury, read the instruction manual entirely.
NOTE: Product WARNING labels are located on the bottom of the appliance.
DEFINITIONS: SAFETY GUIDELINES

7
EN
EN
17. The AC/DC power adaptor should be easily accessible and not obstructed while in use.
18. Refer all servicing to qualied service personnel. Servicing is required when the appliance
has been damaged in any way, such as power-supply cord or plug is damaged, liquid
or direct rain has reached the connectors, the appliance has been exposed to extensive
moisture, does not operate normally, or has been dropped and does not operate.
19. This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
20. Children should be supervised to ensure that they DO NOT play with the appliance.
21. Use only with specically designated DEWALT®battery packs (see Important Safety
Instructions for All Battery Packs below for DEWALT®-approved battery packs). Use of
any battery packs other than those approved by DEWALT may create a risk of injury and re.
22. For connection to supply not in the U.S.A., use an attachment plug adapter of the proper
conguration for the power outlet.
23. Additional Warnings symbols and Labels:
The lightning ash with arrow head within a triangle is intended to tell the user that parts
inside the product are a risk of electric shock to persons.
The exclamation point within a triangle is intended to tell the user that important
operating and servicing instructions are in the user manual supplied with the appliance.
The double insulation symbol (a square within a square) indicates a Class II electrical
appliance and is intended to alert qualied service personnel to use only identical
replacement parts in this appliance.
ISED Regulatory Compliance
This device contains licence-exempt transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
Operation is subject to the following two conditions:
I. This device may not cause interference.
II. This device must accept any interference, including interference that may cause
undesired operation of the device.
L’émetteur exempt de licence contenu dans le présent appareil est conforme aux
CNR d’Innovation, Sciences et Développement économique Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes :
I. L’appareil ne doit pas produire de brouillage;
II. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonctionnement.
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter. This equipment should be installed
and operated with minimum distance 20cm between the radiator and your body.
Cet équipement est conforme aux limites d'exposition aux radiations IC CNR-102
établies pour un environnement non contrôlé. Cet émetteur ne doit pas être situé
ou fonctionner conjointement avec une autre antenne ou un autre émetteur. Cet
équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le
radiateur et votre corps.
CAN ICES-3 (B)/NMB-3(B)
This appliance complies with the Federal Communications Commission regulations.
Warning: Modications not expressly approved by the manufacturer could void the
user authority to operate the equipment under FCC Rules.
24. Disconnect the battery pack from the appliance before making any adjustments,
changing accessories, or storing appliance. Such preventive safety measures reduce
the risk of starting the appliance accidentally.
25. When battery pack is not in use, keep it away from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal objects, that can make a connection from one
terminal to another. Shorting the battery terminals together may cause burns or a re.
26. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or burns.
27. WARNING: Radio may vibrate and move from its place. Avoid placing on high shelves to
prevent fall.
IC RSS247:
Issue 2:
February
2017
FCC

8
EN
EN
LIST OF STANDARDS
The DEWALT®TOUGHSYSTEM™2.0 RADIO + CHARGER complies with the following standards:
• ANSI/UL60065:2015 Ed.8
• CAN/CSA-C22.2 No. 60065:2016 Ed.2
• ANSI/UL1310 (6th Edition rev. December
12, 2014)
• CSA C22.2 No.223-M91 (Rev. September 2013)
• IC RSS-247 Issue 2, February 2017
• ICES-003, Issue 6: 2016
• UL 2595:2015 Ed.2
• FCC part 15 Certication: (ANSI C63.10
:2013)
• FCC ID: 2ANWFDWST08820
• IC: 23237-DWST08820
FCC
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1). This device may not cause harmful interference, and
(2). This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
3. This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment to an outlet on a circuit different from that to which the receiver
is connected.
•Consult the dealer or an experienced radio/TV technician for help.
RF Exposure Compliance
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator and your body. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Supplier's Declaration of Conformity
47 CFR § 2.1077 Compliance Information
Unique Identier Trade Name: DEWALT® TOUGHSYSTEM®, Model No.: DWST08820
Responsible Party – U.S. Contact Information
Stanley Black & Decker, Inc.
400 Executive Blvd S
Southington CT 06489 United States
WWW.DEWALT.COM
WARNING: To reduce the risk of re or electric shock, DO NOT expose this appliance to
direct rain or moisture. Use only in dry locations.
TOUGHSYSTEM™2.0

9
EN
EN
BATTERIES AND CHARGERS
The battery pack is not fully charged out of the carton. Before using the battery pack and charger,
read the safety instructions below and then follow charging procedures outlined.
When ordering replacement battery packs, be sure to include the catalog number and voltage.
The DEWALT®TOUGHSYSTEM™2.0 RADIO + CHARGE is to be used only with DEWALT®DCB
series 12VDC/20VDC Li-ion rechargeable battery packs, including DEWALT®XR®FLEXVOLT®
battery packs of up to 9Ah. Use of any other battery packs or any non-rechargeable batteries
may create a risk of injury or re.
Your radio is a DEWALT charger. Be sure to read all safety instructions before using your charger.
Recharge only with the TOUGHSYSTEM™2.0 RADIO integrated charger, or equivalent. A charger that
is suitable for one type of battery pack may create a risk of re when used with another battery pack.
READ ALL INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS FOR ALL BATTERY PACKS
WARNING: Read all safety warnings and all instructions for the battery pack, charger and
power tool. Failure to follow the warnings and instructions may result in electric shock, re
and/ or serious injury.
• Do not charge or use the battery pack in explosive atmospheres, such as in the
presence of ammable liquids, gases or dust. Inserting or removing the battery pack
from the charger may ignite the dust or fumes.
• NEVER force the battery pack into the charger. DO NOT modify the battery pack in any
way to t into a non-compatible charger as battery pack may rupture causing serious
personal injury.
• Charge the battery packs only in designated DEWALT®chargers.
• DO NOT splash or immerse in water or other liquids.
• Do not store or use the appliance and battery pack in locations where the temperature
may reach or exceed 104°F (40°C) (such as outside sheds or metal buildings in summer).
For best life store battery packs in a cool, dry location.
NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape
the trigger switch in the ON position.
• The AC/DC adaptor shall not be exposed to dripping or splashing, and no objects lled with
liquids, such as vases, shall be placed on apparatus.
WARNING: Fire hazard. Never attempt to open the battery pack for any reason.
If the battery pack case is cracked or damaged, do not insert into the charger. Do not crush,
drop or damage the battery pack. Do not use a battery pack or charger that has received
a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit
with a hammer, stepped on). Damaged battery packs should be returned to the service
center for recycling.
WARNING: To prevent electric shock, match the wide blade of the adaptor plug to the wide
slot of the outlet and fully insert.
LIST OF SYMBOLS
The labels on this appliance may include the following symbols:
V Volts
A Amperes
W Watts
h hours
Direct current
Hz Hertz
min minutes
Class II Construction
(double insulated)
ETL Testing
Laboratories symbol
Safety alert symbol
Read all
documentation

10
EN
EN
SPECIFIC SAFETY INSTRUCTIONS FOR LITHIUM ION (LI-ION)
• Do not incinerate the battery pack even if it is severely damaged or is completely worn
out. The battery pack can explode in a re. Toxic fumes and materials are created when
lithium ion battery packs are burned.
• If battery contents come into contact with the skin, immediately wash area with mild
soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15
minutes or until irritation ceases. Additionally, seek medical attention. The battery electrolyte
is composed of a mixture of liquid organic carbonates and lithium salts.
• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If
symptoms persist, seek medical attention.
• Do not expose a battery pack or appliance to re or excessive temperature. Exposure
to re or temperature above 266 °F (130 °C) may cause explosion.
WARNING: Burn hazard. Battery liquid may be ammable if exposed to spark or ame.
TRANSPORTATION
WARNING: Fire hazard. Do not store or carry the battery pack so that metal objects can
contact exposed battery terminals. For example, do not place the battery pack in
aprons, pockets, toolboxes, product kit boxes, drawers, etc., with loose nails, screws,
keys, etc. Transporting batteries can possibly cause res if the battery terminals
inadvertently come in contact with conductive materials such as keys, coins, hand tools and
the like. The US Department of Transportation Hazardous Material Regulations (HMR)
actually prohibits transporting batteries in commerce or on airplanes (e.g., packed in
suitcases and carry-on luggage) UNLESS they are properly protected from short circuits.
So, when transporting individual battery packs, make sure that the battery terminals are
protected and well insulated from materials that could contact them and cause a short circuit.
SHIPPING THE DEWALT®FLEXVOLT®BATTERY
The DEWALT®FLEXVOLT®battery has two modes: Use and Shipping.
• Use Mode: When the FLEXVOLT®battery stands alone or is in a DEWALT®20V Max* product,
it will operate as a 20V Max* battery. When the FLEXVOLT®battery is in a 60V Max** or a
120V Max* (two 60V Max** batteries) product, it will operate as a 60V Max** battery.
• Shipping Mode: When the cap is attached to the FLEXVOLT®battery, the battery is in
Shipping Mode. Strings of cells are electrically disconnected within the pack resulting in
three batteries with a lower watt hour (Wh) rating as compared to one battery with a higher
Watt hour rating. This increased quantity of three batteries with the lower watt hour rating
can exempt the pack from certain shipping regulations that are imposed upon the higher
Watt hour batteries. The battery label indicates two-Watt Hour Ratings (see example).
Depending on how the battery is shipped, the appropriate Whr rating must be used to
determine the applicable shipping requirements. If utilizing the shipping cap, the pack will
be considered 3batteries at the Whr indicated for “Shipping”. If shipping without the cap or in
a tool, the pack will be considered one battery at the Watt hour rating indicated next to “Use”.
* indicating 18.2V when inserted into tool.
** indicating 54V when inserted into tool.
Example of Use and Shipping Label Marking
For example, shipping Wh rating might indicate 3 x 40 Wh, meaning 3 batteries of 40-Watt hours
each. The Use Wh rating might indicate 120-Watt hour (1 battery implied).
USE: 120 Wh Shipping: 3 x 40 h

11
EN
EN
STORAGE RECOMMENDATIONS
.1The best storage place is one that is cool and dry, away from direct sunlight and excess
heat or cold.
2. For long-term storage, it is recommended to store a fully charged battery pack in a cool dry
place out of the charger for optimal results.
 Note: Battery packs should not be stored completely depleted of charge. The battery pack
will need to be recharged before use.
THE RBRC™ SEAL
The RBRC™ (Rechargeable Battery Recycling Corporation) seal on the nickel cadmium, nickel
metal hydride or lithium ion batteries (or battery packs) indicate that the costs to recycle these
batteries (or battery packs) at the end of their useful life have already been paid by DEWALT®.
In some areas, it is illegal to place spent nickel cadmium, nickel metal hydride or lithium ion
batteries in the trash or municipal solid waste stream, and the RBRC program provides an
environmentally conscious alternative.
RBRC™, in cooperation with DEWALT®and other battery users, has established programs in
the United States and Canada to facilitate the collection of spent nickel cadmium, nickel metal
hydride or lithium ion batteries. Help protect our environment and conserve natural resources by
returning the spent nickel cadmium, nickel metal hydride or lithium ion batteries to an authorized
DEWALT®service center or to your local retailer for recycling. You may also contact your local
recycling center for information on where to drop off the spent battery.
RBRC™ is a registered trademark of the Rechargeable Battery Recycling Corporation.
IMPORTANT SAFETY INSTRUCTIONS FOR ALL BATTERY CHARGERS
WARNING: Read all safety warnings and all instructions for the battery pack, charger and
power tool. Failure to follow the warnings and instructions may result in electric shock, fire
and/ or serious injury.
SAVE THESE INSTRUCTIONS: This manual contains important safety and operating instructions
for battery chargers.
• DO NOT attempt to charge the battery pack with any charger other than a compatible
DEWALT®charger. The charger and battery pack are specifically designed to work together.
• This charger is not intended for any uses other than charging designated DEWALT®
rechargeable batteries. Any other uses may result in risk of fire, electric shock or electrocution.
• Do not expose the charger to direct water source and DO NOT immerse in water.
• Pull by the plug rather than the cord when disconnecting the charger. This will reduce the
risk of damage to the electric plug and cord.
• Make sure that the cord is located so that it will not be stepped on, tripped over or
otherwise subjected to damage or stress.
• Do not use an extension cord unless it is absolutely necessary. Use of improper extension
cord could result in risk of fire, electric shock or electrocution.
• When operating a charger outdoors, always provide a dry location and use an extension cord
suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety.
The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge
has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting
in loss of power and overheating. When using more than one extension to make up the total
length, be sure each individual extension contains at least the minimum wire size. The following
table shows the correct size to use depending on cord length and nameplate ampere rating. If in
doubt, use the next heavier gauge. The lower the gauge number, the heavier the cord.

12
EN
EN
Volts Total Length of Card in Feet (meters)
120 V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7)
240 V 50 (15.2) 100 (30.5) 200 (61.0) 300 (91.4)
Ampere Rating
Amerian Wire Gauge
More
Than
Not
More
Than
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not Recommended
Minimum Gauge for Cord Sets
• Do not place any object on top of the charger. Place the charger in a position away from any
heat source.
• Do not operate the charger with a damaged cord or plug.
• Do not operate the charger if it has received a sharp blow, been dropped or otherwise
damaged in any way. Take it to an authorized service center.
• Do not disassemble the charger; take it to an authorized service center when
service or repair is required. Incorrect reassembly may result in a risk of electric shock,
electrocution or fire.
• Disconnect the charger from the outlet before attempting any cleaning. This will reduce
the risk of electric shock. Removing the battery pack will not reduce this risk.
• Disconnect the battery pack from the appliance before making any adjustments, changing
accessories, or storing appliance.
• NEVER attempt to connect 2chargers together.
• The charger is designed to operate on standard 240–100VAC household electric power.
Do not attempt to use it with any other voltage.
WARNING: Shock hazard. Do not allow any liquid to get inside the charger. Electric shock
may result.
WARNING: Burn hazard. Do not submerge the battery pack in any liquid or allow any liquid to
enter the battery pack. Never attempt to open the battery pack for any reason. If the plastic
housing of the battery pack breaks or cracks, return to a service center for recycling.
CAUTION: Burn hazard. To reduce the risk of injury, charge only DEWALT® rechargeable battery
packs. Other types of batteries may overheat and burst resulting in personal injury and property
damage.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type.

13
EN
EN
NOTICE: When battery pack is not in use, keep it away from other metal objects. Alternatively,
with the charger plugged into the power supply, the charger can be shorted or ignited by foreign
material. Foreign materials or metal objects of a conductive nature, such as, but not limited to,
grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be
kept away from the charger cavities at all times.
Always unplug the AC/DC power adaptor from the outlet and remove the battery pack from the
battery pack receptacle before attempting to clean the charger.
CHARGING
The DEWALT®TOUGHSYSTEM™2.0®RADIO + CHARGER can only charge DEWALT®DCB series
12V MAX/20V MAX Lithium-ion rechargeable battery packs, including DEWALT®XR®FLEXVOLT®
Battery packs up to 9Ah. Use of any other battery packs or any non-rechargeable batteries may
create a risk of injury or fire. Be sure to read all safety instructions before using this appliance for
charging your battery pack.
 Note: To ensure maximum performance and life of lithium-ion battery packs, charge the
battery pack fully before first use.
IMPORTANT CHARGING NOTES
.1Longest life and best performance can be obtained if the battery pack is charged when
room temperature is between 65F and 75F (18-24C). DO NOT charge the battery pack
below 40F (4.5C), or above 104F (40C). This is important and will prevent serious
damage to the battery pack.
.2The charger and battery pack may become warm to the touch while charging. This is a
normal condition and does not indicate a problem. To facilitate the cooling of the battery
pack after use, avoid placing the charger or battery pack in a warm environment such as in
a metal shed or an uninsulated trailer.
.3A cold battery pack will charge at about half the rate of a warm battery pack. The battery
pack will charge at that slower rate throughout the entire charging cycle and will not return
to maximum charge rate even if the battery pack warms.
.4If the battery pack does not charge properly:
a. Make sure power source is working by plugging a different appliance to the same source
b. Check to see if receptacle is connected to a light switch which turns power off when you
turn out the lights
c. Move the charger and battery pack to a location where the surrounding air temperature is
approximately 65–75F (18-24C)
d. If charging problems persist, take the battery pack and charger to your local service
center.
.5The battery pack should be recharged when it fails to produce sufcient power on jobs
which were easily done previously. DO NOT CONTINUE to use the pack under these
conditions. You may also charge a partially used pack with no adverse effect on the battery
pack.
.6Foreign materials of a conductive nature such as, but not limited to, grinding dust, metal
chips, steel wool, aluminum foil, or any buildup of metallic particles should be kept away
from charger cavities. Always unplug the charger from the power supply before attempting
to clean.
.7Do not freeze or immerse the charger in water or any other liquid.

14
EN
EN
CHARGING A BATTERY PACK
The DEWALT®TOUGHSYSTEM™2.0 RADIO + CHARGER includes a large storage compartment. This
compartment also stores and protects the AC/DC power adaptor when not in-use.
.1Open the compartment to take out the AC/DC power adaptor (see Figure 1and Figure 3).
.2Plug the charger AC/DC power adaptor into an appropriate outlet and connect it to the
DEWALT®TOUGHSYSTEM™2.0 RADIO + CHARGER power-in port before inserting the battery
pack. The Mains Adaptor indicator icon on the status bar display will turn white.
.3Open the compartment cover by releasing its locking latch.
.4Insert the battery pack (not included) into the radio, making sure the pack is securely held in the
receptacle (Figure 3). When the radio is on, the battery icon on the status bar display will blink
continuously, indicating that battery charging is in process. When the radio is off, the selection
dial LED will turn on, indicating that battery charging is in process.
The AC adaptor icon on the status bar display will turn white when connected. The battery icon on
the status bar display will light in accordance with battery charging status (Green, Yellow, Red).
Note: Close the cover and check it is tightly closed.
.5The charging completion will be indicated by a steady battery indicator icon on the status bar.
The pack is fully charged and may be used at this time or left in the charger.
.6When charging in stand-by mode the knob’s light will be ON to indicate a charging state.
HOT/COLD PACK DELAY
When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold
Pack Delay, suspending charging until the battery pack has reached an appropriate temperature.
The charger then automatically switches to the pack charging mode. This feature ensures maximum
battery pack life.
ELECTRONIC PROTECTION SYSTEM
Li-Ion tools are designed with an Electronic Protection System that will protect the battery pack
against overloading, overheating or deep discharge. The tool will automatically turn off if the
Electronic Protection System engages. If this occurs, place the lithium-ion battery pack on the
charger until it is fully charged.
STATUS BAR - LCD DISPLAY INDICATORS
Battery status
When the appliance is turned ON - A three-color icon indicates the battery pack status
Green Battery pack is fully charged
Yellow Battery pack is partially charged
Red Battery pack needs to be charged
Slow Blink & Mains
Adaptor icon is white Battery is charging
Blank icon No battery pack inside
Mains Adaptor icon
A two-color adaptor icon indicates Mains Adaptor status
White Mains Adaptor Connected
Grey Mains Adaptor is disconnected

15
EN
EN
When charging a battery pack, a large image is displayed in the center of the LCD screen showing
the battery pack charging status in the following scenarios:
Green Battery icon will be displayed ONLY when the unit is fully
charged
When the unit is powered by battery, the unit will display battery
empty icon for 3seconds and then turn off automatically
Hot/Cold Delay
This charger has a hot/cold delay feature: when the charger detects
a battery that is hot, the red thermostat icon is shown, and when
blue thermostat icon is shown, and it automatically starts a delay,
suspending charging until the battery has cooled/warmed. After the
battery has returned to its functional temperature range, the charger
automatically switches to the pack charging mode. This feature
ensures maximum battery life.
Faulty Battery Packs
This charger will not charge a faulty battery pack. The charger will
indicate faulty battery pack by displaying an X on the LCD battery
image. If this occurs, re-insert the battery pack into the charger. If
the problem persists, try a different battery pack to determine if the
charger is working properly. If the new pack charges correctly, then
the original pack is defective and should be returned to a service
center or other collection site for recycling. If the new battery pack
elicits the same trouble indication as the original, have the charger
and the battery pack tested at an authorized service center.
NOTE: This could also mean a problem with a charger.
WARNING: To reduce the risk of injury, turn the appliance off and disconnect it from the power
outlet when not in use and when making repairs. Do not attempt to disassemble the unit; take it
to an authorized service center when service or repair is required.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

16
EN
EN
APPLIANCE DESCRIPTION
Figure 1. Front View
.1Speakers (4x)
.2Carrying handle
.3Control panel
.4LCD Display Screen
.5Stacking latches (2x)
.6Compartment latch
.7Compartment cover
.8Touch buttons
.1Power-in port (24 VDC)
• To open the compartment, release the cover locking latch and open it.
• To reach the battery pack receptacle, open the compartment top cover.
• To close the compartment, push the cover down until it is locked in place.
 Note: When correctly closed, the compartment helps protect its contents from dust,
debris and light rain.
Figure 2. Rear View
6
8
7
5
5
1
1
23
4

17
EN
EN

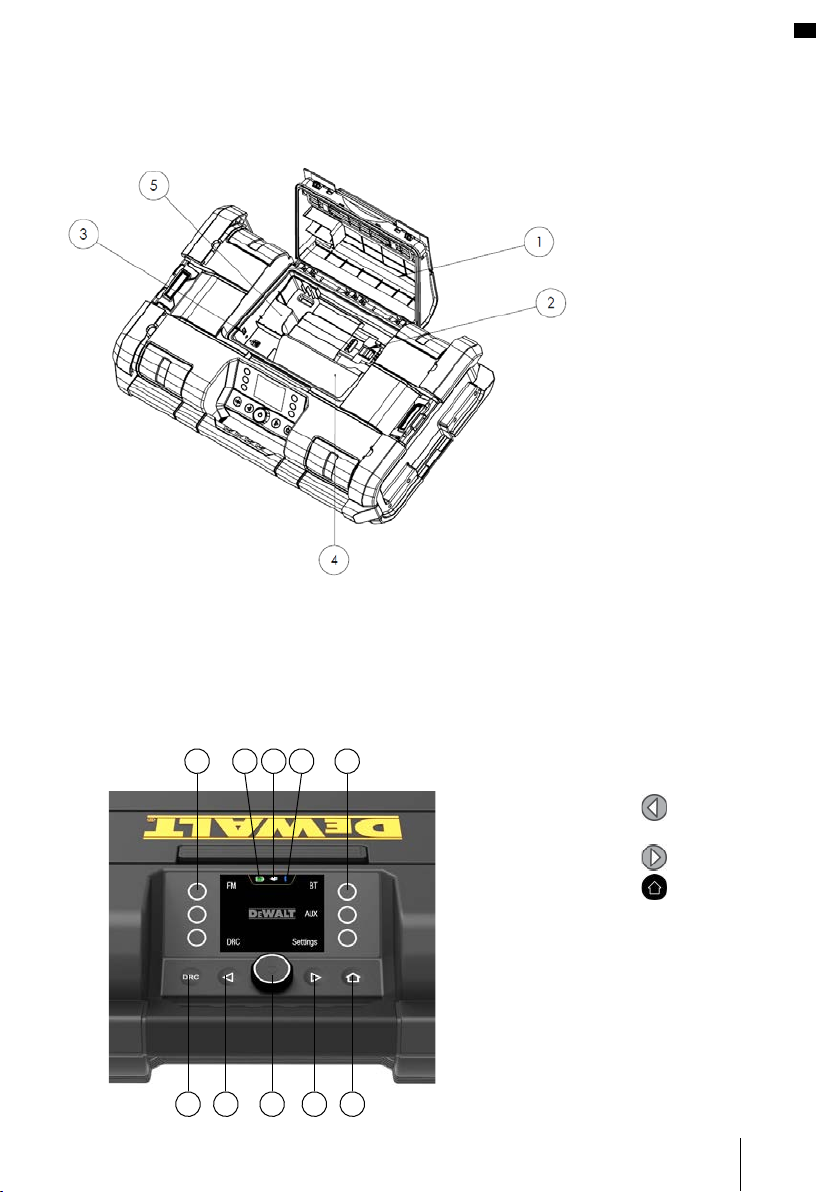

.1Compartment cover
.2Battery Receptacle
.3USB power/charging
port + Auxiliary jack
(3.5 mm)
.4Mobile phone storage
space
.5AC/DC power adaptor
compartment
.1DRC button
.2Left button
.3Selection dial
.4Right button
.5Home button
.6Touch buttons
.7Battery status indicator
(Status bar)
.8Main adaptor LED (Status bar)
.9Bluetooth®LED (Status bar)
Figure 4. Control Panel
Figure 3. Storage Compartment
1
6 67 8 9
2 3 4 5

18
EN
EN
OPERATION
The TOUGHSYSTEM™2.0 RADIO + CHARGER can be operated from the appliance itself or
controlled by a Bluetooth®-enabled mobile device (iOS or Android) using a dedicated application.
THE TOUGHSYSTEM™2.0 RADIO + CHARGER UNIT
The TOUGHSYSTEM™2.0 RADIO + CHARGER is equipped with flash memory for storing 12 FM
radio stations, and up to 6paired Bluetooth®devices.
 NOTE: The appliance will operate when connected to the AC/DC power adaptor and/or when
a charged battery pack is inserted.
 NOTE: When the TOUGHSYSTEM™2.0 RADIO + CHARGER is connected by the supplied power
cord to a wall outlet, it automatically charges the installed battery. When unplugged, the appliance will
automatically switch to operating off the battery and can run up to 8hours on a fully charged 5Ah
20V MAX Lithium-ion battery. Using batteries of lower voltage and amp hours will yield less run time.
This appliance can be operated in the vertical or horizontal position.
USER INTERFACE AND BUTTONS
The front panel includes an LCD screen with on-screen touch- buttons. Below the screen is a
selection dial button and four pushbuttons.
SELECTION DIAL AND PUSHBUTTONS
Selection Dial
(this button has multiple functions)
DRC button
Left button
Right button
Home button
ON SCREEN DISPLAY
The LCD screen, and the resistive touch-buttons on both sides, change function according to the
mode of operation. The various functions are explained in the mode sections below.
POWERING ON AND OFF
Press the Selection Dial to turn on the appliance. It starts up on the last selected audio source.
Press the Selection Dial for 3 seconds. The appliance turns off.
VOLUME ADJUSTMENT
Warning: Excessive sound level can damage hearing.
NOTE: The volume is set and saved separately for each of the audio source types.
Turn the Selection Dial clockwise to increase the volume. Turn it counterclockwise to reduce volume.
A volume bar is displayed showing the volume level.

19
EN
EN
HOME BUTTON
Press the Home button to display the home screen.
The home screen includes icons for selecting the audio source (FM/Bluetooth®/AUX), and for
accessing the Settings menu.
 NOTE: The screen automatically returns to the last playing mode screen after about 30
seconds of no activity.
SELECTING THE AUDIO SOURCE
Press the corresponding touch buttons to select the audio source (FM, Bluetooth®or AUX).
DRC BUTTON
The radio has a Dynamic Range Control feature (DRC) that enable switching between dedicated
sound settlings. Set the audio to match your environmental settings by pressing the DRC button
to switch between INDOOR mode to OUTDOOR mode.
You may also access the DRC menu through the HOME screen using the touch sensitive button
on the side.
LEFT AND RIGHT BUTTONS
When in FM audio source, pressing the Left or Right button moves between channels 1–6 and
7-12 and to the list of channels. They move between these screens rotationally.
For more information see the FM mode section.
FM MODE
The TOUGHSYSTEM™2.0® RADIO + CHARGER can be tuned to FM radio frequencies with the
option of saving up to twelve (12) FM preset stations (favorites). After setting and saving the
favorites, selecting a preset station instantly changes the frequency to the desired station. The
screen displays the station name and after two seconds, the station frequency.
To move between the rst six stations and the next six stations, push the Left or Right button.
Press any of the touch buttons to select one of the preset stations.
To see a list of the preset stations, press the Right button to the setting tab and rotate the
Selection Dial to scroll through the preset stations. Press the Selection Dial to select a specic
preset station.
FM RADIO
Setting the FM preset stations can be performed by Auto Scan or by Manual Scan. To select
the scan type:
1. Press the Home button and select FM as the audio source.
2. Press the Selection Dial to enter the FM settings screen.
3. Press the touch button to the left or right of the type of scan to perform.

20
EN
EN
Auto Seek:
.1Select Auto Scan. The stations are automatically scanned, until a station with strong and
clear reception is reached.
2. Once a desired station is reached, press and hold the touch button of the desired preset
number. A message Saved Preset # ashes, and the station number lights in yellow.
The station is stored in the displayed Favorites number (#).
3. Rotate the Selection Dial to scan to the next station.
a. Rotate clockwise to scan up the frequencies.
b. Rotate counterclockwise to scan down the frequencies.
4. Repeat steps 2 and 3 to set additional favorite stations.
Manual Seek:
.1Select Manual Scan.
.2Rotate the Selection Dial to search for the next station.
•Rotate clockwise to go up the frequencies.
•Rotate counterclockwise to go down the frequencies.
.3Once a desired station is reached, press and hold the touch button of the desired preset
number. A message Saved Preset # flashes, and the station number lights in yellow.
IMPORTANT RADIO NOTES
.1Reception will vary depending on location and strength of radio signal.
.2Playing the radio while connected to certain generators may cause background noise.
EXTERNAL DEVICES (BLUETOOTH®/AUX)
The TOUGHSYSTEM™2.0 RADIO + CHARGER can be used to play sound from an external
device through its built-in speakers via two connection options:
• Bluetooth®
• 3.5mm Auxiliary input jack
 NOTE: The compartment can also be used to store, protect and charge portable audio
devices, such as a smartphone or MP3 player. The USB power port can charge/power most
devices that have a USB connection (5V/2.1A).
BLUETOOTH®MODE
The TOUGHSYSTEM™2.0 RADIO + CHARGER can connect to Bluetooth®enabled audio
devices. The Bluetooth®mode can store up to 6 paired users.
Bluetooth®Status-Bar icon indications
An icon on the status bar on the LCD screen indicates the Bluetooth®status
Blue Bluetooth connected to Mobile device
Grey Not connected (light does not need to be on for connecting to the device)
