DeWalt DCST972 User manual

final page size: 8.5 x 5.5 in
If you have questions or comments, contact us.
Pour toute question ou tout commentaire, nous contacter.
Si tiene dudas o comentarios, contáctenos.
1-800-4-DeWALT
DCST972
60V Max* Attachment Capable Powerhead
60V Max* Moteur Compatible Avec Les Accessoires
Cabeza de Potencia con Capacidad de Conexión 60V Max*
Instruction Manual
Guide D’utilisation
Manual de instrucciones

1

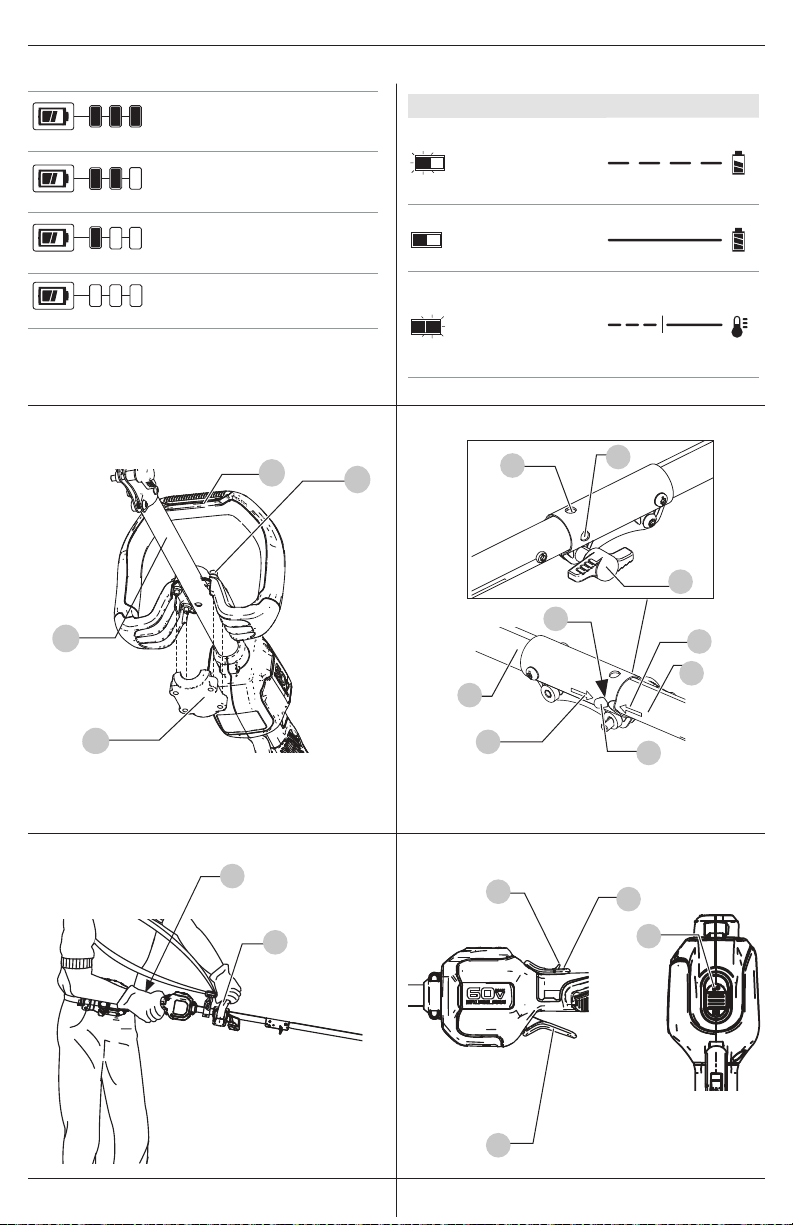

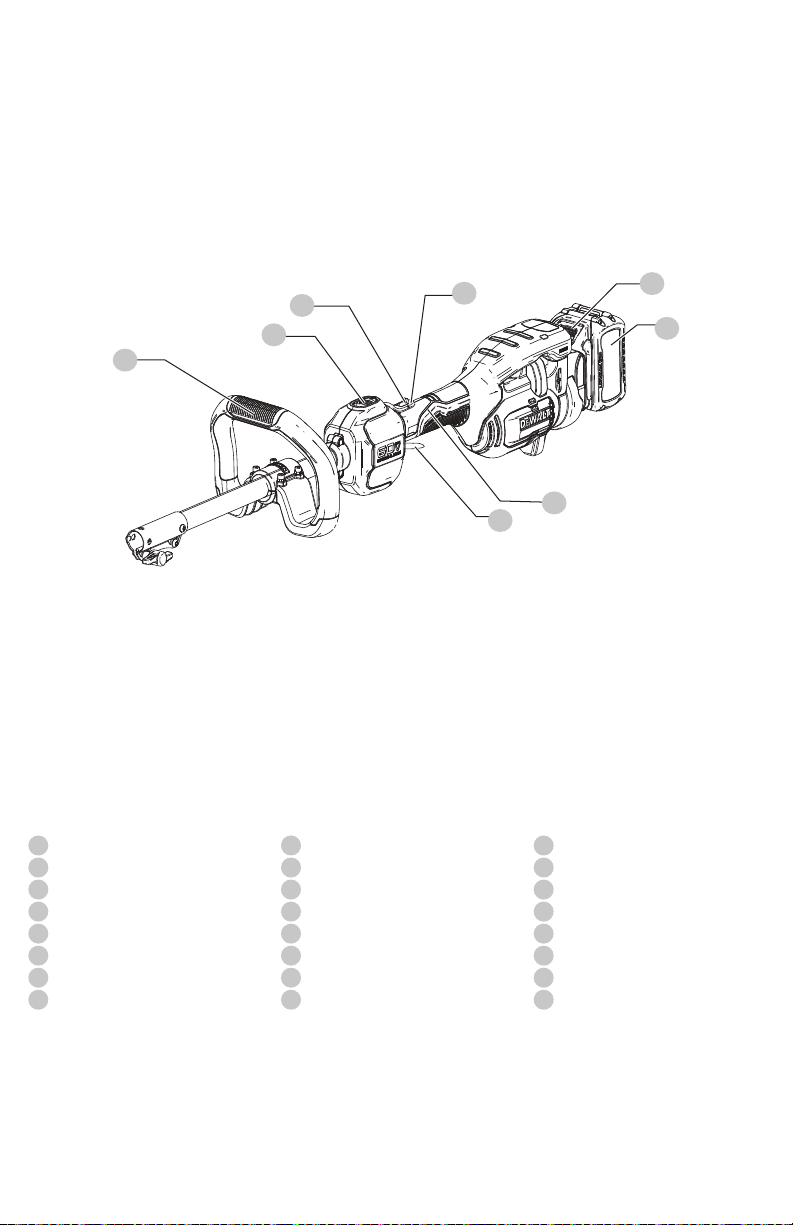

Fig. A DCST972
Components
1 Variable speed trigger
2 Lock-off lever
3 Lock-off tab
4 Powerhead handle
5 Speed control switch
6 Auxiliary handle
7 Battery
8 Battery release button
1
6
7
4
8
5
32
Composants
1 Gâchette de vitesse variable
2 Levier de verrouillage
3 Languette de verrouillage
4 Poignée du moteur
5 Bouton de réglage de la vitesse
6 Poignée auxiliaire
7 Pile
8 Bouton de libération de la pile
Componentes
1 Gatillo de velocidad variable
2 Palanca de bloqueo de apagado
3 Lengüeta de bloqueo de apagado
4 Manija de cabeza de potencia
5 Interruptor de control de velocidad
6 Manija auxiliar
7 Batería
8 Botón de liberación de batería

2
Fig.B Fig.C
Fig.D
Fig.F Fig.G
6
4
Fig. E
5
3
1
2
9
21
5
12
10
19
12
8
20
18
17
6
19
75–100% charged
Chargé de 75 à 100 %
75–100% cargada
51–74% charged
Chargé de 51 à 74 %
51–74% cargada
< 50% charged
Chargé de < 50 %
< 50% cargada
Pack needs to be charged
Le bloc-piles doit être rechargé
La batería tiene que cargarse
Indicators/Témoin/Indicador
Charging
Bloc-piles en Cours
de Chargement
Unidad en Proceso de Carga
Fully Charged
Bloc-piles Chargé
Unidad Cargada
Hot/Cold Pack Delay
Suspension de Charge Contre
le Chaud/Froid
Restraso por Unidad Caliente/
Fría

3
ENGLISH
1) Work Area Safety
a ) Keep work area clean and well lit. Cluttered or dark
areas inviteaccidents.
b ) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create
sparks which may ignite the dust orfumes.
c ) Keep children and bystanders away while
operating a power tool. Distractions can cause you
to losecontrol.
Electrical Safety
a ) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electricshock.
b ) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed orgrounded.
c ) Do not expose power tools to rain or wet
conditions. Water entering a power tool will increase
the risk of electricshock.
d ) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electricshock.
e ) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electricshock.
f ) If operating a power tool in a damp location
is unavoidable, use a ground fault circuit
interrupter (GFCI) protected supply. Use of a GFCI
reduces the risk of electricshock.
Personal Safety
a ) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools
may result in serious personalinjury.
b ) Use personal protective equipment. Always wear
eye protection. Protective equipment such as a dust
mask, non‑skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personalinjuries.
c ) Prevent unintentional starting. Ensure the switch
is in the off‑position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energizing power tools that have the switch
on invitesaccidents.
d ) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result
in personalinjury.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING: Read all safety warnings, instructions,
illustrations and specifications provided with
this power tool. Failure to follow all instructions
listed below may result in electric shock, fire and/or
seriousinjury.
SAVE ALL WARNINGS
AND INSTRUCTIONS FOR
FUTUREREFERENCE.
The term “power tool” in the warnings refers to your
mains‑operated (corded) power tool or battery‑operated
(cordless) powertool.
Definitions: Safety Alert Symbols andWords
This instruction manual uses the following safety alert
symbols and words to alert you to hazardous situations and
your risk of personal injury or propertydamage.
DANGER: Indicates an imminently hazardous
situation which, if not avoided, will result in death or
seriousinjury.
WARNING: Indicates a potentially hazardous situation
which, if not avoided, could result in death or
seriousinjury.
CAUTION: Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderateinjury.
(Used without word) Indicates a safety relatedmessage.
NOTICE: Indicates a practice not related to
personal injury which, if not avoided, may result in
propertydamage.
Intended Use
This powerhead has been designed for the purpose of
professional and residential lawn and garden maintenance. It
is recommended for use with DeWALT attachments. DO NOT
use this tool for any job other than its intended use.
DO NOT use this powerhead or any attachment for anything
other than its intended use described in this and the
attachmentsinstructions.
WARNING: This powerhead is only to be used with
DEWALT attachments. Use of attachments that are not
recommended for use may increase risk of injury.
WARNING: Read the entire instruction manual
for each optional attachment prior to using with
thispowerhead.
For a complete list of recommended attachments contact
customer service.
DO NOT use under wet conditions or in the presence of
flammable liquids orgases.
DO NOT let children come into contact with the tool. Supervision
is required when inexperienced operators use thistool.
English (original instructions)
WARNING: Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
seriousinjury.
WARNING: To reduce the risk of injury, read the
instructionmanual.

ENGLISH
4
Additional Safety Information
WARNING: Never modify the power tool or any part of
it. Damage or personal injury couldresult.
WARNING: ALWAYS use safety glasses. Everyday
eyeglasses are NOT safety glasses. Also use face or dust
mask if operation is dusty. ALWAYS WEAR CERTIFIED
SAFETYEQUIPMENT:
• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratoryprotection.
WARNING: Some dust contains chemicals known
to State of California to cause cancer, birth defects
or other reproductive harm. Some examples of these
chemicals are:
• compounds in fertilizers,
• compounds in insecticides, herbicides
andpesticides,
of battery pack may create a risk of fire when used with
another batterypack.
b ) Use power tools only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury andfire.
c ) When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects,
that can make a connection from one terminal to
another. Shorting the battery terminals together may
cause burns or afire.
d ) Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
orburns.
e ) Do not use a battery pack or tool that is damaged
or modified. Damaged or modified batteries may
exhibit unpredictable behavior resulting in fire,
explosion or risk ofinjury.
f ) Do not expose a battery pack or tool to
fire or excessive temperature. Exposure to
fire or temperature above 265°F (130°C) may
causeexplosion.
g ) Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specified in the instructions.
Charging improperly or at temperatures outside the
specified range may damage the battery and increase
the risk offire.
Service
a ) Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power tool
ismaintained.
b ) Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized serviceproviders.
e ) Do not overreach. Keep proper footing and
balance at all times. This enables better control of the
power tool in unexpectedsituations.
f ) Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewelry or long hair
can be caught in movingparts.
g ) If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. Use of dust
collection can reduce dust‑relatedhazards.
h ) Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause
severe injury within a fraction of asecond.
Power Tool Use and Care
a ) Do not force the power tool. Use the correct power
tool for your application. The correct power tool
will do the job better and safer at the rate for which it
wasdesigned.
b ) Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must
berepaired.
c ) Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting
the power toolaccidentally.
d ) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands of
untrainedusers.
e ) Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tool’s operation. If
damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained
powertools.
f ) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier tocontrol.
g ) Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking
into account the working conditions and the
work to be performed. Use of the power tool for
operations different from those intended could result in
a hazardoussituation.
h ) Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpectedsituations.
Battery Tool Use and Care
a ) Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type

5
ENGLISH
• Do not charge or use the battery pack in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Inserting or removing the battery
pack from the charger may ignite the dust orfumes.
• NEVER force the battery pack into the charger. DO
NOT modify the battery pack in any way to fit into a
non‑compatible charger as battery pack may rupture
causing serious personal injury. Consult the chart
at the end of this manual for compatibility of batteries
andchargers.
• Charge the battery packs only in DeWALTchargers.
• DO NOT splash or immerse in water or otherliquids.
• DO NOT allow water or any liquid to enter batterypack.
• Do not store or use the tool and battery pack in
locations where the temperature may reach or
exceed 104°F (40°C) (such as outside sheds or metal
buildings in summer). For best life store battery packs in
a cool, drylocation.
NOTE: Do not store the battery packs in a tool with
the trigger switch locked on. Never tape the trigger
switch in the ONposition.
• Do not incinerate the battery pack even if it is severely
damaged or is completely worn out. The battery pack
can explode in a fire. Toxic fumes and materials are created
when lithium‑ion battery packs areburned.
• Do not expose a battery pack or appliance to fire or
excessive temperature. Exposure to fire or temperature
above 265°F (130°C) may causeexplosion.
• Follow all charging instructions and do not charge the
battery pack or appliance outside of the temperature
range specified in the instructions. Charging improperly
or at temperatures outside of the specified range may
damage the battery and increase the risk offire.
• If battery contents come into contact with the skin,
immediately wash area with mild soap and water. If
battery liquid gets into the eye, rinse water over the open
eye for 15minutes or until irritation ceases. If medical
attention is needed, the battery electrolyte is composed of a
mixture of liquid organic carbonates and lithiumsalts.
• Contents of opened battery cells may cause
respiratory irritation. Provide fresh air. If symptoms
persist, seek medicalattention.
• Battery liquid may be flammable if exposed to spark
orflame.
• Never attempt to open the battery pack for any
reason. If the battery pack case is cracked or
damaged, do not insert into the charger. Do not crush,
drop or damage the battery pack. Do not use a battery pack
or charger that has received a sharp blow, been dropped,
run over or damaged in any way (e.g., pierced with a nail,
hit with a hammer, stepped on). Damaged battery packs
should be returned to the service center forrecycling.
Storage Recommendations
The best storage place is one that is cool and dry, away
from direct sunlight and excess heat or cold. Store the fully
charged battery pack out of thecharger.
READ ALL INSTRUCTIONS
Important Safety Instructions for All
Battery Packs
WARNING: Read all safety warnings, instructions,
and cautionary markings for the battery pack,
charger and product. Failure to follow the
warnings and instructions may result in electric
shock, fire and/or seriousinjury.
BATTERIES AND CHARGERS
The battery pack is not fully charged out of the carton.
Before using the battery pack and charger, read the
safety instructions below and then follow charging
proceduresoutlined. When ordering replacement battery
packs, be sure to include the catalog number andvoltage.
The label on your tool may include the following symbols. The
symbols and their definitions are asfollows:
BPM....................beats per minute
V.........................volts
min.....................minutes
jor DC............direct current
…/min.............. per minute
RPM....................revolutions per
minute
A.........................amperes
Hz .......................hertz
W........................watts
Wh...................... watt hours
no.......................no load speed
n.........................rated speed
c.....................safety alert symbol
h.....................wear respiratory
protection
f.....................wear eye protection
i.....................Class II Construction
(double insulated)
g.....................wear hearing
protection
a.....................read all
documentation
n.....................avoid staring at
light
lor AC............alternating current
Ah.......................amp hours
• arsenic and chromium from chemically
treatedlumber.
To reduce your exposure to these chemicals, wear
approved safety equipment such as dust masks that
are specially designed to filter out microscopicparticles.
WARNING: Use of this tool can generate and/or
disperse dust, which may cause serious and permanent
respiratory or other injury. Always use NIOSH/OSHA
approved respiratory protection appropriate for
the dust exposure. Direct particles away from face
andbody.
WARNING: Always wear proper personal hearing
protection that conforms to ANSI S12.6 (S3.19)
during use. Under some conditions and duration
of use, noise from this product may contribute to
hearingloss.
CAUTION: When not in use, place tool on its
side on a stable surface where it will not cause a
tripping or falling hazard. Some tools with a large
battery pack will stand upright but may be easily
knockedover.
• Air vents often cover moving parts and should be
avoided. Loose clothes, jewelry or long hair can be caught
in movingparts.

ENGLISH
6
Important Safety Instructions for All
Battery Chargers
WARNING: Read all safety warnings, instructions,
and cautionary markings for the battery pack,
charger and product. Failure to follow the
warnings and instructions may result in electric
shock, fire and/or seriousinjury.
• DO NOT attempt to charge the battery pack with
any chargers other than a DeWALT charger. DeWALT
chargers and battery packs are specifically designed to
worktogether.
• These chargers are not intended for any uses other
than charging DeWALT rechargeable battery packs.
Charging other types of battery packs may cause them to
overheat and burst, resulting in personal injury, property
damage, fire, electric shock orelectrocution.
• Do not expose the charger to rain orsnow.
• Do not allow water or any liquid to entercharger.
• Pull by the plug rather than the cord when
disconnecting the charger. This will reduce the risk of
damage to the electric plug andcord.
• Make sure that the cord is located so that it will not
be stepped on, tripped over or otherwise subjected to
damage orstress.
• Do not use an extension cord unless it is absolutely
necessary. Use of improper extension cord could result in
risk of fire, electric shock orelectrocution.
• When operating a charger outdoors, always provide
a dry location and use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electricshock.
• An extension cord must have adequate wire size
(AWG or American Wire Gauge) for safety. The smaller
the gauge number of the wire, the heavier the cord and
thus the greater its capacity. An undersized cord will
cause a drop in line voltage resulting in loss of power and
overheating. The following table shows the correct size
to use depending on total length of all extension cords
plugged together, and nameplate ampere rating. If in
doubt, use the next heaviergauge.
Minimum Gauge for Cord Sets
Volts Total Length of Cord in Feet
(meters)
120V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7)
Ampere Rating
American Wire Gauge
More Than Not More
Than
0 6 18 16 16 14
610 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not Recommended
• Do not place any object on top of the charger or place
the charger on a soft surface that might block the
ventilation slots and result in excessive internal heat.
Place the charger in a position away from any heat source.
The charger is ventilated through slots in the top and the
bottom of thehousing.
The RBRC® Seal
Please take your spent battery packs to
an authorized DeWALT service center or
to your local retailer for recycling. In some
areas, it is illegal to place spent battery
packs in the trash. You may also contact your local recycling
center for information on where to drop off the spent
battery pack. Do not place in curbside recycling. For more
information visit www.call2recycle.org. or call the toll free
number in the RBRC®Seal.
RBRC® is a registered trademark of Call 2Recycle,Inc.
Shipping the DeWALT FLEXVOLT™ Battery Pack
The DeWALT FLEXVOLT™ battery pack has a battery cap that
should be used when shipping the batterypack.
Attach the cap to the battery pack to ready it for shipping.
This converts the battery pack to three separate 20V
batteries. The three batteries have the Watt hour rating
labeled“Shipping”on the battery pack. If shipping without
the cap or in a tool, the pack is one battery at the Watt hour
rating labeled“Use”.
Example battery pack label:
USE: 120Wh SHIPPING: 3x 40Wh
In this example, the battery pack is three batteries with
40Watt hours each when using the cap. Otherwise, the
battery pack is one battery with 120Watthours.
Battery Pack Cleaning Instructions
Dirt and grease may be removed from the exterior of the
battery pack using a cloth or soft non-metallic brush. Do not
use water or any cleaningsolutions.
Fuel Gauge Battery Packs (Fig.B)
Some battery packs include a fuel gauge. When the
fuel gauge button is pressed and held, the LED lights
will indicate the approximate level of charge remaining.
This does not indicate tool functionality and is subject to
variation based on product components, temperature, and
end-userapplication.
Transportation
WARNING: Fire hazard. Do not store, carry, or
transport the battery pack so that metal objects
can contact exposed battery terminals. For
example, do not place the battery pack in aprons,
pockets, tool boxes, product kit boxes, drawers, etc.,
with loose nails, screws, keys, coins, hand tools, etc.
When transporting individual battery packs, make
sure that the battery terminals are protected and well
insulated from materials that could contact them and
cause a short circuit. NOTE: Li‑ion battery packs should
not be put in checked baggage on airplanes and must
be properly protected from short circuits if they are in
carry‑onbaggage.

7
ENGLISH
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start‑up can causeinjury.
Wall Mounting
Some DeWALT chargers are designed to be wall mountable
or to sit upright on a table or work surface. If wall mounting,
locate the charger within reach of an electrical outlet, and
away from a corner or other obstructions which may impede
air flow. Use the back of the charger as a template for the
location of the mounting screws on the wall. Mount the
charger securely using drywall screws (purchased separately)
at least 1”(25.4mm) long, with a screw head diameter of
0.28–0.35”(7–9mm), screwed into wood to an optimal
depth leaving approximately 7/32”(5.5 mm) of the screw
exposed. Align the slots on the back of the charger with the
exposed screws and fully engage them in theslots.
SAVE THESE INSTRUCTIONS FOR
FUTURE USE
Electronic Protection System
Li-Ion tools are designed with an Electronic Protection
System that will protect the battery pack against overloading,
overheating or deep discharge. The tool will automatically
turn off and the battery pack will need to berecharged.
Important Charging Notes
1. The charger and battery pack may become warm to the
touch while charging. This is a normal condition, and
does not indicate a problem.To facilitate the cooling of
the battery pack after use, avoid placing the charger or
battery pack in a warm environment such as in a metal
shed or an uninsulatedtrailer.
2. If the battery pack does not charge properly:
a. Check operation of receptacle by plugging in a lamp
or other appliance;
b. Check to see if receptacle is connected to a light
switch which turns power off when you turn out
the lights;
c. If charging problems persist, take the tool, battery
pack and charger to your local servicecenter.
3. You may charge a partially used pack whenever you
desire with no adverse effect on the batterypack.
Charger Cleaning Instructions
WARNING: Shock hazard. Disconnect the charger
from the AC outlet before cleaning. Dirt and grease
may be removed from the exterior of the charger using
a cloth or soft non‑metallic brush. Do not use water or
any cleaningsolutions.
• Do not operate the charger with a damaged cord
orplug. Have them replacedimmediately.
• Do not operate the charger if it has received a sharp
blow, been dropped or otherwise damaged in any
way. Take it to an authorized servicecenter.
• Do not disassemble the charger; take it to an
authorized service center when service or repair
is required. Incorrect reassembly may result in a risk of
electric shock, electrocution orfire.
• The charger is designed to operate on standard
120V household electrical power. Do not attempt to
use it on any other voltage. This does not apply to the
vehicularcharger.
• Foreign materials of a conductive nature, such as, but
not limited to, grinding dust, metal chips, steel wool,
aluminum foil or any buildup of metallic particles
should be kept away from the charger cavities and
ventilation slots.
• Always unplug the charger from the power supply
when there is no battery pack in thecavity.
Charging a Battery (Fig.C)
1. Plug the charger into an appropriate outlet.
2. Insert and fully seat battery pack. The red charging light
will continuously blink whilecharging.
3. Charging is complete when the red charging light
remains continuously ON. Battery pack can be left in
charger or removed. Some chargers require the battery
pack release button to be pressed forremoval.
WARNING: Only charge batteries in air temperature
over 40° F (4.5° C) and below 105° F (+40.5° C).
4. Charger will not charge a faulty battery pack, which
may be indicated by the light staying OFF. Take charger
and battery pack to an authorized service center if light
staysOFF.
NOTE: Refer to label near charging light on charger
for blinkpatterns. Older chargers may have additional
information and/or may not have a yellow indicatorlight.
Hot/Cold Pack Delay
When the charger detects a battery pack that is too hot
or too cold, it automatically starts a Hot/Cold Pack Delay,
suspending charging until the battery pack has reached an
appropriate temperature. The charger then automatically
switches to the pack charging mode. This feature ensures
maximum battery packlife.
A cold battery pack may charge at a slower rate than a warm
batterypack.
The hot/cold pack delay will be indicated by the red light
continuing to blink but with the yellow light continuously
ON. Once the battery pack has reached an appropriate
temperature, the yellow light will turn OFF and the charger
will resume the chargingprocedure.
DCB118 and DCB1112 Chargers
The DCB118 and DCB1112 chargers are equipped with
an internal fan designed to cool the battery pack. The fan
will turn on automatically when the battery pack needs to
becooled.

ENGLISH
8
WARNING: Hold the tool using only the designated
gripping surfaces: The powerhead handle and the
auxiliary handle.
WARNING: Do not use the pole as a gripping surface.
Proper hand position requires one hand on the powerhead
handle4 and one hand on the auxiliary handle6.
Proper Hand Position (Fig.J)
WARNING: To reduce the risk of serious personal injury,
ALWAYS use proper hand position asshown.
WARNING: To reduce the risk of serious personal
injury, ALWAYS hold securely in anticipation of a
suddenreaction.
Installing and Removing the Battery Pack
(Fig.E)
NOTE: For best results, make sure your battery pack is
fullycharged.
To install the battery pack7 into the tool handle, align the
battery pack with the rails inside the tool’s handle and slide it
into the handle until the battery pack is firmly seated in the
tool and ensure that it does notdisengage.
To remove the battery pack from the tool, press the release
button8 and firmly pull the battery pack out of the tool
handle. Insert it into the charger as described in the charger
section of thismanual.
OPERATION
WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start‑up can causeinjury.
WARNING: Read the entire instruction manual for
each optional attachment prior to using with this
powerhead.
Assembling the Attachment to the
Powerhead (Fig.B)
1. The upper powerhead pole7 is equipped with three
latching holes8,9,10 for the latching button21.
2. When installing the attachment pole5into the upper
powerhead pole7, align the latching button21 with
the correct latching hole8. See specific attachment
instructions for details.
NOTE: To properly engage the latching button21 with
the latching hole8, slightly rotate the powerhead
pole7 and move it axially until the latching button
engages the latching hole.
3. Turn the knob20to secure theattachment.
4. See the attachment instructions for properly
assembledattachment.
Powerhead (Fig. B)
WARNING: To reduce risk of injury:
• Before any use, be sure everyone using this product
reads and understands all safety instructions and
other information contained in the powerhead and
attachmentmanuals.
• Never apply power without an attachment being
properly mounted to thepowerhead.
WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start‑up can causeinjury.
The powerhead can separate from the attachment by
turning the knob20 counterclockwise, depressing the
latching button21 and gently pulling them apart by their
poles1,19.
This should only be done with the power switch off and the
battery pack removed. Inside the upper powerhead pole19
is a mechanical coupling that will spin if the powerhead
is turned on. This coupling can cause injury if contacted
while the powerhead isoperating. The arrows12 must
align for proper assembly of most attachments. See specific
attachment instructions for details.
NOTE: Ensure the attachment is fully engaged and the
knob is fully tightened before operating. Check for proper
engagement and tightness during use.
Attachments
WARNING: This powerhead is only to be used with
DEWALT attachments. Use of attachments that are not
recommended for use may increase risk of injury.
WARNING: Read the entire instruction manual
for each optional attachment prior to using with
thispowerhead.
This powerhead has been designed for the purpose of
residential lawn and garden maintenance. It is recommended
for use with DeWALT attachments.
DO NOT use this powerhead or any attachment for anything
other than its intended use described in this and the
attachmentsinstructions.
For a complete list of recommended attachments contact
customer service.
Attaching the Auxiliary Handle (Fig. A, C)
1. Place the auxiliary handle6 on top of the handle
base17 so the upper powerhead pole19 is
betweenthem.
2. Hold the auxiliary handle in place and slide the handle
bolts18 and washers into the handle from the top,
threading them into the handlebase.
3. Tighten the handle bolts with the supplied hex wrench.
Ensure the handle is securelyattached.
4. Repeat for the other side of the auxiliaryhandle.

9
ENGLISH
Register Online
Thank you for your purchase. Register your product nowfor:
• WARRANTY SERVICE: Registering your product will
help you obtain more efficient warranty service in case
there is a problem with yourproduct.
• CONFIRMATION OF OWNERSHIP: In case of
an insurance loss, such as fire, flood or theft, your
registration of ownership will serve as your proof
ofpurchase.
• FOR YOUR SAFETY: Registering your product will
allow us to contact you in the unlikely event a safety
notification is required under the Federal Consumer
SafetyAct.
• Register online at www.dewalt.com
Repairs
The charger and battery pack are notserviceable. There are
no serviceable parts inside the charger or batterypack.
WARNING: To assure product SAFETY and RELIABILITY,
repairs, maintenance and adjustment (including brush
inspection and replacement, when applicable) should
be performed by a DeWALT factory service center or a
DeWALT authorized service center. Always use identical
replacementparts.
Accessories
WARNING: Since accessories, other than those offered
by DeWALT, have not been tested with this product, use
of such accessories with this tool could be hazardous.
To reduce the risk of injury, only DeWALT recommended
accessories should be used with thisproduct.
Recommended accessories for use with your tool are available
at extra cost from your local dealer or authorized service
center. If you need assistance in locating any accessory, please
contact DeWALT call 1-800-4-DeWALT (1-800-433-9258) or
visit our website: www.dewalt.com.
Cleaning
WARNING: Blow dirt and dust out of all air vents with
clean, dry air at least once a week. To minimize the risk
of eye injury, always wear ANSI Z87.1approved eye
protection when performingthisprocedure.
WARNING: Never use solvents or other harsh
chemicals for cleaning the non‑metallic parts of the
tool. These chemicals may weaken the plastic materials
used in these parts. Use a cloth dampened only with
water and mild soap. Never let any liquid get inside the
tool; never immerse any part of the tool into aliquid.
MAINTENANCE
WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start‑up can causeinjury.
Switching On and Off (Fig. A, G)
1. To turn the appliance on, push the lock-off tab 3
forward, squeeze the lock-off lever 2 and then the
variable speed trigger switch1.
2. To turn the appliance off, release the variable speed
trigger switch and lock-off lever.
WARNING: Never attempt to lock the trigger in the
onposition.
Speed Control Switch (Fig. A, G)
This powerhead gives you the choice to operate at a more
efficient speed to extend the runtime for larger jobs, or
accelerate the tool speed for high-performance needs.
1. To extend runtime, pull the speed control switch back
toward the battery housing into the "LO" position. This
mode is best for larger projects that require more time
tocomplete.
2. For high-performance, push the speed control
switchforward toward the auxillary handle into the "HI"
position. This mode is best to for applications that need
higherRPM.
NOTE: When in "HI" mode, runtime will be decreased as
compared to when trimmer is in "LO"mode.

ENGLISH
10
Three Year Limited Warranty
DeWALT will repair or replace, without charge, any defects
due to faulty materials or workmanship for three years
from the date of purchase (two years for batteries). This
warranty does not cover part failure due to normal wear
or tool abuse. For further detail of warranty coverage and
warranty repair information, visit www.dewalt.com or
call 1-800-4-DeWALT (1-800-433-9258). This warranty does
not apply to accessories or damage caused where repairs
have been made or attempted by others. THIS LIMITED
WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING
THE IMPLIED WARRANTY OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDES ALL
INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do
not allow limitations on how long an implied warranty lasts
or the exclusion or limitation of incidental or consequential
damages, so these limitations may not apply to you. This
warranty gives you specific legal rights and you may have
other rights which vary in certain states orprovinces.
In addition to the warranty DeWALT tools are covered byour:
2 YEARS FREE SERVICE
DeWALT will maintain the tool and replace worn parts caused
by normal use, for free, any time during the first two years
afterpurchase.
2 YEARS FREE SERVICE ON DeWALT BATTERYPACKS
DC9071, DC9091, DC9096, DC9182, DC9280, DC9360,
DCB120, DCB122, DCB124, DCB127, DCB201, DCB203BT,
DCB207,DCB361
3 YEARS FREE SERVICE ON DeWALT BATTERYPACKS
DCB200, DCB203, DCB204, DCB204BT, DCB205, DCB205BT,
DCB206, DCB208, DCB230, DCB240, DCB606, DCB609,
DCB612
NOTE: Battery warranty voided if the battery pack is
tampered with in any way. DeWALT is not responsible for any
injury caused by tampering and may prosecute warranty
fraud to the fullest extent permitted bylaw.
90 DAY MONEY BACK GUARANTEE
If you are not completely satisfied with the performance of
your DeWALT Power Tool or Nailer for any reason, you can
return it within 90 days from the date of purchase with a
receipt for a full refund – no questionsasked.
LATIN AMERICA: This warranty does not apply to products
sold in Latin America. For products sold in Latin America,
see country specific warranty information contained in
the packaging, call the local company or see website for
warrantyinformation.
FREE WARNING LABEL REPLACEMENT: If your warning
labels become illegible or are missing, call 1-800-4-DeWALT
(1-800-433-9258) for a freereplacement.
