Dewetron DEWE2-M13 Product manual

TECHNICAL
REFERENCE
MANUAL
DEWE2-M13
WELCOME TO
THE WORLD OF
DEWETRON!
Congratulations on your new device! It
will supply you with accurate, complete
and reproducible measurement results
for your decision making.
Look forward to the easy handling and
the flexible and modular use of your
DEWETRON product and draw upon
more than 25 years of DEWETRON
expertise in measurement engineering.
ISO9001
EN ISO 14001
COMPETENTMODULAR APPROVEDCUSTOMIZED COMMITTED

Copyright © DEWETRON GmbH
This document contains informaon which is protected by copyright. All rights are reserved. Reproducon,
adaptaon, or translaon without prior wrien permission is prohibited, except as allowed under the copyright
laws.
All trademarks and registered trademarks are acknowledged to be the property of their owners.
DEWESo™ is a trademark of Deweso d.o.o

3
DE-M120607E • DEWE2-M13 • Technical Reference Manual • Printing version 1.0.1 • May 05, 2015
Preface
Thank you!
Thank you very much for your investment in DEWETRON's unique data acquisition systems. These are
top-quality instruments which are designed to provide you years of reliable service. This guide has been
prepared to help you get the most from your investment, starting from the day you take it out of the box, and
extending for years into the future.
This guide includes important startup notes, as well as safety notes and information about keeping your
DEWETRON system in good working condition over time.
We strongly suggest that you read this entire manual, especially the safety and care sections, as well as to
avoid damaging your DEWETRON system.
What is the DEWE2-M13?
This product is used for measuring of different physical and/or electrical sizes (depending on model or
conguration). The connection is depending on model or conguration and is done via safety banana
plugs, BNC connectors, D-SUB connectors, SMB connectors, µdot connectors, LEMO®connectors or RJ-45
connectors.

4
Preface
Notes

5
DE-M120607E • DEWE2-M13 • Technical Reference Manual • Printing version 1.0.1 • May 05, 2015
Table of content
Content
General Information, Safety Instructions 7
Training ……………………………………………………………………………………… 7
Calibration…………………………………………………………………………………… 7
Support ……………………………………………………………………………………… 7
Service/repairs ……………………………………………………………………………… 7
Warranty Information ……………………………………………………………………… 8
Printing History……………………………………………………………………………… 8
Safety conventions ………………………………………………………………………… 9
General safety and hazard warnings for all DEWETRON systems ………………… 10
Maintenance………………………………………………………………………………… 13
Windows updates and antivirus/security software ……………………………………… 14
Problematic network stacks ……………………………………………………………… 14
Environmental Considerations …………………………………………………………… 14

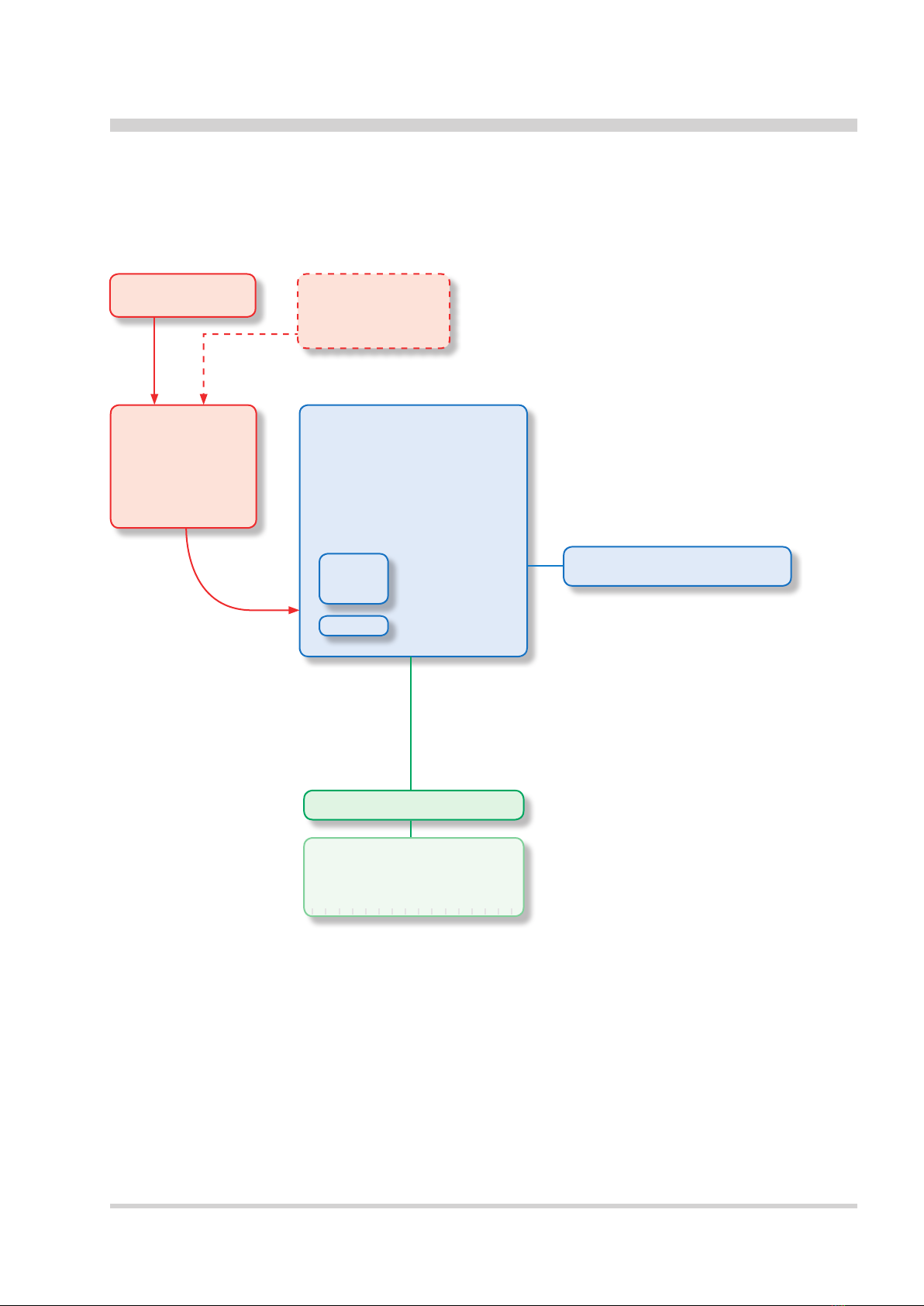

Blockdiagram of the internal signal processing ………………………………………… 15
First steps …………………………………………………………………………………… 16
Main System 17

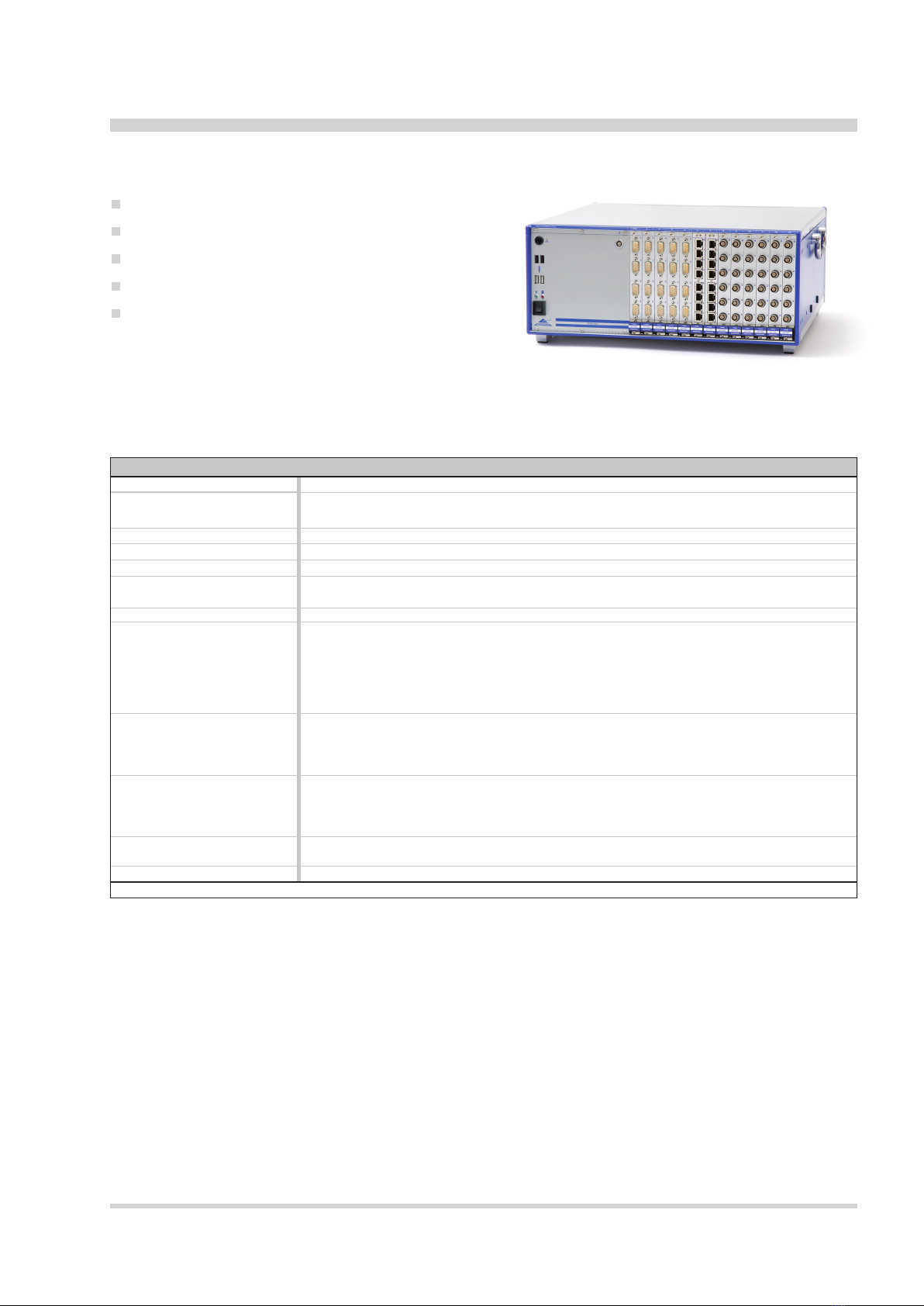

DEWE2-M13 portable data acquisition mainframe …………………………………… 17
System specications ……………………………………………………………………… 17
DEWE2-M13 at a glance ………………………………………………………………… 18

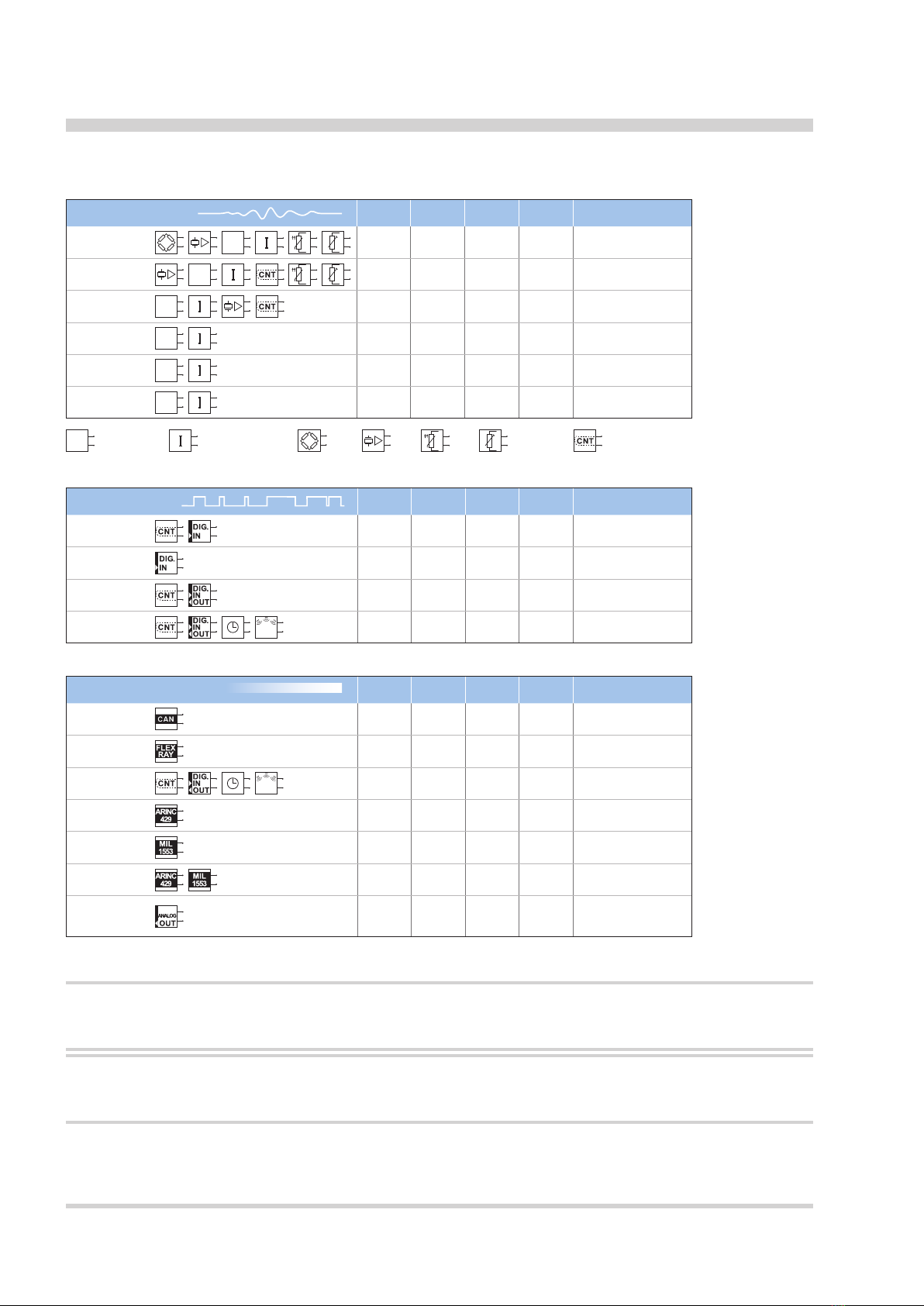

TRION™ series modules overview ……………………………………………………… 20
Installing a TRION™ module in the chassis …………………………………………… 21
Power supply ……………………………………………………………………………… 22
Maintenance………………………………………………………………………………… 23
System recovery …………………………………………………………………………… 23
Synchronization of DEWE2 25
Synchronization of multiple DEWE2 devices …………………………………………… 25
1.0 Installation of DEWESoft and TRION™ hardware drivers ………………………… 25
1.2 DEWESoft hardware settings ………………………………………………………… 29
2.0 Overview of DEWE2 chassis ………………………………………………………… 30
2.1 Denition of a Standalone unit ……………………………………………………… 31
2.2 Denition of a Main system …………………………………………………………… 32
2.3 Denition of SyncIn/Out & AUX ……………………………………………………… 33
2.4 Synchronization options in DEWESoft™ (part I) …………………………………… 34
2.5 Channel expansion (up to 7 meters cable length) ………………………………… 35

6
Table of content
2.6 Sync with option „NET“ (up to 1000 meters cable length) ………………………… 37
2.7 Dening a Master / Slave unit………………………………………………………… 40
2.8 Synchronization of DEWE2 devices with ORION-DAQ series boards…………… 42
2.9 Synchronization options in DEWESoft™ (part II) ………………………………… 43
CE-Certicate of conformity C1

7
Training
DEWETRON offers training at various ofces around the world several times each year. DEWETRON
headquaters in Austria have a very large and professional conference and seminar center, where training
classes are conducted on a regular basis starting with sensors and signal conditioning, A/D technology and
software operation. For more information about training services, please visit:
http://www.dewetron.com/services/dewetron-academy/
Dewetron Inc. in the USA also has a dedicated training facility connected to its headquarters, located in
Rhode Island. For more information about training services in the US, please visit:
http://www.dewetron.us/service-support/system-training-usa/
Calibration
Every instrument needs to be calibrated at regular intervals. The standard norm across nearly every industry
is annual calibration. Before your DEWETRON data acquisition system is delivered, it is calibrated at our
DEWETRON headquater. Each of this system is delivered with a certicate of compliance with our published
specications. Detailed calibration reports from our calibration system are available for purchase with each
order. We retain them for at least one year, so calibration reports can be purchased for up to one year after
your system was delivered.
Support
DEWETRON has a team of people ready to assist you if you have any questions or any technical difculties
regarding the system. For any support please contact your local distributor rst or DEWETRON directly.
For Asia and Europe, please contact: For the Americas, please contact:
DEWETRON GmbH DEWETRON, Inc. (HQ USA)
Parkring 4 2850 South County Trail, Unit 1
8074 Grambach East Greenwich, RI 02818
AUSTRIA U.S.A.
Tel.: [phone] Tel.: [phone]
Fax: [phone] Toll-free: [phone]
Email: [email protected] Fax: [phone]
Web: http://www.dewetron.com Email: [email protected]
Web: http://www.dewetron.us
The telephone hotline is available The telephone hotline is available
Monday to Friday between Monday to Friday between
08:00 and 17:00 CET (GMT +1:00) 08:00 and 4:30 EST
Service/repairs
Only the team of DEWETRON is allowed to perform any kinds of repairs to your system to assure a safe and
proper operation in future. For information regarding service and repairs please contact your local distributor
rst or DEWETRON directly.
Any spare parts (screws, backplanes, cables,...) must be obtained from DEWETRON only.
Services
General Information, Safety Instructions
!
DE-M120607E • DEWE2-M13 • Technical Reference Manual • Printing version 1.0.1 • May 05, 2015

8
The information contained in this document is subject to change without notice.
DEWETRON GmbH (DEWETRON) shall not be liable for any errors contained in this document.
DEWETRON MAKES NO WARRANTIES OF ANY KIND WITH REGARD TO THIS DOCUMENT, WHETHER
EXPRESS OR IMPLIED. DEWETRON SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. DEWETRON shall not be liable for
any direct, indirect, special, incidental, or consequential damages, whether based on contract, tort, or any
other legal theory, in connection with the furnishing of this document or the use of the information in this
document.
Warranty Information
A copy of the specic warranty terms applicable to your DEWETRON product and replacement parts can be
obtained from your local sales and service ofce.
Restricted Rights Legend
Use austrian law for duplication or disclosure.
DEWETRON GmbH
Parkring 4
8074 Grambach / Austria
TRION™ is a trademark of DEWETRON GmbH.
DEWESoft ™ is a trademark of DEWESoft d.o.o.
Any other trademarks and registered trademarks are acknowledged to be the property of their owners.
Printing History
Please refer to the page bottom for printing version.
Copyright © DEWETRON GmbH
This document contains information which is protected by copyright. All rights are reserved. Reproduction,
adaptation, or translation without prior written permission is prohibited, except as allowed under the
copyright laws.
Notice

9
DE-M120607E • DEWE2-M13 • Technical Reference Manual • Printing version 1.0.1 • May 05, 2015
Safety conventions
Observe precautions for handling electrostatic sensitive devices!
!
This icon denotes a caution, which advises you of precautions to take to avoid injury, data
loss, or a system crash. When this symbol is marked on the product, refer to the technical
reference manual.
Indicates hazardous voltages.

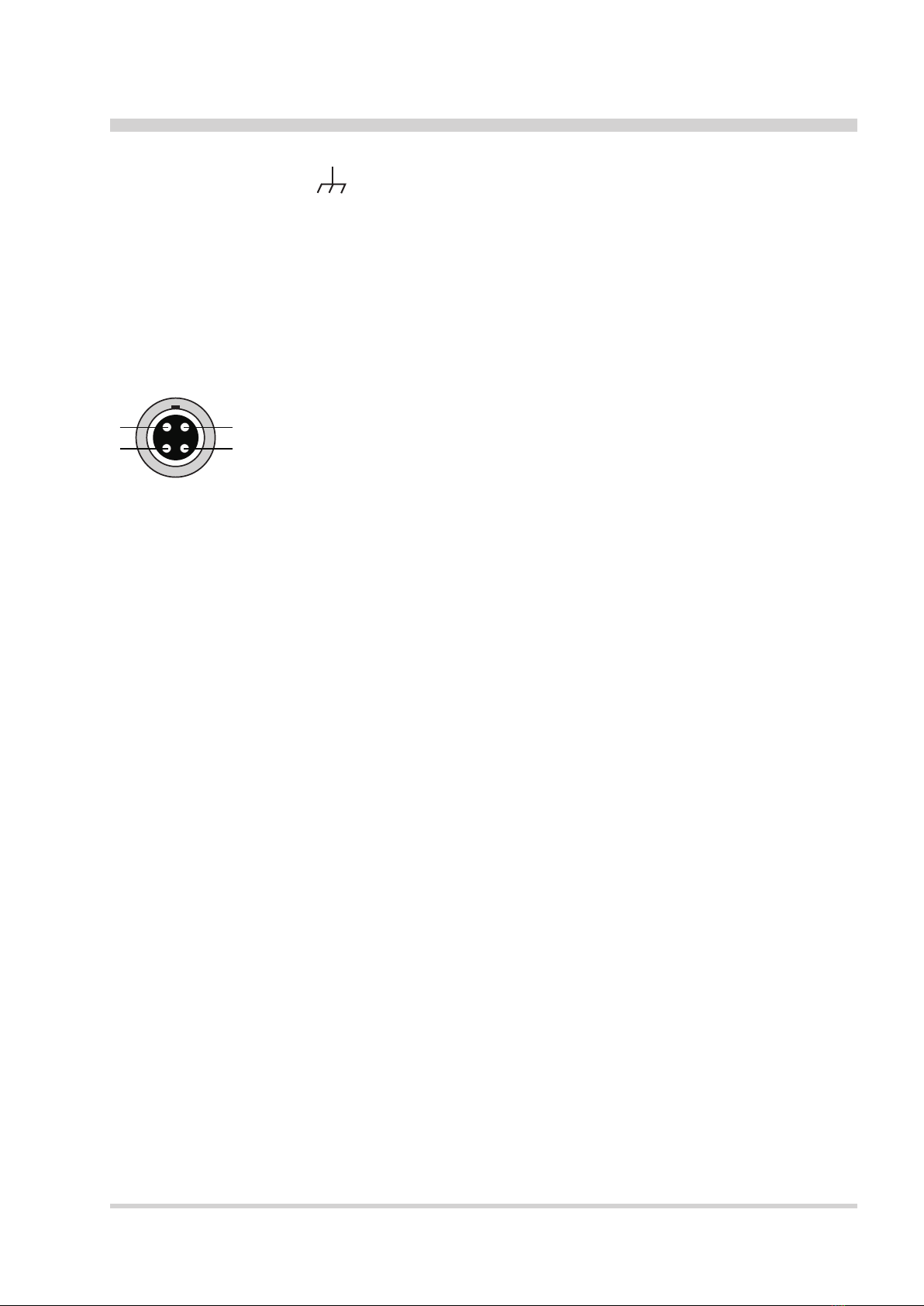

Indicates the chassis terminal
WARNING Calls attention to a procedure, practice, or condition that could cause bodily
injury or death.
CAUTION Calls attention to a procedure, practice, or condition that could possibly cause
damage to equipment or permanent loss of data.
WARNINGS
The following general safety precautions must be observed during all phases of operation, service, and
repair of this product. Failure to comply with these precautions or with specic warnings elsewhere in this
manual violates safety standards of design, manufacture, and intended use of the product. DEWETRON
Elektronische Messgeraete Ges.m.b.H. assumes no liability for the customer’s failure to comply with these
requirements.
Safety conventions

10
Safety instructions
Your safety is our primary concern! Please be safe!
Use this system under the terms of the specications only to avoid any possible danger. If the unit is used
in a manner not specied by the manufacturer the protection can be impaired!
Ths product is intended for use in industrial locations. As a result, this product may cause interference
if used in residential areas. Such use must be avoided unless the user takes special measures to reduce
electromagnetic emissions to prevent interferences to the reception of radio and television broadcasts.
Maintenance will be executed by qualied staff only.
During the use of the system, it might be possible to access another parts of a more comprehensive
system. Please read and follow the safety instructions provided in the manuals of all other components
regarding warning and security advices for using the system.
With this product, only use the power cable delivered or dened for the host country.
DO NOT connect or disconnect sensors, probes or test leads, as these parts are connected to a voltage
supply unit.
The system is grounded via a protective conductor in the power supply cord. To avoid electric shocks,
the protective conductor has to be connected with the ground of the power network. Before connecting
the input or output connectors of the system, make sure that there is a proper grounding to guarantee
potential free usage. For countries, in which there is no proper grounding, please refere to your local
legally safety regulations for safety use.
DC systems: Every DC system has a grounding connected to the chassis (yellow/green safety banana
plug).
Please note the characteristics and indicators on the system to avoid re or electric shocks. Before
connecting the system, please carefully read the corresponding specications in the product manual.
The inputs are not, unless otherwise noted (CATx identication), for connecting to the main circuits of
category II, III and IV. The measurement category can be adjusted depending on module conguration.
The power cord or the main power switch separates the system from the power supply. Do not block the
power cord or main switch, since it has to be accessible for the users.
Supply overvoltage category is II.
DO NOT use the system if equipment covers or shields are removed.
If you assume the system is damaged, get it examined by authorised personnel only.
Any use in wet rooms, outdoors or in adverse environmental condition is not allowed!
Adverse environmental conditions are:
Moisture or high humidity
Dust, ammable gases, fumes or dissolver
Thunderstorm or thunderstorm conditions (except assembly PNA)
Electrostatic elds, et cetera.
Any direct voltage output is protected with a fuse against short cut and reverse-polarity, but is NOT
galvanically isolated (except it is explicit marked on the system).
The system must be connected and operated to an earthed wall socket at the AC mains power supply
only (except for DC systems).
Any other use than described above may damage your system and is attended with dangers like shortcut,
re or electric shocks.
The whole system must not be changed, rebuilt or opened (except for changing TRION™ modules).
!
General safety and hazard warnings for all DEWETRON systems

11
DE-M120607E • DEWE2-M13 • Technical Reference Manual • Printing version 1.0.1 • May 05, 2015
Reinstall ller panels of unused TRION™ slots to guarantee proper cooling of the installed modules.
Warranty void if the modules overheat due to missing ller panels.
If you assume a more riskless use is not provided anymore, the system has to be rendered inoperative
and should be protected against inadvertent operation. It is assumed that a more riskless operation is not
possible anymore, if
the system is damaged obviously or causes strange noises.
the system does not work anymore.
the system has been exposed to long storage in adverse environmental.
the system has been exposed to heavy shipment strain.
DO NOT touch any exposed connectors or components if they are live wired. The use of metal bare wires
is not allowed. There is a risk of short cut and re hazard!
Warranty void if damages caused by disregarding this manual. For consequential damages NO liability
will be assumed!
Warranty void if damages to property or persons caused by improper use or disregarding the safety
instructions.
Unauthorized changing or rebuilding the system is prohibited due to safety and permission reasons (CE).
Exception: changing TRION™ modules.
The assembly of the system is equivalent to protection class I. For power supply, only the correct power
socket of the public power supply must be used, except the system is DC powered.
Be careful with voltages >25 VAC or >35 VDC! These voltages are already high enough in order to get a
perilous electric shock by touching the wiring.
Maximum input voltage for measuring cards are 70 VDC and 46.7 VPEAK
The product heats during operation. Make sure there is adequate ventilation. Ventilation slots must not
covered!
Only fuses of the specied type and nominal current may be used. The use of patched fuses is
prohibited.
Prevent using metal bare wires! Risk of short cut and re hazard!
DO NOT use the system before, during or shortly after a thunderstorm (risk of lightning and high energy
overvoltage). An advanced range of application under certain conditions is allowed with therefore
designed products only. For details please refer to the specications.
Make sure that your hands, shoes, clothes, the oor, the system or measuring leads, integrated curcuits
and so on, are dry.
DO NOT use the system in rooms with ammable gases, fumes or dust or in adverse environmental
conditions.
Avoid operation in the immediate vicinity of:
high magnetic or electromagnetic elds
transmitting antennas or high-frequency generators
For exact values please refere to enclosed specications.
Use measurement leads or measurement accessories aligned to the specication of the system only. Fire
hazard in case of overload!
Do not switch on the system after transporting it from a cold into a warm room and vice versa. The
thereby created condensation may damage your system. Acclimatise the system unpowered to room
temperature.
Do not disassemble the system! There is a high risk of getting a perilous electric shock. Capacitors still
might charged, even the system has been removed from the power supply.
Safety instructions

12
Direct exposure of any DEWETRON product to strong sunlight or other heat radiation shall be prevented,
as this could excessively heat up the product and lead to permanent damage of the product.
The electrical installations and equipments in industrial facilities must be observed by the security
regulations and insurance institutions.
The use of the measuring system in schools and other training facilities must be observerd by skilled
personnel.
The measuring systems are not designed for use at humans and animals.
Please contact a professional if you have doubts about the method of operation, safety or the connection
of the system.
Please be careful with the product. Shocks, hits and dropping it from already lower level may damage
your system. For exact values please refere to enclosed specications.
Please also consider the detailed technical reference manual as well as the security advices of the
connected systems.
This product has left the factory in safety-related awless and proper condition.
In order to maintain this condition and guarantee safety use, the user has to consider the security advices
and warnings in this manual.
EN 61326-3-1:2008
IEC 61326-1 applies to this part of IEC 61326 but is limited to systems and equipment for industrial
applications intended to perform safety functions as dened in IEC 61508 with SIL 1-3.
The electromagnetic environments encompassed by this product family standard are industrial, both
indoor and outdoor, as described for industrial locations in IEC 61000-6-2 or dened in 3.7 of IEC 61326-1.
Equipment and systems intended for use in other electromagnetic environments, for example, in the process
industry or in environments with potentially explosive atmospheres, are excluded from the scope of this
product family standard, IEC 61326-3-1.
Devices and systems according to IEC 61508 or IEC 61511 which are considered as “operationally well-
tried”, are excluded from the scope of IEC 61326-3-1.
Fire-alarm and safety-alarm systems, intended for protection of buildings, are excluded from the scope of
IEC 61326-3-1.
For safety reasons max. 50 V may be applied to the BNC input-connectors!
Refer to the regulation of maximum allowable touch potential.
Safety instructions

13
DE-M120607E • DEWE2-M13 • Technical Reference Manual • Printing version 1.0.1 • May 05, 2015
Maintenance
Maintenance
The information in this section is designed for use by qualied service personal.
Service interval:
Clean dust from the chassis exterior/interior and exchange lter foam based on the operating environment.
Cleaning:
Clean surface of the chassis with dry lind-free cloth.
Use a dry velocity stream of air to clean the chassis interior.
- Disconnect all cables before servicing the unit!
- Many components within the chassis are sensitive to static discharge damage. Always wear a
ground wrist strap and service the unit only in static-free environment.
- Do not use harsh chemical cleaning agents!
!

14
General information
CAUTION
The system BIOS is protected by password. Any change in the BIOS may cause a system crash.
When the system is booting, do not press ESC-button on keyboard. This may clear the BIOS settings
and cause system faults.
Any change in the le structure as deleting or adding les or directories might cause a system crash.
Before installing software updates contact DEWETRON or your local distributor. Use only software
packages which are released by DEWETRON. Further informations are also available in the internet
(http://www.dewetron.com).
After power off the system wait at least 10 seconds before switching the system on again. Otherwise
the system may not boot correct. This prolongs also the life of all system components.
Windows updates and antivirus/security software
Before installing Windows software updates consult with DEWETRON for compatibility guidance. Please
also keep in mind that the use of any antivirus or other security software may slow down your system and
may cause data loss.
Problematic network stacks
Often intrusive IT software or network processes can interfere with the primary function of the DEWETRON
system: to record data. Therefore we recommend strongly against the installation of IT/MIS software
and running their processes on any DEWETRON data acquisition system, and cannot guarantee the
performance of our systems if they are so congured.
Environmental Considerations
Information about the environmental impact of the product.
Product End-of-Life Handling
Observe the following guidelines when recycling a DEWETRON system:
System and Components Recycling
Production of these components required the extraction and use of natural resources. The
substances contained in the system could be harmful to your health and to the environment if the system
is improperly handled at it's end of life! Please recycle this product in an appropriate way to avoid an
unnecessary pollution of the environment and to keep natural resources.
This symbol indicates that this system complies with the European Union’s requirements according to
Directive 2002/96/EC on waste electrical and electronic equipment (WEEE). Please nd further information
about recycling on the DEWETRON website
www.dewetron.com
Restriction of Hazardous Substances
This product has been classied as Monitoring and Control equipment, and is outside the scope of the
2011/65/EU RoHS Directive. This product is known to contain lead.

15
DE-M120607E • DEWE2-M13 • Technical Reference Manual • Printing version 1.0.1 • May 05, 2015
Signal processing
Motherboard/CPU-board
Power supply
AC/DC input Optional buffer
battery
RAM
CPU
USB, FireWire, Ethernet
interfaces
Blockdiagram of the internal signal processing
TRION™-Motherboard
TRION™-Modules
PCI express

16
12
34
First steps
All accessories shown in this document are available as option
and will not be shipped as standard parts. These parts are described as "option".
First steps
Power-on your system.
Connect your sensors to the
system.
Run DEWESoft usually
via "Start" >"Programs" >
"Dewetron" > "DEWESoft x.x"
> "DEWESoft x.x"
Start recording your data!

17
DE-M120607E • DEWE2-M13 • Technical Reference Manual • Printing version 1.0.1 • May 05, 2015
Main System
System specications
DEWE2-M13 portable data acquisition mainframe
13 slots for TRION™ acquisition modules
Up to 104 analog inputs
One internal hard disk and 2 bays for removable disks
19” rack-mountable or benchtop use
Internal PCI slots available
Main System
DEWE2-M13
Data acquisition: 13 slots for TRION™ acquisition modules
Rated input voltage:
option DW2-PS-AC-RED:
100 to 240 VAC (max. 90 to 264 VAC), 400 W AC power supply
100 to 240 VAC (max. 90 to 264 VAC) redundant 450 W AC power supply
Typical power consumption: 320 W
Operating temperature: 0 °C to +50 °C, down to -20 °C with prewarmed unit
Storage temperature: -20 °C to +70 °C
Humidity (operating): 10 % to 80 %, non condensing
5 % to 95 % rel. humidity
Altitude: up to 2000 m
Sine vibration test1):
EN 60068-2-6
Shape Sine
Frequency range 10 - 150 Hz
Acceleration 20 m/s²
Sweep rate 1 oct./min.
Duration 20 Cycles
Test in 3 directions
Random vibration test1):
EN 60721-3-2
Class 2M2
Shape Random
Frequency range 10 - 200 Hz
Spectral acceleration density 1 m²/s³
Duration 30 Minutes/direction
Shocktests1):
EN 60068-2-27
Shape Half-sine
Acceleration amplitude 15 g
Duration 11 ms
3 pumps each direction, 6 directions in total
Dimensions (W x H x D):
(with 19“ mounting kit):
without feet: 441 x 427 x 177 mm (17.4 x 16.8 x 7 in.)
5U required (4U = unit + 1U = cooling)
Weight w/o TRION™ modules: typ. 13 kg (28.6 lbs)
1) Tested with SSD

18
2
2
440,814
427,3
17715
18 387
65
150110167
21752773421
1 4
3
6 7
5
910 1182
2
Main System
DEWE2-M13 at a glance
Typical DEWE2-M13 front view
Typical DEWE2-M13 rear view
Note: The amount and location of the connectors might vary from system to system and depends on
system conguration
Dimensions*
* Dimensions in mm
(1 inch = 25.4 mm)
1 Chassis terminal
2 USB interface connectors
3 Power-on switch
4 EPAD connector
5 TRION™ series module slots
6 Power supply input connector
7 Main power switch
8 GBit ethernet LAN connectors
9 Display port connectors
10 DVI interface connector
11 Audio interface

19
DE-M120607E • DEWE2-M13 • Technical Reference Manual • Printing version 1.0.1 • May 05, 2015
Main System
1 Chassis terminal
For some kind of measurements, it’s necessary to provide the system with an additional ground connection.
2 USB2.0 interface connectors (Universal Serial Bus)
The USB2.0 interface connectors meet standard USB pin assignment.
3 Power-on switch
The power-on switch is used to switch on the system. It only works if the main power switch (7) is on.
4 EPAD connector (LEMO)
To connect DEWETRON EPAD modules to the system.
1
2
4
3
Lemo EGG.1B.304
Pin assignment
1: RS-485 A
2: RS-485 B
3: +12 V
4: GND
Shield is connected on housing
Mating connector: LEMO FGG.1B.304.CLAD52Z (for cable diameter 4.1 to 5.0 mm)
LEMO FGG.1B.304.CLAD62Z (for cable diameter 5.1 to 6.0 mm)
5 TRION™ series module slots
Slots for TRION™ series modules. For more information about the various modules see chapter
"TRION™ series modules overview".
6 Power supply input connector
For details see chapter power supply.
7 Main power switch
The main power switch has to be used to switch on the system.
8 GBit ethernet LAN connector
The DEWE2-M13 system supports 10/100/1000 BaseT Ethernet with standard RJ45 connector.
9 Display ports
The display ports offer the possibility to connect a display to the system and meet standard pin assignment.
10 DVI connector
The DVI connector offers the possibility to connect a displays to the system and meets standard pin
assignment.
11 Audio Device
Audio interface connectors (Line In/Out, Microphone)
Removable drive bay (option DW2-M13-BAY35-SATA)
The DEWE2-M13 is designed to operate with up to two exchangeable harddisks via a 3.5" SATA removable
drive bay for 2.5" harddisk or 2.5" ash disk. The ordering option DW2-M13-BAY35-SATA includes
no harddisk or ashdisk and has to be ordered separately.

20
Main System
TRION™ series modules overview
ANALOG Modules Channels Sample rate
per channel Resolution Isolation Connector Type
TRION-2402-dSTG 6 to 8 204.8 kS/s 24 bit no RJ-45, DSUB, LEMO 1B
TRION-2402-dACC 6 to 8 204.8 kS/s 24 bit no SMB, BNC
TRION-1620-ACC 62 MS/s
1 MS/s
16 bit
24 bit yes BNC
TRION-1620-LV 62 MS/s
1 MS/s
16 bit
24 bit yes BNC
TRION-2402-V 4 or 8 204.8 kS/s 24 bit yes Safety banana sockets
TRION-1603-LV 6 250 kS/s 16 bit yes BNC
DEDICATED Modules Channels Sample rate
per channel Resolution Isolation Connector Type
TRION-CAN 2 or 4 n/a n/a yes DSUB
TRION-FLEXRAY 1 n/a n/a - DSUB
TRION-VGPS 1 CNT
8 DIO 2 MS/s 0.01 km/h < 10 cm -GPS antenna, IRIG In / Out, DIO, CNT, SYNC, AUX
TRION-A429 4, 8, 16 or 30 - n/a - SCSI-3
TRION-M1553 1,2 or 4 - n/a - SCSI-3
TRION-MA4 9, 10, 12
or 13 - n/a - SCSI-3
TRION-1628-AO-2
Update rate
max. 2.8
MS/s
2 16 bit - BNC
00101001010001
DIGITAL Modules Channels Sample rate
per channel Resolution Isolation Connector Type
TRION-CNT 6 to 18 800 kS/s 80 MHz yes DI, CNT
TRION-DI-48 48 2 MS/s 80 MHz yes DI
TRION-BASE 1 to 8 2 MS/s 80 MHz - DI, DIO, CNT, SYNC, AUX
TRION-TIMING 1 to 8 2 MS/s 80 MHz - GPS antenna, IRIG In / Out,
DIO, CNT, SYNC, AUX
GPS
V
1000
V
100
V
100
V
10
Bridge
V
1000
Voltage (1000 V) Current (shunt needed) IEPE SuperCounter™ inputsRTD Potentiometer
V
100
V
100
GPS
NOTE: The TRION-TIMING module has to be installed in the STAR-slot for TRION™ modules. Further
information regarding the STAR-slot for TRION™ modules refer to TRION™ series modules technical
reference manual.
NOTE: Some dedicated modules (TRION-A429, TRION-M1553, TRION-MA4) require additional
-12 VDC voltage which is not supported with DC powered DEWE2 instruments by default. Please ask
your local dealer or factory for more information.
