Dexin NDS3208 User manual

NDS3208 8 in 1 MPEG-2 Encoder
User’s Manual
NMS Version: 1.12.5
SW: 2.07
HW: 1.3
CHENGDU DEXIN DIGITAL TECHNOLOGY CO., LTD

DIRECTORY
Chapter 1 Product Introduction.............................................................................................................1
1.1 Outline................................................................................................................................................1
1.2 Main Features................................................................................................................................... 1
1.3 Principle Chart...................................................................................................................................1
1.4 Specifications.................................................................................................................................... 2
1.5 Appearance and Illustration ............................................................................................................3
Chapter 2 Installation Guide..................................................................................................................5
2.1 Acquisition Check............................................................................................................................. 5
2.2 Installation Preparation....................................................................................................................5
2.3 Wire’s Connection ............................................................................................................................ 7
2.4 Signal Cable Connection.................................................................................................................7
Chapter 3 Operation.............................................................................................................................10
3.1 Initializing......................................................................................................................................... 10
3.2 General Setting...............................................................................................................................10
Chapter 4 NMS Operation ...................................................................................................................17
4.1 Login Interface................................................................................................................................ 17
4.2 Operation.........................................................................................................................................18
Chapter 5 Troubleshooting ..................................................................................................................26
Chapter 6 Packing list........................................................................................................................... 27

NDS3208 8 in 1 MPEG-2 Encoder User’s Manual
1/ 29
Chapter 1 Product Introduction
1.1 Outline
The NDS3208 8 in 1 MPEG-2 Encoder is a professional SD audio & video encoding and
multiplexing device. It has 8 channel CVBS video input interfaces, 8 pairs of unbalanced
audio input interfaces, supporting MPEG-2 video encoding and MPEG 1 Layer 2 audio
encoding. This device can simultaneously encode 8 channel SD audio & video;
moreover, it has an ASI input and can multiplex the input TS with the 8 encoded SPTS
to generate a MPTS output. In conclusion, its high integrated and cost effective design
makes the device widely used in varieties of digital distribution systems such as cable TV
digital head-end, satellite digital TV broadcasting etc.
1.2 Main Features
8×CVBS video inputs, 8 pairs of unbalanced audio inputs.
1×ASI input interface
Audio MPEG-1 Layer2
Supports MPEG-2 encoding format
Supports CBR
Supports IP output, MPTS or 8 SPTS output over UDP, RTP/RTSP
Support PCR accurate adjusting
Support PID re-mapping and passthrough
Support PSI/SI editing
Supports PALand NTSC SD video formats
Real-time effective encoding output bit-rate monitoring
Supports web NMS operation
Keyboard and LCD operation

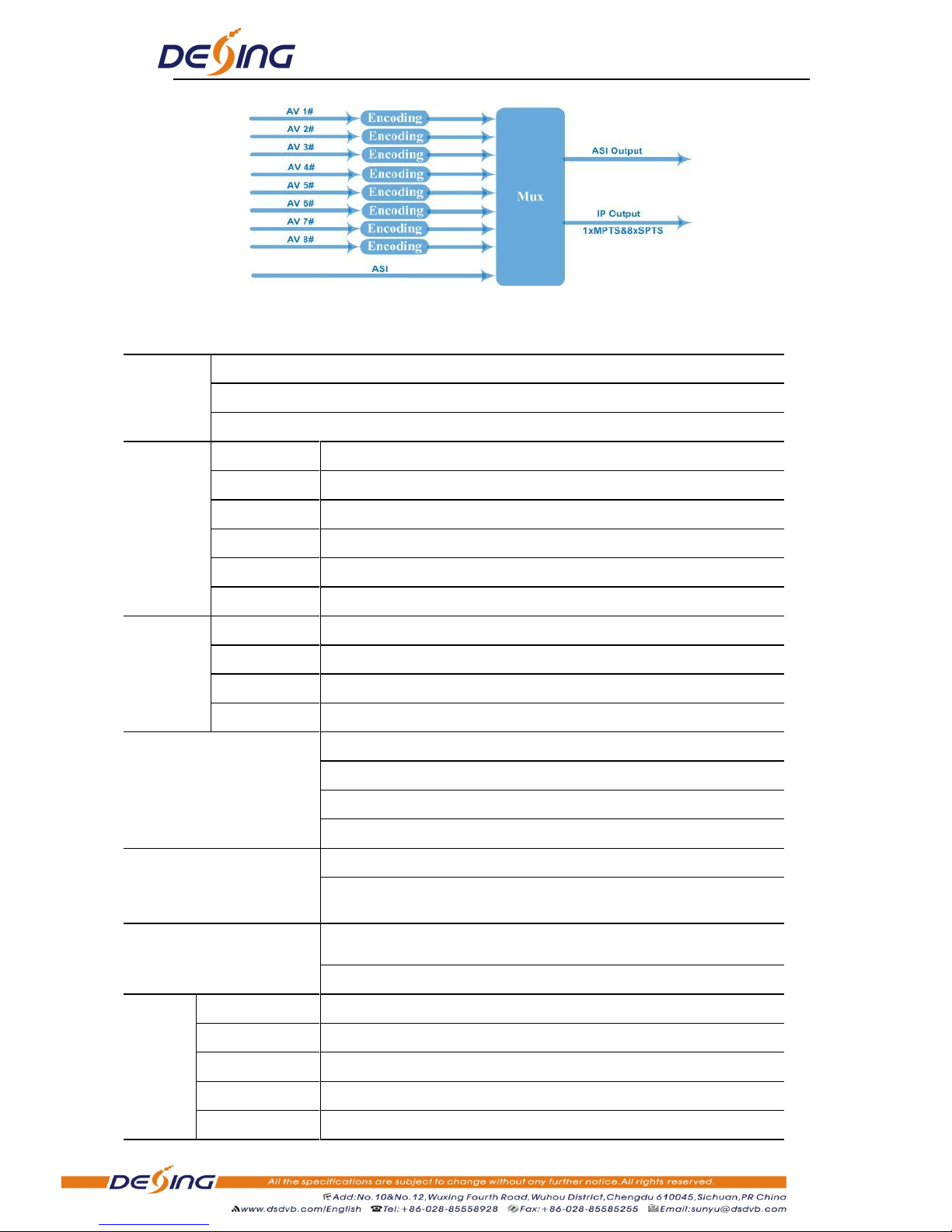

1.3 Principle Chart

NDS3208 8 in 1 MPEG-2 Encoder User’s Manual
2 / 29
1.4 Specifications
Input
8×CVBS inputs,BNC interface
8 pairs of unbalanced audio inputs, BNC interface
1×ASI input, BNC interface
Video
Resolution
PAL: 720×576_50i NTSC: 720×480_60i
Encoding
MPEG-2
Bit-rate
1Mbps~19.5Mbps
Rate Control
CBR
Chroma
4:2:0
Aspect Ratio
4:3
Audio
Encoding
MPEG-1 Layer2
Sampling rate
48KH
Resolution
24 bit
Bit-rate
64Kbps~384Kbps each channel
Multiplexing
1 ASI input multiplexed with local 8 channel SPTS
PID re-mapping or passthrough
PCR accurate adjusting
PSI/SI editing
Stream output
2 ×ASI outputs, BNC interface
1 MPTS / 8 SPTS over UDP, RTP/RTSP; 10/100Base-T Ethernet
interface (uni-cast/multicast)
System function
LCD/keyboard operating, Web NMS support,
Chinese-English control interface
Ethernet software upgrade
General
Dimensions
(WxDxH)
482mm×455mm×44.5mm
Approx weight
4Kg
Temperature
range
0~45℃(Operation), -20~80℃(Storage)
Power
requirements
AC 110V±10%,50/60Hz orAC 220V±10%,50/60Hz
Power
consumption
17.6W

NDS3208 8 in 1 MPEG-2 Encoder User’s Manual
3 / 29

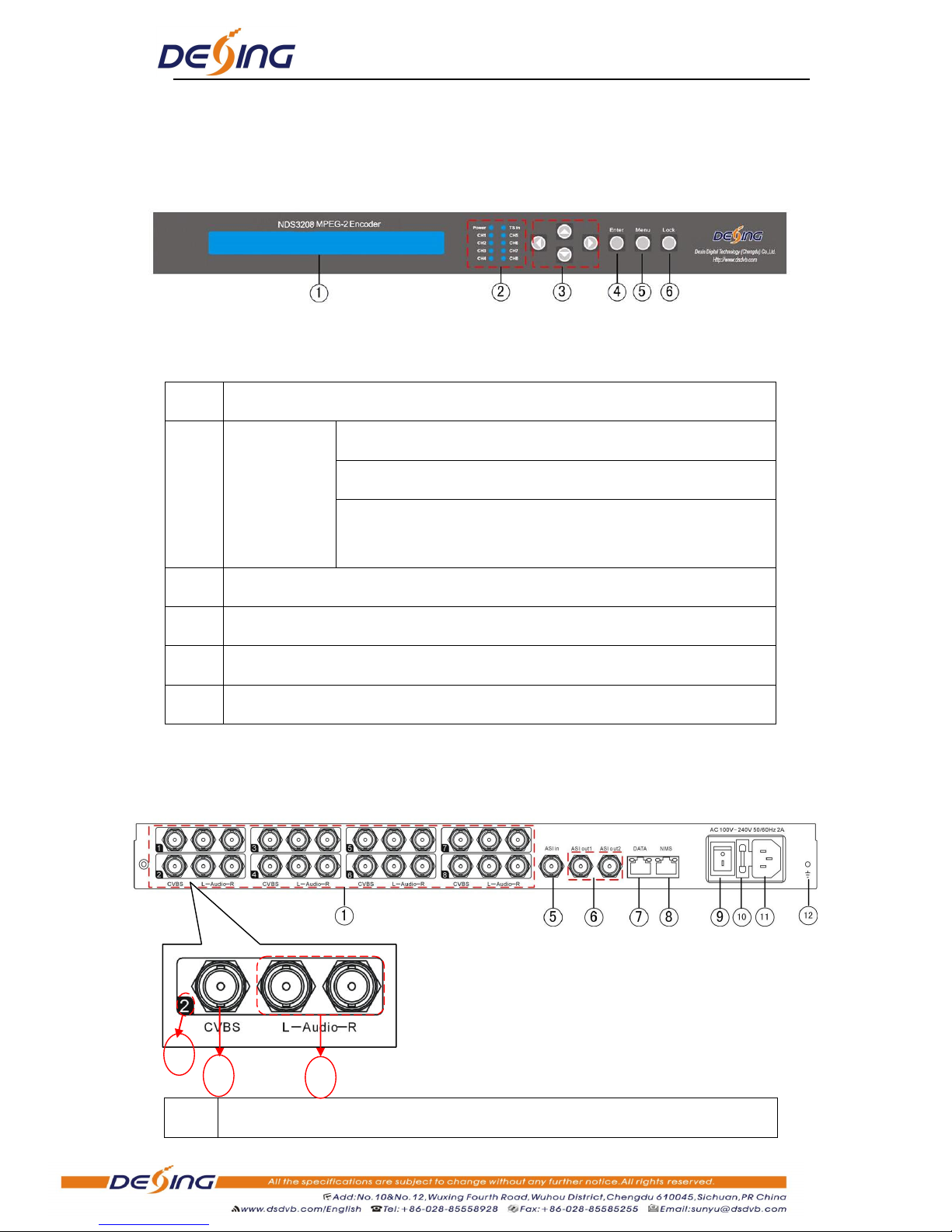

1.5 Appearance and Illustration
Front Panel Illustration:
Indicate area: All indicators will light on when the device is on the current working state.
1
LCD screen
2
Indicators
Power indicator
TS in: input lock indicator
CH1-CH8: When program has been multiplexed, the
indicator will be on.
3
UP/ DOWN, LEFT/RIGHT keys
4
Enter key
5
Menu key
6
Lock key
Rear Panel Illustration:
1
8 * CVBS input ports
2
3
4

NDS3208 8 in 1 MPEG-2 Encoder User’s Manual
4 / 29
2
CVBS input serial number from 1 to 8
3
Video input port
4
Audio input port (Left & Right channels)
5
ASI input port
6
2 * ASI output ports
7
Data port (for IP signal output)
8
NMS (Network management port)
9
Power Switch
10
Fuse
11
Power socket
12
Grounding Pole

NDS3208 8 in 1 MPEG-2 Encoder User’s Manual
5 / 29
Chapter 2 Installation Guide
2.1 Acquisition Check
When users open the package of the device, it is necessary to check items according to packing
list. Normally it should include the following items:
NDS3208 8 in 1 MPEG-2 Encoder
User‟s Manual
Analog Audio/Video Composite Input Cable
ASI Cable
Power Cord
If any item is missing or mismatching with the list above, please contact local dealer.
2.2 Installation Preparation
When users install device, please follow the below steps. The details of installation will be
described at the rest part of this chapter. Users can also refer rear panel chart during the
installation.
The main content of this chapter including:
Checking the possible device missing or damage during the transportation
Preparing relevant environment for installation
Installing Encoder
Connecting signal cables
Connecting communication port (if it is necessary)
2.2.1 Device’s Installation Flow Chart is Illustrated as following：
Connecting
Grouding
Wire and
Power
Cord
Acquisition
Check Fixing Device Setting Parameter Running Device
Connecting
Signal Wire
2.2.2 Environment Requirement

NDS3208 8 in 1 MPEG-2 Encoder User’s Manual
6 / 29
Item
Requirement
Machine Hall Space
When user installs machine frame array in one machine hall, the
distance between 2 rows of machine frames should be 1.2~1.5m
and the distance against wall should be no less than 0.8m.
Machine Hall Floor
Electric Isolation, Dust Free
Volume resistivity of ground anti-static material:
1X107~1X1010，Grounding current limiting resistance: 1M
(Floor bearing should be greater than 450Kg/㎡)
Environment
Temperature
5~40℃(sustainable )，0~45℃(short time)，
installing air-conditioning is recommended
Relative Temperature
20%~80% sustainable 10%~90% short time
Pressure
86~105KPa
Door & Window
Installing rubber strip for sealing door-gaps and dual level
glasses for window
Wall
It can be covered with wallpaper, or brightness less paint.
Fire Protection
Fire alarm system and extinguisher
Power
Requiring device power, air-conditioning power and lighting
power are independent to each other. Device power requires AC
power 220V 50Hz. Please carefully check before running.
2.2.3 Grounding Requirement
All function modules‟ good grounding designs are the basis of reliability and stability of
devices. Also, they are the most important guarantee of lightning arresting and interference
rejection. Therefore, the system must follow this rule.
Coaxial cable‟s outer conductor and isolation layer should keep proper electric conducting
with the metal housing of device.
Grounding conductor must adopt copper conductor in order to reduce high frequency
impedance, and the grounding wire must be as thick and short as possible.
Users should make sure the 2 ends of grounding wire well electric conducted and be
antirust.
It is prohibited to use any other device as part of grounding electric circuit
The area of the conduction between grounding wire and device‟s frame should be no less
than 25mm2.

NDS3208 8 in 1 MPEG-2 Encoder User’s Manual
7 / 29
2.2.4 Frame Grounding
All the machine frames should be connected with protective copper strip. The grounding wire
should be as short as possible and avoid circling. The area of the conduction between
grounding wire and grounding strip should be no less than 25mm2.
2.2.5 Device Grounding
Connecting the device‟s grounding rod to frame‟s grounding pole with copper wire.
2.3 Wire’s Connection
The grounding wire conductive screw is located at the right end of rear panel, and the power
switch, fuse, power supply socket is just beside ,whose order goes like this, power switch is on
the left ,power supply socket is on the right and the fuse is just between them.
Connecting Power Cord
User can insert one end into power supply socket, while insert the other end to AC power.
Connecting Grounding Wire
When the device solely connects to protective ground, it should adopt independent way,
say, share the same ground with other devices. When the device adopts united way, the
grounding resistance should be smaller than 1Ω.
Caution:
Before connecting power cord to NDS3208 8 in 1 MPEG-2 Encoder, user should
set the power switch to “OFF”.
2.4 Signal Cable Connection
The signal connections include the connection of input signal cable and the connection of
output signal cable. The details are as follows:
2.4.1 Unbalanced audio and CVBS video input cable illustration:

NDS3208 8 in 1 MPEG-2 Encoder User’s Manual
8 / 29
2.4.2 ASI output cable illustration:
2.4.3 Network Cable illustration (CAT5):
2.4.4 Unbalanced audio and CVBS video input connection
User can firstly find the CVBS input connector on the device according to the connector mark
described on the rear panel illustration, and then connect the analog CVBS video and
unbalanced audio cables (in the accessories). One end is connected to the signal source
equipment while the other end to the encoder‟s CVBS input port. The encoder‟s Analog
Composite Video input port and its connection are illustrated as follows:

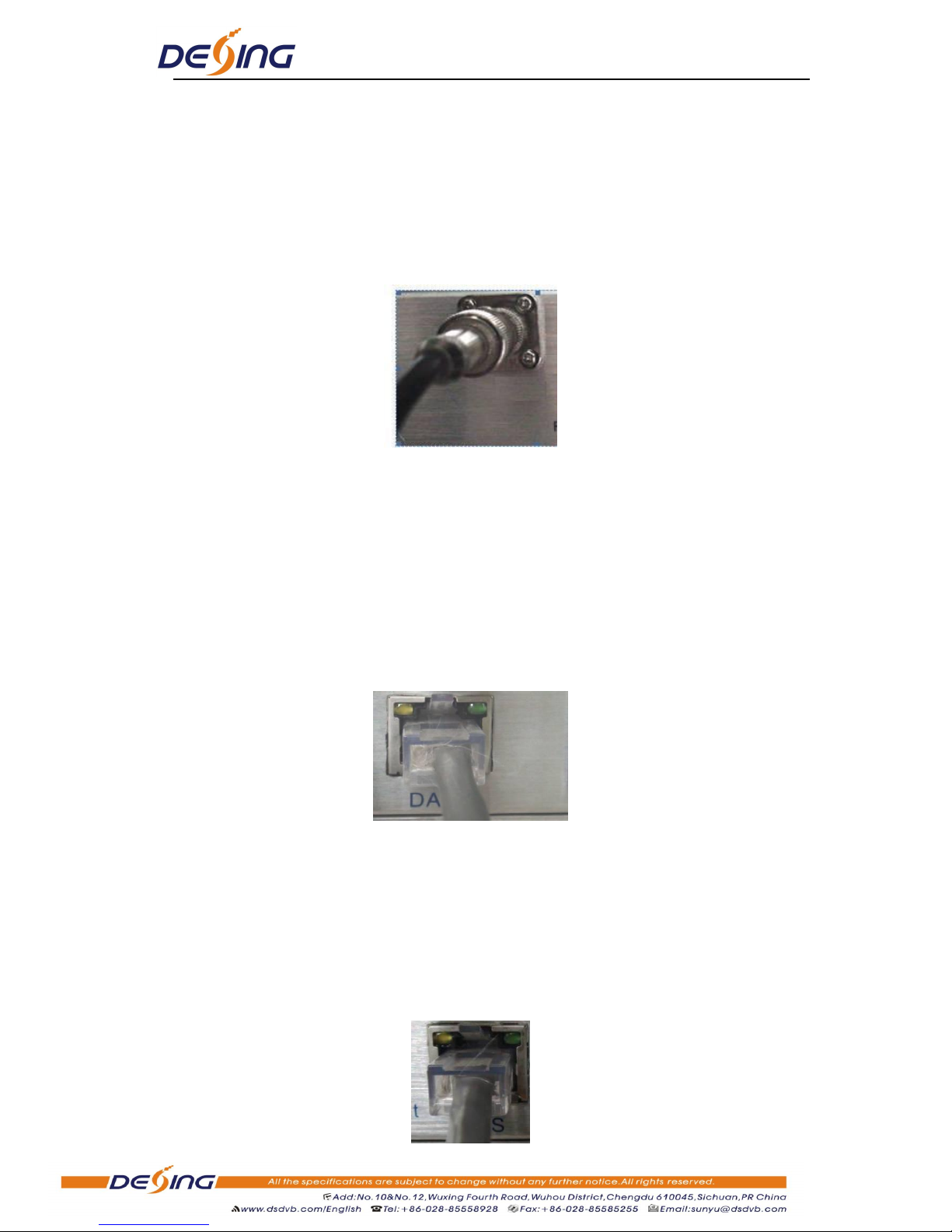

2.4.5 ASI output interface connection
