Dexing NDS3244S User manual

NDS3244S Multi-Channel Encoder
User Manual
Dexin Digital Technology Corp. Ltd.

DIRECTORY
Chapter 1 Product Introduction ............................................................................................1
1.1 Outline.............................................................................................................................1
1.2 Main Features.................................................................................................................1
1.3 Principle Chart (Each Encoder Module).........................................................................1
1.4 Specifications..................................................................................................................2
1.5 Order Information ...........................................................................................................3
1.6Appearance and Illustration............................................................................................3
Chapter 2 Installation Guide.................................................................................................5
2.1 Acquisition Check...........................................................................................................5
2.2 Installation Preparation...................................................................................................5
2.3 Wire’s Connection...........................................................................................................7
2.4 Signal Cable Connection................................................................................................7
Chapter 3 WEB NMS Operation...........................................................................................9
3.1 login ................................................................................................................................9
3.2 Operation........................................................................................................................9
Chapter 4 Troubleshooting.................................................................................................17
Chapter 5 Packing list.........................................................................................................18

NDS3244S Multi-Channel Encoder User Manual
1
Chapter 1 Product Introduction
1.1 Outline
NDS3244S Multi-Channel encoder is a professional HD/SD audio & video encoding
device. It has 24 HDMI inputs with very 8 HDMI ports share one encoder module with
each module supporting 1MPTS and 8SPTS output. Its high integration and cost effective
design makes the device widely used in varieties of digital distribution systems such as
cable TV digital head-end, digital TV broadcasting etc.
1.2 Main Features
24 HDMI inputs with SPTS and MPTS output (2 or 3 Encoder Modules share the
same one NMS port and DATA port)
MPEG4AVC/H.264 video encoding format
MPEG1 Layer II, LC-AAC，HE-AAC audio encoding format andAC3 Pass
Through, and audio gain adjustment
IPoutput over UDP and RTP/RTSP protocol
Support QR code, LOGO, caption insertion
Support “Null PKT Filter”function
Control via web management, and easy updates via web
1.3 Principle Chart (Each Encoder Module)

NDS3244S Multi-Channel Encoder User Manual
2
Mux
MPEG4 AVC/H.264 Encoding
HDMI #1
HDMI #2
HDMI #3
HDMI #4 1 MPTS and 8 SPTS
MPEG4 AVC/H.264 Encoding
MPEG4 AVC/H.264 Encoding
MPEG4 AVC/H.264 Encoding
MPEG4 AVC/H.264 Encoding
MPEG4 AVC/H.264 Encoding
MPEG4 AVC/H.264 Encoding
MPEG4 AVC/H.264 Encoding
HDMI #8
HDMI #7
HDMI #6
HDMI #5
1.4 Technical specification
Input
24 HDMI inputs (NDS3244S)
Video
Resolution
input
1920×1080_60P, 1920×1080_60i,
1920×1080_50P, 1920×1080_50i,
1280×720_60P, 1280×720_50P,
720 x 576_50i,720 x 480_60i
Output
1920×1080_30P, 1920×1080_25P,
1280×720_30P, 1280×720_25P,
720 x 576_25P, 720 x 480_30P
Encoding
MPEG-4 AVC/H.264
Bit-rate
1~20Mbps each channel
Rate Control
CBR/VBR
GOP Structure
IP…P (P Frame adjustment, without B Frame )
Audio
Encoding
MPEG-1 Layer 2, LC-AAC, HE-AAC and
AC3 Pass through
Sampling rate
48KHz
Resolution
24-bit
Audio Gain
0-255 Adjustable
MPEG-1 Layer 2 Bit-rate
48/56/64/80/96/112/128/160/192/224/256/320/
384 kbps
LC-AAC Bit-rate
48/56/64/80/96/112/128/160/192/224/256/320/
384 kbps
HE-AAC Bit-rate
48/56/64/80/96/112/128 kbps
Stream output
IP output through DATA (GE) over UDP and RTP/RTSP protocol
(8 HDMI inputs with 8 SPTS and 1MPTS output for each encoder module)
System
function
Network management (WEB)
English language
Ethernet software upgrade
Miscellaneous
Dimension(W×L×H)
440mm×324mm×44mm
Environment
0~45℃(work)；-20~80℃（Storage）
Power requirements
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz

NDS3244S Multi-Channel Encoder User Manual
3
1.5 Order Information
P/N
Config
NDS3244S
24 HDMI inputs
1.6 Appearance and Illustration
Front Panel Illustration:
1U chassis (three encoder modules) illustration：
1 2
1
Run and Power indicators for 3 modules
2
NMS (Network Management Port)
Data Port (for IP Signal Output)
Rear Panel Illustration:
1 2 3 4 5

NDS3244S Multi-Channel Encoder User Manual
4
1
Grounding Pole
2
Power Switch and socket
3
Module 1: HDMI 1-8
4
Module 2: HDMI 9-16
5
Module 3: HDMI 17-24

NDS3244S Multi-Channel Encoder User Manual
5
Chapter 2 Installation Guide
2.1 Acquisition Check
When users open the package of the device, it is necessary to check items according to packing
list. Normally it should include the following items:
NDS3244S Multi-Channel Encoder
User’s Manual
Power Cord
HDMI cables
If any item is missing or mismatching with the list above, please contact local dealer.
2.2 Installation Preparation
When users install device, please follow the below steps. The details of installation will be
described at the rest part of this chapter. Users can also refer rear panel chart during the
installation.
The main content of this chapter including:
Checking the possible device missing or damage during the transportation
Preparing relevant environment for installation
Installing Encoder
Connecting signal cables
Connecting communication port (if it is necessary)
2.2.1 Device’s Installation Flow Chart is Illustrated as following：
Connecting
Grouding
Wire and
Power
Cord
Acquisition
Check Fixing Device Setting Parameter Running Device
Connecting
Signal Wire
2.2.2 Environment Requirement

NDS3244S Multi-Channel Encoder User Manual
6
Item
Requirement
Machine Hall Space
When user installs machine frame array in one machine hall, the
distance between 2 rows of machine frames should be 1.2~1.5m
and the distance against wall should be no less than 0.8m.
Machine Hall Floor
Electric Isolation, Dust Free
Volume resistivity of ground anti-static material:
1X107~1X1010，Grounding current limiting resistance: 1M
(Floor bearing should be greater than 450Kg/㎡)
Environment
Temperature
5~40℃(sustainable )，0~45℃(short time)，
installing air-conditioning is recommended
Relative Temperature
20%~80% sustainable 10%~90% short time
Pressure
86~105KPa
Door & Window
Installing rubber strip for sealing door-gaps and dual level
glasses for window
Wall
It can be covered with wallpaper, or brightness less paint.
Fire Protection
Fire alarm system and extinguisher
Power
Requiring device power, air-conditioning power and lighting
power are independent to each other. Device power requires AC
power 220V 50Hz. Please carefully check before running.
2.2.3 Grounding Requirement
All function modules’ good grounding designs are the basis of reliability and stability of
devices. Also, they are the most important guarantee of lightning arresting and interference
rejection. Therefore, the system must follow this rule.
Coaxial cable’s outer conductor and isolation layer should keep proper electric conducting
with the metal housing of device.
Grounding conductor must adopt copper conductor in order to reduce high frequency
impedance, and the grounding wire must be as thick and short as possible.
Users should make sure the 2 ends of grounding wire well electric conducted and be
antirust.
It is prohibited to use any other device as part of grounding electric circuit
The area of the conduction between grounding wire and device’s frame should be no less
than 25mm2.

NDS3244S Multi-Channel Encoder User Manual
7
2.2.4 Frame Grounding
All the machine frames should be connected with protective copper strip. The grounding wire
should be as short as possible and avoid circling. The area of the conduction between
grounding wire and grounding strip should be no less than 25mm2.
2.2.5 Device Grounding
Connecting the device’s grounding rod to frame’s grounding pole with copper wire.
2.3 Wire’s Connection
The grounding wire conductive screw is located at the right end of rear panel, and the power
switch, fuse, power supply socket is just beside ,whose order goes like this, power switch is on
the left ,power supply socket is on the right and the fuse is just between them.
Connecting Power Cord
User can insert one end into power supply socket, while insert the other end to AC power.
Connecting Grounding Wire
When the device solely connects to protective ground, it should adopt independent way,
say, share the same ground with other devices. When the device adopts united way, the
grounding resistance should be smaller than 1Ω.
Caution:
Before connecting power cord to NDS3244S Multi-Channel Encoder, user should
set the power switch to “OFF”.
2.4 Signal Cable Connection
The signal connections include the connection of input signal cable and the connection of
output signal cable. The details are as follows:

NDS3244S Multi-Channel Encoder User Manual
8
2.4.1 HDMI input cable illustration:
2.4.2 Network Cable illustration (CAT5):

NDS3244S Multi-Channel Encoder User Manual
9
Chapter 3 WEB NMS Operation
NDS3244S does not support front buttons and LCD, users can only control and set the
configuration in computer by connecting the device to web NMS Port. User should ensure that
the computer’s IP address is different from the NDS3244S IP address; otherwise, it would
cause IP conflict. This user manual will take module 1 as an example.
3.1 login
The default IP address of NDS3244S (3 NMS ip addresses for 3 modules respectively) is
10.0.0.101, 10.0.0.102 and 10.0.0.103.
The module which closes to power is 10.0.0.101
Connect the PC (Personal Computer) and the device with net cable, and use ping command to
confirm they are on the same network segment.
I.G. the PC IP address is 192.168.99.252, we then change the device IP to 192.168.99.xxx (xxx
can be 0 to 255 except 252 to avoid IP conflict).
Use web browser to connect the device with PC by inputting the Encoder’s IP address in the
browser’s address bar and press Enter.
It will display the Login interface as Figure-1. Input the Username and Password (Both the
default Username and Password are “admin”.) and then click “LOGIN” to start the device
setting.
Figure-1
3.2 Operation

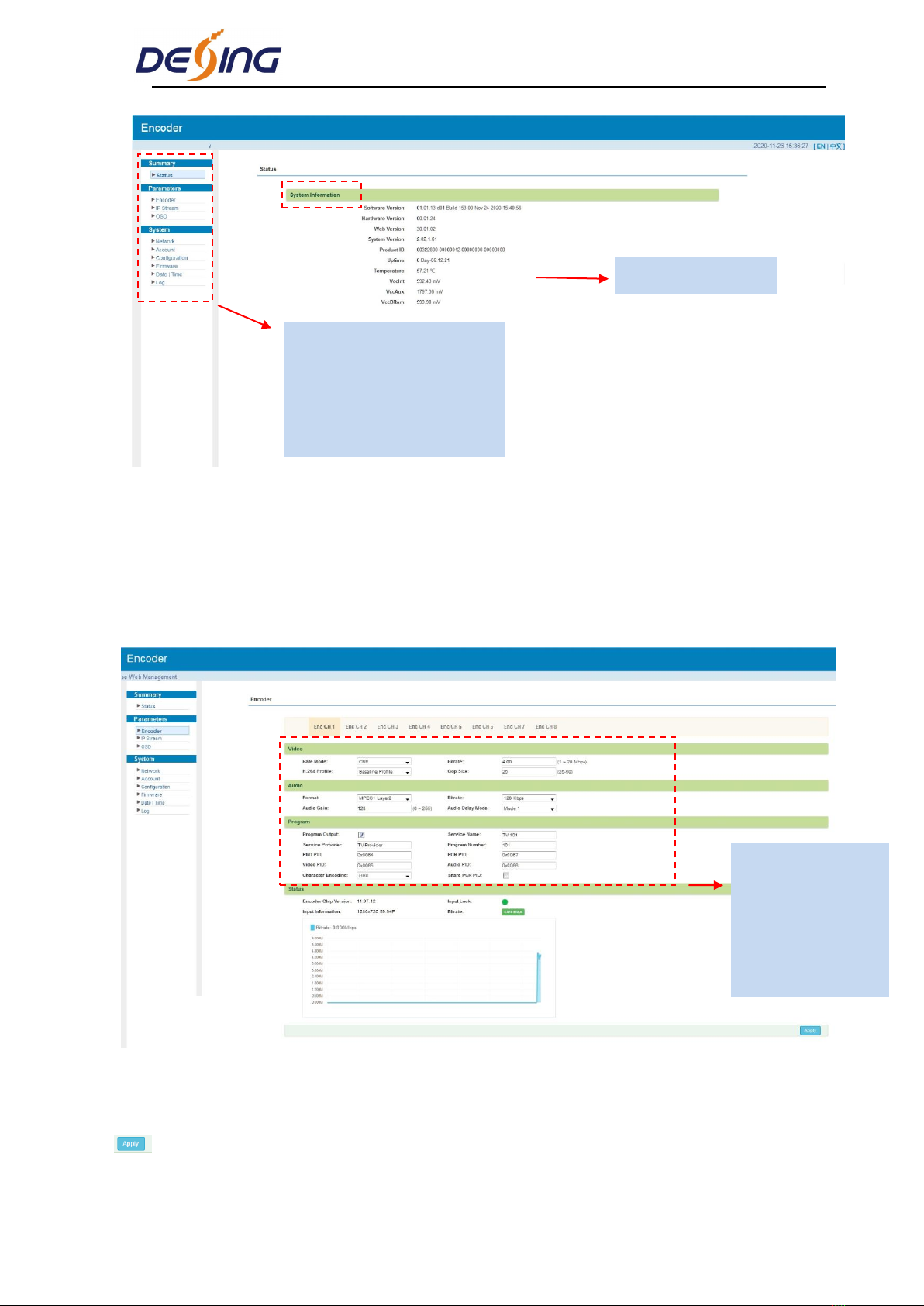

When we confirm the login, it will display the WELCOME interface as Figure-2.

NDS3244S Multi-Channel Encoder User Manual
10
Figure-2
Parameters →Encoder
Encode Channel 1-8:
From the menu on upper side of the webpage, clicking “Enc CH 1-8”, it will display the
each encode channel information of the program from the HDMI input port as Figure-3.
Figure-3
Click this button to apply the modified parameters.
Video and Audio
Settings for
program: User
can edit any item
listed as needed.
User can click any item
here to enter the
corresponding interface to
check information or set
the parameters.
System information

NDS3244S Multi-Channel Encoder User Manual
11
Parameters →IPStream
NDS3244S supports TS to output in IP (1MPTS and 8 SPTS for each encoder module) format
through the DATA port.

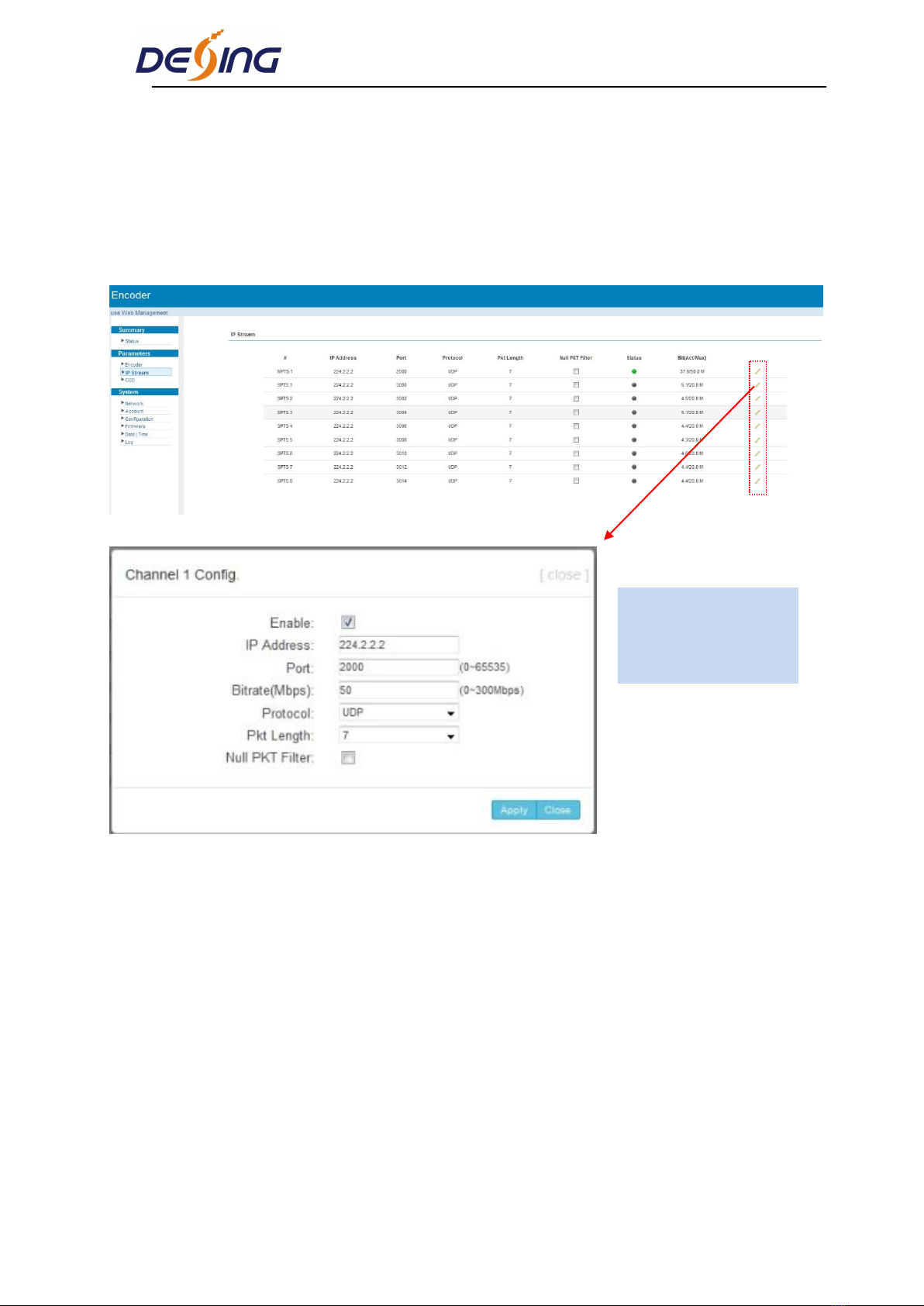

When users click “IP Stream”, it will display the interface as Figure-4 where to set IP out
parameters. (For Data 1000M GE port)
Figure-4
Parameters →OSD

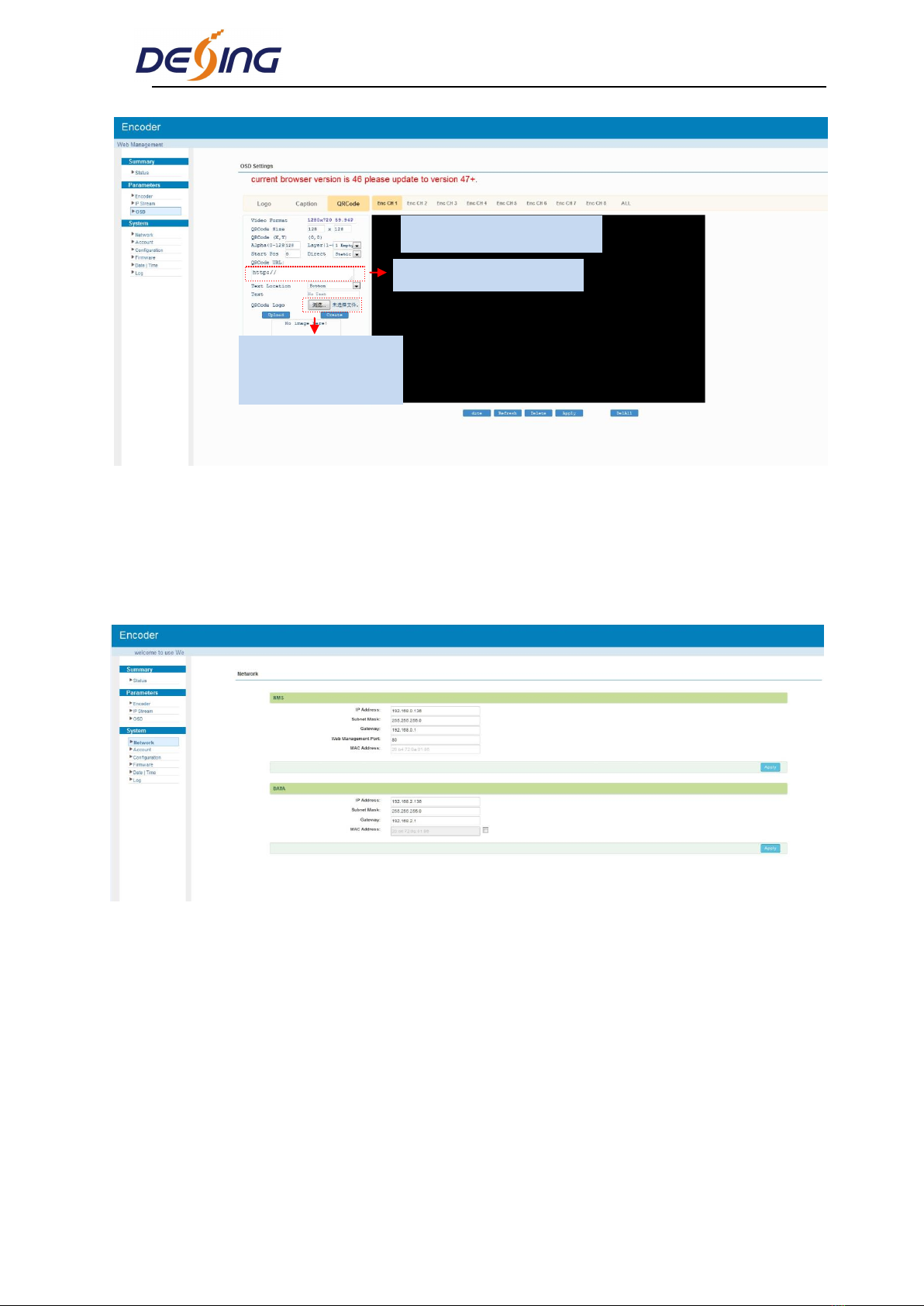

Clicking “OSD”, it will display the interface where to configuration the OSD parameters as
Figure-5/6/7.
Click pen icon to
edit IP output
parameters

NDS3244S Multi-Channel Encoder User Manual
12
Figure-5
Figure-6
Select to configure logo, caption or QRcode
Select program1-8 to apply the logo insertion, or
you can select “all”to apply all programs
Click here to confirm the LOGO you selected
Browse and select
the Logo which has
been created
Put your logo everywhere
Enter your text
here
Put your caption anywhere
Select the text color and
background color
Set when to show caption. So do
Logo and QRCode.

NDS3244S Multi-Channel Encoder User Manual
13
Figure-7
System→Network:
Clicking “Network”, it will display the interface as Figure-8 where to set NMS and DATA
parameters.
Figure-8
System → Account:
Clicking “Account”, it will display the screen as Figure-9 where to set the login account and
password for the web NMS. Both the current username and password are “admin”.
Put the QRcode everywhere
Browse and select the
QRcode which has been
created
Input the QRcode URL here

NDS3244S Multi-Channel Encoder User Manual
14
Figure-9
System →Configuration:
Clicking “Configuration”, it will display the screen as Figure-10 where to save/
restore/factory set/ backup/ load your configurations.
Figure-10

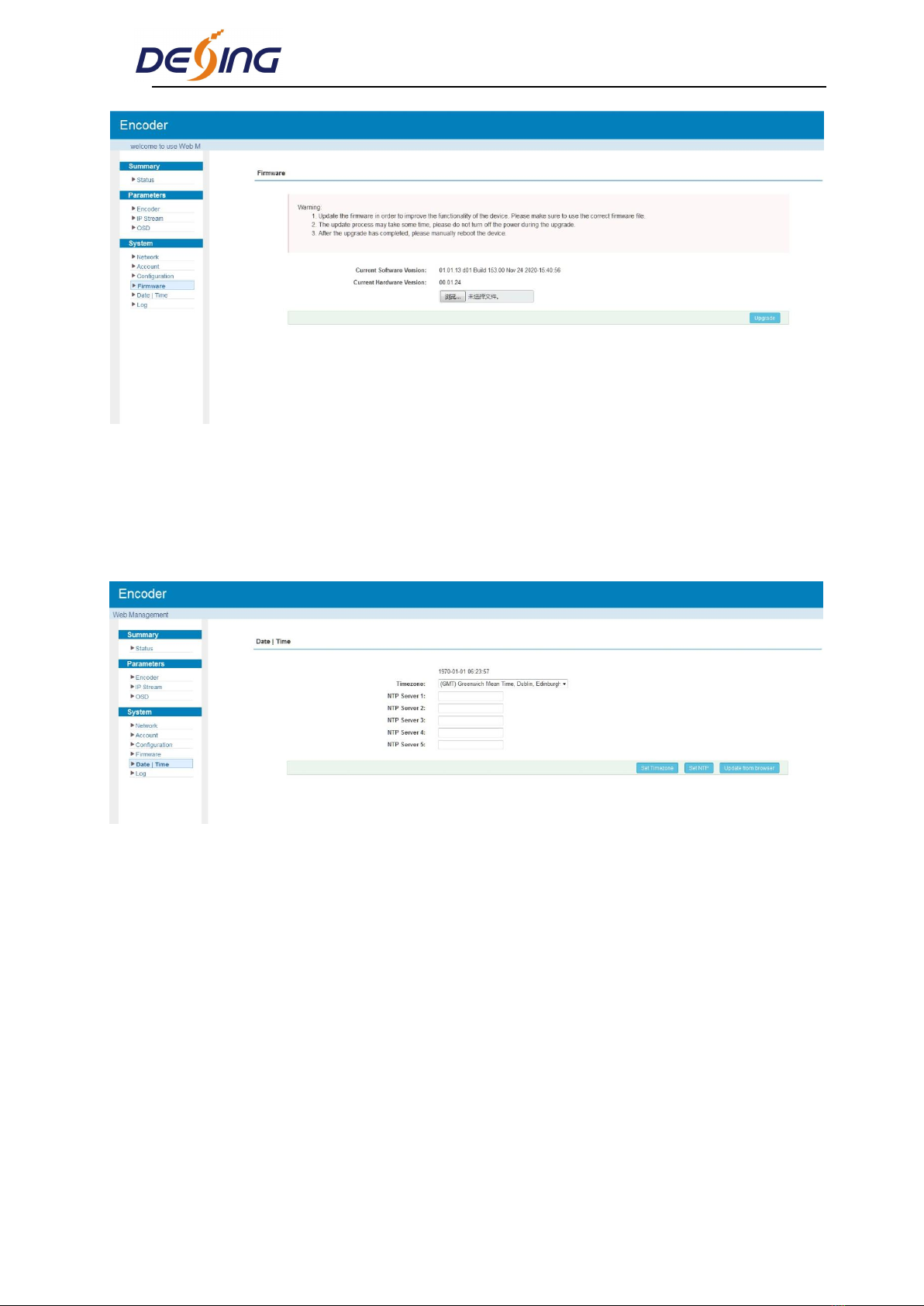

System → Firmware:
Clicking “Firmware”, it will display the screen as Figure-11 where to update firmware for the
encoder.

NDS3244S Multi-Channel Encoder User Manual
15
Figure-11
System →Date/Time:
Clicking “Date/Time”, it will display the screen as Figure-12 where to set date and time for
the device.
Figure-12
System →Log:
Clicking “Log”, it will display the log interface as Figure-13 where to check or export the
Kernel/System log.

NDS3244S Multi-Channel Encoder User Manual
16
Figure-13

NDS3244S Multi-Channel Encoder User Manual
17
Chapter 4 Troubleshooting
DEXIN’s ISO9001 quality assurance system has been approved by CQC organization. For
guarantee the products’ quality, reliability and stability. All DEXIN products have been passed
the testing and inspection before ship out factory. The testing and inspection scheme already
covers all the Optical, Electronic and Mechanical criteria which have been published by
DEXIN. To prevent potential hazard, please strictly follow the operation conditions.
Prevention Measure
Installing the device at the place in which environment temperature between 0 to 45 °C
Making sure good ventilation for the heat-sink on the rear panel and other heat-sink bores
if necessary
Checking the input AC within the power supply working range and the connection is
correct before switching on device
Checking the RF output level varies within tolerant range if it is necessary
Checking all signal cables have been properly connected
Frequently switching on/off device is prohibited; the interval between every switching
on/off must greater than 10 seconds.
Conditions need to unplug power cord
Power cord or socket damaged.
Any liquid flowed into device.
Any stuff causes circuit short
Device in damp environment
Device was suffered from physical damage
Longtime idle.
After switching on and restoring to factory setting, device still cannot work properly.
Maintenance needed

NDS3244S Multi-Channel Encoder User Manual
18
Chapter 5 Packing list
NDS3244S Multi-Channel Encoder 1pc
HDMI cables 24 pcs
Power cord 1pc
