Dexing NDS3211B User manual

NDS3211B MPEG-2/H.264 HD Encoder
SW Version: 1.05
HW Version: 1.13
Web NMS Version: 3.05
CHENGDU DEXIN DIGITAL TECHNOLOGY CO., LTD

About This Manual
Intended Audience
This user manual has been written to help people who have to use, to integrate and to
install the product. Some chapters require some prerequisite knowledge in electronics
and especially in broadcast technologies and standards.
Disclaimer
No part of this document may be reproduced in any form without the written permission
of the copyright owner.
The contents of this document are subject to revision without notice due to continued
progress in methodology, design and manufacturing. DEXIN shall have no liability for
any error or damage of any kind resulting from the use of this document.
Copy Warning
This document includes some confidential information. Its usage is limited to the
owners of the product that it is relevant to. It cannot be copied, modified, or translated
in another language without prior written authorization from DEXIN.

NDS3211B MPEG-2/H.264 HD Encoder User Manual
Directory
CHAPTER 1 INTRODUCTION ...................................................................................................................1
1.1 PRODUCT OVERVIEW............................................................................................................................... 1
1.2 KEY FEATURES ........................................................................................................................................1
1.3 SPECIFICATIONS....................................................................................................................................... 1
1.4 PRINCIPLE CHART.................................................................................................................................... 2
1.5APPEARANCE AND DESCRIPTION .............................................................................................................3
CHAPTER 2 INSTALLATION GUIDE...........................................................................................................5
2.1 GENERAL PRECAUTIONS.......................................................................................................................... 5
2.2 POWER PRECAUTIONS.............................................................................................................................. 5
2.3 DEVICE’S INSTALLATION FLOW CHART ILLUSTRATED AS FOLLOWING..................................................... 5
2.4 ENVIRONMENT REQUIREMENT ................................................................................................................ 5
2.5 GROUNDING REQUIREMENT .................................................................................................................... 6
CHAPTER 3 FRONT PANEL OPERATION ...................................................................................................7
3.1 LCD MENUS............................................................................................................................................7
3.2 INITIAL STATUS........................................................................................................................................ 9
3.3 GENERAL SETTINGS FOR MAIN MENU..................................................................................................... 9
CHAPTER 4 WEB NMS OPERATION .......................................................................................................22
4.1 LOGIN .................................................................................................................................................... 22
4.2 OPERATION............................................................................................................................................ 23
CHAPTER 5 TROUBLESHOOTING...........................................................................................................29
CHAPTER 6 PACKING LIST .....................................................................................................................30

Chengdu Dexin Digital Technology Co., Ltd Page 1 / 34
NDS3211B MPEG-2/H.264 HD Encoder User Manual
Chapter 1 Introduction
1.1 Product Overview
NDS3211B MPEG-2/H.264 HD Encoder is the new broadcasting audio & video encoding device
with powerful functionality. It is equipped with multiple video input interfaces (SDI, CVBS,
YPbPr and HDMI) and audio input interfaces (AES, RCA and XLR) to make it possible to
compatible with different signal sources.
Multiple audio and video encoding formats are available to meet customers’various
requirements. It supports 4 stereo (8 mono) or one DD 5.1 (AC3) audios embedded to mix with
the video to form a stream output. The encoded program will finally output in TS through ASI/IP
port.
1.2 Key Features
MPEG-2 HD/SD and MPEG-4 AVC/H.264 HD/SD video encoding
Support 1080I,720P, 480I, 576I video resolution and downscale transform
Support low latency
MPEG1 Layer II, HE-AAC (v1&v2), LC-AAC and DD AC3(2.0, 5.1) audio encoding
Support DD AC3 audio passthrough
Support 4 stereo or 8 mono audio encoding
Support video buffer, free to switch video sources (all video interface available)
Support CC (closed caption), EIA608 and EIA 708 (for CVBS and SDI in)
Support ASI output and IP over UDP output
LCD / keyboard control and web management
1.3 Specifications

Page 2 / 34 Chengdu Dexin Digital Technology Co., Ltd
NDS3211B MPEG-2/H.264 HD Encoder User Manual
Video
Interface
1×SDI, 1×CVBS, 1×YPbPr and 1×HDMI
Resolution
Input
Output
Interface Applicable
1920×1080i@60
1920×1080, 1440×1080,
1280×1080i, 960×1080i
HDMI, SDI, YPbPr
1920×1080i @59.94
1920×1080i @50
1280×720p@60
1280×720, 960×720p,
640×720p
HDMI, SDI, YPbPr
1280×720p@59.94
1280×720p@50
720×576i@50
720×576, 704×576,
640×576, 544×576,
528×576, 480×576,
352×576
SDI, CVBS
720×480i@59.94
720×480, 704×480,
640×480, 544×480,
528×480, 352×480
SDI, CVBS
Encoding
MPEG-2 HD/SD; MPEG-4 AVC/H.264 HD/SD
Bitrate Range
0.52 –60.00 Mbps
Rate Control
CBR
GOP Structure
Auto, IP, IPB, IPBB, IPBBB
Aspect Ratio
4:3, 14:9 (for SD video) , 16:9 (for HD video)
Chroma
4:2:0, 4:2:2 (for MPEG-2 encoding);
4:2:0 (for MPEG-4 AVC/H.264 encoding)
Advanced
Pretreatment
De-interlacing, noise reduction, sharpening
Audio
Interface
4×XLR, 4×RCA, 1×AES, 1×HDMI, 1×SDI (support maximum 4 stereos
synchronous processing or one DD 5.1 CH processing)
Encoding
MPEG-1 Layer II, HE-AAC (v1&v2), LC-AAC, DD AC3 (2.0, 5.1
available);
DD AC3 passthrough
Sampling rate
48KHz
Resolution
24-bit
Bit-rate
32Kbps~384Kbps
Low Delay options
150ms, 200ms, 350ms, 650ms
Stream output
2×ASI output ports, BNC interface
IP over UDP, 100 Base-T Ethernet interface (UDP multicast/unicast)
System function
LCD/keyboard and web management
Language: English
Ethernet software upgrade
General
Dimensions
482mm×405mm×44.5mm (W ×D ×H)
Weight
Approx 4.0Kg
Temperature
0~45℃(Operation), -20~80℃(Storage)
Power
AC110V±10%, 50/60Hz; AC 220V±10%,50/60Hz
Consumption
21W

Chengdu Dexin Digital Technology Co., Ltd Page 3 / 34
NDS3211B MPEG-2/H.264 HD Encoder User Manual
1.4 Principle Chart
1.5 Appearance and Description
Front Panel Illustration
①LCD window
②Indicators
③Up and down, left and right navigation buttons
④Enter button: for confirm
⑤Menu button: for back step
⑥Lock button: press to lock set
Rear Panel Illustration
①XLR input connectors (for stereo audio 1-2 input)
②XLR input connectors (for stereo audio 3-4 input)
③RCA input connectors (for stereo audio 1-4 input or 5.1 surround input)
④AES input connector (for only one channel digital stereo)
⑤YPbPr & CVBS video input connectors
(for 5.1 surround input)

Page 4 / 34 Chengdu Dexin Digital Technology Co., Ltd
NDS3211B MPEG-2/H.264 HD Encoder User Manual
⑥HDMI input connector (Audio input embedded)
⑦SDI input connector (Audio input embedded)
⑧NMS connector for connecting Web management on PC
⑨DATA Port for IP stream output
⑩ASI output connectors
○
11 Power supply/Fuse

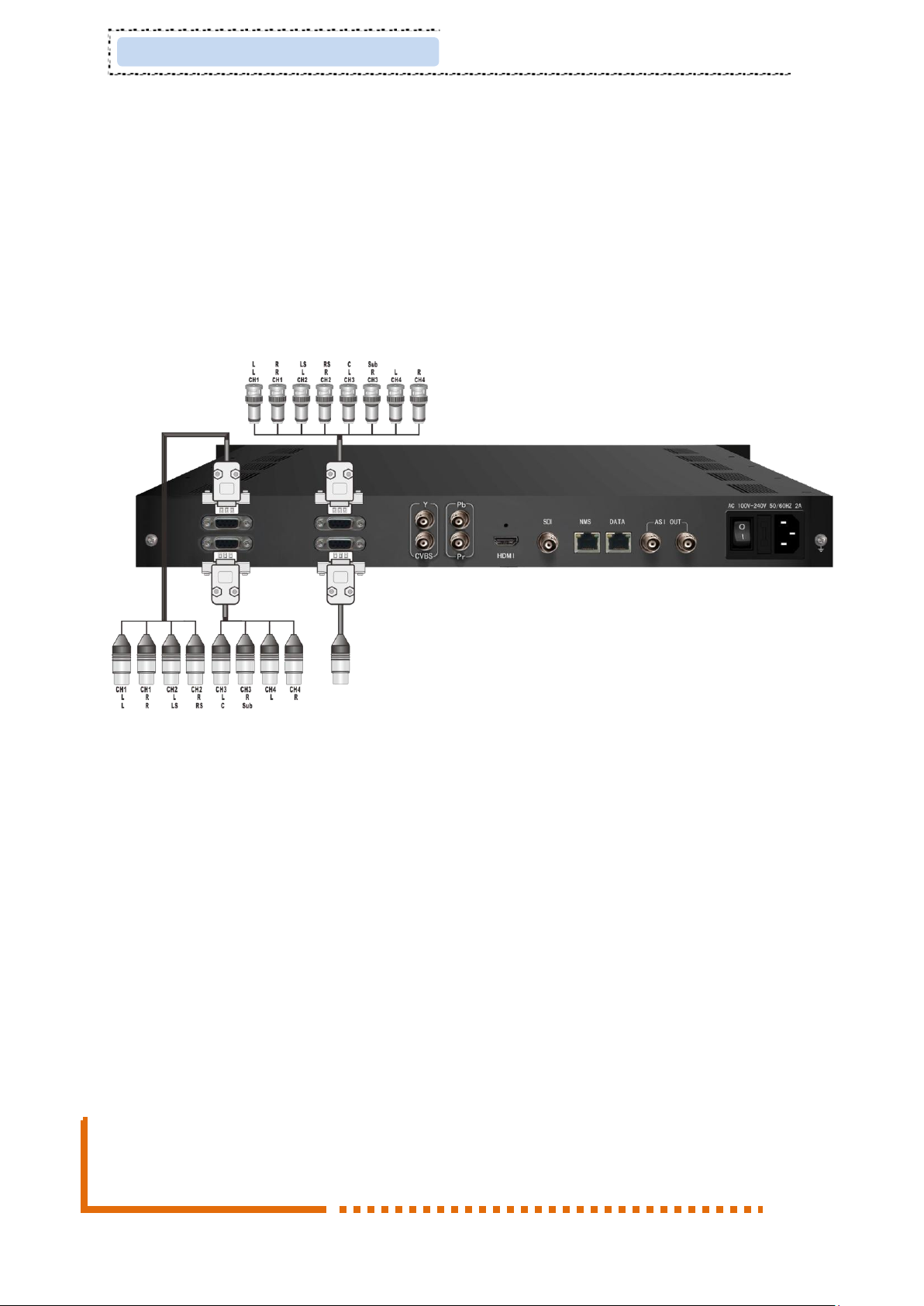

Audio Adapter Cable Illustration
L/R: For Mono or Stereo input (Analog)
L/R/LS/RS/C/Sub: For 5.1 surround input (Analog)
AES: For single digital stereo audio input

Chengdu Dexin Digital Technology Co., Ltd Page 5 / 34
NDS3211B MPEG-2/H.264 HD Encoder User Manual
Chapter 2 Installation Guide
This section is to explain the cautions the users must know in some case that possible injure may
bring to users when it’s used or installed. For this reason, please read all details here and make in
mind before installing or using the product.
2.1 General Precautions
Must be operated and maintained free of dust or dirty.
The cover should be securely fastened, do not open the cover of the products when the
power is on.
After use, securely stow away all loose cables, external antenna, and others.
2.2 Power precautions
When you connect the power source, make sure if it may cause overload.
Avoid operating on a wet floor in the open. Make sure the extension cable is in good
condition
Make sure the power switch is off before you start to install the device
2.3 Device’s Installation Flow Chart Illustrated as following
Connecting
Grouding
Wire and
Power
Cord
Acquisition
Check Installing Device Setting Parameter Running Device
Connecting
Signal
cable
2.4 Environment Requirement
Item
Requirement
Machine Hall
When user installs machine frame array in one machine hall,

Page 6 / 34 Chengdu Dexin Digital Technology Co., Ltd
NDS3211B MPEG-2/H.264 HD Encoder User Manual
Space
the distance between 2 rows of machine frames should be
1.2~1.5m and the distance against wall should be no less than
0.8m.
Machine Hall Floor
Electric Isolation, Dust Free
Volume resistivity of ground anti-static material:
1X107~1X1010，Grounding current limiting resistance: 1M
(Floor bearing should be greater than 450Kg/㎡)
Environment
Temperature
5~40℃(sustainable )，0~45℃(short time)，
installing air-conditioning is recommended
Relative Humidity
20%~80% sustainable 10%~90% short time
Pressure
86~105KPa
Door & Window
Installing rubber strip for sealing door-gaps and dual level
glasses for window
Wall
It can be covered with wallpaper, or brightness less paint.
Fire Protection
Fire alarm system and extinguisher
Power
Requiring device power, air-conditioning power and lighting
power are independent to each other. Device power requires
AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz. Please
carefully check before running.
2.5 Grounding Requirement
All function modules’ good grounding is the basis of reliability and stability of devices. Also,
they are the most important guarantee of lightning arresting and interference rejection. Therefore,
the system must follow this rule.
Grounding conductor must adopt copper conductor in order to reduce high frequency impedance,
and the grounding wire must be as thick and short as possible.
Users should make sure the 2 ends of grounding wire well electric conducted and be antirust.
It is prohibited to use any other device as part of grounding electric circuit
The area of the conduction between grounding wire and device’s frame should be no less
than 25 mm2.

Chengdu Dexin Digital Technology Co., Ltd Page 7 / 34
NDS3211B MPEG-2/H.264 HD Encoder User Manual
Chapter 3 Front Panel Operation
NDS3211B’s front panel is user operation interface where users configure the device
manually. The LCD is a 2-line * 40-character back-lit dot-matrix user interface with
pushbuttons for UP, DOWN, LEFT, RIGHT, ENTER, MENU, and LOCK for front
panel control.
User can decide whether to directly use the factory setting, or customize the input/output
parameters and etc.
Keyboard Function Description
LEFT/RIGHT: To choose and set the parameters
UP/DOWN: To modify activated parameters or page up/down when parameter is
inactivated.
MENU: To cancel presently entered value, resume previous setting;
ENTER: To activate the parameters which need modification, and confirm the changes
after modification
LOCK: Lock the screen / cancel the lock state .After pressing lock key, the system will
question the users to save or not .If not, the LCD will display the current configuration
state
3.1 LCD Menus
An overview of the LCD menus:
Switch On
Initializing
General Status
1 Alarm Status Error Type Check

Page 8 / 34 Chengdu Dexin Digital Technology Co., Ltd
NDS3211B MPEG-2/H.264 HD Encoder User Manual
3 Audio Setting
4 Video Setting
3.4.1 PID
3.4.2 Stream ID
3.4.3 Encode Type
3.4.4 Pass through
2 System Setting
3.4.7 Stereo Mode
3.4.8 AAC container
3.4.9 AAC profile
4.1 Video Port
4.2 Video Bit rate
4.3 Encode Type
4.4 Closed Caption
4.5 PID
4.6 Stream IP
4.7 Chroma Sample
4.8 Aspect Ratio
4.9 Rescaled
4.11 GOP Size
4.10 GOP Structure
2.4.3 Dest IP
2.4.11 Flt Null Packet
2.4.1 Mode
2.4.10 Subnet Mask
2.4.9 Gateway
2.4.2 Bit rate
4.1 IP Address
4.2 Subnet Mask
4.3 Gateway
4.4 MAC Address
5 Save Config
7 Version
6 Load Config
No / Yes
6.1 Load Saved CFG
6.2 Load Default CFG
Version Info
3.4.5 Volume
3.4.6 Bit rate
3.4.10 AAC Version
4.12 Rate Ctrl Mode
4.13 IDR Frequency
4.14 Sync loss Image
2.4.5 Source IP
2.4.7 Dest MAC
2.1 Network
2.2 Reset Web
2.3 Insert SDT
2.4 Output set
Yes/No
Yes/No
2.4.4 Dest Port
2.4.6 Source Port
2.4.8 Source MAC
3.1 Audio Port
3.2 Sample rate
3.3 Capture Mode
3.4 Channel 1
3.5 Channel 2
3.6 Channel 3
3.7 Channel 4
4.15 Coding Mode
4.16 Profile
4.18 PMT PID
4.17 Level
4.19 PCR PID
4.20 TS Bitrate
4.21 Latency
(Same content with 3.4.1-4.4.10
(Same content with 3.4.1-4.4.10
(Same content with 3.4.1-4.4.10

Chengdu Dexin Digital Technology Co., Ltd Page 9 / 34
NDS3211B MPEG-2/H.264 HD Encoder User Manual
3.2 Initial Status
Switch on the device and after a few seconds’ initialization, it presents booting pictures as below:
HD Encoder: to indicate the device name.
XX.XX/XX.XX Mbps: to indicate the current encoding Bit Rate and total Output Bit Rate
FMT: to indicate source signal resolution format
VP/AP: to indicate the Video and Audio Signal source port.
VEN-FMT: to indicate the video encode format.
ACH-CMT: to indicate the audio Capture Mode.
AEN-1 to AEN-4: to indicate the 4 channel audio encode format.
3.3 General Settings for Main Menu
Press “LOCK”key on the front panel to enter the main menu. The LCD will display the
following pages where user can configure the parameters for the device:
User can press UP/DOWN/LEFT/RIGHT buttons to specify menu item, and then press ENTER
Encode Starting
>>>>>>>>>>>>>>>>>>>>>> 56%
HD Encoder 12.34/20.00 Mbps
FMT: 720x576 50i VP: SDI AP: SDI
Read Only
1 Alarm Status 2 System Setting
3 Audio Setting 4 Video Setting
5 Save Config 6 Load Config
7 Version
HD Encoder 12.34/20.00 Mbps
VEN-FMT: H.264 ACH-CNT: Frame-4
HD Encoder 12.34/20.00 Mbps
AEN-1: AC3 AEN-2: None

Page 10 / 34 Chengdu Dexin Digital Technology Co., Ltd
NDS3211B MPEG-2/H.264 HD Encoder User Manual
to enter the submenus as below:
3.3.1 ALARM STATUS
The alarm indicator will turn on if signal source loses or encoding errors occur. User can then
enter this menu to check the error type.
3.3.2 SYSTEM SETTING
3.3.2.1 Network setting
Enter “Network”to set the network. Submenus go as below:
3.3.2.2 Reset web
At this interface, by pressing ENTER again, users can select to reset web or not. The operation
interface will turn up as following page:
2.1 Network 2.2 Reset Web
2.3 Insert SDT 2.4 Output set
2.1.1 IP Address 2.1.2 Subnet Mask
2.1.3 Gateway 2.1.4 MAC Address
IP Address
192.168.000.136
Subnet Mask
255.255.255.000
Gateway
192.168.000.001
MAC Address
00:11:22:33:55:11
This is the IP address used for
connecting to Web management.
The MAC is read only on the front
panel. It is can be modified in the
Web management interface.
Reset web? Yes [01/02]
[Yes] No
The current mode
The current option and
total options

Chengdu Dexin Digital Technology Co., Ltd Page 11 / 34
NDS3211B MPEG-2/H.264 HD Encoder User Manual
NOTE: Below explanations are applied in this entire manual.
1) When user enter this submenu, the LCD displays only one option which is the device’s
current option which is marked with square bracket when user presses ENTER again to
enter the operation interface.
2) “01/02” in the up-right corner indicates there are all together 2 options and the LCD is
displaying the 1st option currently.
3.3.2.3 Insert SDT
At this interface, by pressing ENTER again, users can choose to insert SDT (Service
Description Table) or not.
3.3.2.4 Output set
Enter “Output Set”to set the output parameters. Submenus go as below:
IPOut Mode
NDS3211B HD encoder supports program stream to output over UDP through the DATA port.
Disable: Program stream will not output from IP port, just output from ASI Port.
Output Bit rate
User can set the total output Bit rate (include video and audio Bit rate, PID Bit rate, etc) under
Insert SDT? Yes [01/02]
[Yes] No
2.4.1 Mode 2.4.2 Bitrate
2.4.3 Dest IP 2.4.4 Dest Port
2.4.5 Source IP 2.4.6 Source Port
2.4.7 Dest MAC 2.4.8 Source MAC
2.4.9 Gateway 2.4.10 Submask
2.4.11 Flt Null Packet
IP Out Mode UDP [02/02]
Disabled [UDP]

Page 12 / 34 Chengdu Dexin Digital Technology Co., Ltd
NDS3211B MPEG-2/H.264 HD Encoder User Manual
this menu.
User can enter 2.4.3 –2.4.10 respectively to check or modify out IP parameters.
Flt Null Packet
User can decide whether to filter IP null packet at this menu.
3.3.3 AUDIO SETTING
Enter “Audio setting”to configure the Audio parameters for the input program
Filter IP Null Packet? NO [01/02]
[No] Yes
Dest IP
224.002.002.002
Subnet Mask
255.255.255.000
Dest Port
1234
Source MAC
11:22:33:44:55:22
Source MAC is read only on the
front panel. It is can only be
modified in the Web management
interface.
Gateway
192.168.002.001
Output Bit rate
50.00 Mbps
Source IP
192.168.002.137
Source Port
2007
Dest MAC
01:00:5E:02:02:02

Chengdu Dexin Digital Technology Co., Ltd Page 13 / 34
NDS3211B MPEG-2/H.264 HD Encoder User Manual
(HDMI/SDI/YPbPr/CVBS input program). Submenus go as below:
3.3.3.1Audio Port
Press ENTER to enter menu Audio Port. It displays the current mode of audio Port. Press
ENTER again to enter the setting interface, move the square bracket with LEFT/RIGHT keys to
select the target mode and press ENTER to confirm. At last, press MENU to step back to the
upper menus.
REMARKS:
If the audio source is from HDMI or SDI, the system will automatically identify and match the
interface. It is not necessary to set this menu. If the audio source is from XLR, RCA or AES, it
needs to match the interface manually.
3.3.3.2 Sample Rate
The audio sample rate is 48 KHz without other options.
3.3.3.3 Capture Mode
NDS3211B supports 4 stereo (8 mono) or one DD 5.1 (AC3) audios embedded to mix with the
video to form a stream output.
3.1 Audio Port 3.2 Sample Rate
3.3 Capture Mode 3.4 Channel 1
3.5 Channel 2 3.6 Channel 3
3.7 Channel 4
Audio Port Select SDI [01/05]
[SDI] HDMI AES RCA XLR
Audio Sample Rate 48 KHz
[48 KHz]
Audio Capture Mode Frame-1 [02/06]
Drop [Frame-1] Frame-2 Frame-3
Audio Capture Mode Frame-1 [01/06]
Frame-4 5.1CH

Page 14 / 34 Chengdu Dexin Digital Technology Co., Ltd
NDS3211B MPEG-2/H.264 HD Encoder User Manual
Drop: Audio data is captured.
Frame-1: A single (channel 1) audio stream is captured.
Frame-2: 2 audio (channel 1&2) streams are captured.
Frame-3: 3 audio (channel 1 to 3) streams are captured.
Frame-4: 4 audio (channel 1 to 4) streams are captured.
5.1CH: Surround (5.1) for Dobby/AC3 5.1 channel.
3.3.3.4 Channel 1-4
As the NDS3211B is with 4 audio encode channel, “3.4”-“3.7”. User can enter
“3.4”/“3.5”/“3.5”/“3.7”to set the corresponding audio parameters. Submenus (taking “3.4”as an
example) are as below:
PID
User can set the PID for first channel under this menu.
Stream ID
User can set the audio stream ID under this menu.
Encode Type
Select audio encode format among items listed in the interface.
3.4.5 Volume 3.4.6 Bit Rate
3.4.7 ES Mode 3.4.8 AAC Container
3.4.9 AAC Profile 3.4.10 AAC Version
3.4.1 PID 3.4.2 Stream ID
3.4.3 Encode Type 3.4.4 Pass through
PID
0512
Stream ID
192

Chengdu Dexin Digital Technology Co., Ltd Page 15 / 34
NDS3211B MPEG-2/H.264 HD Encoder User Manual
REMARKS:
If “None”is chosen the audio format, the system will not choose any audio to process
and there will be no audio in the output data stream.
Pass Through
User can decide to switch on AC3 Pass through function or not under this menu.
Volume
User can set the Audio Volume Level under this menu.
Audio Bit rate
Select audio bit rate among 32Kbps –384Kbps.
NDS3211B support MPEG-L2, AC3, AAC (LC/HE-AAC) audio encoding. Different audio
encode type have different Audio Bit rate.
64Kbps, 96-384Kbps for MPEG-L2
32-384Kbps for AAC
128Kbps, 192Kbps, 156Kbps, 384Kbps for AC3
ES Mode
Select Stereo mode among stereo, Dual Mono, L-Mono, and R-Mono.
Audio Bit rate 192 Kbps [01/17]
[32 Kbps] 48 Kbps 64 Kbps 80 Kbps
Encode Type MPEG-L2 [02/04]
None [MPEG-L2] AC3 AAC
Pass Through Yes [01/02]
[Yes] No
Audio Volume Level Level 1 [01/04]
[Level 1] Level 2 Level 3 Level 4

Page 16 / 34 Chengdu Dexin Digital Technology Co., Ltd
NDS3211B MPEG-2/H.264 HD Encoder User Manual
AAC Container
User can choose the AAC container mode under this menu.
AAC Profile
Select AAC profile among LC, HE and HEV2.
AAC Version
User can set the AAC encoder version under this menu.
3.3.4 VIDEO SETTING
4.1 Video Port 4.2 Video Bit rate
4.3 Encode Type 4.4 Closed Caption
4.5 PID 4.6 Stream IP
4.7 Chroma Sample 4.8 Aspect Ratio
4.9 Rescaled 4.10 GOP Structure
4.11 GOP Size 4.12 Rate Ctrl Mode
AAC Version MPEG-2 [01/02]
[MPEG-2] MPEG-4
4.13 IDR Frequency 4.14 Sync loss Image
4.15 Coding Mode 4.16 Profile
Stereo Mode Stereo [01/04]
[Stereo] Dual Mono L-Mono R-Mono
AAC Container ADTS [01/02]
[ADTS] LATM
4.17 Level 4.18 PMT PID
4.19 PCR PID 4.20 TS Bitrate
4.21 Latency
AAC Profile LC [01/03]
[LC] HE HEV2
