Dexter Laundry HIGH SPEED 25LB WASHER Installation instructions

`P/N 8514-064-001 Rev A HIGH EXTRACT WASHER
25 LB (11.4 KG) CAPACITY
STACKABLE
ON-PREMISE LAUNDRY
COMPUTER CONTROL
THE
DEXTER
COMPANY OWNER'S BOOKLET
INSTALLATION & OPERATION
INSTRUCTIONS
Please read this information and retain for reference.
WARNING - THIS WASHER IS EQUIPPED WITH DEVICES AND FEATURES RELATING TO ITS SAFE
OPERATION. TO AVOID INJURY OR ELECTRICAL SHOCK, DO NOT PERFORM ANY SERVICING
UNLESS QUALIFIED TO DO SO.
IT IS THE RESPONSIBILITY OF THE OWNER TO CHECK THIS EQUIPMENT ON A FREQUENT
BASIS TO ASSURE ITS SAFE OPERATION.
A machine should not be allowed to operate if any of the following occur:
- Excessively high water level.
- If machine is not connected to a properly grounded circuit.
- If the door does not remain securely locked during the entire cycle.
- Vibration or shaking from an inadequate mounting or foundation.
WARNING - FOR SAFETY
1. Always shut off power and water supply before servicing.
2. Do not overload the washer.
3. Do not open door when cylinder is in motion or it contains water.
4. Do not bypass any safety devices of this washer.
5. Do not use volatile or flammable substances in or near this washer.
6. Keep all panels in place. They protect against shock and injury and add rigidity to the washer.
PREVENTIVE MAINTENANCE REQUIREMENTS
DAILY
- Check that the loading door remains securely locked and cannot be opened during the entire cycle.
- Check the water connections for leaks.
- Clean the top and sides of the cabinet to remove residue.
- Clean the soap dispenser and lid and check that all dispenser mounting screws are in-place and tight.
- Check the drain valve for leaking and that it opens properly.
- Check the loading door for leaks. Clean the door seal of all foreign matter.
- Leave the loading door open to aerate the washer when not in use.
QUARTERLY
- Make sure the washer is inoperative by switching off the main power supply.
- Check the V-belts for wear and proper tension.
- Clean lint and other foreign matter from around motor.
- Check all water connections for leaks.
- Wipe and clean the inside of the washer and check that all electrical components are free of moisture and dust.
- Remove and clean water inlet hose filters. Replace if necessary.
- Check anchor bolts - retighten if necessary
IMPORTANT: Replace any and all panels that were removed to perform daily and/or quarterly maintenance.

25 LB HIGH EXTRACT WASHER
THE
DEXTER
COMPANY
INSTALLATION INSTRUCTIONS
This washer may have been purchased as part of a stacked washer/dryer. In addition to thesr
instructions, please also refer to the installation instructions that accompany the dryer when
installing this product.
All washers must be installed in accordance with all local, state and national building, electrical,
plumbing and other codes in effect in the area.
WARNING - THESE INSTALLATION AND SERVICING INSTRUCTIONS
ARE FOR USE BY QUALIFIED PERSONNEL ONLY. TO AVOID INJURY
AND ELECTRICAL SHOCK DO NOT PERFORM ANY SERVICING
OTHER THAN THAT CONTAINED IN THE OPERATING
INSTRUCTIONS, UNLESS QUALIFIED.
FOUNDATION REQUIREMENTS
WARNING: This machine is designed for use on or over bare concrete floor - not to be used
above combustible flooring. The washer must be securely bolted and grouted to a substantial
concrete floor, or mounted and grouted upon a suitable base, which is in turn, securely bolted
and grouted to a substantial concrete floor. CARE MUST BE STRESSED WITH ALL
FOUNDATION WORK TO INSURE A STABLE UNIT INSTALLATION, ELIMINATING
POSSIBILITIES OF EXCESSIVE VIBRATION. All installations must be made on sound
concrete floors, 6 inches (152 mm) or thicker. Anchor bolts or expansion anchors must be of a
quality grade and a minimum of 5/8-inch (16 mm) diameter.
MOUNTING
A concrete pedestal or steel-mounting base that elevates the machine approximately 6 inches
(152 mm) above the floor level is recommended to provide easy access to the loading door.
Allow a minimum of 24 inches (610mm) of clearance behind the rear of the machine, to provide

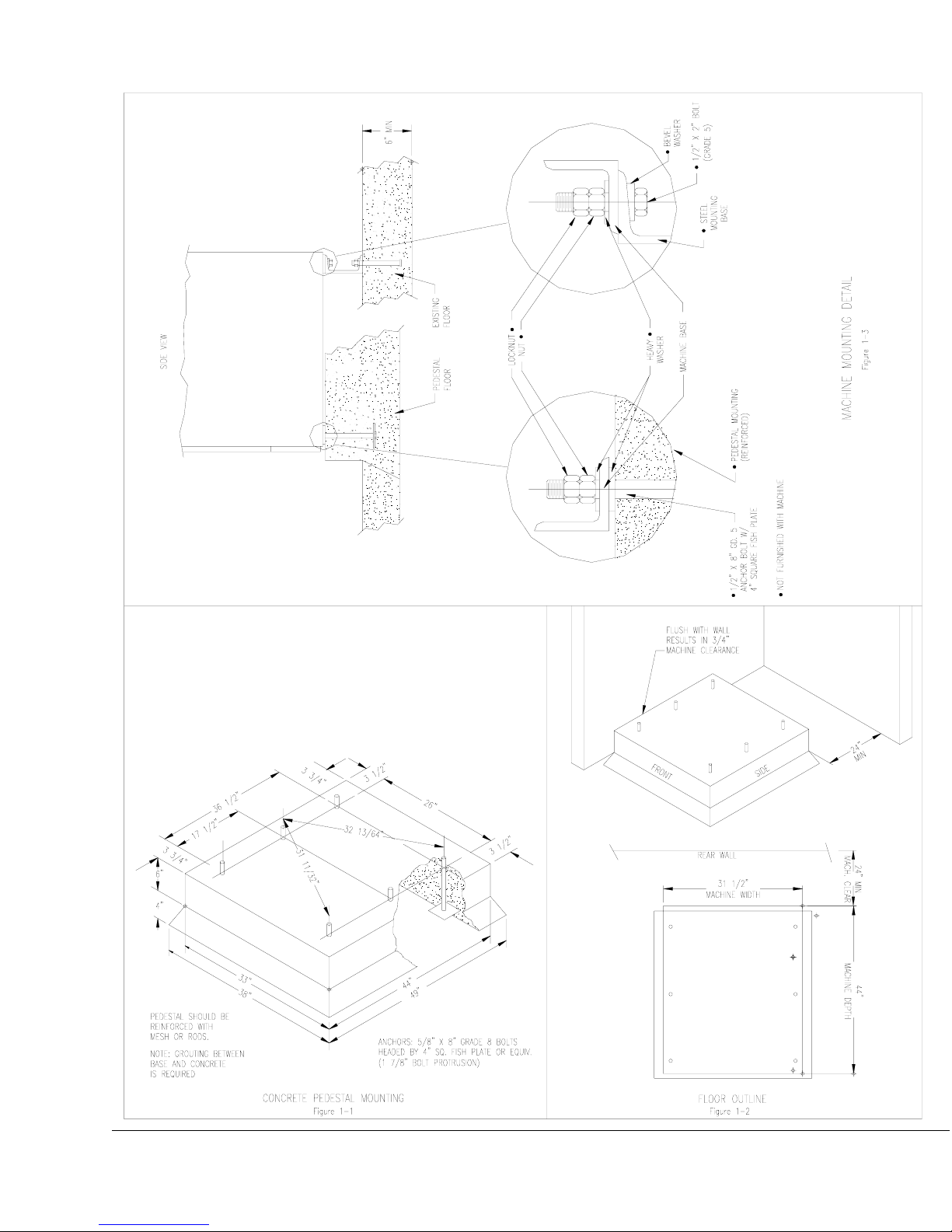

access for motor removal. Refer to Fig. 1-1 and 1-2 for machine bolt-down dimensions.
If an elevated concrete pedestal is desired, it should be embedded into the existing floor. Anchor
bolts should be 5/8" x 8" (16 mm x 200 mm), grade 8 or better, headed by a 4 inch (10 cm)
square fish plate and should protrude 1 7/8 inches (48 mm) above the finished surface of the
pedestal. EXPANSION ANCHORS ARE NOT RECOMMENDED FOR USE IN CONCRETE
PEDESTALS, BECAUSE THE ANCHORS ARE TOO CLOSE TO AN EDGE, CAUSING IT
TO BREAK OUT. (See Fig. 1-1 and 1-3.)

PLUMBING
Water supply hoses are furnished with each machine. Separate hot and cold water lines must be
provided, maintaining 30 P.S.I . (207 kPa) to 120 P.S.I. (818 kPa) water flow pressure. A 140F
(60C) degree hot water supply is recommended for best washing results.
DRAIN
The drain outlet tube at the rear of the machine is 3 inches (76 mm) in diameter. A flexible hose
material (Pt. #9242-417-003) is available to extend this draining system. Any drain hose used must
be lower than the drain valve to assure proper draining.
ELECTRICAL 208-240V/1PH/60HZ OR 208-240/3PH/60HZ
WARNING
SHUT OFF POWER AND WATER BEFORE OPENING ANY SERVICE PANELS.
This Dexter washing machine is intended to be a permanently installed appliance. No power cord is
provided. The machine should be connected to an individual branch circuit not shared by lighting or
other equipment. Where required, a means for disconnection with a contact separation distance of at
least 3mm must be provided. The connection should be sheathed in liquid-tight flexible conduit, or
equivalent, with conductors of the proper size and insulation.
TO MAKE ELECTRICAL CONNECTIONS: Disconnect all power to the washer. Remove screw and
lift out the cover located in the upper left corner of the machine (as viewed from the back).
 If power is 208-240-3PH-60Hz, connect L1, L2, L3 and ground. If there is a high leg it must be
connected to L3.
 If power is 208-240-1PH-60Hz, connect L1, L2 and Ground.
NOTE: It is important that the grounding screw next to the power terminal block TB-1 be
connected to a good external ground.
FUSING REQUIREMENTS:
SINGLE- or THREE -PHASE POWER - 20 AMP TIME-DELAY (DUAL ELEMENT) FUSE
(or equivalent circuit breaker)
CONTROLS TRANSFORMER
The controls transformer is mounted at the back of the control trough and has two voltage range
settings. One terminal is provided for the range of 208 to 220 volts and the other is for the range of
221 to 240 volts. Make sure the transformer is wired to match the intended supply voltage.
INJECTION SOURCE DETAILS

The washer control may be programmed to send 120V output signals for a chemical injection
system. The signals are not intended as a power source and must be limited to less than 100
milliamps of current. There is a separate terminal block for connection of the external injection
signals. For the injection sources, program codes 0 through 6 are as shown in the table below.
Dexter
Recommended
Connections
Controller
Programmed
Signals
Injection
Terminal Block
Circuits
Detergent 1 A
Bleach 2 B
Starch 3 C
Sour/Softener 4 D
5 A and B
6 C and D
0 None
CHECKOUT
After all mounting, plumbing and electrical work is completed, the washer should be run through a
cycle and checked for water leaks and proper functioning.

MODEL HIGH SPEED 25LB WASHER
CAPACITY
CYLINDER SIZE
ELECTRICAL
DRIVE SYSTEM
WASH SPEED
INTERMEDIATE
EXTRACT
FINAL EXTRACT
MACHINE CONTROL
WATER INLET
DRAIN VALVE
25LBS/4 CUBIC FT. (11.3 kg/113 L)
25” DIA X 14 1/8” DEEP (63.5cm X 36cm)
208-240 VAC, 60 HZ, 1 OR 3 PHASE
SOFT START REVERSING INVERTER DRIVE, 2 HP MOTOR
50 RPM
410 RPM (60 G’S)
750 RPM (200 G’S)
PROGRAMMABLE COMPUTER WITH 6 STANDARD CYCLES.
2 SOLENOID OPERATED VALVES
FLOW RATE: 9 GAL/MIN EACH, 30-120 PSI
3” DIAMETER

STARTING THE WASHER
A. Load the clothes into the cylinder and latch the door securely. Be sure clothing does not
get caught between the door gasket and tub front when closing the door. Do not overload the
washer.
B. Select the appropriate cycle number (1 through 6) using for the load being washed. See
the cycle descriptions in the programming section. Use the UP and DOWN keys to change
the cycle number.
C. If not using a chemical injection system, add low-sudsing powdered detergent into the
“detergent” compartment of the automatic dispenser on the top of the washer. If desired add
fabric softener to the “fabric softener” compartment. Use the amount of fabric softener as
recommended by the manufacturer.
If liquid wash products are used in the “detergent” compartment, they must be added at
the beginning of the wash cycle.
If the machine is set for pre-wash, washing products can be added to the round opening of
the dispenser or put in with the clothes when loading the cylinder before starting the
machine.
D. Press START. The display will go blank for a moment and then display the cycle time in
minutes. The clothes door will lock and remain locked until the end of the cycle.
END OF CYCLE
When the cycle is complete the “on” light will go off. The door can now be opened and the clothes
load removed. Leave the clothes door open when the machine is not in use.
SAFETY DOOR LOCK
This machine is equipped with a Safety Door Lock that prevents opening the door if the power is
interrupted, until it is safe to do so.
If power failure occurs or if power is interrupted during maintenance it will be necessary to wait 2 to
3 minutes before the door can be opened.

PROGRAMMING INSTRUCTIONS:
Programming can be accomplished manually using the machine controls or by connecting to the
machine control using a PDA (personal digital assistant). For instructions on using a PDA with this
washer control, please contact your local Dexter distributor. Please read below for manual
programming instructions.
The keypad layout for the washer control is shown above.
Wash Cycle Programming
1. Turn on the power to the washer.
2. Turn the Run/Program key to the Program position. Display will show “C O” and the “ADD
BLEACH” light will blink and will continue to blink during the programming mode.
3. Press the “DOWN” or “UP” buttons to select which cycle to alter. When the desired cycle
number is displayed, press “START”.
4. The display should now show a “b”. The “b” and the cycle indicator lights indicate which bath
is being selected to alter. Press the “UP” and “DOWN” buttons to select a bath to change and
then press “START”. The indicator lights are shown below.
FINAL
RINSE
PRE
WASH
FLUSH WASH RINSE SPIN
When “RINSE” is selected, “b r1” through “b r4” may be selected. There may be multiple
rinses that are indicated by r1, r2, r3 and r4.

5. Each bath can be programmed with the following options. Use the “DOWN” and “UP” keys to
select the desired setting and the “START” key to move to the next option.
DISPLAY FUNCTION OPTIONS
Ct ** Tumble Time Two-digit amount of time in minutes.
t ** Water Temperature HH for hot, CH for warm, CC for cold
and EE for no water.
L ** Water Level Lo for low, Hl for high.
dF * Type of Fill d for delayed fill, t for timed fill.1
S ** Spin Time Two-digit amount of time in minutes.
IS * Injection Source Single digit code indicating injector signal(s).2
1 A delayed fill will pause the time count until the selected level is reached. A timed fill will
allow the time count to continue until the selected level is reached.
2Codes for injections sources are defined at the end of the programming section. When the No
Water bath is selected, the electronic controller prohibits injection signals. The programmed
injection source value is ignored.
To exit the programming of a bath, press the “STOP” button once and use the “UP” and “DOWN”
keys select another bath. Press the “STOP” button again to select a different cycle to change. To
end programming, turn the key to “RUN” position
Note: The Wash Cycle programming mode will automatically exit and return to
the Idle mode if no buttons are pushed for one minute.
WASH CYCLE PARAMETER RANGES
The range of each cycle parameter is shown below:
Cycle Time 0 to 15 minutes for Prewash, Wash, Rinse1, 2, 3 and 4
1 to 15 minutes for Final Rinse
For the bathes that can, if the time is set to zero, then the bath
will be eliminated from the cycle.
Water Temperature HH – hot, CH – warm, CC – cold, EE – no water
Water Level HI – high, LO – low
Delay Fill The selections are “d” for delay the bath time until water level
is reached or “t” to count down bath time during the fill.
Spin Time 0 to 10 minutes for Prewash, Wash, Rinse, 2, 3 and 4
1 to 10 minutes for Final Spin
Injection Source 0 to 6

Cycle 1 Sheets & Pillowcases (Health Care)
Bath
Bath Cycle
Time
(min.)
Water
Temp.
Water
Level
Delay
Fill
Spin
Time
(min.)
Injection Source
Flush 3 CH HI d
Prewash 2 CH HI d
Wash 7 HH LO d 1 (Detergent)
Rinse 1 7 HH LO d 2 (Bleach)
Rinse 2 2 CH HI d 1
Rinse 3 2 CH HI d
Rinse 4
Final
Rinse
4 CH LO d 4 4 (Sour/Soft)
Cycle 2 Towels / Pads / Diapers (Health Care)
Bath
Bath Cycle
Time
(min.)
Water
Temp.
Water
Level
Delay
Fill
Spin
Time
(min.)
Injection Source
Flush 3 CH HI d
Prewash 2 CH HI d
Wash 7 HH LO d 1 (Detergent)
Rinse 1 1 HH HI d
Rinse 2 7 HH LO d 2 (Bleach)
Rinse 3 2 CH HI d 1
Rinse 4 2 CH HI d
Final
Rinse
4 CH LO d 5 4 (Sour/Soft)

Cycle 3 White Towels (Hotel / Motel)
Bath
Bath Cycle
Time
(min.)
Water
Temp.
Water
Level
Delay
Fill
Spin
Time
(min.)
Injection Source
Flush
Prewash
Wash 7 HH LO d 1 (Detergent)
Rinse 1 1 HH HI d
Rinse 2 7 HH LO d 2 (Bleach)
Rinse 3 2 CH HI d 1
Rinse 4 2 CH HI d
Final
Rinse
4 CH LO d 5 4 (Sour/Soft)
Cycle 4 Guest Laundry (Hotel / Motel or Health Care)
Bath
Bath Cycle
Time
(min.)
Water
Temp.
Water
Level
Delay
Fill
Spin
Time
(min.)
Injection Source
Flush 3 CH HI d
Prewash
Wash 7 HH LO d 5
(Detergent/Bleach)
Rinse 1 2 HH HI d
Rinse 2 2 CH HI d
Rinse 3 2 CH HI d
Rinse 4
Final
Rinse
4 CH LO d 4 4 (Sour/Soft)

Cycle 5 Rags & Mops (Hotel / Motel)
Bath
Bath Cycle
Time
(min.)
Water
Temp.
Water
Level
Delay
Fill
Spin
Time
(min.)
Injection Source
Flush 3 CH HI d
Prewash 2 CH HI d
Wash 2 CH HI d
Rinse 1 7 HH LO d 1 (Detergent)
Rinse 2 2 HH HI d
Rinse 3 7 HH LO d 2 (Bleach)
Rinse 4 2 CH HI d 1
Final
Rinse
2 CH LO d 5
Cycle 6 Colored Cotton Linen (Food & Beverage)
Bath
Bath Cycle
Time
(min.)
Water
Temp.
Water
Level
Delay
Fill
Spin
Time
(min.)
Injection Source
Flush 2 CH HI d
Prewash
Wash 10 HH LO d 1 (Detergent)
Rinse 1 7 HH LO d 2 (Bleach)
Rinse 2 2 CH HI d 1
Rinse 3 2 CH HI d
Rinse 4
Final
Rinse
4 CH LO d 4 6 (Sour/Starch)

RAPID ADVANCE MODE
To enter the Rapid Advance mode, turn the key counter-clockwise (CCW). The Rapid Advance
setting is not marked next to the key, but turning the key CCW until it stops selects this mode. The
Rapid Advance mode can be entered from either the Idle mode or during the cycle. If the cycle has
not yet started, press the “START” button. To rapid advance to the next step in the wash cycle, push
both the “UP” and “START” buttons at the same time. The display will show an “Ad” (advance) in
the display. The washer will advance to the next bath segment. The water will drain before the
advance will occur and the time displayed may not be accurate.
Notes:
• The indicator lights will show to which segment the cycle has been advanced.
• The cycle will continue in rapid advance mode even if the key is turned to “RUN” and/or
removed.
• Rapid advance cannot skip the final 1-minute tumble of the cycle, and the door lock may remain
activated for a couple minutes after the cycle has been completed.
• The chemical injection signals will not operate in Rapid Advance mode.
To end the cycle and exit the Rapid Advance mode without waiting for the time to count down, push
and hold the STOP button for 5 seconds or more.
INJECTION SOURCE DETAILS
The washer control may be programmed to send output signals for a chemical injection system.
There is a separate terminal block for connection of the external injection signals. For the injection
sources, program codes 0 through 6 are as shown in the table below. See the ELECTRICAL section
for more information.
Dexter
Recommended
Connections
Controller
Programmed
Signals
Injection
Terminal Block
Circuits
Detergent 1 A
Bleach 2 B
Starch 3 C
Sour/Softener 4 D
5 A and B
6 C and D
0 None

ACCESSORIES
INSTALLATION: (Furnished) QTY.
9990-027-011 Hose, Water Supply 2
8641-242-000 Washer, Inlet Hose 2
9565-003-001 Strainer, Inlet Hose 4
INSTALLATION: (Available through Dexter Distributor):
9242-417-003 3” (76 mm) Flex Drain Hose, 10 ft. length (3 meters)
Contact your distributor or The Dexter Company if a steel-mounting base is required.
