Dexter Laundry T-675 EXPRESS PLUS User manual

8514-290-001 REV E page 1
INDUSTRIAL WASHERS
MODEL T-350/450/650/750/950/1450 EXPRESS
MODEL T-675/975/1475 EXPRESS PLUS
ON-PREMISE O-SERIES CONTROL
OPERATOR’S MANUAL
INSTALLATION & OPERATION
INSTRUCTIONS
Please read this information and retain for reference.
WARNING - T IS WAS ER IS EQUIPPED WIT DEVICES AND FEATURES RELATING TO ITS SAFE
OPERATION. TO AVOID INJURY OR ELECTRICAL S OCK, DO NOT PERFORM ANY SERVICING UNLESS
QUALIFIED TO DO SO.
IT IS T E RESPONSIBILITY OF T E OWNER TO C ECK T IS EQUIPMENT ON A FREQUENT
BASIS TO ASSURE ITS SAFE OPERATION.
A machine should NOT be allowed to operate if any of the following occur:
- Excessively high water level.
- If machine is not connected to a properly grounded circuit.
- If the door does not remain securely locked during the entire cycle.
- Vibration or shaking from an inadequate mounting or foundation.
WARNING - SA ETY PRECAUTIONS
- Always shut off power and water supply before servicing.
- Do not overload the washer.
- Do not open door when cylinder is in motion or it contains water.
- Do not bypass any safety devices of this washer.
- Do not use volatile or flammable substances in or near this washer.
- Keep all panels in place. They protect against shock and injury and add rigidity to the washer.
PREVENTIVE MAINTENANCE REQUIREMENTS
DAILY
- Check that the loading door remains securely locked and cannot be opened during an entire
cycle.
- Clean the top, front, and sides of the cabinet to remove residue.
- Clean the soap dispenser and lid and check that all dispenser mounting screws are in-place and
tight.
- Check the loading door for leaks. Clean the door seal of all foreign matter.
- Leave the loading door open to aerate the washer when not in use.
QUARTERLY
- Make sure the washer is inoperative by switching off the main power supply.
- Check the V-belts for wear and proper tension.
- Clean lint and other foreign matter from around motor.
- Check all water connections for leaks.
- Check the drain valve for leaking and that it opens properly.
- Wipe and clean the inside of the washer and check that all electrical components are free of
moisture and dust.
- Remove and clean water inlet hose filters. Replace if necessary.
- Check anchor bolts. Retighten if necessary.
IMPORTANT: Replace any and all panels that were removed to perform daily and/or quarterly
maintenance.

8514-290-001 REV E page 2
TABLE O CONTENTS
1 WAS ER SPECIFICATION S EETS ...................................................................... 4
2 INSTALLATION INSTRUCTIONS .......................................................................... 6
2.1 FOUNDATION REQUIREMENTS ...................................................................... 6
2.2 MOUNTING EIG T ..................................................................................... 6

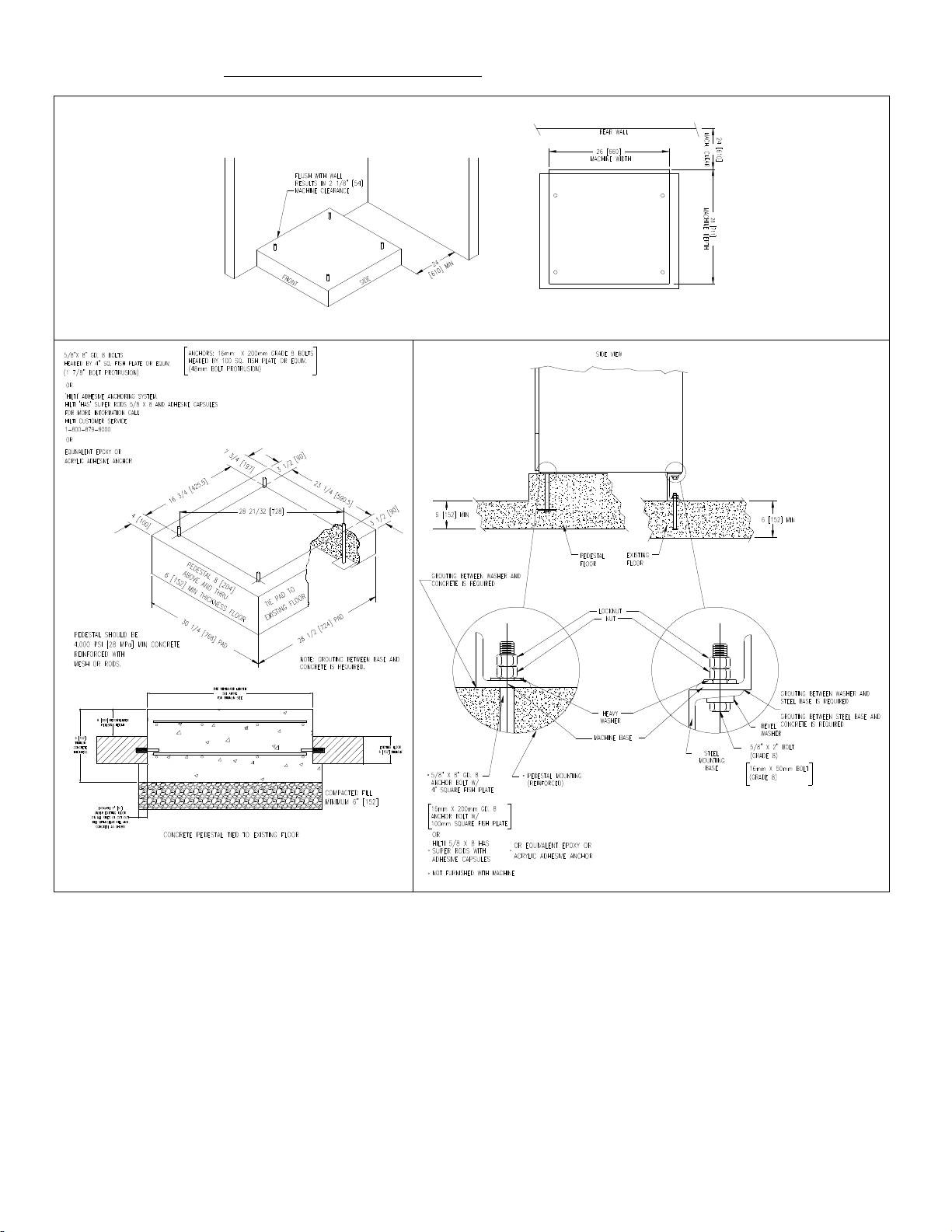

2.3 FOUNDATION AND PAD OPTIONS ................................................................. 7
2.4 MAC INE ANC ORING ................................................................................. 9
2.5 MAC INE GROUTING .................................................................................. 10
2.6 FLOOR LOAD DATA..................................................................................... 11
2.7 MAC INE MOUNTING DETAILS ................................................................... 12
2.7.1 T-350 Machine Mounting Detail ............................................................. 12
2.7.2 T-350 Machine Side By Side Mounting Detail .......................................... 13

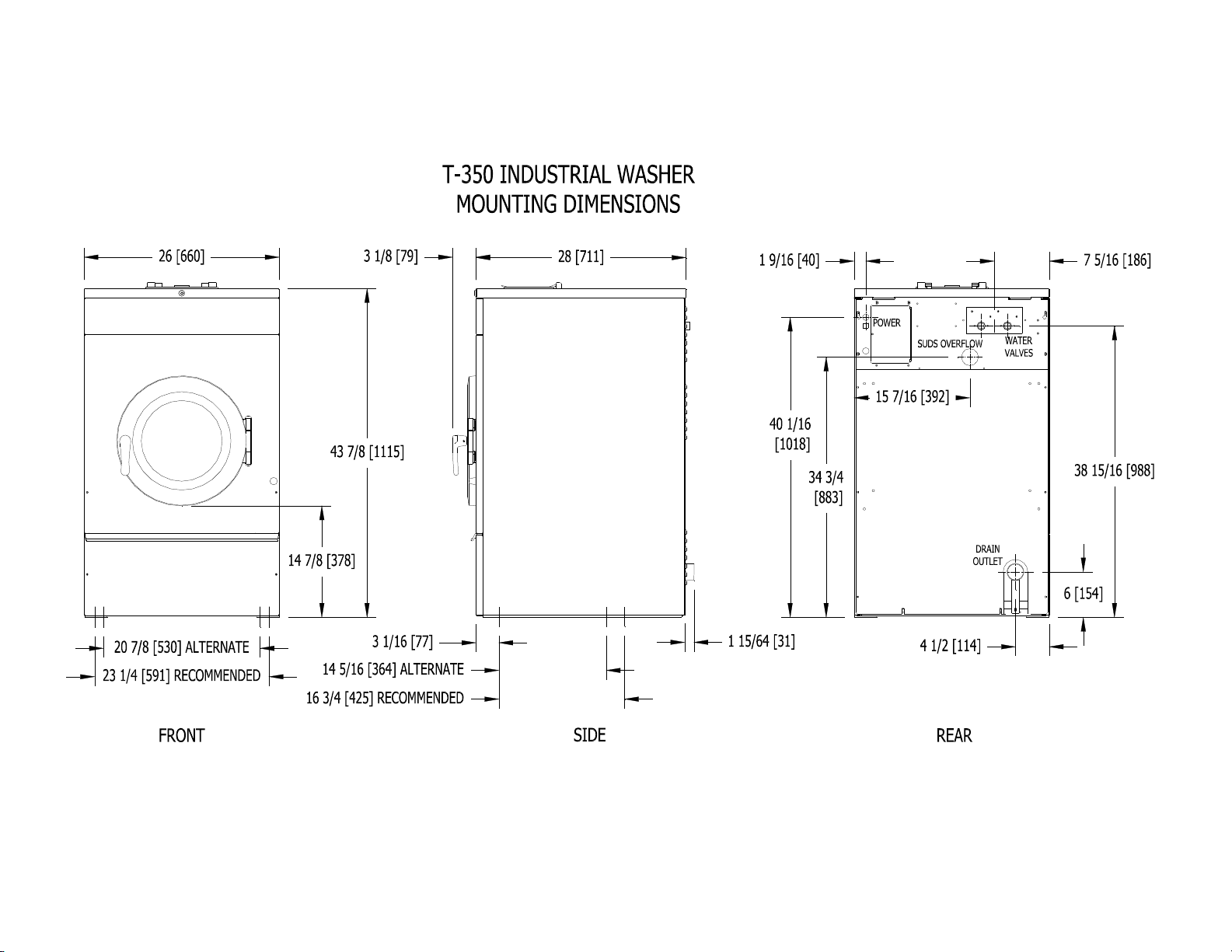

2.7.3 T-350 Industrial Washer Dimensions ...................................................... 14
2.7.4 T-450 Machine Mounting Detail ............................................................. 15
2.7.5 T-450 Machine Side by Side Mounting Detail .......................................... 16
2.7.6 T-450 Industrial Washer Dimensions ...................................................... 17
2.7.7 T-650/675 Machine Mounting Detail....................................................... 18
2.7.8 T-650/675 Machine Side By Side Mounting Detail ................................... 19
2.7.9 T-650/675 Industrial Washer Dimensions ............................................... 20
2.7.10 T-750 Machine Mounting Detail .......................................................... 21
2.7.11 T-750 Machine Side By Side Mounting Detail ....................................... 22
2.7.12 T-750 Industrial Washer Dimensions ................................................... 23
2.7.13 T-950/975 Machine Mounting Detail ................................................... 24
2.7.14 T-950/975 Machine Side By Side Mounting Detail ................................ 25
2.7.15 T-950/975 Industrial Washer Dimensions ............................................ 26
2.7.16 T-1450/1475 Machine Mounting Detail ................................................ 27
2.7.17 T-1450/1475 Machine Side By Side Mounting Detail ............................. 28
2.7.18 T-1450/1475 Industrial Washer Dimensions ........................................ 29
2.8 PLUMBING ................................................................................................. 30
2.9 DRAIN ....................................................................................................... 30
2.10 PROTECTIVE FILM ...................................................................................... 30
2.11 ELECTRICAL ............................................................................................... 30
2.11.1 INSTALLING T E ELECTRICAL CONNECTION ...................................... 32
2.11.2 FUSING REQUIREMENTS ................................................................... 32
2.11.3 CONTROLS TRANSFORMER (208-240V 60 z models only) .................. 33
2.11.4 CONTROLS TRANSFORMER (230V 50 z models only) ......................... 33
2.12 INJECTION SOURCE CONNECTIONS ............................................................ 34
2.13 OPERATION C ECK .................................................................................... 35
2.14 INSTALLATION SWITC C ECK (T-675, T-975 AND T-1475 ONLY) ............... 35

8514-290-001 REV E page 3
3 OPERATING INSTRUCTIONS ............................................................................. 36
3.1 STARTING T E WAS ER ............................................................................. 36
3.2 END OF CYCLE ........................................................................................... 37
3.3 EMERGENCY STOP / SAFETY DOOR LOCK .................................................... 37
3.4 VARIABLE FREQUENCY DRIVE INDICATORS ................................................ 38
4 MAC INE PROGRAMMING INSTRUCTIONS ........................................................ 39
4.1 ENTER PROGRAMMING MODE ..................................................................... 39
4.2 WATER LEVEL ADJUSTMENT ....................................................................... 40
5 WAS ER ERROR MESSAGES ............................................................................. 41
6 TROUBLES OOTING ........................................................................................ 49
7 TRANSIENT VOLTAGE SURGE SUPPRESSORS .................................................... 53
8 SERVICE AND PARTS ........................................................................................ 54

8514-290-001 REV E page 4
1 WASHER SPECI ICATION SHEETS
EXPRESS MODELS
Capacity Dry Weight Capacity - lb (kg) 20 (9.1) 30 (13.6 kg) 40 (18.1) 50 (22.7) 60 (27.2) 90 (40.8)
Cyli der Volume - cu ft (L) 2.7 (76.5) 3.8 (107.6 L) 6 (170) 6.5 (184.1) 9 (254.9) 13.7 (388)
Speed High Extract Speed - g (RPM) 200 (819) 200 (750 RPM) 200 (750) 200 (685) 200 (685) 200 (617)
I termediate Extract Speed - g (RPM) 60 (449) 60 (411 RPM) 60 (411) 60 (375) 60 (375) 60 (338)
Washi g Speed - g (RPM) 0.9 (55) 0.9 (50 RPM) 0.9 (50) 0.9 (43) 0.9 (43) 0.9 (39)
Motor Size - hp (kW) 1 (0.75) 2 (1.5 kW) 2 (1.5) 3 (2.2) 3 (2.2) 7.8 (5.8)
Dime sio s Cabi et Height - i (cm) 43 7/8 (111.4) 48 3/16 (122.4 cm) 53 (134.6) 55 3/8 (140.7) 55 3/8 (140.7) 62 3/8 (158.4)
Cabi et Width - i (cm) 26 (66) 29 7/8 (75.9 cm) 29 7/8 (75.9) 34 3/8 (87.3) 34 3/8 (87.3) 41 1/2 (105.4)
Cabi et Depth - i (cm) 28 (71.1) 28 1/4 (71.8 cm) 38 1/8 (96.8) 32 7/8 (83.5) 38 7/8 (98.7) 42 1/4 (107.3)
Door Ope i g - i (cm) 12 1/4 (31.1) 15 1/4 (38.7 cm) 15 1/4 (38.7) 19 1/4 (48.9) 19 1/4 (48.9) 19 1/4 (48.9)
Floor to Door Bottom - i (cm) 14 7/8 (37.8) 16 1/4 (41.3 cm) 16 1/4 (41.3) 16 (40.6) 16 (40.6) 19 5/16 (49.1)
Cyli der Diameter - i (cm) 21 (53.3) 25 (63.5 cm) 25 (63.5) 30 (76.2) 30 (76.2) 37 (94)
Cyli der Depth - i (cm) 13 1/2 (34.3) 13 3/8 (34 cm) 21 1/8 (53.7) 16 (40.6) 22 (55.9) 22 (55.9)
Weight Net Weight - lb (kg) 383 (173.7) 526 (238.6 kg) 744 (337.5) 925 (419.6) 1000 (453.6) 1322 (599.6)
Shippi g Shippi g Weight - lb (kg) 407 (184.6) 544 (246.8 kg) 766 (347.5) 952 (431.8) 1016 (460.8) 1364 (618.7)
Shippi g Height - i (cm) 49 1/4 (125.1) 53 1/4 (135.3 cm) 58 3/4 (149.2) 61 1/2 (156.2) 61 1/2 (156.2) 69 1/4 (175.9)
Shippi g Width - i (cm) 28 1/4 (71.8) 31 1/2 (80 cm) 31 1/2 (80) 36 (91.4) 36 (91.4) 43 1/8 (109.5)
Shippi g Depth - i (cm) 33 1/2 (85.1) 33 1/2 (85.1 cm) 43 3/4 (111.1) 38 (96.5) 45 1/4 (114.9) 48 (121.9)
Water Water I let Size - i (mm) 3/4 (19) 3/4 (19 mm) 3/4 (19) 3/4 (19) 3/4 (19) 3/4 (19)
Pressure (mi -max) - psi (kPa) 30-120 (207-827) 30-120 (207-827 kPa) 30-120 (207-827) 30-120 (207-827) 30-120 (207-827) 30-120 (207-827)
Flow Rate - gal/mi (L/mi ) 9 (34) 9 (34) 9 (34) 9 (34) 9 & 12 (34 & 45) 9 & 12 (34 & 45)
Drai Diameter (O.D.) - i (cm) 2 1/4 (5.7) 3 (7.6 cm) 3 (7.6) 3 (7.6) 3 (7.6) 3 (7.6)
Floor to Ce ter of Drai - i (cm) 6 (15.2) 5 (12.7 cm) 6 7/8 (17.5) 6 5/8 (16.8) 6 5/8 (16.8) 8 5/16 (21.1)
Electrical Model Volts / Hz / Phase / Wiri g
208-240 / 60 / 1 / 2 wire + grou d
208-240 / 60 / 3 / 3 wire + grou d
-13 208-240 / 60 / 3 / 3 wire + grou d
-39 230 / 50 / 1 / 2 wire + grou d
-68 400 / 50 / 3 / 4 wire + grou d
I stallatio
Mi . Cleara ce Betwee Machi es - i (cm)
1/2 (1.3) 1/2 (1.3) 1/2 (1.3) 1/2 (1.3) 1/2 (1.3) 1/2 (1.3)
Mi . Cleara ce Behi d Machi es - i (cm 24 (61) 24 (61) 24 (61) 24 (61) 24 (61) 24 (61)
Mi . Co crete Thick ess - i (cm) 6 (15.2) 6 (15.2) 8 (20.3) 8 (20.3) 8 (20.3) 12 (30.5)
30 / 15 / 5.3 mm2
---
---
30 / 30 / 8.4 mm2
---
40 / 40 / 8.4 mm2
---
15 / 6.2 / 3.5 mm2
15 / 6.2 / 3.5 mm2
15 / 6.2 / 3.5 mm2
20 / 8.4 / 3.5 mm2
20 / 12 / 3.5 mm2
40 / 40 / #8 --- 60 / 60 / #6
Circuit Breaker Amps / Ru i g Amps / Wire Size
-12 15 / 6.2 / #12 15 / 6.2 / #12 15 / 6.2 / #12 20/ 8.4 / #12 30 / 15 / #10
60 / 60 / #4
20/ 12 / #12
--- ---
T-1450
T-350
T-450
T-650
T-750
T-950

8514-290-001 REV E page 5
EXPRESS PLUS MODELS
Capacity Dry Weight Capacity - lb (kg) 40 (18.1) 60 (27.2) 90 (40.8)
Cyli der Volume - cu ft (L) 6 (170) 9 (254.9) 13.7 (388)
Speed High Extract Speed - g (RPM) 350 (993) 400 (969) 350 (816)
I termediate Extract Speed - g (RPM) 60 (411) 60 (375) 60 (338)
Washi g Speed - g (RPM) 0.9 (50) 0.9 (43) 0.9 (39)
Motor Size - hp (kW) 3 (2.2) 6.7 (5) 7.8 (5.8)
Dime sio s Cabi et Height - i (cm) 53 (134.6) 55 3/8 (140.7) 62 3/8 (158.4)
Cabi et Width - i (cm) 29 7/8 (75.9) 34 3/8 (87.3) 41 1/2 (105.4)
Cabi et Depth - i (cm) 38 1/8 (96.8) 38 7/8 (98.7) 42 1/4 (107.3)
Door Ope i g - i (cm) 15 1/4 (38.7) 19 1/4 (48.9) 19 1/4 (48.9)
Floor to Door Bottom - i (cm) 16 1/4 (41.3) 16 (40.6) 19 5/16 (49.1)
Cyli der Diameter - i (cm) 25 (63.5) 30 (76.2) 37 (94)
Cyli der Depth - i (cm) 21 1/8 (53.7) 22 (55.9) 22 (55.9)
Weight Net Weight - lb (kg) 744 (337.5) 1000 (453.6) 1322 (599.6)
Shippi g Shippi g Weight - lb (kg) 766 (347.5) 1016 (460.8) 1364 (618.7)
Shippi g Height - i (cm) 58 3/4 (149.2) 61 1/2 (156.2) 69 1/4 (175.9)
Shippi g Width - i (cm) 31 1/2 (80) 36 (91.4) 43 1/8 (109.5)
Shippi g Depth - i (cm) 43 3/4 (111.1) 45 1/4 (114.9) 48 (121.9)
Water Water I let Size - i (mm) 3/4 (19) 3/4 (19) 3/4 (19)
Pressure (mi -max) - psi (kPa) 30-120 (207-827) 30-120 (207-827) 30-120 (207-827)
Flow Rate - gal/mi (L/mi ) 9 (34) 9 & 12 (34 & 45) 9 & 12 (34 & 45)
Drai Diameter (O.D.) - i (cm) 3 (7.6) 3 (7.6) 3 (7.6)
Floor to Ce ter of Drai - i (cm) 6 7/8 (17.5) 6 5/8 (16.8) 8 5/16 (21.1)
Electrical Model Volts / Hz / Phase / Wiri g
208-240 / 60 / 1 / 2 wire + grou d
208-240 / 60 / 3 / 3 wire + grou d
-39 230 / 50 / 1 / 2 wire + grou d
I stallatio
Mi . Cleara ce Betwee Machi es - i (cm)
1/2 (1.3) 1/2 (1.3) 1/2 (1.3)
Mi . Cleara ce Behi d Machi es - i (cm 24 (61) 24 (61) 24 (61)
Mi . Co crete Thick ess - i (cm) 8 (20.3) 8 (20.3) 12 (30.5)
T-675
T-975
T-1475
20 / 8.4 / 3.5 mm2
30 / 15 / 5.3 mm2
30 / 15 / 5.3 mm2
-12 20 / 8.4 / #12 30 / 15 / #10 30 / 15 / #10

8514-290-001 REV E page 6
2 INSTALLATION INSTRUCTIONS
All washers must be installed in accordance with all local, state and national
building, electrical, plumbing and other codes in effect in the area.
WARNING:
THESE INSTALLATION AND SERVICING INSTRUCTIONS ARE OR USE
BY QUALI IED PERSONNEL ONLY. TO AVOID INJURY AND ELECTRICAL
SHOCK, DO NOT PER ORM ANY SERVICING OTHER THAN THAT
CONTAINED IN THE OPERATING INSTRUCTIONS, UNLESS QUALI IED.
2.1 FOUNDATION REQUIREMENTS
This machine is designed for use on or over bare concrete floor - not to be
used above combustible flooring, such as carpet or wood. The washer
must be securely bolted and grouted to a substantial concrete floor or
mounted and grouted upon a suitable base that is securely bolted and
grouted to a substantial concrete floor. See Machine Grouting section for
details.
CARE MUST BE TAKEN WIT ALL FOUNDATION WORK TO ENSURE A
STABLE UNIT INSTALLATION, ELIMINATING POSSIBILITIES OF
EXCESSIVE VIBRATION.
Allow a minimum 24 inches (610 mm) of clearance behind the rear of the
machine to provide access for motor service.
Installation on an isolated pad is NOT recommended. Consult a structural
engineer for installations that will not be tied to a surrounding floor.
2.2 MOUNTING EIG T
A concrete pedestal or steel-mounting base that elevates the machine
above the floor level is suggested to provide easy access to the loading
door.
Suggested Amount to Elevate Washer:
T-350: approximately 8 inches (203 mm)
T-450: approximately 6 inches (152 mm)
T-650/750/950/1450: approximately 4 inches (102 mm)
T-675/975/1475: approximately 4 inches (102 mm)
Contact a Dexter laundry equipment distributor for recommended steel
mounting bases. Available steel mounting bases:
Washer Part Number eight
T-350 9945-121-001 8” (203 mm)
T-450 9945-123-001 6” (152 mm)
T-650/675 9945-145-001 6” (152 mm)
T-750 9945-117-001 6” (152 mm)
T-950/975 9945-103-001 4” (103 mm)

8514-290-001 REV E page 7
T-950/975 9945-118-001 6” (152 mm)
T-1450/1475 9945-145-001 4” (103 mm)
If an elevated concrete pedestal is desired, it should be embedded and
tied into the existing floor. DO NOT install a pad on top of the existing
floor. Cut through existing floor as shown below. See Machine Mounting
Detail Figures for floor thickness and bolt sizes.
EXPANSION ANC ORS ARE NOT RECOMMENDED FOR USE IN CONCRETE
PEDESTALS BECAUSE T E ANC ORS ARE TOO CLOSE TO AN EDGE,
CAUSING IT TO BREAK OUT.
2.3 FOUNDATION AND PAD OPTIONS
All installations require reinforced concrete floors. Refer to appropriate
model Machine Mounting Detail Figures 1-1, 1-2 and 1-3 for minimum
floor thickness and minimum pad sizes. See mounting diagram for overall
washer dimensions.
Refer to appropriate model Figure 1-4 for side by side mounting
dimensions.
2.3.1 WAS ER INSTALLATION ON EXISTING FLOOR:
2.3.2 WAS ER INSTALLATION ON NEW FLOOR:

8514-290-001 REV E page 8
2.3.3 NEW PAD TIED TO EXISTING FLOOR:
If the existing floor is not reinforced concrete that meets the minimum
thickness requirements, DO NOT install a pad on top of the existing floor.
The existing floor and the machine pad must be tied together as one
piece as follows:
1) Cut an opening through the existing floor that is wider and deeper
than the washer as shown below. See Machine Mounting Details for
dimensions.
2) Excavate to a depth that allows for 6” [152] minimum of
compacted fill plus the minimum required concrete thickness. Also
excavate 2” [51] under the existing floor so that the new concrete is
poured under the floor as well.
3) Back fill with clean fill dirt and compact dirt, making sure to allow
for the minimum thickness concrete pad to be poured.
4) Drill holes around the perimeter of the existing floor to install
reinforcing bars to tie the new pad to the existing floor. Drill 2-1/2”
[64] deep into the existing floor on 12” [305] centers around the entire
perimeter.
5) Clean holes and fill half-way with acrylic adhesive rated for
commercial-grade machine installations.
6) Use #4 (60 ksi) reinforcing bar to tie the new pad to the existing
floor. Tie the bars together at intersections and use supports to hold
bars in the proper depth in the pad.
7) After adhesive has cured, pour 4000 psi concrete up to level with
the existing floor plus any extra elevated pedestal desired 4-10” [102-
254].
Concrete must be done in one pour so that the entire pad cures as one
piece.
2.3.3.1 NEW PAD TIED TO EXISTING FLOOR (LEVEL WIT
FLOOR):

8514-290-001 REV E page 9
2.3.3.2 NEW RAISED CONCRETE PEDESTAL TIED TO
EXISTING FLOOR:
2.3.4 STEEL MOUNTING BASE ON CONCRETE FLOOR:
2.4 MAC INE ANC ORING
All installations require concrete floors and quality grade anchor bolts or
expansion anchors. Mounting hardware is not provided with the
machines. Refer to appropriate model Machine Mounting Detail Figures 1-
1, 1-2 and 1-3 for floor thickness and bolt sizes. See mounting diagram
for overall washer dimensions.

8514-290-001 REV E page 10
EXPANSION ANC ORS ARE NOT RECOMMENDED FOR USE IN RAISED
CONCRETE PEDESTALS BECAUSE T E ANC ORS ARE TOO CLOSE TO AN
EDGE, CAUSING IT TO BREAK OUT.
ANC ORING OPTIONS:
2.4.1 Cast in place bolts headed by square fish plates. See Machine
Mounting Detail Figures 1-1 thru 1-3 for exact washer model.
Or after concrete has completely cured:
2.4.2
Use ilti Adhesive System ‘ AS’ Rods and adhesive capsules. See
Machine Mounting Detail Figures 1-1 thru 1-3 for exact washer
model.
2.4.3
Or use an equivalently rated epoxy or acrylic adhesive anchor.
As an installation aid, the anchor pattern can be found on the back panel
of the washers and can be used as a template. Compare panel to the
mounting dimension drawing to find the right holes. Example:
ANCHOR
PATTERN
2.5 MAC INE GROUTING
After concrete has cured completely and anchors have cured completely
into place:
2.5.1 Position washer over the mounting anchors.
2.5.2
Raise the washer 1/2” [12.7] off the mounting surface and place
spacers under the corners of the washer base.
2.5.3
Level the washer, leaving washer at least 1/2” [12.7] off the
mounting surface.
Do not permanently support the washer with spacers under the
corners. Machine must be grouted, and spacers must be removed.

8514-290-001 REV E page 11
2.5.4 Mix non-shrinking machinery grout according to the grout
instructions. The grout should not be too runny or too firm.
Completely fill the 1/2” [12.7] space between the washer base
and the mounting surface. Force grout under all base angles and
plates until completely filled. Fill around all anchor bolts.
2.5.5
Finger tighten all nuts to anchor bolts.
2.5.6
When the grout has started to stiffen (but before it is cured),
remove the spacers from the corners and allow the washer to settle
into the wet grout. Fill in any voids as necessary with additional
grout.
2.5.7
Allow grout to completely cure, then tighten all nuts to securely
fasten the washer to the grouted mounting surface.
2.5.8
Retighten nuts after 5 days of operation and check quarterly.
If using a steel mounting base, first grout the steel mounting base to the
concrete floor using the above steps, then repeat the steps for mounting
and grouting the washer to the steel mounting base.
2.6 FLOOR LOAD DATA
Model
Dry Weight
Capacity
(lb [kg])
Extract
Speed
(RPM)
Extract G-
Force
Maximum
Static Load
(lb [kN])
Static Load
Pressure
(lb/sq ft
[kN/ sq m])
Total
Dy amic
Load (lb
[kN])
Dy amic
Load
Pressure
(lb/sq ft
[kN/ sq m])
Dy amic
Load
Freque cy
(Hz)
Maximum
Vertical
Load (lb
]kN])
Maximum
Mome t About
Washer Base
(ft*lbs [m-kN])
T-350 20 [9.1] 819 200 447 [2.0] 94 [4.5] 800 [3.6] 168 [8.0] 13.7 1203 [5.4] 1571 [2.1]
T-450 30 [13.6] 750 200 618 [2.7] 113 [5.4] 1200 [5.3] 220 [10.5] 12.5 1756 [7.8] 2631 [3.6]
T-650 40 [18.1] 750 200 882 [3.9] 134 [6.4] 1600 [7.1] 243 [11.6] 12.5 2384 [10.6] 3508 [4.8]
T-750 50 [22.7] 685 200 1119 [5.0] 166 [7.9] 2000 [8.9] 297 [14.2] 11.4 2970 [13.2] 4667 [6.3]
T-950 60 [27.2] 685 200 1206 [5.4] 150 [7.2] 2400 [10.7] 299 [14.3] 11.4 3460 [15.4] 5600 [7.6]
T-1450 90 [40.8] 617 200 1635 [7.3] 163 [7.8] 3600 [16.0] 360 [17.2] 10.3 5012 [22.3] 9413 [12.8]
T-675 40 [18.1] 993 350 882 [3.9] 134 [6.4] 1600 [7.1] 243 [11.6] 16.6 2384 [10.6] 3508 [4.8]
T-975 60 [27.2] 969 400 1206 [5.4] 150 [7.2] 2400 [10.7] 299 [14.3] 16.2 3460 [15.4] 5600 [7.6]
T-1475 90 [40.8] 816 350 1635 [7.3] 163 [7.8] 3600 [16.0] 360 [17.2] 13.6 5012 [22.3] 9413 [12.8]
Note:
DEXTER DYNAMIC LOADING CHART
The out-of-bala ce loadi g co ditio s may very depe de t o load size a d
material.
Express Plus Washers
Express Washers

8514-290-001 REV E page 12
2.7 MAC INE MOUNTING DETAILS
RAISED CONCRETE PEDESTAL MOUNTING OPTION
Figure 1-1 Figure 1-3
MACHINE MOUNTING DETAIL
Figure 1-2
FLOOR OUTLINE
2.7.1 T-350 Machine Mounting Detail

8514-290-001 REV E page 13
SIDE BY SIDE MOUNTING DIMENSIONS
Figure 1-4
2.7.2 T-350 Machine Side By Side Mounting Detail

8514-290-001 REV E page 14
2.7.3 T-350 Industrial Washer Dimensions

8514-290-001 REV E page 15
RAISED CONCRETE PEDESTAL MOUNTING OPTION
Figure 1-1
Figure 1-3
MACHINE MOUNTING DETAIL
Figure 1-2
FLOOR OUTLINE
2.7.4 T-450 Machine Mounting Detail

8514-290-001 REV E page 16
SIDE BY SIDE MOUNTING DIMENSIONS
Figure 1-4
2.7.5 T-450 Machine Side by Side Mounting Detail

8514-290-001 REV E page 17
2.7.6 T-450 Industrial Washer Dimensions

8514-290-001 REV E page 18
RAISED CONCRETE PEDESTAL MOUNTING OPTION
Figure 1-1
MACHINE MOUNTING DETAIL
Figure 1-2
FLOOR OUTLINE
Figure 1-3
2.7.7 T-650/675 Machine Mounting Detail

8514-290-001 REV E page 19
SIDE BY SIDE MOUNTING DIMENSIONS
Figure 1-4
2.7.8 T-650/675 Machine Side By Side Mounting Detail

8514-290-001 REV E page 20
2.7.9 T-650/675 Industrial Washer Dimensions
