Dexter Laundry T-300 VENDED User manual

8514-297-001 REV F page 1
INDUSTRIAL WASHERS
MODELS T-300/350/400/450/600/650/750/900/950/1200/1450
ON-PREMISE V-SERIES 6 CYCLE CONTROL
OPERATOR’S MANUAL
INSTALLATION OPERATION
INSTRUCTIONS
Please read this information and retain for reference
WARNING - THIS WASHER IS EQUIPPED WITH DEVICES AND FEATURES RELATING TO ITS SAFE
OPERATION TO AVOID INJURY OR ELECTRICAL SHOCK, DO NOT PERFORM ANY SERVICING UNLESS
QUALIFIED TO DO SO
IT IS THE RESPONSIBILITY OF THE OWNER TO CHECK THIS EQUIPMENT ON A FREQUENT
BASIS TO ASSURE ITS SAFE OPERATION
A machine should NOT be allowed to operate if any of the following occur:
- Excessively high water level
- If machine is not connected to a properly grounded circuit
- If the door does not remain securely locked during the entire cycle
- Vibration or shaking from an inadequate mounting or foundation
WARNING - SAFETY PRECAUTIONS
- Always shut off power and water supply before servicing
- Do not overload the washer
- Do not open door when cylinder is in motion or it contains water
- Do not bypass any safety devices of this washer
- Do not use volatile or flammable substances in or near this washer
- Keep all panels in place They protect against shock and injury and add rigidity to the washer
PREVENTIVE MAINTENANCE REQUIREMENTS
DAILY
- Check that the loading door remains securely locked and cannot be opened during an entire
cycle
- Clean the top, front, and sides of the cabinet to remove residue
- Clean the soap dispenser and lid and check that all dispenser mounting screws are in-place and
tight
- Check the loading door for leaks Clean the door seal of all foreign matter
- Leave the loading door open to aerate the washer when not in use
QUARTERLY
- Make sure the washer is inoperative by switching off the main power supply
- Check the V-belts for wear and proper tension
- Clean lint and other foreign matter from around motor
- Check all water connections for leaks
- Check the drain valve for leaking and that it opens properly
- Wipe and clean the inside of the washer and check that all electrical components are free of
moisture and dust
- Remove and clean water inlet hose filters Replace if necessary
- Check anchor bolts Retighten if necessary
IMPORTANT: Replace any and all panels that were removed to perform daily and/or quarterly
maintenance

8514-297-001 REV F page 2
TABLE OF CONTENTS
1 WASHER SPECIFICATION SHEET 4
1 1 Standard Washers 4
1 2 Express Washers 5
2 INSTALLATION INSTRUCTIONS 6
2 1 FOUNDATION REQUIREMENTS 6
2 2 MOUNTING HEIGHT 6
2 3 FOUNDATION AND PAD OPTIONS 7
2 4 MACHINE ANCHORING 10
2 5 MACHINE GROUTING 11
2 6 FLOOR LOAD DATA 12
2 7 MOUNTING DETAILS 12
2 7 1 T-300 Machine Mounting Detail 13
2 7 2 T-300 Machine Side By Side Mounting Detail 14
2 7 3 T-300 Industrial Washer Dimensions 15
2 7 4 T-350 Machine Mounting Detail 16
2 7 5 T-350 Machine Side By Side Mounting Detail 17
2 7 6 T-350 Industrial Washer Dimensions 18
2 7 7 T-400 Machine Mounting Detail 19
2 7 8 T-400 Machine Side By Side Mounting Detail 20
2 7 9 T-400 Industrial Washer Dimensions 21
2 7 10 T-450 Machine Mounting Detail 22
2 7 11 T-450 Machine Mounting Detail 23
2 7 12 T-450 Industrial Washer Dimensions 24
2 7 13 T-600 Machine Mounting Detail 25
2 7 14 T-600 Machine Mounting Detail 26
2 7 15 T-600 Industrial Washer Dimensions 27
2 7 16 T-650 Machine Mounting Detail 28
2 7 17 T-650 Machine Side By Side Mounting Detail 29
2 7 18 T-650 Industrial Washer Dimensions 30
2 7 19 T-750 Machine Mounting Detail 31
2 7 20 T-750 Machine Side By Side Mounting Detail 32
2 7 21 T-750 Industrial Washer Dimensions 33
2 7 22 T-900/950 Machine Mounting Detail 34
2 7 23 T-900/950 Machine Side By Side Mounting Detail 35
2 7 24 T-900/950 Industrial Washer Dimensions 36
2 7 25 T-1200 Machine Mounting Detail 37
2 7 26 T-1200 Machine Side By Side Mounting Detail 38

8514-297-001 REV F page 3
2 7 27 T-1200 Industrial Washer Dimensions 39
2 7 28 T-1450 Machine Mounting Detail 40
2 7 29 T-1450 Machine Side By Side Mounting Detail 41
2 7 30 T-1450 Industrial Washer Dimensions 42
2 8 PLUMBING 43
2 9 DRAIN 43
2 10 PROTECTIVE FILM 43
2 11 ELECTRICAL 43
2 11 1 INSTALLING THE ELECTRICAL CONNECTION 45
2 11 2 FUSING REQUIREMENTS 45
2 11 3 CONTROLS TRANSFORMER (208-240V 60 Hz models only) 46
2 11 4 CONTROLS TRANSFORMER (230V 50 Hz models only) 46
2 11 5 MAXIMUM SPIN SPEED ADJUSTMENT 47
2 12 INJECTION SOURCE CONNECTIONS 48
2 13 OPERATION CHECK 49
3 OPERATING INSTRUCTIONS 50
3 1 STARTING THE WASHER 50
3 2 END OF CYCLE 51
3 3 SAFETY DOOR LOCK 51
3 4 VARIABLE FREQUENCY DRIVE INDICATORS 51
4 MACHINE PROGRAMMING INSTRUCTIONS 52
4 1 EDITING AN EXISTING CYCLE 52
4 2 DEFAULT WASHER CYCLE PROGRAMS 54
4 3 RAPID ADVANCE MODE 58
4 4 WATER LEVEL ADJUSTMENT 59
5 DISPLAYED WASHER MESSAGES 60
6 TROUBLESHOOTING 62
7 TRANSIENT VOLTAGE SURGE SUPPRESSORS 65
8 SERVICE AND PARTS 66

8514-297-001 REV F page 4
1 WASHER SPECIFICATION SHEET
1 1 Standard Washers
Capacity
Dry Weight Capacity - lb (kg)
20
(9.1)
30
(13.6)
40
(18.1)
60
(27.2)
80
(36.3)
Cylin er Volume - cu ft (L) 2.7 (76.5) 4 (113.3) 6 (170) 9 (254.9) 11.5 (325.6)
Spee High Extract Spee - g (RPM) 100 (579) 100 (532) 100 (532) 100 (485) 100 (485)
Interme iate Extract Spee - g (RPM) 60 (449) 60 (412) 60 (412) 60 (375) 60 (375)
Washing Spee - g (RPM) 0.9 (55) 0.9 (50) 0.9 (50) 0.9 (43) 0.9 (43)
Motor Size - hp (kW) 1 (0.75) 2 (1.5) 2 (1.5) 3 (2.2) 3 (2.2)
Dimensions Cabinet Height - in (cm) 43 7/8 (111.4) 48 3/16 (122.4) 49 11/16 (126.2) 55 3/8 (140.7) 57 7/8 (147)
Cabinet Wi th - in (cm) 26 (66) 29 7/8 (75.9) 29 7/8 (75.9) 34 3/8 (87.3) 34 3/8 (87.3)
Cabinet Depth - in (cm) 25 (63.5) 27 3/8 (69.5) 36 (91.4) 38 7/8 (98.8) 45 3/8 (115.3)
Door Opening - in (cm) 12 1/4 (31.1) 15 1/4 (38.7) 15 1/4 (38.7) 19 1/4 (48.9) 19 1/4 (48.9)
Floor to Door Bottom - in (cm) 14 7/8 (37.8) 16 1/4 (41.3) 16 1/4 (41.3) 16 (40.6) 18 1/2 (47)
Cylin er Diameter - in (cm) 21 (53.3) 25 (63.5) 25 (63.5) 30 (76.2) 30 (76.2)
Cylin er Depth - in (cm) 13 1/2 (34.3) 14 1/8 (35.9) 21 1/8 (53.7) 22 (55.9) 28 (71.1)
Weight Net Weight - lb (kg) 317 (143.8) 432 (196) 558 (253.1) 964 (437.3) 1022 (463.6)
Shipping Shipping Weight - lb (kg) 340 (154.2) 450 (204.1) 580 (263.1) 980 (444.5) 1063 (482.2)
Shipping Height - in (cm) 50 (127) 53 1/4 (135.3) 54 3/4 (139.1) 61 1/2 (156.2) 63 3/4 (161.9)
Shipping Wi th - in (cm) 27 1/4 (69.2) 31 1/2 (80) 31 1/2 (80) 36 (91.4) 36 (91.4)
Shipping Depth - in (cm) 30 1/2 (77.5) 33 1/2 (85.1) 41 (104.1) 44 1/4 (112.4) 52 3/16 (132.6)
Water Water Inlet Size - in (mm) 3/4 (19) 3/4 (19) 3/4 (19) 3/4 (19) 3/4 (19)
Pressure (min-max) - psi (kPa) 30-120 (207-827) 30-120 (207-827) 30-120 (207-827) 30-120 (207-827) 30-120 (207-827)
Flow Rate - gal/min (L/min) 9 (34) 9 (34) 9 (34) 9 (34) 9 & 12 (34 & 45)
Drain Diameter (O.D.) - in (cm) 2 1/4 (5.7) 3 (7.6) 3 (7.6) 3 (7.6) 3 (7.6)
Floor to Center of Drain - in (cm) 6 (15.2) 4 11/16 (11.9) 5 (12.7) 6 5/8 (16.8) 8 5/8 (21.8)
Electrical Mo el Volts / Hz / Phase / Wiring
-10 120 / 60 / 1 / Provi e
208-240 / 60 / 1 / 2 wire + groun
208-240 / 60 / 3 / 3 wire + groun
-39 230 / 50 / 1 / 2 wire + groun
Installation
Min. Clearance Between Machines - in (cm)
1/2 (1.3) 1/2 (1.3) 1/2 (1.3) 1/2 (1.3) 1/2 (1.3)
Min. Clearance Behin Machines - in (cm 24 (61) 24 (61) 24 (61) 24 (61) 24 (61)
Min. Concrete Thickness - in (cm) 6 (15.2) 6 (15.2) 6 (15.2) 8 (20.3) 8 (20.3)
15 / 6.2 / 3.5 mm2
---
20 / 8.4 / 3.5 mm2
---
20 / 8.4 / 3.5 mm2
15 / 6.2 amp / #12 20 / 8.4 / #12 20 / 8.4 / #12
15 / 4 / 3.5 mm2
---
15 / 6.2 / 3.5 mm2
15 / 4 / #12 15 / 6.2 / #12-12
Circuit Breaker Amps / Running Amps / Wire Size
T-300
T-400
T-600
T-900
T-1200
20 / 13 / Provi e
---

8514-297-001 REV F page 5
1 2 Express Washers
Capacity Dry Weight Capacity - lb (kg) 20 (9.1) 30 (13.6 kg) 40 (18.1) 50 (22.7) 60 (27.2) 90 (40.8)
Cylin er Volume - cu ft (L) 2.7 (76.5) 3.8 (107.6 L) 6 (170) 6.5 (184.1) 9 (254.9) 13.7 (388)
Spee High Extract Spee - g (RPM) 200 (819) 200 (750 RPM) 200 (750) 200 (685) 200 (685) 200 (617)
Interme iate Extract Spee - g (RPM) 60 (449) 60 (411 RPM) 60 (411) 60 (375) 60 (375) 60 (338)
Washing Spee - g (RPM) 0.9 (55) 0.9 (50 RPM) 0.9 (50) 0.9 (43) 0.9 (43) 0.9 (39)
Motor Size - hp (kW) 1 (0.75) 2 (1.5 kW) 2 (1.5) 3 (2.2) 3 (2.2) 7.8 (5.8)
Dimensions Cabinet Height - in (cm) 43 7/8 (111.4) 48 3/16 (122.4 cm) 53 (134.6) 55 3/8 (140.7) 55 3/8 (140.7) 62 3/8 (158.4)
Cabinet Wi th - in (cm) 26 (66) 29 7/8 (75.9 cm) 29 7/8 (75.9) 34 3/8 (87.3) 34 3/8 (87.3) 41 1/2 (105.4)
Cabinet Depth - in (cm) 28 (71.1) 28 1/4 (71.8 cm) 38 1/8 (96.8) 32 7/8 (83.5) 38 7/8 (98.7) 42 1/4 (107.3)
Door Opening - in (cm) 12 1/4 (31.1) 15 1/4 (38.7 cm) 15 1/4 (38.7) 19 1/4 (48.9) 19 1/4 (48.9) 19 1/4 (48.9)
Floor to Door Bottom - in (cm) 14 7/8 (37.8) 16 1/4 (41.3 cm) 16 1/4 (41.3) 16 (40.6) 16 (40.6) 19 5/16 (49.1)
Cylin er Diameter - in (cm) 21 (53.3) 25 (63.5 cm) 25 (63.5) 30 (76.2) 30 (76.2) 37 (94)
Cylin er Depth - in (cm) 13 1/2 (34.3) 13 3/8 (34 cm) 21 1/8 (53.7) 16 (40.6) 22 (55.9) 22 (55.9)
Weight Net Weight - lb (kg) 383 (173.7) 526 (238.6 kg) 744 (337.5) 925 (419.6) 1000 (453.6) 1322 (599.6)
Shipping Shipping Weight - lb (kg) 407 (184.6) 544 (246.8 kg) 766 (347.5) 952 (431.8) 1016 (460.8) 1364 (618.7)
Shipping Height - in (cm) 49 1/4 (125.1) 53 1/4 (135.3 cm) 58 3/4 (149.2) 61 1/2 (156.2) 61 1/2 (156.2) 69 1/4 (175.9)
Shipping Wi th - in (cm) 28 1/4 (71.8) 31 1/2 (80 cm) 31 1/2 (80) 36 (91.4) 36 (91.4) 43 1/8 (109.5)
Shipping Depth - in (cm) 33 1/2 (85.1) 33 1/2 (85.1 cm) 43 3/4 (111.1) 38 (96.5) 45 1/4 (114.9) 48 (121.9)
Water Water Inlet Size - in (mm) 3/4 (19) 3/4 (19 mm) 3/4 (19) 3/4 (19) 3/4 (19) 3/4 (19)
Pressure (min-max) - psi (kPa) 30-120 (207-827) 30-120 (207-827 kPa) 30-120 (207-827) 30-120 (207-827) 30-120 (207-827) 30-120 (207-827)
Flow Rate - gal/min (L/min) 9 (34) 9 (34) 9 (34) 9 (34) 9 & 12 (34 & 45) 9 & 12 (34 & 45)
Drain Diameter (O.D.) - in (cm) 2 1/4 (5.7) 3 (7.6 cm) 3 (7.6) 3 (7.6) 3 (7.6) 3 (7.6)
Floor to Center of Drain - in (cm) 6 (15.2) 5 (12.7 cm) 6 7/8 (17.5) 6 5/8 (16.8) 6 5/8 (16.8) 8 5/16 (21.1)
Electrical Mo el Volts / Hz / Phase / Wiring
208-240 / 60 / 1 / 2 wire + groun
208-240 / 60 / 3 / 3 wire + groun
-13 208-240 / 60 / 3 / 3 wire + groun
-39 230 / 50 / 1 / 2 wire + groun
-68 400 / 50 / 3 / 4 wire + groun
Installation
Min. Clearance Between Machines - in (cm)
1/2 (1.3) 1/2 (1.3) 1/2 (1.3) 1/2 (1.3) 1/2 (1.3) 1/2 (1.3)
Min. Clearance Behin Machines - in (cm 24 (61) 24 (61) 24 (61) 24 (61) 24 (61) 24 (61)
Min. Concrete Thickness - in (cm) 6 (15.2) 6 (15.2) 8 (20.3) 8 (20.3) 8 (20.3) 12 (30.5)
30 / 15 / 5.3 mm2
---
---
30 / 30 / 8.4 mm2
---
40 / 40 / 8.4 mm2
---
15 / 6.2 / 3.5 mm2
15 / 6.2 / 3.5 mm2
15 / 6.2 / 3.5 mm2
20 / 8.4 / 3.5 mm2
20 / 12 / 3.5 mm2
40 / 40 / #8
---
60 / 60 / #6
Circuit Breaker Amps / Running Amps / Wire Size
-12 15 / 6.2 / #12 15 / 6.2 / #12 15 / 6.2 / #12 20/ 8.4 / #12 30 / 15 / #10
60 / 60 / #4
20/ 12 / #12
---
---
T-1450
T-350
T-450
T-650
T-750
T-950

8514-297-001 REV F page 6
2 INSTALLATION INSTRUCTIONS
All washers must be installed in accordance with all local, state and national
building, electrical, plumbing and other codes in effect in the area
WARNING:
THESE INSTALLATION AND SERVICING INSTRUCTIONS ARE FOR USE
BY QUALIFIED PERSONNEL ONLY. TO AVOID INJURY AND ELECTRICAL
SHOCK, DO NOT PERFORM ANY SERVICING OTHER THAN THAT
CONTAINED IN THE OPERATING INSTRUCTIONS, UNLESS QUALIFIED.

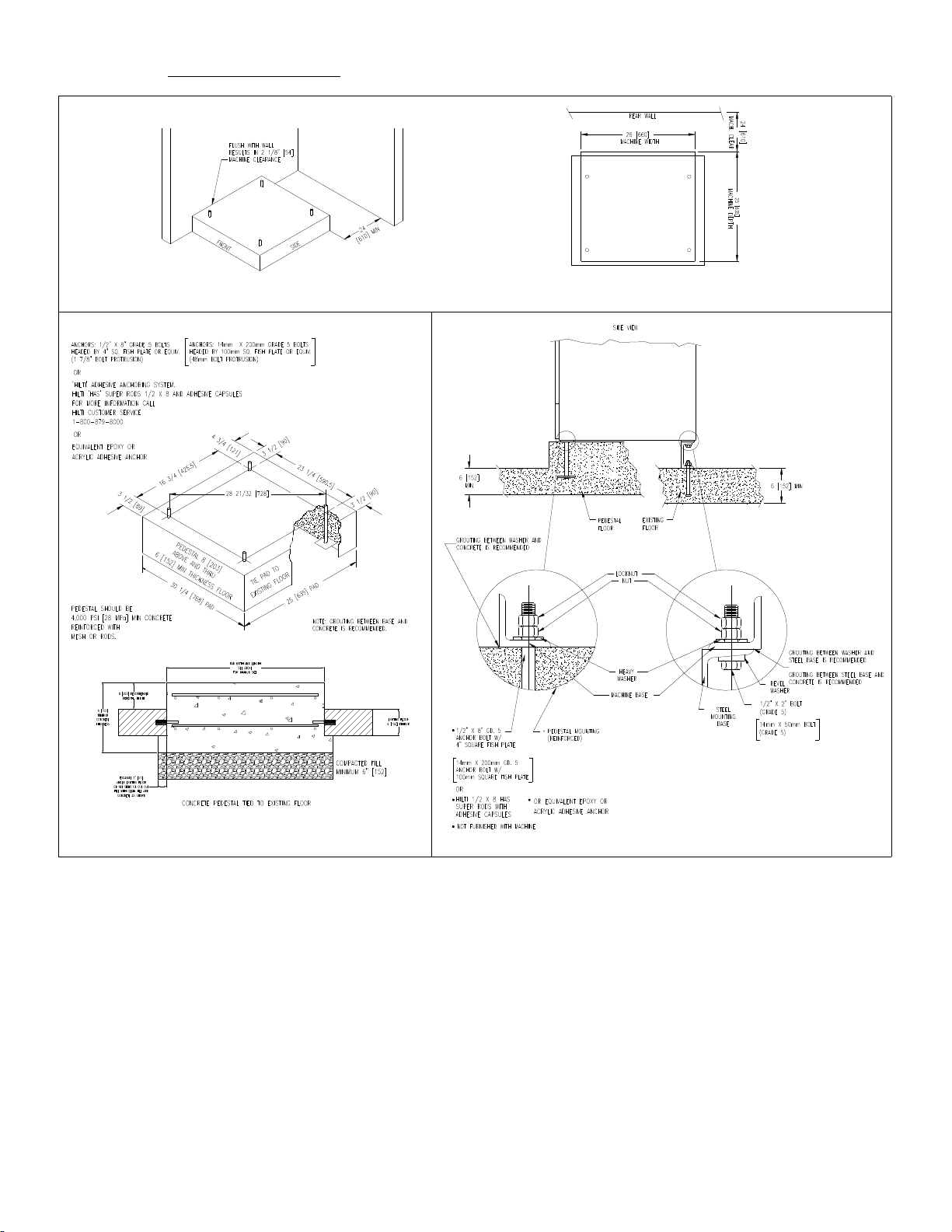

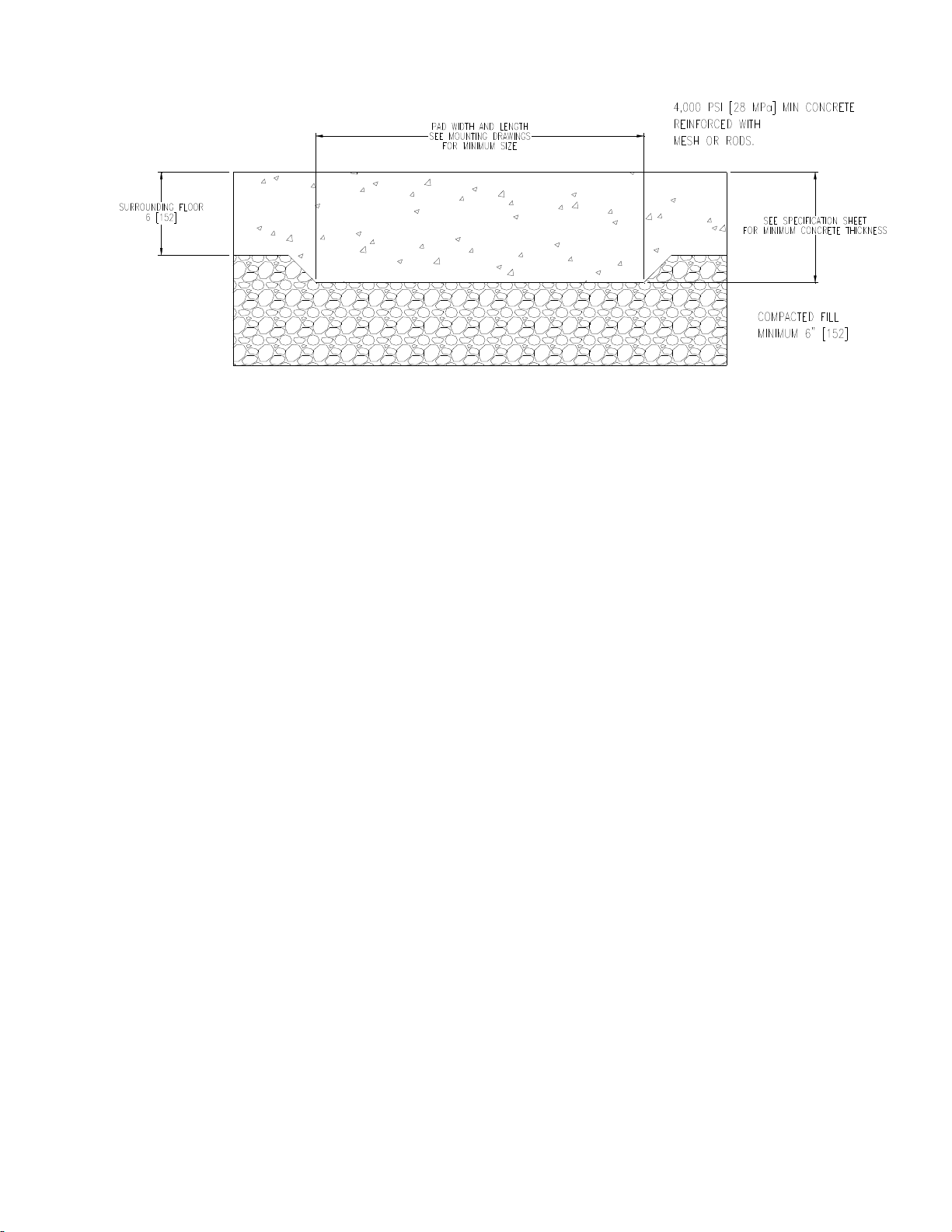

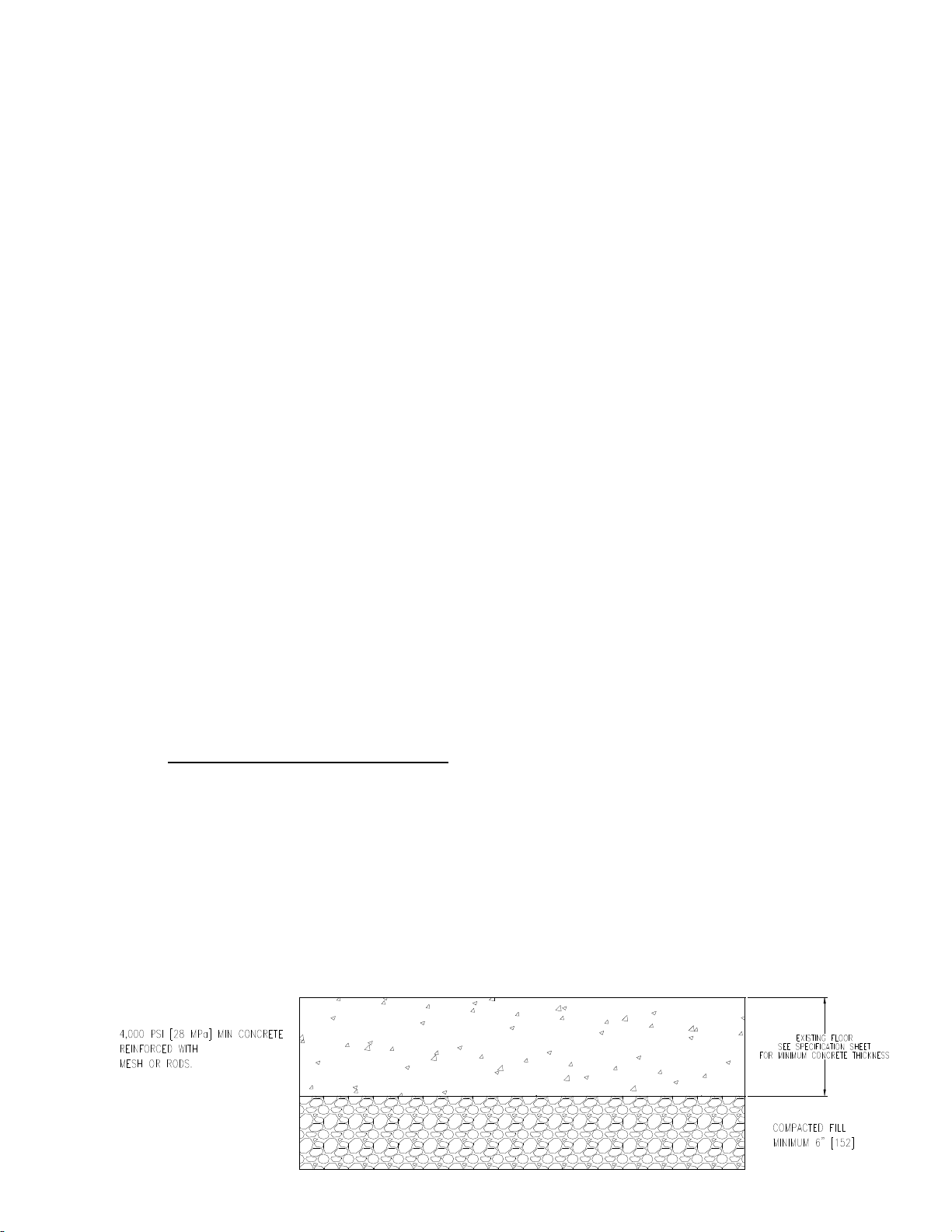

2 1 FOUNDATION REQUIREMENTS
T-300 and 400:
This machine is designed for use on or over bare concrete floor - not to be
used above combustible flooring, such as carpet or wood The washer
must be securely bolted to a substantial concrete floor, or mounted upon
a suitable base that is securely bolted to a substantial concrete floor
Grouting is highly recommended, especially to the concrete surface See
Machine Grouting section for details
T-350, 450, 600, 650, 750, 900, 950, 1200, 1450:
This machine is designed for use on or over bare concrete floor - not to be
used above combustible flooring, such as carpet or wood The washer
must be securely bolted and grouted to a substantial concrete floor or
mounted and grouted upon a suitable base that is securely bolted and
grouted to a substantial concrete floor See Machine Grouting section for
details
CARE MUST BE TAKEN WITH ALL FOUNDATION WORK TO ENSURE A
STABLE UNIT INSTALLATION, ELIMINATING POSSIBILITIES OF
EXCESSIVE VIBRATION

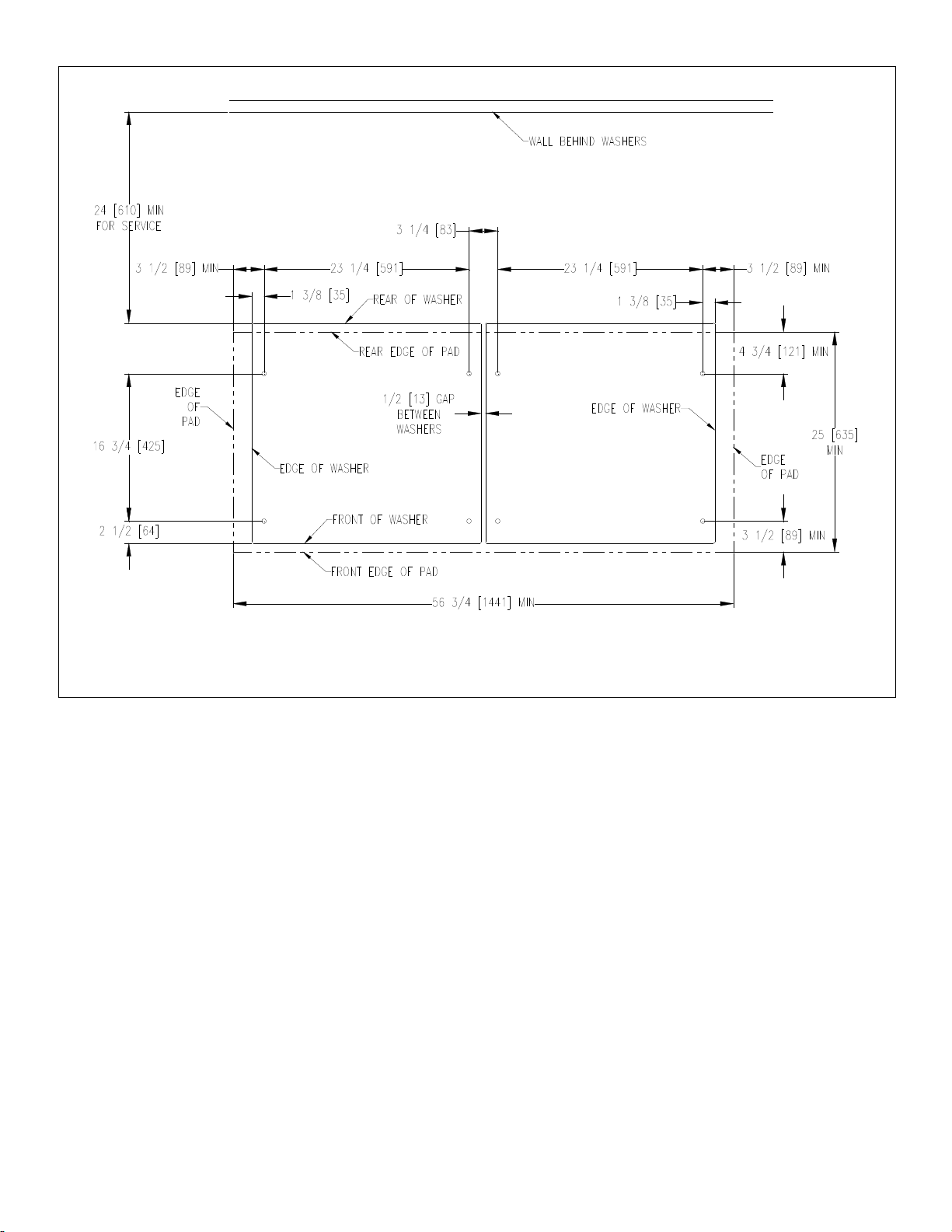

Allow a minimum 24 inches (610 mm) of clearance behind the rear of the
machine to provide access for motor service
Installation on an isolated pad is NOT recommended Consult a structural
engineer for installations that will not be tied to a surrounding floor
2 2 MOUNTING HEIGHT
A concrete pedestal or steel-mounting base that elevates the machine
above the floor level is suggested to provide easy access to the loading
door
Suggested Amount to Elevate Washer:
T-300/350: approximately 8 inches (203 mm)
T-400/450/600: approximately 6 inches (152 mm)
T-650/750/900/950/1200/1450: approximately 4 inches (102 mm)
Contact a Dexter laundry equipment distributor for recommended steel

8514-297-001 REV F page 7
mounting bases Available steel mounting bases:
Washer Part Number Height
T-300 9945-094-003 8” (203 mm) Single Base
T-300 9945-094-004 8” (203 mm) Double Base
T-350 9945-121-001 8” (203 mm) Single Base
T-400 9945-089-001 6” (152 mm) Single Base
T-400 9945-089-002 6” (152 mm) Double Base
T-450 9945-123-001 6” (152 mm) Single Base
T-600 9945-098-001 6” (152 mm) Single Base
T-650 9945-145-001 6” (152 mm) Single Base
T-750 9945-117-001 6” (152 mm) Single Base
T-900/950 9945-103-001 4” (103 mm) Single Base
T-900/950 9945-118-001 6” (152 mm) Single Base
T-1200 9945-124-001 6” (152 mm) Single Base
T-1450 9945-145-001 4” (103 mm) Single Base
If an elevated concrete pedestal is desired, it should be embedded and
tied into the existing floor DO NOT install a pad on top of the existing
floor Cut through existing floor as shown below See Machine Mounting
Detail Figures for floor thickness and bolt sizes
EXPANSION ANCHORS ARE NOT RECOMMENDED FOR USE IN CONCRETE
PEDESTALS BECAUSE THE ANCHORS ARE TOO CLOSE TO AN EDGE,
CAUSING IT TO BREAK OUT
2 3 FOUNDATION AND PAD OPTIONS
All installations require reinforced concrete floors Refer to appropriate
model Machine Mounting Detail Figures 1-1, 1-2 and 1-3 for minimum
floor thickness and minimum pad sizes See mounting diagram for overall
washer dimensions
Refer to appropriate model Figure 1-4 for side by side mounting
dimensions
2 3 1 WASHER INSTALLATION ON EXISTING FLOOR:

8514-297-001 REV F page 8
2 3 2 WASHER INSTALLATION ON NEW FLOOR:
2 3 3 NEW PAD TIED TO EXISTING FLOOR:
If the existing floor is not reinforced concrete that meets the minimum
thickness requirements, DO NOT install a pad on top of the existing floor
The existing floor and the machine pad must be tied together as one
piece as follows:
1) Cut an opening through the existing floor that is wider and deeper
than the washer as shown below See Machine Mounting Details for
dimensions
2) Excavate to a depth that allows for 6” [152] minimum of
compacted fill plus the minimum required concrete thickness Also
excavate 2” [51] under the existing floor so that the new concrete is
poured under the floor as well
3) Back fill with clean fill dirt and compact dirt, making sure to allow
for the minimum thickness concrete pad to be poured
4) Drill holes around the perimeter of the existing floor to install
reinforcing bars to tie the new pad to the existing floor Drill 2-1/2”
[64] deep into the existing floor on 12” [305] centers around the entire
perimeter
5) Clean holes and fill half-way with acrylic adhesive rated for
commercial-grade machine installations
6) Use #4 (60 ksi) reinforcing bar to tie the new pad to the existing
floor Tie the bars together at intersections and use supports to hold
bars in the proper depth in the pad
7) After adhesive has cured, pour 4000 psi concrete up to level with
the existing floor plus any extra elevated pedestal desired 4-10” [102-
254]
Concrete must be done in one pour so that the entire pad cures as one
piece

8514-297-001 REV F page 9
2 3 3 1 NEW PAD TIED TO EXISTING FLOOR (LEVEL WITH FLOOR):
2 3 3 2 NEW RAISED CONCRETE PEDESTAL TIED TO EXISTING FLOOR:

8514-297-001 REV F page 10
2 3 4 STEEL MOUNTING BASE ON CONCRETE FLOOR:
2 4 MACHINE ANCHORING
All installations require concrete floors and quality grade anchor bolts or
expansion anchors Mounting hardware is not provided with the
machines Refer to appropriate model Machine Mounting Detail Figures 1-
1, 1-2 and 1-3 for floor thickness and bolt sizes See mounting diagram
for overall washer dimensions
EXPANSION ANCHORS ARE NOT RECOMMENDED FOR USE IN RAISED
CONCRETE PEDESTALS BECAUSE THE ANCHORS ARE TOO CLOSE TO AN
EDGE, CAUSING IT TO BREAK OUT
ANCHORING OPTIONS:
2 4 1 Cast in place bolts headed by square fish plates See Machine Mounting
Detail Figures 1-1 thru 1-3 for exact washer model
Or after concrete has completely cured:
2 4 2
Use Hilti Adhesive System ‘HAS’ Rods and adhesive capsules See
Machine Mounting Detail Figures 1-1 thru 1-3 for exact washer model
2 4 3
Or use an equivalently rated epoxy or acrylic adhesive anchor
As an installation aid, the anchor pattern can be found on the back
panel of the washers and can be used as a template Compare
panel to the mounting dimension drawing to find the right holes
Example:

8514-297-001 REV F page 11
ANCHOR
PATTERN
2 5 MACHINE GROUTING
After concrete has cured completely and anchors have cured completely into
place:
2 5 1 Position washer over the mounting anchors
2 5 2
Raise the washer 1/2” [12 7] off the mounting surface and place spacers
under the corners of the washer base
2 5 3
Level the washer, leaving washer at least 1/2” [12 7] off the mounting
surface
Do not permanently support the washer with spacers under the corners
Machine must be grouted, and spacers must be removed
2 5 4 Mix non-shrinking machinery grout according to the grout instructions
The grout should not be too runny or too firm Completely fill the 1/2”
[12 7] space between the washer base and the mounting surface Force
grout under all base angles and plates until completely filled Fill around
all anchor bolts
2 5 5
Finger tighten all nuts to anchor bolts
2 5 6
When the grout has started to stiffen (but before it is cured), remove the
spacers from the corners and allow the washer to settle into the wet
grout Fill in any voids as necessary with additional grout
2 5 7
Allow grout to completely cure, then tighten all nuts to securely fasten the
washer to the grouted mounting surface
2 5 8
Retighten nuts after 5 days of operation and check quarterly
If using a steel mounting base, first grout the steel mounting base to the
concrete floor using the above steps, then repeat the steps for mounting
and grouting the washer to the steel mounting base

8514-297-001 REV F page 12
2 6 FLOOR LOAD DATA
Mo el
Dry Weight
Capacity
(lb [kg])
Extract
Spee
(RPM)
Extract G-
Force
Maximum
Static Loa
(lb [kN])
Static Loa
Pressure
(lb/sq ft
[kN/ sq m])
Total
Dynamic
Loa (lb
[kN])
Dynamic
Loa
Pressure
(lb/sq ft
[kN/ sq m])
Dynamic
Loa
Frequency
(Hz)
Maximum
Vertical
Loa (lb
]kN])
Maximum
Moment About
Washer Base
(ft*lbs [m-kN])
T-300 20 [9.1] 579 100 381 [1.7] 91 [4.3] 400 [1.8] 95 [4.6] 9.7 737 [3.3] 785 [1.1]
T-350 20 [9.1] 819 200 447 [2.0] 94 [4.5] 800 [3.6] 168 [8.0] 13.7 1203 [5.4] 1571 [2.1]
T-400 30 [13.6] 531 100 527 [2.3] 101 [4.8] 500 [2.7] 115 [5.5] 8.9 1062 [4.7] 1316 [1.8]
T-450 30 [13.6] 750 200 618 [2.7] 113 [5.4] 1200 [5.3] 220 [10.5] 12.5 1756 [7.8] 2631 [3.6]
T-600 40 [18.1] 531 100 686 [3.1] 97 [4.6] 800 [3.6] 113 [5.4] 8.9 1398 [6.2] 1754 [2.4]
T-650 40 [18.1] 750 200 882 [3.9] 134 [6.4] 1600 [7.1] 243 [11.6] 12.5 2384 [10.6] 3508 [4.8]
T-750 50 [22.7] 685 200 1119 [5.0] 166 [7.9] 2000 [8.9] 297 [14.2] 11.4 2970 [13.2] 4667 [6.3]
T-900 60 [27.2] 485 100 1170 [5.2] 146 7.0] 1200 [5.3] 149 [7.2] 8.1 2224 [9.9] 2800 [3.8]
T-950 60 [27.2] 685 200 1206 [5.4] 150 [7.2] 2400 [10.7] 299 [14.3] 11.4 3460 [15.4] 5600 [7.6]
T-1200 80 [36.3] 485 100 1288 [5.7] 136 [6.5] 1600 [7.1] 169 [8.1] 8.1 2702 [12.0] 4067 [5.5]
T-1450 90 [40.8] 617 200 1635 [7.3] 163 [7.8] 3600 [16.0] 360 [17.2] 10.3 5012 [22.3] 9413 [12.8]
Note: The out-of-balance loa ing con itions may very epen ent on loa size an
material.
DEXTER DYNAMIC LOADING CHART

8514-297-001 REV F page 13
2 7 MOUNTING DETAILS
RAISED CONCRETE PEDESTAL MOUNTING OPTION
Figure 1-1 Figure 1-3

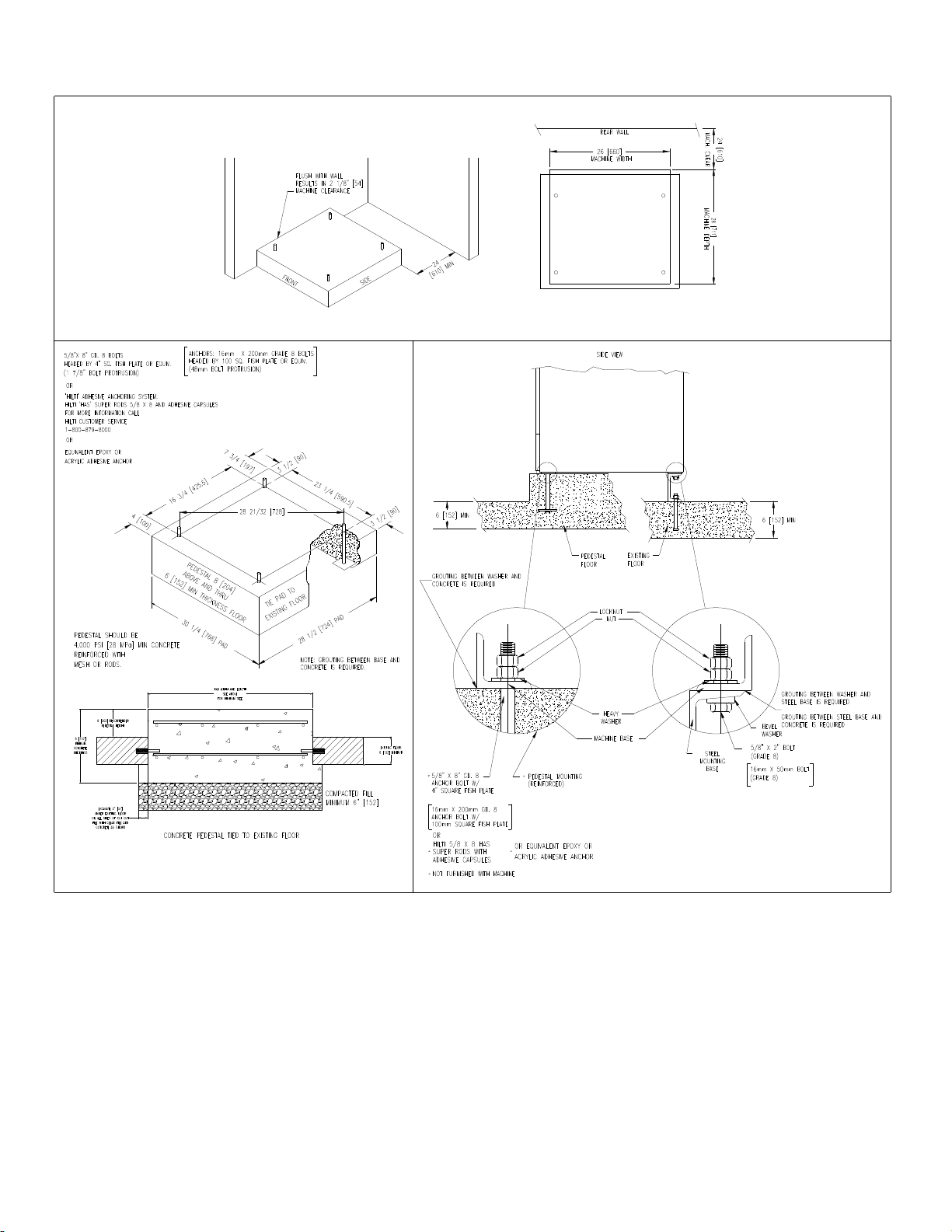

MACHINE MOUNTING DETAIL
Figure 1-2
FLOOR OUTLINE
2 7 1 T-300 Machine Mounting Detail

8514-297-001 REV F page 14
SIDE BY SIDE MOUNTING DIMENSIONS
Figure 1-4
2 7 2 T-300 Machine Side By Side Mounting Detail

8514-297-001 REV F page 15
2 7 3 T-300 Industrial Washer Dimensions

8514-297-001 REV F page 16
RAISED CONCRETE PEDESTAL MOUNTING OPTION
Figure 1-1 Figure 1-3
MACHINE MOUNTING DETAIL
Figure 1-2
FLOOR OUTLINE
2 7 4 T-350 Machine Mounting Detail

8514-297-001 REV F page 17
SIDE BY SIDE MOUNTING DIMENSIONS
Figure 1-4
2 7 5 T-350 Machine Side By Side Mounting Detail

8514-297-001 REV F page 18
2 7 6 T-350 Industrial Washer Dimensions

8514-297-001 REV F page 19
RAISED CONCRETE PEDESTAL MOUNTING OPTION
Figure 1-1
Figure 1-3
MACHINE MOUNTING DETAIL
Figure 1-2
FLOOR OUTLINE
2 7 7 T-400 Machine Mounting Detail

8514-297-001 REV F page 20
SIDE BY SIDE MOUNTING DIMENSIONS
Figure 1-4
2 7 8 T-400 Machine Side By Side Mounting Detail
