P/N 8514-162-001B
MODEL T1200
80LB CAPACITY
COMPUTER CONTROL
OPL WASHER
DEXTER
LAUNDRY,
INC. OWNER'S BOOKLET
INSTALLATION & OPERATION
INSTRUCTIONS
Please read this information and retain for reference.
WARNING - THIS WASHER IS EQUIPPED WITH DEVICES AND FEATURES RELATING TO ITS SAFE
OPERATION. TO AVOID INJURY OR ELECTRICAL SHOCK, DO NOT PERFORM ANY SERVICING
UNLESS QUALIFIED TO DO SO.
IT IS THE RESPONSIBILITY OF THE OWNER TO CHECK THIS EQUIPMENT ON A FREQUENT
BASIS TO ASSURE ITS SAFE OPERATION.
A machine should not be allowed to operate if any of the following occur:
- Excessively high water level.
- If machine is not connected to a properly grounded circuit.
- If the door does not remain securely locked during the entire cycle.
- Vibration or shaking from an inadequate mounting or foundation.
WARNING - FOR SAFETY
1. Always shut off power and water supply before servicing.
2. Do not overload the washer.
3. Do not open door when cylinder is in motion or it contains water.
4. Do not bypass any safety devices of this washer.
5. Do not use volatile or flammable substances in or near this washer.
6. Keep all panels in place. They protect against shock and injury and add rigidity to the washer.
PREVENTIVE MAINTENANCE REQUIREMENTS
DAILY
- Check that the loading door remains securely locked and cannot be opened during the entire cycle.
- Check the water connections for leaks.
- Clean the top and sides of the cabinet to remove residue.
- Clean the soap dispenser and lid.
- Check the drain valve for leaking and that it opens properly.
- Check the loading door for leaks. Clean the door seal of all foreign matter.
- Leave the loading door open to aerate the washer when not in use.
QUARTERLY
- Make sure the washer is inoperative by switching off the main power supply.
- Check the V-belts for wear and proper tension.
- Clean lint and other foreign matter from around motor.
- Check all water connections for leaks.
- Wipe and clean the inside of the washer and check that all electrical components are free of moisture and dust.
- Remove and clean water inlet hose filters. Replace if necessary.
- Check anchor bolts - retighten if necessary
IMPORTANT: Replace any and all panels that were removed to perform daily and/or quarterly maintenance.

Door locks when mach ine star ts, and remains l ocked until
cycle is c omplet ed. If p ower is interrupt ed, there will be a
2to 3 minute delay befor e the doorcan be opened.

3 Selectdesir ed wash CYCLE with and buttons.
ADDBLEACH light comeson.
5 Ifbleach is required, add when
4 Press START button.


RINSE


 
WASH
PRE
FLUSH WASH RINSE
FINAL SPIN
1 Loadclothes, and latch door firmly.
Ifrequired, put detergent and fabric softener,
intodispenser on front of machine.
(Seethe dispenser diagram atright.)
2
softener
Addfabric
Adddetergent
Bleach
Add
(Optional)

 


MODEL T1200
DEXTER
LAUNDRY,
INC.
INSTALLATION INSTRUCTIONS
All washers must be installed in accordance with all local, state and national building,
electrical, plumbing and other codes in effect in the area.
WARNING - THESE INSTALLATION AND SERVICING INSTRUCTIONS
ARE FOR USE BY QUALIFIED PERSONNEL ONLY. TO AVOID INJURY
AND ELECTRICAL SHOCK DO NOT PERFORM ANY SERVICING
OTHER THAN THAT CONTAINED IN THE OPERATING
INSTRUCTIONS, UNLESS QUALIFIED.
FOUNDATION REQUIREMENTS
This machine is designed for use on or over bare concrete floor - not to be used above
combustible flooring. The washer must be securely bolted and grouted to a substantial concrete
floor, or mounted and grouted upon a suitable base that is securely bolted and grouted to a
substantial concrete floor. CARE MUST BE STRESSED WITH ALL FOUNDATION WORK
TO INSURE A STABLE UNIT INSTALLATION, ELIMINATING POSSIBILITIES OF
EXCESSIVE VIBRATION. All installations must be made on sound concrete floors, 8 inches
(203 mm) or thicker. Anchor bolts or expansion anchors must be of a quality grade and a
minimum of 3/4-inch (19 mm) diameter. Six bolts are required to mount the washer to the steel
base or concrete pad.
MOUNTING
A concrete pedestal or steel-mounting base that elevates the machine approximately 4 inches
(102 mm) above the floor level is recommended to provide easy access to the loading door.
Allow a minimum of 24 inches (610mm) of clearance behind the rear of the machine, to provide
access for motor removal. Refer to Fig. 1-1 and 1-2 for machine bolt-down dimensions.
If an elevated concrete pedestal is desired, it should be embedded into the existing floor. Anchor
bolts should be 3/4" x 8" (19 mm x 200 mm), grade 8 or better, headed by a 4 inch (10 cm)
square fish plate and should protrude 2 1/2” (64 mm) above the finished surface of the pedestal.
EXPANSION ANCHORS ARE NOT RECOMMENDED FOR USE IN CONCRETE
PEDESTALS, BECAUSE THE ANCHORS ARE TOO CLOSE TO AN EDGE, CAUSING IT
TO BREAK OUT. (See Fig. 1-1 and 1-3.)

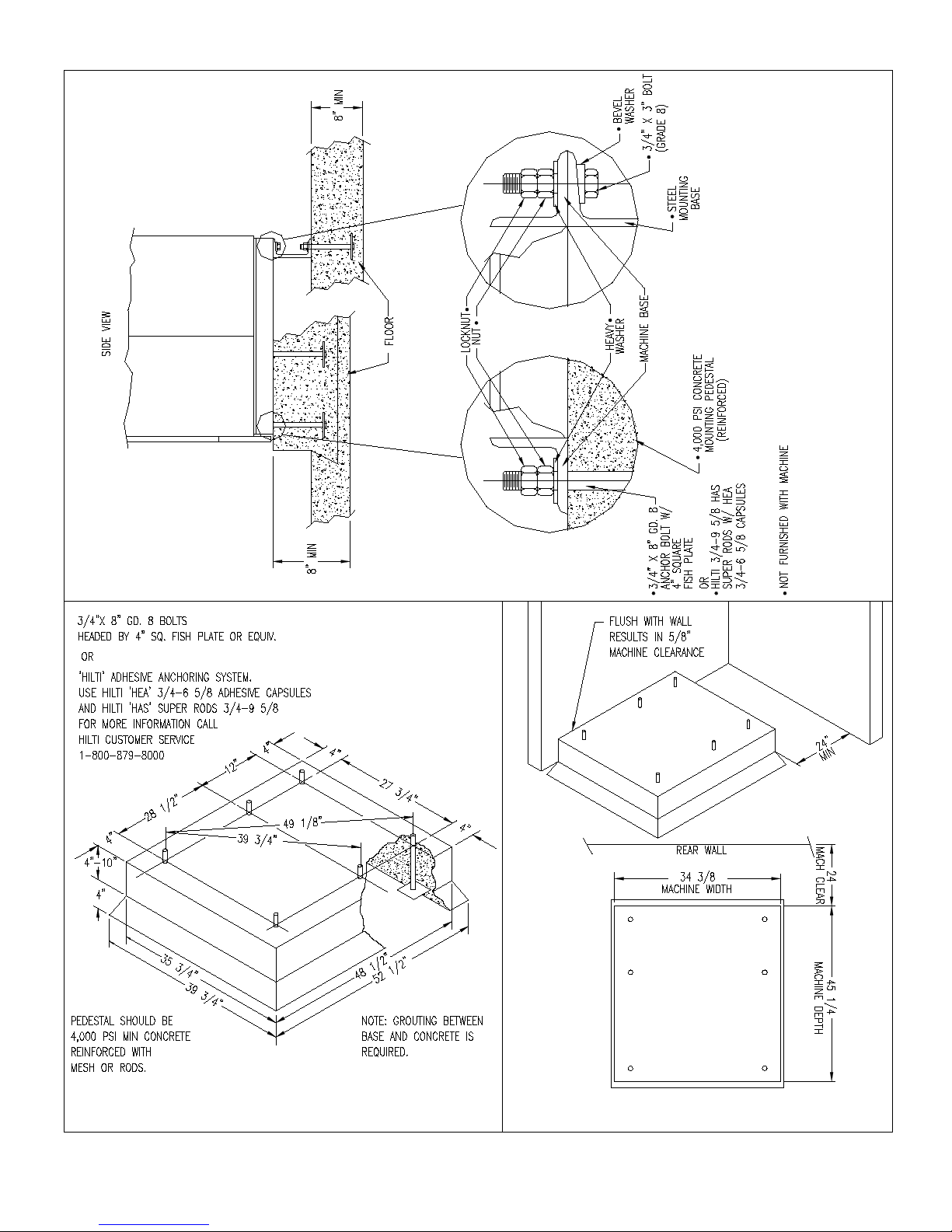

CONCRETE PEDESTAL MOUNTING

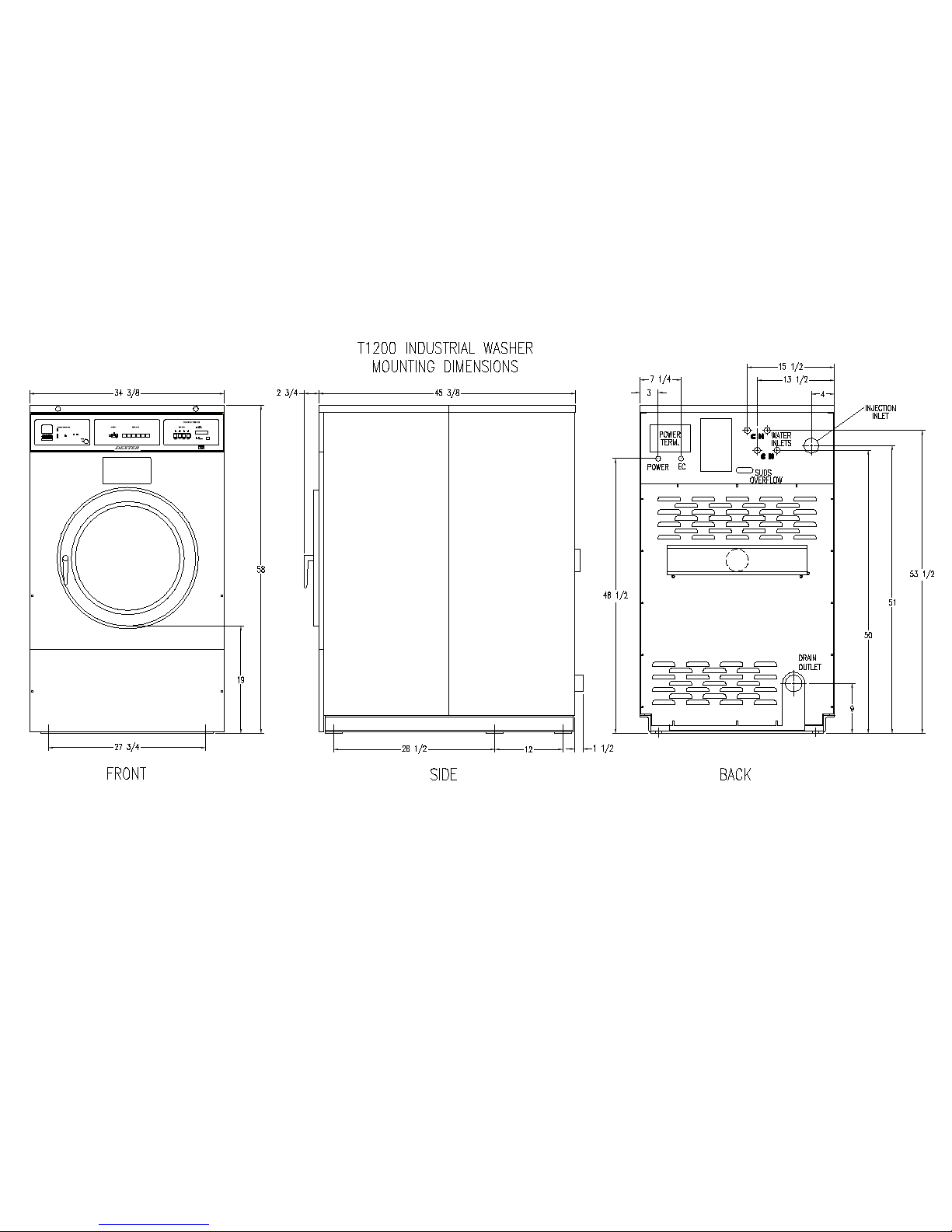

Figure 1-1 Figure 1-2
FLOOR OUTLINE
Figure 1-3
MACHINE MOUNTING DETAIL

PLUMBING
Water supply hoses are furnished with each machine. The threaded connections on the hoses are ¾-
11 ½ NHT. The small 3/8 ID supply hoses and supplied brass shut off valves connect to the lower
hot and cold valves which flush the soap box. The brass shut off valves can connect to either the
store supply side or the machine inlet side. In case of water splash out due to high water pressure,
adjust brass shut off valves while machine is running until splash out stops. The larger 5/8 ID supply
hoses connect to the upper hot and cold valves.
Separate hot and cold water lines must be provided, maintaining 30 psi to 120 psi (207 kPa to 827
kPa) water flow pressure. A 140F (60C) degree hot water supply is recommended for best washing
results.
DRAIN
The drain outlet tube at the rear of the machine is 3 inches (76 mm) in diameter. Any drain hose
used must be lower than the drain valve to assure proper draining.
ELECTRICAL
WARNING
SHUT OFF POWER AND WATER BEFORE OPENING ANY SERVICE PANELS.
Dexter single/three-phase 208-240VAC 60 Hz washing machines are intended to be permanently
installed appliances. No power cord is provided. The machine should be connected to an individual
branch circuit not shared by lighting or other equipment. The connection should be sheathed in
liquid tight flexible conduit, or equivalent, with conductors of the proper size and insulation. A
qualified technician should make such connections in accordance with the wiring diagram. (Suggest
a minimum wire size of 12 ga.)
TO MAKE ELECTRICAL CONNECTIONS: Disconnect all power to the washer. Remove screw
and lift out the cover located in the upper left corner of the machine (as viewed from the back).
If power is 208-240-3PH-60Hz, connect L1, L2, L3 and ground. If there is a high leg it must
be connected to L3.
If power is 208-240-1PH-60Hz, connect L1, L2 and Ground.
NOTE: It is important that the grounding screw next to the power terminal block TB-1 be
connected to a good external ground.
FUSING REQUIREMENTS:
SINGLE- and THREE -PHASE MODELS - 20 AMP TIME-DELAY (DUAL ELEMENT)
FUSE (or equivalent circuit breaker)
CONTROLS TRANSFORMER:
The controls transformer is located inside the control trough and steps a range of 208 to 240 volts
down to 115 volts. There are two terminals on the controls transformer for the primary (incoming)
power. Use the terminal marked “208V” for power supplies between 208 and 220 volts. Use the
terminal marked “230V” for power supplies between 221 and 240 volts.

INJECTION SOURCE DETAILS
The washer control may be programmed to send 120V output signals for a chemical injection
system. The signals are not intended as a power source and must be limited to less than 100
milliamps of current. There is a separate terminal block for connection of the external injection
signals. For the injection sources, program codes 0 through 6 are as shown in the table below.
Dexter
Recommended
Connections
Controller
Programmed
Signals
Injection
Terminal Block
Circuits
Detergent 1 A
Bleach 2 B
Starch 3 C
Sour/Softener 4 D
5 A and B
6 C and D
0 None
CHECKOUT
After all mounting, plumbing and electrical work is completed, the washer should be run through
a cycle and checked for water leaks and proper functioning.

SPECIFICATIONS
MODEL
T1200 80LB WASHER
CAPACITY
CYLINDER SIZE
ELECTRICAL
DRIVE SYSTEM
WASH SPEED
INTERMEDIATE
EXTRACT
FINAL EXTRACT
MACHINE CONTROL
WATER INLET
DRAIN VALVE
80LBS/11.5 CUBIC FT. (36.3 kg/326 l)
30” DIA X 28” DEEP (76cm X 71cm)
208-240 VAC, 60 HZ, 1 OR 3 PHASE
SOFT START REVERSING INVERTER DRIVE
43 RPM
375 RPM (60 G’S)
485 RPM (100 G’S)
PROGRAMMABLE COMPUTER
4 SOLENOID OPERATED VALVES
FLOW RATE: 9 TO 12 GAL/MIN EACH, 30-120 PSI
3” DIAMETER

STARTING THE WASHER
A. Load the clothes into the cylinder and latch the door securely. Be sure clothing does
not get caught between the door gasket and tub front when closing the door. Maximum
load is 80 pounds clothes, dry weight. Do not load the washer with more than 80 lbs.
B. Select the appropriate cycle number (1 through 6) using for the load being washed.
See the cycle descriptions in the programming section. Use the UP and DOWN keys to
change the cycle number.
C. If not using a chemical injection system, add low-sudsing powdered detergent into the
“detergent” compartment of the automatic dispenser on the top of the washer. If desired
add fabric softener to the “fabric softener” compartment. Use the amount of fabric
softener as recommended by the manufacturer.
If liquid wash products are used in the “detergent” compartment, they must be added at
the beginning of the wash cycle.
If the machine is set for pre-wash, washing products can be added to the round opening of
the dispenser or put in with the clothes when loading the cylinder before starting the
machine.
D. Press START. The display will go blank for a moment and then display the cycle
time in minutes. The clothes door will lock and remain locked until the end of the cycle.
END OF CYCLE
When the cycle is complete the time will display “0” until the door is opened and a 5-second tone
will sound. The door can now be opened. Leave the clothes door open when the machine is not
in use.
SAFETY DOOR LOCK
This machine is equipped with a Safety Door Lock that prevents opening the door for 2 to 3
minutes if the power is interrupted. This safety feature cannot be bypassed.

PROGRAMMING INSTRUCTIONS:
Programming can be accomplished manually using the machine controls or by connecting to the
machine control using a PDA (personal digital assistant). For instructions on using a PDA with
this washer control, please contact your local Dexter distributor. Please read below for manual
programming instructions.
The keypad layout for the washer control is shown above.
WASH CYCLE PROGRAMMING:
1. Turn on the power to the washer.
2. Turn the Run/Program keyto the Program position. Displaywill show “C O” and the “ADD
BLEACH” light will blink and will continue to blink during the programming mode.
3. Press the “DOWN” or “UP” buttons to select which cycle to alter. When the desired cycle
number is displayed, press “START”.
4. The display should now show a “b”. The “b” and the cycle indicator lights indicate which
bath is being selected to alter. Press the “UP” and “DOWN” buttons to select a bath to
change and then press “START”. The indicator lights are shown below.
FINAL
RINSE
PRE
WASH
FLUSH WASH RINSE SPIN
When “RINSE” is selected, “b r1” through “b r4” may be selected. There may be multiple
rinses that are indicated by r1, r2, r3 and r4.
5. Each bath can beprogrammed with the following options. Use the “DOWN” and “UP” keys
to select the desired setting and the “START” key to move to the next option.

DISPLAY FUNCTION OPTIONS
Ct **
Tumble Time
Two-digit amount of time in minutes.
t **
Water Temperature
HH for hot, CH for warm, CC for cold
and EE for no water.
L ** Water Level Lo for low, Hl for high.
dF *
Type of Fill
d for delayed fill, t for timed fill.1
S **
Spin Time
Two-digit amount of time in minutes.
IS *
Injection Source
Single digit code indicating injector signal(s).2
1 A delayed fill will pause thetime count until the selected level isreached. Atimed fill will
allow the time count to continue until the selected level is reached.
2Codes for injections sources are defined at the end of the programming section. When the
No Water bath is selected, the electronic controller prohibits injection signals. The
programmed injection source value is ignored.
To exit the programming of a bath, press the “STOP” button once and use the “UP” and
“DOWN” keys select another bath. Press the “STOP” button again to select a different cycle to
change. To end programming, turn the key to “RUN” position
WASH CYCLE PARAMETER RANGES
The range of each cycle parameter is shown below:
Cycle Time 0 to 15 minutes for Prewash, Wash, Rinse1, 2, 3 and 4
1 to 15 minutes for Final Rinse
For the bathes that can, if the time is set to zero, then the
bath will be eliminated from the cycle.
Water Temperature HH – hot, CH – warm, CC – cold, EE – no water
Water Level HI – high, LO – low
Delay Fill The selections are “d” for delay the bath time until water
level is reached or “t” to count down bath time during the
fill.
Spin Time 0 to 10 minutes for Prewash, Wash, Rinse, 2, 3 and 4
1 to 10 minutes for Final Spin
Injection Source 0 to 6
Note: The Wash Cycle programming mode will automatically exit and return to
the Idle mode if no buttons are pushed for one minute.

Cycle 1 Sheets & Pillowcases (Health Care)
Bath Bath Cycle
Time
(min.)
Water
Temp.
Water
Level
Delay
Fill
Spin
Time
(min.)
Injection Source
Flush 3 CH HI d
Prewash 2 CH HI d
Wash 7 HH LO d 1 (Detergent)
Rinse 1 7 HH LO d 2 (Bleach)
Rinse 2 2 CH HI d 1
Rinse 3 2 CH HI d
Rinse 4
Final
Rinse
4 CH LO d 4 4 (Sour/Soft)
Cycle 2 Towels / Pads / Diapers (Health Care)
Bath Bath Cycle
Time
(min.)
Water
Temp.
Water
Level
Delay
Fill
Spin
Time
(min.)
Injection Source
Flush 3 CH HI d
Prewash 2 CH HI d
Wash 7 HH LO d 1 (Detergent)
Rinse 1 1 HH HI d
Rinse 2 7 HH LO d 2 (Bleach)
Rinse 3 2 CH HI d 1
Rinse 4 2 CH HI d
Final
Rinse
4 CH LO d 5 4 (Sour/Soft)

Cycle 3 White Towels (Hotel / Motel)
Bath Bath Cycle
Time
(min.)
Water
Temp.
Water
Level
Delay
Fill
Spin
Time
(min.)
Injection Source
Flush
Prewash
Wash 7 HH LO d 1 (Detergent)
Rinse 1 1 HH HI d
Rinse 2 7 HH LO d 2 (Bleach)
Rinse 3 2 CH HI d 1
Rinse 4 2 CH HI d
Final
Rinse
4 CH LO d 5 4 (Sour/Soft)
Cycle 4 Guest Laundry (Hotel / Motel or Health Care)
Bath Bath Cycle
Time
(min.)
Water
Temp.
Water
Level
Delay
Fill
Spin
Time
(min.)
Injection Source
Flush 3 CH HI d
Prewash
Wash 7 HH LO d 5
(Detergent/Bleach)
Rinse 1 2 HH HI d
Rinse 2 2 CH HI d
Rinse 3 2 CH HI d
Rinse 4
Final
Rinse
4 CH LO d 4 4 (Sour/Soft)

Cycle 5 Rags & Mops (Hotel / Motel)
Bath Bath Cycle
Time
(min.)
Water
Temp.
Water
Level
Delay
Fill
Spin
Time
(min.)
Injection Source
Flush 3 CH HI d
Prewash 2 CH HI d
Wash 2 CH HI d
Rinse 1 7 HH LO d 1 (Detergent)
Rinse 2 2 HH HI d
Rinse 3 7 HH LO d 2 (Bleach)
Rinse 4 2 CH HI d 1
Final
Rinse
2 CH LO d 5
Cycle 6 Colored Cotton Linen (Food & Beverage)
Bath Bath Cycle
Time
(min.)
Water
Temp.
Water
Level
Delay
Fill
Spin
Time
(min.)
Injection Source
Flush 2 CH HI d
Prewash
Wash 10 HH LO d 1 (Detergent)
Rinse 1 7 HH LO d 2 (Bleach)
Rinse 2 2 CH HI d 1
Rinse 3 2 CH HI d
Rinse 4
Final
Rinse
4 CH LO d 4 6 (Sour/Starch)

RAPID ADVANCE MODE
To enter the Rapid Advance mode, turn the key counter-clockwise (CCW). The Rapid Advance
setting is not marked next to the key, but turning the key CCW until it stops selects this mode.
The Rapid Advance mode can be entered from either the Idle mode or during the cycle. If the
cycle has not yet started, press the “START” button. To rapid advance to the next step in the
wash cycle, push both the “UP” and “START” buttons at the same time. The display will show
an “Ad” (advance) in the display. The washer will advance to the next bath segment. The water
will drain before the advance will occur and the time displayed may not be accurate.
Notes:
•The indicator lights will show to which segment the cycle has been advanced.
•The cycle will continue in rapid advance mode even if the key is turned to “RUN” and/or
removed.
•Rapid advance cannot skip the final 1-minute tumble of the cycle, and the door lock may
remain activated for a couple minutes after the cycle has been completed.
•The chemical injection signals will not operate in Rapid Advance mode.
To end the cycle and exit the Rapid Advance mode without waiting for the time to count down,
push and hold the STOP button for 5 seconds or more.
INJECTION SOURCE DETAILS
The washer control may be programmed to send output signals for a chemical injection system.
There is a separate terminal block for connection of the external injection signals. For the
injection sources, program codes 0 through 6 are as shown in the table below. See the
ELECTRICAL section for more information.
Dexter
Recommended
Connections
Controller
Programmed
Signals
Injection
Terminal Block
Circuits
Detergent 1 A
Bleach 2 B
Starch 3 C
Sour/Softener 4 D
5 A and B
6 C and D
0 None

WASHER ERROR CODES
Fault #
(F #)
Description
Customer Action
1
The door failed to close and lock or the door
failed to remain locked after three tries of
latching the door and starting during the cycle.
Turn off the power to the washer. Check wire connections to door /lock switches. Check wire
connections from switches to controller. If necessary the door lock mechanism should be
adjusted by a qualified person. Turn on the power to the washer. (See Note)
2 The washer tub does not fill with water within 7
minutes. The wash cycle will continue. The F 2
will flash three times, then wait for 30 seconds.
The error will clear at the end of the cycle.
Turn of the power to the washer. Check the operation of the water valves. Check the
incoming water pressure. Check for blocked or restricted water flow. Check to ensure the
drain valve is functioning properly. Turn on the power to the washer. (See Note)
3 Memory error in controller. Turn off the power to the washer. Wait one minute. Turn power back on to the washer. If the
problem returns, clear the fault with the Palm. If the problem returns again, replace the
washer controller.
4
Washer controller communication error
Turn off the power to the washer. Wait one minute. Turn power back on to the washer. If the
problem returns, replace the washer controller.
5 Pressure Switch error ( only OPL )- when the
high level sensor indicates full but the lower one
indicates empty. The wash cycle will continue.
The F 5 will flash three times, then wait for 30
seconds. The error will clear at the end of the
cycle.
Turn off the power to the washer. Replace the pressure switch. Turn on power to the washer.
(See Note)
6
Wrong washer size for drive type.
Turn off the power to the washer. Check to ensure all the harnesses are properly connected
to the controller. Check to ensure the drive horsepower is proper for this size of washer. Turn
on power to the washer. (See Note) If problem reappears, contact your Dexter
representative.
7 Wrong size drive installed Turn off the power to the washer. Check to ensure all the harnesses are properly connected to
the controller. Check to ensure the drive horsepower is proper for this size of washer.
Contact your Dexter representative.
8
The washer tub does not empty within 7
minutes. The wash cycle will continue. The F 8
will flash three times, then wait for 30 seconds.
The error will clear at the end of the cycle.
Turn off the power to the washer. Check to ensure the drain valve is operating properly.
Check to ensure the pressure switch tube is clear of blockage. Check to ensure the pressure
switch is operating proper. Correct any located problems. Turn on power to the washer.
(See Note)
9
The washer tub does not reach the spin target
frequency within 200 seconds. The wash cycle
will continue. The F 9 will flash three times,
then wait for 30 seconds. The error will clear at
the end of the cycle.
Turn off the power to the washer. Inspect the washer to ensure the tub spins freely. If
restricted, then clear the blockage. Test washer. If tub spins freely, the drive needs to be
replaced.
10
After a spin the washer tub does not stop within
150 seconds.
Turn off the power to the washer. Inspect the braking resistors and the connecting wiring to
the drive braking resistors mounted in the top of the washer. If the resistors and wiring is
correct, then replace the drive.

11
The drive size setting has changed.
Turn off the power to the washer. Check to ensure all the harnesses are properly connected
to the controller. Check to ensure the drive horsepower is proper for this size of washer. Turn
on power to the washer. (See Note) If problem reappears, contact your Dexter
representative.
12
Washer controller internal error
Turn off the power to the washer. Wait one minute. Turn on the power to the washer. (See
Note) If problem reappears, contact your Dexter representative.
13 The control cannot communicate with the drive
Turn the power off to the washer. Check the data cable between the controller and the drive.
If no problem is observed, turn on power to the washer and test. (See Note) If problem
reappears, contact your Dexter representative.
14
Over-current on the drive or motor.
Turn the power off to the washer. Check the washer motor to ensure it turns freely. Check
the wiring connections to the drive and motor. If no problem is observed, turn on power to the
washer and test. (See Note) If problem reappears, contact your Dexter representative.
15
Over-voltage on the drive or motor.
Turn the power off to the washer. Check the washer motor to ensure it turns freely. Check
the wiring connections to the drive, braking resistors and motor. Measure incoming line
voltage. If no problem is observed, turn on power to the washer and test. (See Note) If
problem reappears, contact your Dexter representative.
16
Overheating of the drive
Turn the power off to the washer. Allow the drive to cool. Check the cooling fins of the drive
to ensure proper airflow. Check the wiring to the drive including the fan wiring. If no problem
is observed, turn on power to the washer and test. (See Note) If problem reappears, contact
your Dexter representative.
17
Overload of the drive or motor
Turn the power off to the washer. Check the washer motor to ensure it turns freely. Check
the wiring connections to the drive and motor. If no problem is observed, turn on power to the
washer and test. (See Note) If problem reappears, contact your Dexter representative.
18
Ground Fault to the drive
Turn the power off to the washer. Check the wiring connections to the drive and motor. Check
the ground wiring of the drive, motor and incoming connection to ensure a proper ground is
present. If no problem is found, contact your Dexter representative.
19
Low Voltage to the drive
Turn the power off to the washer. Check the wiring connections to the drive and motor. If no
problem is observed, turn on power to the washer and test. (See Note) Measure the incoming
line voltage. If problem reappears, contact your Dexter representative.
20
Internal drive error
Turn the power off to the washer. Wait one minute. Turn the power on to the washer. (See
Note) If problem reappears, contact your Dexter representative.
21
Data error on communications between the
controller and drive
Turn the power off to the washer. Check the data cable between the controller and the drive.
If no problem is observed, turn on power to the washer and test. (See Note) If problem
reappears, contact your Dexter representative.
Note: Whenever power is turned off to the washer, it must remain off for one minute. The washer will not operate properly if this is not done.

ACCESSORIES
INSTALLATION: (Furnished) QTY.
9990-027-013 Hose, Water Supply 2
9990-027-011 Hose, Water Supply 2
9379-197-001 Valve, Shut Off 2
8641-242-000 Washer, Inlet Hose 4
9565-003-001 Strainer, Inlet Hose 8
Contact your distributor or Dexter Laundry, Inc. if a steel-mounting base is required.
www.dexterlaundry.com
