DFI AD73 Pro User manual

AD73 Pro
Rev. A+
System Board
User’s Manual
55100203

Copyright
This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior
written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose. The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 00 . All Rights Reserved.
Trademarks
Microsoft® MS-DOS®, WindowsTM, Windows® 95, Windows® 98,
Windows® 98 SE, Windows® ME, Windows® 000, Windows NT®
4.0 and Windows® XP are registered trademarks of Microsoft
Corporation. AMD, AthlonTM and DuronTM are registered trademarks
of Advanced Micro Devices, Inc. VIA is a registered trademark of
VIA Technologies, Inc. Award is a registered trademark of Award
Software, Inc. Other trademarks and registered trademarks of
products appearing in this manual are the properties of their
respective holders.
Caution
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.

Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by
the manufacturer.
• Dispose of used batteries according to the battery
manufacturer’s instructions.
Joystick or MIDI port:
• Do not use any joystick or MIDI device that requires more than
10A current at 5V DC. There is a risk of fire for devices that
exceed this limit.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
. Shielded interface cables must be used in order to comply with
the emission limits.

Notice
This user’s manual contains detailed information about the system
board. If, in some cases, some information doesn’t match those
shown in the multilingual manual, the multilingual manual should
always be regarded as the most updated version. The multilingual
manual is included in the system board package.
To view the user’s manual, insert the CD into a CD-ROM drive. The
autorun screen (Main Board Utility CD) will appear. Click “User’s
Manual”.

Table of Contents
Chapter 1 - Introduction
1.1 Features and Specifications..................................................................................
1. Package Checklist.........................................................................................................
Chapter 2 - Hardware Installation
.1 System Board Layout .............................................................................................
. System Memory.............................................................................................................
.3 Jumper Settings for Clearing CMOS Data..........................................
.4 Jumper Settings for the Onboard Audio Codec .........................
.5 Jumper Settings for Selecting the CPU’s Front Side
Bus..............................................................................................................................................
.6 Jumper Settings for Selecting the USB Power...................................
.7 Jumper Settings for Selecting the PS/ Power..................................
.8 Jumper Settings for the CNR...........................................................................
.9 Ports and Connectors.............................................................................................
Chapter 3 - Award BIOS Setup Utility
3.1 The Basic Input/Output System.....................................................................
3.1.1 Standard CMOS Features.............................................................
3.1. Advanced BIOS Features..............................................................
3.1.3 Advanced Chipset Features ......................................................
3.1.4 Integrated Peripherals.........................................................................
3.1.5 Power Management Setup............................................................
3.1.6 PnP/PCI Configurations....................................................................
3.1.7 PC Health Status...................................................................................
3.1.8 Frequency/Voltage Control............................................................
3.1.9 Load Fail-Safe Defaults.....................................................................
3.1.10 Load Optimized Defaults..............................................................
3.1.11 Set Supervisor Password...............................................................
3.1.1 Set User Password..............................................................................
3.1.13 Save & Exit Setup.................................................................................
3.1.14 Exit Without Saving..............................................................................
3. Updating the BIOS.....................................................................................................
7
14
49
49
53
57
61
66
71
73
75
77
77
78
78
79
79
79
15
16
18
0
1
3
4
5

Introduction
1
6
Chapter 4 - Supported Softwares
4.1 Desktop Management Interface.....................................................................
4. Hardware Monitor........................................................................................................
4.3 VIA Service Pack..........................................................................................................
4.4 Audio Drivers and Software Application...............................................
4.5 Microsoft DirectX 8.0 Driver.............................................................................
4.6 Drivers and Utilities Installation Notes.....................................................
Appendi A - Using the Suspend to RAM
Function
A.1 Using the Suspend to RAM Function........................................................
Appendi B - System Error Messages
B.1 POST Beep.......................................................................................................................
B. Error Messages..............................................................................................................
Appendi C - Troubleshooting
C.1 Troubleshooting Checklist....................................................................................
80
83
83
85
85
86
91
91
87
93

1
Introduction
7
1.1 Features and Specifications
1.1.1 Features
Chipset
• VIA® KT- 66A and VT8 33ACD
Processor
The system board is equipped with Socket-A for 46 -pin PGA
processor. It is also equipped with a switching voltage regulator that
automatically detects 1.100V to 1.850V.
• AMD AthlonTM XP 66MHz FSB (1500+ to 000+)
• AMD AthlonTM 00/ 66MHz FSB (up to 1.4GHz)
• AMD DuronTM 00MHz FSB (500MHz to 1.3GHz)
Important:
•To ensure proper boot up and operation of your system,
you must power-off the system then turn off the power
supply’s switch or unplug the AC power cord prior to
replacing the CPU.
•When using a .2GHz CPU under Windows® XP operating
system, the VIA KT-266A chip must be installed with a fan
that is connected to the “second chassis fan” connector.
System Memory
• Supports up to 3GB memory
• Uses .5V PC1600 (DDR 00) / PC 100 (DDR 66) DDR
SDRAM DIMM
• Three 184-pin DDR SDRAM DIMM sockets
• L cache memory
- DuronTM processor: built-in 64KB Level pipelined burst
cache
- AthlonTM XP / AthlonTM processor: built-in 56KB Level
pipelined burst cache
Chapter 1 - Introduction

Introduction
1
8
Expansion Slots
The system board is equipped with 1 universal AGP slot, 5 PCI
slots (1 shared with CNR slot) and 1 CNR slot.
AGP is an interface designed to support high performance 3D
graphics cards. It utilizes a dedicated pipeline to access system
memory for texturing, z-buffering and alpha blending. The universal
AGP slot supports AGP x with up to 533MB/sec. bandwidth and
AGP 4x with up to 1066MB/sec. bandwidth for 3D graphics
applications. AGP in this system board will deliver faster and better
graphics to your PC.
The CNR slot supports modem riser card only.
Onboard udio Features
• Supports Microsoft® DirectSound/DirectSound 3D
• AC’97 supported with full duplex, independent sample rate con-
verter for audio recording and playback
TX Double Deck Ports (PC 99 color-coded connectors)
• Two USB ports
• Two NS16C550A-compatible DB-9 serial ports
• One SPP/ECP/EPP DB- 5 parallel port
• One mini-DIN-6 PS/ mouse port
• One mini-DIN-6 PS/ keyboard port
• One game/MIDI port
• Three audio jacks: line-out, line-in and mic-in
Connectors
• One connector for additional external USB ports
• One connector for IrDA interface
• Two IDE connectors
• One floppy drive interface supports up to two .88MB floppy
drives
DIMMs
2MBx64
4MBx64
8MBx64
Memory Size
16MB
32MB
64MB
DIMMs
16MBx64
32MBx64
64MBx64
Memory Size
128MB
256MB
512MB

1
Introduction
9
• One ATX power supply connector
• One Wake-On-LAN connector
• One Wake-On-Ring connector
• CPU, chassis and second chassis fan connectors
• Three internal audio connectors (AUX-in, CD-in and TAD)
• One connector for external line-out and mic-in jacks
PCI Bus Master IDE Controller
• Two PCI IDE interfaces support up to four IDE devices
• Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives
• UDMA Modes 3, 4, 5 and 6 Enhanced IDE (data transfer rate
up to 133MB/sec.)
• Bus mastering reduces CPU utilization during disk transfer
• Supports ATAPI CD-ROM, LS-1 0 and ZIP
IrD Interface
The system board is equipped with an IrDA connector for wireless
connectivity between your computer and peripheral devices. It
supports peripheral devices that meet the IrDA and ASKIR standard.
USB Ports
The system board supports 4 USB ports. Two onboard USB ports
are located at the ATX double deck ports of the board. The J 0
connector on the system board allows you to connect more
optional USB ports. These optional USB ports, which are mounted
on a card-edge bracket, will be provided as an option. USB allows
data exchange between your computer and a wide range of
simultaneously accessible external Plug and Play peripherals.
BIOS
• Award BIOS, Windows® 95/98/ 000/ME/XP Plug and Play
compatible
• Supports SCSI sequential boot-up
• Flash EPROM for easy BIOS upgrades
• Supports DMI .0 function
• Mbit flash memory
• Vcore and CPU external bus clock selectable in the BIOS

Introduction
1
10
Desktop Management Interface (DMI)
The system board comes with a DMI .0 built into the BIOS. The
DMI utility in the BIOS automatically records various information
about your system configuration and stores these information in the
DMI pool, which is a part of the system board's Plug and Play
BIOS. DMI, along with the appropriately networked software, is
designed to make inventory, maintenance and troubleshooting of
computer systems easier. Refer to chapter 4 for instructions on using
the DMI utility.
1.1.2 System Health Monitor Functions
The system board is capable of monitoring the following “system
health” conditions.
• Monitors CPU/system temperature
• Monitors ±1 V/±5V/3.3V/CPU/VBAT(V)/5VSB(V) voltages
• Monitors CPU/chassis fan speed
• Automatic chassis fan on/off control
• Read back capability that displays temperature, voltage and fan
speed
Refer to the “PC Health Status” section in chapter 3 and the
“Hardware Monitor” section in chapter 4 for more information.
1.1.3 Intelligence
CPU Temperature Protection
The CPU Temperature Protection function has the capability of
monitoring the CPU’s temperature during system boot-up. Once it
has detected that the CPU’s temperature exceeded the CPU
temperature limit defined in the BIOS, the system will automatically
power-off after 5 warning beeps. Refer to “CPU Temp. Prot. Function
and CPU Temp. Prot. Alarm” in the PC Health Status section in
chapter 3 for more information.

1
Introduction
11
CPU Fan Protection
The CPU Fan Protection function has the capability of monitoring the
CPU fan during system boot-up and will automatically power-off the
system once it has detected that the CPU fan did not rotate. This
preventive measure has been added to protect the CPU from
damage and insure a safe computing environment. Refer to “CPU
Fan Connector with CPU Fan Protection Function” in chapter and
“CPU Fan Protection” in the PC Health Status section in chapter 3
for more information.
Over Voltage
The Over Voltage function allows you to manually adjust to a higher
core voltage that is supplied to the CPU. Although this function is
supported, we do not recommend that you use a higher voltage
because unstable current may be supplied to the system board
causing damage. Refer to “CPU-Vcore Adjust” in the Frequency/
Voltage Control section in chapter 3 for more information.
CPU Overclocking
The CPU Overclocking function allows you to adjust the processor’s
bus clock. However, overclocking may result to the processor’s or
system’s instability and are not guaranteed to provide better system
performance. Refer to “Clock By Slight Adjust” in the Frequency/
Voltage Control section in chapter 3 for more information.
utomatic Chassis Fan Off
The chassis fan will automatically turn off once the system enters the
Suspend mode.
Dual Function Power Button
Depending on the setting in the “Soft-Off By PWRBTN” field of the
Power Management Setup, this switch will allow the system to enter
the Soft-Off or Suspend mode.

Introduction
1
12
Wake-On-Ring
This feature allows the system that is in the Suspend mode or Soft
Power Off mode to wake-up/power-on to respond to calls coming
through an internal or external modem. Refer to “Wake-On-Ring
Connector” in chapter and “Resume On LAN/Ring” (“Wake Up
Events” field) in the Power Management Setup section in chapter 3
for more information.
Important:
If you are using a modem add-in card, the 5VSB power source
of your power supply must support a minimum of ≥ 720mA.
RTC Timer to Power-on the System
The RTC installed on the system board allows your system to
automatically power-on on the set date and time. Refer to “Resume
By-Alarm” (“Wake Up Events” field) in the Power Management
Setup section in chapter 3 for more information.
Wake-On-L N
The Wake-On-LAN function allows the network to remotely wake
up a Soft Power Down (Soft-Off) PC. Your LAN card must support
the remote wakeup function. Refer to “Wake-On-LAN Connector” in
chapter and “Resume On LAN/Ring” (“Wake Up Events” field) in
the Power Management Setup section in chapter 3 for more
information.
Important:
The 5VSB power source of your power supply must support a
minimum of ≥ 720mA.
C Power Failure Recovery
When power returns after an AC power failure, you may choose to
either power-on the system manually, let the system power-on
automatically or return to the state where you left off before power
failure occurs. Refer to “PWR Lost Resume State” in the Power
Management Setup section in chapter 3 for more information.

1
Introduction
13
CPI STR
The system board is designed to meet the ACPI (Advanced
Configuration and Power Interface) specification. ACPI has energy
saving features that enables PCs to implement Power Management
and Plug-and-Play with operating systems that support OS Direct
Power Management. Currently, only Windows® 98/ 000/ME/XP
supports the ACPI function allowing you to use the Suspend to
RAM function. The Suspend to RAM function is optional.
With the Suspend to RAM function enabled, you can power-off the
system at once by pressing the power button or selecting “Standby”
when you shut down Windows® 98/ 000/ME/XP without having to
go through the sometimes tiresome process of closing files,
applications and operating system. This is because the system is
capable of storing all programs and data files during the entire
operating session into RAM (Random Access Memory) when it
powers-off. The operating session will resume exactly where you left
off the next time you power-on the system. Refer to “Using the
Suspend to RAM Function” in appendix A for more information.
Important:
The 5VSB power source of your power supply must support
≥ A.
Virus Protection
Most viruses today destroy data stored in hard drives. The system
board is designed to protect the boot sector and partition table of
your hard disk drive.

Introduction
1
14
1.2 Package Checklist
The system board package contains the following items:
The system board
A user’s manual
One IDE cable for ATA/33, ATA/66, ATA/100 or ATA/133 IDE
drives
One 34-pin floppy disk drive cable
One “Main Board Utility” CD
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

2
Hardware Installation
15

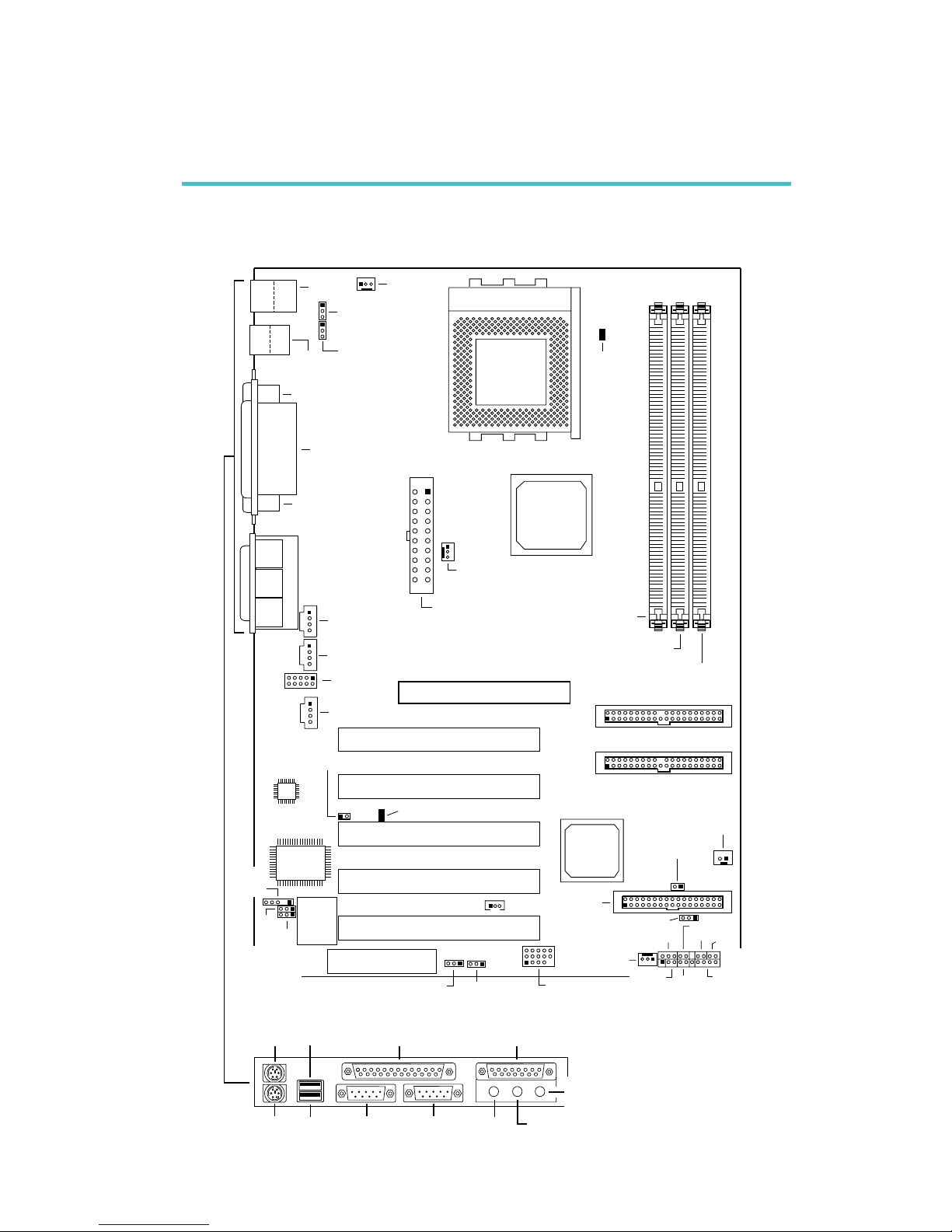

2.1 System Board Layout
Chapter 2 - Hardware Installation
J6
KB
Mouse
USB
USB 1
(J7)
USB
COM 1 (J1)
Parallel (J8)
COM 2 (J2)
Game/MIDI (J12)
Line
out
(J3)
Line
in
(J4)
Mic
in
(J5) CD-in (J13)
AUX-in (J14)
CPU fan
(J16)
Power select
USB 1 (JP4)for
PS/2 power
select (JP3)
Socket 462
(Socket A)
DIMM
standby
power LED
DDR SDRAM
DIMM 1
DDR SDRAM
DIMM 2
DDR SDRAM
DIMM 3
Primary IDE (J22)
Secondary IDE (J23)
VIA
KT-266A
VIA
VT8233ACD
CPU FSB
select (JP8)
Wake-On-Ring
(J26)
FDD (J24)
Wake-On-LAN J19
Clear CMOS (JP9)
PWR-LED
ATX-SW
G-LED G-SW
Chassis fan
(J21)
HD-LED RESET SPEAKER
USB 2 (J20)
CNR setting (JP6) Power select
USB 2 (JP7)for
Winbond
W83697HF
BIOS
JP1
JP2
IrDA
(J11)
Onboard audio
codec settings
(JP1 & JP2)
AC’97 PCI standby power LED
3.3VSB standby for PCI (JP5)
AGP Slot
PCI Slot 1
PCI Slot 2
PCI Slot 3
PCI Slot 4
PCI Slot 5
CNR Slot
TAD (J15)
Front audio
(J9)
ATX p ower
(J17)
Second chassis
fan (J18)
9
10 2
1
1
11
5
15 J25
USB 1
(Black)
Mouse
(Green)
KB
(Purple)
COM 1 COM 2
Parallel
(Burgundy)
Game/MIDI
(Gold)
Line-In
(Light Blue)
Line-Out
(Lime)
Mic-In
(Pink)
USB 2
(Black)
(Teal/Turquoise)

2
16
Hardware Installation
2.2 System Memory
Warning:
• To ensure proper boot up and operation of your system, you
must power-off the system then turn off the power supply’s
switch or unplug the AC power cord prior to altering the setting
of a jumper or replacing the CPU
• Electrostatic discharge (ESD) can damage your system board,
processor, disk drives, add-in boards, and other components
Perform the upgrade instruction procedures described at an ESD
workstation only If such a station is not available, you can provide
some ESD protection by wearing an antistatic wrist strap and
attaching it to a metal part of the system chassis If a wrist
strap is unavailable, establish and maintain contact with the
system chassis throughout any procedures requiring ESD
protection

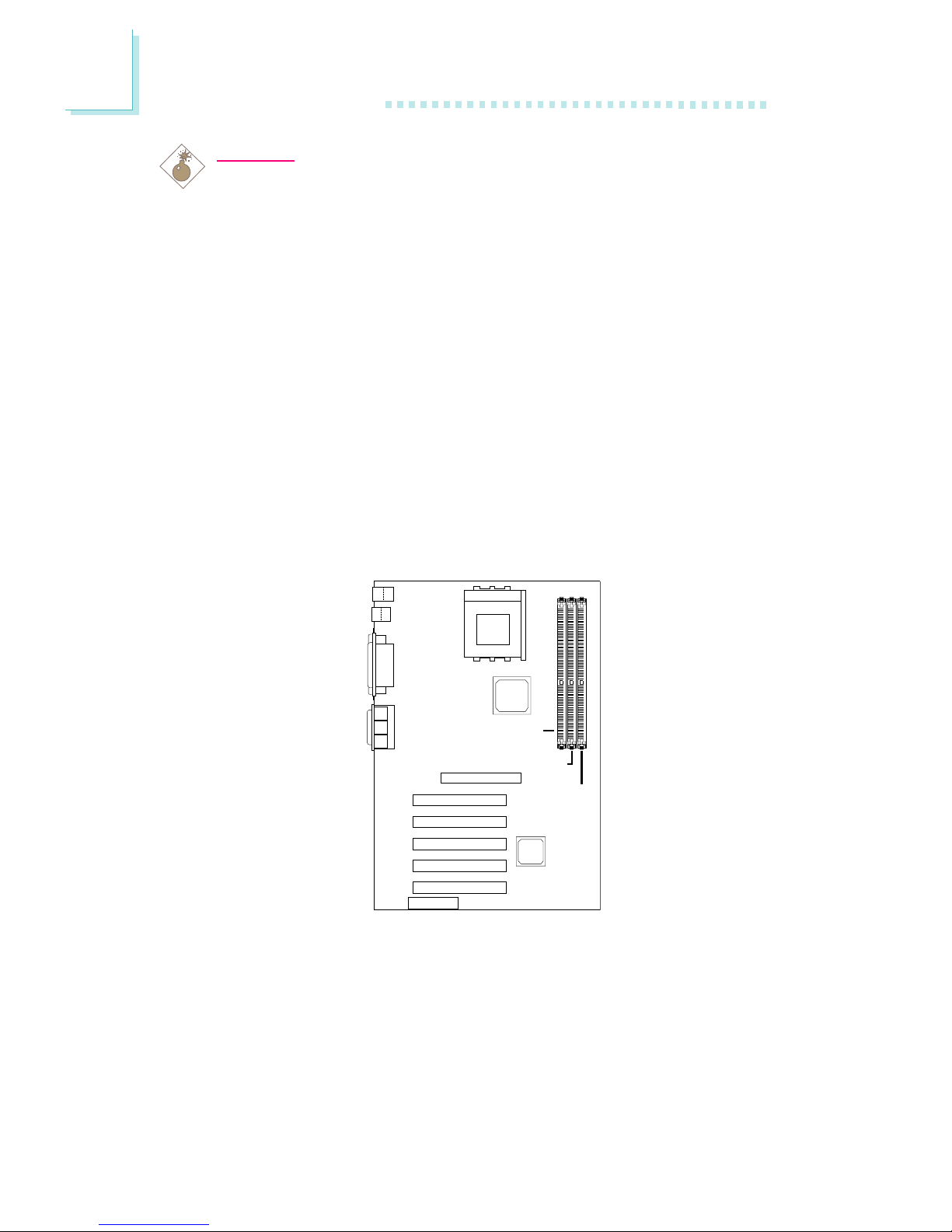

The system board is equipped with three 184-pin DDR SDRAM
DIMM (Dual In-line Memory Module sockets that support 2.5V
DDR SDRAM DIMM. Double Data Rate SDRAM (DDR SDRAM is
a type of SDRAM that doubles the data rate through reading and
writing at both the rising and falling edge of each clock. This
effectively doubles the speed of operation therefore providing two
times faster data transfer.
DDR SDRAM
DIMM 1
DDR SDRAM
DIMM 2
DDR SDRAM
DIMM 3

2
Hardware Installation
17
1. Pull the “tabs” which are at the ends of the socket to the side.
2. Position the DIMM above the socket with the “notch” in the
module aligned with the “key” on the socket.
3. Seat the module vertically into the socket. Make sure it is
completely seated. The tabs will hold the DIMM in place.
2.2.1 Installing the DIM Module
A DIM module simply snaps into a DIMM socket on the system
board. Pin 1 of the DIM module must correspond with Pin 1 of the
socket.
Refer to chapter 1 (System Memory section for detailed
specification of the memory supported by the system board.
Pin 1
Notch
Key
Tab Tab

2
18
Hardware Installation
2.3 Jumper Settings for Clearing CMOS Data
Clear CMOS Data - Jumper JP9
If you encounter the following,
a) CMOS data becomes corrupted
b) You forgot the supervisor or user password
c) You are unable to boot-up the computer system because the
processor’s bus clock was incorrectly set in the BIOS
you can reconfigure the system with the default values stored in the
ROM BIOS.
To load the default values stored in the ROM BIOS, please follow
the steps below.
1. Power-off the system and unplug the power cord.
2. Set JP9 pins 2 and 3 to On. Wait for a few seconds and set JP9
back to its default setting, pins 1 and 2 On.
2-3 On:
Clear CMOS Data
1-2 On:
Normal (default
321
Clear
CMOS (JP9)
321 32 1

2
Hardware Installation
19
3. Plug the power cord and power-on the system.
If your reason for clearing the CMOS data is due to incorrect
setting of the processor’s bus clock in the BIOS, please proceed
to step 4.
4. After powering-on the system, press <Del> to enter the main
menu of the BIOS.
5. Select the “Frequency/Voltage Control” submenu and press
<Enter>.
6. Set the “Clock By Slight Adjust” field to its default setting or an
appropriate bus clock. Refer to “Clock By Slight Adjust” in the
“Frequency/Voltage Control” section in chapter 3 for more
information.
7. Press <Esc> to return to the main menu of the BIOS setup
utility. Select “Save & Exit Setup” and press <Enter>.
8. Type <Y> and press <Enter>.

2
20
Hardware Installation
2.4 Jumper Settings for the On oard Audio Codec
1-2 On:
Enable the Onboard
Audio Codec
(default
2-3 On:
Disable the Onboard
Audio Codec
Onboard Audio Codec Settings - Jumpers JP1 and JP2
The default setting is 1-2 On, the onboard audio codec enabled. If
you are not using the onboard audio codec, set pins 2 and 3 to On
(Disabled and set the “VIA-3058 AC97 Audio” (“VIA OnChip PCI
Device” field in the Integrated Peripherals submenu of the BIOS to
Disabled.
JP1
Onboard audio
codec settings
(JP1 & JP2)
321
JP2
JP1
321
JP1
JP2
321
JP2
