1

KD631-C236/Q170

ATX Industrial Motherboard

User’s Manual

A-478-M-2003

2

Copyright

This publication contains information that is protected by copyright. No part of it may be re-

produced in any form or by any means or used to make any transformation/adaptation without

the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The manufacturer makes no

representations or warranties with respect to the contents or use of this manual and specifi-

cally disclaims any express or implied warranties of merchantability or fitness for any particular

purpose. The user will assume the entire risk of the use or the results of the use of this docu-

ment. Further, the manufacturer reserves the right to revise this publication and make changes

to its contents at any time, without obligation to notify any person or entity of such revisions

or changes.

Changes after the publication’s first release will be based on the product’s revision. The website

will always provide the most updated information.

Trademarks

Product names or trademarks appearing in this manual are for identification purpose only and

are the properties of the respective owners.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-

able protection against harmful interference when the equipment is operated in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encour-

aged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compli-

ance could void the user’s authority to operate the equipment.

2. Shielded interface cables must be used in order to comply with the emission limits.

3

Copyright��2

Trademarks ��2

FCC and DOC Statement on Class B��2

Warranty��4

Static Electricity Precautions��4

Safety Measures ��4

About the Package��5

Optional Items��5

Before Using the System Board��5

Chapter 1 - Introduction ��6

Specifications ��6

Features��7

Chapter 2 - Hardware Installation�� 9

Board Layout��9

System Memory��9

Installing the DIMM Module �� 10

CPU �� 11

Installing the CPU�� 12

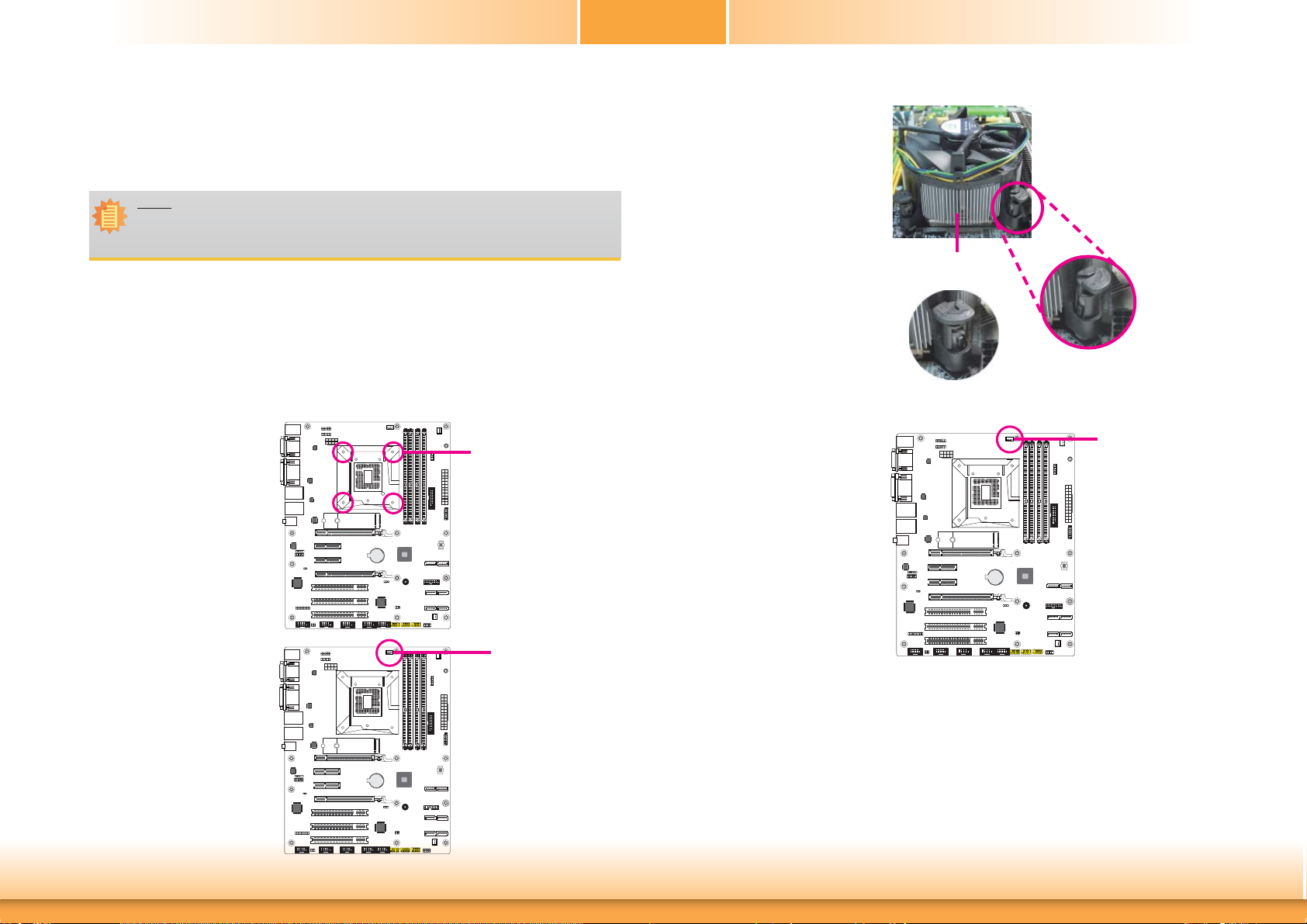

Installing the Fan and Heat Sink�� 14

Block Diagram�� 15

Mechanical Diagram�� 16

Jumper Settings �� 16

Clear CMOS Data�� 16

COM1/COM2 RS232/422/485 Select�� 17

COM1/COM2 RS232/Power Select�� 18

USB Power Select �� 18

Rear Panel I/O Ports�� 19

PS/2 Keyboad/Mouse Port �� 19

COM (Serial) Ports �� 20

Graphics Interfaces�� 21

RJ45 LAN Ports�� 22

USB Ports�� 22

Audio �� 23

I/O Connectors �� 24

SATA (Serial ATA) Connectors�� 24

Digital I/O Connector�� 24

Cooling Fan Connectors�� 25

Power Connectors�� 25

Chassis Intrusion Connector �� 26

Front Panel Connector �� 26

Standby Power LED �� 27

Expansion Slots �� 27

S/PDIF Connector �� 28

Battery�� 28

SMBus Connector �� 29

LAN LED Connector �� 29

LPC Connector�� 30

Connecting the EXT-RS232/RS485 Card to the Motherboard �� 30

Chapter 3 - BIOS Setup�� 31

Overview�� 31

Insyde BIOS Setup Utility�� 32

Main �� 32

Advanced �� 32

Security�� 45

Boot�� 45

Exit�� 46

Updating the BIOS �� 47

Notice: BIOS SPI ROM �� 47

Chapter 4 - Supported Software �� 48

Chapter 5 - RAID �� 61

Chapter 6 - Intel AMT Settings�� 65

Appendix A - Troubleshooting Checklist �� 79

Table of Contents

4

Warranty

1. Warranty does not cover damages or failures that arised from misuse of the product,

inability to use the product, unauthorized replacement or alteration of components and

product specifications.

2. The warranty is void if the product has been subjected to physical abuse, improper instal-

lation, modification, accidents or unauthorized repair of the product.

3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-

stances, attempt to perform service, adjustments or repairs on the product, whether in or

out of warranty. It must be returned to the purchase point, factory or authorized service

agency for all such work.

4. We will not be liable for any indirect, special, incidental or consequencial damages to the

product that has been modified or altered.

Static Electricity Precautions

It is quite easy to inadvertently damage your PC, system board, components or devices even

before installing them in your system unit. Static electrical discharge can damage computer

components without causing any signs of physical damage. You must take extra care in han-

dling them to ensure against electrostatic build-up.

1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are

ready to install it.

2. Wear an antistatic wrist strap.

3. Do all preparation work on a static-free surface.

4. Hold the device only by its edges. Be careful not to touch any of the components, contacts

or connections.

5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con-

nectors by their ends.

Safety Measures

To avoid damage to the system:

• Use the correct AC input voltage range.

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis cover for installa-

tion or servicing. After installation or servicing, cover the system chassis before

plugging the power cord.

Important:

Electrostatic discharge (ESD) can damage your processor, disk drive and other com-

ponents. Perform the upgrade instruction procedures described at an ESD worksta-

tion only. If such a station is not available, you can provide some ESD protection by

wearing an antistatic wrist strap and attaching it to a metal part of the system chas-

sis. If a wrist strap is unavailable, establish and maintain contact with the system

chassis throughout any procedures requiring ESD protection.

5

About the Package

The package contains the following items. If any of these items are missing or damaged,

please contact your dealer or sales representative for assistance.

• One KD631-C236/Q170 motherboard

• One COM port cable (Length: 400mm, 2 x COM ports)

• One Serial ATA data cable (Length: 500mm)

• One I/O shield

• One M.2 standoff

• One M.2 screw for 2260

• One M.2 screw for 2280

The board and accessories in the package may not come similar to the information listed

above. This may differ in accordance to the sales region or models in which it was sold. For

more information about the standard package in your region, please contact your dealer or

sales representative.

Optional Items

• USB 2.0 port cable (Length: 350/398mm)

• USB 3.0 port cable (Length: 320mm)

• COM port cable (Length: 400mm, 2 x COM ports)

• Serial ATA data cable (Length: 500mm, W/LOCK)

• Thermal solution (For 35W, Height: 37.3mm)

• Thermal solution (For 65W, Height: 72.8mm)

• Thermal solution (For 95W, Height: 69.3mm) (For KD631-C236)

• LPC EXT-RS232 module (4 x RS232 ports)

• LPC EXT-RS485 module (4 x RS485 ports)

The board and accessories in the package may not come similar to the information listed

above. This may differ in accordance to the sales region or models in which it was sold. For

more information about the standard package in your region, please contact your dealer or

sales representative.

Before Using the System Board

Before using the system board, prepare basic system components.

If you are installing the system board in a new system, you will need at least the following

internal components.

• A CPU

• Memory module

• Storage devices such as hard disk drive, etc.

You will also need external system peripherals you intend to use which will normally include at

least a keyboard, a mouse and a video display monitor.

6

Chapter 1 - Introduction

Specifications

Chapter 1

Chapter 1 Introduction www.dﬁ.com

SYSTEM Processor KD631-C236:

Intel®Xeon®E3 v5/v6 LGA 1151 Socket Processors with TDP up to 80W

6th/7th Generation Intel®Core™/Pentium®/Celeron®LGA 1151 Socket Processors with TDP up to 65W

KD631-Q170:

6th/7th Generation Intel®Core™/Pentium®/Celeron®LGA 1151 Socket Processors with TDP up to 65W

Chipset KD631-C236:

Intel®C236 Chipset

KD631-Q170:

Intel®Q170 Chipset

Memory KD631-C236:

Four 288-pin ECC/Non-ECC DIMM up to 64GB

Dual Channel DDR4 2133/2400MHz

KD631-Q170:

Four 288-pin DIMM up to 64GB

Dual Channel DDR4 2133/2400MHz

BIOS Insyde SPI 128Mbit

GRAPHICS Controller Intel®HD Gen 9 Graphics

Feature OpenGL 5.0, DirectX 12, OpenCL 2.1

HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9

HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

Display 1 x VGA VGA: resolution up to 1920x1200 @ 60Hz

1 x DVI-I (DVI-D signal) DVI-I (DVI-D signal): resolution up to 1920x1200 @ 60Hz

1 x HDMI HDMI: resolution up to 4096x2160 @ 24Hz

Triple

Displays

VGA + DVI-I (DVI-D signal) + HDMI

EXPANSION Interface 2 x PCIe x16 (1 x16 or 2 x8 signal) (Gen 3)

2 x PCIe x4 (Gen 3)

3 x PCI

1 x M.2 (PCIe x2) (KD631-C236 additionally supports Optane memory technology)

AUDIO

Audio

Codec

Realtek ALC888S-VD2-GR

ETHERNET Controller 1 x Intel®I210AT PCIe (10/100/1000Mbps)

1 x Intel®I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Xeon and Core i7/i5 support iAMT)

REAR I/O Ethernet 2 x GbE (RJ-45)

USB 4 x USB 3.0

2 x USB 2.0

Serial 1 x RS-232/422/485 (RS-232 w/ power) (DB-9)

PS/2 1 x PS/2 (mini-DIN-6)

Display 1 x VGA

1 x DVI-I (DVI-D signal)

1 x HDMI

Audio 1 x Line-out

1 x Mic-in

1 x Line-in (opt. by request, MOQ required)

INTERNAL I/O Serial 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)

4 x RS-232 (2.54mm pitch)

USB 2 x USB 3.0 (2.00mm pitch)

6 x USB 2.0 (2.54mm pitch) or

4 x USB 2.0 (2.54mm pitch) + 1 x Vertical USB 2.0 (type A) (available upon request)

Audio 1 x Front Audio Header

1 x S/PDIF

SATA KD631-C236:

6 x SATA 3.0 (up to 6Gb/s)

RAID 0/1/5/10

KD631-Q170:

5 x SATA 3.0 (up to 6Gb/s)

RAID 0/1/5/10

DIO 1 x 8-bit DIO

LPC 1 x LPC (supports LPC EXT-RS232/RS485 module)

SMBus 1 x SMBus

WATCHDOG

TIMER Output &

Interval

System Reset, Programmable via Software from 1 to 255 Seconds

SECURITY TPM Infineon TPM2.0/1.2 (optional)

POWER Type ATX

Connector 8-pin ATX 12V power

24-pin ATX power

RTC Battery CR2032 Coin Cell

OS SUPPORT Windows 10 IoT Enterprise 64-bit

ENVIRONMENT Temperature Operating: 0 to 60°C

Storage: -40 to 85°C

Humidity Operating: 5 to 90% RH

Storage: 5 to 90% RH

MECHANICAL Dimensions ATX Form Factor

305mm (12") x 244mm (9.6")

Height PCB: 1.6mm

7

Chapter 1

Features

• Watchdog Timer

The Watchdog Timer function allows your application to regularly “clear” the system at the set

time interval. If the system hangs or fails to function, it will reset at the set time interval so

that your system will continue to operate.

• DDR4

DDR4 deliver increased system bandwidth and improved performance. The advantages of

DDR4 are its higher bandwidth and its increase in performance at a lower power than DDR3/

DDR3L/DDR2. It is not compatible with DDR3/DDR3L/DDR2.

• Graphics

The integrated Intel®HD graphics engine delivers an excellent blend of graphics performance

and features to meet business needs. It provides excellent video and 3D graphics with out-

standing graphics responsiveness. These enhancements deliver the performance and compat-

ibility needed for today’s and tomorrow’s business applications. Supports 1 x VGA, 1 x DVI-I

(DVI-D signal) and 1 x HDMI interfaces for triple display outputs.

• PCI Express

PCI Express is a high bandwidth I/O infrastructure that possesses the ability to scale speeds

by forming multiple lanes. The x4 PCI Express lane supports transfer rate of 4 Gigabyte per

second (2 directions). The PCI Express architecture also supports high performance graphics

infrastructure by enhancing the capability of a PCIe x16 Gen 3 at 16GB/s bandwidth (8GB/s in

each direction).

• Serial ATA

Serial ATA is a storage interface that is compliant with SATA 1.0a specification. With speed of

up to 6Gb/s (SATA 3.0), it improves hard drive performance faster than the standard parallel

ATA whose data transfer rate is 100MB/s. The bandwidth of the SATA 3.0 will be limited by

carrier board design.

• Gigabit LAN

Two Intel®Gigabit LAN controllers (Intel®I210AT PCI Express Gigabit Ethernet controller and

Intel®I219LM Gigabit Ethernet Phy) support up to 1Gbps data transmission.

• Audio

The Realtek ALC888S-VD2-GR audio codec provides 5.1 channel High Definition audio output.

Important:

The 5V_standby power source of your power supply must support ≥720mA.

• Wake-On-USB

This function allows you to use a USB keyboard or USB mouse to wake up a system from the

S3 (STR - Suspend To RAM) state.

• RTC Timer

The RTC installed on the system board allows your system to automatically power-on on the

set date and time.

• ACPI STR

The system board is designed to meet the ACPI (Advanced Configuration and Power Interface)

specification. ACPI has energy saving features that enables PCs to implement Power Manage-

ment and Plug-and-Play with operating systems that support OS Direct Power Management.

ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM

function.

With the Suspend to RAM function enabled, you can power-off the system at once by pressing

the power button or selecting “Standby” when you shut down Windows®without having to go

through the sometimes tiresome process of closing files, applications and operating system.

This is because the system is capable of storing all programs and data files during the entire

operating session into RAM (Random Access Memory) when it powers-off. The operating ses-

sion will resume exactly where you left off the next time you power-on the system.

Important:

If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the

5V_standby power source of your power supply must support ≥1.5A. For 3 or more

USB ports, the 5V_standby power source of your power supply must support ≥2A.

• Wake-On-LAN

This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. It

is supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power

Management Event) signal. However, if your system is in the Suspend mode, you can power-

on the system only through an IRQ or DMA interrupt.

Important:

The 5V_standby power source of your power supply must support ≥720mA.

Chapter 1 Introduction www.dﬁ.com

8

• Wake-On-PS/2

This function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system.

• Power Failure Recovery

When power returns after an AC power failure, you may choose to either power-on the system

manually or let the system power-on automatically.

• USB

The system board supports the new USB 3.0. It is capable of running at a maximum transmis-

sion speed of up to 5 Gbit/s (625 MB/s) and is faster than USB 2.0 (480 Mbit/s, or 60 MB/s)

and USB 1.1 (12Mb/s). USB 3.0 reduces the time required for data transmission, reduces

power consumption, and is backward compatible with USB 2.0. It is a marked improvement in

device transfer speeds between your computer and a wide range of simultaneously accessible

external Plug and Play peripherals.

Chapter 1

Important:

The 5V_standby power source of your power supply must support ≥720mA.

Chapter 1 Introduction www.dﬁ.com

www.d.com

9

Chapter 2 Hardware Installation

Chapter 2

Chapter 2 - Hardware Installation

Board Layout

DDR4_1

DDR4_2

DDR4_3

DDR4_4

Socket LGA1151

+12V Power

4

8

1

5

CPU FAN

1

Battery

Intel

C236/Q170

PCIe 4 (PCIe x16)

PCIe 2 (PCIe x4)

JP35

JP33

PCIe 3 (PCIe x4)

PCI 1

PCI 2

PCI 3

62

6

2

6

5

1

6

5

2

1

JP5

JP6 2

JP8

JP7

Nuvoton

NCT6106D

Intel

I210AT

PTN3355

ASM1442

Intel

I219LM

1

S/PDIF

2

9

10

1

Front Audio

1

2

5

6

1

2

5

6

1

2

5

6

JP2

JP1 JP3

1

29

COM4

1

29

COM5

1

29

COM6

1

29

COM2

1

29

COM3

Clear CMOS (JP9) Buzzer

1

210

1

210

USB

13/14

USB 2.0

USB

7/8

1

210

USB

9/10

1

2

7

8

LAN LED

M.2

113

12 24

ATX Power

LPC

14

2

13

1

19

10 11

12

11

Front

Panel

Standby

Power

LED

Digital I/O

ASM1085

11

1

5

1

2

SMBus

1

19

10

11

SPI

Flash

BIOS

1

11

SATA 4SATA 3

SATA 6SATA 5

PCIe 1 (PCIe x16)

JP38

JP36

JP37

JP39

JP4

1

System

Fan 1

1

System

Fan 2

6

5

2

1

SATA 2SATA 1

8

7

1

Mic-in

Line-out

Line-in (opt.)

Note: USB 9/10 can be replaced

by an optional vertical USB.

Note: SATA 6

only for KD631-

C236

VGA

COM 1

HDMI

DVI-I

(DVI-D signal)

USB 3.0

(USB 3/4)

LAN 2

USB 3.0

(USB 1/2)

LAN 1

PS/2 KB/MS

USB 2.0

(USB 5/6)

USB 3.0 (USB 5/6)

Chassis

Intrusion

Realtek ALC888S

1

29

32 30

31

29

32 30

31

1

2

8

7

2

22

1

2

1

S1

S3

210

9

210

9

Battery

19

System Memory

Standby

Power LED

Features

Important:

Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in

boards, and other components. Perform installation procedures at an ESD workstation

only. If such a station is not available, you can provide some ESD protection by wear-

ing an antistatic wrist strap and attaching it to a metal part of the system chassis. If

a wrist strap is unavailable, establish and maintain contact with the system chassis

throughout any procedures requiring ESD protection.

Important:

When the Standby Power LED lit red, it indicates that there is power on the system

board. Power-off the PC then unplug the power cord prior to installing any devices.

Failure to do so will cause severe damage to the motherboard and components.

DDR4_2

DDR4_1

DDR4_4

DDR4_3

• The four DIMM sockets are divided into 2 channels:

Channel A - DDR4_1 and DDR4_2

Channel B - DDR4_3 and DDR4_4

• Supports DDR4 2133/2400MHz when operating at 1.2V (VDDQ)

• Supports dual channel memory interface

• Supports up to 64GB system memory

Channel A

Channel B

www.dﬁ.com

10

Chapter 2 Hardware Installation

Chapter 2

The system board supports the following memory interface.

Single Channel (SC)

Data will be accessed in chunks of 64 bits (8B) from the memory channels.

Dual Channel (DC)

Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides

better system performance because it doubles the data transfer rate.

Installing the DIMM Module

Single Channel

DIMMs are on the same channel.

DIMMs in a channel can be identical or

completely different. However, we highly

recommend using identical DIMMs.

Not all slots need to be populated.

Dual Channel DIMMs of the same memory configuration

are on different channels.

Important:

You can populate either Channel A or Channel B first.

Note:

The system board used in the following illustrations may not resemble the actual

board. These illustrations are for reference only.

1. Make sure the PC and all other peripheral devices connected to it has been powered down.

2. Disconnect all power cords and cables.

3. Locate the DIMM socket on the system board.

4. Push the “ejector tabs” at the ends of the socket to the side.

Ejector tab

5. Note how the module is keyed to the socket.

Key

Notch

DFI KD631-C236 User manual

Popular Motherboard manuals by other brands
