Dfi Cs100 series User manual

CS100

Mini-ITX Industrial Motherboard

User’s Manual

A50800839

Preliminary

Version

This publication contains information that is protected by copyright. No part of it may be re-

produced in any form or by any means or used to make any transformation/adaptation without

the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The manufacturer makes no

representations or warranties with respect to the contents or use of this manual and specifi-

cally disclaims any express or implied warranties of merchantability or fitness for any particular

purpose. The user will assume the entire risk of the use or the results of the use of this docu-

ment. Further, the manufacturer reserves the right to revise this publication and make changes

to its contents at any time, without obligation to notify any person or entity of such revisions

or changes.

Changes after the publication’s first release will be based on the product’s revision. The website

will always provide the most updated information.

Trademarks

Product names or trademarks appearing in this manual are for identification purpose only and

are the properties of the respective owners.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-

able protection against harmful interference when the equipment is operated in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encour-

aged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compli-

ance could void the user’s authority to operate the equipment.

2. Shielded interface cables must be used in order to comply with the emission limits.

Trademarks ........................................................................................................2

FCC and DOC Statement on Class B.....................................................2

Warranty..............................................................................................................4

Static Electricity Precautions......................................................................4

Safety Measures ..............................................................................................4

About the Package......................................................................................... 5

Optional Items..................................................................................................5

Before Using the System Board...............................................................5

Chapter 1 - Introduction .............................................................................6

Specifications ................................................................................................6

Features..........................................................................................................7

Chapter 2 - Hardware Installation................................................ 9

Board Layout.................................................................................................9

System Memory............................................................................................ 9

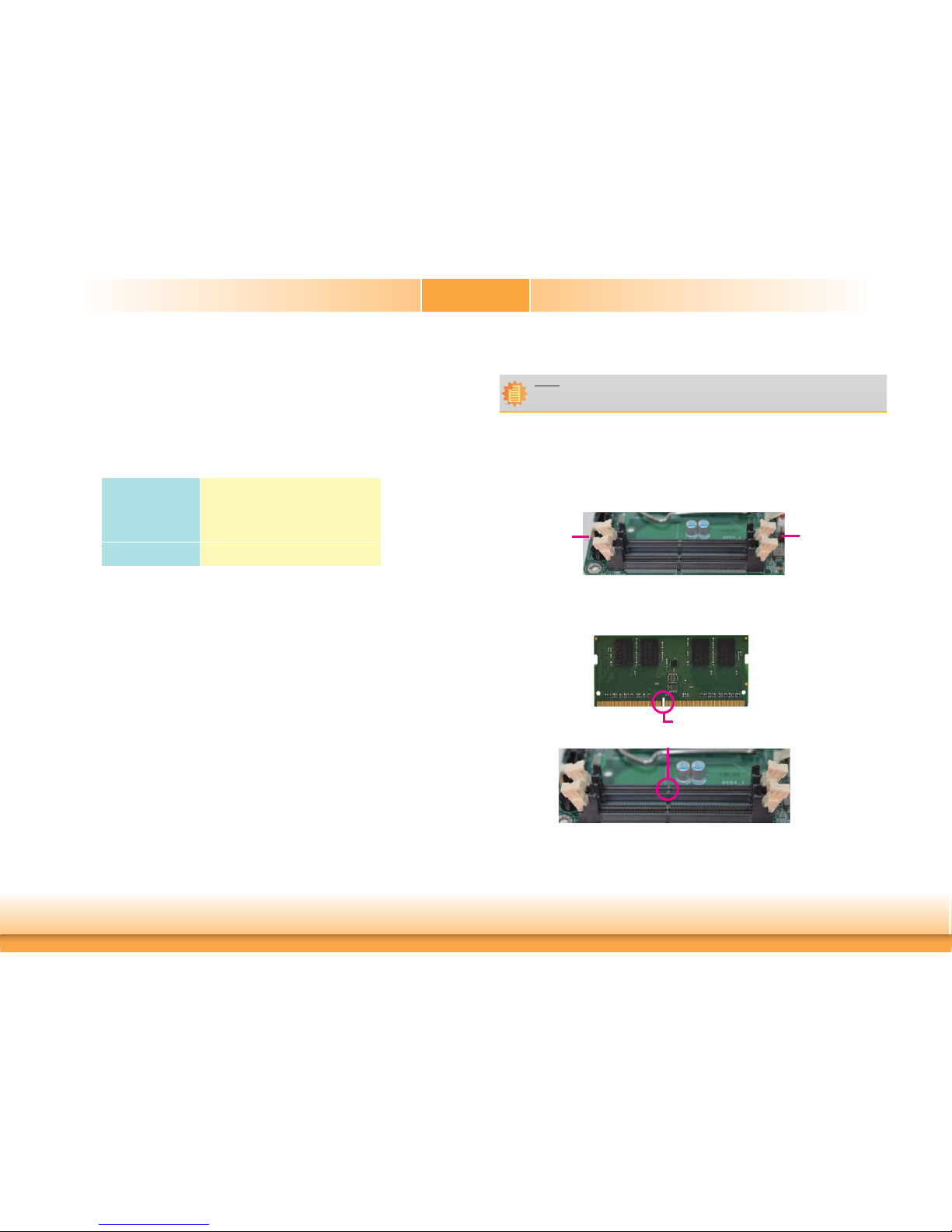

Installing the SODIMM Module .................................................................... 10

CPU ................................................................................................................ 11

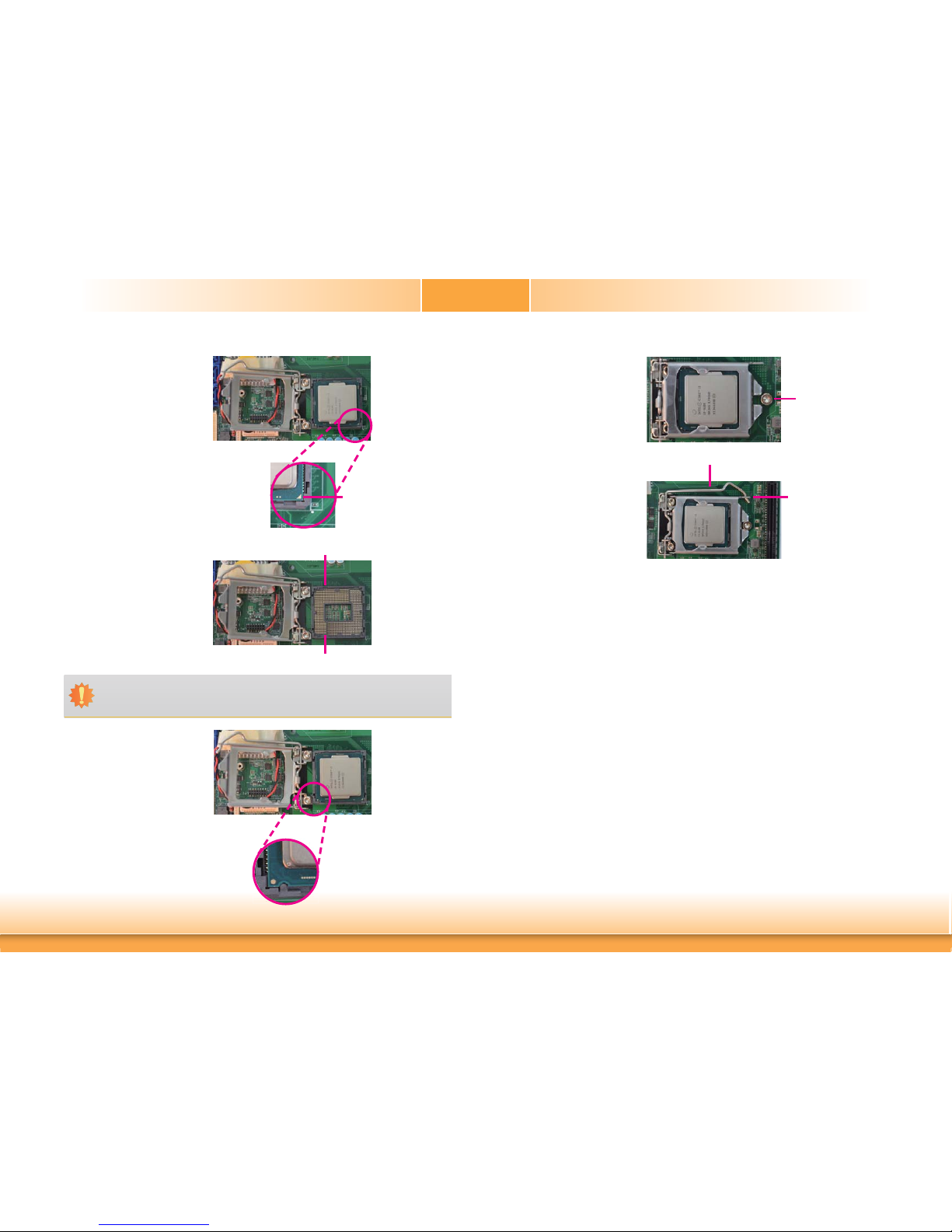

Installing the CPU....................................................................................... 12

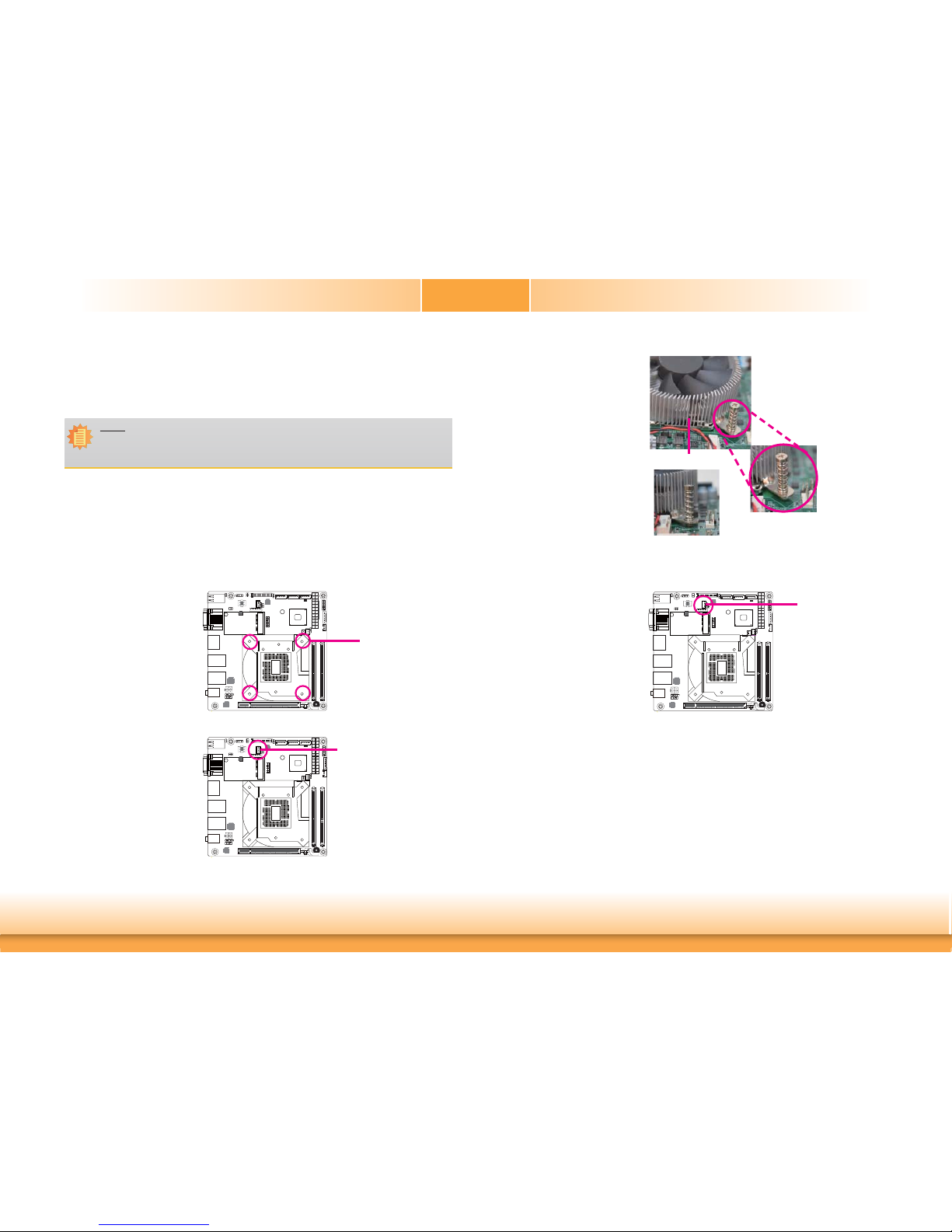

Installing the Fan and Heat Sink.................................................................. 14

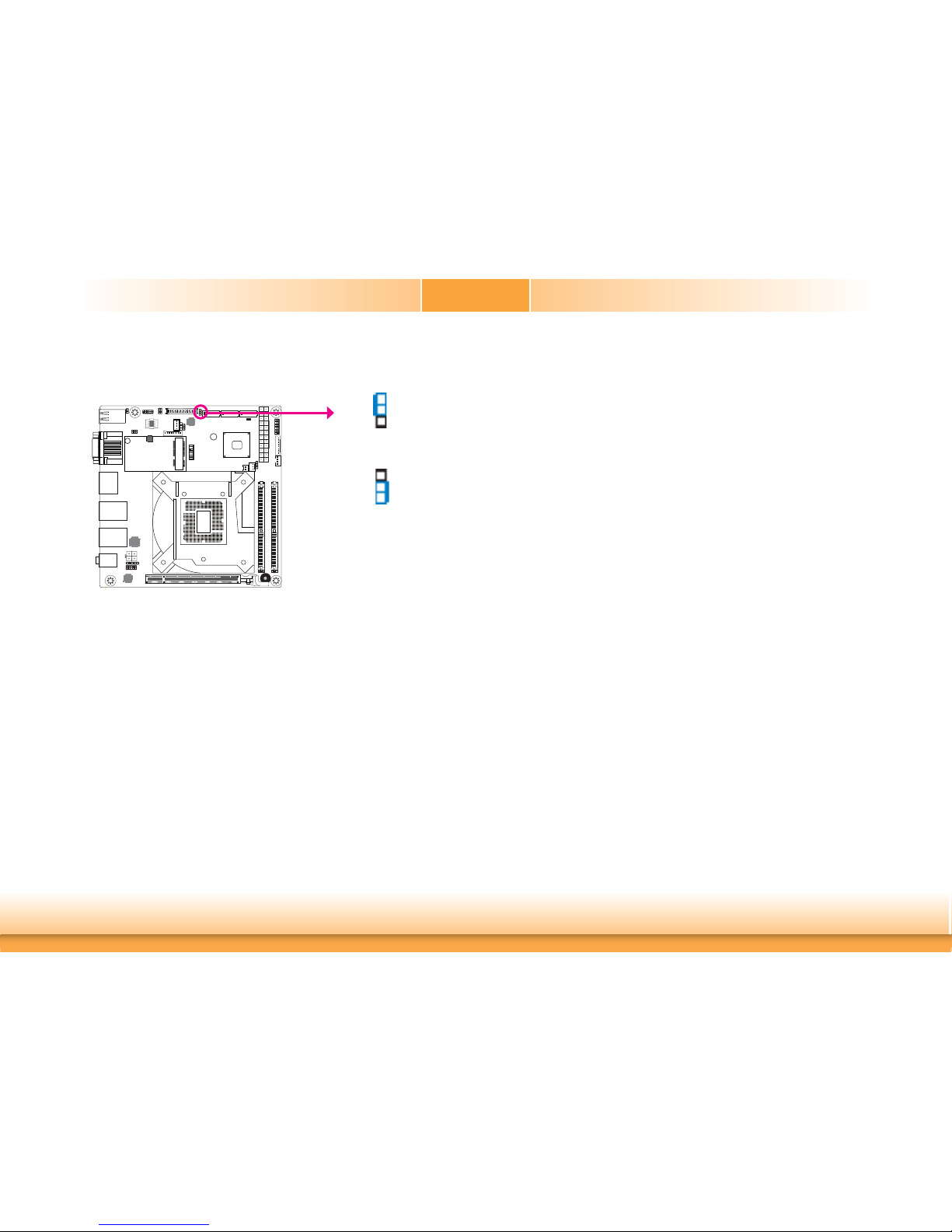

Jumper Settings ......................................................................................... 15

Clear CMOS................................................................................................ 15

Blacklight Brightness Select......................................................................... 15

COM2 RS232/Power Select.......................................................................... 16

LCD/Inverter Power Select .......................................................................... 17

Panel Power Select ..................................................................................... 17

Mini PCIe/mSATA Signal Select (CS100-Q370/C246 only) .............................. 18

Rear Panel I/O Ports................................................................................. 19

RJ45 LAN Ports........................................................................................... 20

USB Ports................................................................................................... 20

Graphics Interfaces..................................................................................... 21

COM (Serial) Ports...................................................................................... 22

Audio ......................................................................................................... 22

I/O Connectors ........................................................................................... 23

SATA (Serial ATA) Connectors...................................................................... 23

Digital I/O Connector.................................................................................. 23

Digital I/O Power Connector........................................................................ 23

Cooling Fan Connectors............................................................................... 24

Power Connectors....................................................................................... 24

LVDS LCD Panel Connector ......................................................................... 25

LCD/Inverter Power Connector .................................................................... 25

Chassis Intrusion Connector ........................................................................ 26

Front Panel Connector ................................................................................ 26

Expansion Slots .......................................................................................... 27

S/PDIF Connector ....................................................................................... 27

LPC Connector............................................................................................ 28

Connecting the EXT-RS232/RS485 Card to the Motherboard ......................... 28

Battery....................................................................................................... 29

Table of Contents

Warranty

1. Warranty does not cover damages or failures that arised from misuse of the product, in-

ability to use the product, unauthorized replacement or alteration of components and prod-

uct specifications.

2. The warranty is void if the product has been subjected to physical abuse, improper instal-

lation, modification, accidents or unauthorized repair of the product.

3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-

stances, attempt to perform service, adjustments or repairs on the product, whether in or

out of warranty. It must be returned to the purchase point, factory or authorized service

agency for all such work.

4. We will not be liable for any indirect, special, incidental or consequencial damages to the

product that has been modified or altered.

Static Electricity Precautions

It is quite easy to inadvertently damage your PC, system board, components or devices even

before installing them in your system unit. Static electrical discharge can damage computer

components without causing any signs of physical damage. You must take extra care in han-

dling them to ensure against electrostatic build-up.

1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are

ready to install it.

2. Wear an antistatic wrist strap.

3. Do all preparation work on a static-free surface.

4. Hold the device only by its edges. Be careful not to touch any of the components, contacts

or connections.

5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con-

nectors by their ends.

Safety Measures

To avoid damage to the system:

• Use the correct AC input voltage range.

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis cover for installation or servic-

ing. After installation or servicing, cover the system chassis before plugging the power

cord.

Important:

Electrostatic discharge (ESD) can damage your processor, disk drive and other com-

ponents. Perform the upgrade instruction procedures described at an ESD worksta-

tion only. If such a station is not available, you can provide some ESD protection by

wearing an antistatic wrist strap and attaching it to a metal part of the system chas-

sis. If a wrist strap is unavailable, establish and maintain contact with the system

chassis throughout any procedures requiring ESD protection.

About the Package

The package contains the following items. If any of these items are missing or damaged,

please contact your dealer or sales representative for assistance.

• One CS100-Q370/C246/H310 motherboard

• One COM port cable (Length: 250mm, 1 x COM port)

• One Serial ATA data with power cable (Length: 300mm)

• One Heat Sink (Height: 25mm)

The board and accessories in the package may not come similar to the information listed

above. This may differ in accordance to the sales region or models in which it was sold. For

more information about the standard package in your region, please contact your dealer or

sales representative.

Optional Items

• USB port cable (Length: 200mm)

• COM port cable (Length: 250mm, 1 x COM port)

• Serial ATA data with power cable (Length: 300mm)

• I/O shield

• DT122 Chassis

• Intel®Pro 6000p SSD

The board and accessories in the package may not come similar to the information listed

above. This may differ in accordance to the sales region or models in which it was sold. For

more information about the standard package in your region, please contact your dealer or

sales representative.

Before Using the System Board

Before using the system board, prepare basic system components.

If you are installing the system board in a new system, you will need at least the following

internal components.

• A CPU

• Memory module

• Storage devices such as hard disk drive, etc.

You will also need external system peripherals you intend to use which will normally include at

least a keyboard, a mouse and a video display monitor.

Chapter 1

SYSTEM Processor 8th Generation Intel®Core™ Processors, LGA 1151 Socket, TDP up to 80W

Intel®Xeon E-2176G Processor

Intel®Core™ i7-8700 Processor

Intel®Core™ i5-8500 Processor

Intel®Core™ i3-8100 Processor

Intel®Pentium G5400 Processor

Intel®Celeron G4900 Processor

Chipset Intel®Q370/C246/H310 Chipset

Memory Two 260-pin SODIMM up to 32GB

Dual Channel DDR4 2400/2666MHz

BIOS AMI SPI 128Mbit

GRAPHICS Controller Intel®UHD Graphics 630 (only Pentium G5400, Celeron G4900 support 610 )

Feature OpenGL 4.4, DirectX 12, OpenCL 2.1

HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9

HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9

Display 1 x LVDS

1 x VGA

2 x DP++

LVDS: resolution up to 1920x1200 @ 60Hz

VGA: resolution up to 1920x1200 @ 60Hz

DP++: resolution up to 4096x2304 @ 60Hz

Triple

Displays

LVDS + VGA + DP++

EXPANSION Interface Q370/C246:

1 x PCIe x16 (Gen 3)

1 x Full-size Mini PCIe (& mSATA)

H310:

1 x PCIe x16 (Gen 3)

1 x mSATA

AUDIO Audio

Codec

Realtek ALC888S-VD2-GR

ETHERNET Controller Q370/C246:

1 x Intel®I219LM PHY with iAMT12.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT)

1 x Intel®I211AT PCIe (10/100/1000Mbps)

H310:

1 x Intel®I219V PHY (10/100/1000Mbps)

1 x Intel®I211AT PCIe (10/100/1000Mbps)

REAR I/O Ethernet 2 x GbE (RJ-45)

Serial 1 x RS-232 (DB-9)

USB Q370/C246:

2 x USB 3.1 Gen2

2 x USB 3.1 Gen1

4 x USB 2.0

H310:

4 x USB 3.1 Gen1

4 x USB 2.0

Display 1 x VGA

2 x DP++

Audio 1 x Line-out

1 x Mic-in

1 x Line-in (available upon request)

Chapter 1 - Introduction

Specifications

INTERNAL I/O Serial 1 x RS-232 (RS-232 w/ power) (2.0mm pitch)

Display 1 x LVDS LCD Panel Connector

1 x LCD/Inverter Power

Audio 1 x S/PDIF

1 x Front Audio Header

SATA Q370/C246:

3 x SATA 3.0 (up to 6Gb/s)

RAID 0/1/5

H310:

3 x SATA 3.0 (up to 6Gb/s)

DIO 1 x 8-bit DIO

LPC 1 x LPC (support LPC EXT-RS232/RS485 module)

WATCHDOG

TIMER

Output &

Interval

System Reset, Programmable via Software from 1 to 255 Seconds

SECURITY TPM dTPM 2.0 (optional)

POWER Type ATX

Connector 4-pin ATX 12V power

24-pin ATX power

RTC Battery CR2032 Coin Cell

OS SUPPORT Microsoft Windows 10 IoT Enterprise 64-bit

Linux Ubuntu 18.04

ENVIRONMENT Temperature Operating: 0 to 60°C

Storage: -40 to 85°C

Humidity Operating: 5 to 90% RH

Storage: 5 to 90% RH

MECHANICAL Dimensions Mini-ITX Form Factor

170mm (6.7") x 170mm (6.7")

Height PCB: 1.6mm

Top Side: 20mm

Bottom Side: 3mm

CERTIFICATIONS CE, FCC Class B, RoHS

Chapter 1

Features

• Watchdog Timer

The Watchdog Timer function allows your application to regularly “clear” the system at the set

time interval. If the system hangs or fails to function, it will reset at the set time interval so

that your system will continue to operate.

• DDR4

DDR4 delivers increased system bandwidth and improves performance. The advantages of

DDR4 provide an extended battery life and improve the performance at a lower power than

DDR3/DDR2.

• Graphics

The integrated Intel®UHD graphics engine delivers an excellent blend of graphics performance

and features to meet business needs. It provides excellent video and 3D graphics with out-

standing graphics responsiveness. These enhancements deliver the performance and compat-

ibility needed for today’s and tomorrow’s business applications. Supports 1 x LVDS, 1 x VGA,

and 2 x DP++ interfaces for display outputs.

• PCI Express

PCI Express is a high bandwidth I/O infrastructure that possesses the ability to scale speeds

by forming multiple lanes. The PCI Express architecture also supports high performance graph-

ics infrastructure by enhancing the capability of a PCIe x16 Gen 3 at 16GB/s bandwidth.

• Serial ATA

Serial ATA is a storage interface that is compliant with SATA 1.0a specification. With speed of

up to 6Gb/s (SATA 3.0), it improves hard drive performance faster than the standard parallel

ATA whose data transfer rate is 100MB/s.

• Gigabit LAN

Two Intel®Gigabit LAN controllers (Intel®I211AT PCIe and Intel®I219V PCIe) support up to

1Gbps data transmission. (CS100-H310)

Two Intel®Gigabit LAN controllers (Intel®I211AT PCIe and Intel®I219LM PCIe) support up to

1Gbps data transmission. (CS100-Q370/C246)

• Audio

The Realtek ALC888S-VD2-GR audio codec provides 7.1-channel High Definition audio output.

Important:

The 5V_standby power source of your power supply must support ≥720mA.

• Wake-On-USB

This function allows you to use a USB keyboard or USB mouse to wake up a system from the

S3 (STR - Suspend To RAM) state.

• RTC Timer

The RTC installed on the system board allows your system to automatically power-on on the

set date and time.

• ACPI STR

The system board is designed to meet the ACPI (Advanced Configuration and Power Interface)

specification. ACPI has energy saving features that enables PCs to implement Power Manage-

ment and Plug-and-Play with operating systems that support OS Direct Power Management.

ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM

function.

With the Suspend to RAM function enabled, you can power-off the system at once by pressing

the power button or selecting “Standby” when you shut down Windows®without having to go

through the sometimes tiresome process of closing files, applications and operating system.

This is because the system is capable of storing all programs and data files during the entire

operating session into RAM (Random Access Memory) when it powers-off. The operating ses-

sion will resume exactly where you left off the next time you power-on the system.

Important:

If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the

5V_standby power source of your power supply must support ≥1.5A. For 3 or more

USB ports, the 5V_standby power source of your power supply must support ≥2A.

• Wake-On-LAN

This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. It is

supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power Man-

agement Event) signal. However, if your system is in the Suspend mode, you can power-on

the system only through an IRQ or DMA interrupt.

Important:

The 5V_standby power source of your power supply must support ≥720mA.

• Power Failure Recovery

When power returns after an AC power failure, you may choose to either power-on the system

manually or let the system power-on automatically.

• USB

The system board supports the new USB 3.1 Gen 2. It is capable of running at a maximum

transmission speed of up to 10 Gbit/s (1.2 GB/s) and is faster than USB 3.1 Gen 1 (5 Gbit/s,

or 625 MB/s), USB 2.0 (480 Mbit/s, or 60 MB/s) and USB 1.1 (12Mb/s). USB 3.1 reduces the

time required for data transmission, reduces power consumption, and is backward compatible

with USB 2.0. It is a marked improvement in device transfer speeds between your computer

and a wide range of simultaneously accessible external Plug and Play peripherals.

Chapter 1

www.dﬁ.com

Chapter 2 Hardware Installation

Chapter 2

Chapter 2 - Hardware Installation

Board Layout

System Memory

DDR4_2 SODIMM

DDR4_1 SODIMM

Features

• Two 260-pin SODIMM up to 32GB

• Dual Channel DDR4 2400/2666MHz

Important:

Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in

boards, and other components. Perform installation procedures at an ESD workstation

only. If such a station is not available, you can provide some ESD protection by wear-

ing an antistatic wrist strap and attaching it to a metal part of the system chassis. If

a wrist strap is unavailable, establish and maintain contact with the system chassis

throughout any procedures requiring ESD protection.

Important:

When the Standby Power LED lights red, it indicates that there is power on the

system board. Power-off the PC then unplug the power cord prior to installing any de-

vices. Failure to do so will cause severe damage to the motherboard and components.

COM 2

RS232/Power

Select (JP6)

SATA 1

SATA 0

PCIe 1 (PCIe x16)

Socket LGA1151

113

12 24

ATX Power

Standby Power LED

CPU Fan

LPC

+12V Power

Q370/C246/H310

Intel

SATA 2

Mini PCIe/mSATA Select (JP2)

(CS100-Q370/C246 only)

Mini PCIe & mSATA

(CS100-Q370/C246)

mSATA

(CS100-H310)

Intel

I211AT

S/PDIF

Realtek

ALC888S

Front Audio Buzzer

DP++1

DP++2

COM 1

VGA

Line-in (opt.)

Line-out

Mic-in

LAN 2

USB 3-4

USB 3.1 Gen 1

SPI Flash BIOS LCD/Inverter Power

Select (JP9)

Backlight Brightness Select (JP7)

Battery

USB 7,8,9,14

USB 2.0 39

LCD/Inverter

Power

Panel

Power

Select

(JP8)

System Fan 1

Chassis

Intrusion LVDS LCD Panel

Front Panel

Digital I/O

Power

SATA 3.0

1PTN3460

LAN 1

USB 1-2

USB 3.1 Gen 2

(for CS100-Q370/C246)

USB 3.1 Gen 1

(for CS100-H310)

1Clear CMOS (JP1)

PTN3355

DDR4_1

SODIMM DDR4_2

SODIMM Standby Power LED

www.dﬁ.com

Chapter 2 Hardware Installation

Chapter 2

The system board supports the following memory interface.

Single Channel (SC)

Data will be accessed in chunks of 64 bits (8B) from the memory channels.

Dual Channel (DC)

Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides

better system performance because it doubles the data transfer rate.

Single Channel

DIMMs are on the same channel.

DIMMs in a channel can be identical or

completely different. However, we highly

recommend using identical DIMMs.

Not all slots need to be populated.

Dual Channel DIMMs of the same memory configuration

are on different channels.

Installing the SODIMM Module

Note:

The system board used in the following illustrations may not resemble the actual

board. These illustrations are for reference only.

1. Make sure the PC and all other peripheral devices connected to it has been powered down.

2. Disconnect all power cords and cables.

3. Locate the SODIMM socket on the system board.

4. Push the “ejector tabs” which are at the ends of the socket to the side.

Ejector tab

5. Note how the module is keyed to the socket.

Key

Notch

This manual suits for next models

Table of contents

Popular Motherboard manuals by other brands

Gigabyte

Gigabyte MNJ190I-FH user manual

Biostar

Biostar HI-FI-Z87X-3D Setup manual

Atmel

Atmel SAM9753PIA-DK user guide

Coapt

Coapt GEN2 Handbook

Supero

Supero SUPER P4DL6 user manual

Cypress

Cypress CY3210-PSoCEVAL1 quick start guide

ASROCK

ASROCK B660M-HDV manual

Fujitsu

Fujitsu D2831 Short description

Industrial Computers

Industrial Computers ADE-6050 user manual

Asus

Asus TUF Z270 MARK 2 manual

ASROCK

ASROCK H61 Pro BTC user manual

Norco

Norco POS-7893 user manual

Intel

Intel DG965MS specification

Asus

Asus B85M-VIEW PAKER user manual

Asus

Asus P5G41T-M LX V2 user manual

Gigabyte

Gigabyte GA-K8VT800-RH user manual

Gigabyte

Gigabyte Z790M AORUS ELITE user manual

Semtech

Semtech SC120 user guide

DFI CS100 Series User manual

Popular Motherboard manuals by other brands
