DFI PE11-TC User manual

PE11-TC
PE11-TL
Rev.A+
Mainboard User’s Manual
Carte Mère Manuel Pour Utilisateur
System-Platine Benutzerhandbuch
Manual del Usuario de Placas Base
935-PE1101-300
66500237
66500237 1.pmd 9/27/02, 4:15 PM1

Copyright
This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior
written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose.The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 2002. All Rights Reserved.
Trademarks
Windows®98, Windows®98 SE, Windows®ME, Windows®2000,
Windows NT®4.0 and Windows®XP are registered trademarks of
Microsoft Corporation. Intel®and Pentium®4 are registered
trademarks of Intel Corporation. VIA is a registered trademark of
VIA Technologies, Inc. Award is a registered trademark of Award
Software, Inc. Other trademarks and registered trademarks of
products appearing in this manual are the properties of their
respective holders.
Caution
To avoid damage to the system:
• Use the correct AC input voltage range.....
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.
66500237 1.pmd 9/27/02, 4:15 PM2

Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by
the manufacturer.
• Dispose of used batteries according to the battery
manufacturer’s instructions.
Joystick or MIDI port:
• Do not use any joystick or MIDI device that requires more than
10A current at 5V DC. There is a risk of fire for devices that
exceed this limit.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
2. Shielded interface cables must be used in order to comply with
the emission limits.
66500237 1.pmd 9/27/02, 4:15 PM3

4
Quick Setup Guide
1
Quick Setup
Guide
Table of Contents
Chapter 1
Quick Setup Guide.............................................
Chapter 2
English......................................................................
Chapter 3
Français.....................................................................
Chapter 4
Deutsch .........................................................................
Chapter 5
Español .........................................................................
5
23
40
57
75
Note:
This user’s manual is for the PE11-TC and PE11-TL system boards.
The only difference between these boards is the PE11-TL system
board supports onboard LAN.
66500237 1.pmd 9/27/02, 4:15 PM4

5
1
Quick Setup Guide
Quick Setup
Guide
Chapter 1 - Quick Setup Guide
Table of Contents
1.1 Mainboard Layout...........................................................................................................
1.2 Jumpers.....................................................................................................................................
1.3 Rear Panel I/O Ports...................................................................................................
1.4 I/O Connectors................................................................................................................
1.5 Award BIOS Setup Utility.......................................................................................
6
8
10
14
19
Note:
The user’s manual in the provided CD contains detailed information
about the mainboard. If, in some cases, some information doesn’t
match those shown in this manual, this manual should always be
regarded as the most updated version.
66500237 1.pmd 9/27/02, 4:15 PM5

6
Quick Setup Guide
1
Quick Setup
Guide

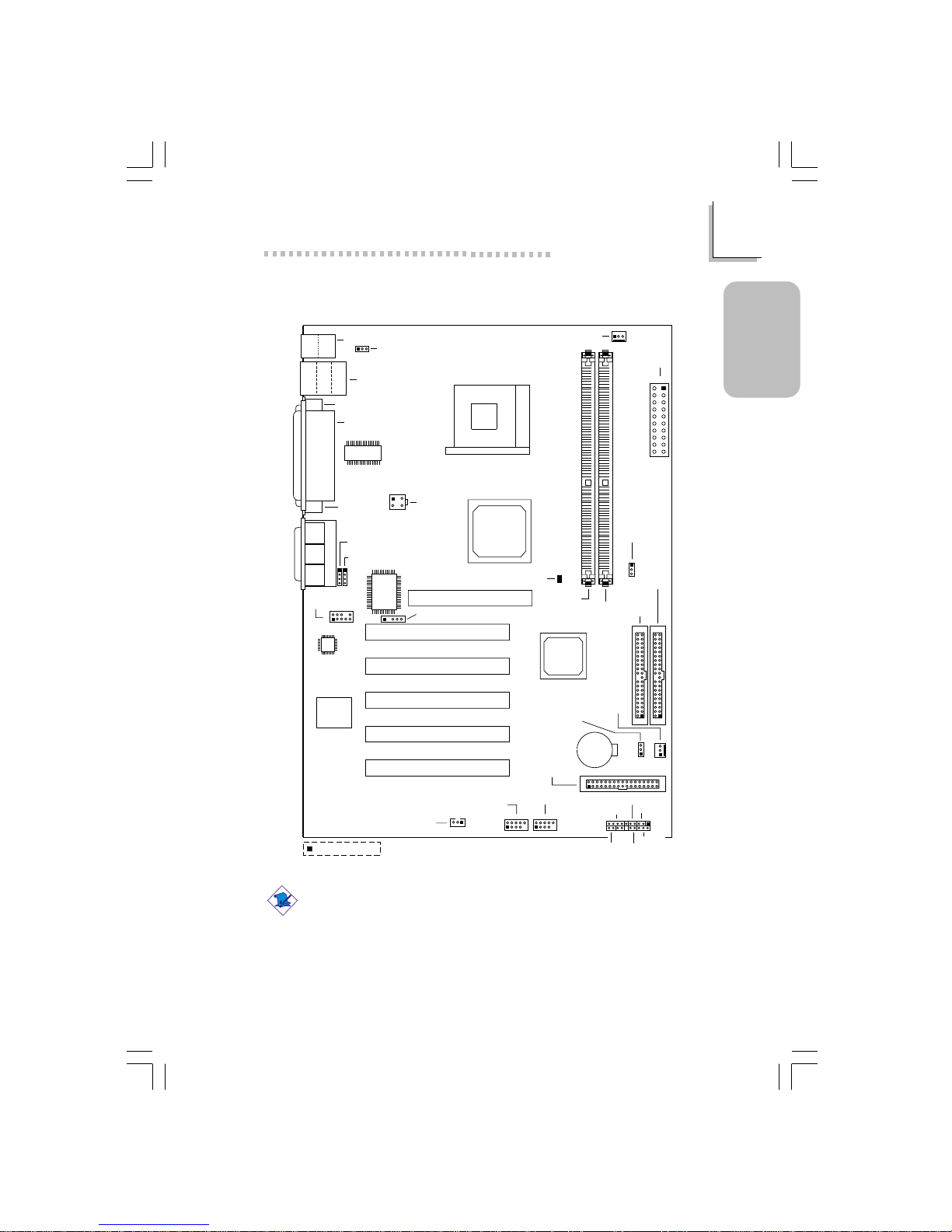

1.1 Mainboard Layout
PE11-TC
KB
Mouse
J11
USB 1
USB 2
CN1
COM 1 (J3)
Parallel (J9)
COM 2
(J23)
+12V power
(ATXP1)
1
2
3
4
PS/2 power select
(JP2)
Socket 478
AUX-in (J18)
CD-in (J19)
2
19
10
Front
audio (J21)
I/O
chip
IrDA (J8)
AC’97
BIOS
Game/MIDI
Line
out
Line
in
Mic
in
AGP Slot
PCI Slot 1
PCI Slot 2
PCI Slot 3
VIA
P4X266E
VIA
VT8235CD
Wake-On-LAN (J5)
FDD (J6)
USB 3/4 (J13)
19
210
RESET
SPEAKER HD-LED
PWR-LED
G-SW ATX-SW
J10
Battery
Clear CMOS
(JP1)
Chassis fan
(J14)
IDE 2
(J2)
IDE 1
(J1)
DIMM Standby
Power LED
DDR 1 DDR 2
1
10
11
20
ATX powe r
(J17)
CPU fan (J15)
Square denotes pin 1
PCI Slot 4
PCI Slot 5
CPU FSB
select (J22)
19
210
USB 5/6 (J24)
66500237 1.pmd 9/27/02, 4:15 PM6

7
1
Quick Setup Guide
Quick Setup
Guide
Note:
The illustrations on the following pages are based on the PE11-TL
mainboard, which is the board that supports onboard LAN.

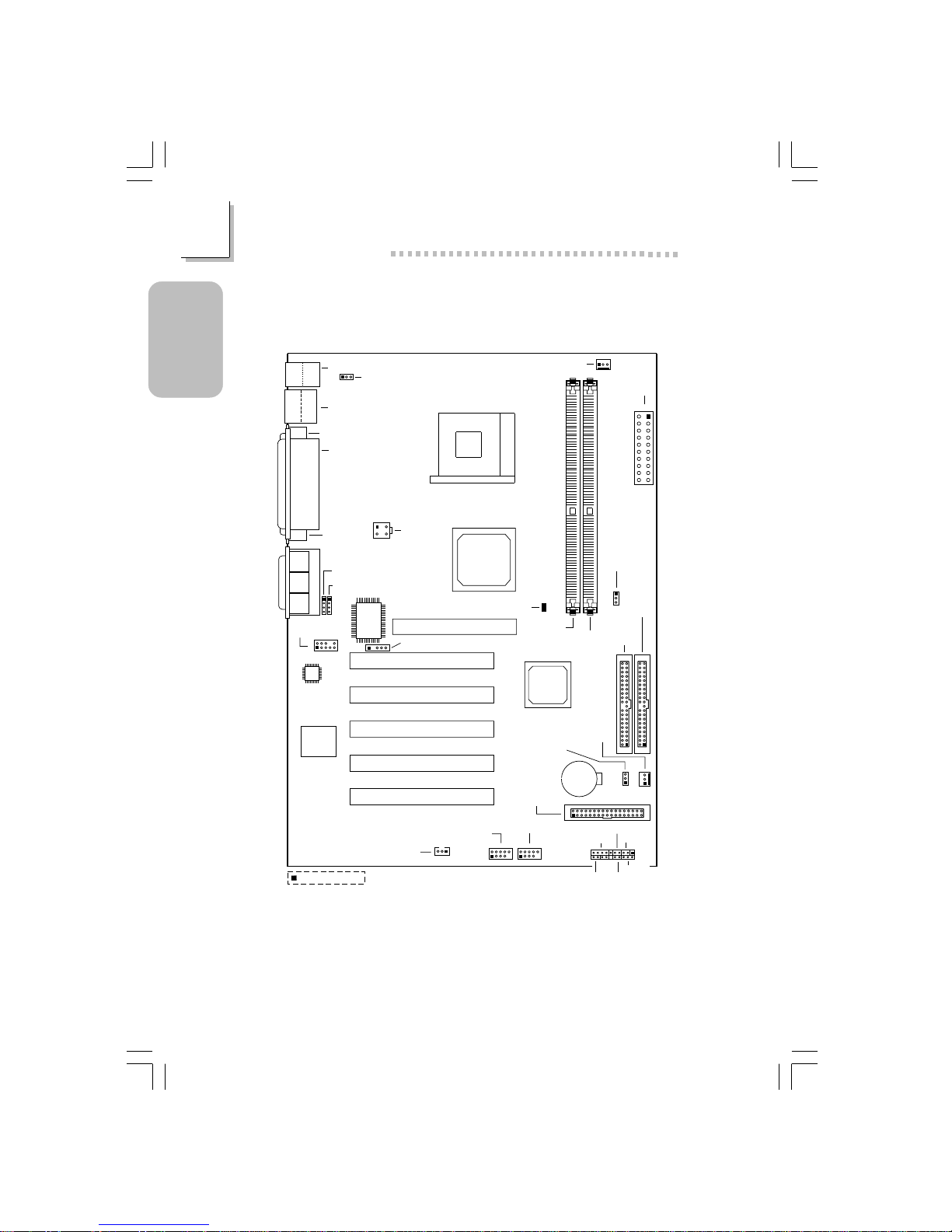

PE11-TL
(Supports onboard LAN)
KB
Mouse
J11
USB 1
USB 2
CN1
COM 1 (J3)
Parallel (J9)
COM 2
(J23)
+12V power
(ATXP1)
1
2
3
4
PS/2 power select
(JP2)
Socket 478
AUX-in (J18)
CD-in (J19)
2
19
10
Front
audio (J21)
I/O
chip
IrDA (J8)
AC’97
BIOS
Game/MIDI
Line
out
Line
in
Mic
in
AGP Slot
PCI Slot 1
PCI Slot 2
PCI Slot 3
VIA
P4X266E
VIA
VT8235CD
Wake-On-LAN (J5)
FDD (J6)
USB 3/4 (J13)
19
210
RESET
SPEAKER HD-LED
PWR-LED
G-SW ATX-SW
J10
Battery
Clear CMOS
(JP1)
Chassis fan
(J14)
IDE 2
(J2)
IDE 1
(J1)
DIMM Standby
Power LED
DDR 1 DDR 2
1
10
11
20
ATX power
(J17)
CPU fan (J15)
Square denotes pin 1
PCI Slot 4
PCI Slot 5
CPU FSB
select (J22)
LAN
19
210
USB 5/6 (J24)
Phy
66500237 1.pmd 9/27/02, 4:15 PM7

8
Quick Setup Guide
1
Quick Setup
Guide

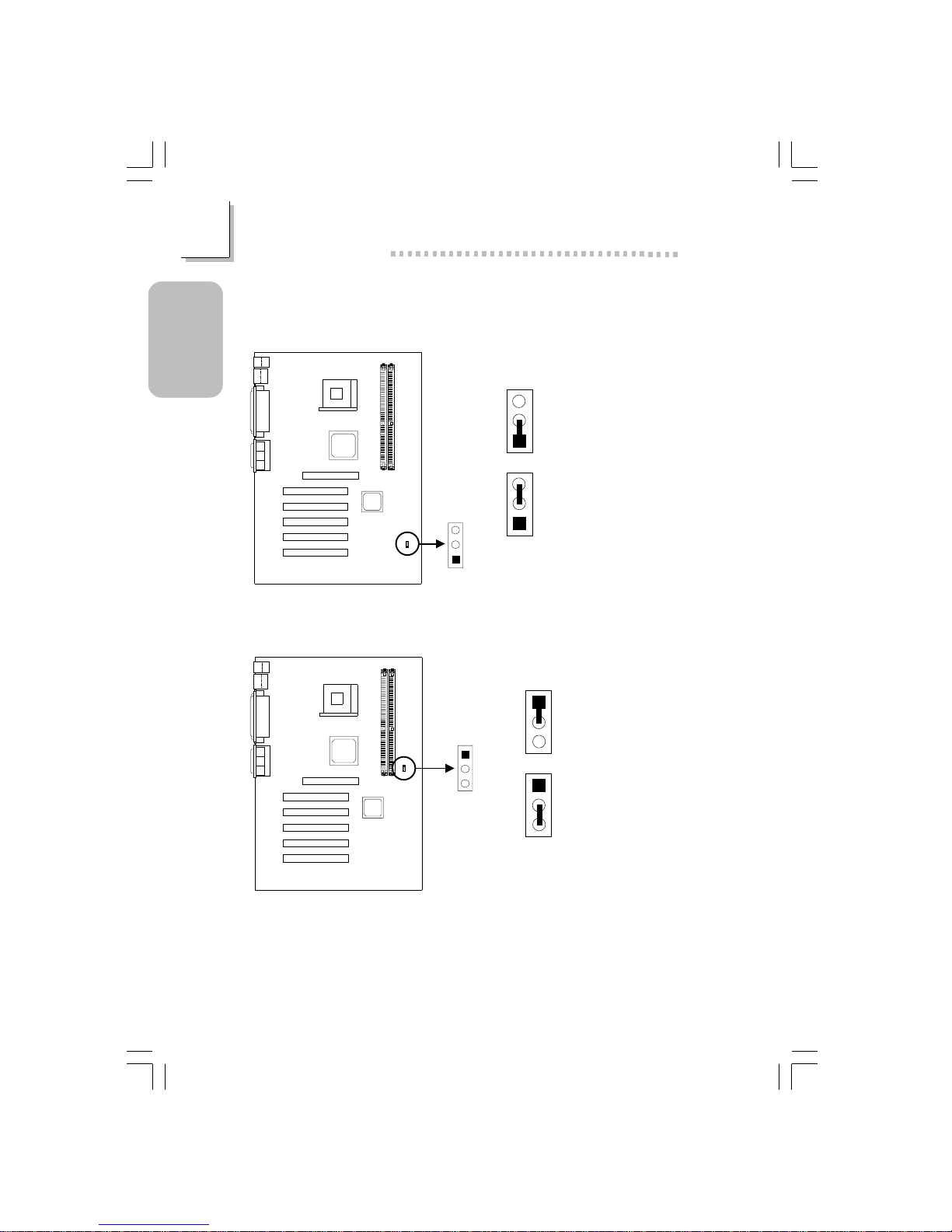

1.2.1 Clear CMOS Data - JP1
1.2 Jumpers
3
2
1
1-2 On: Normal (default)
3
2
1
2-3 On: Clear CMOS Data
Clear CMOS
(JP1)
1
2
3
1.2.2 Selecting the CPU’s Front Side Bus - J22
1-2 On: Auto (default)
CPU FSB select
(J22)
1
2
3
1
2
3
1
2
32-3 On: 100MHz
66500237 1.pmd 9/27/02, 4:15 PM8

9
1
Quick Setup Guide
Quick Setup
Guide
1.2.3 Selecting the PS/2 Power - JP2
Important:
The 5VSB power source of your power supply must support
≥ 720mA.
1-2 On:
VCC power
2-3 On:
5V_DUL power
(default)
PS/2 power select
(JP2)
123
123
123
66500237 1.pmd 9/27/02, 4:15 PM9

10
Quick Setup Guide
1
Quick Setup
Guide
1.3 Rear Panel I/O Ports
ATX Double Deck Ports on PE11-TL
PS/2
Mouse
PS/2
K/B
RJ45
LAN
USB 2/1 COM 1
Parallel GAME/MIDI
Line-
out Line- in Mic- in
COM 2
PS/2
Mouse
PS/2
K/B
USB 2
USB 1 COM 1 COM 2
GAME/MIDI
Line-
out Line- in Mic- in
Parallel
ATX Double Deck Ports on PE11-TC
66500237 1.pmd 9/27/02, 4:15 PM10

11
1
Quick Setup Guide
Quick Setup
Guide
1.3.1 PS/2 Mouse and PS/2 Keyboard Ports
Make sure to turn off your computer
prior to connecting or disconnecting a
mouse or keyboard. Failure to do so
may damage the mainboard.
PS/2 Mouse
PS/2 Keyboard
1.3.2 USB Ports and RJ45 Fast-Ethernet Port
RJ45 LAN
J11
CN1
USB 3 and USB 4
(J13)
2
1
10
9
19
210
USB 5 and USB 6
(J24)
2
1
10
9
USB 2
USB 1
1 5V_Dul
3 Data-
5 Data+
7 Ground
9 Key
2 5V_Dul
4 Data-
6 Data+
8 Ground
10 Ground
Additional USB Ports
(USB 3 to USB 4)
Only PE11-TL system supports RJ45 Fast-Ethernet Port.
66500237 1.pmd 9/27/02, 4:15 PM11

12
Quick Setup Guide
1
Quick Setup
Guide

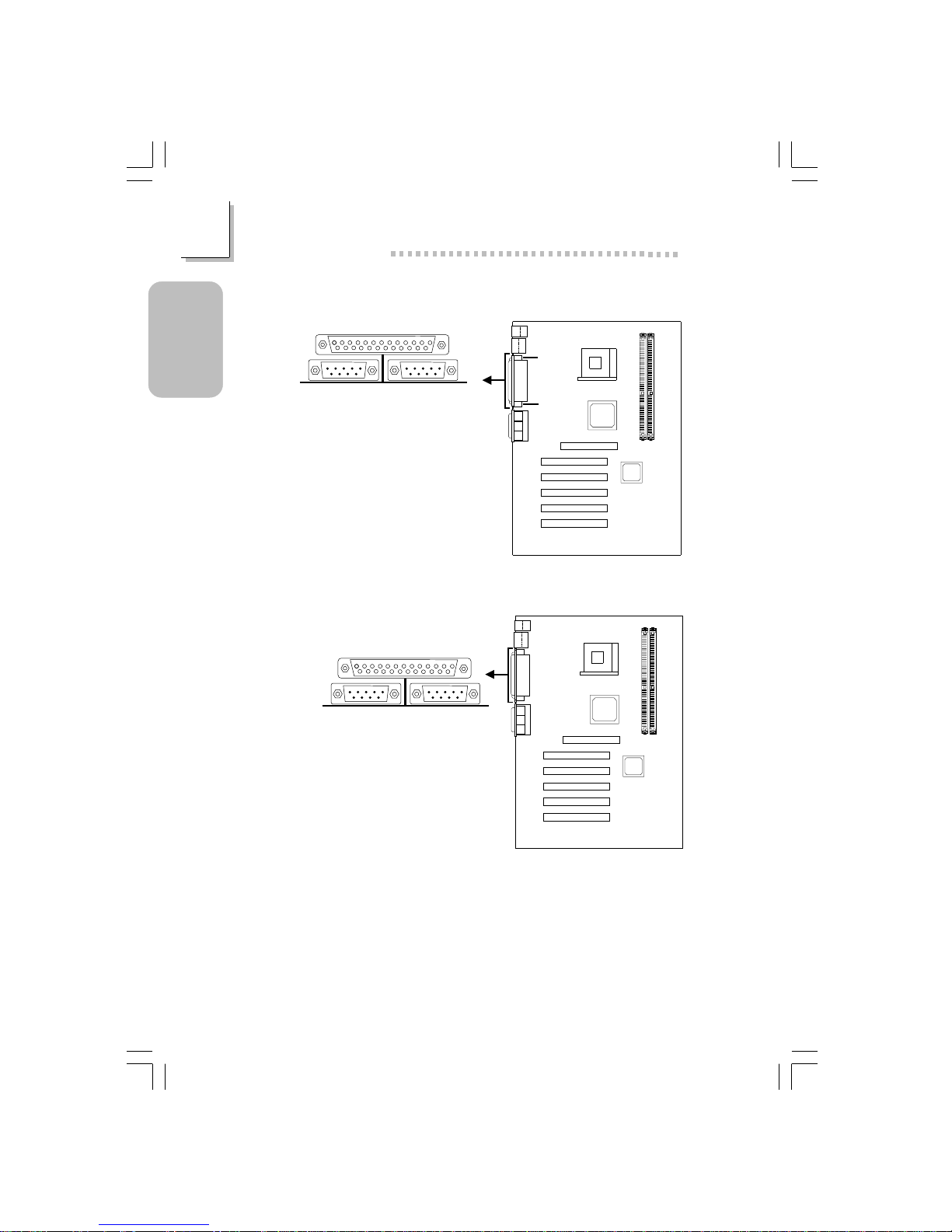

1.3.3 Serial Ports
COM 1
Serial Port COM 2
Serial Port
J3
J23
1.3.4 Parallel Port
Parallel Port
J9
66500237 1.pmd 9/27/02, 4:15 PM12

13
1
Quick Setup Guide
Quick Setup
Guide
1 Mic+
2 Ground
3 Mic Power
4 AuD_Vcc (Avcc)
5 AuD_R_Out
6 AuD_R_Return (GND)
7N.C.
8 Key
9 AuD_L_Out
10 AuD_L_Return (GND)

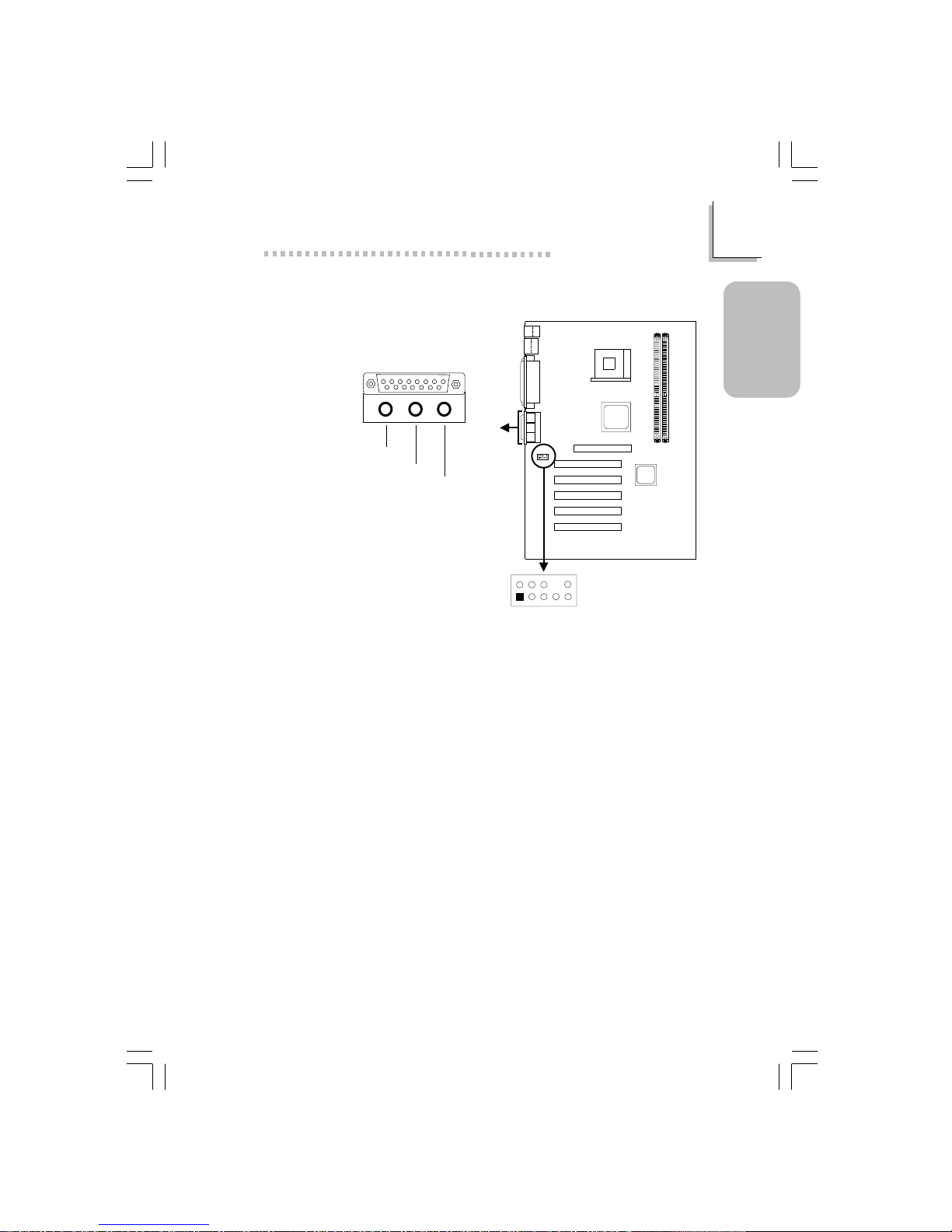

1.3.5 Game/MIDI Port and Audio Jacks
Front audio
(J21)
2
1
10
9
2
19
10
CN301
Game/MIDI Port
Front Audio (J21)
Line-out
Line-in
Mic-in
66500237 1.pmd 9/27/02, 4:15 PM13

14
Quick Setup Guide
1
Quick Setup
Guide

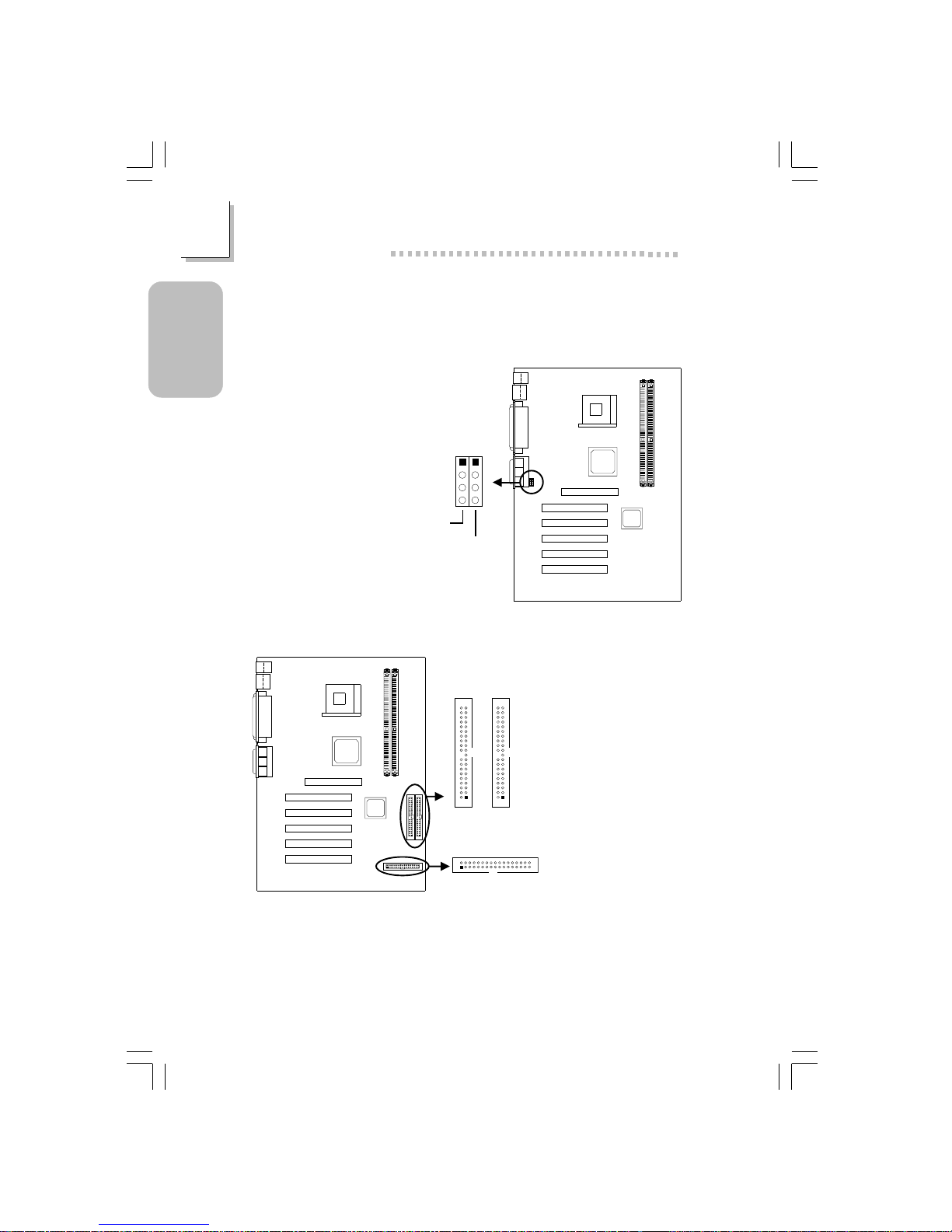

1.4.2 Floppy and IDE Disk Drive Connectors
If you encountered problems while using an ATAPI CD-ROM drive that is
set in Master mode, please set the CD-ROM drive to Slave mode. Some
ATAPI CD-ROMs may not be recognized and cannot be used if
incorrectly set in Master mode.
1.4.1 Internal Audio Connectors
1.4 I/O Connectors
AUX-in / CD-in
1 Left audio channel
2 Ground
3 Ground
4 Right audio channel
AUX-in
(J18)
CD-in
(J19)
1
2
3
4
IDE 2
(J2)
IDE 1
(J1)
1
2
40 39
1
2
40 39
FDD (J6)
1
2
33
34
66500237 1.pmd 9/27/02, 4:15 PM14

15
1
Quick Setup Guide
Quick Setup
Guide
1.4.3 IrDA Connector
1 VCC
2N.C.
3 IRRX
4 Ground
5 IRTX
The sequence of the pin
functions on some IrDA
cable may be reversed from
the pin function defined on
the mainboard. Make sure
to connect the cable to the
IrDA connector according to
their pin functions.
IrDA (J8)
12345
1.4.4 Fan Connectors
1 Ground
2 12V
3N.C.
1 Ground
2 12V
3N.C.
CPU Fan
Chassis Fan
CPU fan
(J15)
3
2
1
Chassis fan
(J14)
3
2
1
66500237 1.pmd 9/27/02, 4:15 PM15

16
Quick Setup Guide
1
Quick Setup
Guide

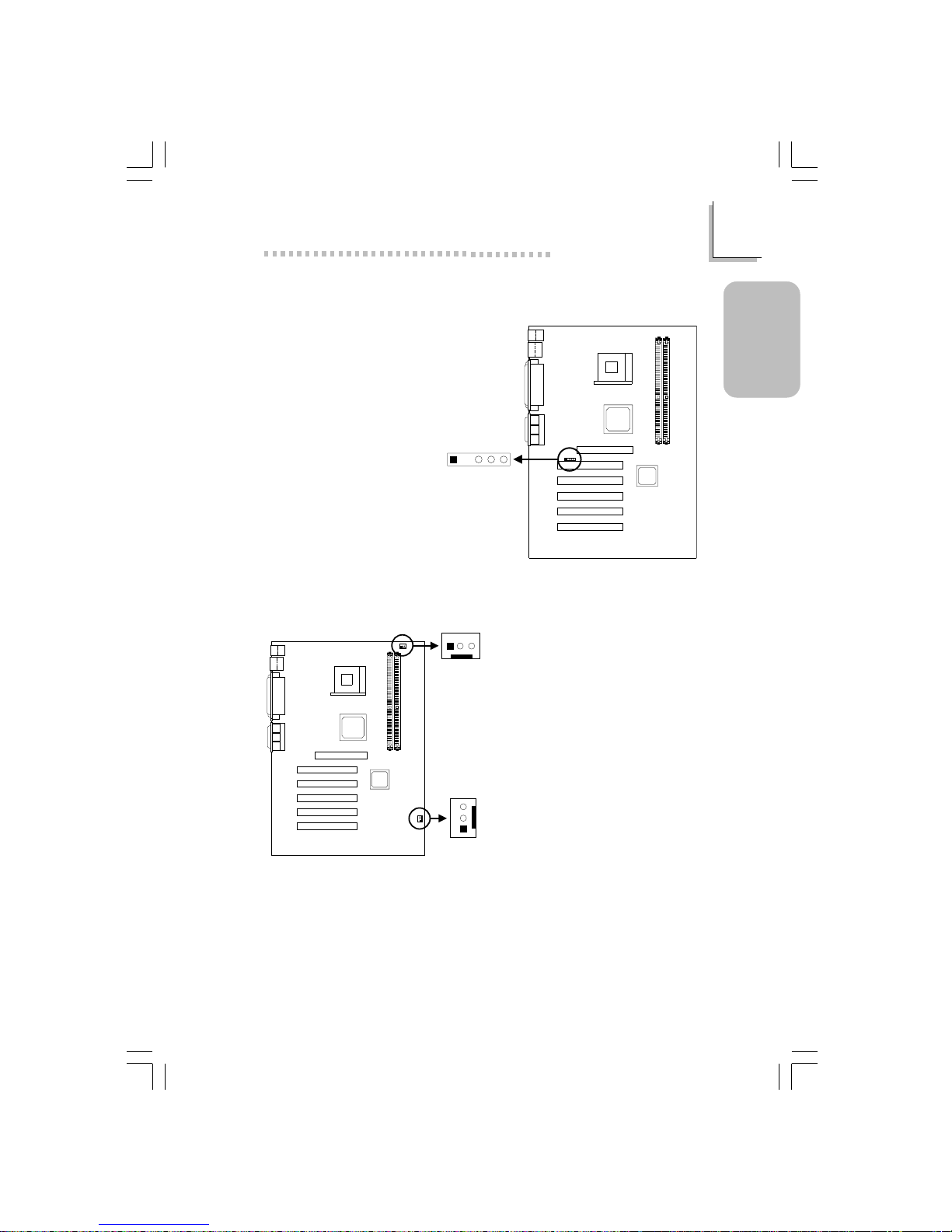

1.4.5 Wake-On-LAN Connector
The 5VSB power source of
your power supply must
support ≥720mA.
1 +5VSB
2 Ground
3 WOL
Wake-On-LAN
(J5)
321
1.4.6 DIMM Standby Power LED
Lighted LEDs serve as a reminder that you must power-off the system then
turn off the power supply’s switch or unplug the power cord prior to
installing any memory modules or add-in cards.
DIMM Standby
Power LED
66500237 1.pmd 9/27/02, 4:15 PM16

17
1
Quick Setup Guide
Quick Setup
Guide
1 3.3V
2 3.3V
3 Ground
4 +5V
5 Ground
6 +5V
7 Ground
8 PW-OK
9 5VSB
10 +12V
11 3.3V
12 -12V
13 Ground
14 PS-ON
15 Ground
16 Ground
17 Ground
18 -5V
19 +5V
20 +5V
ATX Main Power 1 Ground
2 Ground
3 +12V
4 +12V
+12V Power

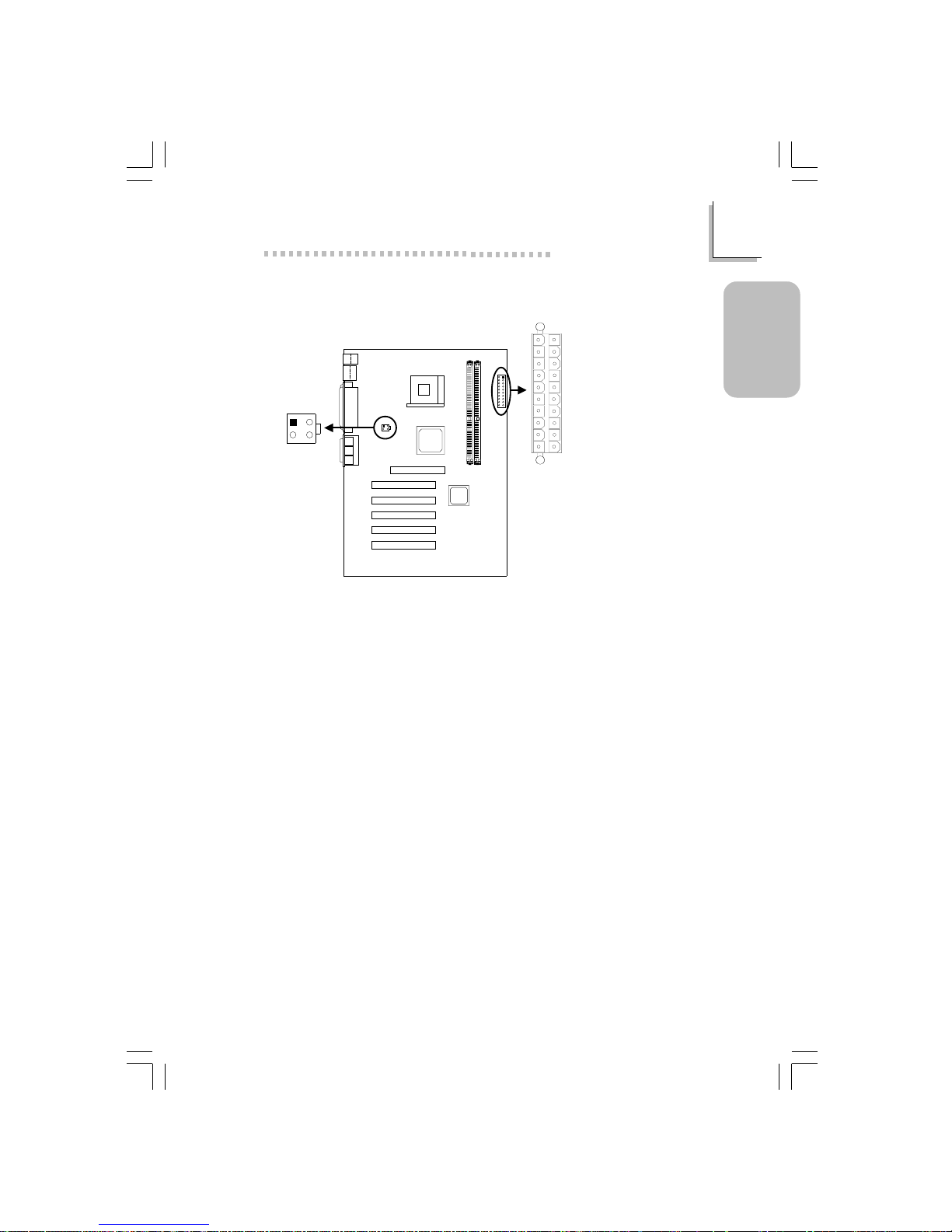

1.4.7 Power Connectors
The systme board requires a minimum of 300W electric current.
1
10
11
20
ATX p owe r
(J17)
1
10
11
20
1
2
3
4
+12V power
(ATXP1)
2
13
4
66500237 1.pmd 9/27/02, 4:15 PM17

18
Quick Setup Guide
1
Quick Setup
Guide
1.4.8 Front Panel Connectors
Note:
If your system did not boot-up and the Power/Standby LED did not
light after it was powered-on, it may indicate that the CPU or
memory module was not installed properly. Please make sure they
are properly inserted into their corresponding socket.
Front panel
connectors (J10)
PWR-LED
G-SW
HD-LED
RESET
SPEAKER
2
1
20
19
ATX-SW
Pin
3
5
14
16
8
10
18
20
7
9
13
15
17
19
2
4
6
HD-LED
(Primary/Secondary IDE LED)
Reserved
ATX-SW
(ATX power switch)
G-SW
(Green switch)
RESET
(Reset switch)
SPEAKER
(Speaker connector)
PWR-LED
(Power/Standby LED)
Pin Assignment
HDD LED Power
HDD
N. C.
N. C.
PWRBT+
PWRBT-
Ground
Green switch
Ground
H/W Reset
Speaker Data
N. C.
Ground
Speaker Power
LED Power (+)
LED Power (+)
LED Power (-) or Standby Signal
66500237 1.pmd 9/27/02, 4:15 PM18

19
1
Quick Setup Guide
Quick Setup
Guide
1.5 Award BIOS Setup Utility
1.5.1 Main Menu
1.5.2 Standard CMOS Features
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
Frequency/Voltage Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
Esc
F10 : Quit
: Save & Exit Setup ↑↓→← : Select Item
Time, Date, Hard Disk Type...
The settings on the screen are for reference only.Your version may not be
identical to this one.
↑↓→← :Move
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
Date (mm:dd:yy)
Time (hh:mm:ss)
IDE Primary Master
IDE Primary Slave
IDE Secondary Master
IDE Secondary Slave
Drive A
Drive B
Video
Halt On
Base Memory
Extended Memory
Total Memory
F6:Fail-Safe Defaults F7:Optimized Defaults
F1:General Help
Fri, Sep 13 2002
4 : 35 : 5
Press Enter None
Press Enter None
Press Enter None
Press Enter None
1.44M, 3.5 in.
None
EGA/VGA
All, But Keyboard
640K
129024K
130048K
Item Help
Menu Level
Change the day, month,
year and century
Enter:Select
F5:Previous Values +/-/PU/PD:Value F10:Save ESC:Exit
!
!
!
!
66500237 1.pmd 9/27/02, 4:15 PM19

20
Quick Setup Guide
1
Quick Setup
Guide
1.5.3 Advanced BIOS Features
1.5.4 Advanced Chipset Features
Phoenix - AwardBIOS CMOS Setup Utility
Advanced BIOS Features
Item Help
Menu Level
Allows you to choose
the VIRUS warning
feature for IDE Hard
Disk boot sector
protection. If this
function is enabled and
someone attempt to
write data into this
area, BIOS will show a
warning message on
screen and alarm beep
↑↓→← Move F1:General HelpEnter:Select +/-/PU/PD:Value F10:Save ESC:Exit
X
X
F6:Fail-Safe Defaults F7:Optimized DefaultsF5:Previous Values
The settings on the screen are for reference only.Your version may not be
identical to this one.
Virus Warning
CPU L1 & L2 Cache
CPU L2 Cache ECC Checking
Quick Power On Self Test
First Boot Device
Second Boot Device
Third Boot Device
Boot Other Device
Swap Floppy Drive
Boot Up Floppy Seek
Boot Up NumLock Status
Typematic Rate Setting
Typematic Rate (Chars/Sec)
Typematic Delay (Msec)
Security Option
OS Select For DRAM > 64MB
Video BIOS Shadow
Small Logo (EPA) Show
Disabled
Enabled
Enabled
Enabled
Floppy
HDD-0
LS120
Enabled
Disabled
Disabled
On
Disabled
6
250
Setup
Non-OS2
Enabled
Enabled
Phoenix - AwardBIOS CMOS Setup Utility
Advanced Chipset Features
The settings on the screen are for reference only.Your version may not be
identical to this one.
Item Help
Menu Level
↑↓→← Move F6:Fail-Safe Defaults F7:Optimized Defaults F1:General HelpEnter:Select
F5:Previous Values
+/-/PU/PD:Value F10:Save ESC:Exit
DRAM Clock/Drive Control
AGP & P2P Bridge Control
CPU & PCI Bus Control
Memory Hole
System BIOS Cacheable
Video RAM Cacheable
Press Enter
Press Enter
Press Enter
Disabled
Disabled
Disabled
!
!
!
66500237 1.pmd 9/27/02, 4:15 PM20
