HD101-H81

Mini-ITX Industrial Motherboard

User’s Manual

A27450621

This publication contains information that is protected by copyright. No part of it may be re-

produced in any form or by any means or used to make any transformation/adaptation without

the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The manufacturer makes no

representations or warranties with respect to the contents or use of this manual and specifi-

cally disclaims any express or implied warranties of merchantability or fitness for any particular

purpose. The user will assume the entire risk of the use or the results of the use of this docu-

ment. Further, the manufacturer reserves the right to revise this publication and make changes

to its contents at any time, without obligation to notify any person or entity of such revisions

or changes.

Changes after the publication’s first release will be based on the product’s revision. The website

will always provide the most updated information.

Trademarks

Product names or trademarks appearing in this manual are for identification purpose only and

are the properties of the respective owners.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-

able protection against harmful interference when the equipment is operated in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encour-

aged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compli-

ance could void the user’s authority to operate the equipment.

2. Shielded interface cables must be used in order to comply with the emission limits.

Trademarks ........................................................................................................2

FCC and DOC Statement on Class B.....................................................2

About this Manual ..........................................................................................4

Warranty ............................................................................................................4

Static Electricity Precautions......................................................................4

Safety Measures ..............................................................................................4

About the Package.........................................................................................5

Chapter 1 - Introduction .............................................................................6

Specifications ................................................................................................6

Features..........................................................................................................7

Chapter 2 - Hardware Installation�� 9

Board Layout.................................................................................................9

System Memory............................................................................................9

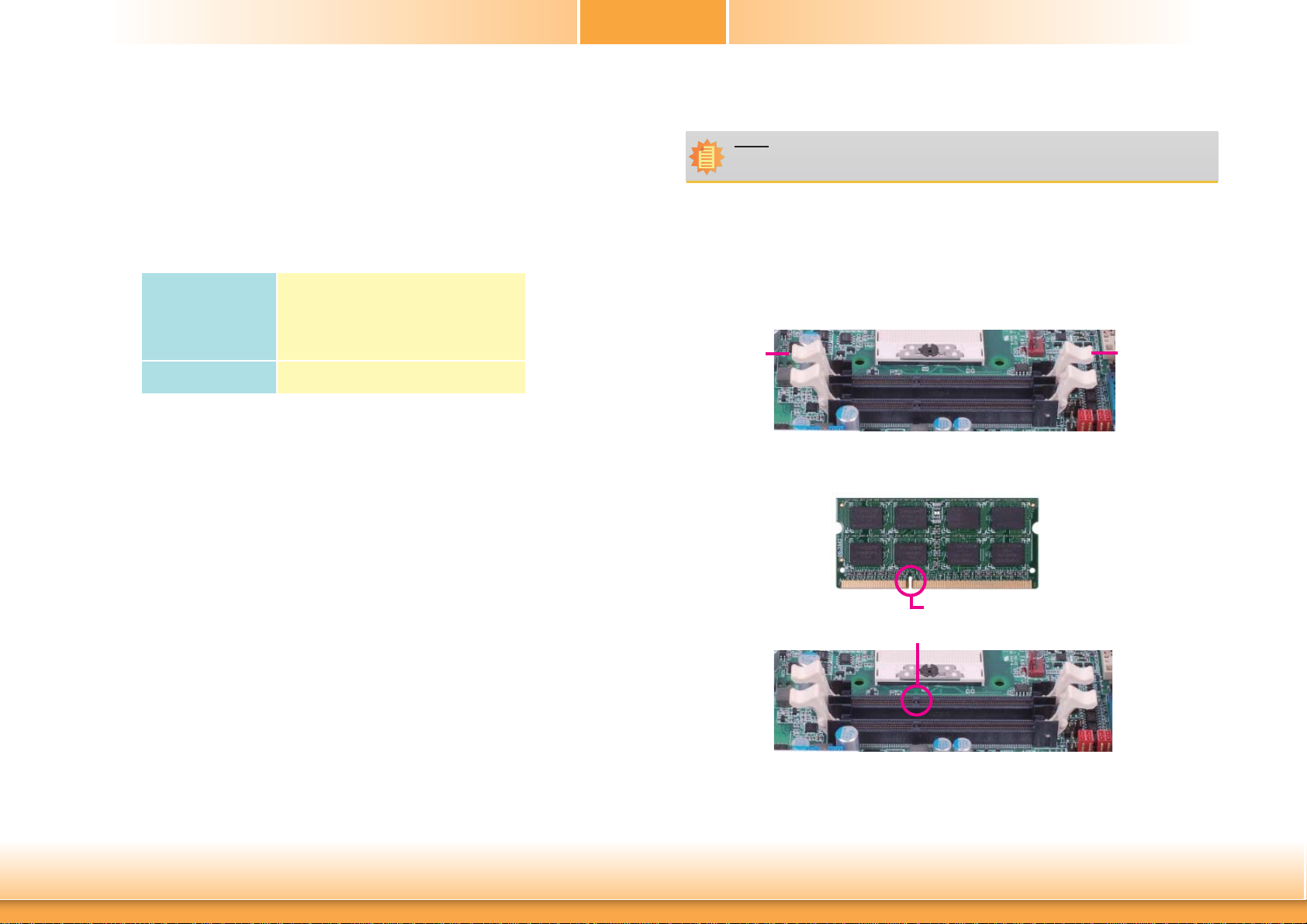

Installing the DIMM Module ........................................................................ 10

CPU ................................................................................................................ 11

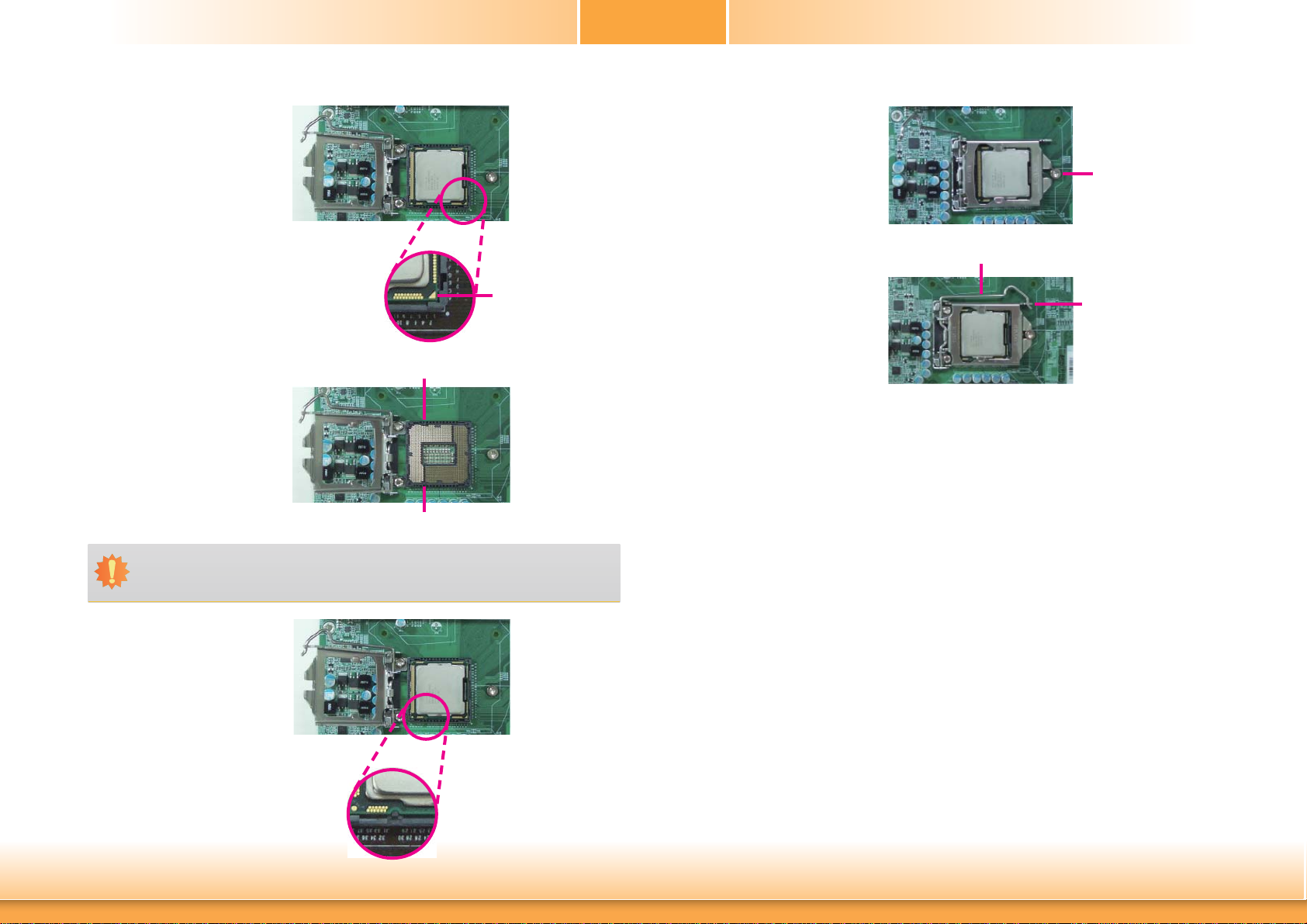

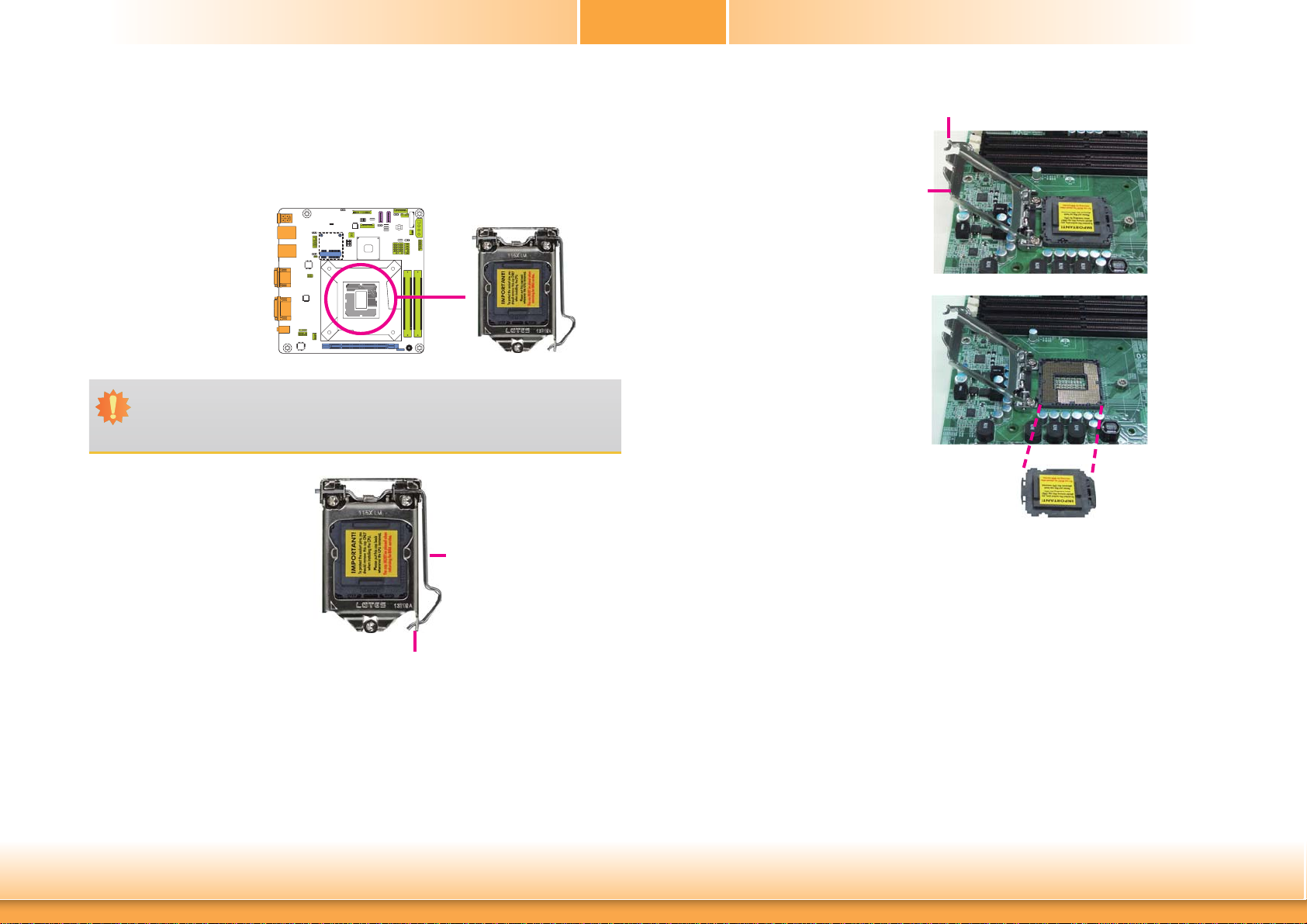

Installing the CPU....................................................................................... 12

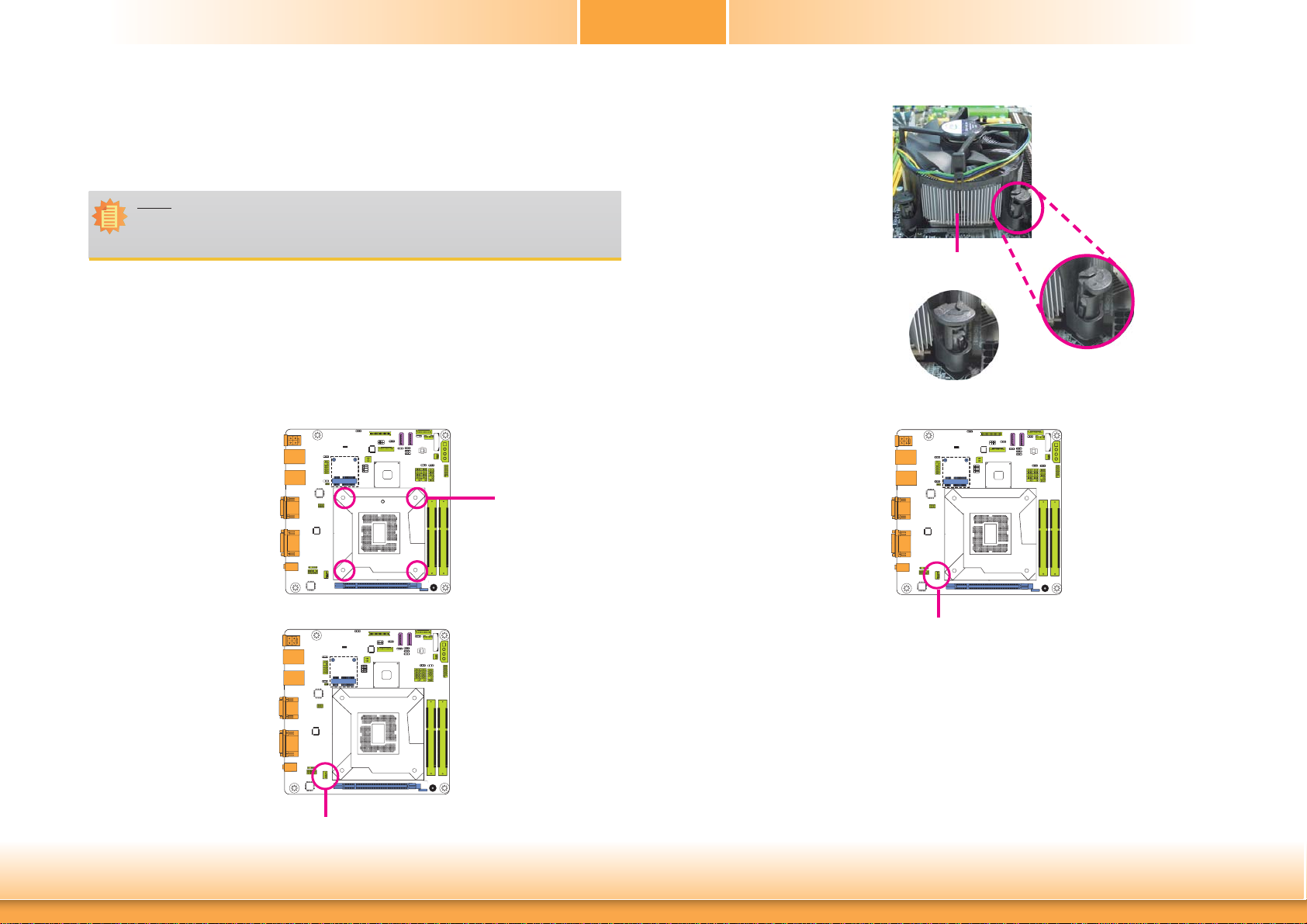

Installing the Fan and Heat Sink.................................................................. 14

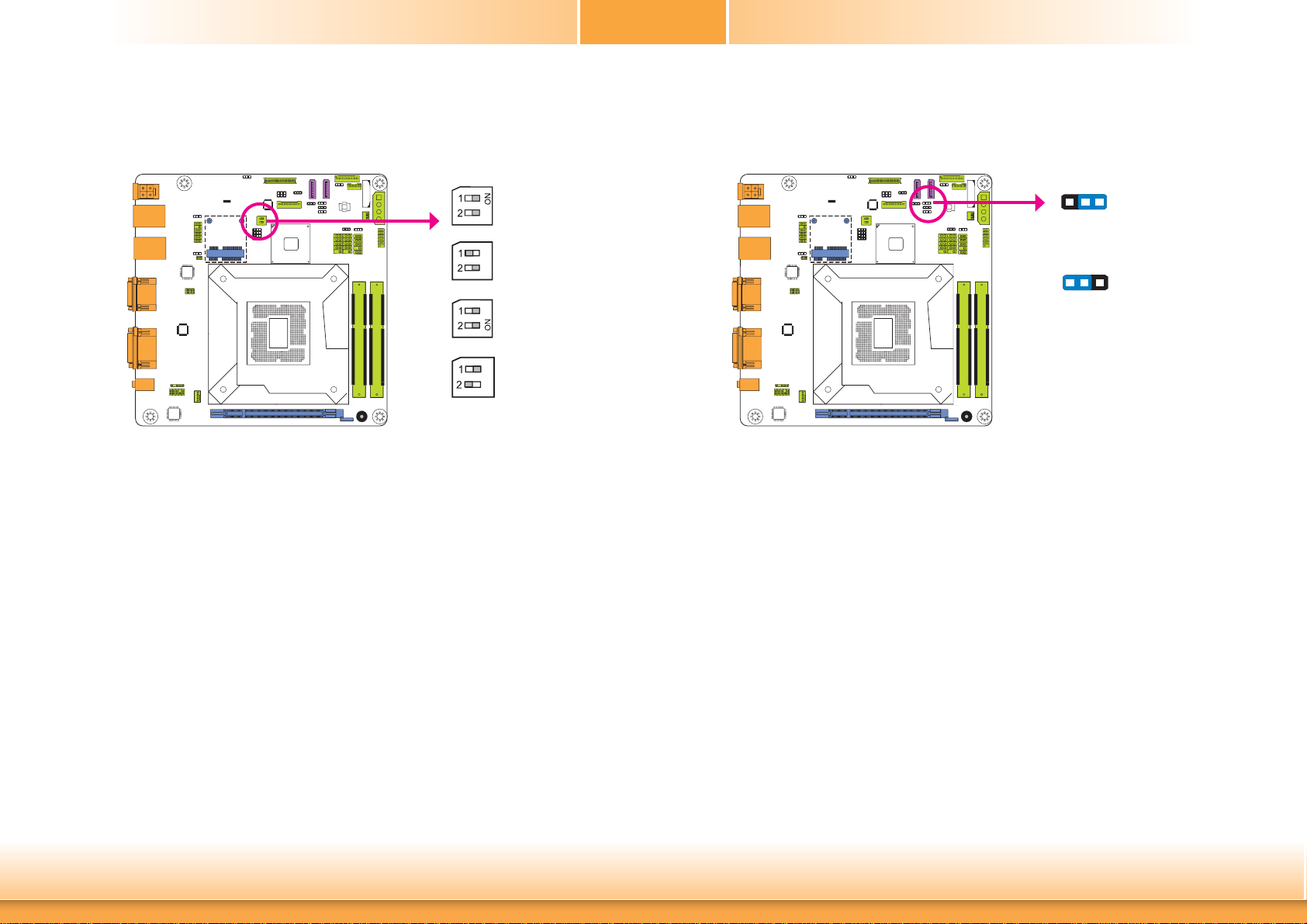

Jumper Settings ......................................................................................... 15

Clear CMOS Data........................................................................................ 15

PS/2 Keyboard/Mouse Power Select............................................................. 15

USB Power Select ....................................................................................... 16

Power-on Select.......................................................................................... 16

Mini PCIe Signal Select ............................................................................... 17

SATA DOM Power Select ............................................................................. 17

Panel Power Select ..................................................................................... 18

Backlight Power Select................................................................................ 18

LVDS Channel and bpp Select ..................................................................... 19

Digital I/O Power Select.............................................................................. 19

Digital I/O Output State.............................................................................. 20

Rear Panel I/O Ports................................................................................. 21

12V DC-in (default)..................................................................................... 21

COM (Serial) Ports ...................................................................................... 22

Graphics Interfaces..................................................................................... 22

RJ45 LAN Ports........................................................................................... 23

USB Ports................................................................................................... 23

Audio ......................................................................................................... 24

I/O Connectors ........................................................................................... 25

SATA (Serial ATA) Connectors...................................................................... 25

Peripheral Power Connector......................................................................... 25

Cooling Fan Connectors............................................................................... 26

Digital I/O Connector.................................................................................. 26

Digital I/O Power Connector........................................................................ 26

Front Panel Connector ................................................................................ 27

Chassis Intrusion Connector ........................................................................ 27

LVDS LCD Panel Connector ......................................................................... 28

LCD/Inverter Power Connector .................................................................... 28

PS/2 Keyboard/Mouse Connector................................................................. 29

Expansion Slots .......................................................................................... 30

S/PDIF Connector ....................................................................................... 30

Standby Power LED .................................................................................... 31

Battery....................................................................................................... 31

Chapter 3 - BIOS Setup�� 32

Overview ..................................................................................................... 32

AMI BIOS Setup Utility............................................................................. 33

Main .......................................................................................................... 33

Advanced ................................................................................................... 33

Chipset ...................................................................................................... 43

Boot........................................................................................................... 49

Security...................................................................................................... 50

Save & Exit ................................................................................................ 51

Updating the BIOS .................................................................................... 51

Notice: BIOS SPI ROM ............................................................................. 52

Chapter 4 - Supported Software........................................................... 53

Chapter 5 - Digital I/O Programming Guide.................................... 71

Appendix A - Watchdog Sample Code................................................ 73

Appendix B - System Error Message................................................... 74

Appendix C - Troubleshooting ................................................................ 75

Table of Contents

About this Manual

An electronic file of this manual is included in the CD. To view the user’s manual in the CD, in-

sert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click

“User’s Manual” on the main menu.

Warranty

1. Warranty does not cover damages or failures that arised from misuse of the product, in-

ability to use the product, unauthorized replacement or alteration of components and prod-

uct specifications.

2. The warranty is void if the product has been subjected to physical abuse, improper instal-

lation, modification, accidents or unauthorized repair of the product.

3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-

stances, attempt to perform service, adjustments or repairs on the product, whether in or

out of warranty. It must be returned to the purchase point, factory or authorized service

agency for all such work.

4. We will not be liable for any indirect, special, incidental or consequencial damages to the

product that has been modified or altered.

Static Electricity Precautions

It is quite easy to inadvertently damage your PC, system board, components or devices even

before installing them in your system unit. Static electrical discharge can damage computer

components without causing any signs of physical damage. You must take extra care in han-

dling them to ensure against electrostatic build-up.

1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are

ready to install it.

2. Wear an antistatic wrist strap.

3. Do all preparation work on a static-free surface.

4. Hold the device only by its edges. Be careful not to touch any of the components, contacts

or connections.

5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con-

nectors by their ends.

Safety Measures

To avoid damage to the system:

• Use the correct AC input voltage range.

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis cover for installation or servic-

ing. After installation or servicing, cover the system chassis before plugging the power

cord.

Important:

Electrostatic discharge (ESD) can damage your processor, disk drive and other com-

ponents. Perform the upgrade instruction procedures described at an ESD worksta-

tion only. If such a station is not available, you can provide some ESD protection by

wearing an antistatic wrist strap and attaching it to a metal part of the system chas-

sis. If a wrist strap is unavailable, establish and maintain contact with the system

chassis throughout any procedures requiring ESD protection.

About the Package

The package contains the following items. If any of these items are missing or damaged,

please contact your dealer or sales representative for assistance.

• One HD101 motherboard

• One Serial ATA data with power cable

• One I/O shield

• One DVD

• One QR (Quick Reference)

The board and accessories in the package may not come similar to the information listed

above. This may differ in accordance to the sales region or models in which it was sold. For

more information about the standard package in your region, please contact your dealer or

sales representative.

Optional Items

• USB port cable

• Serial ATA data with power cable

• I/O shield

• Power adapter (100W, 12V)

The board and accessories in the package may not come similar to the information listed

above. This may differ in accordance to the sales region or models in which it was sold. For

more information about the standard package in your region, please contact your dealer or

sales representative.

Before Using the System Board

Before using the system board, prepare basic system components.

If you are installing the system board in a new system, you will need at least the following

internal components.

• A CPU

• Memory module

• Storage devices such as hard disk drive, CD-ROM, etc.

You will also need external system peripherals you intend to use which will normally include at

least a keyboard, a mouse and a video display monitor.

I/O Connectors • 2 connectors for 4 external USB 2.0/1.1 ports

• 1 LVDS LCD panel connector

• 1 LCD/inverter power connector

• 1 8-bit Digital I/O connector

• 1 Digital I/O power connector

• 1 front audio connector for line-out and mic-in jacks

• 1 S/PDIF connector

• 1 LPC connector

• 2 Serial ATA 3.0 ports

• 1 PS/2 keyboard/mouse connector

• 1 4-pin peripheral power connector

• 1 chassis intrusion connector

• 1 front panel connector

• 2 fan connectors

Trusted Platform

Module - TPM*

(optional)

• Provides a Trusted PC for secure transactions

• Provides software license protection, enforcement and password protection

Energy Efcient

Design

• Supports ErP Lot6 power saving* (optional)

• Supports ACPI

• System Power Management

• Wake-On-Events include:

- Wake-On-PS/2 KB/Mouse

- Wake-On-USB KB/Mouse

- Wake-On-LAN

- RTC timer to power-on the system

• CPU stopped clock control

• AC power failure recovery

Damage Free

Intelligence

• Monitors CPU/system temperature and overheat alarm

• Monitors Vcore/+5V/+12V/+3.3V/3VSB/VBAT

• Monitors CPU/system fan speed and failure alarm

• Read back capability that displays temperature, voltage and fan speed

• Watchdog timer function

BIOS • AMI BIOS

- 32Mbit SPI BIOS

Power

Consumption • TBD

Temperature • Operating: 0oC to 60oC

• Storage: -20oC to 85oC

Humidity • 10% to 90%

OS Support • Windows XP Professional x86 & SP3 (32-bit) (limited function)

• Windows 7 Ultimate x86 & SP1 (32-bit)

• Windows 7 Ultimate x64 & SP1 (64-bit)

• Windows 8 Enterprise x86 (32-bit)

• Windows 8 Enterprise x64 (64-bit)

Dimensions • Mini-ITX form factor

• 170mm (6.7") x 170mm (6.7")

Certication • CE, FCC Class B, RoHS, UL

Chapter 1 - Introduction

Specifications

Processor • LGA 1150 socket for:

- 4th Generation Intel®CoreTM processors

: Intel®CoreTM i7-4770TE (8M Cache, up to 3.3 GHz); 45W

: Intel®CoreTM i5-4590T (6M Cache, up to 3.0 GHz); 35W

: Intel®CoreTM i5-4570TE (4M Cache, up to 3.3 GHz); 35W

: Intel®CoreTM i3-4350T (4M Cache, 3.1 GHz); 35W

: Intel®CoreTM i3-4340TE (4M Cache, 2.6 GHz); 35W

: Intel®CoreTM i3-4330TE (4M Cache, 2.4 GHz); 35W

: Intel®Pentium®G3320TE (3M Cache, 2.3 GHz); 35W

: Intel®Celeron®G1820TE (2M Cache, 2.2 GHz); 35W

• 22nm process technology

Chipset • Intel®H81 Express Chipset

Super I/O

Address

• NCT6102/4Eh

System Memory • Two 204-pin DDR3 SODIMM sockets

• Supports DDR3 1333/1600MHz

• Supports dual channel memory interface

• Supports up to 16GB system memory

• DRAM device technologies: 1Gb, 2Gb and 4Gb DDR3 DRAM technologies are

supported for x8 and x16 devices, unbuffered, non-ECC

Expansion Slots • 1 PCIe x16 Gen 3 slot (PCIe 3.0)

• 1 Mini PCIe slot

- Supports USB and PCIe signals

- Supports mSATA

- Supports half size Mini PCIe card

Graphics • Intel®HD Graphics

• Display ports: 1 HDMI, 1 DVI-I, 1 LVDS

• HDMI: resolution up to 4096x2304 @24Hz or 2560x1600 @60Hz

• DVI-I: resolution up to 1920x1200 @60Hz

• LVDS: 24-bit, dual channel, resolution up to 1920x1200 @60Hz

• Supports 20 Graphics Execution Units (EUs)

• Intel®Clear Video Technology

• DirectX Video Acceleration (DXVA) support for accelerating video processing

Audio • Realtek ALC886 5.1-channel High Denition Audio

• S/PDIF audio interface

LAN • Intel®I210 PCI Express Gigabit Ethernet controller

• Intel®I217 Gigabit Ethernet Phy

• Integrated 10/100/1000 transceiver

• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Serial ATA • 2 SATA 3.0 ports with data transfer rate up to 6Gb/s

- SATA port 1 provides adequate space for SATA DOM

• Integrated Advanced Host Controller Interface (AHCI) controller

Rear Panel I/O

Ports

• 1 12V DC-in jack (default) or 4-pin power connector* (optional)

• 2 DB-9 RS232 serial ports

• 1 HDMI port

• 1 DVI-I port

• 2 RJ45 LAN ports

• 2 USB 2.0 ports

• 2 USB 3.0 ports

• Mic-in, Line-in and Line-out jacks

Chapter 1

Chapter 1 Introduction www.d.com

Note:

*Optional and is not supported in standard model. Please contact your sales represen-

tative for more information.

Chapter 1

Chapter 1 Introduction www.d.com

Features

• Watchdog Timer

The Watchdog Timer function allows your application to regularly “clear” the system at the set

time interval. If the system hangs or fails to function, it will reset at the set time interval so

that your system will continue to operate.

• DDR3

DDR3 delivers increased system bandwidth and improved performance. It offers peak data

transfer rate of up to 16 Gb/s bandwidth. The advantages of DDR3 are its higher bandwidth

and its increase in performance at a lower power than DDR2.

• Graphics

The integrated Intel®HD graphics engine delivers an excellent blend of graphics performance

and features to meet business needs. It provides excellent video and 3D graphics with out-

standing graphics responsiveness. These enhancements deliver the performance and compati-

bility needed for today’s and tomorrow’s business applications. Supports HDMI, DVI-I and LVDS

interfaces for 3 display outputs.

• PCI Express

PCI Express is a high bandwidth I/O infrastructure that possesses the ability to scale speeds

by forming multiple lanes. The PCI Express architecture also supports high performance graph-

ics infrastructure by enhancing the capability of a PCIe x16 Gen 3 at 16GB/s bandwidth.

• Serial ATA

Serial ATA is a storage interface that is compliant with SATA 1.0a specification. With speed of

up to 6Gb/s (SATA 3.0), it improves hard drive performance faster than the standard parallel

ATA whose data transfer rate is 100MB/s.

• Gigabit LAN

Two Intel®Gigabit LAN controllers (Intel®I210 PCI Express Gigabit Ethernet controller and In-

tel®I217 Gigabit Ethernet Phy) support up to 1Gbps data transmission.

• Audio

The Realtek ALC886 audio codec provides 5.1-channel High Definition audio output.

• Wake-On-PS/2

This function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system.

Important:

The 5V_standby power source of your power supply must support ≥720mA.

Important:

The 5V_standby power source of your power supply must support ≥720mA.

• Wake-On-USB

This function allows you to use a USB keyboard or USB mouse to wake up a system from the

S3 (STR - Suspend To RAM) state.

• RTC Timer

The RTC installed on the system board allows your system to automatically power-on on the

set date and time.

• ACPI STR

The system board is designed to meet the ACPI (Advanced Configuration and Power Interface)

specification. ACPI has energy saving features that enables PCs to implement Power Manage-

ment and Plug-and-Play with operating systems that support OS Direct Power Management.

ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM

function�

With the Suspend to RAM function enabled, you can power-off the system at once by pressing

the power button or selecting “Standby” when you shut down Windows® without having to

go through the sometimes tiresome process of closing files, applications and operating system.

This is because the system is capable of storing all programs and data files during the entire

operating session into RAM (Random Access Memory) when it powers-off. The operating ses-

sion will resume exactly where you left off the next time you power-on the system.

Important:

If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the

5V_standby power source of your power supply must support ≥1.5A. For 3 or more

USB ports, the 5V_standby power source of your power supply must support ≥2A.

• Wake-On-LAN

This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. It is

supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power Man-

agement Event) signal. However, if your system is in the Suspend mode, you can power-on

the system only through an IRQ or DMA interrupt.

Important:

The 5V_standby power source of your power supply must support ≥720mA.

• Power Failure Recovery

When power returns after an AC power failure, you may choose to either power-on the system

manually or let the system power-on automatically.

• USB

The system board supports the new USB 3.0. It is capable of running at a maximum transmis-

sion speed of up to 5 Gbit/s (625 MB/s) and is faster than USB 2.0 (480 Mbit/s, or 60 MB/s)

and USB 1.1 (12Mb/s). USB 3.0 reduces the time required for data transmission, reduces

power consumption, and is backward compatible with USB 2.0. It is a marked improvement

in device transfer speeds between your computer and a wide range of simultaneously

accessible external Plug and Play peripherals.

Chapter 1

Chapter 1 Introduction www.d.com

www.dﬁ.com

Chapter 2 Hardware Installation

Chapter 2

Chapter 2 - Hardware Installation

Board Layout

System Memory

DDR3-2

DDR3-1

Standby

Power LED

Features

• Two 204-pin DDR3 SODIMM sockets

• Supports DDR3 1333/1600MHz

• Supports dual channel memory interface

• Supports up to 16GB system memory

Important:

Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in

boards, and other components. Perform installation procedures at an ESD workstation

only. If such a station is not available, you can provide some ESD protection by wear-

ing an antistatic wrist strap and attaching it to a metal part of the system chassis. If

a wrist strap is unavailable, establish and maintain contact with the system chassis

throughout any procedures requiring ESD protection.

Important:

When the Standby Power LED lights red, it indicates that there is power on the

system board. Power-off the PC then unplug the power cord prior to installing any de-

vices. Failure to do so will cause severe damage to the motherboard and components.

LCD/Inverter Power

USB2-3USB10-11

139

Battery

System

Fan

Front

Panel

11 12

RSVD

RESET

HDD-LED

RSVD

CPU Fan

LAN 2

USB 0-1

USB 3.0

PS/2

KB/MS

PWR-LED

ATX-SW

Peripheral

Power

Intel

H81

LGA 1150

Buzzer

PCIe x16

LVDS Channel

and bpp Select

(SW1)

12 10

Mini PCIe

Signal

Select (JP12)

Panel Power

Select (JP11)

SPI

Flash

BIOSPS/2 KB/MS

Power Select (JP1)

Standby

Power LED

USB 4-5 Power

Select (JP5)

Chassis

intrusion

SMBus

S/PDIF

Front Audio

COM2

COM1

DVI-I

HDMI

Mic-in

Line-in

Line-out

LAN 1

USB 4-5

USB 2.0

Mini PCIE

SATA 0SATA 1

SATA 3.0

910

12 12

910

USB 2.0

LVDS LCD Panel

USB 0-1 Power

Select (JP6)

USB 2-3/10-11

Power Select (JP8)

Clear CMOS

Data (JP9)

Power-on

Select (JP13)

ASMedia

ASM1442

PTN3460

Intel

WGI210AT

Realtek

ALC886

LPC

DIO

DIO Power Select (JP15)

DIO 0-3 Output State (JP16)

DIO 4-7 Output State (JP17)

Backlight Power

Select (JP2)

Power

SATA DOM

Power Select (JP18)

DDR3_2 SODIMM

DDR3_1 SODIMM

Note:

SATA1 supports SATA DOM.

DC-in

+12V ATX power (optional)

Rear I/O

Onboard I/O

Storage

Expansion

www.dﬁ.com

Chapter 2 Hardware Installation

Chapter 2

The system board supports the following memory interface.

Single Channel (SC)

Data will be accessed in chunks of 64 bits (8B) from the memory channels.

Dual Channel (DC)

Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides

better system performance because it doubles the data transfer rate.

Single Channel

DIMMs are on the same channel.

DIMMs in a channel can be identical or

completely different. However, we highly

recommend using identical DIMMs.

Not all slots need to be populated.

Dual Channel DIMMs of the same memory configuration

are on different channels.

Installing the DIMM Module

Note:

The system board used in the following illustrations may not resemble the actual

board. These illustrations are for reference only.

1. Make sure the PC and all other peripheral devices connected to it has been powered down.

2. Disconnect all power cords and cables.

3. Locate the DIMM socket on the system board.

4. Push the “ejector tabs” which are at the ends of the socket to the side.

Ejector tab

5. Note how the module is keyed to the socket.

Key

Notch
