DFI P4X400-A User manual

P4X400-A
P4X400-AL
Rev. A+
System Board
User’s Manual
71300311

Copyright
This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior
written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose. The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 003. All Rights Reserved.
Trademarks
Windows® 98, Windows® 98 SE, Windows® ME, Windows® 000,
Windows NT® 4.0 and Windows® XP are registered trademarks of
Microsoft Corporation. Intel® and Pentium® 4 are registered
trademarks of Intel Corporation. VIA is a registered trademark of
VIA Technologies, Inc. Award is a registered trademark of Award
Software, Inc. Other trademarks and registered trademarks of
products appearing in this manual are the properties of their
respective holders.
Caution
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.

Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by
the manufacturer.
• Dispose of used batteries according to the battery
manufacturer’s instructions.
Joystick or MIDI port:
• Do not use any joystick or MIDI device that requires more than
10A current at 5V DC. There is a risk of fire for devices that
exceed this limit.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
. Shielded interface cables must be used in order to comply with
the emission limits.

Notice
This user’s manual contains detailed information about the system
board. If, in some cases, some information doesn’t match those
shown in the multilingual manual, the multilingual manual should
always be regarded as the most updated version. The multilingual
manual is included in the system board package.
To view the user’s manual, insert the CD into a CD-ROM drive. The
autorun screen (Main Board Utility CD) will appear. Click “User’s
Manual”.
System Board
This user’s manual is for the P4X400-A and P4X400-AL system
boards. The only difference between these boards is the P4X400-AL
system board supports onboard LAN.

Table of Contents
Chapter 1 - Introduction
1.1 Features and Specifications..................................................................................
1. Hyper-Threading Technology Functionality Requirements..........
1.3 Package Checklist.........................................................................................................
Chapter 2 - Hardware Installation
.1 System Board Layout ...........................................................................................
. System Memory...........................................................................................................
.3 CPU........................................................................................................................................
.4 Jumper Settings.............................................................................................................
.5 Rear Panel I/O Por ts..............................................................................................
.6 I/O Connectors...........................................................................................................
Chapter 3 - Award BIOS Setup Utility
3.1 The Basic Input/Output System.....................................................................
3.1.1 Standard CMOS Features.............................................................
3.1. Advanced BIOS Features..............................................................
3.1.3 Advanced Chipset Features ......................................................
3.1.4 Integrated Peripherals.........................................................................
3.1.5 Power Management Setup............................................................
3.1.6 PnP/PCI Configurations....................................................................
3.1.7 Frequency/Voltage Control............................................................
3.1.8 Load Fail-Safe Defaults.....................................................................
3.1.9 Load Optimized Defaults..............................................................
3.1.10 Set Supervisor Password...............................................................
3.1.11 Set User Password..............................................................................
3.1.1 Save & Exit Setup.................................................................................
3.1.13 Exit Without Saving..............................................................................
3. Updating the BIOS.....................................................................................................
7
13
14
53
54
59
63
69
77
84
86
88
89
90
91
9
93
94
15
17
19
4
9
40

Introduction
1
6
119
119
Chapter 4 - Supported Softwares
4.1 Desktop Management Interface.................................................................
4. Drivers, Utilities and Software Applications.....................................
4.3 3D Audio Configuration....................................................................................
4.4 Installation Notes......................................................................................................
Appendi A - Enabling the Hyper-Threading
Technology
A.1 Enabling the Hyper-Threading Technology...........................................
Appendi B - Using the Suspend to RAM
Function
B.1 Using the Suspend to RAM Function...................................................
Appendi C - System Error Messages
C.1 POST Beep....................................................................................................................
C. Error Messages...........................................................................................................
Appendi D - Troubleshooting
D.1 Troubleshooting Checklist.................................................................................
96
99
108
111
115
1 1
11

1
Introduction
7
1.1 Features and Specifications
1.1.1 Features
Chipset
• VIA® P4X400 chipset
- VT8754/VT8 35CE
Processor
The system board is equipped with Socket 478 for installing one of
the following supported processors.
• Intel® Pentium® 4 Processor with Hyper-Threading Technology -
533MHz FSB
• Intel® Pentium® 4 processor (478-pin)
- 533MHz system data bus
- 400MHz system data bus
• Intel® Celeron® processor (478-pin)
- 400MHz system data bus
Note:
Refer to section 1.2 and appendix A for more information on
the Hyper-Threading Technology.
System Memory
• Three 184-pin DDR DIMM sockets
• Supports up to 3GB using PC1600 (DDR 00), PC 100
(DDR 66), PC 700 (DDR333) or PC3 00 (DDR400)
unbuffered DDR SDRAM DIMM, .5V type
Chapter 1 - Introduction
DIMMs
2MBx64
4MBx64
8MBx64
Memory Size
16MB
32MB
64MB
DIMMs
16MBx64
32MBx64
64MBx64
Memory Size
128MB
256MB
512MB

Introduction
1
8
Expansion Slots
The system board is equipped with 1 AGP slot and 5 PCI slots.
AGP (Accelerated Graphics Port
AGP is an interface designed to support high performance 3D
graphics cards. It utilizes a dedicated pipeline to access system
memory for texturing, z-buffering and alpha blending. The universal
AGP slot supports AGP 8x with up to 133MB/sec. bandwidth and
AGP 4x with up to 1066MB/sec. bandwidth for 3D graphics
applications. AGP in this system board will deliver faster and better
graphics to your PC.
Onboard Audio Features
• Supports Microsoft® DirectSound/DirectSound 3D
• AC’97 supported with full duplex, independent sample rate
converter for audio recording and playback
• S/PDIF-in/out compressed digital output
• 6-channel audio output
Onboard LAN Features (P4X400-AL only
• Integrated LAN controller
• Integrated IEEE 80 .3, 10BASE-T and 100BASE-TX compatible
PHY
• 3 -bit PCI master interface
• Integrated power management functions
• Full duplex support at both 10 and 100 Mbps
• Supports IEEE 80 .3u auto-negotiation
• Suppor ts wire for management
Rear Panel I/O Ports (PC 99 color-coded connectors
• Two USB .0/1.1 ports
• One RJ45 LAN port (P4X400-AL only)
• Two DB-9 serial ports
• One DB- 5 parallel port
• One mini-DIN-6 PS/ mouse port
• One mini-DIN-6 PS/ keyboard port
• One game/MIDI port
• Three audio jacks: line-out, line-in and mic-in

1
Introduction
9
I/O Connectors
• Two connectors for 4 additional external USB .0/1.1 ports
• One front audio connector for external line-out and mic-in jacks
• Two internal audio connectors (AUX-in and CD-in)
• One 4-channel audio output connector
• One S/PDIF-in/out connector
• One connector for IrDA interface
• Two IDE connectors
• One floppy drive interface supports up to two .88MB floppy
drives
• Two ATX power supply connectors
• One Wake-On-LAN connector
• CPU fan and chassis fan connectors
PCI Bus Master IDE Controller
• Two PCI IDE interfaces support up to four IDE devices
• Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives
• UDMA Modes 3, 4, 5 and 6 Enhanced IDE (data transfer rate
up to 133MB/sec.)
• Bus mastering reduces CPU utilization during disk transfer
• Supports ATAPI CD-ROM, LS-1 0 and ZIP
S/PDIF
S/PDIF is a standard audio file transfer format that transfers digital
audio signals to a device without having to be converted first to an
analog format. This prevents the quality of the audio signal from
degrading whenever it is converted to analog. S/PDIF is usually
found on digital audio equipment such as a DAT machine or audio
processing device. The S/PDIF connector on the system board sends
surround sound and 3D audio signal outputs to amplifiers and
speakers and to digital recording devices like CD recorders.
6-channel Audio
The 4-channel audio connector which supports four audio output
signals: center channel, subwoofer, rear right channel and rear left
channel; together with the line-in and mic-in jacks (at the rear panel)
support 6-channel audio output.

Introduction
1
10
IrDA Interface
The system board is equipped with an IrDA connector for wireless
connectivity between your computer and peripheral devices. The
IRDA (Infrared Data Association) specification supports data
transfers of 115K baud at a distance of 1 meter.
USB Ports
The system board supports USB .0 and USB 1.1. USB 1.1
supports 1 Mb/second bandwidth while USB .0 supports 480Mb/
second bandwidth providing a marked improvement in device
transfer speeds between your computer and a wide range of
simultaneously accessible external Plug and Play peripherals.
BIOS
• Award BIOS, Windows® 98/ 000/ME/XP Plug and Play
compatible
• Supports SCSI sequential boot-up
• Flash EPROM for easy BIOS upgrades
• Supports DMI .0 function
• Mbit flash memory
Desktop Management Interface (DMI
The system board comes with a DMI .0 built into the BIOS. The
DMI utility in the BIOS automatically records various information
about your system configuration and stores these information in the
DMI pool, which is a part of the system board's Plug and Play
BIOS. DMI, along with the appropriately networked software, is
designed to make inventory, maintenance and troubleshooting of
computer systems easier. Refer to chapter 4 for instructions on using
the DMI utility.

1
Introduction
11
1.1.2 Intelligence
Dual Function Power Button
Depending on the setting in the “Soft-Off By PWRBTN” field of the
Power Management Setup, this switch will allow the system to enter
the Soft-Off or Suspend mode.
Wake-On-Ring
This feature allows the system that is in the Suspend mode or Soft
Power Off mode to wake-up/power-on to respond to calls coming
from an external modem or respond to calls from a modem PCI
card that uses the PCI PME (Power Management Event) signal to
remotely wake up the PC.
Important:
If you are using a modem add-in card, the 5 SB power source
of your power supply must support ≥ 720mA.
Wake-On-LAN
This feature allows the network to remotely wake up a Soft Power
Down (Soft-Off) PC. It is supported via the onboard LAN port, via
a PCI LAN card that uses the PCI PME (Power Management Event)
signal or via a LAN card that uses the Wake-On-LAN connector.
However, if your system is in the Suspend mode, you can power-on
the system only through an IRQ or DMA interrupt.
Important:
The 5 SB power source of your power supply must support
≥ 720mA.

Introduction
1
12
Wake-On-PS/2 Keyboard
This function allows you to use the PS/ keyboard to wake up the
system from the S5 state.
Important:
The 5 SB power source of your power supply must support
≥ 720mA.
Wake-On-USB Keyboard/Mouse
This function allows you to use a USB keyboard or USB mouse to
wake up a system from the S3 (STR - Suspend To RAM) state.
Important:
• If you are using the Wake-On-USB Keyboard/Mouse
function for 2 USB ports, the 5 SB power source of your
power supply must support ≥ 1.5A.
• If you are using the Wake-On-USB Keyboard/Mouse
function for 3 or more USB ports, the 5 SB power source
of your power supply must support ≥ 2A.
RTC Timer to Power-on the System
The RTC installed on the system board allows your system to auto-
matically power-on on the set date and time.
ACPI STR
The system board is designed to meet the ACPI (Advanced Con-
figuration and Power Interface) specification. ACPI has energy saving
features that enables PCs to implement Power Management and
Plug-and-Play with operating systems that support OS Direct Power
Management. Currently, only Windows® 98/ 000/ME/XP supports
the ACPI function. ACPI when enabled in the Power Management
Setup will allow you to use the Suspend to RAM function.
With the Suspend to RAM function enabled, you can power-off the
system at once by pressing the power button or selecting “Standby”
when you shut down Windows® 98/ 000/ME/XP without having to
go through the sometimes tiresome process of closing files,
applications and operating system. This is because the system is
capable of storing all programs and data files during the entire

1
Introduction
13
operating session into RAM (Random Access Memory) when it
powers-off. The operating session will resume exactly where you left
off the next time you power-on the system.
Important:
The 5 SB power source of your power supply must support
≥ 1A.
AC Power Failure Recovery
When power returns after an AC power failure, you may choose to
either power-on the system manually, let the system power-on
automatically or return to the state where you left off before power
failure occurs.
Virus Protection
Most viruses today destroy data stored in hard drives. The system
board is designed to protect the boot sector and partition table of
your hard disk drive.
1.2 Hyper-Threading Technology Functionality
Requirements
Enabling the functionality of Hyper-Threading Technology for your
computer system requires ALL of the following platforms.
Components:
• CPU - an Intel® Pentium® 4 Processor with HT Technology
• Chipset - an Intel® chipset that supports HT Technology
• BIOS - a BIOS that supports HT Technology and has it enabled
• OS - an operating system that includes optimizations for HT
Technology
Please refer to Appendix A for information about enabling the
functionality of the Hyper-Threading Technology. For more information
on Hyper-Threading Technology, go to: www.intel.com/info/
hyperthreading.

Introduction
1
14
1.3 Package Checklist
The system board package contains the following items:
The system board
A user’s manual
One IDE cable for ATA/33, ATA/66, ATA/100 or ATA/133 IDE
drives
One 34-pin floppy disk drive cable
One “Mainboard Utility” CD
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

2
Hardware Installation
15

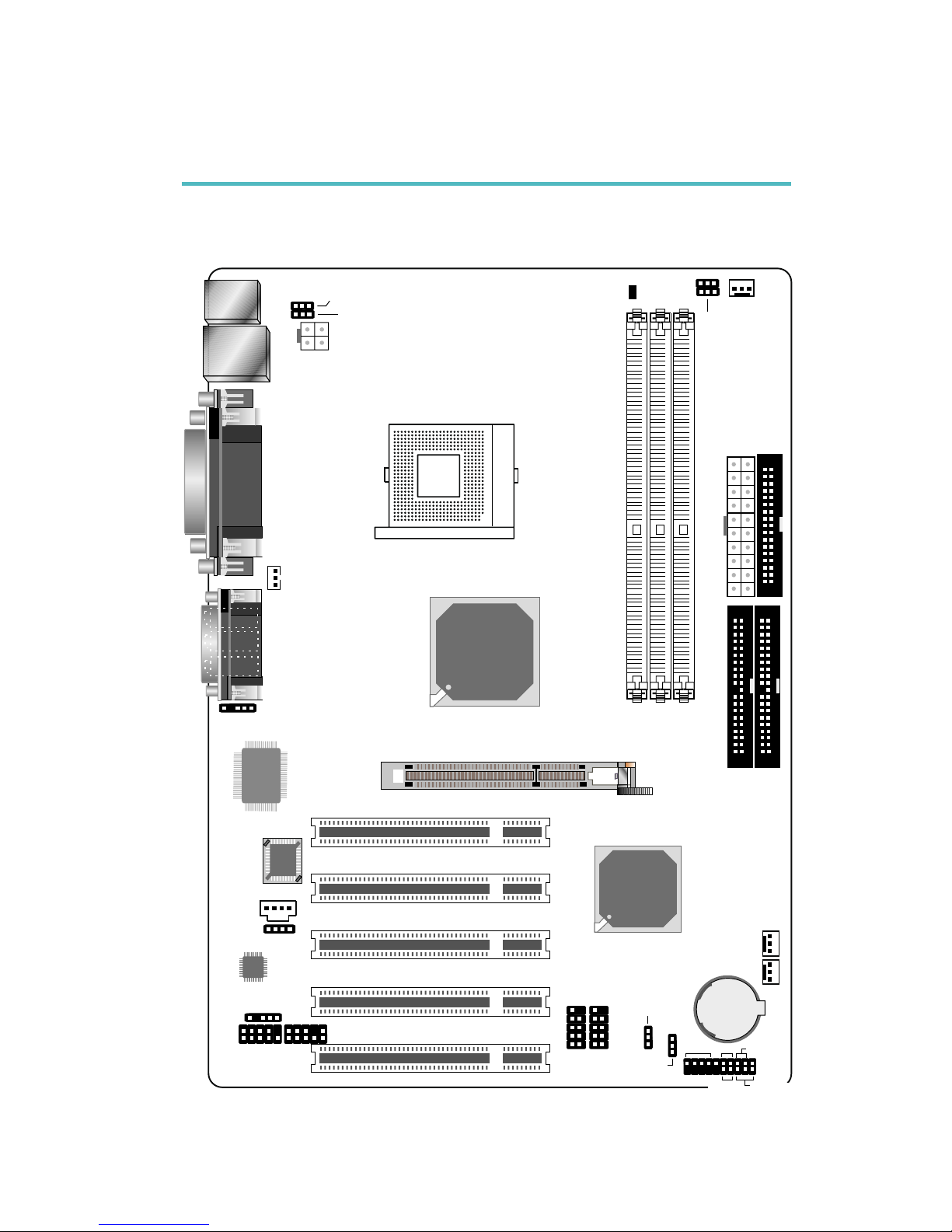

2.1 System Board Layout
Chapter 2 - Hardware Installation
P4X400-A
KB/Mouse
1
1
USB 1/2 power select
PS/2 power select
1
+12V power
USB 1/2
COM 1
COM 2
Parallel
1
WOL
Socket 478
VIA
VT8754
Winbond
W83697F
BIOS
1
1
Line-out
Game
Line-in
Mic-in
1
IrDA
AUX-in
CD-in
AGP
PCI 1
PCI 3
PCI 2
PCI 5
PCI 4
Audio
Codec
1
SPDIF
1
1
4CH audio
Front audio
DIMM LED
DDR 1
DDR 2
DDR 3
1
1
CPU FSB select
1
CPU fan
1
1
ATX po wer
FDD
11
IDE 2IDE 1
1
1
Second fan
Chassis fan
1
Front
panel
HD-LED
RESETSPEAKER
PWR-LED
ATX-SW
1
1 1
USB
5/6
USB
3/4
VIA
VT8235CE
USB 3-6
power select
1
Clear CMOS

2
16
Hardware Installation
P4X400-AL
(Supports onboard LAN)
KB/Mouse
1
1
USB 1/2 power select
PS/2 power select
1
+12V power
USB 1/2
LAN
COM 1
COM 2
Parallel
1
WOL
Line-out
Game
Line-in
Mic-in
Socket 478
VIA
VT8754
Winbond
W83697F
BIOS
1
1
1
IrDA
AUX-in
CD-in
AGP
PCI 1
PCI 3
PCI 2
PCI 5
PCI 4
Audio
Codec
1
SPDIF
1
1
4CH audio
Front audio
DIMM LED
DDR 1
DDR 2
DDR 3
1
1
CPU FSB select
1
CPU fan
1
1
ATX po wer
FDD
11
IDE 2IDE 1
1
1
Second fan
Chassis fan
1
Front
panel
HD-LED
RESETSPEAKER
PWR-LED
ATX-SW
1
USB 3-6
power select
1 1
USB
5/6
USB
3/4
VIA
VT8235CE
LAN Phy
1
Clear CMOS

2
Hardware Installation
17
1
2.2 System Memory
Warning:
Electrostatic discharge (ESD) can damage your system board,
processor, disk drives, add-in boards, and other components Perform
the upgrade instruction procedures described at an ESD workstation
only If such a station is not available, you can provide some ESD
protection by wearing an antistatic wrist strap and attaching it to a
metal part of the system chassis If a wrist strap is unavailable,
establish and maintain contact with the system chassis throughout
any procedures requiring ESD protection
The system board is equipped with three 184-pin DDR DIMM
sockets. DDR (Doub e Data Rate) is a type of SDRAM that
doub es the data rate through reading and writing at both the rising
and fa ing edge of each c ock. This effective y doub es the speed of
operation therefore providing two times faster data transfer.
Refer to chapter 1 (System Memory section) for detai ed
specification of the memory supported by the system board.
.
.
.
.
.
.
.
.
DDR 1
DDR 2
DDR 3

2
18
Hardware Installation
2.2.1 Installing the DIM Module
A DIM modu e simp y snaps into a DIMM socket on the system
board. Pin 1 of the DIM modu e must correspond with Pin 1 of the
socket.
1. Pu the “tabs” which are at the ends of the socket to the side.
2. Position the DIMM above the socket with the “notch” in the
modu e a igned with the “key” on the socket.
3. Seat the modu e vertica y into the socket. Make sure it is
comp ete y seated. The tabs wi ho d the DIMM in p ace.
Pin 1
Notch
Key
Tab Tab

2
Hardware Installation
19
2.3 CPU
2.3.1 Overview
The system board is equipped with a surface mount 478-pin CPU
socket. This socket is exc usive y designed for insta ing an Inte
processor.
2.3.2 Installing the CPU
1. Locate Socket 478 on the system board.
2. Un ock the socket by pushing the ever sideways, away from the
socket, then ifting it up to a 90o ang e. Make sure the socket is
ifted to at east this ang e otherwise the CPU wi not fit in proper y.
Lever

2
20
Hardware Installation
3. Position the CPU above the socket then a ign the go d mark on
the corner of the CPU (designated as pin 1) with pin 1 of the
socket.
Important:
Handle the CPU by its edges and avoid touching the pins
Go d mark
4. Inser t the CPU into the socket unti it is seated in p ace. The
CPU wi fit in on y one orientation and can easi y be inserted
without exerting any force.
Important:
Do not force the CPU into the socket Forcing the CPU into
the socket may bend the pins and damage the CPU
Pin 1
