KD631-C236/Q170

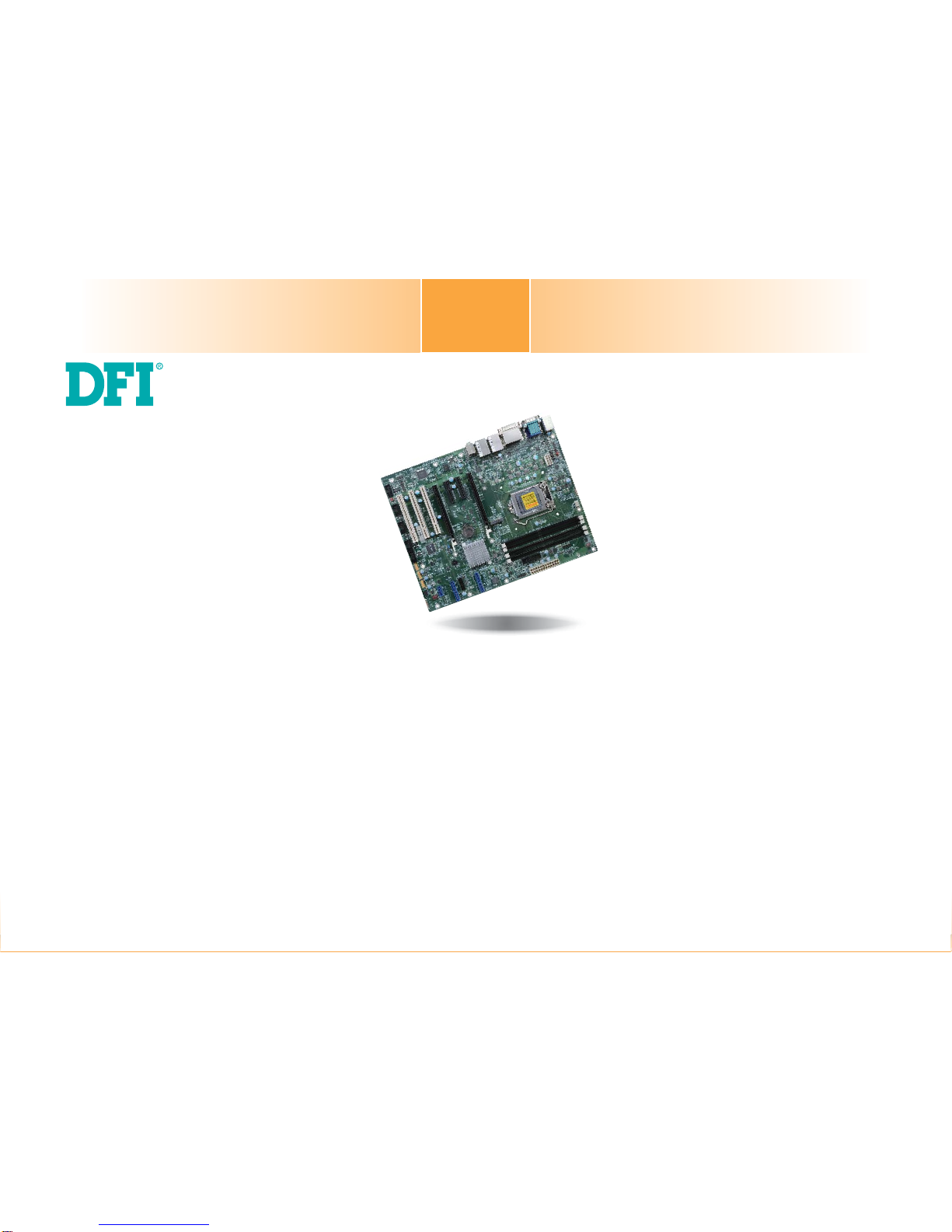

ATX Industrial Motherboard
User’s Manual
A47800826

2
Copyright
This publication contains information that is protected by copyright. No part of it may be re-
produced in any form or by any means or used to make any transformation/adaptation without
the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifi-
cally disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this docu-
ment. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions
or changes.
Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.
© 2018. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-
able protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.

3
Copyright............................................................................................................. 2
Trademarks ........................................................................................................2
FCC and DOC Statement on Class B.....................................................2
Warranty..............................................................................................................4
Static Electricity Precautions......................................................................4
Safety Measures ..............................................................................................4
About the Package.........................................................................................5
Optional Items..................................................................................................5
Before Using the System Board...............................................................5
Chapter 1 - Introduction .............................................................................6
Specifications ................................................................................................6
Features.......................................................................................................... 7
Chapter 2 - Hardware Installation................................................9
Board Layout................................................................................................. 9
System Memory............................................................................................ 9
Installing the DIMM Module ........................................................................ 10
CPU ................................................................................................................ 11
Installing the CPU....................................................................................... 12
Installing the Fan and Heat Sink.................................................................. 14
Block Diagram............................................................................................. 15
Mechanical Diagram.................................................................................. 16
Jumper Settings ......................................................................................... 16
Clear CMOS Data........................................................................................ 16
COM1/COM2 RS232/422/485 Select............................................................. 17
COM1/COM2 RS232/Power Select................................................................ 18
Rear Panel I/O Ports................................................................................. 19
PS/2 Keyboad/Mouse Port ........................................................................... 19
COM (Serial) Ports...................................................................................... 20
Graphics Interfaces..................................................................................... 21
RJ45 LAN Ports........................................................................................... 22
USB Ports................................................................................................... 22
Audio ......................................................................................................... 23
I/O Connectors ........................................................................................... 24
SATA (Serial ATA) Connectors...................................................................... 24
Digital I/O Connector.................................................................................. 24
Cooling Fan Connectors............................................................................... 25
Power Connectors....................................................................................... 25
Chassis Intrusion Connector ........................................................................ 26
Front Panel Connector ................................................................................ 26
Standby Power LED .................................................................................... 27
Expansion Slots .......................................................................................... 27
S/PDIF Connector ....................................................................................... 28
Battery....................................................................................................... 28
SMBus Connector ....................................................................................... 29
LAN LED Connector .................................................................................... 29
LPC Connector............................................................................................ 30
Connecting the EXT-RS232/RS485 Card to the Motherboard ......................... 30
Chapter 3 - BIOS Setup............................................................... 31
Overview....................................................................................................... 31
Insyde BIOS Setup Utility........................................................................ 32
Main .......................................................................................................... 32
Advanced ................................................................................................... 32
Security...................................................................................................... 45
Boot........................................................................................................... 45
Exit............................................................................................................ 46
Updating the BIOS .................................................................................... 47
Notice: BIOS SPI ROM ............................................................................. 47
Chapter 4 - Supported Software ................................................ 48
Chapter 5 - RAID .......................................................................... 61
Chapter 6 - Intel AMT Settings................................................... 65
Appendix A - Troubleshooting Checklist .................................... 79
Table of Contents

4
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product,
inability to use the product, unauthorized replacement or alteration of components and
product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper instal-
lation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-
stances, attempt to perform service, adjustments or repairs on the product, whether in or
out of warranty. It must be returned to the purchase point, factory or authorized service
agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial damages to the
product that has been modified or altered.
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in han-
dling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are
ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts
or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con-
nectors by their ends.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installa-
tion or servicing. After installation or servicing, cover the system chassis before
plugging the power cord.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other com-
ponents. Perform the upgrade instruction procedures described at an ESD worksta-
tion only. If such a station is not available, you can provide some ESD protection by
wearing an antistatic wrist strap and attaching it to a metal part of the system chas-
sis. If a wrist strap is unavailable, establish and maintain contact with the system
chassis throughout any procedures requiring ESD protection.

5
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
• One KD631-C236/Q170 motherboard
• One COM port cable (Length: 400mm, 2 x COM ports)
• One Serial ATA data cable (Length: 500mm)
• One I/O shield
• One M.2 standoff
• One M.2 screw for 2260
• One M.2 screw for 2280
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance to the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Optional Items
• USB 2.0 port cable (Length: 350/398mm)
• USB 3.0 port cable (Length: 320mm)
• COM port cable (Length: 400mm, 2 x COM ports)
• Serial ATA data cable (Length: 500mm, W/LOCK)
• Thermal solution (For 35W, Height: 37.3mm)
• Thermal solution (For 65W, Height: 72.8mm)
• Thermal solution (For 95W, Height: 69.3mm) (For KD631-C236)
• LPC EXT-RS232 module (4 x RS232 ports)
• LPC EXT-RS485 module (4 x RS485 ports)
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance to the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Before Using the System Board
Before using the system board, prepare basic system components.
If you are installing the system board in a new system, you will need at least the following
internal components.
• A CPU
• Memory module
• Storage devices such as hard disk drive, etc.
You will also need external system peripherals you intend to use which will normally include at
least a keyboard, a mouse and a video display monitor.

6
Chapter 1 - Introduction
Specifications
Chapter 1
Chapter 1 Introduction www.dfi.com
SYSTEM Processor KD631-C236:
Intel®Xeon®E3 v5/v6 LGA 1151 Socket Processors with TDP up to 80W
6th/7th Generation Intel®Core™/Pentium®/Celeron®LGA 1151 Socket Processors with TDP up to 65W
KD631-Q170:
6th/7th Generation Intel®Core™/Pentium®/Celeron®LGA 1151 Socket Processors with TDP up to 65W
Chipset KD631-C236:
Intel®C236 Chipset
KD631-Q170:
Intel®Q170 Chipset
Memory KD631-C236:
Four 288-pin ECC/Non-ECC DIMM up to 64GB
Dual Channel DDR4 2133/2400MHz
KD631-Q170:
Four 288-pin DIMM up to 64GB
Dual Channel DDR4 2133/2400MHz
BIOS Insyde SPI 128Mbit
GRAPHICS Controller Intel®HD Gen 9 Graphics
Feature OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display 1 x VGA VGA: resolution up to 1920x1200 @ 60Hz
1 x DVI-I (DVI-D signal) DVI-I (DVI-D signal): resolution up to 1920x1200 @ 60Hz
1 x HDMI HDMI: resolution up to 4096x2160 @ 24Hz
Triple
Displays
VGA + DVI-I (DVI-D signal) + HDMI
EXPANSION Interface 2 x PCIe x16 (1 x16 or 2 x8 signal) (Gen 3)
2 x PCIe x4 (Gen 3)
3 x PCI
1 x M.2 (PCIe x2) (KD631-C236 additionally supports Optane memory technology)
AUDIO Audio
Codec
Realtek ALC888S-VD2-GR
ETHERNET Controller 1 x Intel®I210AT PCIe (10/100/1000Mbps)
1 x Intel®I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Xeon and Core i7/i5 support iAMT)
REAR I/O Ethernet 2 x GbE (RJ-45)
USB 4 x USB 3.0
2 x USB 2.0
Serial 1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
PS/2 1 x PS/2 (mini-DIN-6)
Display 1 x VGA
1 x DVI-I (DVI-D signal)
1 x HDMI
Audio 1 x Line-out
1 x Mic-in
1 x Line-in (opt. by request, MOQ required)
INTERNAL I/O Serial 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch)
USB 2 x USB 3.0 (2.00mm pitch)
6 x USB 2.0 (2.54mm pitch) or
4 x USB 2.0 (2.54mm pitch) + 1 x Vertical USB 2.0 (type A) (available upon request)
Audio 1 x Front Audio Header
1 x S/PDIF
SATA KD631-C236:
6 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10
KD631-Q170:
5 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10
DIO 1 x 8-bit DIO
LPC 1 x LPC (supports LPC EXT-RS232/RS485 module)
SMBus 1 x SMBus
WATCHDOG
TIMER Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
SECURITY TPM Infineon TPM2.0/1.2 (optional)
POWER Type ATX
Connector 8-pin ATX 12V power
24-pin ATX power
RTC Battery CR2032 Coin Cell
OS SUPPORT Windows 10 IoT Enterprise 64-bit
ENVIRONMENT Temperature Operating: 0 to 60°C
Storage: -40 to 85°C
Humidity Operating: 5 to 90% RH
Storage: 5 to 90% RH
MECHANICAL Dimensions ATX Form Factor
305mm (12") x 244mm (9.6")
Height PCB: 1.6mm

7
Chapter 1
Features
• Watchdog Timer
The Watchdog Timer function allows your application to regularly “clear” the system at the set
time interval. If the system hangs or fails to function, it will reset at the set time interval so
that your system will continue to operate.
• DDR4
DDR4 deliver increased system bandwidth and improved performance. The advantages of
DDR4 are its higher bandwidth and its increase in performance at a lower power than DDR3/
DDR3L/DDR2. It is not compatible with DDR3/DDR3L/DDR2.
• Graphics
The integrated Intel®HD graphics engine delivers an excellent blend of graphics performance
and features to meet business needs. It provides excellent video and 3D graphics with out-
standing graphics responsiveness. These enhancements deliver the performance and compat-
ibility needed for today’s and tomorrow’s business applications. Supports 1 x VGA, 1 x DVI-I
(DVI-D signal) and 1 x HDMI interfaces for triple display outputs.
• PCI Express
PCI Express is a high bandwidth I/O infrastructure that possesses the ability to scale speeds
by forming multiple lanes. The x4 PCI Express lane supports transfer rate of 4 Gigabyte per
second (2 directions). The PCI Express architecture also supports high performance graphics
infrastructure by enhancing the capability of a PCIe x16 Gen 3 at 16GB/s bandwidth (8GB/s in
each direction).
• Serial ATA
Serial ATA is a storage interface that is compliant with SATA 1.0a specification. With speed of
up to 6Gb/s (SATA 3.0), it improves hard drive performance faster than the standard parallel
ATA whose data transfer rate is 100MB/s. The bandwidth of the SATA 3.0 will be limited by
carrier board design.
• Gigabit LAN
Two Intel®Gigabit LAN controllers (Intel®I210AT PCI Express Gigabit Ethernet controller and
Intel®I219LM Gigabit Ethernet Phy) support up to 1Gbps data transmission.
• Audio
The Realtek ALC888S-VD2-GR audio codec provides 5.1 channel High Definition audio output.
Important:
The 5V_standby power source of your power supply must support ≥720mA.
• Wake-On-USB
This function allows you to use a USB keyboard or USB mouse to wake up a system from the
S3 (STR - Suspend To RAM) state.
• RTC Timer
The RTC installed on the system board allows your system to automatically power-on on the
set date and time.
• ACPI STR
The system board is designed to meet the ACPI (Advanced Configuration and Power Interface)
specification. ACPI has energy saving features that enables PCs to implement Power Manage-
ment and Plug-and-Play with operating systems that support OS Direct Power Management.
ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM
function.
With the Suspend to RAM function enabled, you can power-off the system at once by pressing
the power button or selecting “Standby” when you shut down Windows®without having to go
through the sometimes tiresome process of closing files, applications and operating system.
This is because the system is capable of storing all programs and data files during the entire
operating session into RAM (Random Access Memory) when it powers-off. The operating ses-
sion will resume exactly where you left off the next time you power-on the system.
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the
5V_standby power source of your power supply must support ≥1.5A. For 3 or more
USB ports, the 5V_standby power source of your power supply must support ≥2A.
• Wake-On-LAN
This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. It
is supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power
Management Event) signal. However, if your system is in the Suspend mode, you can power-
on the system only through an IRQ or DMA interrupt.
Important:
The 5V_standby power source of your power supply must support ≥720mA.
Chapter 1 Introduction www.dfi.com

8
• Wake-On-PS/2
This function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system.
• Power Failure Recovery
When power returns after an AC power failure, you may choose to either power-on the system
manually or let the system power-on automatically.
• USB
The system board supports the new USB 3.0. It is capable of running at a maximum transmis-
sion speed of up to 5 Gbit/s (625 MB/s) and is faster than USB 2.0 (480 Mbit/s, or 60 MB/s)
and USB 1.1 (12Mb/s). USB 3.0 reduces the time required for data transmission, reduces
power consumption, and is backward compatible with USB 2.0. It is a marked improvement in
device transfer speeds between your computer and a wide range of simultaneously accessible
external Plug and Play peripherals.
Chapter 1
Important:
The 5V_standby power source of your power supply must support ≥720mA.
Chapter 1 Introduction www.dfi.com

www.dfi.com
9
Chapter 2 Hardware Installation
Chapter 2
Chapter 2 - Hardware Installation
Board Layout
1
29
32 30
31
29
32 30
31
1
2
8 7
2
22
1
2
1
S1 S3
1
29
COM 3
1
29
COM 2
Intel
C236/Q170
KD631-C236: C236
KD631-Q170: Q170
1
System
Fan 1
LPC
1
13
2
14
113
12 24
Standby
Power
LED
12
11
ATX Power
1
2
7
8LAN LED
1
System
Fan 2
1
USB 7-8
US
B 2.
0
210
210
9
1
2
10
USB 13-14
210
9
1
USB 9-10 or Optional
Vertical USB
210
1
29
COM 6
1
29
COM 5
1
29
COM 4
6
5
2
1
COM 2 RS232/Power
Select (JP4)
USB 3.0
1
19
10
11
USB 5-6
1
SATA 2
1
SATA 1
SATA 3.0
1
SATA 4
1
SATA 3
SATA 3.0
1
SATA 6
1
SATA 5 (KD631-C236
only)
SPI Flash BIOS
5 1
2SMBus
ASM1085
Clear CMOS
Data (JP9)
1
Buzzer
PCI 1
PCI 2
PCI 3
1
2
5
6
1
2
5
6
1
2
5
6
(JP1)
(JP2)
(JP3)
(JP3)
(JP2)
(JP1)
COM 2
RS232/422/485
Select
Nuvoton
NCT6106D
Battery
Battery
PCIe 4 (PCIe x16)
PCIe 3 (PCIe x4)
PCIe 2 (PCIe x4)
Chassis
Intrusion
1
S/PDIF
1
Realtek
ALC888S
LAN 2
USB 4
USB 3
USB 3.0
LAN 1
USB 2
USB 1
USB 3.0 Intel
I210AT
PCIe 1 (PCIe x16)
Front
Panel
Digital
I/O
19
21
DDR4_1
DDR4_2
DDR4_3
DDR4_4
CPU Fan
1
Socket LGA1151
PTN3355
ASM1442
62
6
2
6
5
1
6
5
2
1
COM 1
RS232/422/485
Select (JP5)
COM 1
RS232/422/485
Select (JP6)
+12V
Power
4
81 5
2
COM 1 RS232/Power
Select (JP8)
COM 1 RS232/422/485
Select (JP7)
Intel
I219LM
PS/2 KB/MS
USB 6
USB 5
USB 2.0
COM 1
VGA
M.2
29
10
1
Front Audio
19
DVI-I (DVI-D signal)
HDMI
Line-in (opt.)
Line-out
Mic-in
1
29
32 30
31
29
32 30
31
1
2
8 7
2
22
1
2
1
S1 S3
210
9
210
9
Battery
19
System Memory
Standby
Power LED
Features
Important:
Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in
boards, and other components. Perform installation procedures at an ESD workstation
only. If such a station is not available, you can provide some ESD protection by wear-
ing an antistatic wrist strap and attaching it to a metal part of the system chassis. If
a wrist strap is unavailable, establish and maintain contact with the system chassis
throughout any procedures requiring ESD protection.
Important:
When the Standby Power LED lit red, it indicates that there is power on the system
board. Power-off the PC then unplug the power cord prior to installing any devices.
Failure to do so will cause severe damage to the motherboard and components.
DDR4_2
DDR4_1
DDR4_4
DDR4_3
• The four DIMM sockets are divided into 2 channels:
Channel A - DDR4_1 and DDR4_2
Channel B - DDR4_3 and DDR4_4
• Supports
DDR4 2133/2400MHz when operating at 1.2V (VDDQ)
• Supports dual channel memory interface
• Supports up to 64GB system memory
Channel A
Channel B

www.dfi.com
10
Chapter 2 Hardware Installation
Chapter 2
The system board supports the following memory interface.
Single Channel (SC)
Data will be accessed in chunks of 64 bits (8B) from the memory channels.
Dual Channel (DC)
Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides
better system performance because it doubles the data transfer rate.
Installing the DIMM Module
Single Channel
DIMMs are on the same channel.
DIMMs in a channel can be identical or
completely different. However, we highly
recommend using identical DIMMs.
Not all slots need to be populated.
Dual Channel DIMMs of the same memory configuration
are on different channels.
Important:
You can populate either Channel A or Channel B first.
Note:
The system board used in the following illustrations may not resemble the actual
board. These illustrations are for reference only.
1. Make sure the PC and all other peripheral devices connected to it has been powered down.
2. Disconnect all power cords and cables.
3. Locate the DIMM socket on the system board.
4. Push the “ejector tabs” at the ends of the socket to the side.
Ejector tab
Ejector tab
5. Note how the module is keyed to the socket.
Key
Notch
