DFI PM10-EC User manual

PM10-EC
PM10-EL
Mainboard User’s Manual
Carte Mère Manuel Pour Utilisateur
System-Platine Benutzerhandbuch
Manual del Usuario de Placas Base
935-PM1001-000
61200226

Copyright
This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior
written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose.The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 2002. All Rights Reserved.
Trademarks
Windows®98, Windows®98 SE, Windows®ME, Windows®2000,
Windows NT®4.0 and Windows®XP are registered trademarks of
Microsoft Corporation. Intel®and Pentium®4 are registered
trademarks of Intel Corporation. VIA is a registered trademark of
VIA Technologies, Inc. Award is a registered trademark of Award
Software, Inc. Other trademarks and registered trademarks of
products appearing in this manual are the properties of their
respective holders.
Caution
To avoid damage to the system:
• Use the correct AC input voltage range.....
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.

Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by
the manufacturer.
• Dispose of used batteries according to the battery
manufacturer’s instructions.
Joystick or MIDI port:
• Do not use any joystick or MIDI device that requires more than
10A current at 5V DC. There is a risk of fire for devices that
exceed this limit.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
2. Shielded interface cables must be used in order to comply with
the emission limits.

4
Quick Setup Guide
1
Quick Setup
Guide
Table of Contents
Chapter 1
Quick Setup Guide.............................................
Chapter 2
English......................................................................
Chapter 3
Français.....................................................................
Chapter 4
Deutsch .........................................................................
Chapter 5
Español .........................................................................
5
23
40
58
76

5
1
Quick Setup Guide
Quick Setup
Guide
Chapter 1 - Quick Setup Guide
Table of Contents
1.1 Mainboard Layout...........................................................................................................
1.2 Jumpers.....................................................................................................................................
1.3 Ports and Connectors................................................................................................
1.4 Award BIOS Setup Utility.......................................................................................
6
8
9
19
Note:
The user’s manual in the provided CD contains detailed information
about the mainboard. If, in some cases, some information doesn’t
match those shown in this manual, this manual should always be
regarded as the most updated version.

6
Quick Setup Guide
1
Quick Setup
Guide
1.1 Mainboard Layout
PM10-EC
KB
Mouse
J13
USB 1
USB 2
PS/2 power select
(JP2)
J2
COM 1 (J5)
Parallel (J11)
VGA (CN1)
COM 2 (J6)
+12V power
(ATXP1)
AUX-in (J20)
CD-in (J21)
Game/MIDI (J23)
Line
out
(CN5)
Line
in
(CN4)
Mic
in
(CN3)
2
19
10 Front
audio (J22)
AC’97
PCI Standby Power LED
I/O
chip
AGP Slot
PCI Slot 1
PCI Slot 2
PCI Slot 3
IrDA (J10)
Wake-On-
LAN (J7) Wake-On-Ring
(J8)
VIA
VT8233ACD
BIOS
USB 3/4
(J5) RESET
SPEAKER HD-LED
J12
1
2
20
19
PWR-LED
G-SW
ATX-SW
G-LED
Chassis fan
(J17)
Battery
Clear CMOS
(JP1)
IDE 1 (J3)
IDE 2
(J4)
FDD
(J9)
1
10
11
20
ATX
power
(J19)
CPU fan (J16)
DIMM Standby
Power LED
DIMM 1
DIMM 2
VIA
P4M266
Socket 478
12
9
1
2
3
4
15
11 15
Square denotes pin 1

7
1
Quick Setup Guide
Quick Setup
Guide

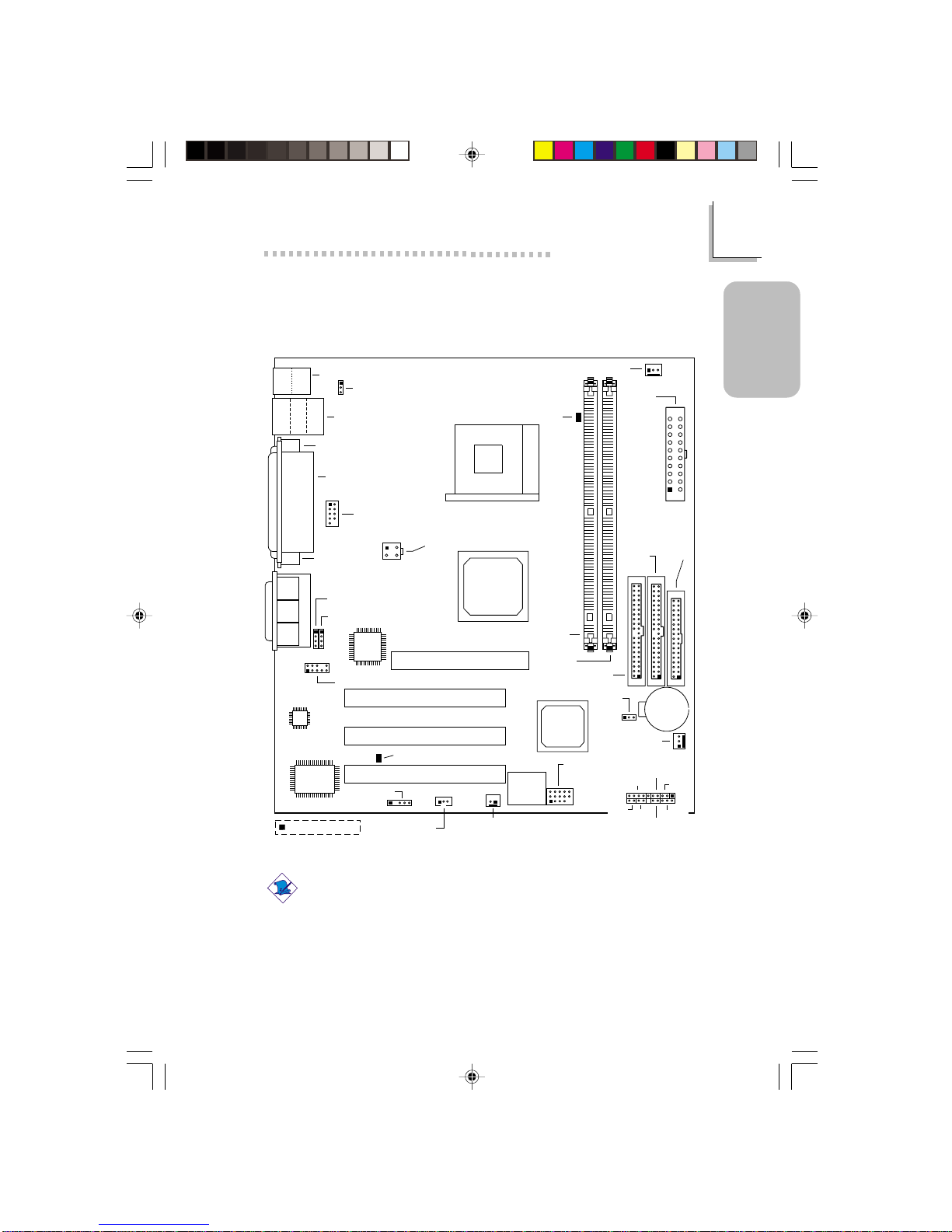

PM10-EL
KB
Mouse
J13
LAN
USB 1
USB 2
PS/2 power select
(JP2)
J2
COM 1 (J5)
Parallel (J11)
VGA (CN1)
COM 2 (J6)
+12V power
(ATXP1)
Realtek
RTL8100
AUX-in (J20)
CD-in (J21)
Game/MIDI (J23)
Line
out
(CN5)
Line
in
(CN4)
Mic
in
(CN3)
2
19
10
Front
audio (J22)
AC’97
PCI Standby Power LED
I/O
chip
AGP Slot
PCI Slot 1
PCI Slot 2
PCI Slot 3
IrDA (J10)
Wake-On-
LAN (J7) Wake-On-Ring
(J8)
VIA
VT8233ACD
BIOS
USB 3/4
(J5)
RESET
SPEAKER HD-LED
J12
1
2
20
19
PWR-LED
G-SW
ATX-SW
G-LED
Chassis fan
(J17)
Battery
Clear CMOS
(JP1)
IDE 1 (J3)
IDE 2
(J4)
FDD
(J9)
1
10
11
20
ATX
power
(J19)
CPU fan (J16)
DIMM Standby
Power LED
DIMM 1
DIMM 2
VIA
P4M266
Socket 478
12
9
1
2
3
4
15
11 15
Square denotes pin 1
Note:
The illustrations on the following pages are based on the PM10-EL
mainboard, which is the board that supports onboard LAN.

8
Quick Setup Guide
1
Quick Setup
Guide

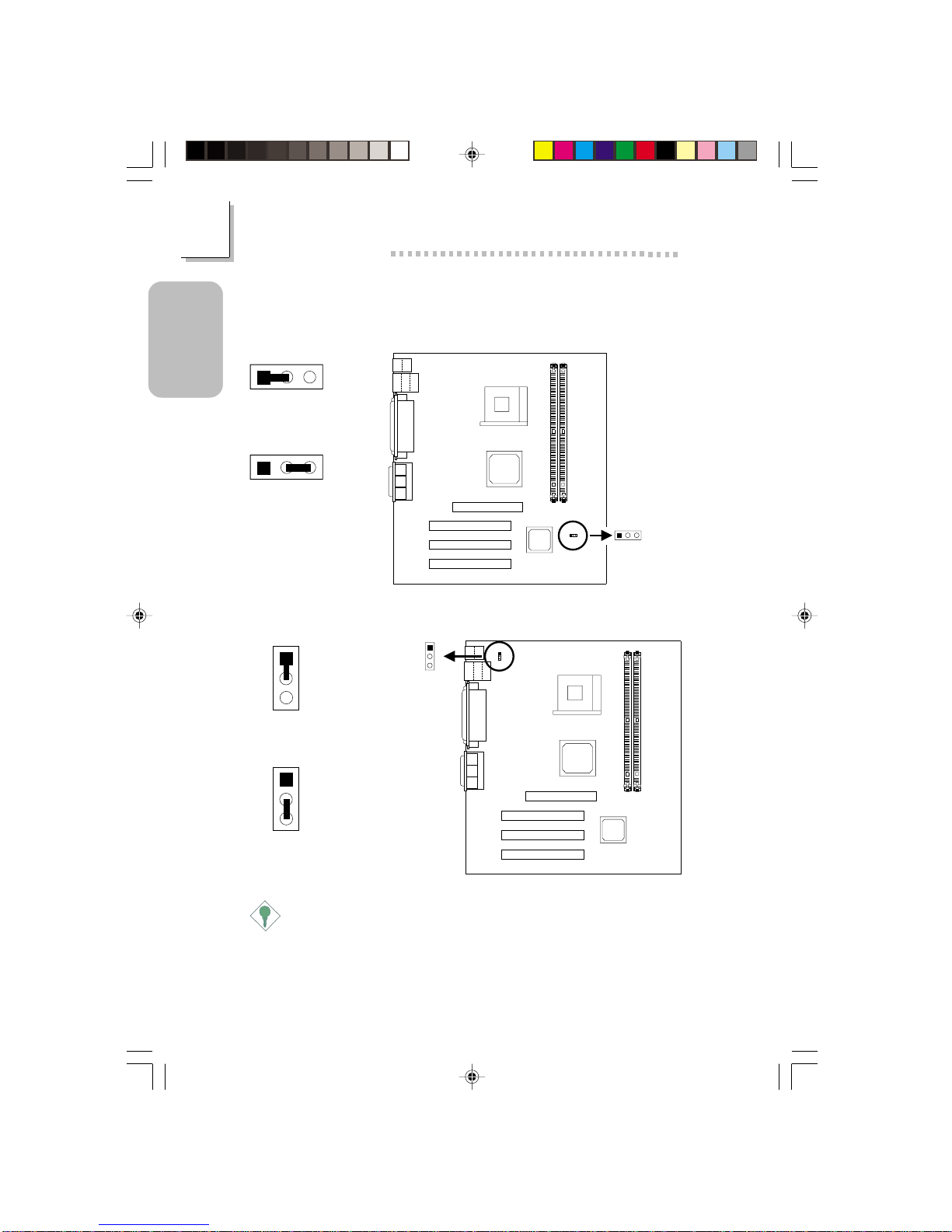

1.2.1 Clear CMOS Data - JP1
1.2 Jumpers
1.2.2 Power Select for PS/2 Keyboard/Mouse - JP2
Important:
The 5VSB power source of your power supply must support
≥ 720mA.
Clear CMOS
(JP1)
123
123
123
1-2 On: Normal
(default)
2-3 On:
Clear CMOS Data
PS/2 power
select (JP2)
1
2
3
1
2
3
1
2
3
1-2 On: Disable -
VCC power
2-3 On: Enable -
5VSB power (default)

9
1
Quick Setup Guide
Quick Setup
Guide

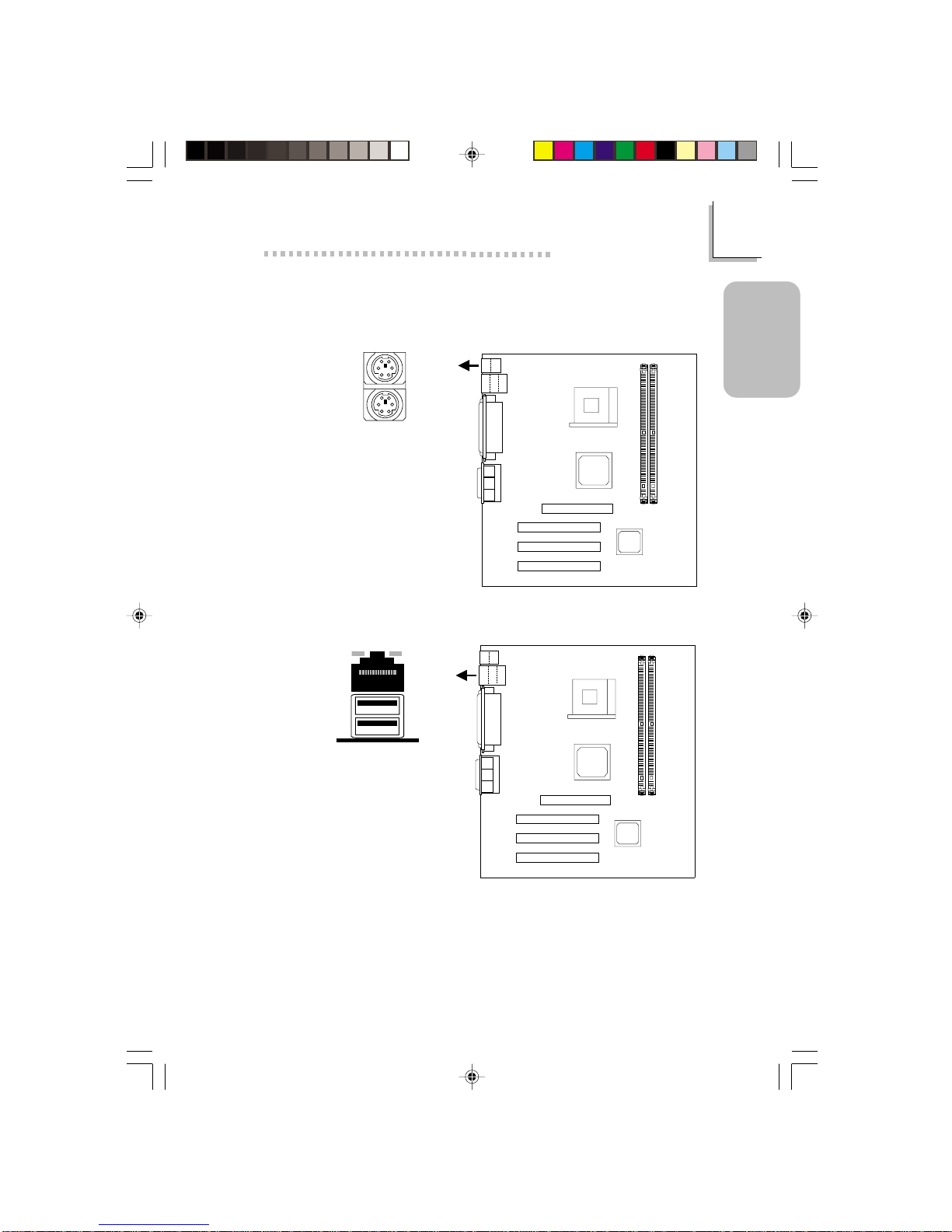

1.3 Ports and Connectors
1.3.1 PS/2 Mouse and PS/2 Keyboard Ports
Make sure to turn off your
computer prior to connecting
or disconnecting a mouse or
keyboard. Failure to do so
may damage the mainboard.
PS/2 Mouse
PS/2 Keyboard
1.3.2 RJ45 Fast-Ethernet Port (PM10-EL only)
RJ45 LAN
J13
J2

10
Quick Setup Guide
1
Quick Setup
Guide
The Wake-On-USB Keyboard/Mouse function, when enabled, allows a USB
keyboard/Mouse to wake up a system that is in the S3 (STR - Suspend
To RAM) state.

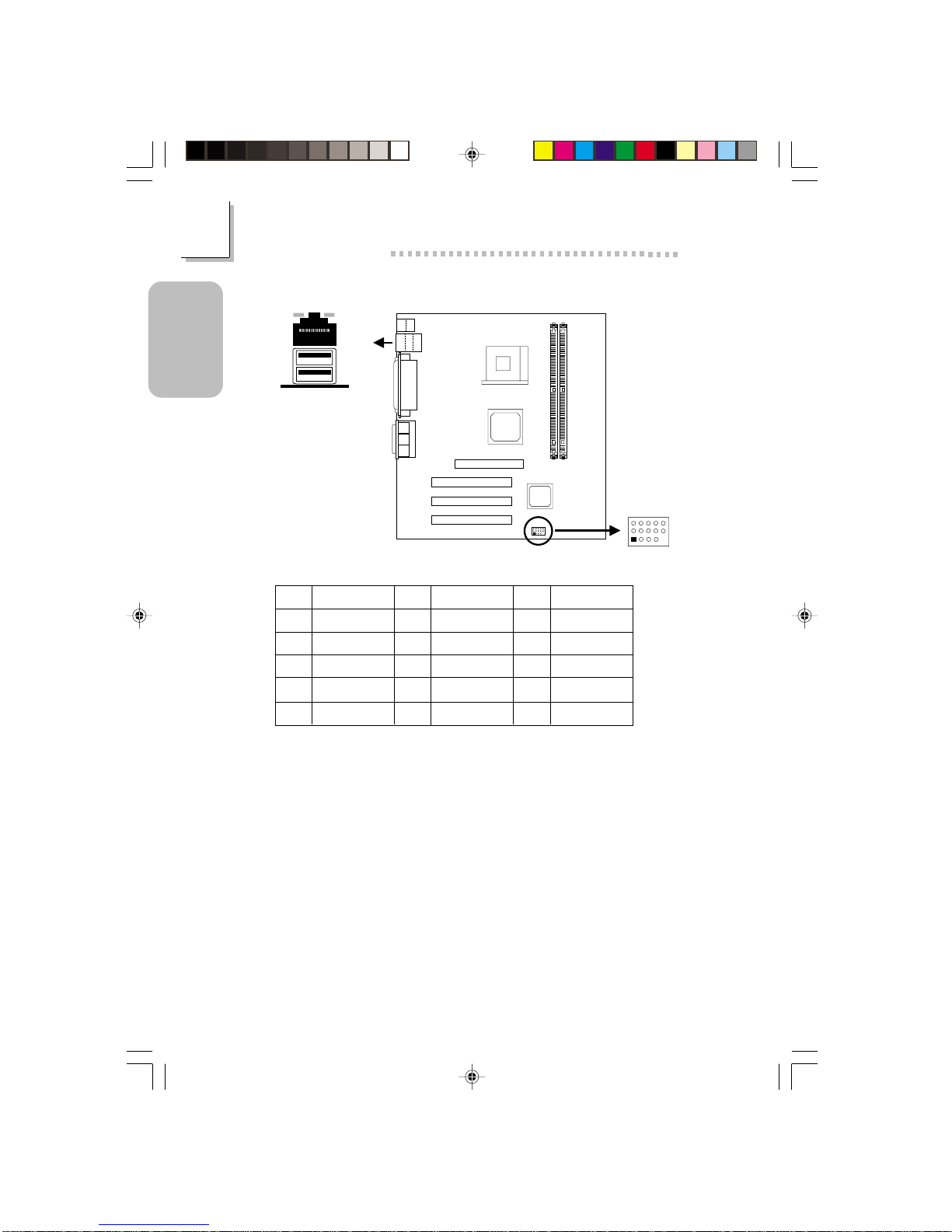

1.3.3 Universal Serial Bus Ports
J2
USB 3/4 (J5)
15
11 15
5
15
11
1
USB 2
USB 1
Pin
1
2
3
4
5
Function
VCC
UP5-
UP5+
Ground
Key
Pin
6
7
8
9
10
Function
VCC
UP6-
UP6+
Ground
N. C.
Pin
11
12
13
14
15
Function
Ground
Ground
UP5+
UP5-
VCC
Additional USB Ports (USB 3 and USB 4)

11
1
Quick Setup Guide
Quick Setup
Guide
1.3.5 Serial Ports
COM 1
Serial Port
1.3.4 Parallel Port
Parallel Port
Connect a serial port cable to J6 to use the COM 2 secondary serial
port.
J5
COM 2
(J6)
12
9
2
1
9
J11

12
Quick Setup Guide
1
Quick Setup
Guide
Front Audio (J22)
1 Mic+
2 Ground
3 Mic Power
4 AuD_Vcc (Avcc)
5 AuD_R_Out
6 AuD_R_Return (GND)
7N.C.
8 Key
9 AuD_L_Out
10 AuD_L_Return (GND)
1.3.7 Game/MIDI Port
1.3.6 VGA Port
VGA Port
CN1
2
19
10
Front
audio (J22)
2
1
10
9
J23
Game/MIDI Port
Line-out
Line-in
Mic-in

13
1
Quick Setup Guide
Quick Setup
Guide
1.3.8 Internal Audio Connectors
AUX-in
(J20)
CD-in
(J21)
1
2
3
4
1.3.9 Floppy and IDE Disk Drive Connectors
If you encountered problems while using an ATAPI CD-ROM drive that is
set in Master mode, please set the CD-ROM drive to Slave mode. Some
ATAPI CD-ROMs may not be recognized and cannot be used if
incorrectly set in Master mode.
IDE 1 (J3)
IDE 2
(J4)
FDD (J9)
FDD IDE
1
2
33
34
1
2
40 39
AUX-in / CD-in
1 Left audio channel
2 Ground
3 Ground
4 Right audio channel

14
Quick Setup Guide
1
Quick Setup
Guide

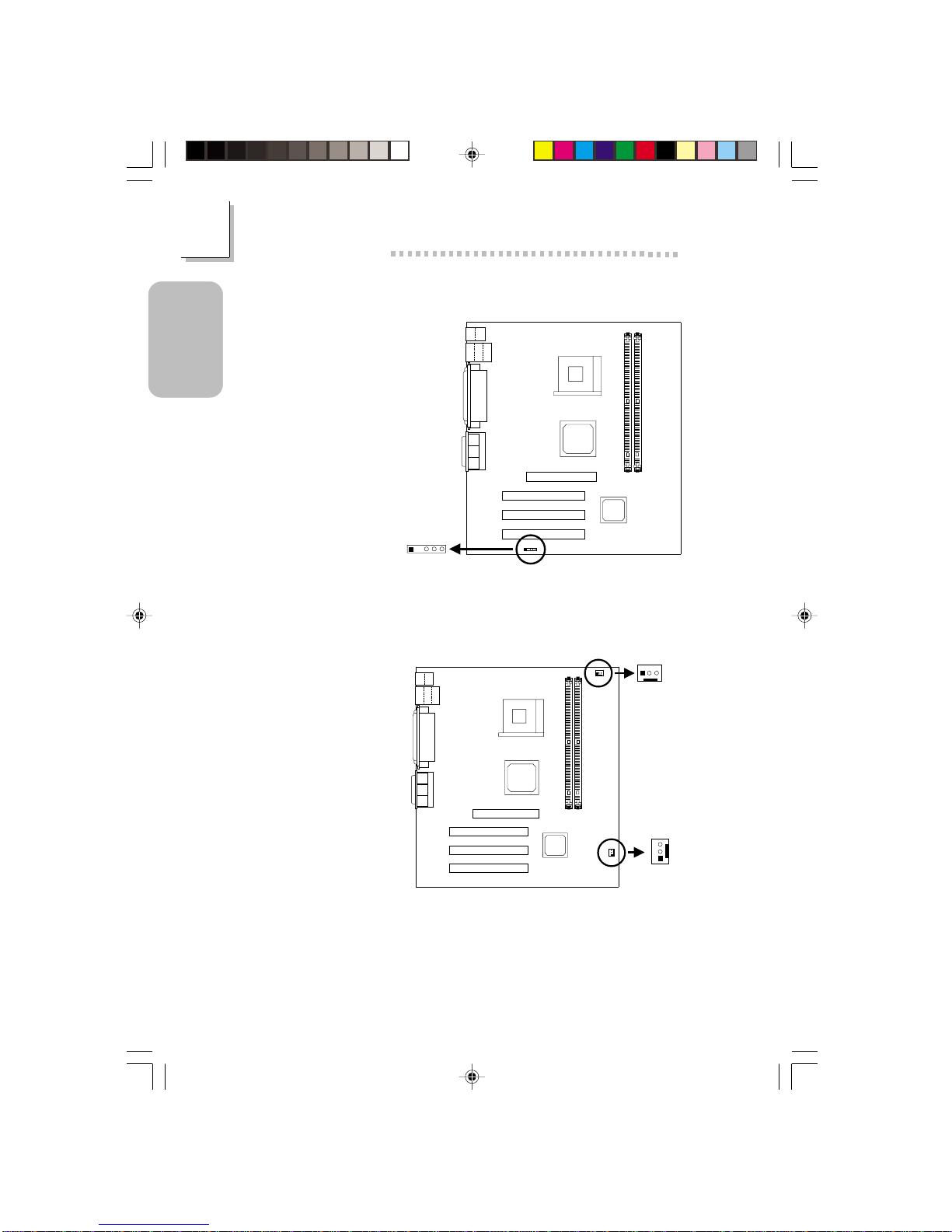

1.3.11 Fan Connectors
1.3.10 IrDA Connector
The sequence of the
pin functions on
some IrDA cable
may be reversed
from the pin function
defined on the
mainboard. Make
sure to connect the
cable to the IrDA
connector according
to their pin functions.
1 VCC
2N.C.
3 IRRX
4 Ground
5 IRTX
IrDA (J10)
12345
CPU fan
(J16)
321
Chassis fan
(J17)
3
2
1
1 Ground
2 12V
3 Sense
1 Ground
2 12V
3 Sense
CPU Fan
Chassis Fan

15
1
Quick Setup Guide
Quick Setup
Guide

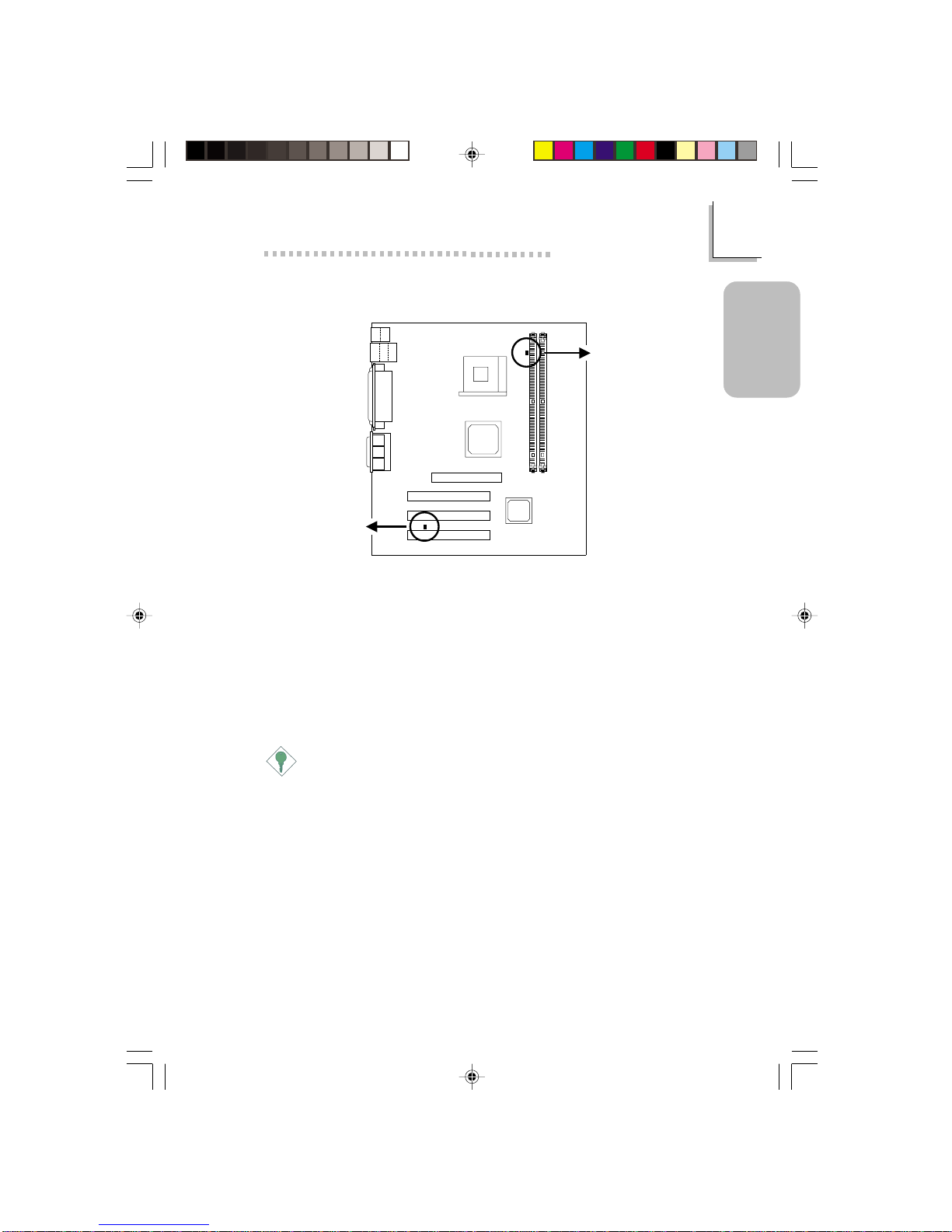

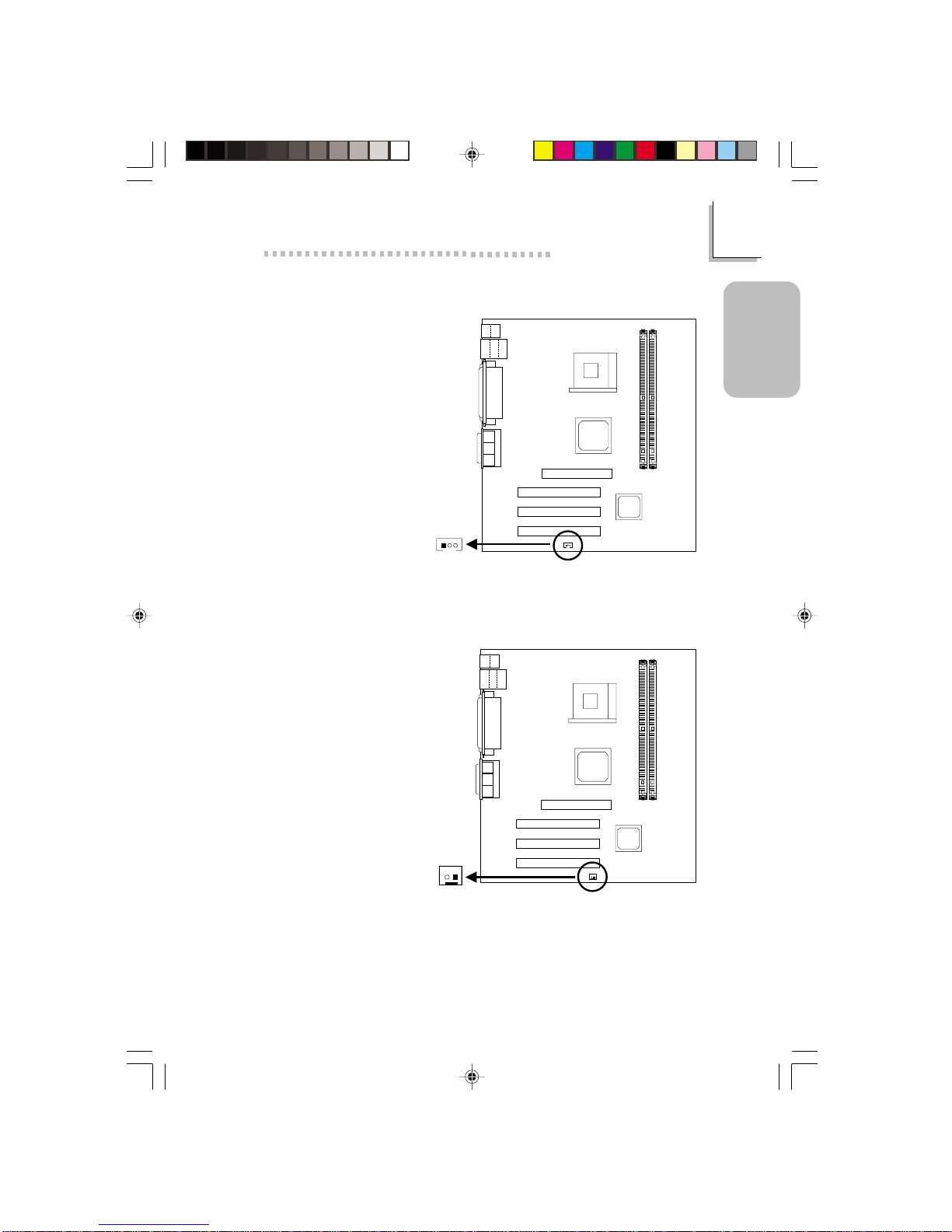

1.3.12 Wake-On-LAN Connector
The 5VSB power source of
your power supply must
support ≥720mA.
1 +5VSB
2 Ground
3 WOL
Wake-On-LAN (J7)
123
1.3.13 Wake-On-Ring Connector
1 Ground
2 RI#
If you are using a modem
add-in card, the 5VSB
power source of your
power supply must
support ≥720mA.
21
Wake-On-Ring (J8)

16
Quick Setup Guide
1
Quick Setup
Guide
1.3.14 Power Connectors
The systme board requires a minimum of 300W electric current.
1
10
11
20
ATX p ower
(J19)
+12V power
(ATXP1)
1
2
3
4
3
4
1
2
1 3.3V
2 3.3V
3 Ground
4 +5V
5 Ground
6 +5V
7 Ground
8 PW-OK
9 5VSB
10 +12V
11 3.3V
12 -12V
13 Ground
14 PS-ON
15 Ground
16 Ground
17 Ground
18 -5V
19 +5V
20 +5V
ATX Main Power 1 Ground
2 Ground
3 +12V
4 +12V
+12V Power
1
10
11
20

17
1
Quick Setup Guide
Quick Setup
Guide
1.3.15 DIMM and PCI Standby Power LEDs
DIMM Standby Power LED
This LED will turn red when the system’s power is on or when it is in the
Suspend state (Power On Suspend or Suspend to RAM). It will not light
when the system is in the Soft-Off state.
PCI Standby Power LED
This LED will turn red when the system is in the power-on, Soft-Off or
Suspend (Power On Suspend or Suspend to RAM) state.
Important:
Lighted LEDs serve as a reminder that you must power-off the
system then turn off the power supply’s switch or unplug the power
cord prior to installing any memory modules or add-in cards.
PCI Standby
Power LED
DIMM Standby
Power LED

18
Quick Setup Guide
1
Quick Setup
Guide
1.3.16 Front Panel Connectors
Note:
If your system did not boot-up and the Power/Standby LED did not
light after it was powered-on, it may indicate that the CPU or
memory module was not installed properly. Please make sure they
are properly inserted into their corresponding socket.
1
2
20
19
Front panel
connectors (J12)
Pin
3
5
14
16
8
10
18
20
7
9
13
15
17
19
2
4
6
HD-LED
(Primary/Secondary IDE LED)
G-LED
(Green LED)
ATX-SW
(ATX power switch)
G-SW
(Green switch)
RESET
(Reset switch)
SPEAKER
(Speaker connector)
PWR-LED
(Power/Standby LED)
Pin Assignment
HDD LED Power
HDD
Green LED Power
Ground
PWRBT+
PWRBT-
Ground
SMI
Ground
H/W Reset
Speaker Data
N. C.
Ground
Speaker Power
LED Power (+)
LED Power (+)
LED Power (-) or Standby Signal

19
1
Quick Setup Guide
Quick Setup
Guide
1.4 Award BIOS Setup Utility
1.4.1 Main Menu
1.4.2 Standard CMOS Features
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
Frequency/Voltage Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
Esc
F10 : Quit : Save & Exit Setup ↑↓→← : Select Item
Time, Date, Hard Disk Type...
The settings on the screen are for reference only.Your version may not be
identical to this one.
↑↓→← :Move
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
Date (mm:dd:yy)
Time (hh:mm:ss)
IDE Primary Master
IDE Primary Slave
IDE Secondary Master
IDE Secondary Slave
Drive A
Drive B
Video
Halt On
Base Memory
Extended Memory
Total Memory
F6:Fail-Safe Defaults F7:Optimized Defaults
F1:General Help
Tue, Jun 18 2002
4 : 35 : 5
Press Enter None
Press Enter None
Press Enter None
Press Enter None
1.44M, 3.5 in.
None
EGA/VGA
All, But Keyboard
640K
129024K
130048K
Item Help
Menu Level
Change the day, month,
year and century
Enter:Select
F5:Previous Values +/-/PU/PD:Value F10:Save ESC:Exit
!
!
!
!

20
Quick Setup Guide
1
Quick Setup
Guide
1.4.3 Advanced BIOS Features
1.4.4 Advanced Chipset Features
Phoenix - AwardBIOS CMOS Setup Utility
Advanced BIOS Features
Item Help
Menu Level
Allows you to choose
the VIRUS warning
feature for IDE Hard
Disk boot sector
protection. If this
function is enabled and
someone attempt to
write data into this
area, BIOS will show a
warning message on
screen and alarm beep
↑↓→← Move F1:General HelpEnter:Select +/-/PU/PD:Value F10:Save ESC:Exit
X
X
F6:Fail-Safe Defaults F7:Optimized DefaultsF5:Previous Values
The settings on the screen are for reference only.Your version may not be
identical to this one.
Virus Warning
CPU L1 & L2 Cache
CPU L2 Cache ECC Checking
Quick Power On Self Test
First Boot Device
Second Boot Device
Third Boot Device
Boot Other Device
Swap Floppy Drive
Boot Up Floppy Seek
Boot Up NumLock Status
Typematic Rate Setting
Typematic Rate (Chars/Sec)
Typematic Delay (Msec)
Security Option
OS Select For DRAM > 64MB
Video BIOS Shadow
Small Logo(EPA) Show
Disabled
Enabled
Enabled
Enabled
Floppy
HDD-0
LS120
Enabled
Disabled
Disabled
On
Disabled
6
250
Setup
Non-OS2
Enabled
Enabled
Phoenix - AwardBIOS CMOS Setup Utility
Advanced Chipset Features
The settings on the screen are for reference only.Your version may not be
identical to this one.
Item Help
Menu Level
↑↓→← Move F6:Fail-Safe Defaults F7:Optimized Defaults F1:General HelpEnter:Select
F5:Previous Values
+/-/PU/PD:Value F10:Save ESC:Exit
DRAM Clock/Drive Control
AGP & P2P Bridge Control
CPU & PCI Bus Control
Memory Hole
System BIOS Cacheable
Video RAM Cacheable
VGA Share Memory Size
FB Address Conversion
FB Page Close Prediction
Press Enter
Press Enter
Press Enter
Disabled
Disabled
Disabled
32M
Disabled
Disabled
!
!
!
