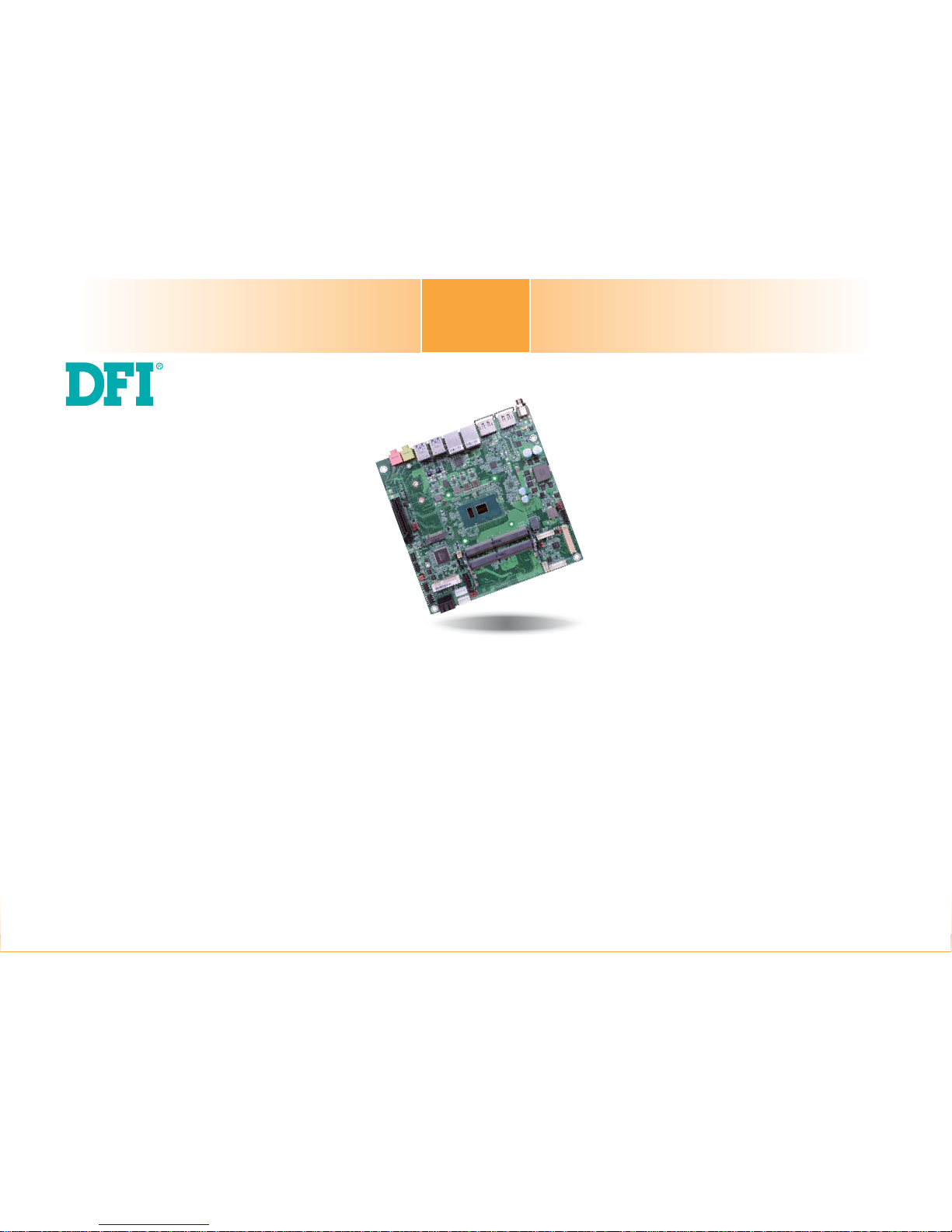

KU171/KU173
Mini-ITX Industrial Motherboard
User’s Manual
A46600838

2
Copyright
This publication contains information that is protected by copyright. No part of it may be re-
produced in any form or by any means or used to make any transformation/adaptation without
the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifi-
cally disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this docu-
ment. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions
or changes.
Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.
© 2018. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-
able protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.

3
Copyright.............................................................................................................2
Trademarks........................................................................................................2
FCC and DOC Statement on Class B.....................................................2
Warranty..............................................................................................................4
Static Electricity Precautions......................................................................4
Safety Measures..............................................................................................4
About the Package.........................................................................................5
Optional Items..................................................................................................5
Before Using the System Board...............................................................5
Chapter 1 - Introduction.............................................................................6
Specifications ................................................................................................6
Features..........................................................................................................7
Chapter 2 - Hardware Installation................................................8
Board Layout.................................................................................................8
Block Diagram...............................................................................................8
System Memory............................................................................................9
Installing the SODIMM Module....................................................................10

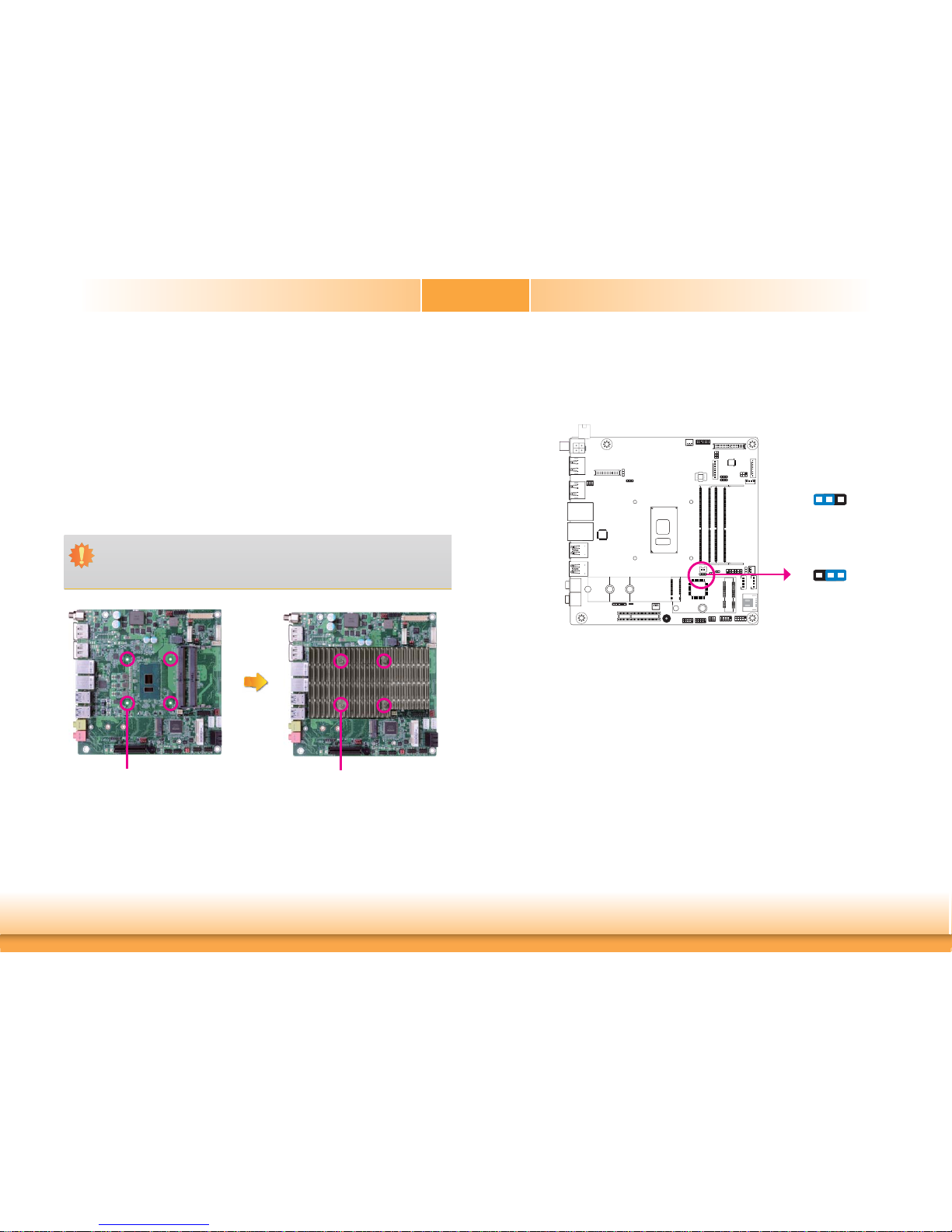

Installing the Heat Sink...........................................................................11
Jumper Settings .........................................................................................11
Clear CMOS................................................................................................11
Auto Power-on Select..................................................................................12

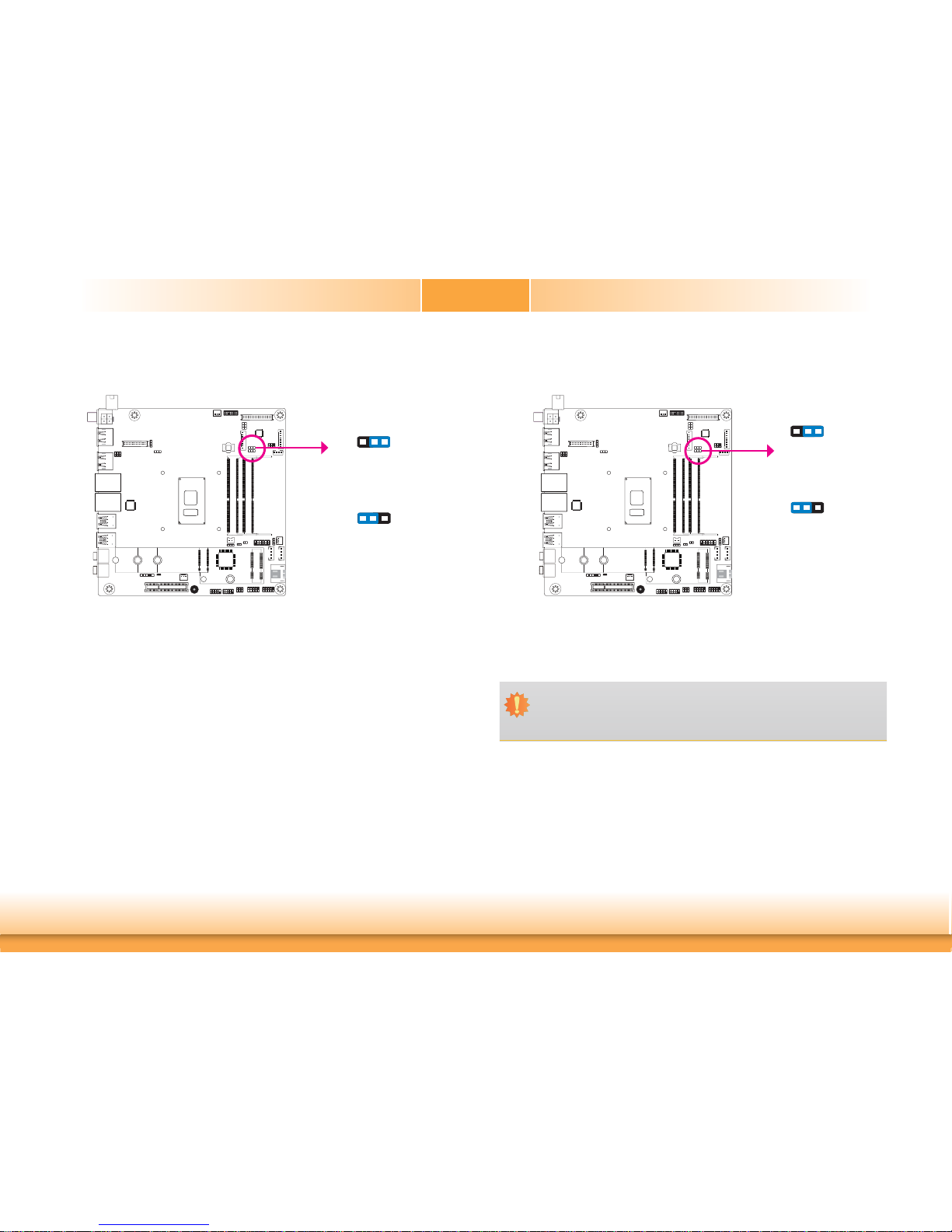

LVDS Panel Power Select ............................................................................12
LCD/Inverter Power Select..........................................................................13
LVDS Backilight Power Select ...................................................................... 13
eDP Panel Power Select (Optional)..............................................................14
eDP Inverter Power Select (Optional)...........................................................14
eDP Backilight Power Select (Optional)........................................................ 15
COM 1 RS232/Power Select.........................................................................15
Rear Panel I/O Ports.................................................................................16
12V DC-in (KU171)/9~36V DC-in (KU173)....................................................16

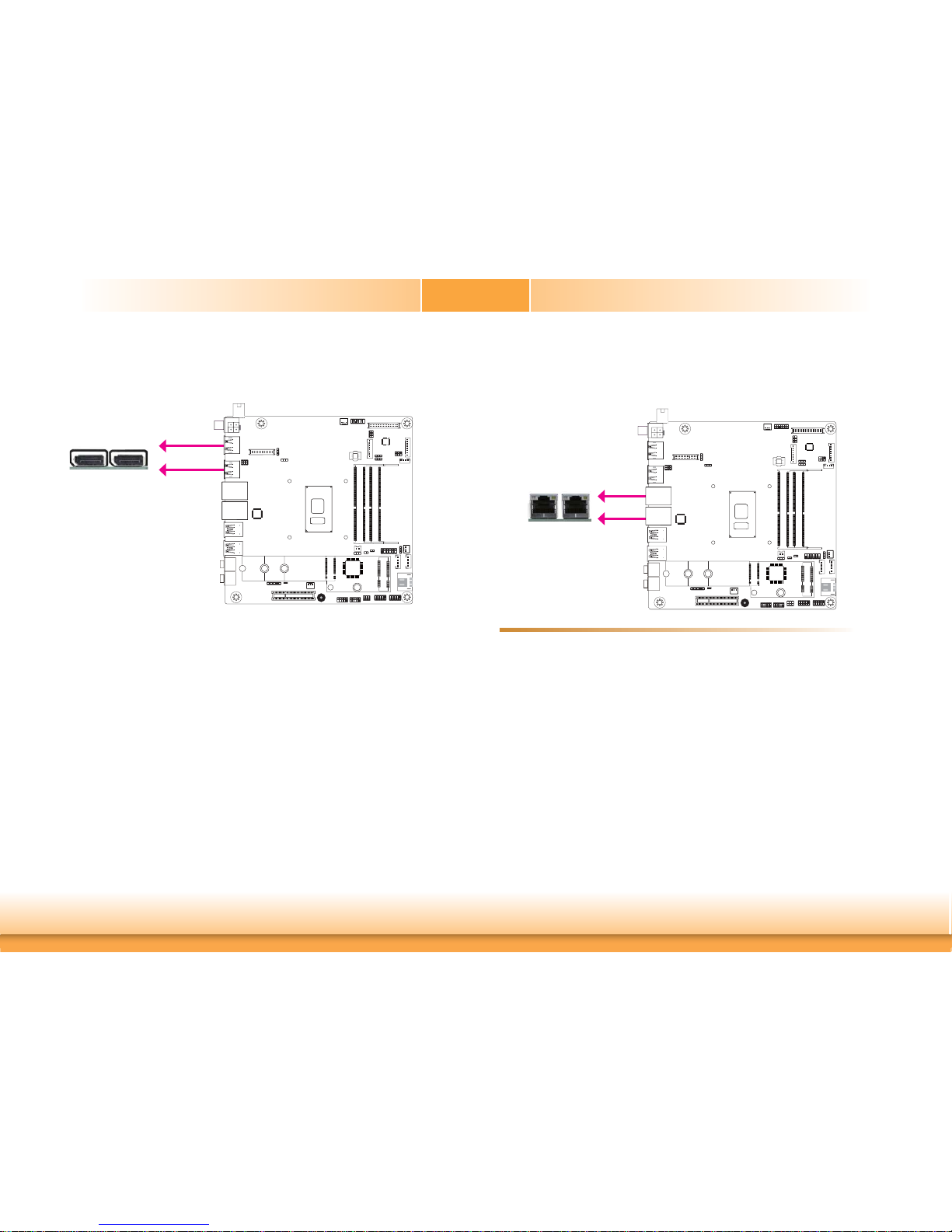

Graphics Interfaces.....................................................................................17
RJ45 LAN Ports...........................................................................................17

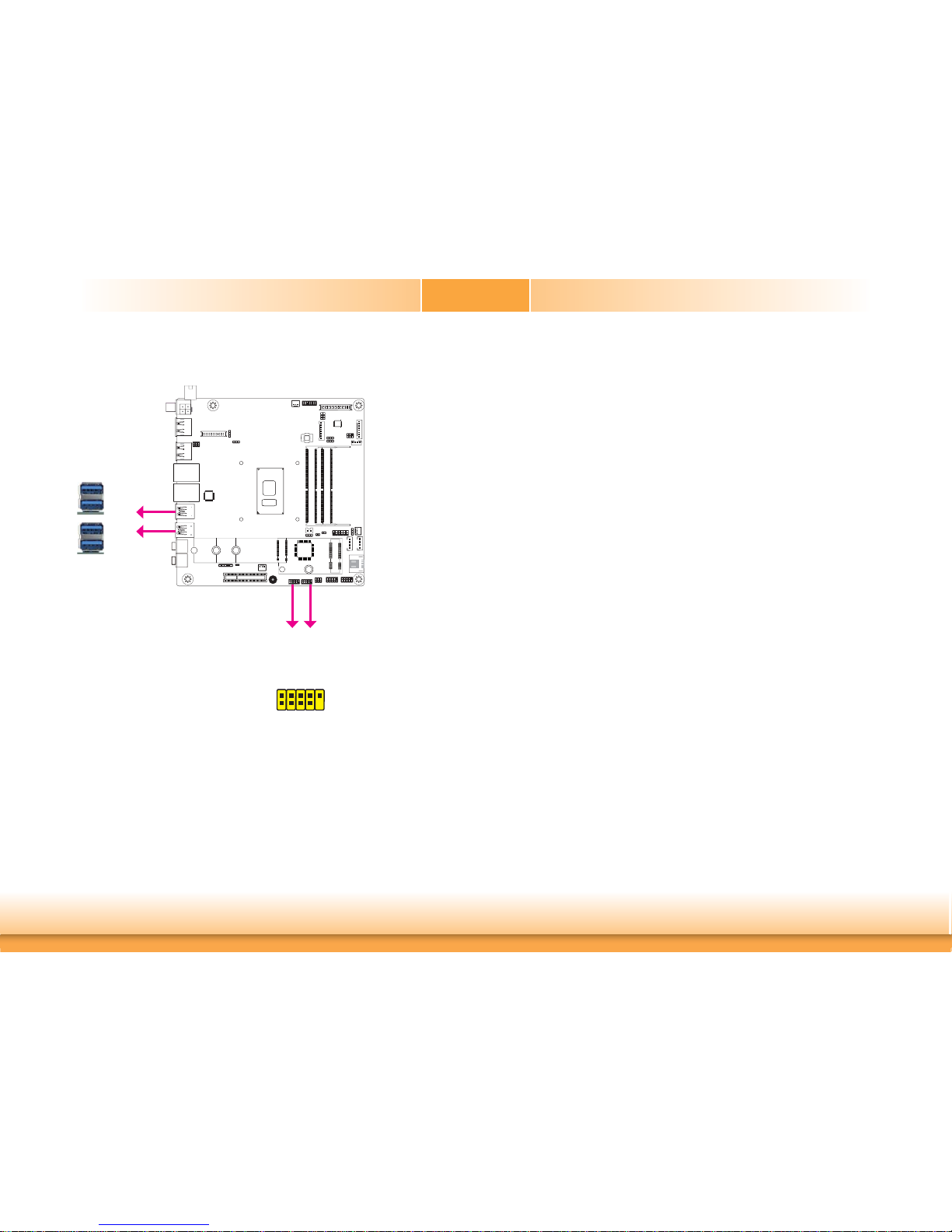

USB Ports...................................................................................................18
Audio.........................................................................................................19
I/O Connectors........................................................................................... 19
Digital I/O and Power Connectors................................................................19

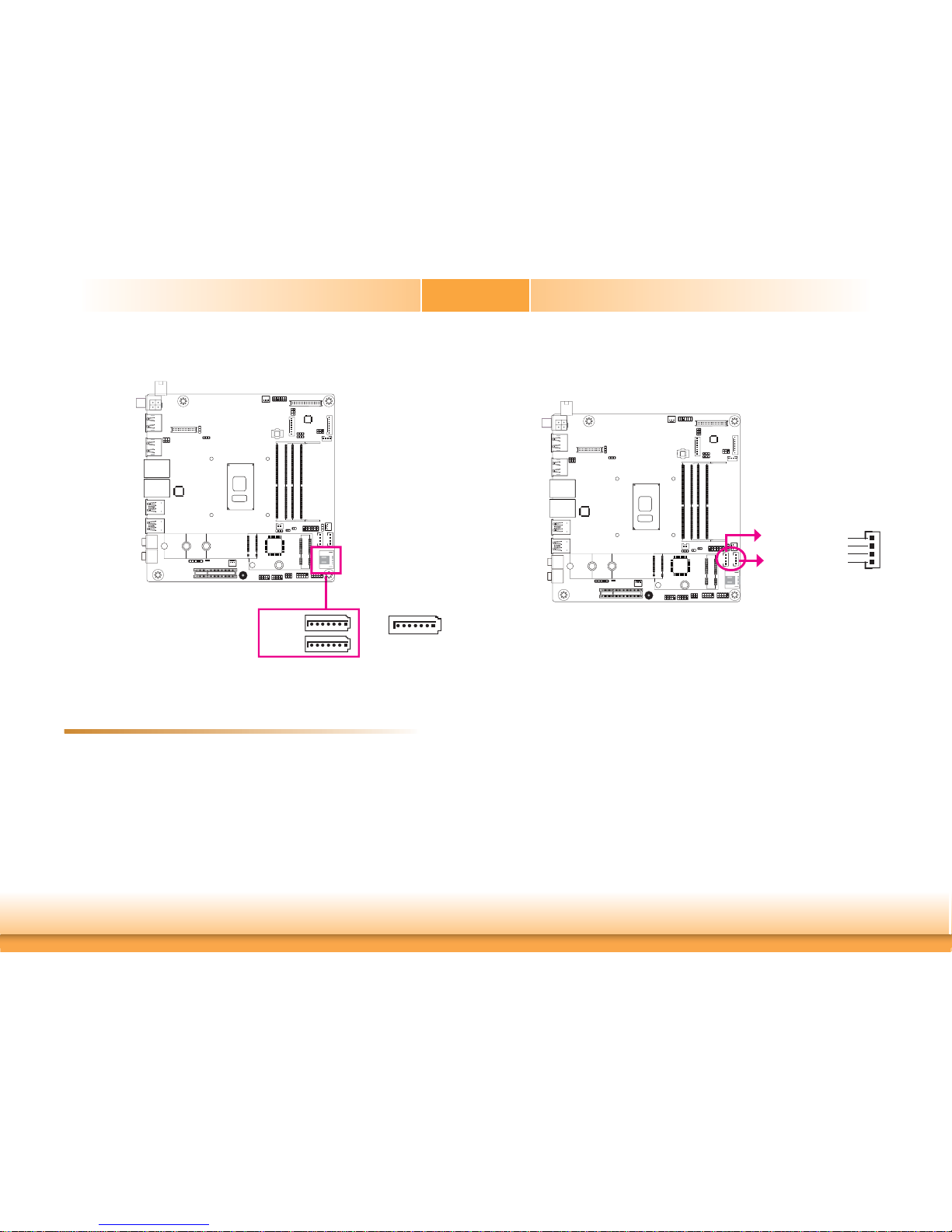

SATA (Serial ATA) Connectors...................................................................... 20
SATA (Serial ATA) Power Connectors............................................................20
COM (Serial) Ports......................................................................................21
Front Panel Connector ................................................................................22
Cooling Fan Connectors...............................................................................22
LVDS LCD Panel Connector .........................................................................23
LCD/Inverter Power Connector....................................................................23
S/PDIF Connector.......................................................................................24
SMBus Connector .......................................................................................24
Expansion Slots..........................................................................................25
Chassis Intrusion Connector........................................................................25
eDP Connector (Optional) ...........................................................................26
LPC Connector............................................................................................27
Standby Power LED....................................................................................27
Battery....................................................................................................... 28
Chapter 3 - BIOS Setup............................................................... 29
Overview.......................................................................................................29
Insyde BIOS Setup Utility........................................................................ 30
Main ..........................................................................................................30
Advanced...................................................................................................30
Security......................................................................................................43
Boot...........................................................................................................43
Exit............................................................................................................44
Updating the BIOS....................................................................................45
Notice: BIOS SPI ROM.............................................................................45
Chapter 4 - Supported Software...........................................................46
Chapter 5 - RAID..........................................................................................54
Chapter 6 - Intel AMT Settings..............................................................58
Appendix A - Troubleshooting Checklist............................................64
Table of Contents

4
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product,
inability to use the product, unauthorized replacement or alteration of components and
product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper instal-
lation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-
stances, attempt to perform service, adjustments or repairs on the product, whether in or
out of warranty. It must be returned to the purchase point, factory or authorized service
agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial damages to the
product that has been modified or altered.
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in han-
dling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are
ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts
or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con-
nectors by their ends.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installation or servic-
ing. After installation or servicing, cover the system chassis before plugging the power
cord.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other com-
ponents. Perform the upgrade instruction procedures described at an ESD worksta-
tion only. If such a station is not available, you can provide some ESD protection by
wearing an antistatic wrist strap and attaching it to a metal part of the system chas-
sis. If a wrist strap is unavailable, establish and maintain contact with the system
chassis throughout any procedures requiring ESD protection.

5
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
• One KU171/KU173 motherboard
• One COM port cable (Length: 250mm, 1 x COM port)
• One Serial ATA data with power cable (Length: 300mm)
• One Heat sink (Height: 25mm)
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance to the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Optional Items
• USB 2.0 port cable (Length: 200mm)
• COM port cable (Length: 250mm, 1 x COM port)
• Serial ATA data with power cable (Length: 300mm)
• Power adapter (100W, 12V, Level 6)
• Power adapter (120W, 19V)
• I/O shield
• Heat sink (Height: 32mm)
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance to the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Before Using the System Board
Before using the system board, prepare basic system components.
If you are installing the system board in a new system, you will need at least the following
internal components.
• Memory module
• Storage devices such as hard disk drive, etc.
You will also need external system peripherals you intend to use which will normally include at
least a keyboard, a mouse and a video display monitor.

6
Chapter 1 - Introduction
Specifications
Chapter 1
Chapter 1 Introduction www.dfi.com
SYSTEM Processor 7th Generation Intel®CoreTM Processors, BGA 1356 Socket
Intel®CoreTM i7-7600U Processor, Dual Core, 4M Cache, 2.80 GHz (3.90 GHz), 15W
Intel®CoreTM i5-7300U Processor, Dual Core, 3M Cache, 2.60 GHz (3.50 GHz), 15W
Intel®CoreTM i3-7100U Processor, Dual Core, 3M Cache, 2.40 GHz, 15W
Intel®Celeron®Processor 3965U, Dual Core, 2M Cache, 2.20 GHz, 15W
Memory Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 1866/2133 MHz
BIOS Insyde SPI 128Mbit
GRAPHICS Controller Intel®HD Graphics GT Series
Feature OpenGL 4.4, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display 1 x LVDS/eDP (eDP available upon request)
2 x DP++
LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz
DP: resolution up to 4096x2304 @ 60Hz
eDP: resolution up to 4096x2304 @ 60Hz
Triple
Displays LVDS + DP++ + DP++
eDP + DP++ + DP ++
EXPANSION Interface 1 x PCIe x4 (Gen 3)
1 x Full-size Mini PCIe (PCIe/USB)
1 x M.2 M Key (2242/2260/2280) (PCIe/SATA)
AUDIO Audio
Codec Realtek ALC888S-VD2-GR
ETHERNET Controller 1 x Intel®I210AT PCIe (10/100/1000Mbps)
1 x Intel®I219LM PCIe with iAMT11.6 (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
REAR I/O Ethernet 2 x GbE (RJ-45)
USB 4 x USB 3.0
Display 2 x DP++
Audio 1 x Line-out
1 x Mic-in
INTERNAL
I/O Serial 1 x RS-232/422/485 (RS-232 w/ power) (2.0mm pitch) 1 x RS-232 (2.0mm pitch)
USB 4 x USB 2.0 (2.0mm pitch)
Display 1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power
1 x eDP LCD Panel Connector (available upon request)
Audio 1 x S/PDIF
SATA 2 x SATA 3.0 (up to 6Gb/s)
2 x SATA Power
RAID 0/1/5
DIO 1 x 8-bit DIO
LPC 1 x LPC
SMBus 1 x SMBus
WATCHDOG
TIMER Output &
Interval System Reset, Programmable via Software from 1 to 255 Seconds
SECURITY TPM Available Upon Request
POWER Type Single 12V +/-10% DC (KU171)
Wide Range 9~36V (KU173)
Connector DC-in Jack
Right Angle Connector (4-pin) (available upon request)
Vertical Type Connector (4-pin) (available upon request)
RTC Battery CR2032 Coin Cell
OS SUPPORT Microsoft
/Linux Windows 10 IoT Enterprise 64-bit
Debian 8 (with VESA graphic driver)
CentOS 7 (with VESA graphic driver)
Ubuntu 15.10 (Intel graphic driver available)
ENVIRONMENT Temperature Operating: 0 to 60°C / -20 to 70°C
Storage: -40 to 85°C
Humidity Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF KU171 : 433,836 hrs @ 25°C; 252,953 hrs @ 45°C; 161,770 hrs @ 60°C
KU173 : 416,214 hrs @ 25°C; 241,863 hrs @ 45°C; 154,716 hrs @ 60°C
Calculation model: Telcordia Issue 2
Environment: GB, GC – Ground Benign, Controlled
MECHANICAL Dimensions Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
Height PCB: 1.6mm
Top Side: 16.5mm
Bottom Side: 3.5mm

7
Chapter 1
Chapter 1 Introduction www.dfi.comChapter 1 Introduction
Features
• Watchdog Timer
The Watchdog Timer function allows your application to regularly “clear” the system at the set
time interval. If the system hangs or fails to function, it will reset at the set time interval so
that your system will continue to operate.
• DDR4
DDR4 delivers increased system bandwidth and improves performance. The advantages of
DDR4 provide an extended battery life and improve the performance at a lower power than
DDR3/DDR2.
• Graphics
The integrated Intel®HD graphics engine delivers an excellent blend of graphics performance
and features to meet business needs. It provides excellent video and 3D graphics with out-
standing graphics responsiveness. These enhancements deliver the performance and compat-
ibility needed for today’s and tomorrow’s business applications. Supports 1 LVDS/eDP (eDP
available upon request) and 2 DP++ interfaces for triple display outputs.
• PCI Express
PCI Express is a high bandwidth I/O infrastructure that possesses the ability to scale speeds
by forming multiple lanes.
• Serial ATA
Serial ATA is a storage interface that is compliant with SATA 1.0a specification. With speed of
up to 6Gb/s (SATA 3.0), it improves hard drive performance faster than the standard parallel
ATA whose data transfer rate is 100MB/s.
• Gigabit LAN
Intel®I210AT PCI Express Gigabit Ethernet and Intel®I219LM with iAMT11.6 Gigabit Ethernet
Phy controllers support up to 1Gbps data transmission.
• Audio
The Realtek ALC888S-VD2-GR audio codec provides 7.1+2 channel High Definition audio out-
put.
www.dfi.com
• Wake-On-LAN
This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. It is
supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power Man-
agement Event) signal. However, if your system is in the Suspend mode, you can power-on
the system only through an IRQ or DMA interrupt.
• Wake-On-USB (optional)
This function allows you to use a USB keyboard or USB mouse to wake up a system from the
S3 (STR - Suspend To RAM) state.
• ACPI STR
The system board is designed to meet the ACPI (Advanced Configuration and Power Interface)
specification. ACPI has energy saving features that enables PCs to implement Power Manage-
ment and Plug-and-Play with operating systems that support OS Direct Power Management.
ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM
function.
With the Suspend to RAM function enabled, you can power-off the system at once by pressing
the power button or selecting “Standby” when you shut down Windows®without having to go
through the sometimes tiresome process of closing files, applications and operating system.
This is because the system is capable of storing all programs and data files during the entire
operating session into RAM (Random Access Memory) when it powers-off. The operating ses-
sion will resume exactly where you left off the next time you power-on the system.
• RTC Timer
The RTC installed on the system board allows your system to automatically power-on on the
set date and time.
• Power Failure Recovery
When power returns after an AC power failure, you may choose to either power-on the system
manually or let the system power-on automatically.
• USB
The system board supports the new USB 3.0. It is capable of running at a maximum transmis-
sion speed of up to 5 Gbit/s (625 MB/s) and is faster than USB 2.0 (480 Mbit/s, or 60 MB/s)
and USB 1.1 (12Mb/s). USB 3.0 reduces the time required for data transmission, reduces
power consumption, and is backward compatible with USB 2.0. It is a marked improvement in
device transfer speeds between your computer and a wide range of simultaneously accessible
external Plug and Play peripherals.

www.dfi.com
8
Chapter 2 Hardware Installation
Chapter 2
Chapter 2 - Hardware Installation
Board Layout
• KU171: Single 12V +/-10% DC
KU173: Wide Range 9~36V
• The eDP connector is optional. Please contact your sales representative for more informa-
tion.
• JP1, JP2 and JP3 will work when the eDP connector is populated on the system board.
3
USB 3-4
USB 3.0
Nuvoton
NCT6106D
USB 1-2
USB 3.0
Intel
I210AT
Line-out
3
3
DC-in
4-pin Vertical Type (optional)
4-pin
Right Angle
(optional)
2
1
39
40 LVDS LCD Panel
LVDS Panel Power
Select (JP6)
12
56
PTN3460
1
25 6
SMBus
1
Digital I/O
Power
1
2
1
13
14
LPC
LCD/Inverter
Power Select
(JP8)
LCD/Inverter Power
SPI Flash BIOS 1
eDP (optional) 29
302
1
6
5
1
2
eDP Backlight Power
Select (JP2) (optional)
eDP Panel Power
Select (JP1) (optional)
eDP Inverter Power
Select (JP3) (optional)
1
1
COM 1 COM 2
1
2
91
2
9
6
51
2
Buzzer
1
S/PDIF Standby
Power LED 1System
Fan 2
PCIe 1 (PCIe x4)
M.2 M Key Mini PCIe
USB 8-9USB 6-7
1
210
1
210
USB 2.0
1
2
11
12 Front Panel
1System Fan 1
1
1
Chassis
Intrusion
Clear CMOS (JP4)1
12
Battery
Intel
BGA 1356
DDR4_1 SODIMM
DDR4_2 SODIMM
1
CPU Fan
SATA Power 0
1
4
1
4
LVDS Backlight Power Select (JP7)
DP++ 1
DP++ 2
LAN 1
LAN 2
Mic-in
Digital I/O
SATA Power 1
COM 1 RS232/Power
Select (JP5)
SATA 0-1
SATA 3.0
Auto Power-on
Select (JP9)
1
Flash Descriptor Security
Override
1
1
Block Diagram
Core
i7/i5/i3
RS-232/422/485 1x
RS-232 1x
H/W Monitor Super IO
with WDT
Full-size
Mini PCIe
Digital I/O 8-bit
DDR4 1866/2133MHz
SODIMM
Channel A
GLAN I219LM
GLAN I210AT
PCIe x1
PCIe x1
USB 4x
USB 3.0
M.2
PCIe x2
SATA 3.0
PCIe x4
PCIe x4
LPC Bus
TPM (Opt.)
HD Audio
(Line-out, Mic-in, S/PDIF)
USB 2.0
SMBus
SMBus
SPI
SATA 2x
DDR4 1866/2133MHz
SODIMM
Channel B
USB 2.0
DDI
DP++
USB 4x
USB 2.0 SATA 3.0
PCIe x1
DDI
DP++

www.dfi.com
9
Chapter 2 Hardware Installation
Chapter 2
System Memory
Features
Important:
Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in
boards, and other components. Perform installation procedures at an ESD workstation
only. If such a station is not available, you can provide some ESD protection by wear-
ing an antistatic wrist strap and attaching it to a metal part of the system chassis. If
a wrist strap is unavailable, establish and maintain contact with the system chassis
throughout any procedures requiring ESD protection.
Important:
When the Standby Power LED lights red, it indicates that there is power on the
system board. Power-off the PC then unplug the power cord prior to installing any de-
vices. Failure to do so will cause severe damage to the motherboard and components.
• Two 260-pin SODIMM up to 32GB
• Dual Channel DDR4 1866/2133MHz
3
DDR4_1
DDR4_2
Standby
Power LED
The system board supports the following memory interface.
Single Channel (SC)
Data will be accessed in chunks of 64 bits (8B) from the memory channels.
Dual Channel (DC)
Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides
better system performance because it doubles the data transfer rate.
Single Channel
DIMMs are on the same channel.
DIMMs in a channel can be identical or
completely different. However, we highly
recommend using identical DIMMs.
Not all slots need to be populated.
Dual Channel DIMMs of the same memory configuration
are on different channels.

www.dfi.com
10
Chapter 2 Hardware Installation
Chapter 2
Installing the SODIMM Module
1. Make sure the PC and all other peripheral devices connected to it has been powered down.
2. Disconnect all power cords and cables.
3. Locate the SODIMM socket on the system board.
4. Note the key on the socket. The key ensures the module can be plugged into the socket in
only one direction.
Note:
The system board used in the following illustrations may not resemble the actual
board. These illustrations are for reference only.
6. Push down the module until the clips at each end of the socket lock into position. You will
hear a distinctive “click”, indicating the module is correctly locked into position.
Clip
5. Grasping the module by its edges, align the module into the socket at an approximately 30
degrees angle. Apply firm even pressure to each end of the module until it slips down into
the socket. The contact fingers on the edge of the module will almost completely disappear
inside the socket.
Clip
