DFI AM33-EC User manual

AM33-EC
AM33-EL
Rev. A+
System Board Users Manual
Carte Mère Manuel Pour Utilisateur
System-Platine Benut erhandbuch
Manual del Usuario de Placas Base
50500132

Copyright
This publication contains information that is protected by
copyright. No part of it may be reproduced in any form or by
any means or used to make any transformation/adaptation
without the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose. The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 001. All Rights Reserved.
Trademarks
Microsoft® MS-DOS®, WindowsTM, Windows® 95, Windows® 98,
Windows® 98 SE, Windows® ME, Windows® 000 and Windows
NT® 4.0 are registered trademarks of Microsoft Corporation.
AMD, AthlonTM and DuronTM are registered trademarks of
Advanced Micro Devices, Inc. VIA is a registered trademark of
VIA Technologies, Inc. Award is a registered trademark of Award
Software, Inc. Other trademarks and registered trademarks of
products appearing in this manual are the properties of their
respective holders.
Caution
To avoid damage to the system:
 Use the correct AC input voltage range.
To reduce the risk of electric shock:
 Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.

Battery:
 Danger of explosion if battery incorrectly replaced.
 Replace only with the same or equivalent type recommend by
the manufacturer.
 Dispose of used batteries according to the battery
manufacturers instructions.
Joystick or MIDI port:
 Do not use any joystick or MIDI device that requires more than
10A current at 5V DC. There is a risk of fire for devices that
exceed this limit.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and the receiver.
 Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
 Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
. Shielded interface cables must be used in order to comply with
the emission limits.

4
Quick Setup Guide

Quick Setup
Guide
Table of Contents
Chapter 1
Quick Setup Guide.............................................
Chapter 2
English......................................................................
Chapter 3
rançais ( rench).................................................
Chapter 4
Deutsch (German)................................................
Chapter 5
Español (Spanish)..................................................
5
24
45
66
89
Note:
The users manual in the provided CD contains detailed information
about the system board. If, in some cases, some information doesnt
match those shown in this manual, this manual should always be
regarded as the most updated version.

5

Quick Setup Guide
Quick Setup
Guide
Chapter 1 - Quick Setup Guide
Table of Contents
1.1 System Board Layout..................................................................................................
1. Jumpers.....................................................................................................................................
1.3 Ports and Connectors................................................................................................
1.4 Award BIOS Setup Utility.......................................................................................
6
8
10
19
Important:
To ensure proper boot up and operation of your system, you must
power-off the system then turn off the power supplys switch or
unplug the AC power cord prior to altering the setting of a umper
or replacing the CPU.

6
Quick Setup Guide

Quick Setup
Guide
1.1 System Board Layout
AM33-EC

7

Quick Setup Guide
Quick Setup
Guide
Note:

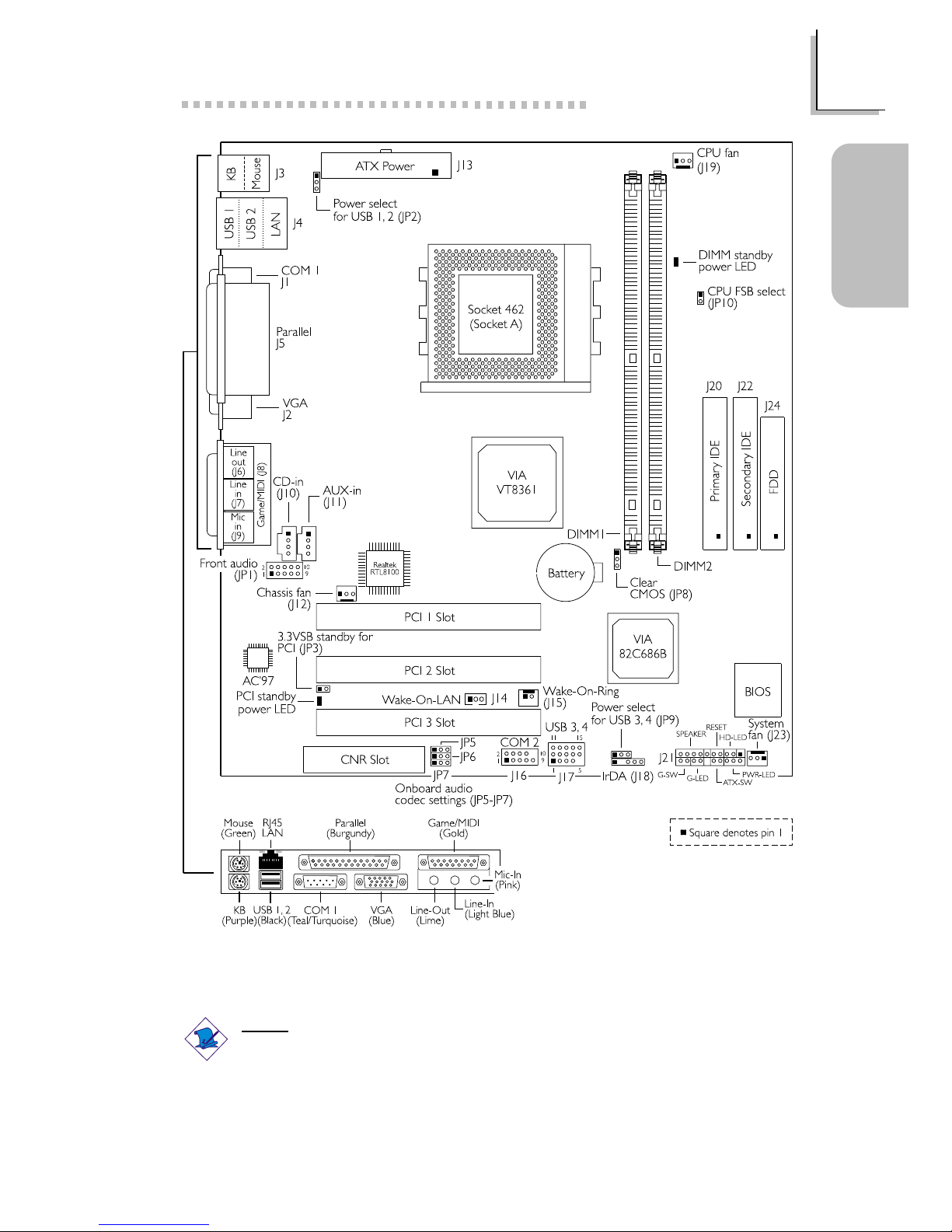

The illustrations on the following pages are based on the AM33-EL
system board, which is the board that supports onboard LAN.
AM33-EL
(Supports onboard LAN)

8
Quick Setup Guide

Quick Setup
Guide

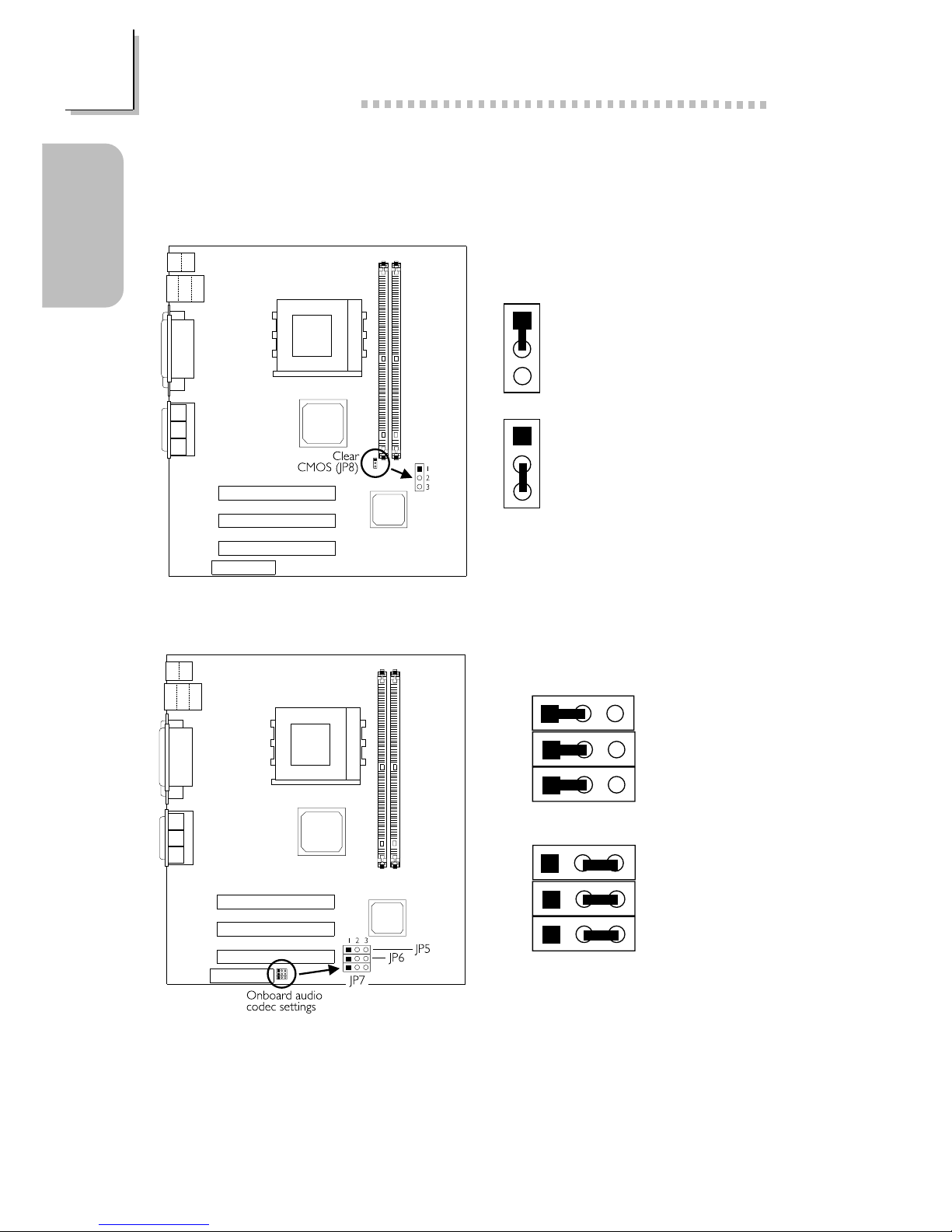

1.2.1 Clear CMOS Data - JP8
1.2.2 Onboard Audio Codec - JP5, JP6 and JP7
1- On:
Enable the
Onboard Audio
Codec (default)
-3 On: Disable
the Onboard
Audio Codec
1.2 Jumpers
-3 On:
Clear CMOS Data
1- On:
Normal (default)
1
3
1
3
JP5
1 3
JP6
JP7
JP5
1 3
JP6
JP7

9

Quick Setup Guide
Quick Setup
Guide
1.2.4 Power Select for USB 1 and USB 2 - JP2
Power Select for USB 3 and USB 4 - JP9
1.2.3 CPUs ront Side Bus - JP10
1
On: 100MHz
( 00MHz DDR) CPU
(default)
Off: 133MHz
( 66MHz DDR) CPU
1
To ensure proper boot up and operation of your system, you must power-
off the system then turn off the power supplys switch or unplug the AC
power cord prior to altering the setting of the jumper.
-3 On: 5VSB
1- On: 5V
(default)
1 3
1
3
JP
JP9
1 3
1
3
JP
JP9

10
Quick Setup Guide

Quick Setup
Guide

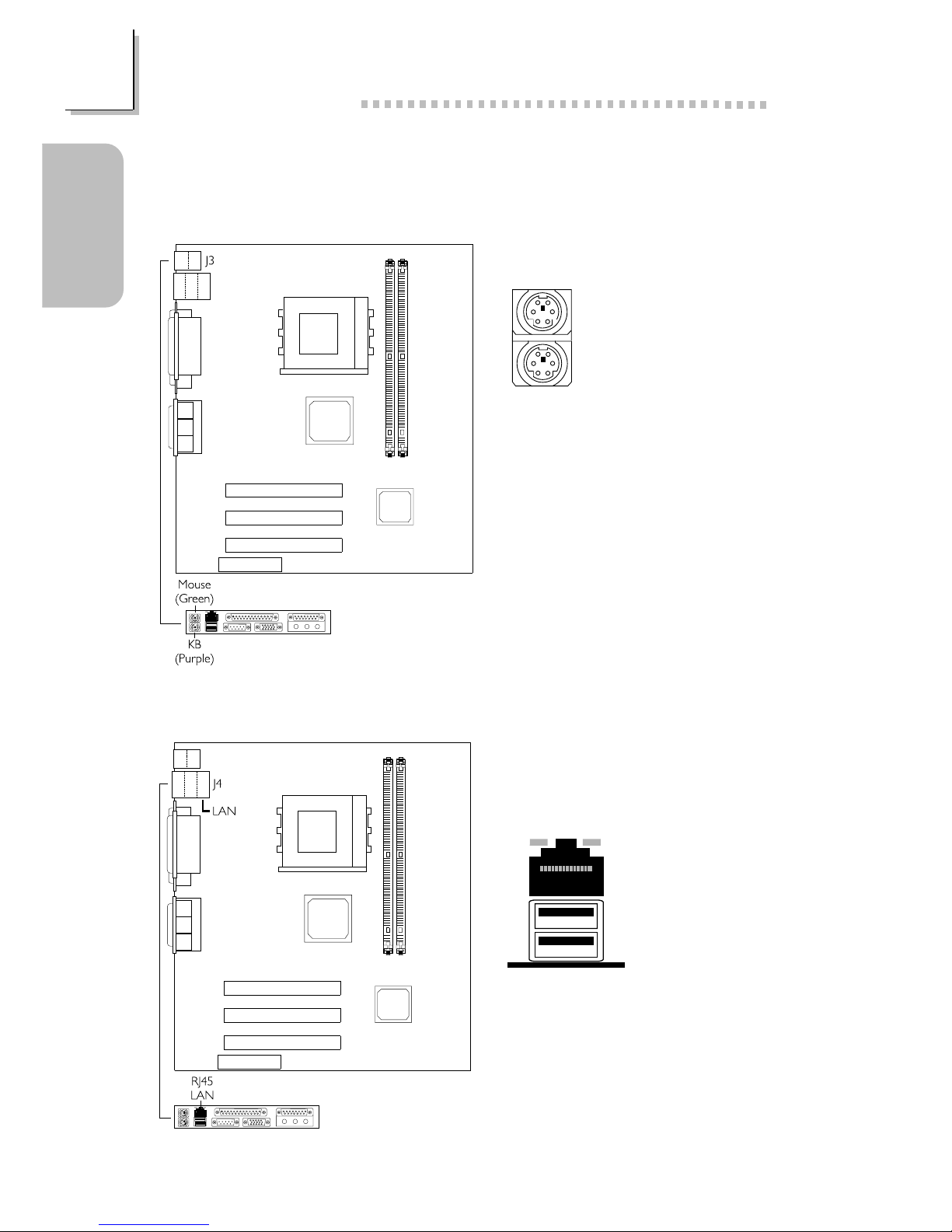

1.3 Ports and Connectors
1.3.1 PS/2 Mouse and PS/2 Keyboard Ports
Make sure to turn off your
computer prior to connecting or
disconnecting a mouse or
keyboard. Failure to do so may
damage the system board.
PS/ Mouse
PS/ Keyboard
1.3.2 RJ45 ast-Ethernet Port (AM33-EL)
RJ45 LAN

11

Quick Setup Guide
Quick Setup
Guide
1.3.4 Parallel Port
Parallel Port
1.3.3 Universal Serial Bus Ports
1 VCC
UP -
3 UP +
4 Ground
5 Key
6 VCC
7 UP3-
8 UP3+
9 Ground
10 Ground
11 Ground
1 Ground
13 UP +
14 UP -
15 VCC
Onboard USB Ports
Additional USB Ports (J17)

1
Quick Setup Guide

Quick Setup
Guide
1.3.5 Serial Ports
COM 1
Serial Port
One card-edge bracket mounted
with a serial port cable is provided
for connecting the COM
secondary serial port.
1.3.6 VGA Port
VGA Port

13

Quick Setup Guide
Quick Setup
Guide
1.3.7 Game/MIDI Port and Audio Jacks
1.3.8 Internal Audio Connectors
Game/MIDI Port
Audio Jacks
Line-out
Line-in
Mic-in
Additional Line-out/Mic-in (JP1)
1Mic+
Ground
3 Mic Power
4 AuD_Vcc (Avcc)
5 AuD_R-Out
6 AuD_R_Return (GND)
7N. C.
8 Key
9 AuD_L_Out
10 AuD_L_Return (GND)
1 Left audio channel
Ground
3 Ground
4 Right audio channel
AUX-in / CD-in
Onboard Game/MIDI / Audio

14
Quick Setup Guide

Quick Setup
Guide

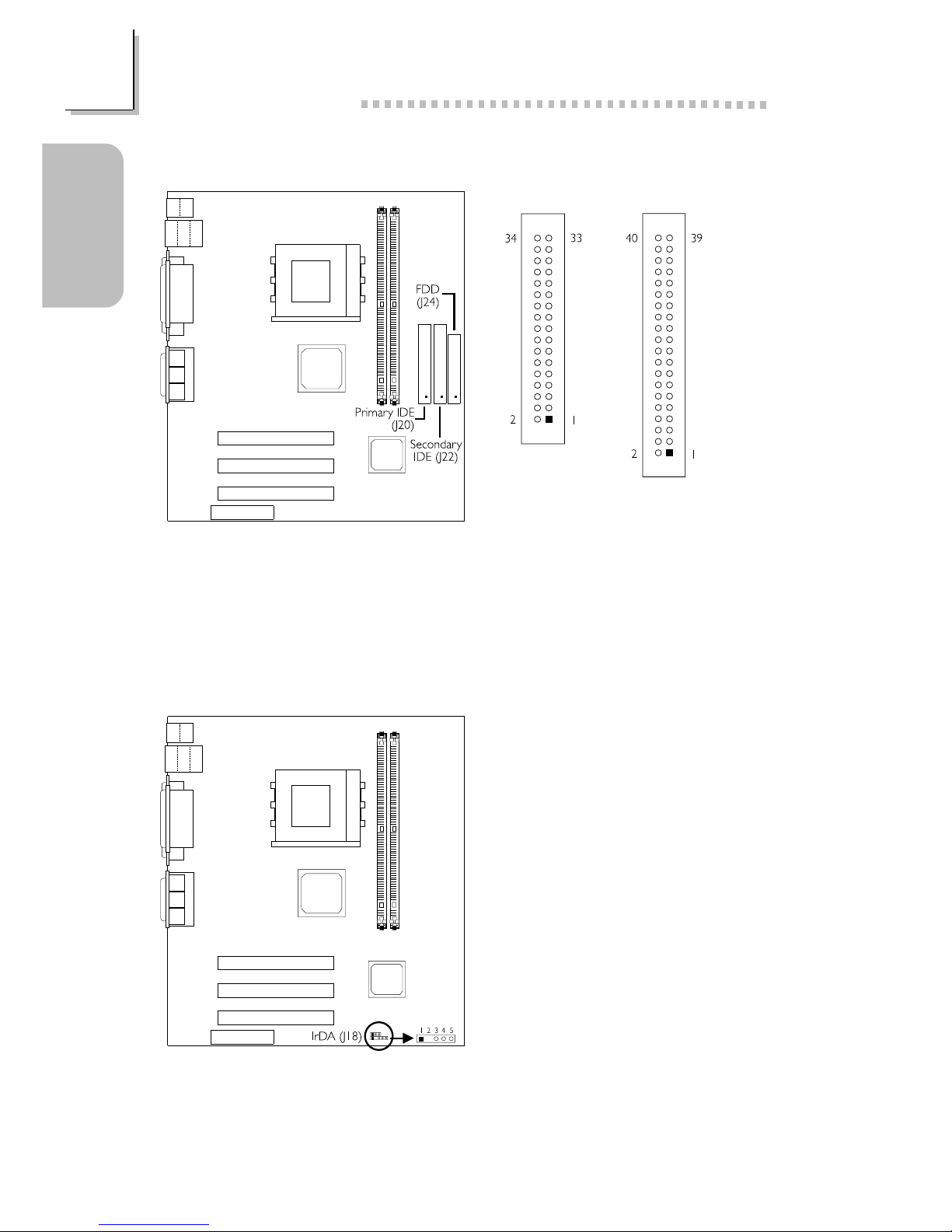

1.3.10 IrDA Connector
1 VCC
N. C.
3 IRRX
4 Ground
5 IRTX
The sequence of the pin
functions on some IrDA cable
may be reversed from the pin
function defined on the system
board. Make sure to connect the
cable to the IrDA connector
according to their pin functions.
1.3.9 loppy and IDE Disk Drive Connectors
If you encountered problems while using an ATAPI CD-ROM drive that is
set in Master mode, please set the CD-ROM drive to Slave mode. Some
ATAPI CD-ROMs may not be recognized and cannot be used if
incorrectly set in Master mode.
FDD
IDE

15

Quick Setup Guide
Quick Setup
Guide

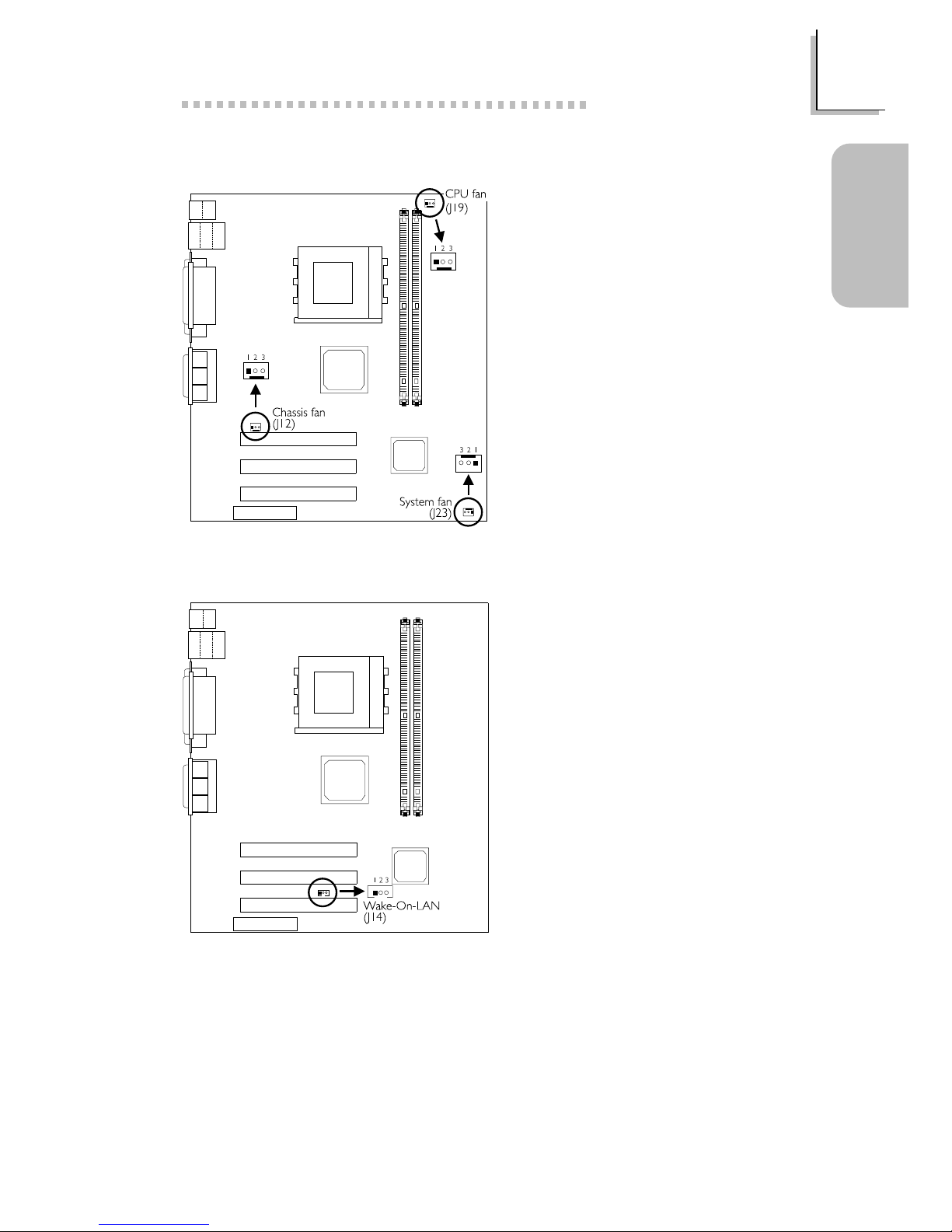

1.3.12 Wake-On-LAN Connector
The 5VSB power source of your
power supply must support
≥7 0mA.
1 +5VSB
Ground
3 WOL
1.3.11 an Connectors
1 Ground
+1 V
3 Sense
1 Ground
+1 V
3 Ground
1 Ground
On/Off
3 Sense
CPU an
Chassis an
System an

16
Quick Setup Guide

Quick Setup
Guide

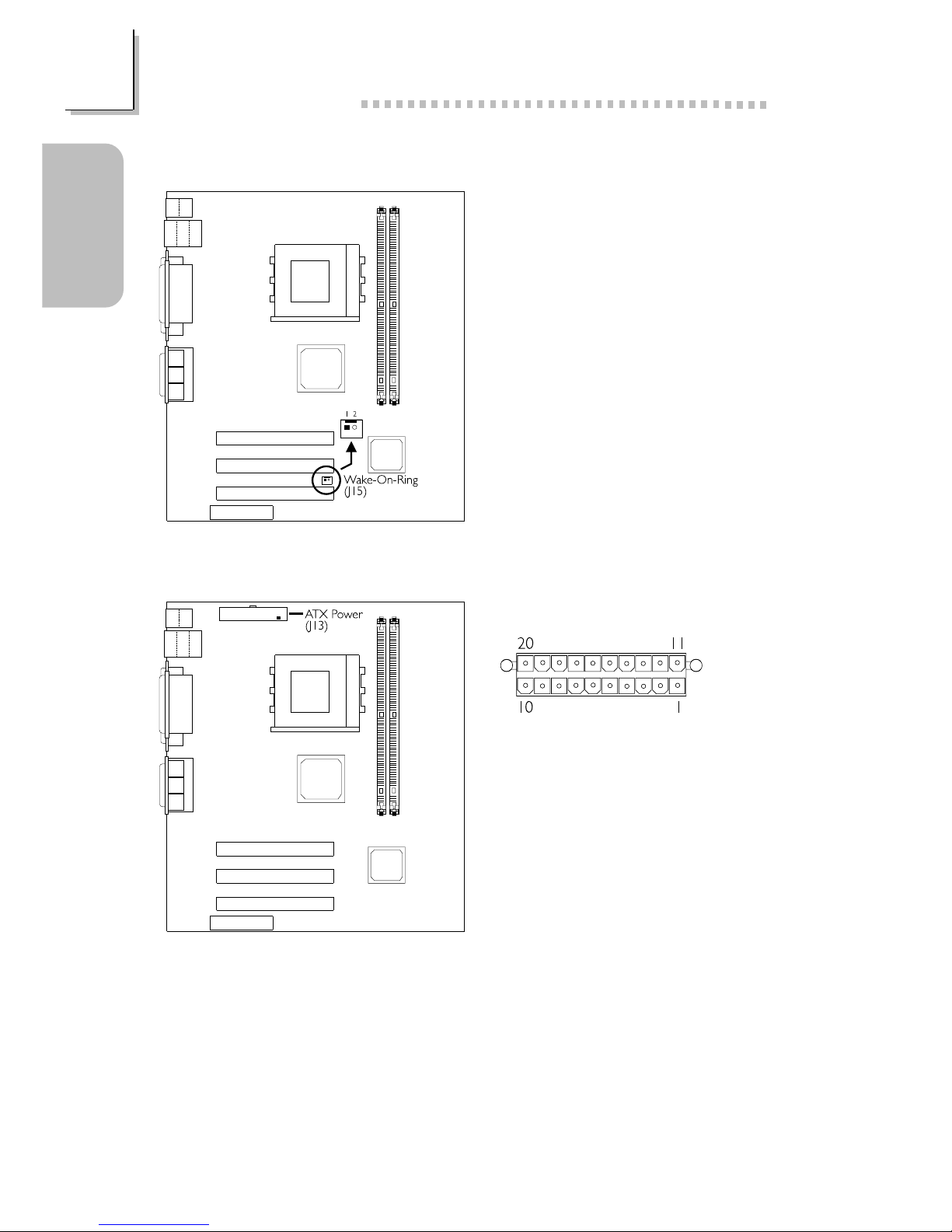

1.3.14 Power Connector
1 3.3V
3.3V
3 Ground
4 +5V
5 Ground
6 +5V
7 Ground
8 PW-OK
9 5VSB
10 +1 V
11 3.3V
1 -1 V
13 Ground
14 PS-ON
15 Ground
16 Ground
17 Ground
18 -5V
19 +5V
0 +5V
The system board requires a minimum of 300W electric current.
1.3.13 Wake-On-Ring Connector
1 Ground
RI#
If you are using a modem add-
in card, the 5VSB power source
of your power supply must
support ≥7 0mA.

17

Quick Setup Guide
Quick Setup
Guide
1.3.15 DIMM and PCI Standby Power LEDs
DIMM Standby Power LED
This LED will turn red when the systems power is on or when it is in the
Suspend state (Power On Suspend or Suspend to RAM). It will not light
when the system is in the Soft-Off state.
PCI Standby Power LED
This LED will turn red when the system is in the power-on, Soft-Off or
Suspend (Power On Suspend or Suspend to RAM) state.
Important:
Lighted LEDs serve as a reminder that you must power-off the
system then turn off the power supplys switch or unplug the power
cord prior to installing any memory modules or add-in cards.
3.3VSB Standby for PCI - Jumper JP3
On: Default
3.3VSB Standby Power to
PCI slots - PCI . spec.
Off:
Non-PCI . spec.
1 1

18
Quick Setup Guide

Quick Setup
Guide
1.3.16 ront Panel Connectors
Pin
3
5
14
16
8
10
18
0
7
9
13
15
17
19
4
6
HD-LED
(Primary/Secondary IDE LED)
G-LED
(Green LED)
ATX-SW
(ATX power switch)
G-SW
(Green switch)
RESET
(Reset switch)
SPEAKER
(Speaker connector)
PWR-LED
(Power/Standby LED)
Pin Assignment
HDD LED Power
HDD
Green LED Power
Ground
PWRBT+
PWRBT-
Ground
SMI
Ground
H/W Reset
Speaker Data
N. C.
Ground
Speaker Power
LED Power (+)
LED Power (+)
LED Power (-) or Standby Signal
If a system did not boot-up and the Power/Standby LED did not light
after it was powered-on, it may indicate that the CPU or memory module
was not installed properly. Please make sure they are properly inserted
into their corresponding socket.

19

Quick Setup Guide
Quick Setup
Guide
1.4 Award BIOS Setup Utility
1.4.1 Main Menu
1.4.2 Standard CMOS eatures
CMOS Setup Utility - Copyright (C) 1984-2000 Award Software
Standard CMOS Features
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
PC Health Status
Frequency/Voltage Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
Esc
F10 : Quit : Save & Exit Setup ↑↓→← : Select Item
Time, Date, Hard Disk Type...
The settings on the screen are for reference only. Your version may not be
identical to this one.
↑↓→← :Move
CMOS Setup Utility - Copyright (C) 1984-2000 Award Software
Standard CMOS Features
Date (mm:dd:yy)
Time (hh:mm:ss)
IDE Primary Master
IDE Primary Slave
IDE Secondary Master
IDE Secondary Slave
Drive A
Drive B
Video
Halt On
Base Memory
Extended Memory
Total Memory
F6:Fail-Safe Defaults F7:Optimized Defaults
F1:General Help
Tue, Jul 17 2001
4 : 35 : 5
Press Enter None
Press Enter None
Press Enter None
Press Enter None
1.44M, 3.5 in.
None
EGA/VGA
All, But Keyboard
640K
129024K
130048K
Item Help
Menu Level
Change the day, month,
year and century
Enter:Select
F5:Previous Values +/-/PU/PD:Value F10:Save ESC:Exit
K
K
K
K

0
Quick Setup Guide

Quick Setup
Guide
1.4.3 Advanced BIOS eatures
1.4.4 Advanced Chipset eatures
CMOS Setup Utility - Copyright (C) 1984-2000 Award Software
Advanced BIOS Features
Item Help
Menu Level
Allows you to choose
the VIRUS warning
feature for IDE Hard
Disk boot sector
protection. If this
function is enabled and
someone attempt to
write data into this
area, BIOS will show a
warning message on
screen and alarm beep
↑↓→← Move F1:General HelpEnter:Select +/-/PU/PD:Value F10:Save ESC:Exit
X
X
Onboard LAN
Virus Warning
CPU L1 Cache
CPU L2 Cache
CPU L2 Cache ECC Checking
Quick Power On Self Test
First Boot Device
Second Boot Device
Third Boot Device
Boot Other Device
Swap Floppy Drive
Boot Up Floppy Seek
Boot Up NumLock Status
Typematic Rate Setting
Typematic Rate (Chars/Sec)
Typematic Delay (Msec)
Security Option
OS Select For DRAM > 64MB
HDD S.M.A.R.T. Capability
Small Logo (EPA) Show
Enabled
Disabled
Enabled
Enabled
Enabled
Enabled
Floppy
HDD-0
LS120
Enabled
Disabled
Disabled
On
Disabled
6
250
Setup
Non-OS2
Disabled
Enabled
F6:Fail-Safe Defaults F7:Optimized DefaultsF5:Previous Values
The settings on the screen are for reference only. Your version may not be
identical to this one.
CMOS Setup Utility - Copyright (C) 1984-2000 Award Software
Advanced Chipset Features
The settings on the screen are for reference only. Your version may not be
identical to this one.
X
Item Help
Menu Level
↑↓→← Move F6:Fail-Safe Defaults F7:Optimized Defaults F1:General HelpEnter:Select
F5:Previous Values+/-/PU/PD:Value F10:Save ESC:Exit
DRAM Timing By SPD
SDRAM Cycle Length
DRAM Clock
System BIOS Cacheable
Video RAM Cacheable
AGP Aperture Size
AGP Mode
AGP Driving Control
AGP Driving Value
OnChip USB
USB Keyboard Support
OnChip Sound
OnChip Modem
Disabled
3
133M
Disabled
Disabled
64M
4X
Auto
DA
Enabled
Disabled
Auto
Auto
