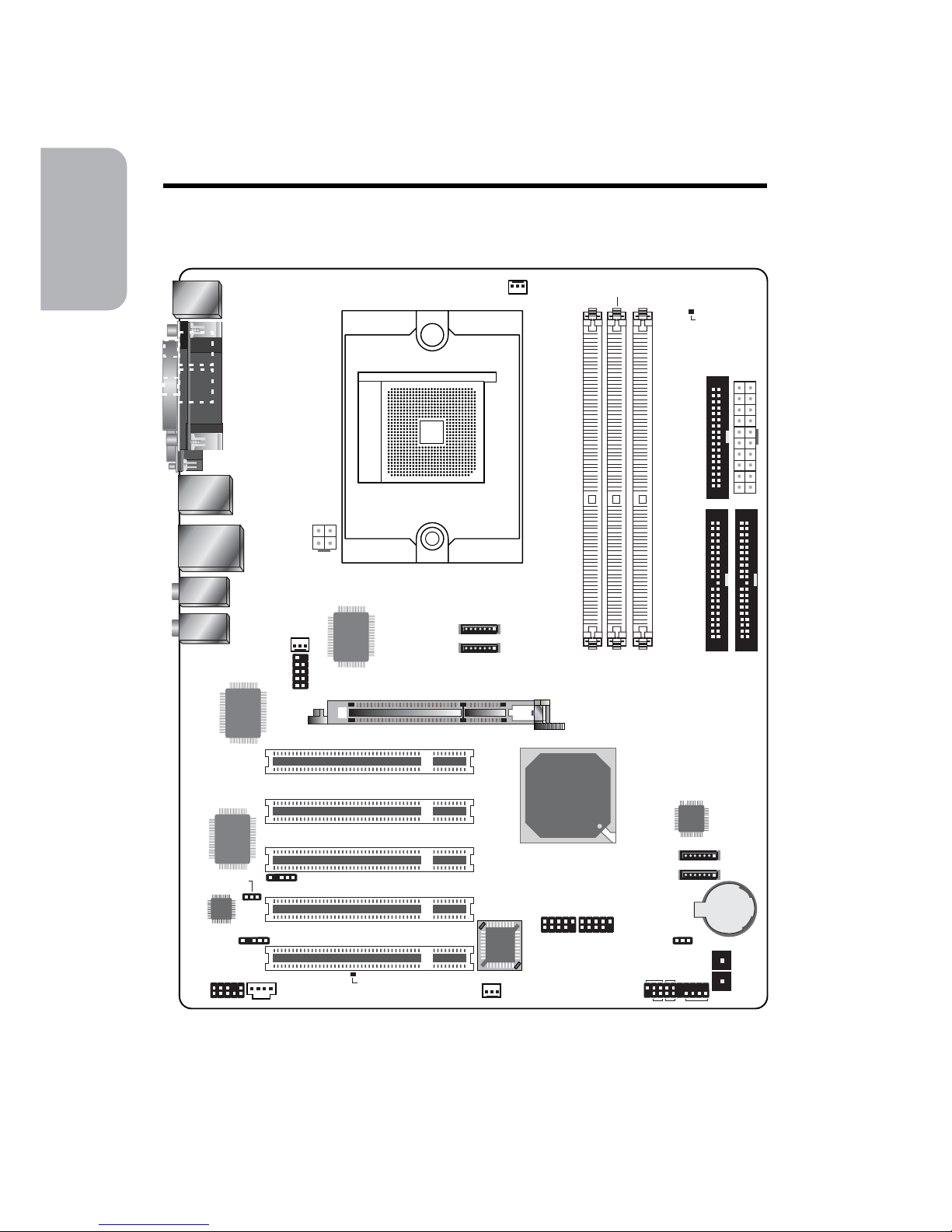

1.1 System Board Layout
Chapter 1 - Quick Setup Guide
KB/Mouse
S/PDIF-
in
S/PDIF-
out
COM
IEEE 1394_1,
USB 1-2
LAN,
USB 3-4
Line-in
Front R/L
Mic-in
1
+12V power
1
IEEE 1394_2
VIA
6307
Marvell
88E
Gigabit
PHY
1111
I/O
chip
Audio
Codec
1
IrDA
1
S/PDIF
1
Front audio
1
CD-in Standby
Power LED
1
Chassis fan
BIOS
1
System beep
select (JP5)
1 1
USB 5-6 USB 7-8
nVIDIA
nForce3-250Gb
Socket 754
1
CPU fan
1
1
SATA 3
SATA 4
DDR 1
DDR 2
DDR 3
Marvell
88SR3020
Battery
1
Clear CMOS (JP2)
DRAM
Power LED
1
1
ATX
power
FDD
1
SEC IDE
1
PRI IDE
AGP
PCI 1
PCI 2
PCI 3
PCI 4
PCI 5
1
HD-LEDRESET SPEAKER
PWR-LED ATX-SW
1
1
SATA 1
SATA 2
Center/Subwoofer
Side R/L
Rear R/L
1
2nd fan
Power
Reset
VIA VT6307, IEEE 1394 port at the rear panel and the IEEE 1394
connector for external connection of an IEEE 1394 device are optional.

5
1
Quick Setup Guide
Quick Setup
Guide

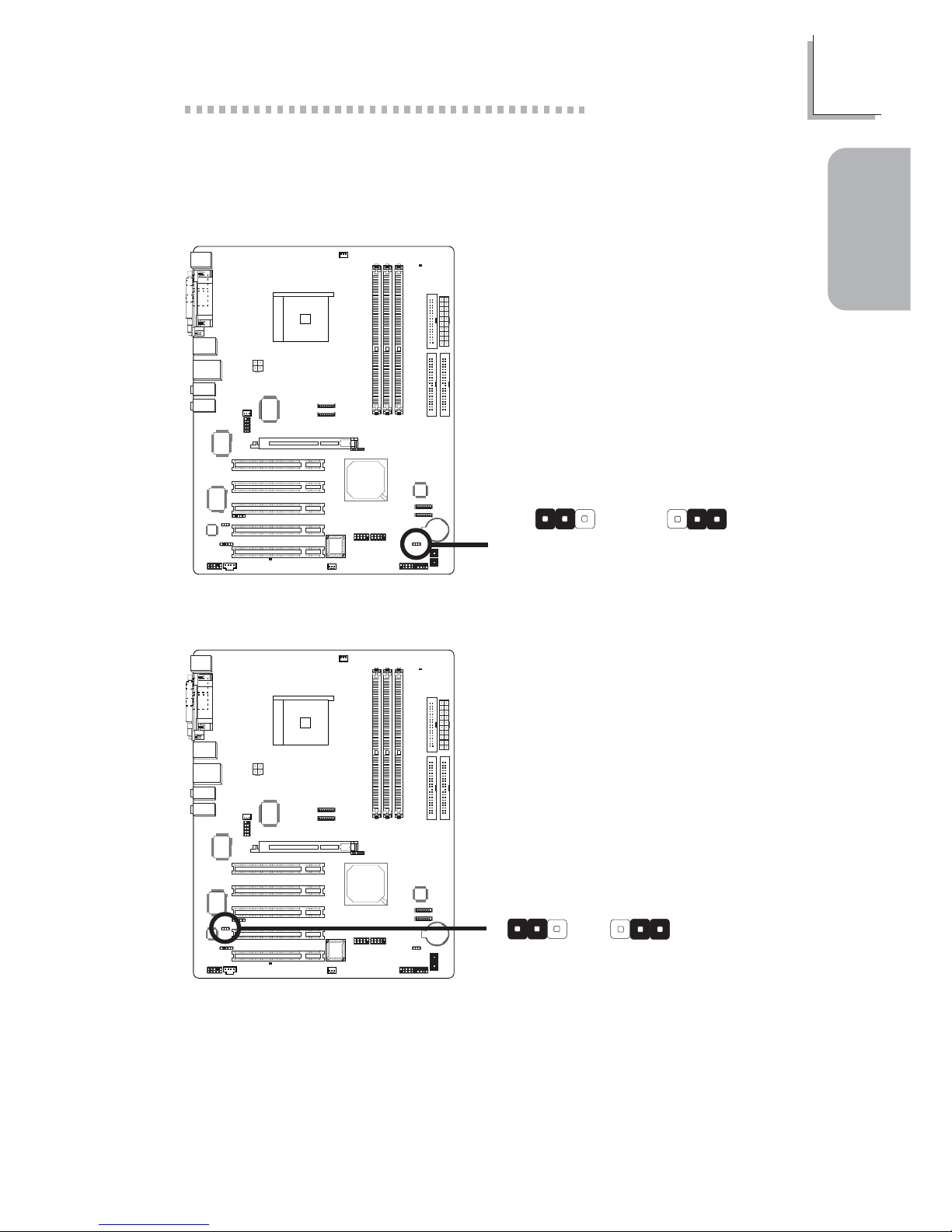

1.2 Jumpers
1.2.1 Clear CMOS Data
2-3 On:
Clear CMOS Data
1-2 On: Normal
(default)
X
JP2
312312
1.2.2 System Beep Select
2-3 On:
Line-out
(Front R/L)
1-2 On:
PC Speaker
312 312
X
JP5

6
Quick Setup Guide
1
Quick Setup
Guide
1.4 I/O Connectors
Note:
DO NOT use RCA S/PDIF and optical S/PDIF at the same time.
1.3 Rear Panel I/O Ports
PS/2
Mouse
PS/2
K/B
COMS/PDIF-in
S/PDIF-out
USB 1-2 USB 3-4
IEEE
1394_1
RJ45
LAN
Parallel
Mic-in
Line-in
Line-out (Front R/L)
Side R/L
Center/
Subwoofer
Rear R/L
S/PDIF-in
S/PDIF-out
W
1.4.1 S/PDIF
W
Optical S/PDIF (J3)
15
+5V
Key
SPDIF out
GND
SPDIF in
IEEE 1394_1 is optional.

7
1
Quick Setup Guide
Quick Setup
Guide

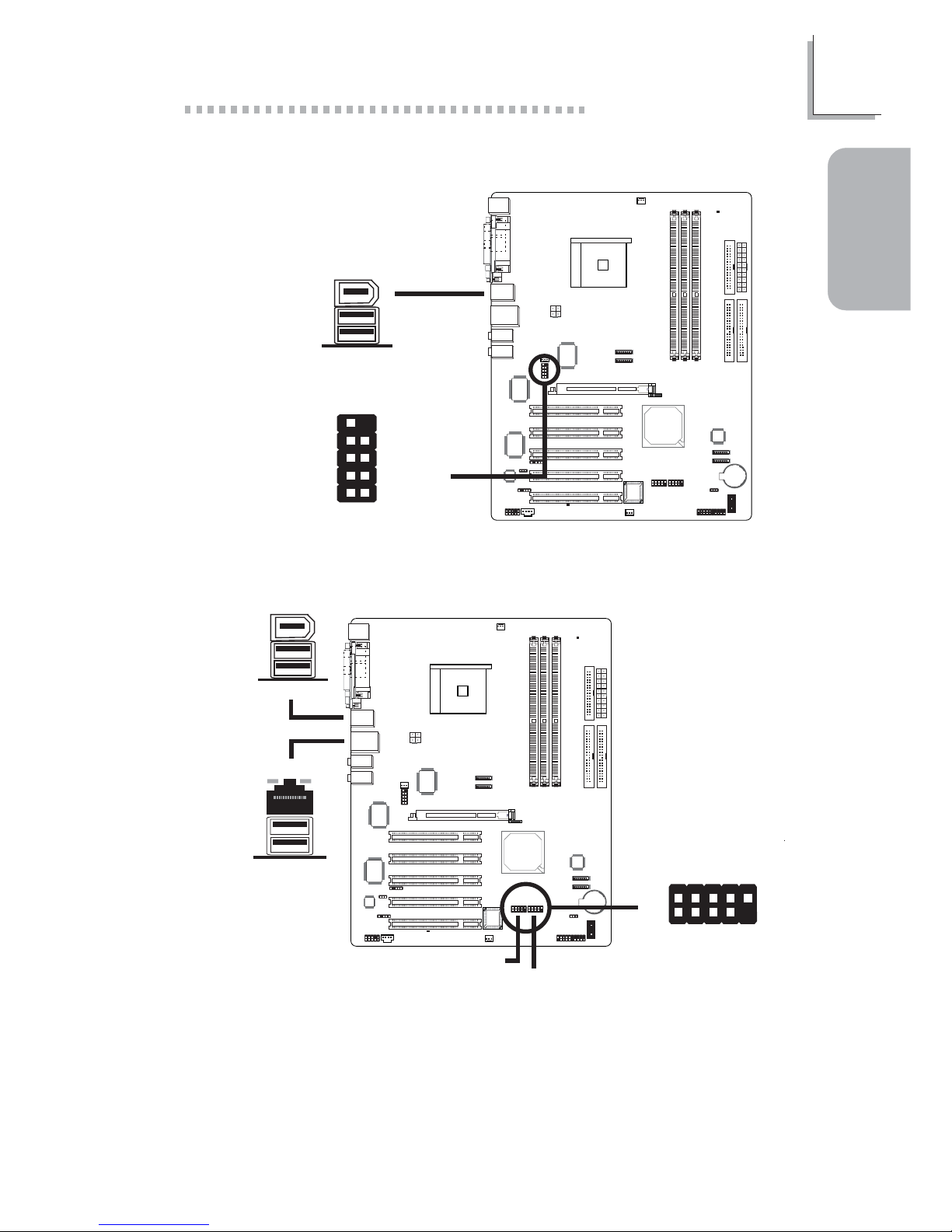

1.4.2 IEEE 1394 (optional)
1394_1
W
W
1394_2
TPA+
TPA-
Ground Ground
TPB- TPB+
Key
+12V (fused)
+12V (fused)
Ground
12
10 9
1.4.3 Universal Serial Bus Ports
USB 4
USB 3
W
USB 7-8
USB 5-6
W
USB 2
USB 1
1
VCC
-Data
+Data
Ground
Key
VCC
-Data
+Data
Ground
N. C.
210
9
X

8
Quick Setup Guide
1
Quick Setup
Guide

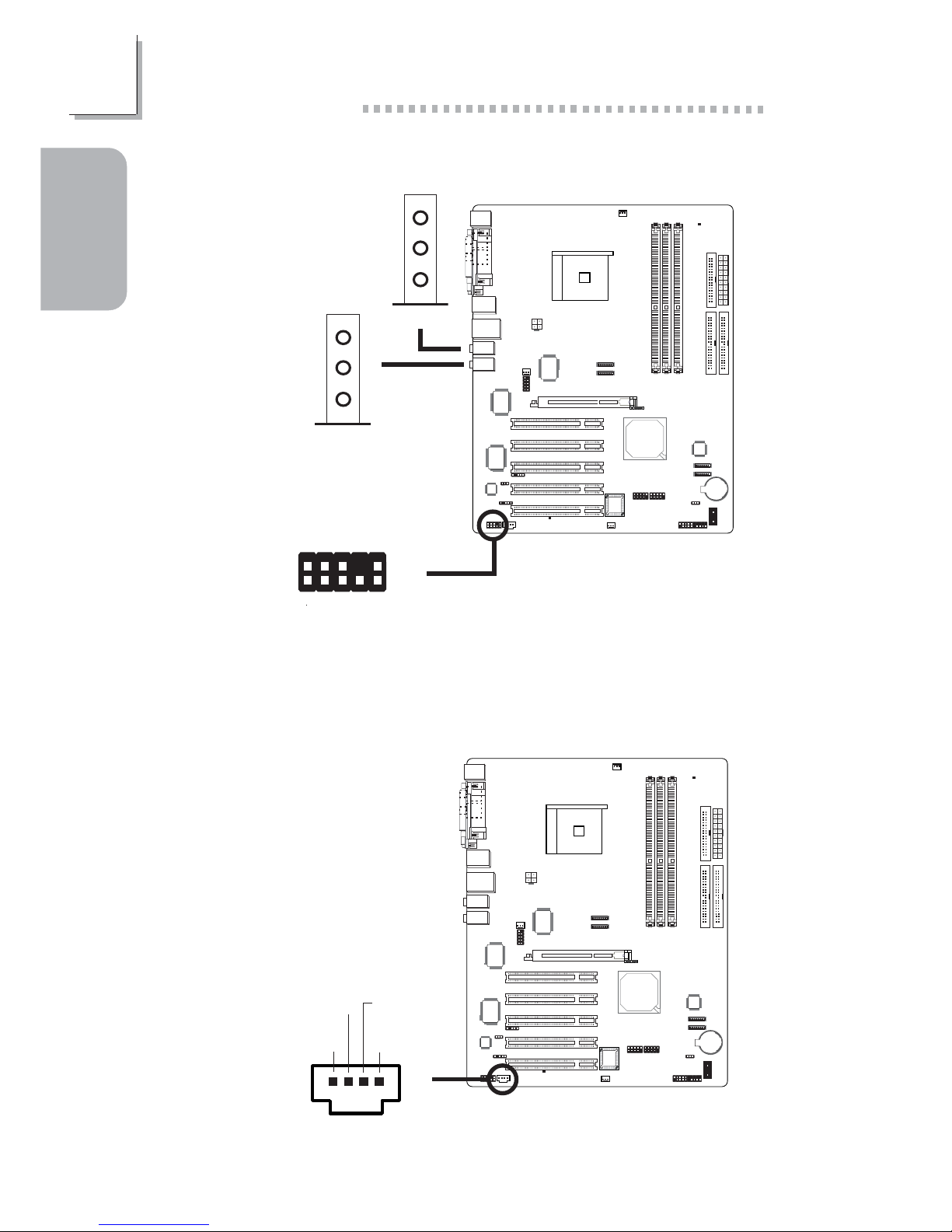

Front audio W
1.4.4 Audio (Rear Panel Audio and Front Audio)
W
Mic-in
Front R/L
Line-in
Center/
Subwoofer
Side R/L
Rear R/L W
1
Mic
Mic Power
AuD_R_Out
N. C.
AuD_L_Out
GND
AuD_Vcc
Key
210
9
AuD_R_Return
AuD_L_Return
1.4.5 CD-in Internal Audio Connector
W
14
Right audio
channel
Left audio
channel
Ground Ground

9
1
Quick Setup Guide
Quick Setup
Guide
1.4.6 Floppy Disk Drive Connector
X
34 33
21
1.4.7 Serial ATA Connectors
17
GND
TXP
TXN
GND
RXN
RXP
GND
SATA 1
SATA 2
SATA 3
SATA 4
Note:
The system board allows configuring RAID across Serial ATA drives
and Parallel ATA drives. It supports RAID 0, RAID 1, 0+1 and JBOD.

10
Quick Setup Guide
1
Quick Setup
Guide

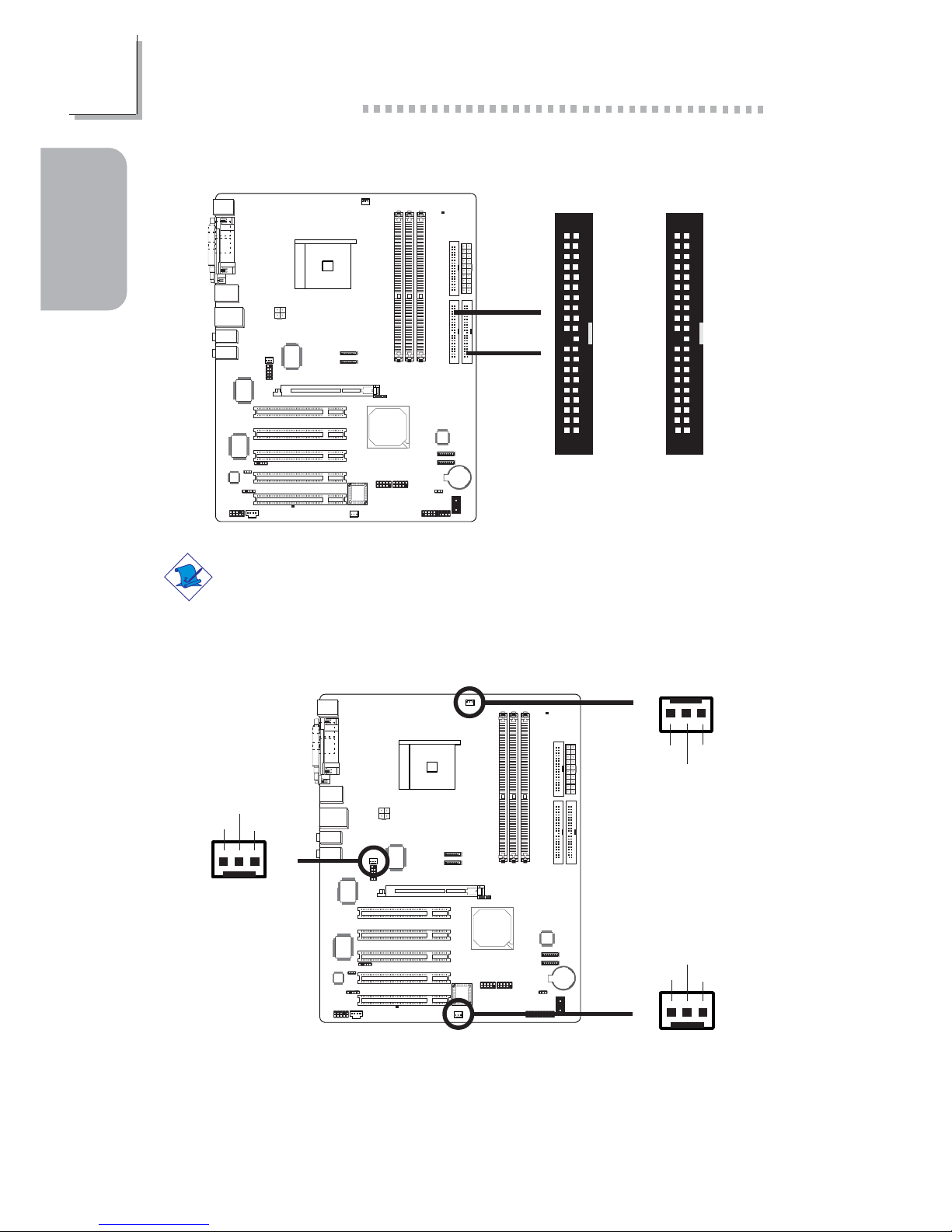

1.4.8 IDE Disk Drive Connector
40 39
21
SEC IDE
SEC IDE
PRI IDE
40 39
21
PRI IDE
Note:
The system board allows configuring RAID across Parallel ATA drives
and Serial ATA drives. It supports RAID 0, RAID 1, 0+1 and JBOD.
1.4.9 Cooling Fan Connectors
2nd fan
X
X
Chassis fan
13
Ground
Power
Sense
13
Ground
Power
Sense
31
Ground
Power
Sense
CPU fan
X

11
1
Quick Setup Guide
Quick Setup
Guide
Note:
The sequence of the pin functions on some IR cable may be
reversed from the pin function defined on the system board. Make
sure to connect the cable connector to the IR connector according to
their pin functions.
1.4.10 IrDA Connector
W
15
VCC
N. C.
IRRX
Ground
IRTX

12
Quick Setup Guide
1
Quick Setup
Guide
1.4.11 EZ Touch Switches
X
Power Switch
Reset Switch
The presence of the power switch and reset switch on the system board
are user-friendly especially to DIY users. They provide convenience in
powering on and/or resetting the system while fine tuning the system
board before it is installed into the system chassis.

13
1
Quick Setup Guide
Quick Setup
Guide
1.4.12 Power Connectors
X
X
+12V
111
10
3.3V
3.3V
Ground
+5V
Ground
+5V
Ground
PW-OK
5VSB
+5V
3.3V
-12V
Ground
PS-ON
Ground
Ground
Ground
-5V
+5V
20
+12V
43
12
GroundGround
+12V
Important:
To ensure that adequate power is provided, use a 300 Watt (or
greater) power supply.
1.4.13 DRAM Power LED and Standby Power LED
DRAM Power LED
Standby Power LED

14
Quick Setup Guide
1
Quick Setup
Guide
Pin
3
5
14
16
8
10
18
20
7
9
13
15
17
19
2
4
6
HD-LED
(Primary/Secondary IDE LED)
Reserved
ATX-SW
(ATX power switch)
Reserved
RESET
(Reset switch)
SPEAKER
(Speaker connector)
PWR-LED
(Power/Standby LED)
Pin Assignment
HDD LED Power
HDD
N. C.
N. C.
PWRBT+
PWRBT-
N. C.
N. C.
Ground
H/W Reset
Speaker Data
N. C.
Ground
Speaker Power
LED Power (+)
LED Power (+)
LED Power (-) or Standby Signal
1.4.14 Front Panel Connectors
X
J14
1
2
19
20
HD-LED
PWR-LED
ATX-SW
RESET SPEAKER

15
2
English
English
2.1 Features and Specifications
Processor
• AMD AthlonTM 64 (up to 3700+)
• Socket 754
2T timing which provides better system stability is supported in CG
or later revisions of the AMD AthlonTM 64 processor. You can select
the memory timing in the Genie BIOS Setting submenu (“DRAM
Configuration” section) of the BIOS.
System Bus
• 1600MT/s HyperTransport interface
Chipset
• nVIDIA®nForce3 250Gb
System Memory
• Three 184-pin DDR SDRAM DIMM sockets
• Supports single channel (64-bit wide) memory interface
• Supports up to 3GB memory when using DDR333
Supports up to 2GB memory when using DDR400
• Supports PC2700 (DDR333) and PC3200 (DDR400) DDR
SDRAM DIMM
• Supports x8/x16, non-ECC, up to 512Mb DDR devices
• Supports unbuffered DIMM
If you are installing more than one double rank DDR400, the
maximum DRAM speed will automatically be limited to the speed of
a DDR333. However, the BIOS provides the option of manually
adjusting the speed to DDR400 by selecting “200” in the “DRAM
Frequency Set (Mhz)” field (Genie BIOS Setting submenu, DRAM
Configuration section) of the BIOS.
BIOS
• Award BIOS
• CPU/DRAM/AGP overclocking
• CPU/DRAM/Chipset overvoltage
• 4Mbit flash memory
• AMD Cool‘n’QuietTM technology
Chapter 2 - English

16
English
2
English
Energy Efficient Design
• ACPI STR (Suspend to RAM) function
• Wake-On-PS/2 KB/Mouse
• Wake-On-Ring (external modem)
• Wake-On-LAN
• RTC timer to power-on the system
• AC power failure recovery
Hardware Monitor
• Monitors CPU/system temperature
• Monitors 12V/5V/3.3V/Vcore/Vbat/5Vsb/Vchipset/Vdram/Vagp
voltages
• Monitors the speed of the CPU fan, chassis fan and 2nd fan
• CPU Overheat Protection function monitors CPU temperature
during system boot-up
Onboard Audio Features
• AC’97 CODEC
• 8 Channels DA Converters with 48KHz rate
• Stereo AD Converters with 48KHz rate
• Microsoft®DirectSound/DirectSound 3D
• S/PDIF-in/out interface
Onboard LAN Features
• Marvell 88E1111 Gigabit PHY
• 10/100/1000BASE-T IEEE 802.3 compliant
IDE Interface with NVIDIA RAID
• Two IDE connectors support four UltraDMA 133Mbps hard
drives
• NVIDIA RAID supports spanning across Serial ATA and Parallel
ATA
• RAID 0, RAID 1, RAID 0+1 and JBOD
Serial ATA Interface with NVIDIA RAID
• Four Serial ATA interfaces with speed up to 1.5Gbps
- Two Serial ATA ports supported by nForce3 250Gb chip
- Two Serial ATA ports supported by Marvell SATA PHY
• NVIDIA RAID supports spanning across Serial ATA and Parallel
ATA
• RAID 0, RAID 1, RAID 0+1 and JBOD

17
2
English
English
IEEE 1394 Interface (optional)
• VIA VT6307 controller
• Supports two 100/200/400 Mb/sec ports
AGP (Accelerated Graphics Port)
• Supports AGP 8x up to 2133MB/sec. and AGP 4x up to
1066MB/sec. bandwidth for 3D graphics applications
• Supports 0.8/1.5V add-in cards
Rear Panel I/O Ports
• 1 PS/2 mouse port
• 1 PS/2 keyboard port
• 1 DB-25 parallel port
• 2 S/PDIF RCA jacks (S/PDIF-in and S/PDIF-out)
• 1 DB-9 serial port
• 1 IEEE 1394 port (optional)
• 1 RJ45 LAN port
• 4 USB 2.0/1.1 ports
• Line-in, line-out (front R/L) and mic-in jacks
• Center/subwoofer, rear R/L jacks and side R/L
I/O Connectors
• 2 connectors for 4 additional external USB 2.0/1.1 ports
• 1 connector for 1 external IEEE 1394 port (optional)
• 1 front audio connector for external line-out and mic-in jacks
• 1 CD-in internal audio connector
• 1 S/PDIF connector for optical cable connection
• 1 IrDA connector
• 4 Serial ATA connectors
• 2 IDE connectors
• 1 floppy connector
• 1 20-pin ATX power connector
• 1 4-pin ATX 12V power connector
• 1 front panel connector
• 3 fan connectors
• EZ touch switches (power switch and reset switch)
Expansion Slots
• 1 AGP 8x/4x slot
• 5 PCI slots

18
English
2
English
PCB
• ATX form factor
• 30.5cm (12") x 24cm (9.44")
2.2 RAID Configuration
The following describes the basic steps on configuring RAID.
1. Set the “IDE RAID” field to “Enabled”. (Integrated Peripherals
submenu - “IDE Function Setup” section of the Award BIOS.)
2. Configure the Primary IDE, Secondary IDE and Serial ATA drives
to support RAID in the Integrated Peripherals submenu (“IDE
Function Setup” section) of the Award BIOS.
3. Run the NVIDIA RAID BIOS utility by pressing the <F10> key
after the system powers-up. The utility is used to configure and
manage RAID on both Serial ATA and Parallel ATA drives.
4. Install the NVRAID driver by using the provided “nVRAID
Driver” floppy diskette. The driver must be installed if you are in
the process of installing Windows®XP or Windows®2000 on
RAID configured Serial ATA drives.
5. Install the NVIDIA Windows nForce Drivers.
The steps below will instruct you on installing the RAID driver while
in the process of installing Windows®XP or Windows®2000 on
RAID configured Serial ATA drives.
Installing the RAID Driver
1. Start Windows Setup by booting from the installation CD.
2. Press <F6> when prompted at the beginning of Windows setup.
3. Press <S> to select “Specify Additional Device”.
4. At this point you will be prompted to insert a floppy disk
containing the RAID driver. Insert the “NVRAID Driver” diskette.
5. Locate for the drive where you inserted the diskette then select
“NVIDIA nForce3 ATA Controller” to install the driver.
6. Now press <S> again to specify another device.

19
2
English
English
7. This time, select “NVIDIA nForce3 ATA RAID Class Controller”.
8. Follow the prompts on the screen to complete installation.
2.3 Package Checklist
The system board package contains the following items:
;The system board
;A user’s manual
;Two IDE round cables
;One floppy round cable
;Two Serial ATA data cables
;One Serial ATA power cable
;One “nVRAID Driver” diskette
;One I/O shield
;One “Mainboard Utility” CD
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

20
Français
3Français
Français
3.1 Caractéristiques et Spécifications
Processeur
• AMD AthlonTM 64 (jusqu’à 3700+)
• Socket 754
Le CG, aussi que les versions plus récentes du processeur AMD
AthlonTM 64, supporte la technologie de 2T timing. Vous pouvez
choisir un timing de mémoire dans le sous-menu “DRAM
Configuration” (sous-menu Genie BIOS Setting) du BIOS.
Bus Système
• Interface HyperTransport 1600MT/s
Chipset
•nVIDIA®nForce3 250Gb
Mémoire Système
• 3 sockets DDR SDRAM DIMM 184 broches
• Interface de mémoire à seul canal (64-bit) soutenue
• Supporte jusqu’à 3GB de mémoire avec DDR333
Supporte jusqu’à 2GB de mémoire avec DDR400
• Supporte DDR SDRAM DIMM PC2700 (DDR333) et PC3200
(DDR400)
• Supporte exclusivement les modules DIMM non-ECC x8 et x16
• Supporte une densité de RAM jusqu’à 512Mb
• Supporte les DIMM non-tamponnés
Si vous installez plus d’un module DDR400, la vitesse maximale de
la DRAM sera automatiquement limitée à celle de DDR333.
Cependant, le BIOS permet de régler la vitesse à DDR400 à main
– il faut sélectionner la valeur “200” dans le champ “DRAM
Frequency Set (Mhz)” du BIOS (sous-menu “Genie BIOS Setting”,
section “DRAM Configuration”).
BIOS
• Compatible avec Award BIOS
•Overclocking de CPU/DRAM/AGP
•Contrôle du voltage de CPU/DRAM/Chipset
Chapter 3 - Français
