DFI LanParty DK P35 series User manual

935-DP35T1-004G
03110810A
System Board
User’s Manual

Copyright
This publication contains information that is protected by copyright. No part of it may
be reproduced in any form or by any means or used to make any transformation/
adaptation without the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes
no representations or warranties with respect to the contents or use of this manual
and specifically disclaims any express or implied warranties of merchantability or
fitness for any particular purpose. The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer reserves the right to
revise this publication and make changes to its contents at any time, without obligation
to notify any person or entity of such revisions or changes.
© 2007. All Rights Reserved.
Trademarks
Windows®2000 and Windows®XP are registered trademarks of Microsoft
Corporation. Award is a registered trademark of Award Software, Inc. Other trade-
marks and registered trademarks of products appearing in this manual are the
properties of their respective holders.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission
limits.

Table of Contents
About this Manual................................................................................
Warranty.................................................................................................
Static Electricity Precaution................................................................
SafetyMeasures.....................................................................................
About the Package...............................................................................
Before Using the System Board.........................................................
System Board Layout............................................................................
English.....................................................................................................
.......................................................................................................
..................................................................................................
....................................................................................................
4
4
5
5
6
6
7
8
31
56
81

Introduction
1
4
About this Manual
An electronic file of this manual is included in the CD.To view the
user’s manual in the CD, insert the CD into a CD-ROM drive. The
autorun screen (Main Board Utility CD) will appear. Click the
“TOOLS” icon then click “Manual” on the main menu.
For additional information on the system board, please download
the complete version of the manual from DFI’s website. Visit www.
dfi.com.
Warranty
1. Warranty does not cover damages or failures that arised from
misuse of the product, inability to use the product,
unauthorized replacement or alteration of components and
product specifications.
2. The warranty is void if the product has been subjected to
physical abuse, improper installation, modification, accidents or
unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may
not, under any circumstances, attempt to perform service, ad-
justments or repairs on the product, whether in or out of
warranty. It must be returned to the purchase point, factory or
authorized service agency for all such work.
4. We will not be liable for any indirect, special, incidental or
consequencial damages to the product that has been modified
or altered.

1
Introduction
5
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board,
components or devices even before installing them in your system
unit. Static electrical discharge can damage computer components
without causing any signs of physical damage. You must take extra
care in handling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its
anti-static bag until you are ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any
of the components, contacts or connections.
5. Avoid touching the pins or contacts on all modules and
connectors. Hold modules or connectors by their ends.
Important:
Electrostatic discharge (ESD) can damage your processor, disk
drive and other components. Perform the upgrade instruction
procedures described at an ESD workstation only. If such a
station is not available, you can provide some ESD protection by
wearing an antistatic wrist strap and attaching it to a metal
part of the system chassis. If a wrist strap is unavailable, estab-
lish and maintain contact with the system chassis throughout any
procedures requiring ESD protection.
Safety Measures
To avoid damage to the system:
•Use the correct AC input voltage range.....
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.
Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by
the manufacturer.
• Dispose of used batteries according to local ordinance.

Introduction
1
6
About the Package
The system board package contains the following items. If any of
these items are missing or damaged, please contact your dealer or
sales representative for assistance.
;The system board
;A user’s manual
;One IDE cable
;One FDD cable
;Two Serial ATA data cables
;One Serial ATA power cable
;One RAID floppy diskette (LP DK P35-T2R / LP DK P35-T2RS
only)
;One I/O shield
;One “Mainboard Utility” CD
The system board and accessories in the package may not come
similar to the information listed above. This may differ in
accordance to the sales region or models in which it was sold. For
more information about the standard package in your region,
please contact your dealer or sales representative.
Before Using the System Board
Before using the system board, prepare basic system components.
If you are installing the system board in a new system, you will
need at least the following internal components.
•A CPU
•Memory module
•Storage devices such as hard disk drive, CD-ROM, etc.
You will also need external system peripherals you intend to use
which will normally include at least a keyboard, a mouse and a
video display monitor.

1
Introduction
7
1
USB 0-1
1
IDE
Front panel
24
12
113
ATX
1
power
1
USB 2-3
USB 4-5
1
Standby
Power LED
1
IrDA
Fan 3
1
PCIE 1
DIMM 1
DIMM 2
DIMM 3
DIMM 4
PCI 3
PCI 2
PCI 1
1
1
CPU fan
12V
power
DRAM Power LED
Mouse
KB
PS/2 power
select (JP7)
1
USB 8
USB 9
1
Fan 2
Socket 775
FDD
1
CD-in
PCIE 2
PCIE 3
1
Optical
S/PDIF-out
Coaxial RCA
S/PDIF-out
Clear CMOS
(JP3)
USB 6
USB 7
LAN
USB 10
USB 11
Line-in
Front R/L
Mic-in
Center/
Subwoofer
Side R/L
Rear R/L
Marvell
88E8053
USB 6-11
power select (J 5)P
1
1
Intel
ICH9R
Intel
P35
JMicron
JMB368
Realtek
ALC885
Clear CMOS
(JP2)
Front audio
1
ITE
IT8718
COM 1
1
USB 0-5 power
select (JP6)
Secondary RTC
reset (JP12)
JP16
JP15
CPU FSB select
(JP14-JP16)
JP14
1
PCI 1
PCI 2
PCI 3
SATA 4
SATA 5
SATA 2
SATA 3
SATA 0
SATA 1
Reset Power
1
1
5V/12V
1
power
1
Battery
SPI Flash
BIOS
System Board Layout
The layout shown above is the LP DK P35-T2R/T2RS system board
which supports 6 SATA ports. On the LP DK P35-T2 board, it only
supports 4 SATA ports (SATA 0/1/4/5).

English

8
English
Chapter 1 - Specifications
Processor
Chipset
System Memory
Expansion Slots
BIOS
Audio
LAN
IDE
SerialATA
• LGA 775 socket for:
- Intel®CoreTM2 Quad, Intel®CoreTM2 Extreme, Intel®CoreTM2
Duo, Intel®Pentium®D or Intel®Pentium®4
• Supports Intel Enhanced Memory 64 Technology (EMT64T)
• Supports Enhanced Intel SpeedStepTechnology (EIST)
• Supports Intel Hyper-ThreadingTechnology
• Supports 1333*/1066/800MHz system bus speed
*Available only on CPUs that support 1333MHz FSB
• Intel®chipset
- Northbridge: Intel®P35 Express chipset (with Intel®Fast
Memory Access technology)
- Southbridge: Intel®ICH9 (LP DK P35-T2)
Intel®ICH9R (LP DK P35-T2R / LP DK P35-T2RS)
• Four 240-pin DDR2 DIMM sockets
• Supports DDR2 667/800 MHz DIMMs
• Supports dual channel (128-bit wide) memory interface
• Supports up to 8GB system memory
• Delivers up to 12.8Gb/s bandwidth
• Supports unbuffered x8 and x16 DIMMs
• 1 PCI Express x16 slot
• 2 PCI Express x1 slots
• 3 PCI slots
• Award BIOS
• 8Mbit SPI flash BIOS
• CMOS Reloaded
• Realtek ALC885 High Definition audio CODEC
• 8-channel audio output
• DAC SNR/ADC SNR of 106dB/101dB
• Full-rate lossless content protection technology
• Optical S/PDIF-out and coaxial RCA S/PDIF-out interfaces
• Marvell 88E8053 PCIE Gigabit LAN
• Fully compliant to IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX)
and 802.3ab (1000BASE-T) standards
• JMicron JMB368 PCI Express to PATA host controller
• Supports up to 2 UltraDMA 33/66/100Mbps IDE devices
• LP DK P35-T2R / LP DK P35-T2RS
- 6 SATA ports
- SATA speed up to 3Gb/s
- RAID 0, RAID 1, RAID 0+1 and RAID 5
• LP DK P35-T2
- 4 SATA ports
- SATA speed up to 3Gb/s


English
9
English
Rear Panel I/O
Internal I/O
Power Management
Hardware Monitor
PCB
• 1 mini-DIN-6 PS/2 mouse port
• 1 mini-DIN-6 PS/2 keyboard port
• 1 optical S/PDIF-out port
• 1 coaxial RCA S/PDIF-out port
• 6 USB 2.0/1.1 ports
• 1 RJ45 LAN port
• Center/subwoofer, rear R/L and side R/L jacks
• Line-in, line-out (front R/L) and mic-in jacks
• 3 connectors for 6 additional external USB 2.0 ports
• 1 connector for an external COM port
• 1 front audio connector for line-out and mic-in jacks
• 1 CD-in internal audio connector
• 1 connector for IrDA interface
• 6 Serial ATA ports (LP DK P35-T2R / LP DK P35-T2RS)
4 Serial ATA ports (LP DK P35-T2)
• 1 40-pin IDE connector
• 1 floppy connector
• 1 24-pin ATX power connector
• 1 8-pin 12V power connector
• 1 4-pin 5V/12V power connector (FDD type)
• 1 front panel connector
• 3 fan connectors
• EZ touch switches (power switch and reset switch)
• ACPI and OS Directed Power Management
• ACPI STR (Suspend to RAM) function
• Wake-On-PS/2 Keyboard/Mouse
• Wake-On-USB Keyboard/Mouse
• Wake-On-LAN andWake-On-Ring
• RTC timer to power-on the system
• AC power failure recovery
• Monitors CPU/system/Northbridge temperature and overheat
alarm
• Monitors Vcore/Vdimm/Vnb/VCC5/12V/V5sb/Vbat voltages
• Monitors the speed of the cooling fans
• CPU Overheat Protection function monitors CPU temperature and
fan during system boot-up - automatic shutdown upon system
overheat
• 4 layers, ATX form factor
• 24.5cm (9.64") x 30.5cm (12")

English

10
English
Chapter 2 - Hardware Installation
Jumper Settings
If you encounter the following,
a) CMOS data becomes corrupted.
b) You forgot the supervisor or user password.
c) The overclocked settings in the BIOS resulted to the system’s instabil-
ity or caused system boot up problems.
you can reconfigure the system with the default values stored in
the ROM BIOS.
JP3 is accessible from the rear panel of the system. This provides
convenience by allowing you to clear the CMOS without having
to remove the chassis cover.
Clear CMOS Data
Clearing CMOS Data using Jumpers
PCI 3
PCI 2
PCI 1
1
2-3 On:
Clear CMOS Data
1-2 On: Normal
(default)
X
JP2
1
3
2
1
3
2
JP3 X
2-3 On:
Clear CMOS Data
1-2 On: Normal
(default)
1
3
2
1
3
2


English
11
English
To load the default values stored in the ROM BIOS, please follow
the steps below.
1. Power-off the system then unplug the power cord.
2. Set JP2 or JP3 pins 2 and 3 to On. Wait for a few seconds and
set JP2 or JP3 back to its default setting, pins 1 and 2 On.
3. Now plug the power cord then power-on the system.

English

12
English
PCI 3
PCI 2
PCI 1
1
PCI 3
PCI 2
PCI 1
1
PS/2 Power Select
Selecting 5VSB will allow you to use the PS/2 keyboard or PS/2
mouse to wake up the system.
X
JP7
2-3 On:
5VSB
1-2 On: 5V
(default)
3
12
3
12
USB Power Select
X
USB 6-11
(JP5)
X
USB 0-5
(JP6)
2-3 On:
5VSB
1-2 On: 5V
(default)
2-3 On:
5VSB
1-2 On: 5V
(default)
Selecting 5VSB will allow you to use the USB keyboard or USB
mouse to wake up the system..
Important:
The 5VSB power source of your
power supply must support ≥720mA.
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the
5VSB power source of your power supply must support ≥1.5A. For 3 or more USB
ports, the 5VSB power source of your power supply must support ≥2A.
312 312
312 312


English
13
English
PCI 3
PCI 2
PCI 1
1
By default, the three jumpers are all set to pins 1 and 2 On. This
setting will allow the system to automatically run according to the
CPU’s FSB. If you want to change the setting, please refer to the
table below.
X
JP14
JP15
JP16
By CPU
1-2 On
1-2 On
1-2 On
FSB 800
2-3 On
3-4 On
2-3 On
FSB 1066
2-3 On
2-3 On
2-3 On
FSB 1333
2-3 On
2-3 On
3-4 On
JP16
4
2
3
JP15
JP14
1
CPU FSB Select

English

14
English
PCI 3
PCI 2
PCI 1
1

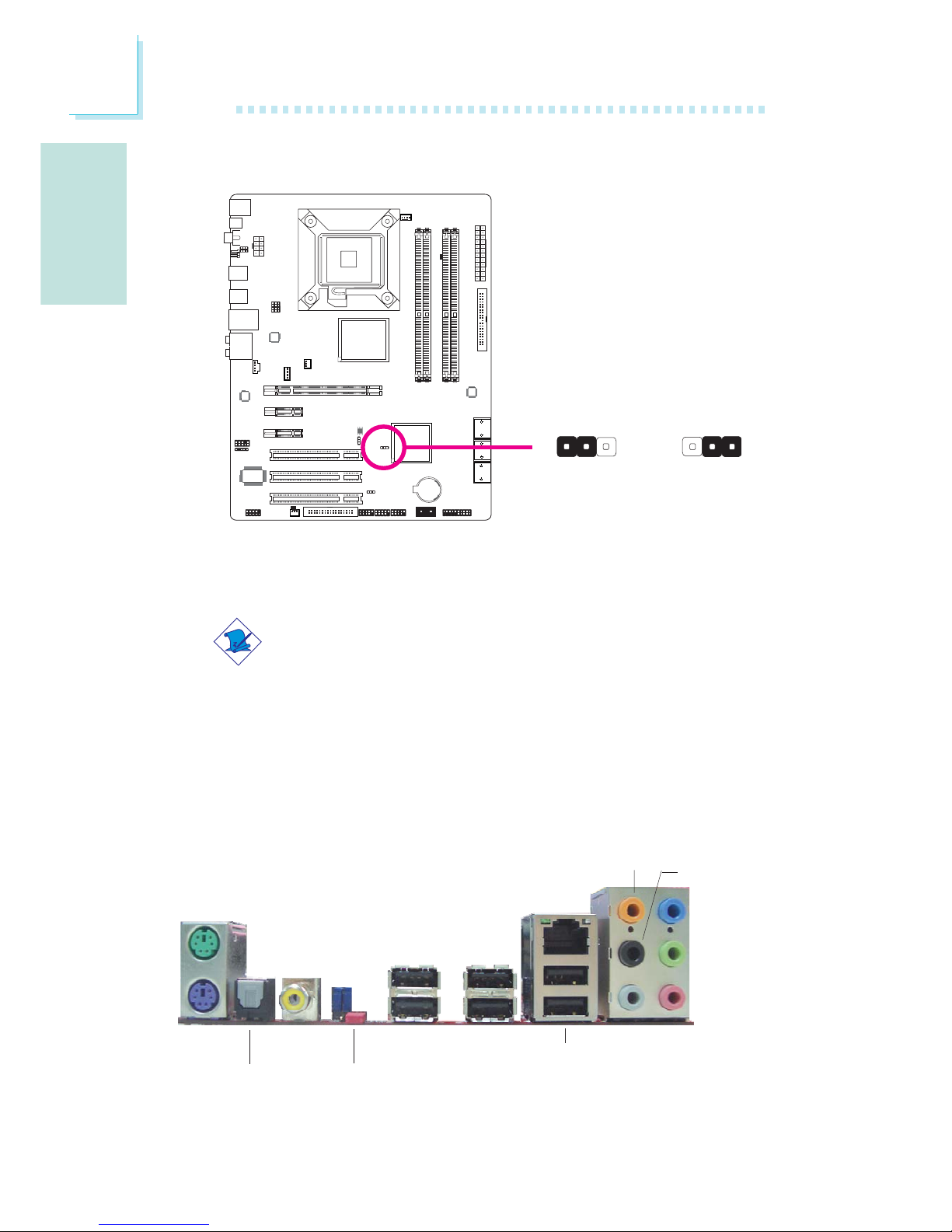

Rear Panel I/O Ports
Secondary RTC Reset
2-3 On:
RTC reset
1-2 On: Normal
(default)
X
JP12 13
213
2
When the RTC battery is removed, this jumper resets the
manageability register bits in the RTC.
Note:
1. The SRTCRST# input must always be high when all other RTC
power planes are on.
2. In the case where the RTC battery is dead or missing on the
platform, the SRTCRST# pin must rise before the RSMRST#
pin.
PS/2 K/B
Optical
S/PDIF-out
USB 6-7
USB 10-11
Coaxial
S/PDIF-out
Mic-in
Side R/L
Center/
Subwoofer Rear R/L
Line-in
Front R/L
LAN
PS/2
Mouse
USB 8-9
Clear
CMOS
jumper


English
15
English
PS/2 Mouse and PS/2 Keyboard Ports
These ports are used to connect a PS/2 mouse and a PS/2
keyboard.
Optical S/PDIF
The optical S/PDIF jack is used to connect an external audio
output device using an optical S/PDIF cable.
Coaxial RCA S/PDIF
The coaxial RCA S/PDIF jack is used to connect an external audio
output device using a coaxial S/PDIF cable.
Important:
DO NOT use optical S/PDIF and Coaxial RCA S/PDIF at the
same time.
PS/2 Ports and S/PDIF Ports
W
PS/2 Mouse
PS/2 KB
PCI 3
PCI 2
PCI 1
1
Optical
S/PDIF
Coaxial RCA
S/PDIF
W

English

16
English
PCI 3
PCI 2
PCI 1
1
W
USB 4-5
W
USB 2-3 USB 0-1
USB 9
W
1
VCC
-Data
+Data
GND
Key
VCC
-Data
+Data
GND
N. C.
210
9
LAN
USB 8
USB 7
USB 6
USB 11
USB 10
USB Ports and LAN Port
USB Ports
The USB ports are used to connect USB 2.0/1.1 devices. The 10-
pin connectors allow you to connect 6 additional USB 2.0/1.1
ports.Your USB ports may come mounted on a card-edge bracket.
Install the card-edge bracket to an available slot at the rear of the
system chassis then connect the USB port cables to these
connectors.
LAN Port
The LAN port allows the system board to connect to a local area
network by means of a network hub.


English
17
English
PCI 3
PCI 2
PCI 1
1
Rear Panel Audio
Center/Subwoofer Jack (Orange)
This jack is used to connect to the center and subwoofer
speakers of the audio system.
Rear Right/Left Jack (Black)
This jack is used to connect to the rear right and rear left speak-
ers of the audio system.
Side Right/Left Jack (Gray)
This jack is used to connect to the side left and side right
speakers of the audio system.
Line-in (Light Blue)
This jack is used to connect any audio devices such as Hi-fi set,
CD player, tape player, AM/FM radio tuner, synthesizer, etc.
Line-out - Front Right/Left Jack (Lime)
This jack is used to connect to the front right and front left
speakers of the audio system.
Audio
W
W
Rear audio
Front audio
Front R/L
Line-in
Mic-in
Rear R/L
Center/
Subwoofer
Side R/L
1
210
Mic-L
Mic-R
Line-out-R
Front-sense
Line-out-L
GND
Presense-signal
Mic-jack-sense
Key
Line-out-jack-sense
9
4
1
Left audio channel
Right audio channel
Ground
Ground
W
CD-in

English

18
English
PCI 3
PCI 2
PCI 1
1
Serial ATA Connectors
The Serial ATA (SATA) connectors are used to connect Serial
ATA drives. Connect one end of the Serial ATA cable to a Serial
ATA connector and the other end to your Serial ATA device.
ICH9 supports SATA 0/1/4/5.
ICH9R supports SATA 0/1/2/3/4/5.
Configuring RAID
Refer to the RAID chapter in this manual for more information
about creating RAID on Serial ATA drives.
SATA 2-3
SATA 0-1
SATA 4-5
Mic-in Jack (Pink)
This jack is used to connect an external microphone.
Front Audio
The front audio connector is used to connect to the line-out and
mic-in jacks that are at the front panel of your system.
CD-in
The CD-in connector is used to receive audio from a CD-ROM
drive, TV tuner or MPEG card.
Internal I/O Connectors


English
19
English
PCI 3
PCI 2
PCI 1
1
X
40 39
21
Floppy Disk Drive Connector and IDE Connector
Floppy Disk Drive Connector
The floppy disk drive connector is used to connect a floppy drive.
Insert one end of the floppy cable into this connector and the
other end-most connector to the floppy drive. The colored edge
of the cable should align with pin 1 of this connector.
IDE Disk Drive Connector
The IDE disk drive connector is used to connect 2 IDE disk drives.
An IDE cable have 3 connectors on them, one that plugs into this
connector and the other 2 connects to IDE devices. The connec-
tor at the end of the cable is for the Master drive and the connec-
tor in the middle of the cable is for the Slave drive. The colored
edge of the cable should align with pin 1 of this connector.
Note:
When using two IDE drives, one must be set as the master and
the other as the slave. Follow the instructions provided by the
drive manufacturer for setting the jumpers and/or switches on the
drives.
X
IDE
FDD
34
33 1
2

English

20
English
PCI 3
PCI 2
PCI 1
1
IrDA and Serial (COM) Connectors
IrDA Connector
This connector is used to connect an IrDA module.
Note:
The sequence of the pin functions on some IrDA cable may be
reversed from the pin function defined on the system board.
Make sure to connect the cable connector to the IrDA connector
according to their pin functions.
You may need to install the proper drivers in your operating
system to use the IrDA function. Refer to your operating system’s
manual or documentation for more information.
Serial (COM) Connector
The serial (COM) connector is used to connect modems, serial
printers, remote display terminals, or other serial devices. Your
COM port may come mounted on a card-edge bracket. Install the
card-edge bracket to an available slot at the rear of the system
chassis then connect the serial port cable to this connector. The
colored edge of the cable should align with pin 1 of this
connector.
W
IrDA
X
19
2
CD
TD
RD
DTR
GND
RTS
DSR
CTS
RI
COM 1
15
VCC
N. C.
IRRX
Ground
IRTX
