Introduction
1
4
1.1 Features and Specifications
Caractéristiques et Spécifications
Leistungsmerkmale und Technische Daten
1.1.1 Features / Caractéristiques / Leistungsmerkmale
Chipset
 Intel

440EX AGPset
Processor
The system board is equipped with a switching voltage regulator
that automatically detects 1.8V to 3.5V.
 233MHz/266MHz/300MHz/333MHz Pentium

II processors
 266/300/300A/333MHz CeleronTM processor
System Memory
The system board supports 8MB to 256MB using unbuffered
SDRAM or EDO memory. It is equipped with two 168-pin DIMM
sockets using x64 EDO (50/60ns) or SDRAM (10/12/13ns), 3.3V.
Expansion Slots
The system board is equipped with 1 dedicated AGP slot, 1
dedicated PCI slots, 1 dedicated 16-bit ISA slots and 1 shared PCI/
ISA slot. All PCI and ISA slots are bus masters.
Audio Features
 Supports Microsoft®DirectSound/DirectSound 3D
 64-voice wavetable synthesis
 3D positional audio effects
 AC97 supported with full duplex, independent sample rate
converter for audio recording and playback
 DOS game compatible (Sound Blaster and Sound Blaster Pro)
Desktop Management Interface (DMI)
The system board comes with a DMI 2.0 built into the BIOS. The
DMI utility in the BIOS automatically records various information
about your system configuration and stores these information in the
DMI pool, which is a part of the system board's Plug and Play
BIOS. DMI, along with the appropriately networked software, is
DIMMs
1MBx64
2MBx64
4MBx64
Memory Size
8MB
16MB
32MB
Chapter 1 - Introduction / Introduction / Einleitung
DIMMs
8MBx64
16MBx64
Memory Size
64MB
128MB

1
Introduction
5
designed to make inventory, maintenance and troubleshooting of
computer systems easier.
ATX Double Deck Ports
 2 USB ports
 Two NS16C550A-compatible DB-9 serial ports
 One SPP/ECP/EPP DB-25 parallel port
 One mini-DIN-6 PS/2 mouse port
 One mini-DIN-6 PS/2 keyboard por t
 One game/MIDI port
 Three audio jacks: speaker-out, line-in and mic-in
Connectors
 One connector for IrDA interface
 Two IDE connectors
 One floppy drive interface supports up to two 2.88MB floppy
drives
 One 20-pin ATX/SFX power supply connector
 One 3-pin WOL (Wake-On-LAN) connector
PCI Bus Master IDE Controller
 Two PCI IDE interfaces support up to four IDE devices
 Ultra DMA/33 supported (Synchronous Ultra DMA mode -
data transfer rate up to a maximum of 33MB/sec.)
 PIO Mode 3 and Mode 4 Enhanced IDE (data transfer rate up
to 16.6MB/sec.)
 Bus mastering reduces CPU utilization during disk transfer
 ATAPI CD-ROM, LS-120 and ZIP supported
IrDA Interface
The system board is equipped with an IrDA connector for wireless
connectivity between your computer and peripheral devices. It
supports peripheral devices that meet the IrDA or ASK IR standard.
USB Ports
The system board is equipped with two USB ports. USB allows
data exchange between your computer and a wide range of
simultaneously accessible external Plug and Play peripherals.
BIOS
 Award BIOS, Windows

95 Plug and Play compatible
 Flash EPROM for easy BIOS upgrades
PCB
 4 layers, microATX form factor
 24.4cm (9.6") x 24.4cm (9.6")

Introduction
1
6
1.1.2 Intelligence / Intelligence / Intelligente Ausstattungsteile
Automatic Fan On/Off Control
The CPU fan will automatically turn off when the system enters the
Suspend mode.This prevents system overheat and prolongs fan life.
Dual Function Power Button
Depending on the setting in the BIOS setup, this switch will allow
your system to enter the Soft-Off or Suspend mode.
External Modem Ring-on
The Modem Ring-on feature allows the system that is in the
Suspend mode or Soft Power Off mode to wake-up/power-on to
respond to incoming calls. This feature supports external modem
only.
RTC Timer to Power-On the System
The RTC installed on the system board allows your system to
automatically power-on on the set date and time.
Wake-On-LAN Ready
The Wake-On-LAN function allows the network to remotely wake
up a Soft Power Down (Soft-Off) PC. Your LAN card must support
the remote wakeup function.
Important:
The 5VSB power source of your power supply must support
720mA (minimum).
Wake-On-Keyboard
This function allows the keyboard to power-on the system. Refer to
sections 2.3 (chapter 2) and 3.9 (chapter 3) for more information.
Important:
The power button will not function once a keyboard password
has been set in the KB Power On Password field of the
Integrated Peripherals setup. You must type the password to
power-on the system.
Virus Protection
Most viruses today destroy data stored in hard drives. The system
board is designed to protect the boot sector and partition table of
your hard disk drive.

1
Introduction
7
1.2 Package Checklist
Liste de Vérification de lEmballage
Verpackungsliste
The system board package contains the following items:
þThe system board
þA users manual
þOne 40-pin IDE hard disk cable
þOne 34-pin floppy disk drive cable
þOne CD
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

2
8
Hardware Installation
2.1 System Board Layout
Position de la Carte Système
Aufbau der Hauptplatine
Chapter 2 - Hardware Installation
Installation du Matériel
Installation der Hardware

2
Hardware Installation
9
2.2 DIP Switch Settings of the Processors
Positionnement des Cavaliers des Processeurs
DIP Schaltereinstellungen für den Prozessor

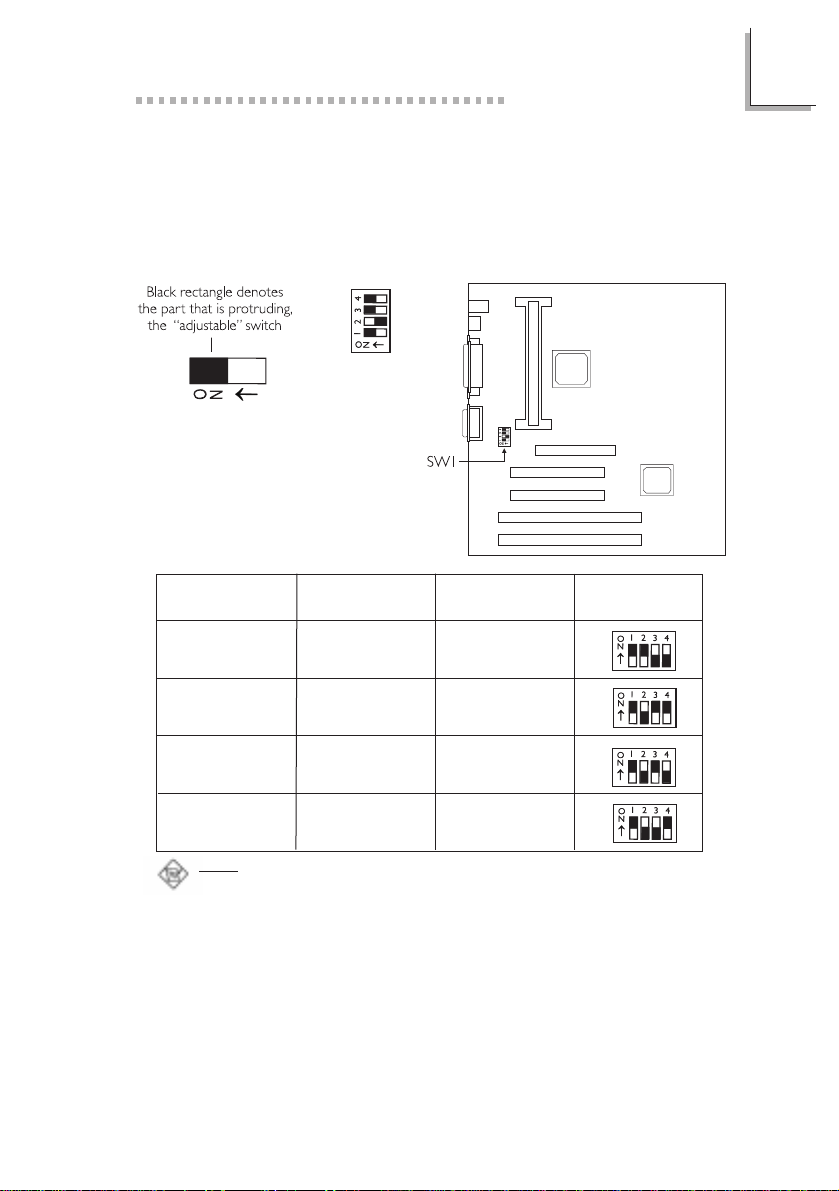

The table below shows the supported processors and their
corresponding DIP switch settings (SW1).
In the example above:
Switch 1: On
Switch 2: Off
Switch 3: On
Switch 4: On
Processor
Frequency Ratio SW1
3.5x
4x
4.5x
5x
External System
Bus Clock
66MHz
66MHz
66MHz
66MHz
233MHz
266MHz
300MHz
333MHz
CPU Frequency
Note:
Intel Pentium

II processors or Intel CeleronTM processors support VID (Voltage
Identification). The switching voltage regulator on the system board will
automatically set the voltage regulator according to the voltage of the
processor.

2
10
Hardware Installation
2.3 Jumper Settings for Wake-On-Keyboard
Positionnement des Cavaliers pour Réveil-Sur-Clavier
Jumpereinstellungen für die Wake-On Tastatur

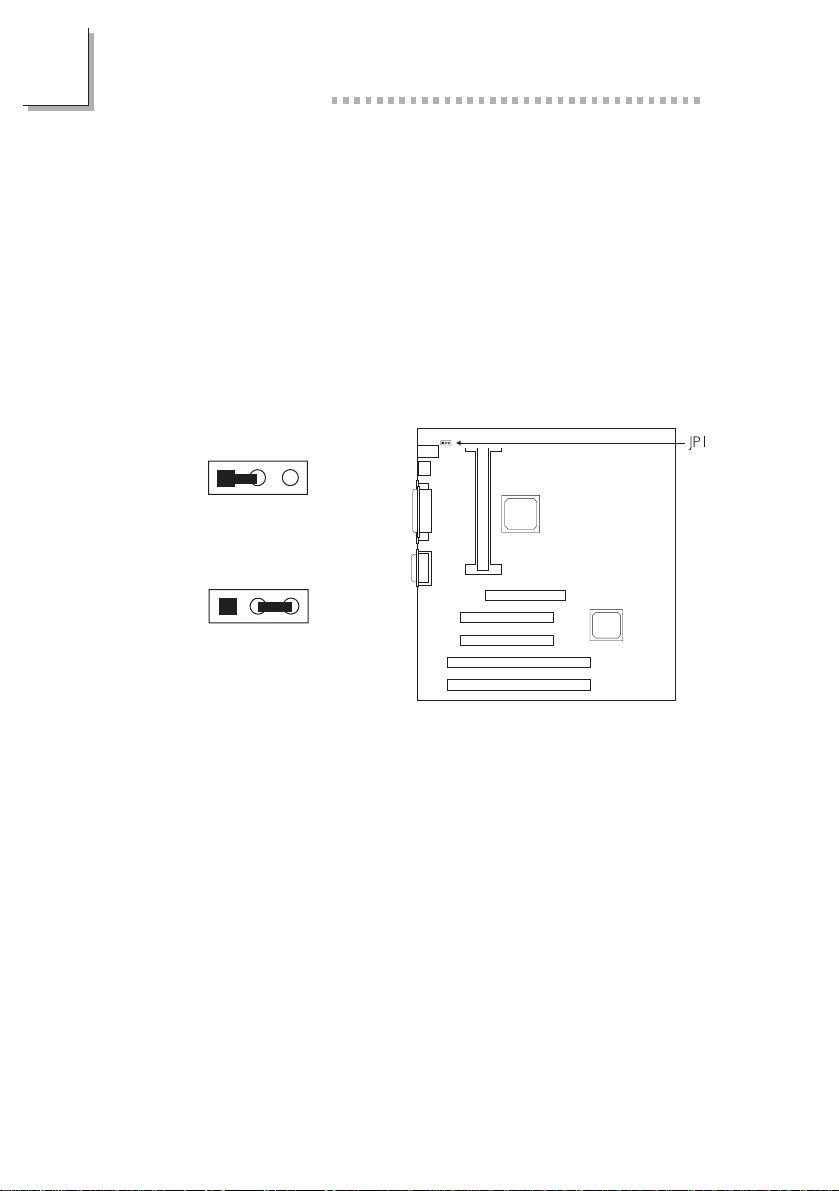

Jumper JP1 - Wake-on-Keyboard
To use the keyboard to power-on the system, please follow the
steps below.
1. Make sure JP1 is in its default setting - 2-3 On.
2 Set Keyboard Power On in the Integrated Peripherals setup of
the Award BIOS to Enabled. Refer to section 3.9 (chapter 3)
for more information.
2-3 On: Enable (default)
1-2 On: Disable
123
123
2.4 Jumper Settings for Clearing CMOS Data
Positionnement des Cavaliers pour Effacer les Données
CMOS
Jumpereinstellungen zum Löschen der CMOS Daten

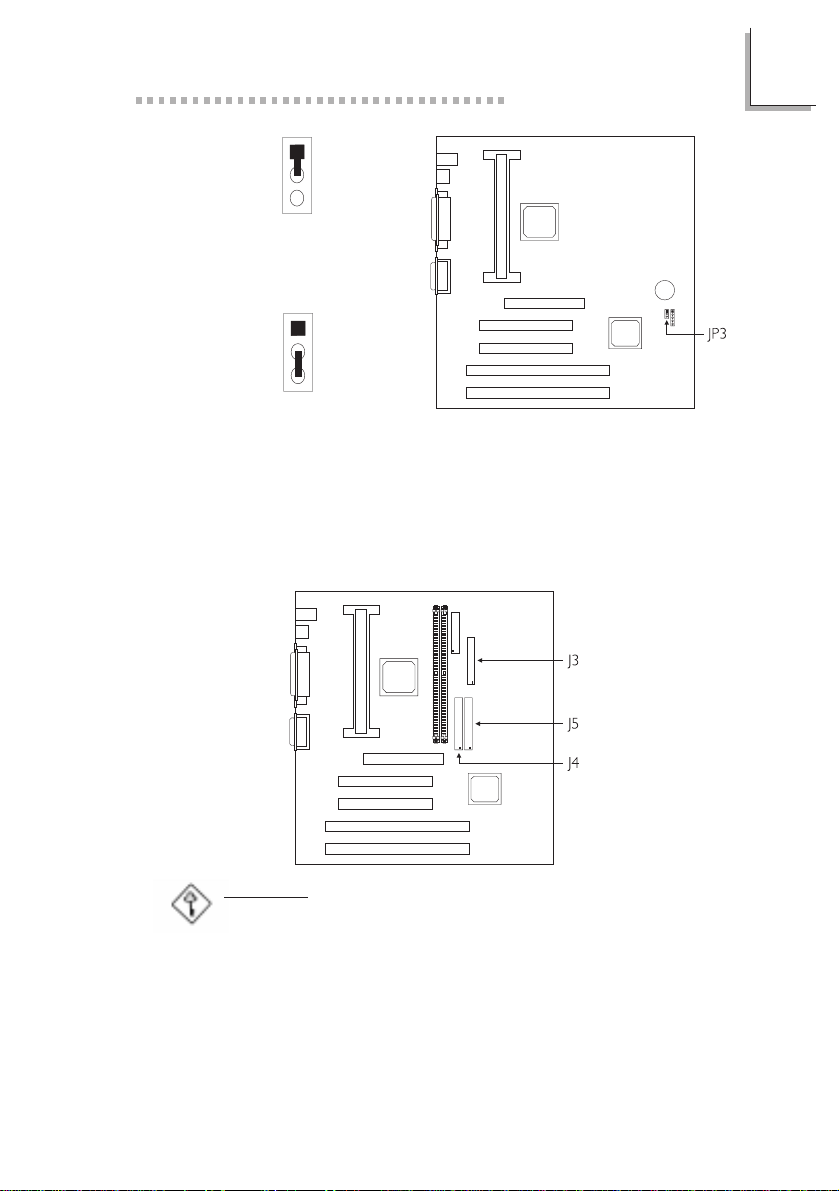

Jumper JP3 - Clear CMOS Data
To load the default values stored in the ROM BIOS, please follow
the steps below.
1. Power-off the system and unplug the power cord.
2. Set JP3 pins 2 and 3 to On. Wait for a few seconds and set JP3
back to its default setting, pins 1 and 2 On.
3. Plug the power cord and power-on the system.

2
Hardware Installation
11
2.5 Connectors / Connecteurs / Anschlüsse
2.5.1 Floppy Disk Drive Controller and IDE Interface
Contrôleur de Lecteur de Disquette et Interface IDE
Diskettenlaufwerkcontroller und IDE Interface
: FDC
: Primar y IDE
: Secondary IDE
Important:
If you encountered problems while using an ATAPI CD-ROM drive
that is set in Master mode, please set the CD-ROM drive to
Slave mode. Some ATAPI CD-ROMs may not be recognized and
cannot be used if incorrectly set in Master mode.
2-3 On:
Clear CMOS Data
1-2 On: Normal
(default)
1
2
3
1
2
3

2
12
Hardware Installation
2.5.2 IrDA Connector
Connecteur IrDA
IrDA Anschlüsse
Pin
1
2
3
4
5
Function
IRTX
Ground
IRRX
Key
+5V
2.5.3 CPU Fan Connector
Connecteur du Ventilateur de CPU
CPU Kühlung Anschluß
Pin
1
2
3
Function
Fan Ctrl
+12V
N. C.

2
Hardware Installation
13
2.5.5 AGP Fan Connector
Connecteur de Ventilateur AGP
Anschluß AGP Kühlung
Pin
1
2
3
Function
Fan Ctrl
+12V
None
2.5.4 Chassis Fan Connector
Connecteur de Châssis de Ventilateur
Anschluß Kühlungsgehäuse
Pin
1
2
3
Function
Ground
+12V
None

2
14
Hardware Installation
2.5.6 LEDs and Switches
Commutateurs et LED
LEDs und Schalter
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
Pin Assignment
+5VSB ATX Power
Ground
N. C.
HDD LED Power
HDD Active
N. C.
Green LED Power
Green Active
N. C.
PW-ON
Ground
N. C.
Ext SMI
Ground
N. C.
SW-RST
Ground
N. C.
Speaker Data
N. C.
Ground
Speaker Power
N. C.
LED-PW
Key
PWR-LED Active
N. C.
Ground
SB-LED
(ATX 5VSB Standby LED)
HD-LED
(Primary/Secondary IDE LED)
G-LED
(Green LED)
SP-SW
(ATX power switch)
G-SW
(Green switch)
RESET
(Reset switch)
SPEAKER
(Speaker connector)
PWR-LED
(Power LED)

2
Hardware Installation
15
2.5.7 CD Audio-in Connector
Connecteur dEntrée Audio CD
CD Audio-in Anschluß
Important:
SP-SW (ATX Power Switch) - Depending on the setting in the BIOS
setup, this switch is a dual function power button that will allow
your system to enter the Soft-Off or Suspend mode. Refer to section
3.7 (chapter 3) for more information.
JP7
JP2/JP4

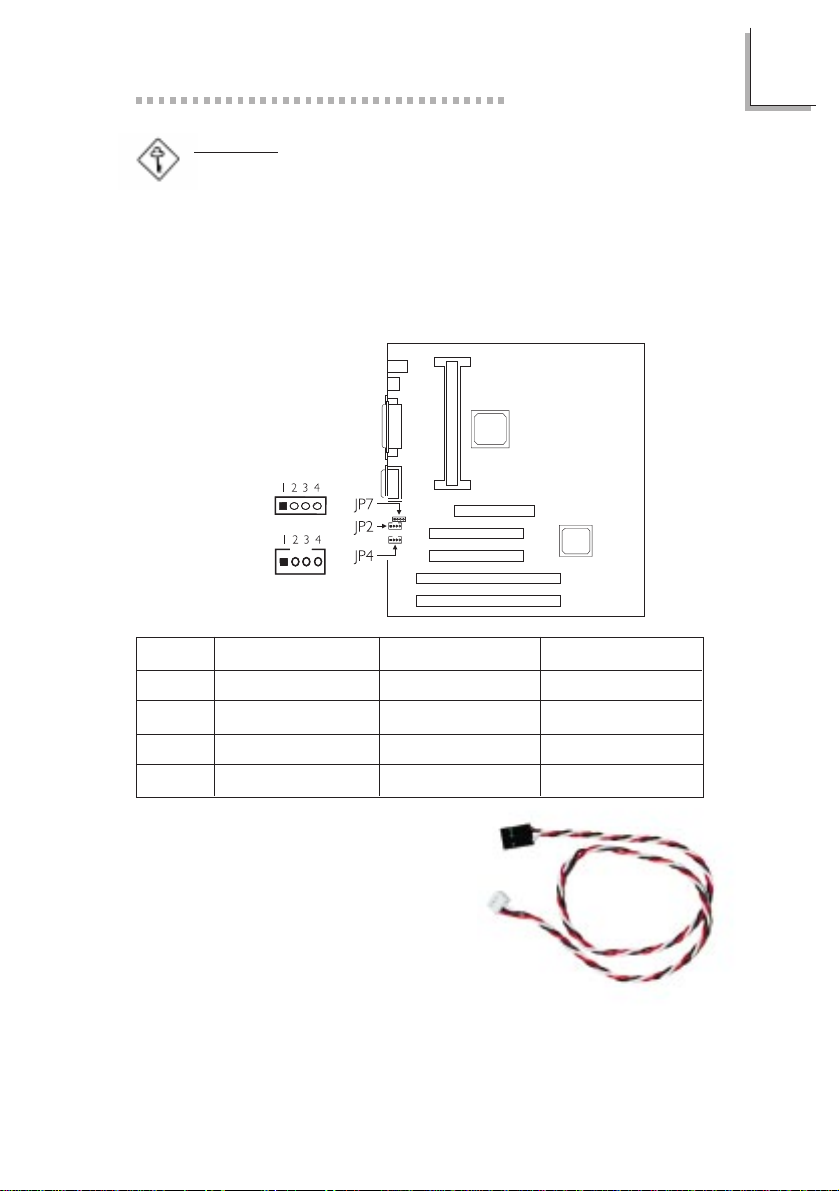

Connect the CD audio cable to JP2
(Mitsumi CD-ROM) or JP4 (Sony
CD-ROM) if the audio cable
included in your CD-ROM package
is similar to the one on the right.
Pin
1
2
3
4
JP2 - Mitsumi
CD-G
CD-L
CD-G
CD-R
JP4 - Sony
CD-R
CD-G
CD-G
CD-L
JP7
CD-R
CD-G
CD-G
CD-L

2
16
Hardware Installation
Important:
The 5VSB power source of your power supply must support
720mA (minimum).
Connect the CD audio cable to
JP7 if the audio cable included in
your CD-ROM package is
similar to the one on the right.
2.5.8 Wake-On-LAN (WOL) Connector
Connecteur Réveil-Sur-LAN (WOL)
Wake-On-LAN (WOL) Anschluß
Pin
1
2
3
Function
+5VSB (720mA)
Ground
WOL

2
Hardware Installation
17
Important:
Pin 18 (-5V) is not present in an SFX power supply.
Your power supply must meet the ATX specification - supporting
3.3V/14A (minimum), otherwise your system will not boot properly.
2.5.9 Power Connector
Connecteur dAlimentation
Netzanschluß
Pin
1
2
3
4
5
6
7
8
9
10
Function
3.3V/14A
3.3V/14A
Ground
+5V
Ground
+5V
Ground
PW-OK
5VSB
+12V
Pin
11
12
13
14
15
16
17
18
19
20
Function
3.3V/14A
-12V
Ground
PS-ON
Ground
Ground
Ground
-5V
+5V
+5V

3
18
Award BIOS Setup Utility
3.1 Entering the Award BIOS Setup Utility
Entrer Dans lUtilitaire de Configuration du Award BIOS
Aufruf des AWARD BIOS Konfigurationsprogramms
Power-on the system and press <Del> to enter the utility. The main
program screen will appear.
Allumez le Système et appuyez sur <Del> pour entrer dans
lutilitaire. Lécran du programme principal apparaîtra.
Zum Aufrufen des Konfigurationsprogramms drücken Sie während
des Startvorgangs die Taste <Del>. Ein Bildschirm ähnlich dem
folgenden erscheint. ROM PCI/ISA BIOS
CMOS SETUP UTILITY
AWARD SOFTWARE, INC.
STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD FAIL-SAFE SETTINGS
LOAD OPTIMAL SETTINGS
INTEGRATED PERIPHERALS
SUPERVISORPASSWORD
USERPASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING
Esc
F10 : Quit : Save & Exit Setup ↑↓→←
(Shift) F2 : Select Item
: Change Color
Chapter 3 - Award BIOS Setup Utility
Utilitaire de Configuration du Award BIOS
AWARD BIOS Konfigurationsprogramm

3
Award BIOS Setup Utility
19
3.2 Setting the Date and Time
Paramétrage de la Date et de lHeure
Einstellen des Datums und der Zeit
ROM PCI/ISA BIOS
STANDARD CMOS SETUP
AWARD SOFTWARE, INC.
Date (mm:dd:yy) :Wed, Jul 1 1998
Time (hh:mm:ss) :13: 27: 50
HARD DISKS
Primary Master
Primary Slave
Secondary Master
Secondary Slave
TYPE
Auto
Auto
Auto
Auto
SIZE
0
0
0
0
CYLS
0
0
0
0
HEAD
0
0
0
0
PRECOMP
0
0
0
0
LANDZ
0
0
0
0
SECTOR
0
0
0
0
MODE
Auto
Auto
Auto
Auto
Drive A : 1.44M, 3.5 in.
Drive B : None
Video : EGA/VGA
Halt on : All Errors
Base Memory : 640K
Extended Memory : 64512K
Other Memory : 384K
Total Memory : 65536K
PU/PD/+/- : Modify
↑↓→← : Select Item
: Change(Shift)F2
:
:
:
:
Esc
F10 : Quit : Save & Exit Setup
1. Select Standard CMOS Setup in the main program screen and
press <Enter>.
Sélectionnez Standard CMOS Setup dans lécran du programme
principal et appuyez sur <Entrée>.
Standard CMOS Setup in dem Hauptbildschirm auswählen, und
die Eingabetaste (Enter) drücken.
2. Set the correct date and time in the Date and Time fields
respectively.
Sélectionnez la date et lheure correcte dans les champs Date
et Time respectivement.
Jeweils korrekte Werte in die Eingabefelder Date (Datum) und
Time (Zeit) eingeben.

3
20
Award BIOS Setup Utility
3.3 Selecting the Hard Drive and Floppy Drive Type
Sélectionnez le Type de Disque Dur et de Lecteur de
Disquette
Auswahl der Festplatte und des Diskettenlaufwerks
1. Select Standard CMOS Setup in the main program screen and
press <Enter>.
Sélectionnez Standard CMOS Setup dans lécran du programme
principal et appuyez sur <Entrée>.
Standard CMOS Setup in dem Hauptbildschirm auswählen, und
die Eingabetaste (Enter) drücken.
2. Select Auto for the hard disk drive(s) installed in your system.
The BIOS will auto-detect the HDD & CD-ROM drive at the
POST stage and show the IDE for the HDD & CD-ROM drive.
If a hard disk has not been installed, select None and press
<Enter>.
Sélectionnez Auto pour le(s) disque(s) dur(s) installés dans
votre système. Le BIOS détectera automatiquement le Disque
Dur et le Lecteur CD-ROM durant la phase POST et affichera
lIDE du Disque Dur et du Lecteur CD-ROM. Si aucun disque
dur na été installé, sélectionnez None et appuyez sur <entrée>.
Im Eintrag Hard Disk Drive(s) (Festplatte) Auto auswählen.
Das Programm entdeckt die Festplatte sowie das CD-ROM
Laufwerk während der Initialisierung automatisch. Ist keine
Festplatte installiert, aktivieren Sie den Eintrag None.
Eingabetaste (Enter) drücken.
ROM PCI/ISA BIOS
STANDARD CMOS SETUP
AWARD SOFTWARE, INC.
Date (mm:dd:yy) : Wed, Jul 1 1998
Time (hh:mm:ss) : 13: 27: 50
HARD DISKS
Primary Master
Primary Slave
Secondary Master
Secondary Slave
TYPE
Auto
Auto
Auto
Auto
SIZE
0
0
0
0
CYLS
0
0
0
0
HEAD
0
0
0
0
PRECOMP
0
0
0
0
LANDZ
0
0
0
0
SECTOR
0
0
0
0
MODE
Auto
Auto
Auto
Auto
Drive A : 1.44M, 3.5 in.
Drive B : None
Video : EGA/VGA
Halt on : All Errors
Base Memory : 640K
Extended Memory : 64512K
Other Memory : 384K
Total Memory : 65536K
PU/PD/+/- : Modify
↑↓→← : Select Item
: Change(Shift)F2
:
:
:
:
Esc
F10 : Quit : Save & Exit Setup
