DFI 915GM-MIGF User manual

935-915GM5-000(G)
91300608
915GM-MIGF
System Board User’s Manual
Carte Mère Manuel Pour Utilisateur
System-Platine Benutzerhandbuch
Manual del Usuario de Placas Base
Ðóêîâîäñòâî ÏîëüçîâàòåëÿÐóêîâîäñòâî Ïîëüçîâàòåëÿ
Ðóêîâîäñòâî ÏîëüçîâàòåëÿÐóêîâîäñòâî Ïîëüçîâàòåëÿ
Ðóêîâîäñòâî Ïîëüçîâàòåëÿ

2
Quick Setup Guide
1
Quick Setup
Guide
Copyright
This publication contains information that is protected by copyright. No part of it
may be reproduced in any form or by any means or used to make any
transformation/adaptation without the prior written permission from the copyright
holders. This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to the
contents or use of this manual and specifically disclaims any express or implied
warranties of merchantability or fitness for any particular purpose. The user will
assume the entire risk of the use or the results of the use of this document.
Further, the manufacturer reserves the right to revise this publication and make
changes to its contents at any time, without obligation to notify any person or
entity of such revisions or changes. © 2006. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification
purpose only and are the properties of the respective owners.
Caution
To avoid damage to the system, use the correct AC input voltage range.....
To reduce the risk of electric shock, unplug the power cord before removing the
system chassis cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.
Battery: 1. Danger of explosion if battery incorrectly replaced. 2. Replace only
with the same or equivalent type recommend by the manufacturer. 3. Dispose of
used batteries according to the battery manufacturer’s instructions.
Notice
The system board and accessories you receive in the package may not come
similar to the information stated in this manual. This may differ in accordance to
the sales region or models in which it was sold. For more information about the
standard package in your region, please contact your dealer or sales
representative.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the
equipment is operated in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accord-
ance with the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
2. Shielded interface cables must be used in order to comply with the emission
limits.

3
1
Quick Setup Guide
Quick Setup
Guide
Table of Contents
Chapter 1
Quick Setup Guide.............................................
Chapter 2
English......................................................................
Chapter 3
Français....................................................................
Chapter 4
Deutsch...............................................................................
Chapter 5
Español............................................................................
Chapter 6
Ðóññêèé.......................................................................
Chapter 7
Japanese........................................................................
5
19
21
23
25
27
The user’s manual in the provided CD contains detailed information about the system board. If, in some
cases, some information doesn’t match those shown in this manual, this manual should always be re-
garded as the most updated version.
Le manuel d’utilisateur dans le CD muni contient renseignement détaillé au sujet de carte de système. Si,
en quelque cas, quelque renseignement n’appareille de ce que dit dans ce manuel, ce manuel doit
toujours être considéré comme la plus nouvelle version.
Das Benutzerhandbuch in der angebotenen CD enthält detaillierte Informationen über die Hauptplatine.
Wenn in manchen Fällen manche Informationen nicht denjenigen Informationen dargestellt in diesem
Handbuch entsprechen, soll dieses Handbuch als die meist aktualisierte Ausgabe gelten.
El uso explicativo contene información detalle sobre la sistema board en el CD preparativo. Si en algún
caso, la información no es igual con el uso explicativo, necesita ver el uso explicativo, esque es más
nuevo.
 ðóêîâîäñòâå ïîëüçîâàòåëÿ íà ïðåäîñòàâëÿåìîì CD äèñêå ñîäåðæèòñÿ ïîäðîáíàÿ
èíôîðìàöèÿ î ìàòåðèíñêîé ïëàòå. Èíîãäà íàïå÷àòàííîå ðóêîâîäñòâî ìîæåò íå
ñîâïàäàòü ðóêîâîäñòâîì íà CD, òàê êàê ïîñëåäíåå íàèáîëåå ÷àñòî îáíîâëÿåòñÿ è
ÿâëÿåòñÿ ñàìûì ñâåæèì.
29

4
Quick Setup Guide
1
Quick Setup
Guide
About the Package
The system board package contains the following items. If any of
these items are missing or damaged, please contact your dealer or
sales representative for assistance.
;The system board
;A user’s manual
;One IDE cable
;One floppy cable
;One Serial ATA data cable
;One Serial ATA power cable
;One “Main Board Utility” CD
;One I/O shield
The system board and accessories in the package may not come
similar to the information listed above.This may differ in accordance
to the sales region or models in which it was sold. For more infor-
mation about the standard package in your region, please contact
your dealer or sales representative.

5
1
Quick Setup Guide
Quick Setup
Guide
System Board Layout
Chapter 1 - Quick Setup Guide

6
Quick Setup Guide
1
Quick Setup
Guide
System Memory
Jumpers
DDR 2
DDR 1
Clear CMOS Data
2-3 On:
Clear CMOS Data
1-2 On: Normal
(default)
X
JP9
312
312

7
1
Quick Setup Guide
Quick Setup
Guide
Important:
The 5VSB power source of your power supply must support
≥ 720mA.
PS/2 Power Select
1-2 On: 5V
(default) 2-3 On: 5VSB
X
JP1 312312
Power-on Select
Important:
1. Set JP8 pins 1 and 2 to On.
2. The PWRON After PWR-Fail field must be set to "On". (Inte-
grated Peripherals submenu, Super I/O Device section of the
BIOS).
X
JP8
1-2 On:
Power-on via
AC power
2-3 On:
Power-on via
power button
(default)
1
3
2
1
3
2

8
Quick Setup Guide
1
Quick Setup
Guide
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2
USB ports, the 5VSB power source of your power supply must
support ≥ 1.5A. If you are using the Wake-On-USB Keyboard/Mouse
function for 3 or more USB ports, the 5VSB power source of your
power supply must support ≥ 2A.
USB Power Select
X
USB 1-4
(JP2)
1-2 On: 5V
(default) 2-3 On: 5VSB
312312
X
USB 5-8
(JP5)
1-2 On: 5V
(default) 2-3 On: 5VSB
312312
DVI-D/PCIE Select
X
J23
1
3
2
4
1
3
2
4
1-2, 3-4 On:
DVI-D
(at rear panel)
All Off:
PCI Express
x16 card

9
1
Quick Setup Guide
Quick Setup
Guide
X
JP7
3
1
4
5
26
31
4
5
26
31
4
5
26
4-6 On:
Dothan-A step
FSB400
3-5, 4-6 On:
Dothan-A step
FSB533
1-3, 2-4 On:
Dothan-B step
Pentium M Processor FSB Select
JP7 is used to select the front side bus of a Pentium®M processor.
Important:
Overclocking may result to the CPU’s or system’s instability and
are not guaranteed to provide better system performance. If
you are unable to boot your system due to overclocking, make
sure to set this jumper back to its default settings.

10
Quick Setup Guide
1
Quick Setup
Guide

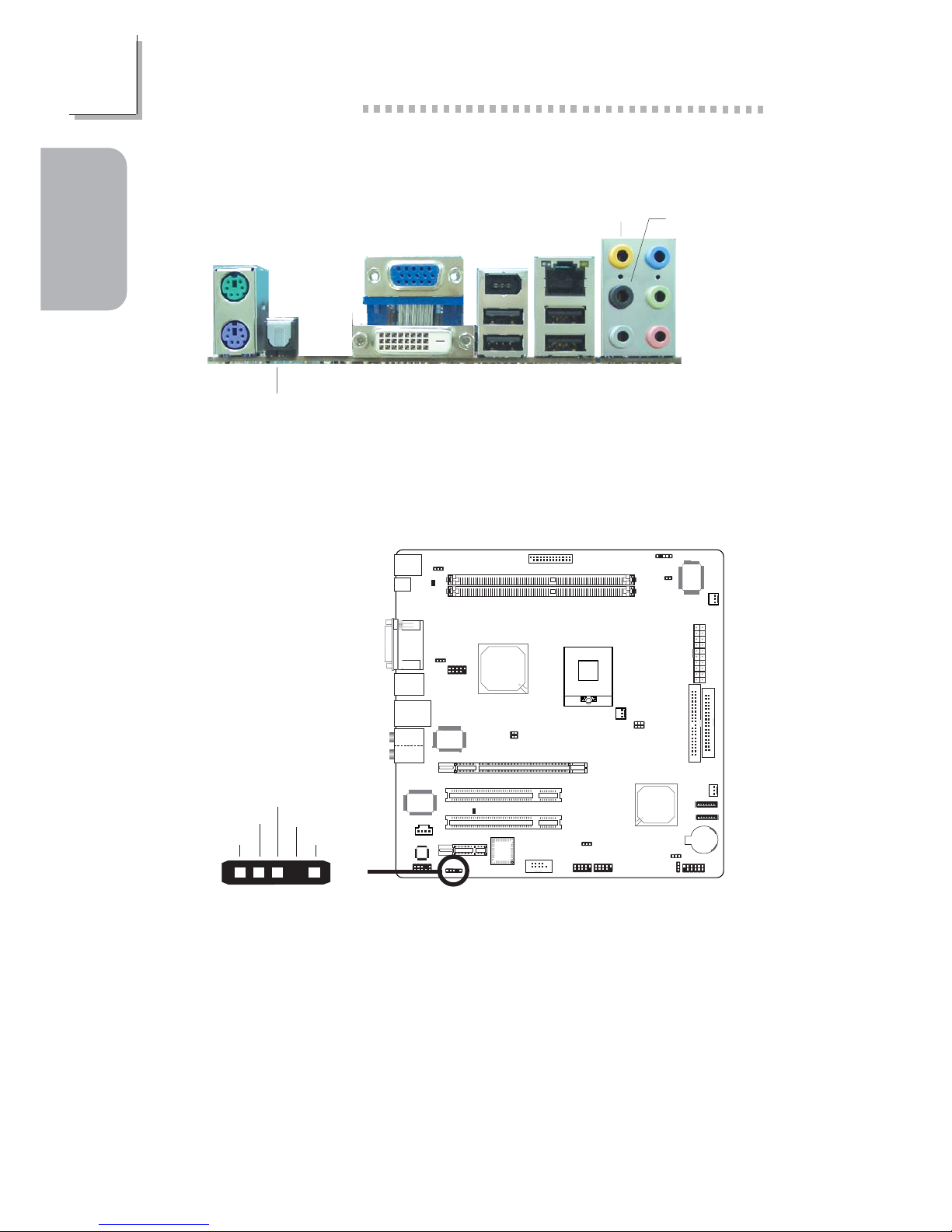

Internal I/O Connectors
Rear Panel I/O Ports
PS/2
Mouse
PS/2 K/B
VGA
Optical
S/PDIF
DVI-D USB 1-2 USB 3-4
IEEE
1394_1 LAN
Mic-in
Front R/L
Line-in
Side R/L
Center/
Subwoofer Rear R/L
S/PDIF
W
1
5
SPDIF in
GND
SPDIF out
Key
+5V

11
1
Quick Setup Guide
Quick Setup
Guide
W
IEEE 1394_2
+12V (fused)
1
TPA+
Ground
TPB+
+12V (fused)
Key
TPA-
Ground
TPB-
Ground
210
9
Universal Serial Bus Connectors
USB 5-6
USB 7-8
1
VCC
-Data
+Data
GND
Key
VCC
-Data
+Data
GND
N. C.
210
9
W

12
Quick Setup Guide
1
Quick Setup
Guide

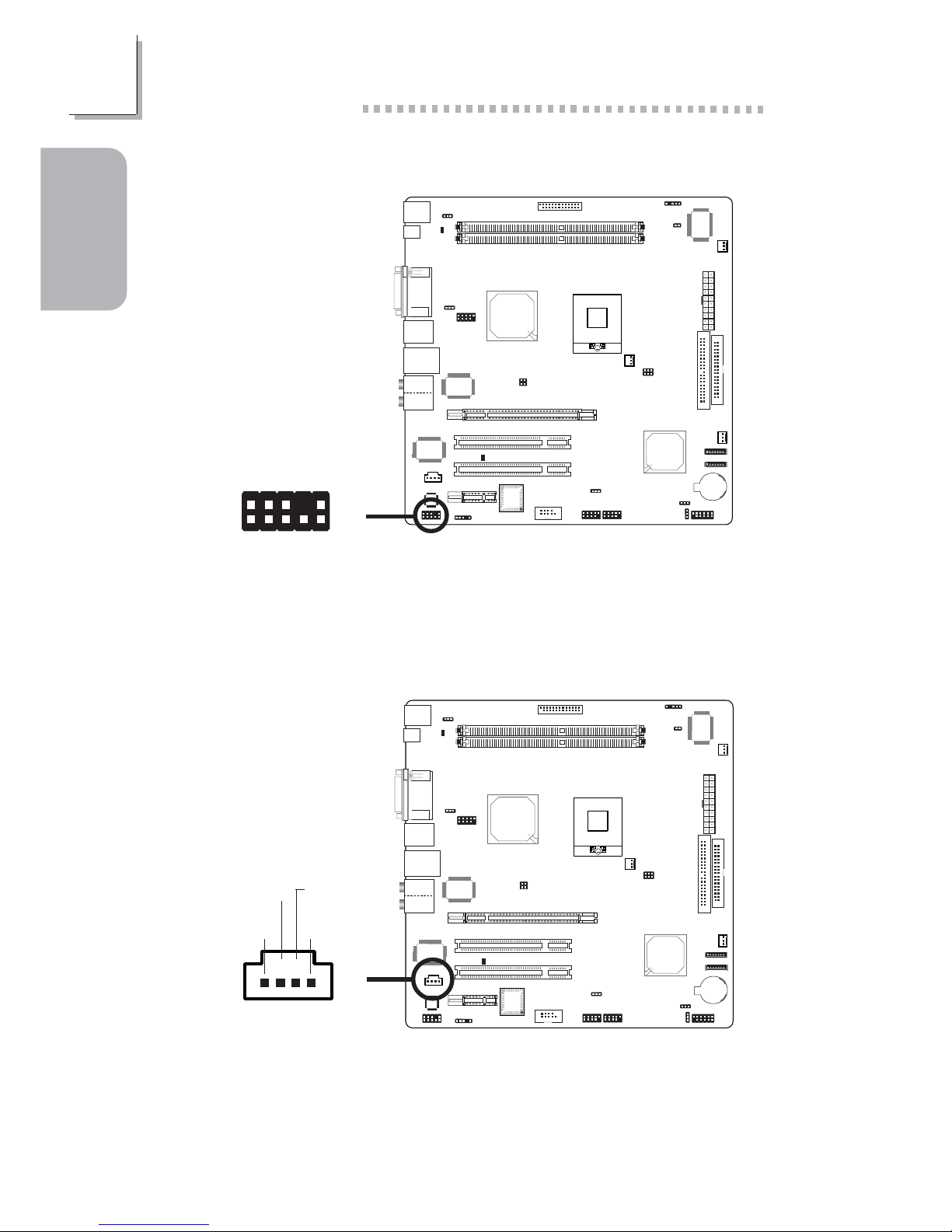

Front Audio
W
1
Mic
Mic Power
AuD_R_Out
N. C.
AuD_L_Out
GND
AuD_Vcc
Key
210
9
AuD_R_Return
AuD_L_Return
CD-in Internal Audio Connector
W
1
4
Left audio
channel
Right audio
channel
Ground
Ground

13
1
Quick Setup Guide
Quick Setup
Guide

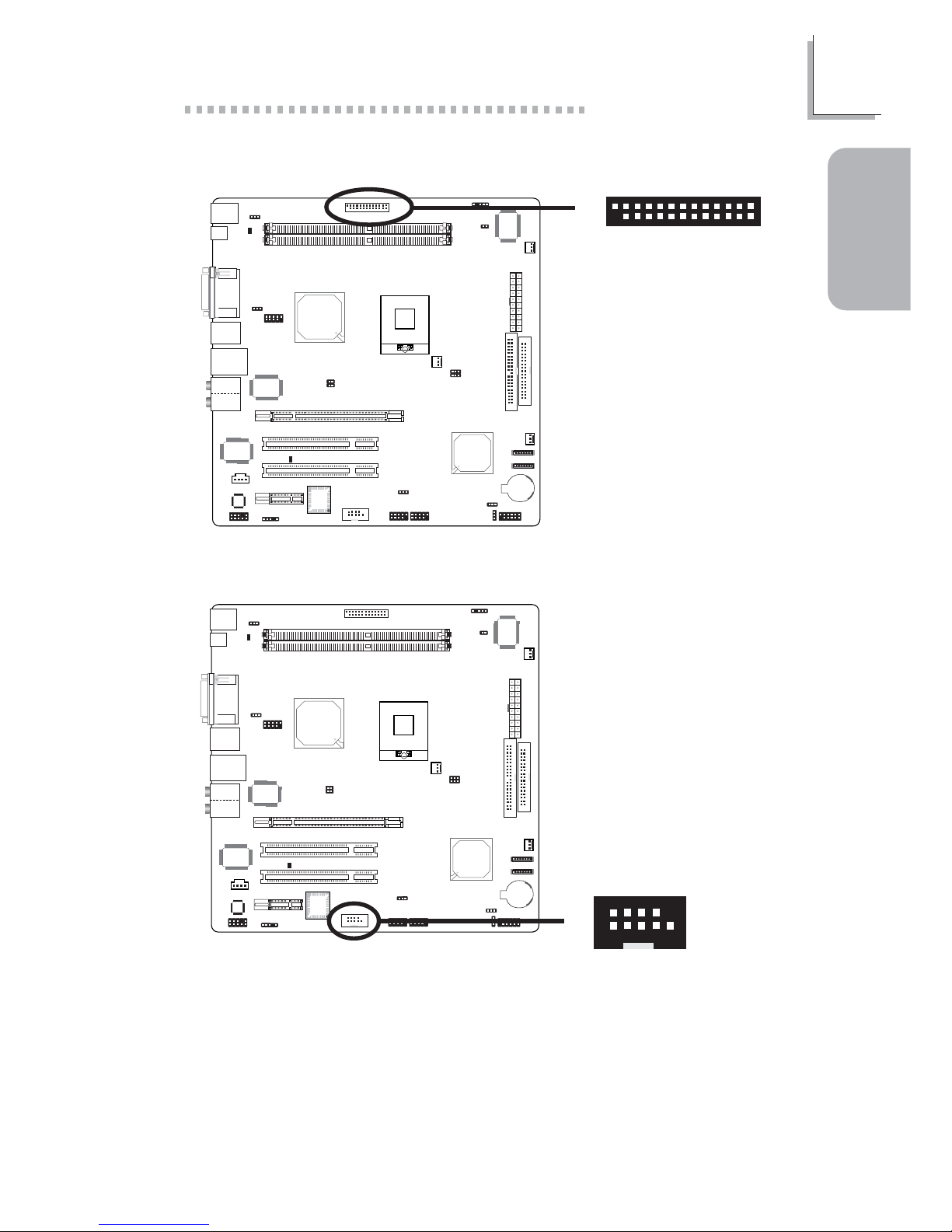

Parallel Connector
X2
1
25
Serial (COM) Connector
X19
2
CD
TD RD
DTR
GND
RTS DSR
CTS
RI

14
Quick Setup Guide
1
Quick Setup
Guide
Floppy Disk Drive Connector
X
34 33
21
Serial ATA Connectors
XSATA 2
SATA 1
17
GND
TXP
TXN
GND
RXN
RXP
GND
17

15
1
Quick Setup Guide
Quick Setup
Guide
Note:
The sequence of the pin functions on some IR cable may be
reversed from the pin function defined on the system board. Make
sure to connect the cable connector to the IR connector according to
their pin functions.
IDE Disk Drive Connector
40 39
21
X
IrDA Connector
W
15
VCC
N. C.
IRRX
Ground
IRTX

16
Quick Setup Guide
1
Quick Setup
Guide
Cooling Fan Connectors
X
2nd fan
CPU fan
Chassis fan
X
1
3
Ground
Power
Sense
1
3
Ground
Power
Sense
1
3
Ground
Power
Sense
X
Chassis Open Connector
X21
Ground
Chassis signal

17
1
Quick Setup Guide
Quick Setup
Guide
Important:
If the DIMM Standby Power LED or PCI Standby Power LED is
lighted, you must power-off the system then turn off the power
supply’s switch or unplug the power cord prior to installing any
memory modules or add-in cards.
Important:
To ensure that adequate power is provided, we strongly recommend
that you use a minimum of 250 Watt (or greater) power supply.
Power Connector
X
+12V
10
1
20
11
3.3V
3.3V
Ground
+5V
Ground
+5V
Ground
PW-OK
5VSB
+5V
3.3V
-12V
Ground
PS-ON
Ground
Ground
Ground
-5V
+5V
DIMM and PCI Standby Power LEDs
DIMM Standby
Power LED
PCI Standby
Power LED

18
Quick Setup Guide
1
Quick Setup
Guide
Front Panel Connectors
X
1
2
11
12
HDD-LED
RESET SW
PWR-LED
PWR-BTN
Pin
1
3
5
7
9
11
N. C.
HDD-LED
RESET SW
N. C.
Pin Assignment
N. C.
HDD Power
Signal
Ground
RST Signal
N. C.
Pin
2
4
6
8
10
12
PWR-LED
PWR-BTN
Key
Pin Assignment
LED Power
LED Power
Signal
PWR-BTN Power
Signal
Key

19
2
English
English
Chapter 2 - English
Processor
Chipset
System Memory
Expansion Slots
BIOS
Power Management
Hardware Monitor
Graphics
Intel®Pentium®M Dothan processor
- 533MHz/400MHz system data bus
Intel®Celeron®M processor
- 400MHz system data bus
Processor socket: mPGA479M
Intel®chipset
- North bridge: Intel®915GM Express chipset
- South bridge: Intel®ICH6M
Two 184-pin DDR SDRAM DIMM sockets
Supports single channel (64-bit wide) memory interface
Unbuffered PC2700 (DDR333) or PC3200 (DDR400) DDR
SDRAM DIMM
Supports maximum of 2GB system memory using 256Mbit,
512Mbit or 1Gbit technology for x8 and x16 devices, non-ECC
memory
1 PCI Express x16 slot
1 PCI Express x1 slot
2 PCI slots
Award BIOS
4Mbit flash memory
ACPI and OS Directed Power Management
ACPI STR (Suspend to RAM) function
Wake-On-PS/2 Keyboard/Mouse
Wake-On-USB Keyboard/Mouse
Wake-On-LAN
Wake-On-Ring
RTC timer to power-on the system
AC power failure recovery
Monitors CPU/system temperature
Monitors CPU(V), +1.5V, +3.3V, +5V, +12V, -12V, VBAT(V) and
5VSB(V) voltages
Monitors the speed of the cooling fans
Read back capability that displays temperature, voltage and fan
speed
Built-in Intel Graphics Media Accelerator 900
Dual independent display using DVI-D and VGA interfaces
- devices connected to these interfaces can be displayed simulta-
neously

20
English
2
English
Audio
LAN
IDE
Serial ATA
IEEE 1394
Rear Panel I/O
Internal I/O
PCB
Realtek ALC850
True stereo line level outputs
S/PDIF-in/out interface
8-channel audio output
RTL8110SB Gigabit ethernet controller
Fully compliant to IEEE 802.3 (10BASE-T), 802.3u (100BASE-
TX) and 802.3ab (1000BASE-T) standards
Supports up to UltraDMA 100Mbps IDE devices
Supports two SATA (Serial ATA) interfaces which are compliant
with SATA 1.0 specification (1.5Gbps interface)
VIA VT6307
Supports two 100/200/400 Mb/sec ports
1 mini-DIN-6 PS/2 mouse port
1 mini-DIN-6 PS/2 keyboard port
1 optical S/PDIF port
1 VGA monitor port
1 DVI-D port
1 IEEE 1394 port
1 RJ45 LAN port
4 USB 2.0/1.1 ports
Center/subwoofer, rear R/L and side R/L jacks
Line-in, line-out (front R/L) and mic-in jacks
2 connectors for 4 additional external USB 2.0 ports
1 connector for 1 external serial port
1 connector for 1 external IEEE 1394 port
1 front audio connector for line-out and mic-in jacks
1 CD-in internal audio connector
1 S/PDIF-in/out connector
1 connector for IrDA interface
1 parallel connector
2 Serial ATA connectors
1 40-pin IDE connector
1 floppy connector
1 20-pin ATX power connector
1 front panel connector
1 chassis open connector
3 fan connectors
6 layers, microATX form factor
24.4cm (9.6") x 24.4cm (9.6")
