Quick Setup Guide
1
Quick Setup
Guide
Table of Contents
Chapter 1
Quick Setup Guide.............................................
Chapter 2
English......................................................................
Chapter 3
Français (French).................................................
Chapter 4
Deutsch (German)................................................
Chapter 5
Español (Spanish)..................................................
5
35
50
67
84
NB76-BC/BL Intel 845G
AGP slot
“BL” supports onboard LAN and Smart I/O

5
1
Quick Setup Guide
Quick Setup
Guide
Chapter 1 - Quick Setup Guide
Table of Contents
1.1 System Board Layout..................................................................................................
1.2 Jumpers.....................................................................................................................................
1.3 Ports and Connectors................................................................................................
1.4 Award BIOS Setup Utility.......................................................................................
6
9
12
27
Note:
The user’s manual in the provided CD contains detailed information
about the system board. If, in some cases, some information doesn’t
match those shown in this manual, this manual should always be
regarded as the most updated version.

6
Quick Setup Guide
1
Quick Setup
Guide

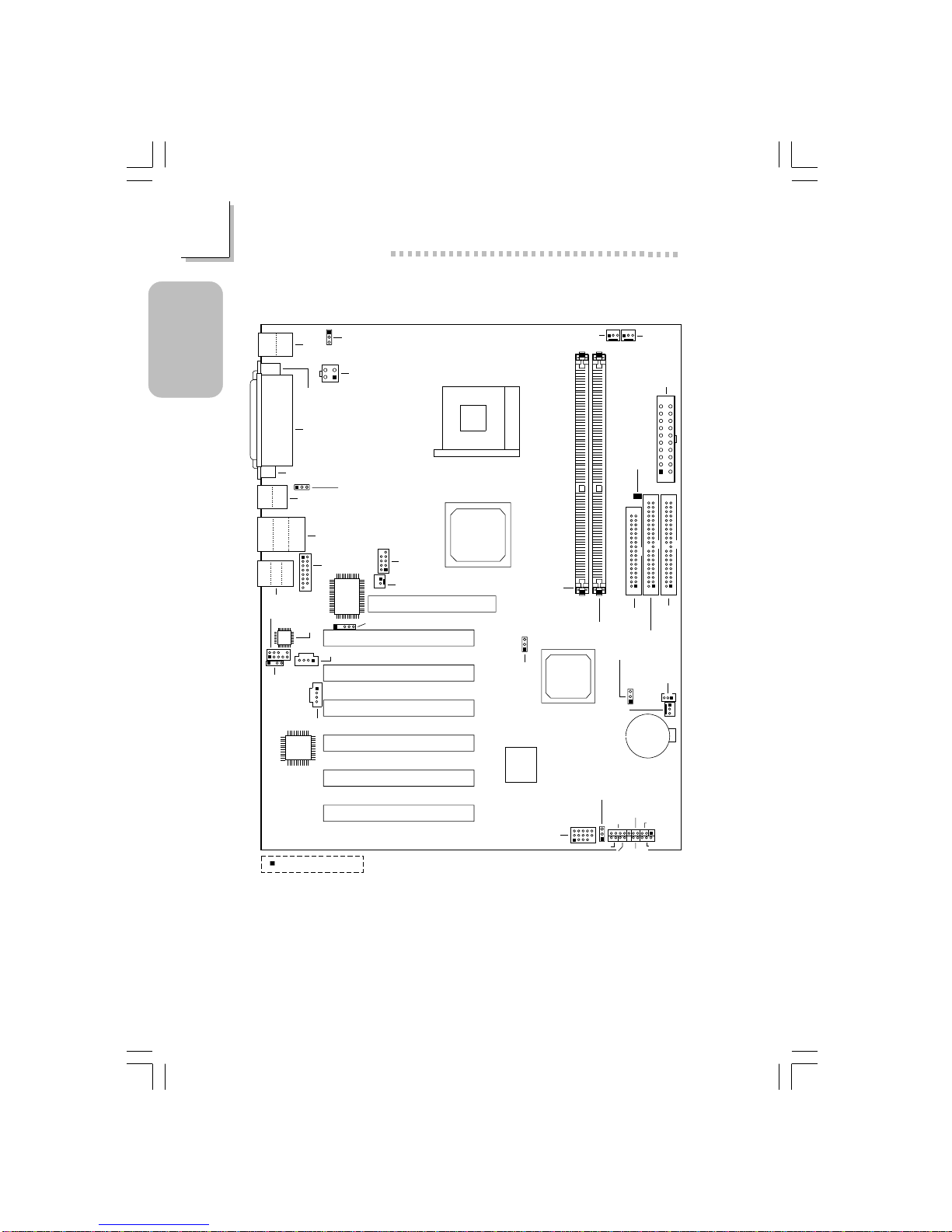

1.1 System Board Layout
KB
Mouse
CN4
COM 1
(CN2)
Parallel (CN6)
VGA (CN1)
Wake-On-KB/Mouse
(JP1)
+12V power
(ATXP1)
4
3
2
1
CN3
USB 1
USB 2
LAN
USB 3
USB 4
CN7
Line-out
Line-in
Mic-in
CN5
Game/MIDI
(J6)
12
15
1
2
9
I/O
chip
IrDA (J11)
AC’97
Front audio (J2)
Realtek
RTL8100
Socket 478
DDR SDRAM
DIMM 1
DDR SDRAM
DIMM 2
Intel
845G
GMCH
Intel
ICH4
CPU FSB
select (JP4)
Clear CMOS (JP7)
Wake-On-
LAN (J23)
Chassis
fan (J25)
Battery
CPU fan
(J18) Second
fan (J19)
ATX main
power (PL1)
DIMM
Standby
Power LED
FDD (J21)
IDE 2 (J22)
IDE 1
(J24)
Firmware
Hub
J20
PWR-LED
G-SW
RESET
SPEAKER
G-LED
HD-LED
Square denotes pin 1
ATX-SW
AGP Slot
PCI Slot 1
PCI Slot 2
PCI Slot 3
PCI Slot 4
PCI Slot 5
PCI Slot 6
CN3
Wake-On-USB KB
for USB 1/2/3/4 (JP9)
COM 2
(J13)
Wake-On-Ring (J12)
USB 5 & 6
(J14)
Wake-On-USB KB for
USB 5/6 (JP8)
CD-in (J8)
TAD (J7)
S/PDIF-out
(J1)
NB76-BL
(Supports onboard LAN)

7
1
Quick Setup Guide
Quick Setup
Guide
Note:
The illustrations on the following pages are based on the system
board that supports onboard LAN.
KB
Mouse
CN4
COM 1
(CN2)
Parallel (CN6)
VGA (CN1)
Wake-On-KB/Mouse
(JP1)
+12V power
(ATXP1)
4
3
2
1
CN3
USB 1
USB 2
USB 3
USB 4
CN7
Line-out
Line-in
Mic-in
CN5
Game/MIDI
(J6)
12
15
1
2
9
I/O
chip
IrDA (J11)
AC’97
Front audio (J2)
Socket 478
DDR SDRAM
DIMM 1
DDR SDRAM
DIMM 2
Intel
845G
GMCH
Intel
ICH4
CPU FSB
select (JP4)
Clear CMOS (JP7)
Wake-On-
LAN (J23)
Chassis
fan (J25)
Battery
CPU fan
(J18) Second
fan (J19)
ATX main
power (PL1)
DIMM
Standby
Power LED
FDD (J21)
IDE 2 (J22)
IDE 1
(J24)
Firmware
Hub
J20
PWR-LED
G-SW
RESET
SPEAKER
G-LED
HD-LED
Square denotes pin 1
ATX-SW
AGP Slot
PCI Slot 1
PCI Slot 2
PCI Slot 3
PCI Slot 4
PCI Slot 5
PCI Slot 6
CN3
Wake-On-USB KB
for USB 1/2/3/4 (JP9)
COM 2
(J13)
Wake-On-Ring (J12)
USB5&6
(J14)
Wake-On-USB KB for
USB 5/6 (JP8)
CD-in (J8)
TAD (J7)
S/PDIF-out
(J1)
NB76-BC

8
Quick Setup Guide
1
Quick Setup
Guide
Warning:
Electrostatic discharge (ESD) can damage your system board,
processor, disk drives, add-in boards, and other components. Perform
the upgrade instruction procedures described at an ESD workstation
only. If such a station is not available, you can provide some ESD
protection by wearing an antistatic wrist strap and attaching it to a
metal part of the system chassis. If a wrist strap is unavailable,
establish and maintain contact with the system chassis throughout
any procedures requiring ESD protection.

9
1
Quick Setup Guide
Quick Setup
Guide
1.2 Jumpers

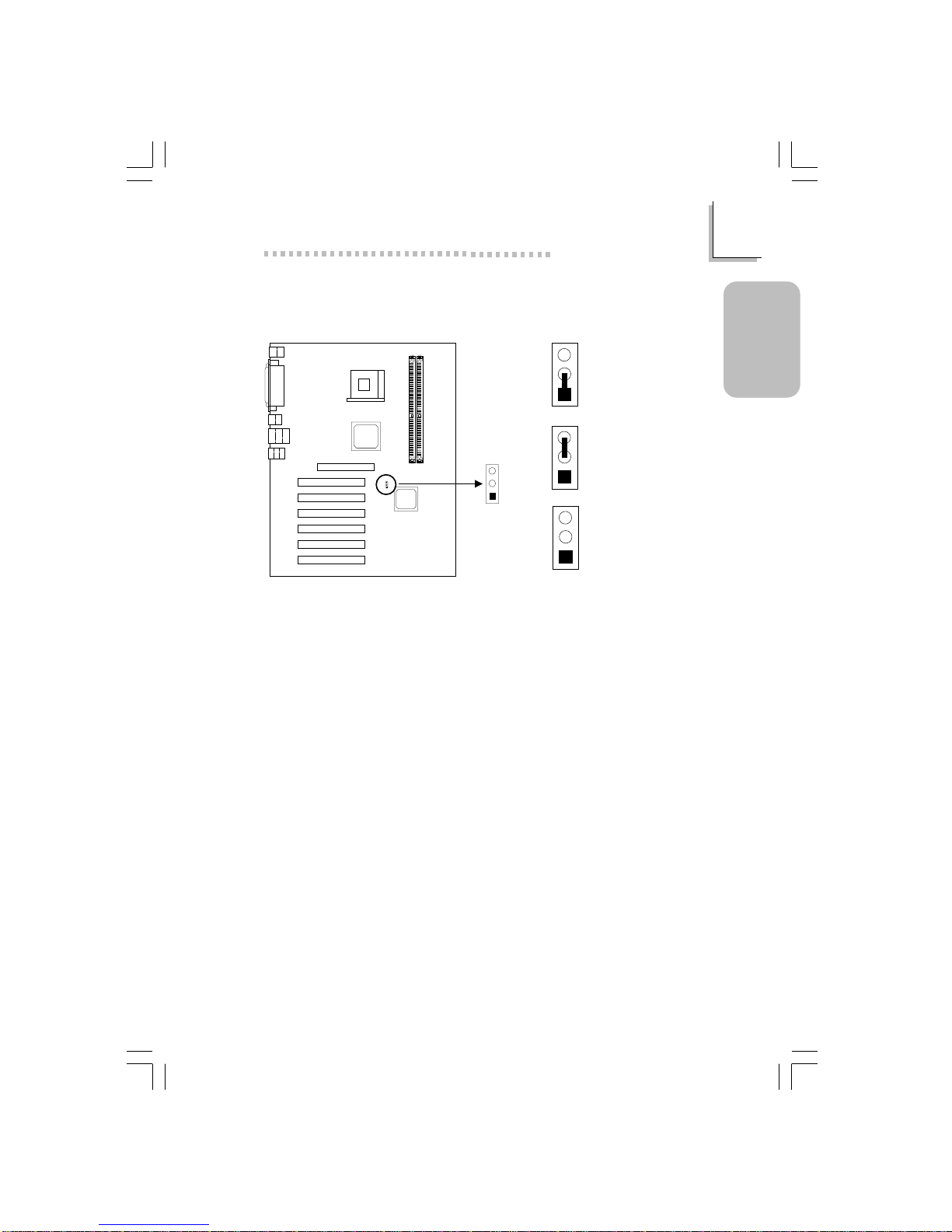

1.2.1 Clear CMOS Data - JP7
3
2
1
3
2
1
1-2 On:
Normal (default)
2-3 On:
Clear CMOS Data
Clear CMOS
(JP7)
1
2
3
1.2.2 Jumper Settings for Wake-On-Keyboard/Wake-On-
Mouse - JP1
Wake-On-
KB/Mouse (JP1)
1
2
3
1
2
3
1-2 On: Disable
(default)
1
2
3
2-3 On: Enable
If JP1 was enabled with a password set in the “KB Power On Password” field,
and now you wish to disable the keyboard password function, make sure to
set the “Keyboard/Mouse Power On” field to Disabled prior to setting JP1 to
disabled.You will not be able to boot up the system if you fail to do so.

10
Quick Setup Guide
1
Quick Setup
Guide
The power button will not function once a keyboard password has been set
in the “KB Power On Password” (“Onboard Super IO Device” field) of the
Integrated Peripherals submenu. You must type the correct password to
power-on the system.
The 5VSB power source of your power supply must support ≥ 720mA.
1.2.3 Jumper Settings forWake-On-USB Keyboard
Wake-On-USB (KB)
1/2/3/4 (JP9)
Wake-On-USB
(KB) 5/6 (JP8)
1
2
3
123
2-3 On: Enable
(default)
1-2 On: Disable
123
JP8
JP9
3
2
1
123
JP8
JP9
3
2
1
If you are using the Wake-On-USB Keyboard function for 2 USB ports, the
5VSB power source of your power supply must support ≥ 1.5A.
If you are using the Wake-On-USB Keyboard function for 4 or more USB
ports, the 5VSB power source of your power supply must support ≥ 2A.

11
1
Quick Setup Guide
Quick Setup
Guide
1.2.4 Jumper Settings for Selecting the CPU’s Front Side
Bus
CPU FSB select
(JP4)
1
2
3
3
2
1
3
2
1
3
2
1
1-2 On: Auto
(default)
2-3 On: 100MHz
All Off: 133MHz

12
Quick Setup Guide
1
Quick Setup
Guide
1.3 Ports and Connectors
PS/2
Mouse
PS/2
K/B
RJ45
LAN
USB 4/3COM 1 VGA
Parallel
Line-out
Line-in
Mic-in
USB 1
ATX Double Deck Ports on NB76-BL
PS/2
Mouse
PS/2
K/B USB 3COM 1 VGA
Parallel
Line-out
Line-in
Mic-in
USB 1
ATX Double Deck Ports on NB76-BC
USB 4
USB 2
USB 2

13
1
Quick Setup Guide
Quick Setup
Guide

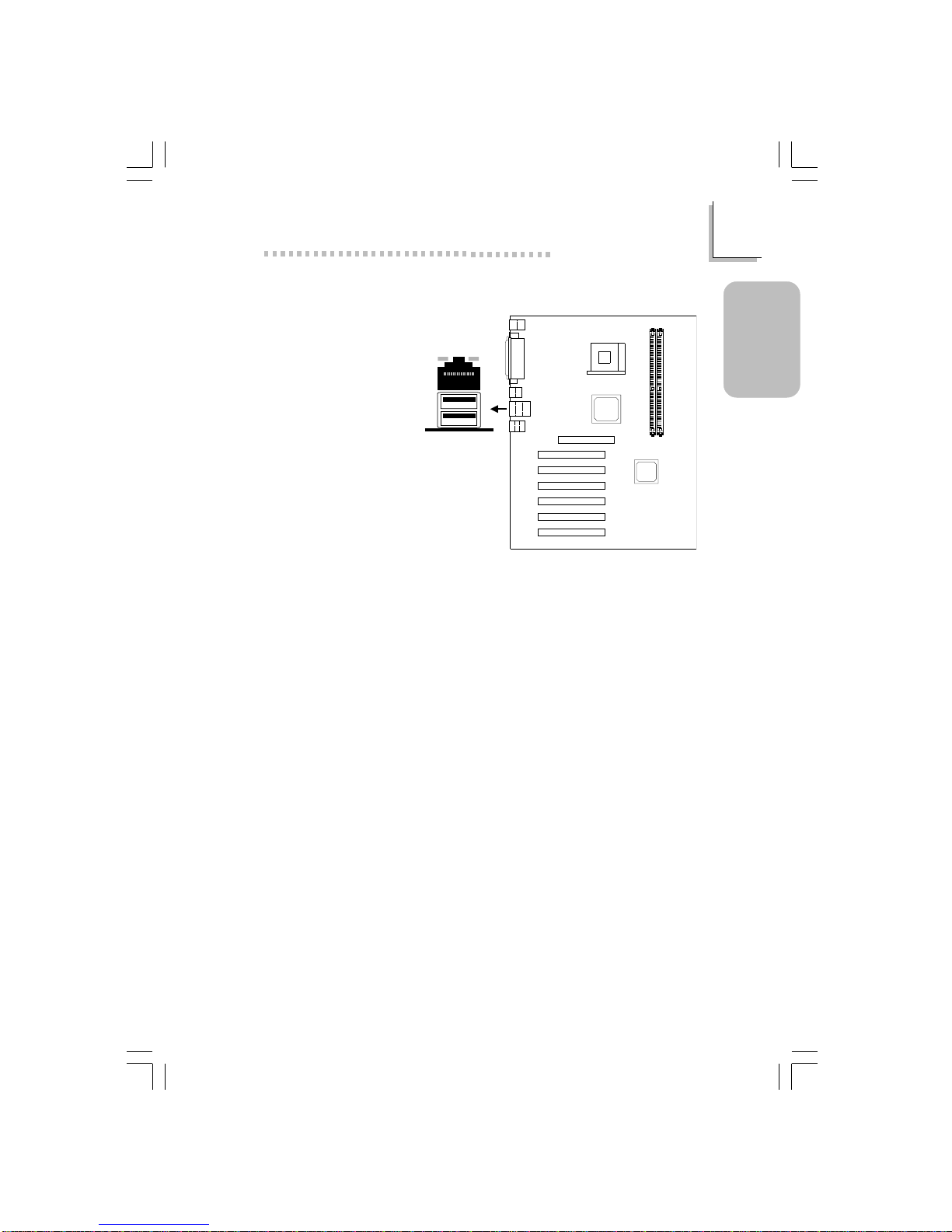

1.3.1 PS/2 Mouse and PS/2 Keyboard Ports
Make sure to turn off your
computer prior to connecting or
disconnecting a mouse or keyboard.
Failure to do so may damage the
system board.
PS/2 Mouse
PS/2 Keyboard
CN4
1.3.2 Serial Ports
CN2
1
2
9
COM 2
(J13)
21
9
COM 1
Serial Port

14
Quick Setup Guide
1
Quick Setup
Guide
1.3.3 Parallel Port
CN6
Parallel Port
Setting
SPP
(StandardParallel Port)
ECP
(ExtendedCapabilitiesPort)
EPP
(EnhancedParallelPort)
PntMode
Function
Allowsnormalspeed operation but
inonedirection only.
Allows parallel port to operate in
bidirectional mode and at a speed
faster than the SPP’s data transfer
rate.
Allowsbidirectionalparallelportop-
erationat maximum speed.
Allows parallel port to operate in
bipolarmode.

15
1
Quick Setup Guide
Quick Setup
Guide
1.3.4 VGA Port
CN1
VGA Port

16
Quick Setup Guide
1
Quick Setup
Guide
1.3.5 Universal Serial Bus Ports
CN3
CN7
5
15
11
1
USB5&6(J14)
USB 1
USB 4
USB 3
USB 2
Pin
1
2
3
4
5
Function
VCC
UP5-
UP5+
Ground
Key
Pin
6
7
8
9
10
Function
VCC
UP6-
UP6+
Ground
Ground
Pin
11
12
13
14
15
Function
Ground
Ground
UP5+
UP5-
VCC
Additional USB Ports (USB 5 and USB 6)

17
1
Quick Setup Guide
Quick Setup
Guide
1.3.6 RJ45 Fast-Ethernet Port (NB76-BL only)
CN7
RJ45 LAN

18
Quick Setup Guide
1
Quick Setup
Guide
1.3.7 Audio Jacks and Game/MIDI ports
Front Audio (J2)
Pin
1
3
5
7
9
Function
Mic+
Vbias
AuD_R_Out
N. C.
AuD_L_Out
Function
Ground
AuD_Vcc (Avcc)
N. C.
Key
N. C.
Pin
2
4
6
8
10
Game/MIDI
(J6)
12
15
2
15
1
Front audio
(J2)
2
1
10
9
Line-out
Line-in
Mic-in

19
1
Quick Setup Guide
Quick Setup
Guide
1.3.8 Internal Audio Connectors
4
3
2
1
CD-in (J8)
TAD (J7)
4321
Pin
1
2
3
4
Function
Left audio channel
Ground
Ground
Right audio channel
Pin
1
2
3
4
Function
Modem-out
(from modem)
Ground
Ground
Modem-in
(to modem)
CD-in TAD

20
Quick Setup Guide
1
Quick Setup
Guide
1.3.9 S/PDIF-out Connector
S/PDIF-out
(J1)
1234
Pin
1
2
3
4
Function
AVDD5
N. C.
SPDIF-out
Ground
1.3.10 Floppy & IDE Disk Drive Connector
IDE 2 (J22)
IDE 1 (J24)
1
2
40 39
1
2
40 39
FDD (J21)
1
2
33
34
If you encountered problems while using an ATAPI CD-ROM drive that is set
in Master mode, please set the CD-ROM drive to Slave mode. Some ATAPI
CD-ROMs may not be recognized and cannot be used if incorrectly set in
Master mode.
