DFI AD77 INFINITY User manual

AD77 INFINITY
AD 77 Pro
Rev. B+
System Board User’s Manual
Carte Mère Manuel Pour Utilisateur
System-Platine Benutzerhandbuch
Manual del Usuario de Placas Base
935-AD7703-000
60850307

Copyright
This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior
written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose.The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 2002. All Rights Reserved.
Trademarks
Microsoft®MS-DOS®, WindowsTM, Windows®95, Windows®98,
Windows®98 SE, Windows®ME, Windows®2000, Windows NT®
4.0 and Windows®XP are registered trademarks of Microsoft
Corporation. AMD, AthlonTM XP, AthlonTM and DuronTM are
registered trademarks of Advanced Micro Devices, Inc. VIA is a
registered trademark of VIA Technologies, Inc. Award is a registered
trademark of Award Software, Inc. Other trademarks and registered
trademarks of products appearing in this manual are the properties
of their respective holders.
Caution
To avoid damage to the system:
• Use the correct AC input voltage range.....
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.

Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by
the manufacturer.
• Dispose of used batteries according to the battery
manufacturer’s instructions.
Joystick or MIDI port:
• Do not use any joystick or MIDI device that requires more than
10A current at 5V DC. There is a risk of fire for devices that
exceed this limit.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
2. Shielded interface cables must be used in order to comply with
the emission limits.

4
Quick Setup Guide
1
Quick Setup
Guide
Notice
This user’s manual contains detailed information about the system
board. If, in some cases, some information doesn’t match those
shown in the multilingual manual, the multilingual manual should
always be regarded as the most updated version. The multilingual
manual is included in the system board package.
To view the user’s manual, insert the CD into a CD-ROM drive.The
autorun screen (Main Board Utility CD) will appear. Click “User’s
Manual”.
System Board
This user’s manual is for the AD77 INFINITY and AD77 Pro system
boards.The differences between these boards are shown below.
Three IEEE 1394a connectors
One Serial ATA connector
One RAID IDE connector
RJ45 LAN port
!
!
!
!
AD77 Pro
"
"
"
"
AD77 INFINITY

5
1
Quick Setup Guide
Quick Setup
Guide
Table of Contents
Chapter 1
Quick Setup Guide.............................................
Chapter 2
English......................................................................
Chapter 3
Français (French).................................................
Chapter 4
Deutsch (German)................................................
Chapter 5
Español (Spanish)..................................................
6
31
55
80
104
Note:
The user’s manual in the provided CD contains detailed information
about the system board. If, in some cases, some information doesn’t
match those shown in this manual, this manual should always be
regarded as the most updated version.

6
Quick Setup Guide
1
Quick Setup
Guide
Chapter 1 - Quick Setup Guide
Table of Contents
1.1 System Board Layout..................................................................................................
1.2 System Memory................................................................................................................
1.3 Jumpers.....................................................................................................................................
1.4 Real Panel I/O Ports................................................................................................
1.5 Award BIOS Setup Utility.......................................................................................
7
9
10
13
26
Important:
To ensure proper boot up and operation of your system, you must
power-off the system then turn off the power supply’s switch or
unplug the AC power cord prior to altering the setting of a jumper
or replacing the CPU.

7
1
Quick Setup Guide
Quick Setup
Guide

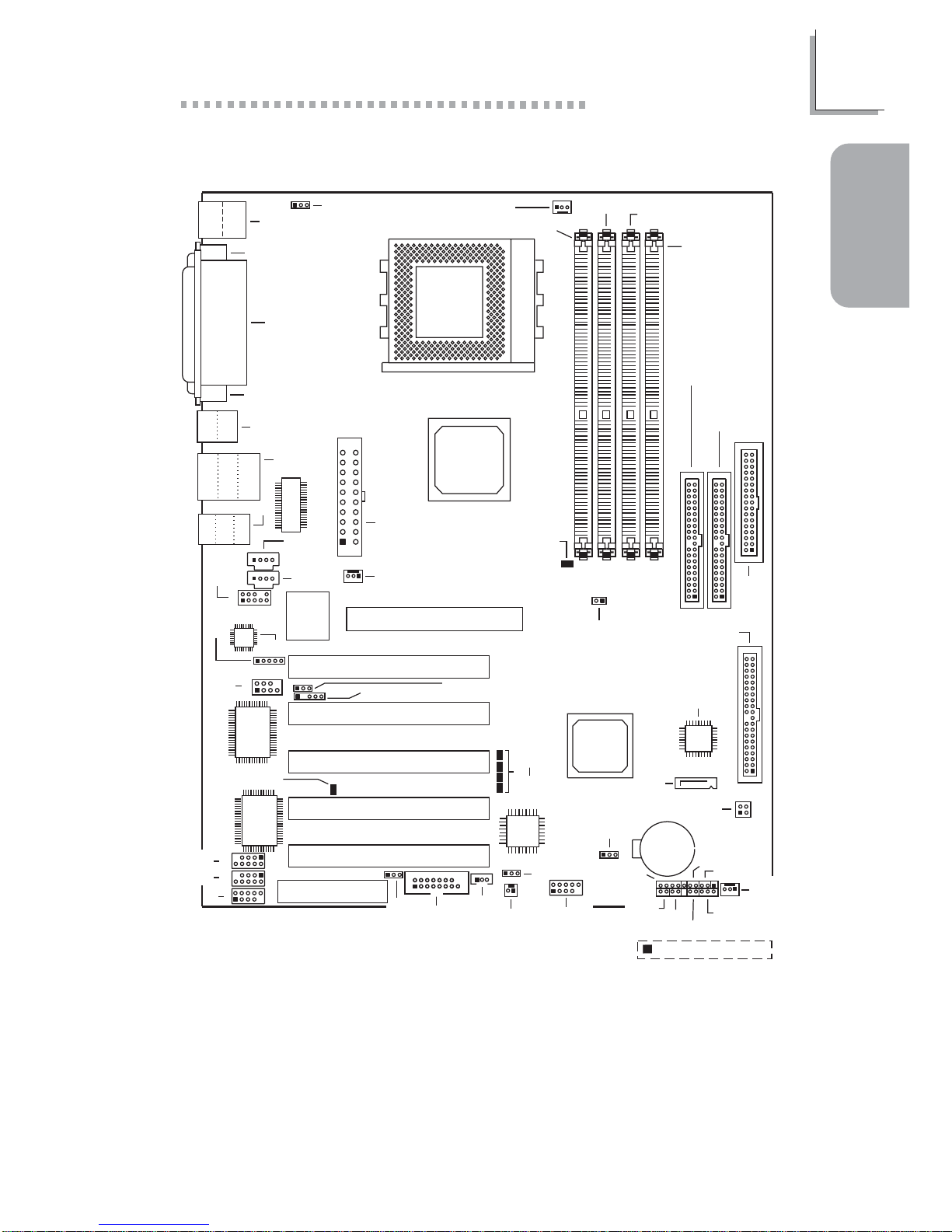

1.1 System Board Layout
AD77 INFINITY
(Supports IEEE 1394a, RAID and Serial ATA)
PS/2 power
select (JP1)
J3
KB
Mouse
COM 1 (J2)
COM 2 (J1)
Parallel (J4)
USB 1
USB 2
J5
USB 3
USB 4
LAN
J6
Line-
out
Line-
in
Mic-
in
CN1
Socket A
CPU fan
(J24)
DDR 1
DIMM Standby
Power LED
VIA
KT400
DDR 2 DDR 3
DDR 4
VIA
VT8235CD
ATX p ower
(J18)
Second chassis
fan (J19)
Primary
IDE (J26)
Secondary
IDE (J28)
FDD
(J30)
Marvell
88i8030
Battery
RAID IDE
(J31)
CPU FSB
select (JP4)
Clear
CMOS
(JP3)
9
10
2
1J27
RESET
SPEAKER HD-LED
USB 5/6
(J23)
Game/MIDI (J20)
Wake-On-LAN (J21)
Wake-On-Ring (J22)
JP7
J21 J22
J20
JP6
J8
Winbond
W83697HF
IrDA (J17)
2
17
Audio
codec (JP5)
S/PDIF-in/out
(J32)
AC’97
BIOS
9
10
2
1
AUX-in
(J13)
CD-in
(J12)
Front
audio
(J7)
4CH
audio
(J11)
1394a (J8, J14, J15)
Audio codec (JP6)
CNR setting (JP7)
Chassis
fan (J29)
G-SW G-LED PWR-LED
ATX-SW
HPT371
LED 6
LED 3
10
1
20
11
PCI Standby
Power LED
VIA
VT6306
SATA
(J25)
Square denotes pin 1
AGP Slot
PCI Slot 1
PCI Slot 2
PCI Slot 3
PCI Slot 4
PCI Slot 5
CNR Slot
9
10
2
1
2
1
9
10
2
1
9
10
J15
J14
CPU FSB select
(JP8)
VIA VT6103

8
Quick Setup Guide
1
Quick Setup
Guide

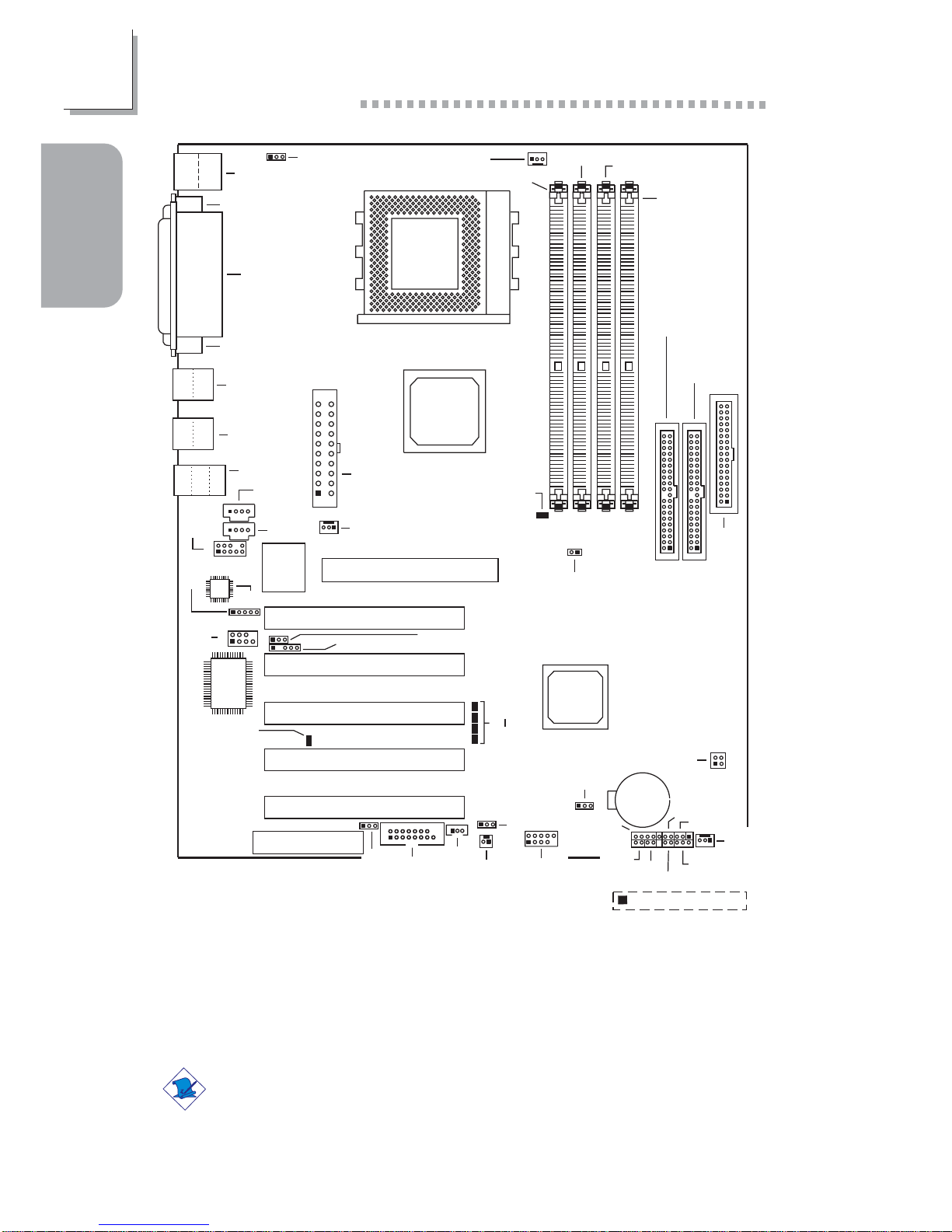

AD77 Pro
PS/2 power
select (JP1)
J3
KB
Mouse
COM 1 (J2)
COM 2 (J1)
Parallel (J4)
USB 1
USB 2
J5
J6
Line-
out
Line-
in
Mic-
in
CN1
Socket A
CPU fan
(J24)
DDR 1
DIMM Standby
Power LED
VIA
KT400
DDR 2 DDR 3
DDR 4
VIA
VT8235CD
ATX p ower
(J18)
Second chassis
fan (J19)
Primary
IDE (J26)
Secondary
IDE (J28)
FDD
(J30)
Battery
CPU FSB
select (JP4)
Clear
CMOS
(JP3)
9
10
2
1J27
RESET
SPEAKER HD-LED
USB 5/6
(J23)
Game/MIDI (J20)
Wake-On-LAN (J21)
Wake-On-Ring (J22)
JP7
J21 J22
J20
JP6
Winbond
W83697HF
IrDA (J17)
2
17
Audio
codec (JP5)
AC’97
BIOS
9
10
2
1
AUX-in
(J13)
CD-in
(J12)
Front
audio
(J7)
4CH
audio
(J11)
Audio codec (JP6)
CNR setting (JP7)
Chassis
fan (J29)
G-SW G-LED PWR-LED
ATX-SW
LED 6
LED 3
10
1
20
11
PCI Standby
Power LED
Square denotes pin 1
AGP Slot
PCI Slot 1
PCI Slot 2
PCI Slot 3
PCI Slot 4
PCI Slot 5
CNR Slot
S/PDIF-in/out
(J32) CPU FSB select
(JP8)
USB 3
USB 4
Note:
The illustrations on the following pages are based on the AD77
INFINITY system board that supports onboard LAN.

9
1
Quick Setup Guide
Quick Setup
Guide
Warning:
• To ensure proper boot up and operation of your system, you
must power-off the system then turn off the power supply’s
switch or unplug the AC power cord prior to altering the setting
of a jumper or replacing the CPU.
• Electrostatic discharge (ESD) can damage your system board,
processor, disk drives, add-in boards, and other components.
Perform the upgrade instruction procedures described at an ESD
workstation only. If such a station is not available, you can provide
some ESD protection by wearing an antistatic wrist strap and
attaching it to a metal part of the system chassis. If a wrist
strap is unavailable, establish and maintain contact with the
system chassis throughout any procedures requiring ESD
protection.
.
.
.
.
.
.
.
.
1.2 System Memory
The system’s memory speed differs according to the type and
number of DIMM used. Please refer to the table below:
Module 1pc Runs at 2pcs Run at 3pcs Run at 4pcs Run at
DDR 400 400MHz 400MHz 333MHz 266MHz
DDR 333 333MHz 333MHz 333MHz 266MHz
DDR 266 266MHz 266MHz 266MHz 266MHz

10
Quick Setup Guide
1
Quick Setup
Guide
1.3 Jumpers

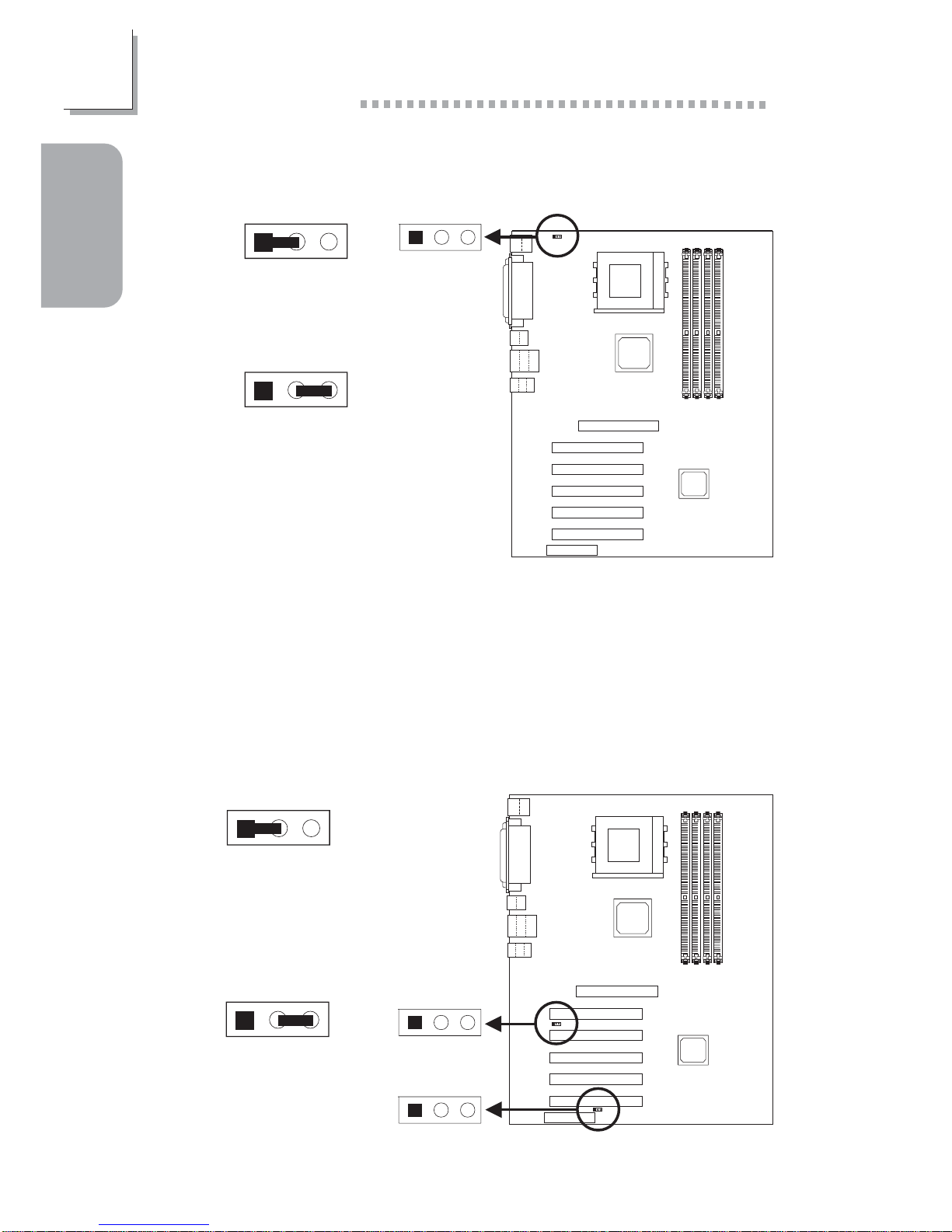

1.3.1 Clear CMOS Data - JP3
Clear CMOS
(JP3)
123
123
1-2 On:
Normal (default)
123
2-3 On:
Clear CMOS Data

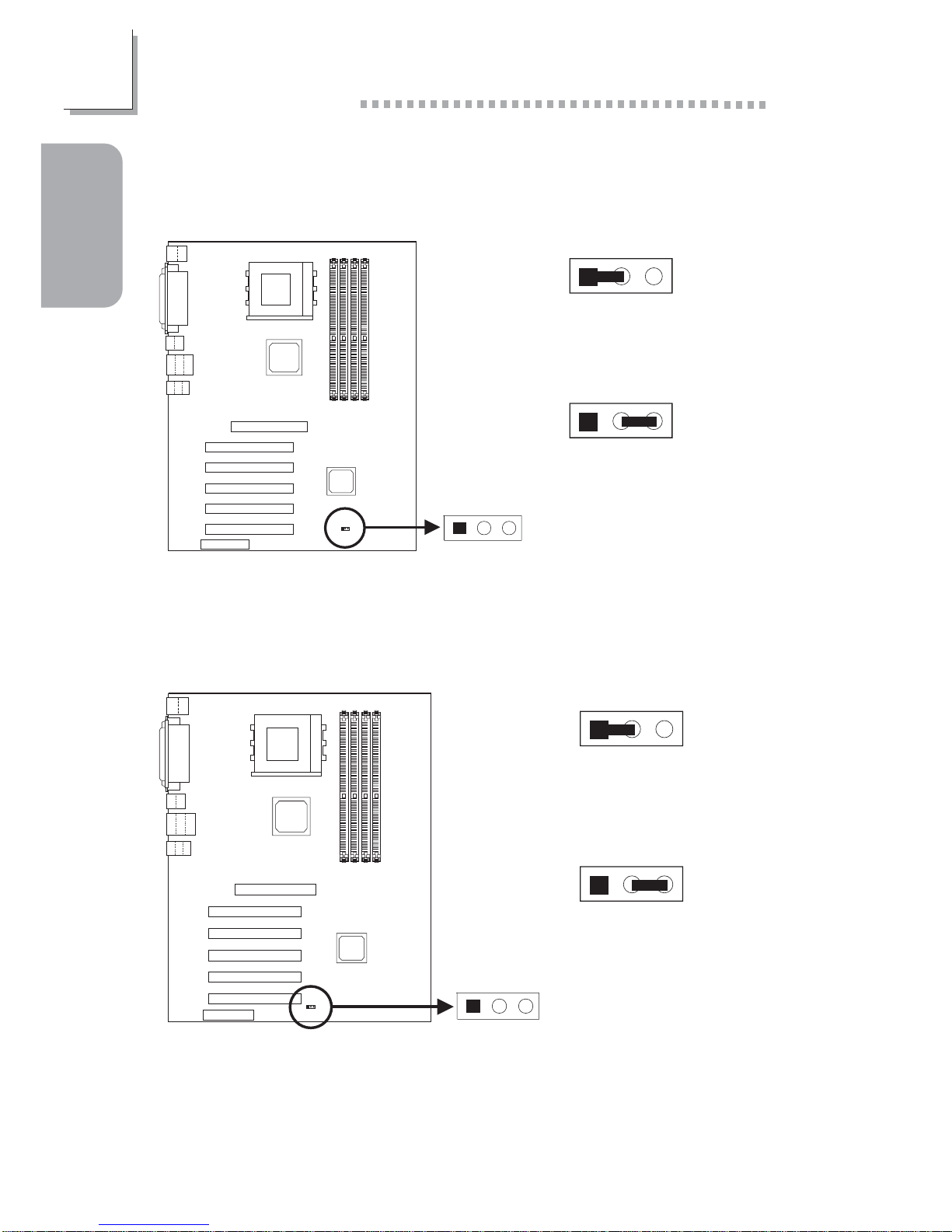

1.3.2 CNR Settings - JP7
CNR setting
(JP7)
123
123
1-2 On:
Secondary (default)
123
2-3 On:
Primary

11
1
Quick Setup Guide
Quick Setup
Guide

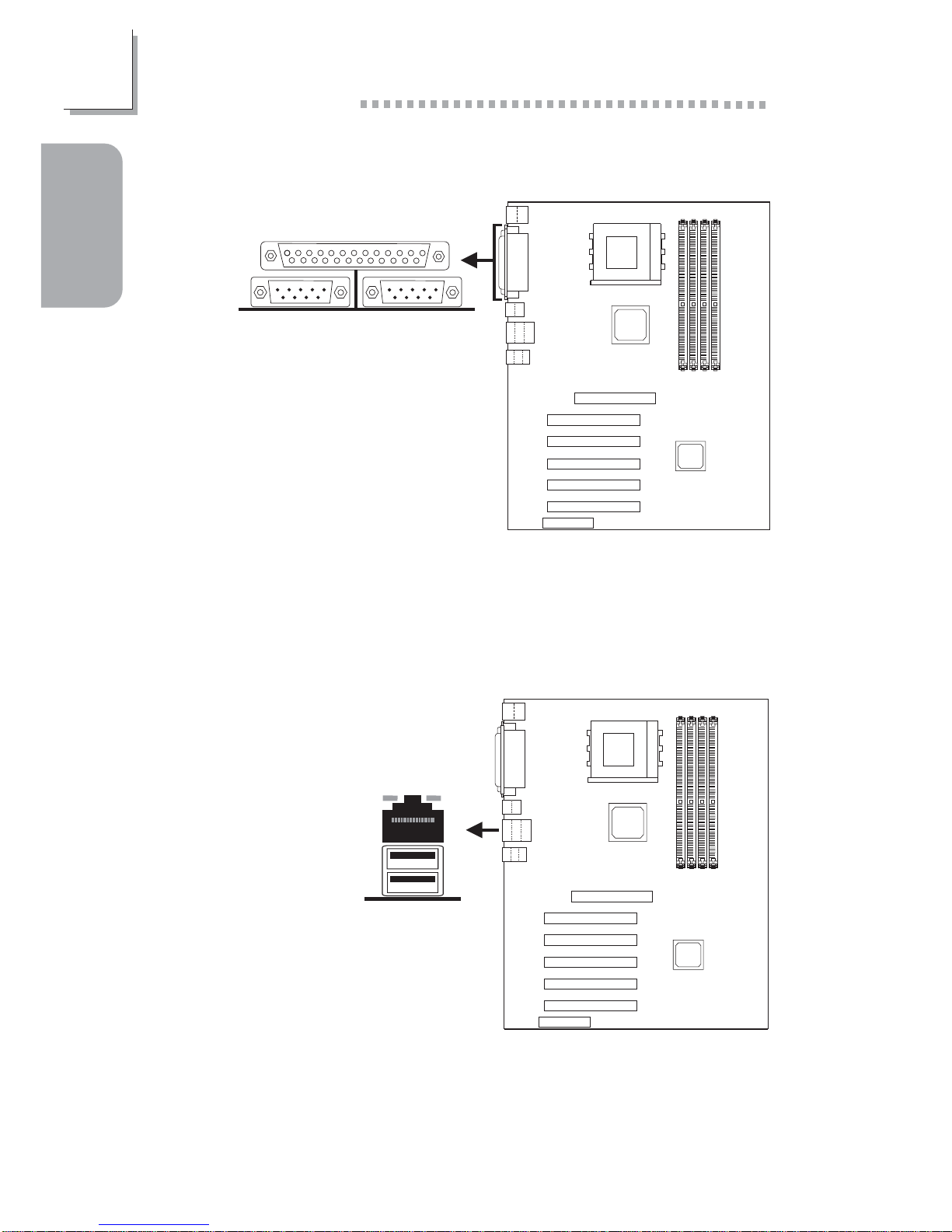

1.3.3 CPU’s Front Side Bus - JP4 and JP8
CPU FSB select
(JP4)
2
1
4
3
CPU FSB select
(JP8)
12
4
3
2
1
1-2 On,
3-4 On
4
3
2
1
1-2 Off,
3-4 On
4
3
2
1
All Off
JP8
JP4
21
Off
21
On
FSB
100MHz
133MHz
166MHz
JP4
1-2 On, 3-4 On
1-2 Off, 3-4 On
All Off
JP8
Off
Off
On

12
Quick Setup Guide
1
Quick Setup
Guide
1-2 On:
Enable the Onboard
Audio Codec
(default)
2-3 On:
Disable the Onboard
Audio Codec

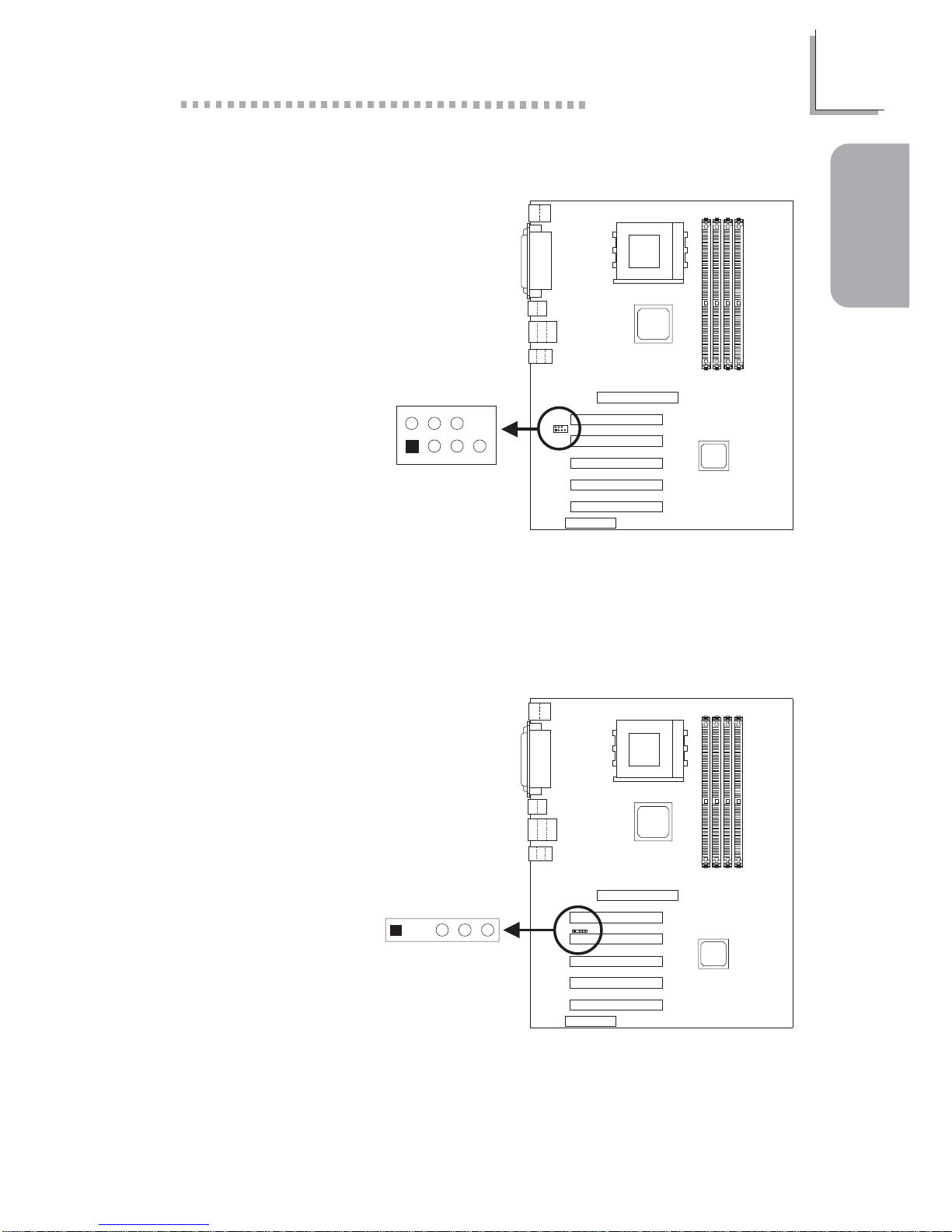

1.3.4 Power Select for PS/2 (JP1)
PS/2 power
select (JP1)
123
123
1-2 On: 5V
(default)
123
2-3 On: 5VSB
If you wish to use the Wake-On-PS/2 Keyboard/Mouse function, make
sure this jumper is set to “2-3 On”. “PS2KB Wakeup Select”, “PS2KB
Wakeup from S3/S4/S5” and “PS2MS Wakeup from S3/S4/S5” (“Wake
Up Events” field) in the Power Management Setup submenu of the BIOS
must be set accordingly.
1.3.5 Jumper Settings for the Onboard Audio Codec
Audio codec
(JP5 and JP6)
123
123
JP5
JP6
123
123

13
1
Quick Setup Guide
Quick Setup
Guide
1.4 Real Panel I/O Ports
1.4.1 PS/2 Mouse and PS/2 Keyboard Ports
Make sure to turn off your
computer prior to connecting or
disconnecting a mouse or keyboard.
Failure to do so may damage the
system board.
1.4.2 Serial Ports
J3
PS/2 Mouse
PS/2 Keyboard
J2
J1
COM 2
Serial Port
COM 1
Serial Port

14
Quick Setup Guide
1
Quick Setup
Guide
1.4.3 Parallel Port
J4
Parallel Port
1.4.4 RJ45 Fast-Ethernet Port (AD77 INFINITY only)
J6
RJ45 LAN

15
1
Quick Setup Guide
Quick Setup
Guide
1.4.5 Universal Serial Bus Ports
J5
J6
9
10
2
1
USB 5 and USB 6
(J23)
2
1
10
9
USB 2
USB 1
USB 4
USB 3
Additional USB Ports
(USB 5 and USB 6)
1 5V_Dul
2 5V_Dul
3 Data-
4 Date-
5 Data+
6 Data+
7 Ground
8 Ground
9 Key
10Ground
1.4.6 InternalAudio Connectors
AUX-in
(J13)
CD-in
(J12)
4
3
21
1 Left audio channel
2 Ground
3 Ground
4 Right audio channel

16
Quick Setup Guide
1
Quick Setup
Guide
1.4.8 S/PDIF-out Connector
S/PDIF-in/out
(J32)
12345
1 AVDD5
2N.C.
3 SPDIF-out
4 Ground
5 SPDIF-in
1.4.7 Game/MIDI Port andAudio Jacks
CN1
9
10
2
1
Front audio
(J7)
2
1
10
9
Game/MIDI (J20)
15
1
2
Line-out
Line-in
Mic-in
Front Audio (J7)
1 Mic+ 2 Ground
3 Mic Power 4 AuD_Vcc (Avcc)
5 AuD_R_Out 6 AuD_R_Return (GND)
7 N. C. 8 Key
9 AuD_L_Out 10 AuD_L_Return (GND)

17
1
Quick Setup Guide
Quick Setup
Guide
1.4.9 4-Channel Audio Output Connector
2
17
4CH audio
(J11)
7
2
1
If, for any reason, you are not using the 4-channel audio connector which is
made possible by connecting the 4-channel audio cable, the 6-channel
audio output function can be supported via software.
1 SL 2 Center out
3 Ground 4 Ground
5 SR 6 LFE Out
7 Ground 8 Key
1.4.10 IrDA Connector
The sequence of the pin functions on some IrDA cable may be reversed
from the pin function defined on the system board. Make sure to connect
the cable to the IrDA connector according to their pin functions.
IrDA (J17)
12345
1 VCC
2N.C.
3 IRRX
4 Ground
5 IRTX

18
Quick Setup Guide
1
Quick Setup
Guide
1.4.11 IEEE 1394a Connectors (AD77 INFINITY only)
1394a (J8, J14, J15)
2
1
10
9
J15
J14
J8
9
10
2
1
2
1
9
10
2
1
9
10
2
1
10
9
2
1
10
9
1TPA+ 2TPA-
3 Ground 4 Ground
5 TPB+ 6 TPB-
7 VCC 8 VCC
9 Key 10 Shield

19
1
Quick Setup Guide
Quick Setup
Guide

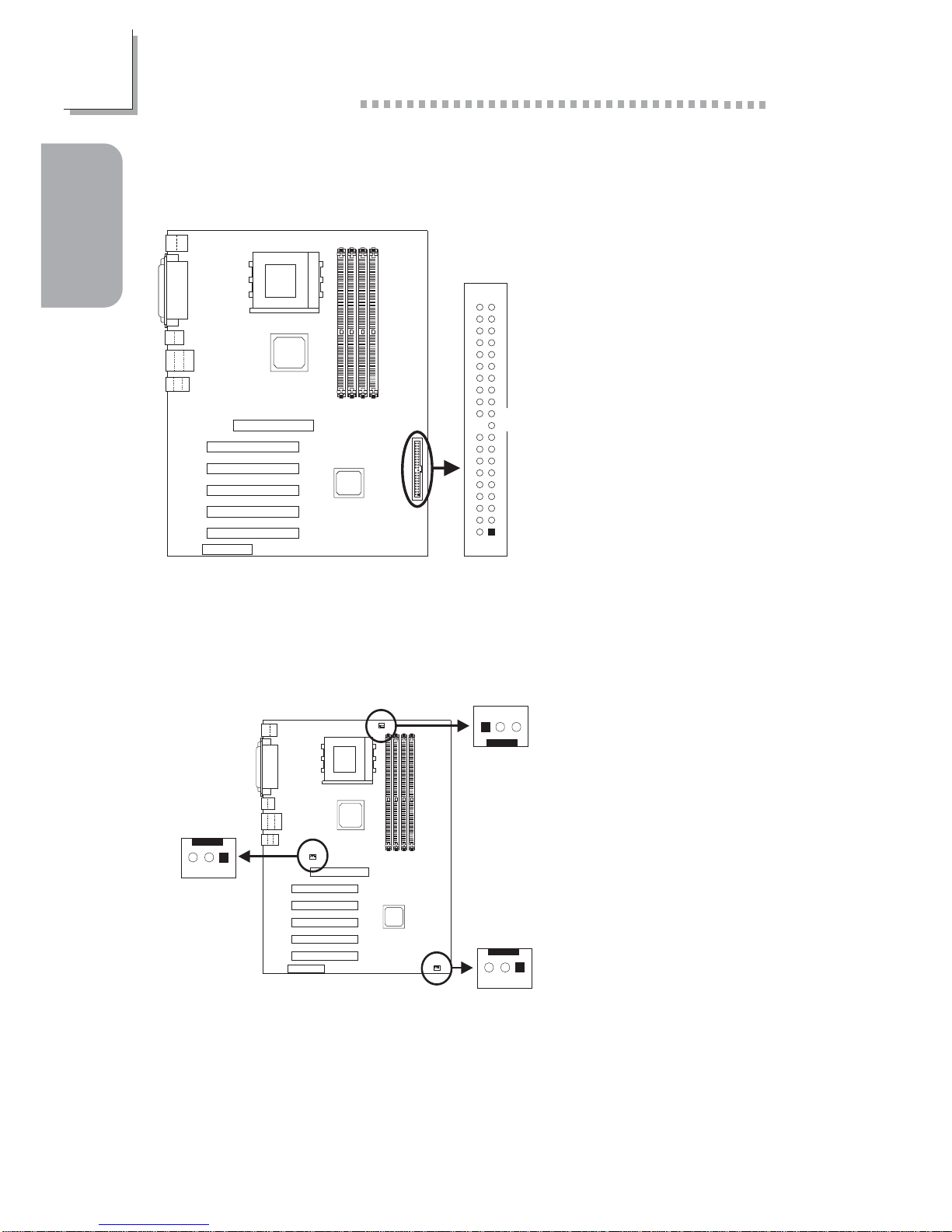

1.4.12 Floppy Disk Drive and IDE Disk Drive Connectors
If you encountered problems while using anATAPI CD-ROM drive that is set
in Master mode,please set the CD-ROM drive to Slave mode. SomeATAPI
CD-ROMs may not be recognized and cannot be used if incorrectly set in
Mastermode.
Primary
IDE (J26) Secondary IDE (J28)
1
2
40 39
1
2
40 39
FDD (J30)
1
2
33
34
1.4.13 Serial ATA IDE Connector (AD77 INFINITY only)
The Serial ATA and RAID functions cannot be used at the same time.
Serial ATA
(J25)

20
Quick Setup Guide
1
Quick Setup
Guide
1.4.15 Fan Connectors
1On
2 +12V
3 Sense
1 On/Off
2 +12V
3 Sense
1 Ground
2 +12V
3N.C.
CPU Fan
Chassis Fan
Second Chassis Fan
Second chassis
fan (J19)
321
Chassis fan
(J29)
321
CPU fan
(J24)
3
2
1
1.4.14 RAID IDE Disk Drive Connector (AD77 INFINITY
only)
RAID IDE
(J31)
1
2
40 39
