DFI G586VPM User manual

G586VPM
Rev.A
System Board
User’s Manual
- D25141203 -

vCopyright 1994, by DFI Inc.
All rights reserved.
No part of this document may be copied or reproduced
in any form or by any means without the prior written
consent of DFI, Inc.
DFI, Inc. makes no warranties with respect to this
documentation and disclaims any implied warranties of
merchantability, quality, or fitness for any particular
purpose. The information in this document is subject to
change without notice. DFI, Inc. reserves the right to
make revisions to this publication and to make changes
to any and/or all parts of its content, at any time,
without obligation to notify any person or entity of such
changes. Further, DFI, Inc. assumes no responsibility
for any errors that may appear in this document.
DFI is a registered trademark, and G586VPM is a
trademark of Diamond Flower, Inc. All other product
names mentioned are trademarks or registered trade-
marks of their respective companies.

vFCC Statement on Class B
This equipment has been tested and complies with the
limits for a Class B digital device, pursuant to Part 15
of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference
when the equipment is operated in a residential installa-
tion. This equipment generates, uses, and can radiate
radio frequency energy and if not installed and used in
accordance with the instruction manual may cause
harmful interference to radio communications. How-
ever, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television recep-
tion, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures.
•Reorient or relocate the receiving antenna
•Increase the separation between the equipment and
the receiver
•Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected
•Consult the dealer or an experienced radio TV
technician for help
Notice:
1. The changes or modification not expressly approved
by the party responsible for compliance could void
the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to
comply with the emission limits.

v Table of Contentsv
Introduction ..............................................................................
Features and Specifications ................................................
Package Checklist ...............................................................
Installation Overview ...............................................................
Preparing the Area ..............................................................
Precautions in Handling the System Board .........................
Tips in Handling the System Board ..............................
Hardware Installation..........................................................
Memory Installation ......................................................
Installing the Modules ............................................
Board Configuration ......................................................
Jumper Settings for Display Type and PS/2
Mouse.....................................................................
PCI IDE Controller..................................................
Cache Memory .............................................................
CPU Installation............................................................
Jumper Settings for CPU .......................................
Installing Upgrade CPU..........................................
Built-in Ports ........................................................................
Serial Ports ...................................................................
Parallel Port ..................................................................
Floppy Disk Drive Connector ........................................
IDE Hard Disk Connector .............................................
PS/2 Mouse Port ..........................................................
Installing Expansion Cards .................................................
Installing the System Board ................................................
1-1
1-2
1-4
2-1
2-1
2-2
2-2
2-2
2-2
2-6
2-7
2-8
2-9
2-11
2-13
2-16
2-17
2-20
2-25
2-26
2-27
2-29
2-30
2-33
2-34
2-35

3-1
3-2
3-2
3-5
3-7
3-8
3-9
3-10
3-10
3-11
3-12
3-13
3-14
4-1
5-1
A-1
B-1
C-1
D-1
E-1
F-1
G-1
Initial Setup Program .............................................................
Award BIOS CMOS Setup Utilities ....................................
Standard CMOS Setup ................................................
BIOS Features Setup ..................................................
Chipset Features Setup ...............................................
Power Management Setup .........................................
PCI Configuration Setup ..............................................
Load BIOS Defaults .....................................................
Load Setup Defaults ....................................................
Password Setting .........................................................
IDE HDD Auto Detection .............................................
Save & Exit Setup .......................................................
Exit Without Saving ......................................................
IDE Device Drivers .................................................................
Troubleshooting Checklist ....................................................
Appendix A:Types of Modules .............................................
Appendix B:System Error Report ........................................
Appendix C:Memory & I/O Maps ..........................................
Appendix D:PCI I/O Pin Assignments .................................
Appendix E:ISA I/O Pin Assignments .................................
Appendix F:Connector Pin Assignments ...........................
Appendix G:Award BIOS Hard Disk Table ..........................

PCI/ISASystemBoard
vIntroduction
The G586VPM system board offers several advanced
features integrated into the system board. Its design is
based on the new Peripheral Component Interconnect
(PCI) local bus and Industry Standard Architecture
(ISA) standards.
The G586VPM supports a 320-pin Zero Insertion Force
(ZIF) CPU socket for PentiumTM processors running at
75MHz, 90MHz or 100MHz frequency. This ZIF socket
allows users to easily upgrade their CPUs. It also sup-
ports Flash EPROM for easy BIOS upgrades. Flash
EPROM is a memory chip for the storage of BIOS
which can be erased in bulk or modified using a soft-
ware utility.
The G586VPM is equipped with four PCI and four ISA
slots, of which one pair is shared.
Equipped with two built-in PCI IDE connectors, the
G586VPM system board can control four drives and
supports fast Mode 3 hard drives and hard drives larger
than 528MB under DOS. The system board is also
equipped with two NS16C550 serial ports, an ECP/EPP
parallel port, a floppy disk drive controller, and one
mini-DIN-6 connector for the PS/2 mouse.
The G586VPM can be configured to 22 different
memory sizes ranging from 4MB to 256MB using
256Kx36, 512Kx36, 1Mx36, 2Mx36, 4Mx36 and
8Mx36 SIM modules.
1-1 uIntroduction

G586VPM
Features and Specifications
Processor
•Intel’s PentiumTM 75/90/100MHz
OverDrive Pentium Processor
Chipset
•VLSI chipset
VL82C591 - system and cache controller
VL82C592 (2) - data buffer
VL82C593 - PCI bridge
Architecture
•PCI/ISA
Energy Efficient Design
•Supports 3.3V CPUs
•Supports system power management
•Supports CPU stopped clock
•Provides highly efficient 3.3V/5A Switching Power
Supply to CPU and chipsets
Power Management
•Three powersaving stages: Doze, Standby and
Suspend
•Microsoft APM supported
BIOS
•Award Plug & Play BIOS (Flash EPROM)
•Supports IDE HDDs larger than 528MB under DOS
(LBA mode only)
Cache Memory
•160-pin socket for cache module
•Supports 3.3V or 5V/3.3V asynchronous (burst)
SRAM
Introduction u1-2

PCI/ISASystemBoard
•Supports 3.3V or 5V/3.3V synchronous (burst) SRAM
•256K, 512K or 1MB direct map buffered write-through
cache
•Uses 256K, 512K or 1MB cache modules
•Supports 32 byte or 64 byte line size to allow the use
of optional cache-tag RAM size
Memory Onboard
•Up to 256MB
•Eight 72-pin SIMM sockets
•Supports single and/or double density SIMMs
•256Kx36, 512Kx36, 1Mx36, 2Mx36, 4Mx36 or
8Mx36 SIMMs
•Supports 60ns or 70ns fast page mode DRAM
PCI IDE Interface
•Supports two PCI IDE connectors controlling four
drives (e.g., 2 HDDs, 1 tape drive and 1 CD-ROM)
•Supports fast Mode 3 (Enhanced IDE) hard drives
•Uses NS PC87410 PCI IDE chipset
Super I/O Interface
•Uses NS PC87334 super I/O controller
•Two serial ports (NS16C550 compatible)
•One parallel port (with EPP and ECP support)
•Supports 360K, 720K, 1.2MB, 1.44MB and 2.88MB
floppy drives
Expansion Slots
•Three dedicated PCI slots
•One shared PCI/ISA slot
•Three dedicated 16-bit ISA slots
ZIF Socket
•One 320-pin ZIF socket (Intel Socket 5)
1-3 uIntroduction

G586VPM
Board Dimensions
•33cm (12.87") x 22cm (8.58")
Baby AT form factor
Package Parts List
The G586VPM package contains the following items:
•G586VPM system board
•G586VPM user’s manual
•Two IDE driver diskettes
•One 34-pin floppy disk drive cable
•Two 40-pin IDE hard disk cables
•One 25-pin printer port cable for chassis mounting
•One card-edge bracket with serial and mouse port
cables
If any of these items are missing or damaged, please
contact your dealer or sales representative for assistance.
Introduction u1-4

PCI/ISASystemBoard
vInstallation Overview
This chapter summarizes the steps in installing the
G586VPM system board into your system unit. It also
includes a description of the area in which you must
work and directions for memory installation. Before
installing the system board, obtain the memory you plan
to install. Please refer to the memory chart on pages 2-4
and 2-5 for the number and type of SIM modules
needed for the amount of memory you require.
Preparing the Area
Before unpacking the system board, make sure the
location you have selected is relatively free of dust and
static electricity. Excessive exposure to dust, static
electricity, direct sunlight, excessive humidity, extreme
cold and water can damage the system board. Avoid soft
surfaces such as beds and carpeted floors which can
hinder air circulation. These areas also attract static
electricity which can damage some circuits on your
system board.
Be sure that the power source has a properly grounded,
three-pronged socket. It is essential that the power
connection be properly grounded for correct functioning
of your system board. For further protection, we recom-
mend that you use a surge suppressor. This will protect
the system board from damage that may result from a
power surge on the line.
Move items that generate magnetic fields away from
your system board, since magnetic fields can also
damage your system board. Once you have selected the
ideal location, unpack the G586VPM system board
carefully.
2-1 uInstallation Overview

G586VPM
Precautions in Handling the System Board
It is quite easy to inadvertently damage your system
board even before installing it in your system case.
Static electrical discharge can damage computer compo-
nents without causing any signs of physical damage.
You must take extra care in handling the system board
to ensure that no static build-up is present.
Tips in Handling the System Board
1) To prevent electrostatic build-up, leave the board in
its anti-static bag until you are ready to install it.
2) Wear an antistatic wriststrap.
3) Do all preparation work on a static-free surface with
components facing up.
4) Hold the system board by its edges only. Be careful
not to touch any of the components, contacts or
connections, especially gold contacts on the
board.
5) Avoid touching the pins or contacts on all modules
and connectors. Hold modules and connectors by
their ends.
Hardware Installation
Memory Installation
Installation Overview u2-2
The G586VPM system board can support 2MB to
256MB of memory using SIM modules.

PCI/ISASystemBoard
2-3 uInstallation Overview
A SIM module consists of several RAM chips soldered
onto a small circuit board. A SIM module connects to
the system board via a 72-pin card-edge connector.
With 64-bit access, the G586VPM system board uses
256Kx36, 512Kx36, 1Mx36, 2Mx36, 4Mx36 or 8Mx36
SIMM modules. It uses 256K bit, 1M bit, 4M bit, or
16M bit depth DRAM.
The SIM sockets are divided into four 64-bit banks on
the system board. Each bank consists of 2 SIMM sock-
ets. You can insert single-sided or double-sided SIM
modules to any of the banks located on the system
board.
The following table summarizes the bank locations and
modules needed for the corresponding memory sizes.

G586VPM
MemorySize
2MB
4MB
4MB
6MB
6MB
8MB
8MB
8MB
8MB
10MB
10MB
12MB
12MB
12MB
16MB
16MB
16MB
16MB
18MB
20MB
20MB
22MB
24MB
24MB
24MB
32MB
32MB
32MB
34MB
36MB
36MB
36MB
40MB
40MB
40MB
48MB
48MB
48MB
64MB
Bank3
-
-
-
-
-
256Kx36
-
-
-
-
-
256Kx36
-
-
512Kx36
-
-
-
-
256Kx36
-
-
512Kx36
-
-
1Mx36
-
-
-
256Kx36
-
-
512Kx36
-
-
1Mx36
-
-
2Mx36
Bank2
-
-
-
256Kx36
-
256Kx36
256Kx36
-
-
256Kx36
-
256Kx36
512Kx36
-
512Kx36
512Kx36
-
-
256Kx36
-
512Kx36
512kx36
1Mx36
-
1Mx36
-
-
-
256Kx36
512Kx36
-
512kx36
1Mx36
-
1Mx36
2Mx36
-
2Mx36
Bank1
-
256Kx36
-
256Kx36
256Kx36
256Kx36
256Kx36
512Kx36
-
512Kx36
256Kx36
512Kx36
512Kx36
512Kx36
512Kx36
512Kx36
1Mx36
-
256Kx36
1Mx36
512Kx36
1Mx36
1Mx36
1Mx36
1Mx36
1Mx36
2Mx36
-
256Kx36
2Mx36
2Mx36
512Kx36
2Mx36
2Mx36
1Mx36
2Mx36
2Mx36
2Mx36
2Mx36
Bank0
256Kx36
256Kx36
512Kx36
256Kx36
512Kx36
256Kx36
512Kx36
512Kx36
1Mx36
512Kx36
1Mx36
512Kx36
512Kx36
1Mx36
512Kx36
1Mx36
1Mx36
2Mx36
2Mx36
1Mx36
2Mx36
1Mx36
1Mx36
1Mx36
2Mx36
1Mx36
2Mx36
4Mx36
4Mx36
2Mx36
2Mx36
4Mx36
2Mx36
2Mx36
4Mx36
2Mx36
2Mx36
4Mx36
2Mx36
Installation Overview u2-4

PCI/ISASystemBoard
2-5 u Installation Overview
MemorySizeBank3
Bank2Bank1
Bank0
-
-
-
-
256Kx36
-
-
1Mx36
-
-
2Mx36
-
-
4Mx36
-
-
256Kx36
512Kx36
1Mx36
-
2Mx36
-
-
4Mx36
8Mx36
2Mx36
-
-
-
256Kx36
-
-
1Mx36
1Mx36
-
2Mx36
4Mx36
-
4Mx36
4Mx36
-
256Kx36
512Kx36
1Mx36
2Mx36
2Mx36
4Mx36
8Mx36
4Mx36
8Mx36
2Mx36
4Mx36
-
256Kx36
4Mx36
512kx36
1Mx36
4Mx36
1Mx36
2Mx36
4Mx36
4Mx36
4Mx36
4Mx36
4Mx36
8Mx36
8Mx36
8Mx36
8Mx36
8Mx36
8Mx36
8Mx36
8Mx36
8Mx36
8Mx36
4Mx36
4Mx36
8Mx36
8Mx36
4Mx36
8Mx36
8Mx36
4Mx36
8Mx36
8Mx36
4Mx36
4Mx36
8Mx36
4Mx36
8Mx36
8Mx36
8Mx36
8Mx36
8Mx36
8Mx36
8Mx36
8Mx36
8Mx36
8Mx36
8Mx36
64MB
64MB
64MB
66MB
68MB
68MB
72MB
80MB
80MB
80MB
96MB
96MB
96MB
128MB
128MB
128MB
132MB
136MB
144MB
144MB
160MB
160MB
192MB
196MB
256MB

G586VPM
Installation Overview u 2-6
Bank 1
Bank 0
Pin 1 of the SIMM socket
Locations of the SIM Sockets on the System Board
Bank 3
Bank 2

PCI/ISASystemBoard
Installing the Modules
A SIM module simply snaps into a socket on the system
board. Pin 1 of the SIM module must correspond with
Pin 1 of the socket.
1. Position the SIM module above the socket with
the “notch” in the module aligned with the “key”
on the socket.
2. Seat the module at a 45oangle into the bank.
Make sure it is completely seated. Tilt the
module upright until it locks in place in the
socket.
2-7 u Installation Overview

G586VPM
Board Configuration
The G586VPM is designed with jumpers and connectors
onboard. Make sure that the jumpers are set correctly
before installing the system board into your system unit.
Installation Overview u2-8

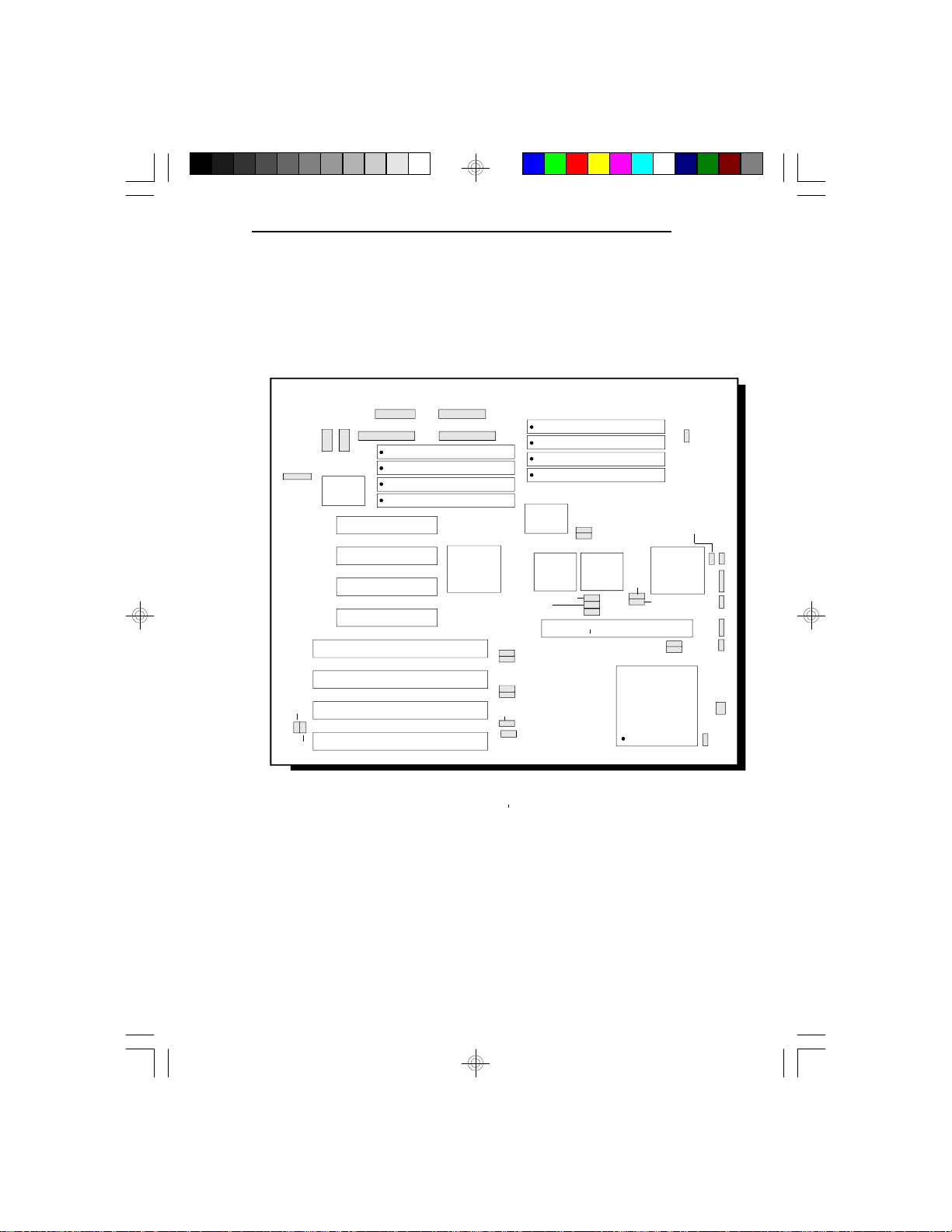

Locations of Jumpers and Connectors
on the G586VPM System Board
ISA
ISA
ISA
ISA
PCI4
PCI3
PCI2
PCI1
VL82C592
VL82C592
PC87410
VL82C593
PC87334
CN4
CN3
CN5
CN6
CN8CN7
J11
ZIF Socket
(Socket 5)
JP2
J1
J5
J4
VL82C591
J7
JP3
JP18
JP16JP15
JP20
JP19
JP21
JP14
JP10
JP9
JP17
J6
JP22
JP13
JP4JP5J2
J3
CacheModuleSlot
JP8
JP7JP6

PCI/ISASystemBoard
Jumper Settings
2-9 uInstallation Overview
Jumper Settings for Display Type and Mouse Port
Locations of Jumpers JP17 and JP18
on the G586VPM System Board
JP17
JP18

G586VPM
Installation Overview u 2-10
On: Color
(Default)Off: Mono
Jumper JP18
PS/2 Mouse
The G586VPM package includes a card-edge bracket
with serial and mouse port. The PS/2 mouse port uses
IRQ12. If you set Jumper JP18 to IRQ12 enable, make
sure you connect the PS/2 mouse port to Connector J11.
When IRQ12 is disabled and a PS/2 mouse is not used,
the IRQ12 interrupt is available for other devices.
On: IRQ12 Enabled
(Default)Off: IRQ12 Disabled
Jumper JP17
Display Type Select
Jumper JP17 sets the display adapter to color or mono.
This jumper must match the type of display adapter
installed. If you change your video adapter, make sure
this jumper is changed accordingly.

PCI/ISASystemBoard
LocationofJumperJP9ontheG586VPMSystemBoard
JumperSettingsforPCIIDEController
2-11 uInstallation Overview
JP9
