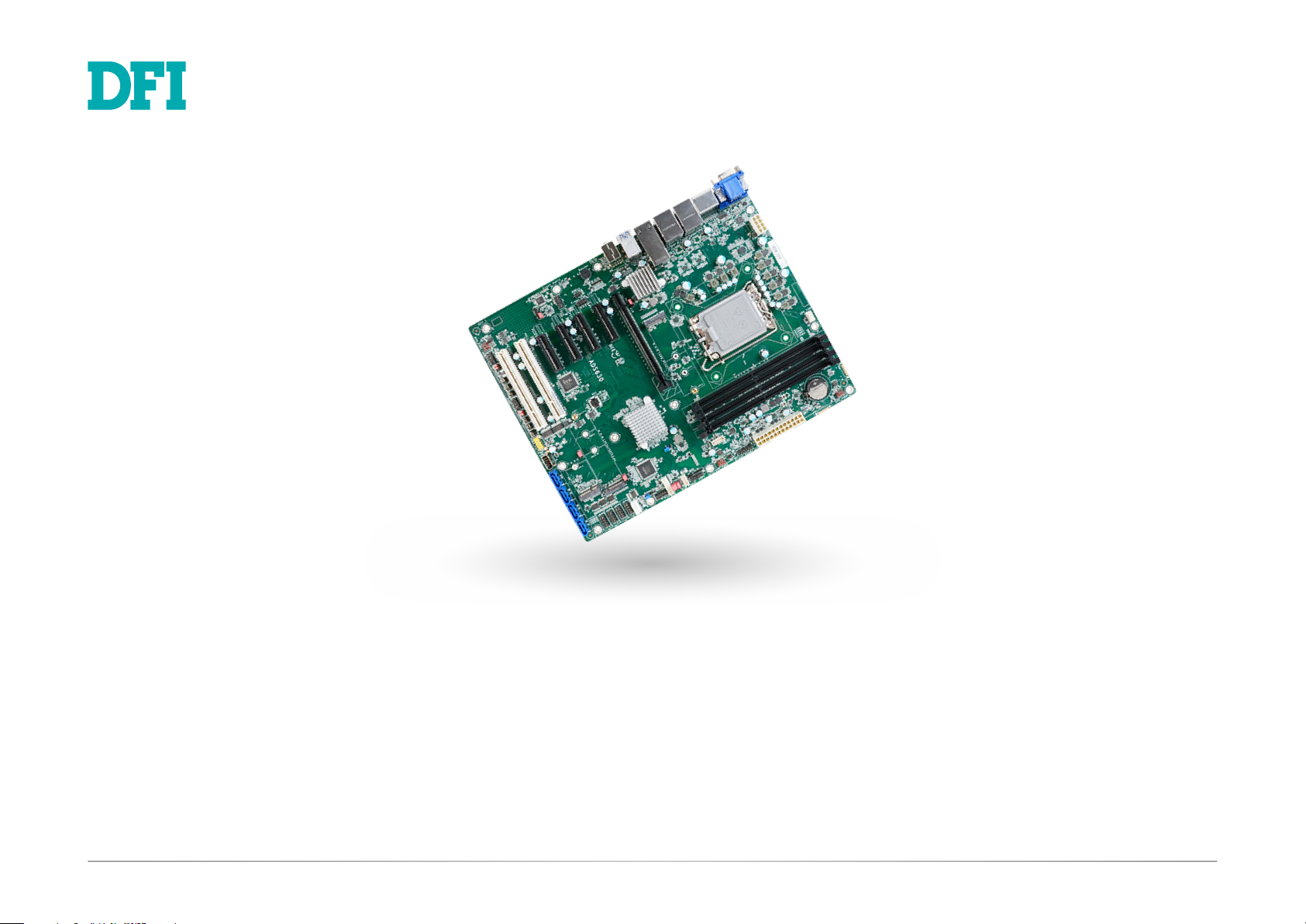

DFI ADS630-R680E User manual

ADS630-R680E/Q670E
ATX Industrial Motherboard
User’s Manual

2User's Manual | ADS630-R680E/Q670E
Copyright
This publication contains information that is protected by copyright. No part of it may be repro-
duced in any form or by any means or used to make any transformation/adaptation without the
prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifi-
cally disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this docu-
ment. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions or
changes.
Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.
© 2022. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-
able protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the re-
ceiver is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for com-
pliance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.

3User's Manual | ADS630-R680E/Q670E
Table of Contents
Chapter 1 - Introduction................................................................................................................6
Specifications ......................................................................................................................... 6
Features .................................................................................................................................. 8
Block Diagram ........................................................................................................................ 9
Chapter 2 - Hardware Installation..............................................................................................10
Board Layout.........................................................................................................................10
System Memory ...................................................................................................................11
Installing the DIMM Module .........................................................................................11
Removing the DIMM Module........................................................................................12
CPU........................................................................................................................................13
Installing the CPU Fan and Heat Sink..........................................................................13

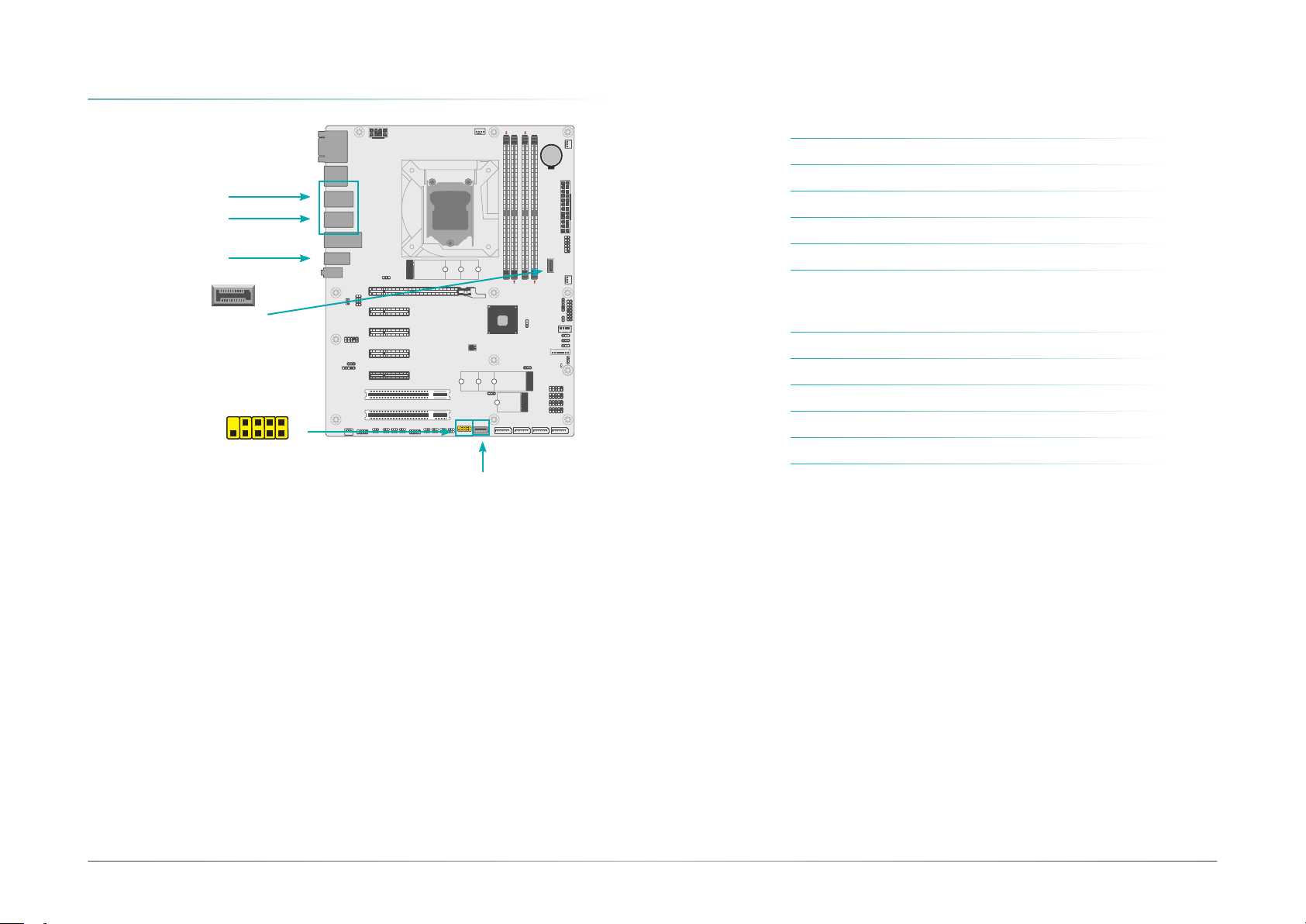

Jumper Settings ...................................................................................................................14
CLEAR CMOS Data ........................................................................................................14
DIO Power & Voltage - JP28/29/30 .............................................................................15
AT/ATX Mode - JP26.....................................................................................................15

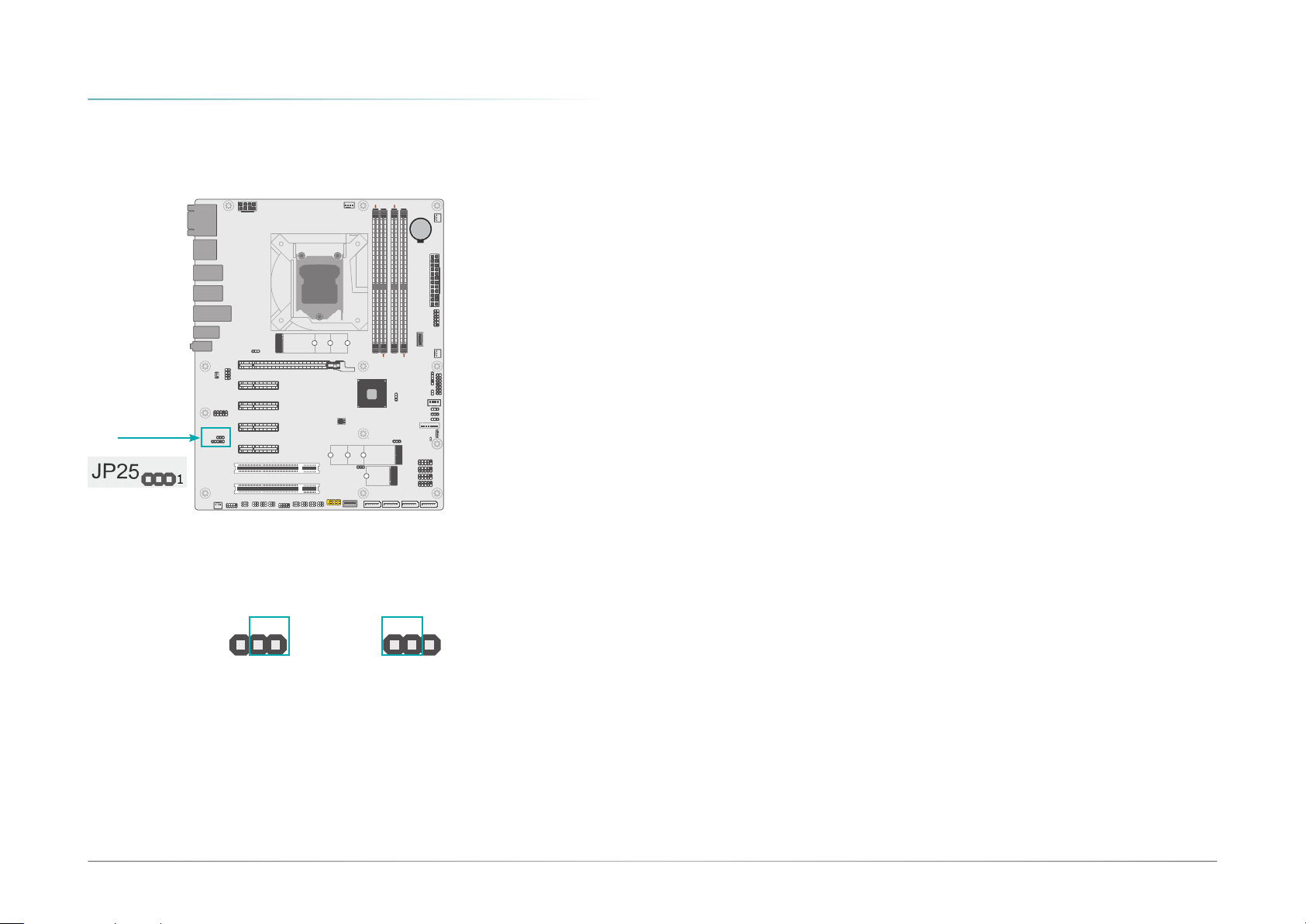

PS/2 and USB Wake up select - JP25 .........................................................................16

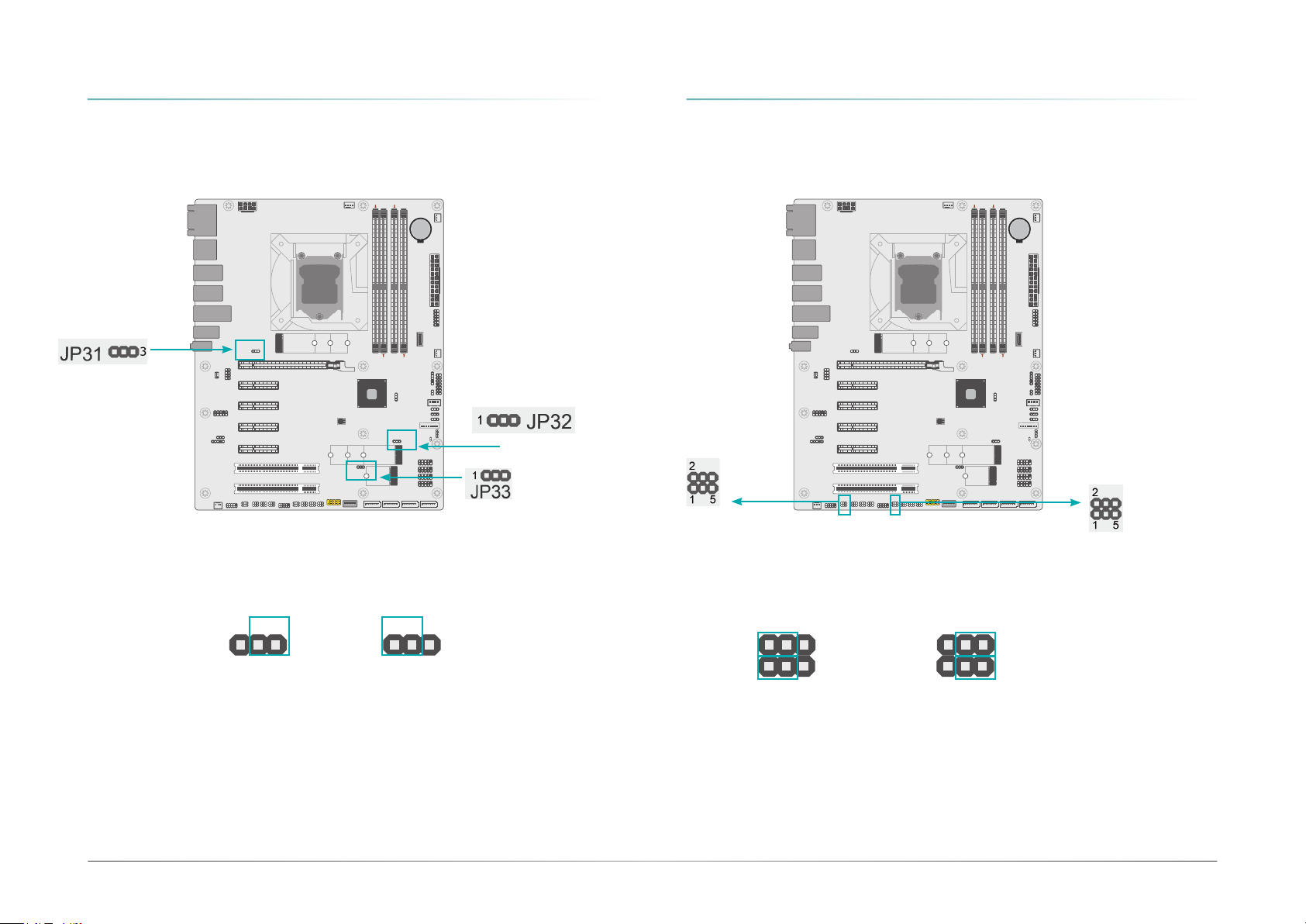

M.2 Connector Power Control - JP31/32/33 ..............................................................17
Power Selection for COM1/COM2-TSJP1/TSJP5 ......................................................17
Selection for COM1 / COM2 - TSJP2,3,4 / TSJP6,7,8 ................................................18

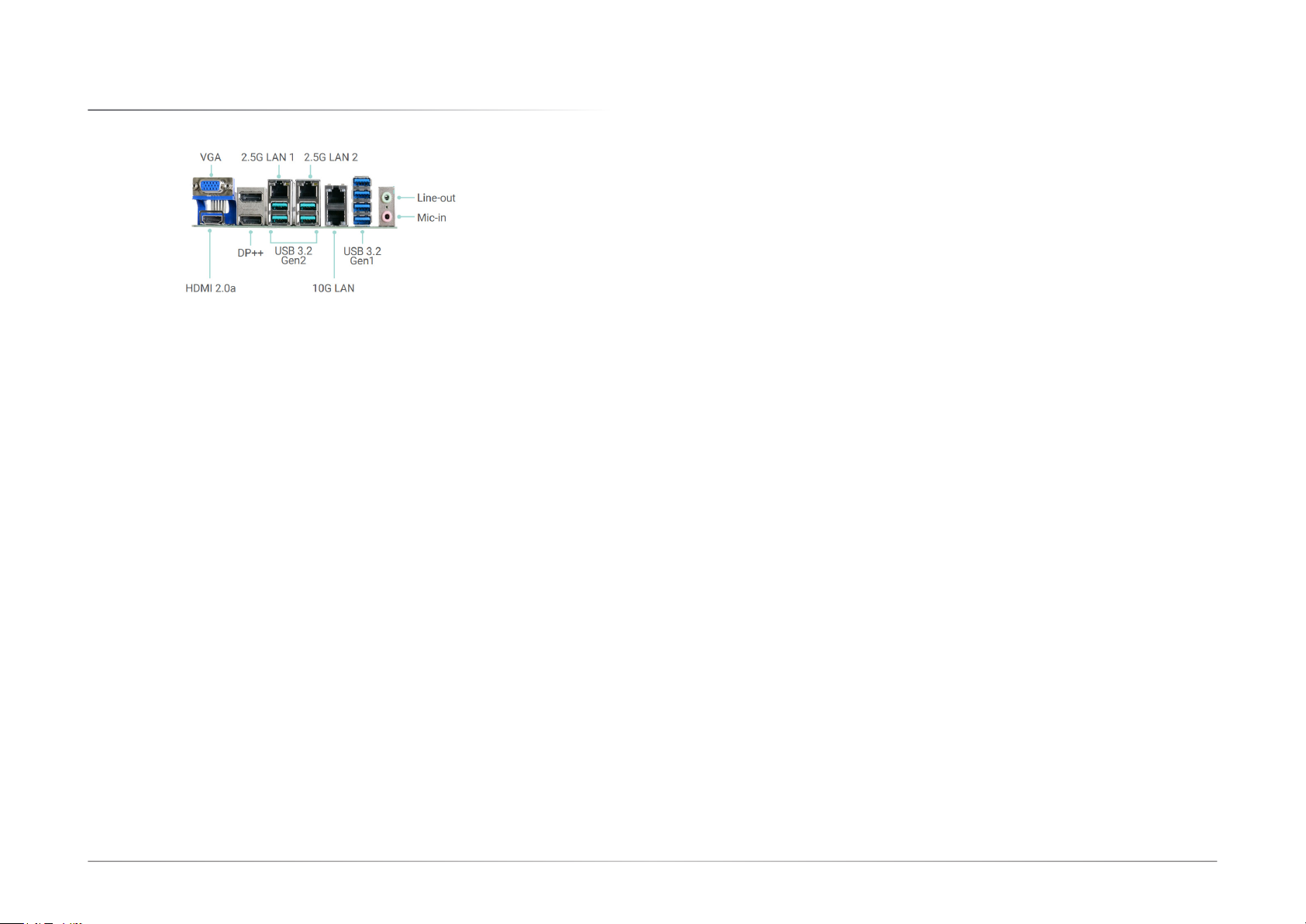

Rear I/O Ports.......................................................................................................................19
USB Ports .......................................................................................................................20
Graphics Interfaces .......................................................................................................21
LAN Ports.......................................................................................................................22
Audio .............................................................................................................................22
Internal I/O Connectors .......................................................................................................23
SATA (Serial ATA) ..........................................................................................................23
Digital I/O Connector, DIO Power .................................................................................23
COM (Serial) ports.........................................................................................................24
Cooling Fan Connectors................................................................................................25
Power Connector...........................................................................................................25
Front Panel.....................................................................................................................26
S/PDIF Connector..........................................................................................................26
COM1..............................................................................................................................27
COM2..............................................................................................................................27
Front Audio.....................................................................................................................28
Front LAN LED ...............................................................................................................28
PS/2................................................................................................................................29
USB 3.2 Gen2 Key B ......................................................................................................29
USB 2.0 ..........................................................................................................................30
USB 2.0 ..........................................................................................................................30
Expansion Slots .............................................................................................................31
Installing the M.2 Module .............................................................................................31
Battery ............................................................................................................................32
Chapter 3 - BIOS Settings...........................................................................................................33
Overview ...............................................................................................................................33
Main.......................................................................................................................................34
Advanced .............................................................................................................................34
CPU Configuration.........................................................................................................35
Power & Performance ...................................................................................................35
PCH-FW Configuration ..................................................................................................36
Trusted Computing........................................................................................................37
NCT6126D Super IO Configuration ..............................................................................38
NCT6126D HW Monitor ................................................................................................39
Serial Port Console Redirection ...................................................................................40
ACPI Configuration........................................................................................................41
USB Configuration .........................................................................................................42
Network Stack Configuration........................................................................................43
DFI WDT Configuration..................................................................................................43
USB Power Control........................................................................................................44
Intel(R) Ehternet Controller X550 .................................................................................44
Chipset ..................................................................................................................................45
SATA And RST Configuration .......................................................................................47
Security .................................................................................................................................48
Secure Boot....................................................................................................................48
Boot .......................................................................................................................................49
Save & Exit ............................................................................................................................49
Updating the BIOS................................................................................................................50
Notice: BIOS SPI ROM..........................................................................................................50

4User's Manual | ADS630-R680E/Q670E
About this Manual
This manual can be downloaded from the website.
The manual is subject to change and update without notice, and may be based on editions that
do not resemble your actual products. Please visit our website or contact our sales representa-
tives for the latest editions.
Warranty
1. Warranty does not cover damages or failures that occur from misuse of the product,
inability to use the product, unauthorized replacement or alteration of components and
product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper in-
stallation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-
stances, attempt to perform service, adjustments or repairs on the product, whether in
or out of warranty. It must be returned to the purchase point, factory or authorized ser-
vice agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequential damages to
the product that has been modified or altered.
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in han-
dling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you
are ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, con-
tacts or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or
connectors by their ends.
Safety Measures
• To avoid damage to the system, use the correct AC input voltage range.
• To reduce the risk of electric shock, unplug the power cord before removing the sys-
tem chassis cover for installation or servicing. After installation or servicing, cover the
system chassis before plugging the power cord.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other
components. Perform the upgrade instruction procedures described at an ESD
workstation only. If such a station is not available, you can provide some ESD pro-
tection by wearing an antistatic wrist strap and attaching it to a metal part of the
system chassis. If a wrist strap is unavailable, establish and maintain contact with
the system chassis throughout any procedures requiring ESD protection.

5User's Manual | ADS630-R680E/Q670E
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance with the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Before Using the System Board
When installing the system board in a new system, you will need at least the following internal
components.
• Memory module
• Storage device such as a hard disk drive.
• Power supply
External system peripherals may also be required for navigation and display, including at least
a keyboard, a mouse and a video display monitor.
www.dfi.com
PACKING LIST
ORDERING INFORMATION
Model Name P/N Memory GbE RS-
232/422/485 USB 3.2 Gen2 USB 3.2 Gen1 USB 2.0 TPM 2.0 Power Thermal Temp.
ADS630-R680ECRM 770-ADS6301-000G 4 DDR4 UDIMM 2 2 6 10 13 024-pin ATX/
8-pin ATX 12V Active -5~65°C
ADS630-Q670ECRM 770-ADS6301-100G 4 DDR4 UDIMM 2 2 6 10 13 024-pin ATX/
8-pin ATX 12V Active -5~65°C
ADS630-R680ECRM 770-ADS6301-200G 4 DDR4 UDIMM 4 2 6 10 13 024-pin ATX/
8-pin ATX 12V Active -5~65°C
ADS630-R680ECRM 770-ADS6301-300G 4 DDR4 UDIMM 4 2 6 10 13 124-pin ATX/
8-pin ATX 12V Active -5~65°C
ADS630-R680ECRM 770-ADS6301-400G 4 DDR4 UDIMM 2 2 6 10 13 124-pin ATX/
8-pin ATX 12V Active -5~65°C
ADS630-Q670ECRM 770-ADS6301-500G 4 DDR4 UDIMM 2 2 6 10 13 124-pin ATX/
8-pin ATX 12V Active -5~65°C
1 ADS630 motherboard
1 COM port cables (Length: 300mm, 2 x COM ports) A81-015026-023G
1 Serial ATA data cable (Length: 500mm) 332-553001-005G
1 I/O shield A49-CMS630-000G
1 M.2 screw/standoff A32-112016-041G
ENVIRONMENT Temperature Operating: -5 to 65°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
Humidity Operating: 5 to 95% RH
Storage: 5 to 95% RH
MTBF TBD
MECHANISM Dimensions ATX Form Factor
305mm (12") x 244mm (9.6")
Height PCB: 1.6mm
Top Side: 33.3mm, Bottom Side: 4mm
CERTIFICATIONS Certications CE, FCC Class B
DFI reserves the right to change the specifications at any time prior to the product's release. Changes thereafter will be based on the product's revision. Please contact your
sales representative for the exact revision offered in your area. All product names mentioned are trademarks of their respective companies. © October 18, 2022 DFI Inc.
SPECIFICATION
OPTIONAL ITEMS
USB 2.0 port cable (Length: 350/398mm) A81-001066-016G
USB 3.2 Gen1 port cable (Length: 320mm) A81-001052-023G
USB 3.2 Gen2 port cable (Length: 300mm) A81-001075-017G
COM port cable (Length: 300mm, 2 x COM ports) A81-015026-023G
Serial ATA data cable (Length: 500mm, W/LOCK) 332-553001-005G
Thermal solution (For 35W, Height: 37.3mm) A71-101107-000G
Thermal solution (For 65W, Height: 72.8mm) 552-200049-000G
Thermal solution (For 95W/125W, Height: 69.3mm) 761-103001-000G
DP to HDMI Dongle 612-D2H13M-000G
M.2-COM4 (M.2 serial port module) 770-M2COM1-000G
M.2-2LAN (M.2 LAN port module) 770-M22LN2-000G
M.2-2PSE (M.2 PSE module) 770-M22PS2-000G

6
Chapter 1
INTRODUCTION
User's Manual | ADS630-R680E/Q670E
Chapter 1 - Introduction
X Specifications
www.dfi.com
SPECIFICATION
SYSTEM Processor 12th Generation Intel®LGA 1700 Socket Processors, TDP support up to 125W
Intel®Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel®Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel®Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel®Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
Intel®Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel®Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel®Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel®Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel®Pentium®G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel®Pentium®G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel®Celeron®G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel®Celeron®G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
Chipset Intel®R680E/Q670E Chipset
Memory Four 288-pin UDIMM up to 128GB
Dual Channel DDR4 3200 MHz (ECC support: R680E only)
BIOS AMI SPI 256Mbit
GRAPHICS Controller Intel®HD Gen 9 Graphics
Feature OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display 1 x VGA VGA: resolution up to 1920x1200 @ 60Hz
2 x DP++ DP++: resolution up to 4096x2304 @60Hz
1 x HDMI 2.0a HDMI: resolution up to 4096x2160 @ 24Hz
Quad Displays VGA + 2 x DP++ + HDMI
EXPANSION Interface 1 x PCIe x16 (Gen 5)
3 x PCIe x4 (Gen 4)
1 x PCIe x4 (Gen 4) (Default, co-lay M.2 M key)
2 x PCI
1 x M.2 2230 E key (PCIe/USB 2.0/Intel CNVi/Wi 6E as option, MOQ required)
1 x M.2 2242/2260/2280 M key (Opt. co-lay PCIe x4 Gen 4.0 NVMe with intel RST support)
1 x M.2 2242/2260/2280 M key (PCIe x4 Gen4 NVMe/Intel Optane Memory support)
AUDIO Audio Codec Realtek ALC888
ETHERNET Controller 2 x Intel®I225LM PCIe (10M/100M/1000Mbps/2.5G) (only Xeon, Core i9/i7/i5 support iAMT)
2 x Intel®x550-AT2 (10 GBASE-T/1 GbE/100 Mbps)(R680E only, no support WOL)
REAR I/O Ethernet 2 x 2.5GbE (RJ-45)
2 x 10GbE (RJ-45)
USB 4 x USB 3.2 Gen2
4 x USB 3.2 Gen1
Display 1 x VGA
2 x DP++
1 x HDMI 2.0a
Audio 1 x Line-out
1 x Mic-in
1 x Line-in (opt. by request, MOQ required)
INTERNAL I/O Serial 2 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch)
USB 2 x USB 3.2 Gen 2 (Key B 20-pin)
2 x USB 2.0 (2.54mm pitch, Colay vertical Type A, opt.: MOQ required)
1 x USB 2.0 Vertical Type A
Audio 1 x Front Audio Header
1 x S/PDIF
SATA 4 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
PS/2 1 x PS/2 (2.54mm pitch)
DIO 1 x 8-bit DIO
SMBus 1 x SMBus
WATCHDOG TIMER Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds
SECURITY TPM Nuvoton TPM2.0 (opt., MOQ required)
POWER Type ATX
Connector 8-pin ATX 12V power
24-pin ATX power
Consumption TBD
RTC Battery CR2032 Coin Cell
OS SUPPORT Microsoft Windows 10 IoT Enterprise 64-bit
Windows Server 2022
Linux Linux

7
Chapter 1
INTRODUCTION
User's Manual | ADS630-R680E/Q670E
www.dfi.com
SPECIFICATION
SYSTEM Processor 12th Generation Intel®LGA 1700 Socket Processors, TDP support up to 125W
Intel®Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel®Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel®Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel®Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
Intel®Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel®Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel®Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel®Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel®Pentium®G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel®Pentium®G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel®Celeron®G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel®Celeron®G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
Chipset Intel®R680E/Q670E Chipset
Memory Four 288-pin UDIMM up to 128GB
Dual Channel DDR4 3200 MHz (ECC support: R680E only)
BIOS AMI SPI 256Mbit
GRAPHICS Controller Intel®HD Gen 9 Graphics
Feature OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display 1 x VGA VGA: resolution up to 1920x1200 @ 60Hz
2 x DP++ DP++: resolution up to 4096x2304 @60Hz
1 x HDMI 2.0a HDMI: resolution up to 4096x2160 @ 24Hz
Quad Displays VGA + 2 x DP++ + HDMI
EXPANSION Interface 1 x PCIe x16 (Gen 5)
3 x PCIe x4 (Gen 4)
1 x PCIe x4 (Gen 4) (Default, co-lay M.2 M key)
2 x PCI
1 x M.2 2230 E key (PCIe/USB 2.0/Intel CNVi/Wi 6E as option, MOQ required)
1 x M.2 2242/2260/2280 M key (Opt. co-lay PCIe x4 Gen 4.0 NVMe with intel RST support)
1 x M.2 2242/2260/2280 M key (PCIe x4 Gen4 NVMe/Intel Optane Memory support)
AUDIO Audio Codec Realtek ALC888
ETHERNET Controller 2 x Intel®I225LM PCIe (10M/100M/1000Mbps/2.5G) (only Xeon, Core i9/i7/i5 support iAMT)
2 x Intel®x550-AT2 (10 GBASE-T/1 GbE/100 Mbps)(R680E only, no support WOL)
REAR I/O Ethernet 2 x 2.5GbE (RJ-45)
2 x 10GbE (RJ-45)
USB 4 x USB 3.2 Gen2
4 x USB 3.2 Gen1
Display 1 x VGA
2 x DP++
1 x HDMI 2.0a
Audio 1 x Line-out
1 x Mic-in
1 x Line-in (opt. by request, MOQ required)
INTERNAL I/O Serial 2 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch)
USB 2 x USB 3.2 Gen 2 (Key B 20-pin)
2 x USB 2.0 (2.54mm pitch, Colay vertical Type A, opt.: MOQ required)
1 x USB 2.0 Vertical Type A
Audio 1 x Front Audio Header
1 x S/PDIF
SATA 4 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
PS/2 1 x PS/2 (2.54mm pitch)
DIO 1 x 8-bit DIO
SMBus 1 x SMBus
WATCHDOG TIMER Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds
SECURITY TPM Nuvoton TPM2.0 (opt., MOQ required)
POWER Type ATX
Connector 8-pin ATX 12V power
24-pin ATX power
Consumption TBD
RTC Battery CR2032 Coin Cell
OS SUPPORT Microsoft Windows 10 IoT Enterprise 64-bit
Windows Server 2022
Linux Linux

8
Chapter 1
INTRODUCTION
User's Manual | ADS630-R680E/Q670E
X Features
Watchdog Timer
The Watchdog Timer function allows your application to regularly “clear” the system at the set
time interval. If the system hangs or fails to function, it will reset at the set time interval so that
your system will continue to operate.
DDR4
DDR4 delivers increased system bandwidth and improves performance. The advantages of
DDR4 provide an extended battery life and improve the performance at a lower power than
DDR3/DDR2.
Serial ATA
Serial ATA is a storage interface that is compliant with SATA 1.0a specification. With speed of
up to 6Gb/s (SATA 3.0), it improves hard drive performance faster than the standard parallel
ATA whose data transfer rate is 100MB/s.
Gigabit LAN
Two Intel®Gigabit LAN controllers support up to 2.5Gbps data transmission, Two Intel®10G
LAN controllers support up to 10Gbps data transmission
Wake-On-LAN
This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. It is
supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power Man-
agement Event) signal. However, if your system is in the Suspend mode, you can power-on the
system only through an IRQ or DMA interrupt.
Wake-On-USB
This function allows you to use a USB keyboard or USB mouse to wake up a system from the
S3 (STR - Suspend To RAM) state.
PCI Express
PCI Express is a high bandwidth I/O infrastructure that possesses the ability to scale speeds
by forming multiple lanes. The x4 PCI Express lane supports transfer rate of 4 Gigabyte per
second (2 directions). The PCI Express architecture also supports high performance graphics
infrastructure by enhancing the capability of a PCIe x16 Gen 3 at 16GB/s bandwidth (8GB/s in
each direction).
ACPI STR
The system board is designed to meet the ACPI (Advanced Configuration and Power Interface)
specification. ACPI has energy saving features that enables PCs to implement Power Manage-
ment and Plug-and-Play with operating systems that support OS Direct Power Management.
ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM
function.
With the Suspend to RAM function enabled, you can power-off the system at once by pressing
the power button or selecting “Standby” when you shut down Windows®without having to go
through the sometimes tiresome process of closing files, applications and operating system.
This is because the system is capable of storing all programs and data files during the entire
operating session into RAM (Random Access Memory) when it powers-off. The operating ses-
sion will resume exactly where you left off the next time you power-on the system.
Power Failure Recovery
When power returns after an AC power failure, you may choose to either power-on the system
manually or let the system power-on automatically.
USB
The system board supports the new USB 3.2 Gen 2. It is capable of running at a maximum
transmission speed of up to 10 Gbit/s (1250 MB/s), and is faster than USB 2.0 (480 Mbit/s,
or 60 MB/s) and USB 1.1 (12Mb/s). USB 3.2 reduces the time required for data transmission,
reduces power consumption, and is backward compatible with USB 2.0. It is a marked improve-
ment in device transfer speeds between your computer and a wide range of simultaneously ac-
cessible external Plug and Play peripherals.
RTC Timer
The Real Time Clock (RTC) installed on the system board allows your system to automatically
power-on on the set date and time.

9
Chapter 1
INTRODUCTION
User's Manual | ADS630-R680E/Q670E
X Block Diagram
www.dfi.com
MECHANICAL DRAWING
BLOCK DIAGRAM
R680E/
Q670E
Channel A
SATAIII
DDI
DDR4 3200 MHz Support
SATA 4x
VGA
DMI 4.0
LGA 1700
LAN 1
USB 3.2 Gen2 2x
I225LM
USB 2.0 USB 2.0 1x
Vertical Type A
Channel A DDR4 3200 MHz Support
Channel B DDR4 3200 MHz Support
Channel B DDR4 3200 MHz Support
PTN3355
DDI
DP++
HDMI 2.0
PCIe x4 M.2 M Key
PCIe x4
USB 2.0
USB 3.2
GbE
LAN 2
USB 3.2 Gen2 2x USB 2.0
USB 3.2
USB 3.2
USB 3.2 Gen1 4x
PCIe 16x PCIe x16 Slot
PCIe IT8893 PCI PCI 2x
DDI
PI3HDX1204
PCIe x4 3x
DDI
DP++
USB 2.0
Intel
x550-AT2
(R680E only)
10G LAN 3 MDI PCIe
MDI
10G LAN 4
HDA
S/PDIF
Front Audio
Audio Jack
(Line-out/Mic-in/Line-in (opt.))
Realtek
ALC888
RS232/422/485 2x
RS232 4x
Super IO
with WDT
Fan Control
Case Open
H/W Monitor
PS/2 KB/MS
eSPI
PCIe 4x M.2 M Key
Co-lay PCIe x4 Slot (opt.)
USB 3.2 USB 3.2 Gen2 2x
(Key B 20-pin)
USB 2.0
PCIe/CNVi
M.2 E Key
USB 2.0
SMBus TCA6408A
SMBus
8 Bit DIO
SPI SPI BIOS
TPM 2.0
NPCT754
eSPI 80 port Header
243.84
304.80
USB 2.0 USB 2.0 2x
colay vertical Type A
MDI
I225LM GbE
MDI

10
Chapter 2
HARDWARE INSTALLATION
User's Manual | ADS630-R680E/Q670E
Chapter 2 - Hardware Installation
X Board Layout
Important:
Electrostatic discharge (ESD) can damage your board, processor, disk drives,
add-in boards, and other components. Perform installation procedures at an ESD
workstation only. If such a station is not available, you can provide some ESD pro-
tection by wearing an antistatic wrist strap and attaching it to a metal part of the
system chassis. If a wrist strap is unavailable, establish and maintain contact with
the system chassis throughout any procedures requiring ESD protection.
Note:
Some components are optional and only available upon request.
1
DDR4_1
DDR4_2
DDR4_3
DDR4_4
Socket LGA1700
+12V Power
4
8
1
5
1
Battery
PCIe 2 (PCIe x4)
PCI 2
1
S/PDIF
2
9
10
1
Front Audio
1
2
10
1 2
7 8
113
12 24
12
11
LAN LED
PCIe 1 (PCIe x16)
1
1
9
2
PCIe 3 (PCIe x4)
PCIe 5 (PCIe x4)
1
JP25
1
11
20
10
USB
1 9
2
1111
1
JP32
1
1
SOJ1
J36
1
1
1
2
14
3
JP28
3
JP30
3
JP29
1
1
JP26
1 9
2
1 9
2
1 9
2

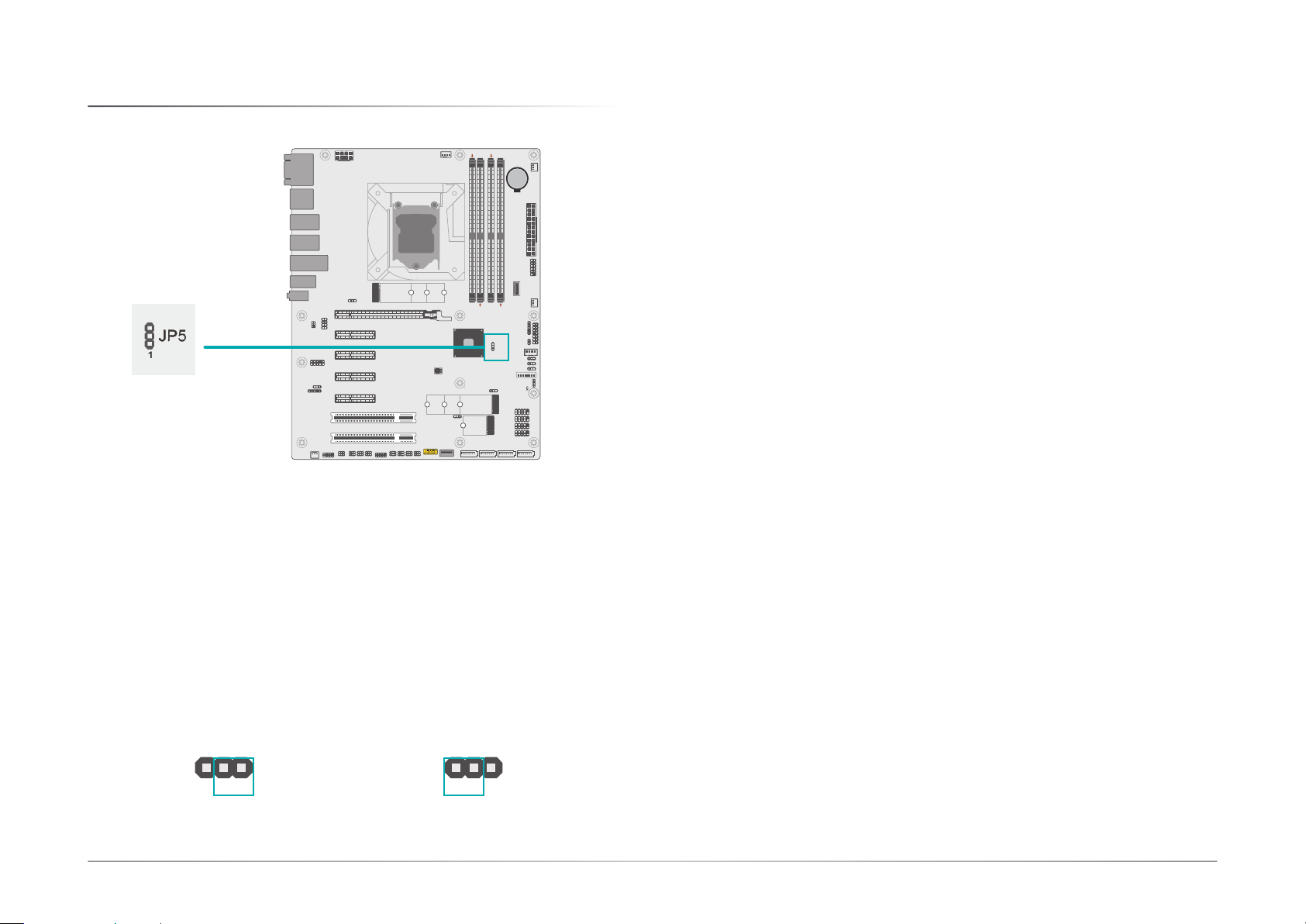

JP5
1
JP33
1
1
2
51
2
51
2
51
2
5
1 9
2
1
2
51
2
51
2
51
2
5
1 9
2
1
6
5
2
1
SMBus
PCI 1
PCIe 4 (PCIe x4)
3
JP31
M2CN4
M.2 M Key
Intel
R680E/Q670E
SPI
M.2 M Key M2CN2
M.2 E Key
M2CN3
1
Mic-in
Line-out
Line-in (opt.)
VGA
HDMI
LAN 1
USB3_1/2
USB2_1/2
LAN 2
USB3_3/4
USB2_3/4
DP++
DP++
USB3 7/8/9/10
10G LAN 3
10G LAN 4
USB2_
11/12
USB2_14
SATA0 SATA1 SATA2 SATA3
TSJP5,8,7,6 COM2 TSJP4,3,2
TSJP1
COM1
System
Fan 1
COM3
ATX Power
Front
Panel
System
Fan 3
COM4
COM5
COM6
System
Fan 2
eSPI
DIO
Power
DIO
PS2
CPU FAN
