DIAGAUTO MST-500 User manual

深圳宙斯特科技有限公司
- 1 -
MST-500
Motorcycle Diagnostic
Instruction

深圳宙斯特科技有限公司
- 2 -
Part 1 Scanner Introduction & Attentions
Scanner appearance and keys:
Top view:

深圳宙斯特科技有限公司
- 3 -
Bottom view:
Diag. accessories:
SYM
KYMCO
SUZUKI-1
SUZUKI-2
PGO
YAMAHA

深圳宙斯特科技有限公司
- 4 -
HARTFORD
AEON-1
HONDA
PIAGGIO/VESPA
POWER CABLE
USB
MAIN
SD
※Please connect the power cable to the scanner’s 12V socket when diagnosis
with YAMAHA models.
Buttons descriptions
▲▼ Up down Arrow Keys：Choose items
◄ ►Left right arrow keys：Shift pages
Enter：Perform
Esc：Return
F1,F2,F3,F4 Function keys：Reserved
Shift key：Reserved

深圳宙斯特科技有限公司
- 5 -
Attentions
Use restrictions
1. The displays screen and illustrations (such as key markings) in this manual are for
illustrative purpose only, and may differ somewhat from the actual items they
represent.
2. The contents of this manual are subject to change without notice.
3. In no event shall Shenzhen Zeus Technology Co., LTD be liable to anyone for special,
collateral, incidental, or consequential damages in connection with or arising out
of the purchase or use of these materials.
4. Shall Shenzhen Zeus Technology Co., LTD not be liable for any claim of any kind
whatsoever against the use of these materials by any other party.
5. Avoid use and storage in areas subjected to temperature extremes. Very low
temperatures can cause slow display response, total failure of the display. Also
avoid leaving the scanner in direct sunlight, near anywhere else it might be
exposed to very high temperatures. Heat can cause discoloration or deformation of
the scanner's case, and damage to internal circuitry.
6. Never attempt to disassemble the scanner or tamper with the connection settings
without permission.
7. Never press the keys of the scanner with a ballpoint pen or other pointed object.
8. Use a soft, dry cloth to clean the exterior of the scanner. If the scanner becomes
very dirty, wipe it off with a cloth moistened in a weak solution of water and a
mild neutral household detergent. Wring out all excess moisture before wiping the
scanner. Never use thinner, benzene or other volatile agents to clean the scanner.
Doing so can remove printed markings and can damage the case.
9. Working conditions:
Temperature：0～60℃；Humidity: relative humidity below 80%.
10. Don't connect to diagnostic test sync when examine the ignition system sparking
voltage Test, or high-pressure disturbance may result in equipment damage
Checking when use
1．Check whether the ignition is on.
2．Check the whether the scanner's power light is on (red light), when testing the
system whether the signal light is flash.
3．check the diagnostic cable and the interface whether is bad contact or
short-circuit.
4 ． Check whether the software version is applicable to the vehicle types

深圳宙斯特科技有限公司
- 6 -
Part 2 Connection Specifications
1、Scanner accessories
Testing accessories
Connection methods：

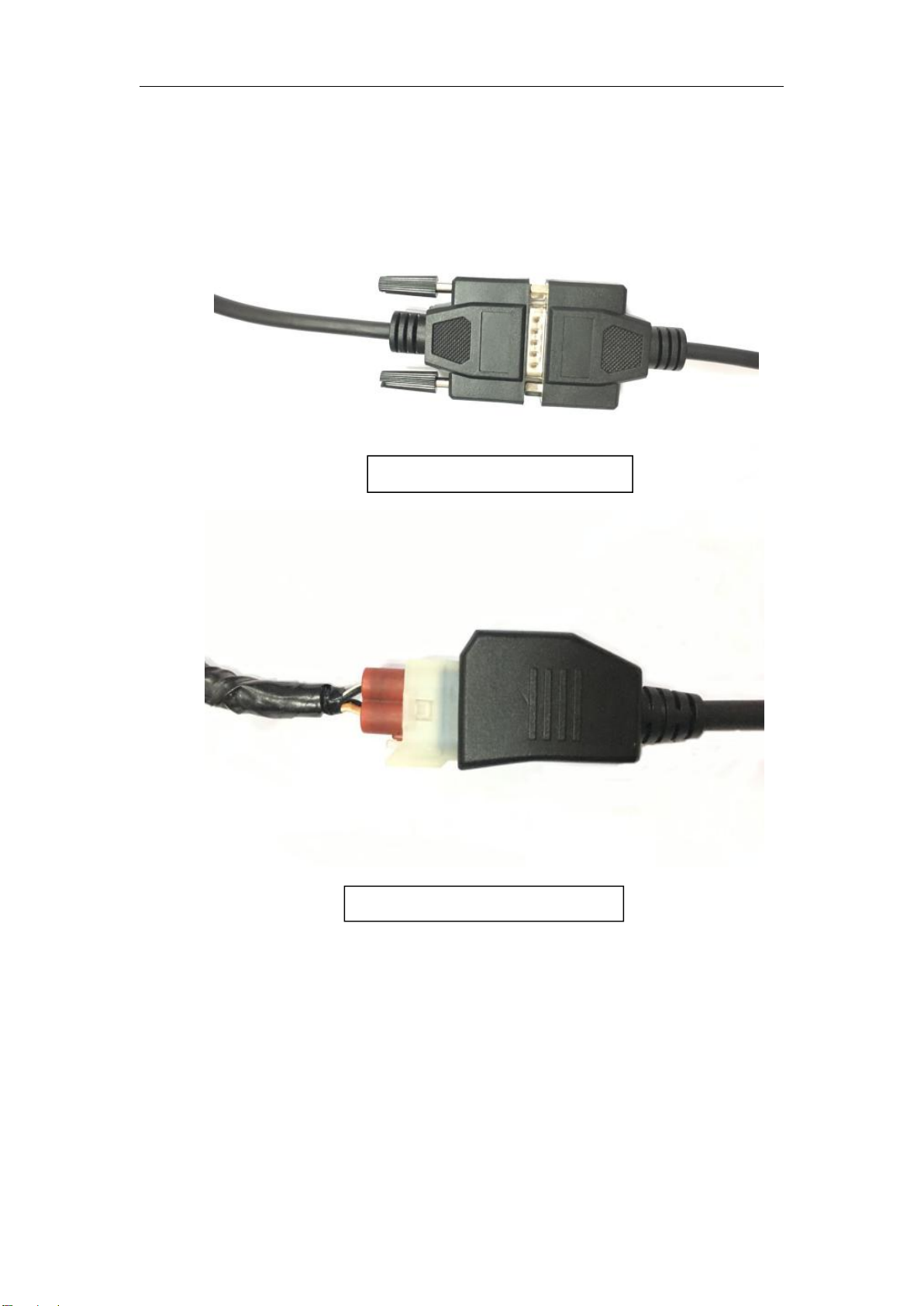

1.Connect the main test cable

深圳宙斯特科技有限公司
- 7 -
2.Connect the diagnostic cable
3.Connect to the car diagnostic

深圳宙斯特科技有限公司
- 8 -
Part 3 Operation Descriptions
（Take SUZUKI GSR600 as sample）
1. Connection
Connect Scanner to motorcycle by following the steps of Part 2.
2. Perform function options
Start the scanner, it will come out options as below
Perform：1.DIAGNOSIS：Enter maintenance diagnostic procedure.
Perform：2.SYSTEM SETUP：Set up and test basic function as sound, language,
date, time, LCD test, Keypad test, LED test etc.
Perform：3.VIEW VERSION：Read out scanner’s S/N ,S/W,H/W.
3.DIAGNOSIS
●Press <Enter> to enter DIAGNOSIS, it will come out Models selection as below
●Press <Enter> to enter SUZUKI, it will come out function selection as below:

深圳宙斯特科技有限公司
- 9 -
●Choose one way to enter at random
01. ECU Data.
Enter this option will display the information of ECU, as below:

深圳宙斯特科技有限公司
- 10 -
02.Current Data
Current Data is the numeric figures of the working status for motor engine, through
this data we can know whether motor works normally.
Select Current Data to enter Current Data interface:
In the current page, you can press YES to enter waveform function, it is able to
display numerical changes of the selected item. As below:
You can press [F1] if with item name which shows incomplete
ly

深圳宙斯特科技有限公司
- 11 -

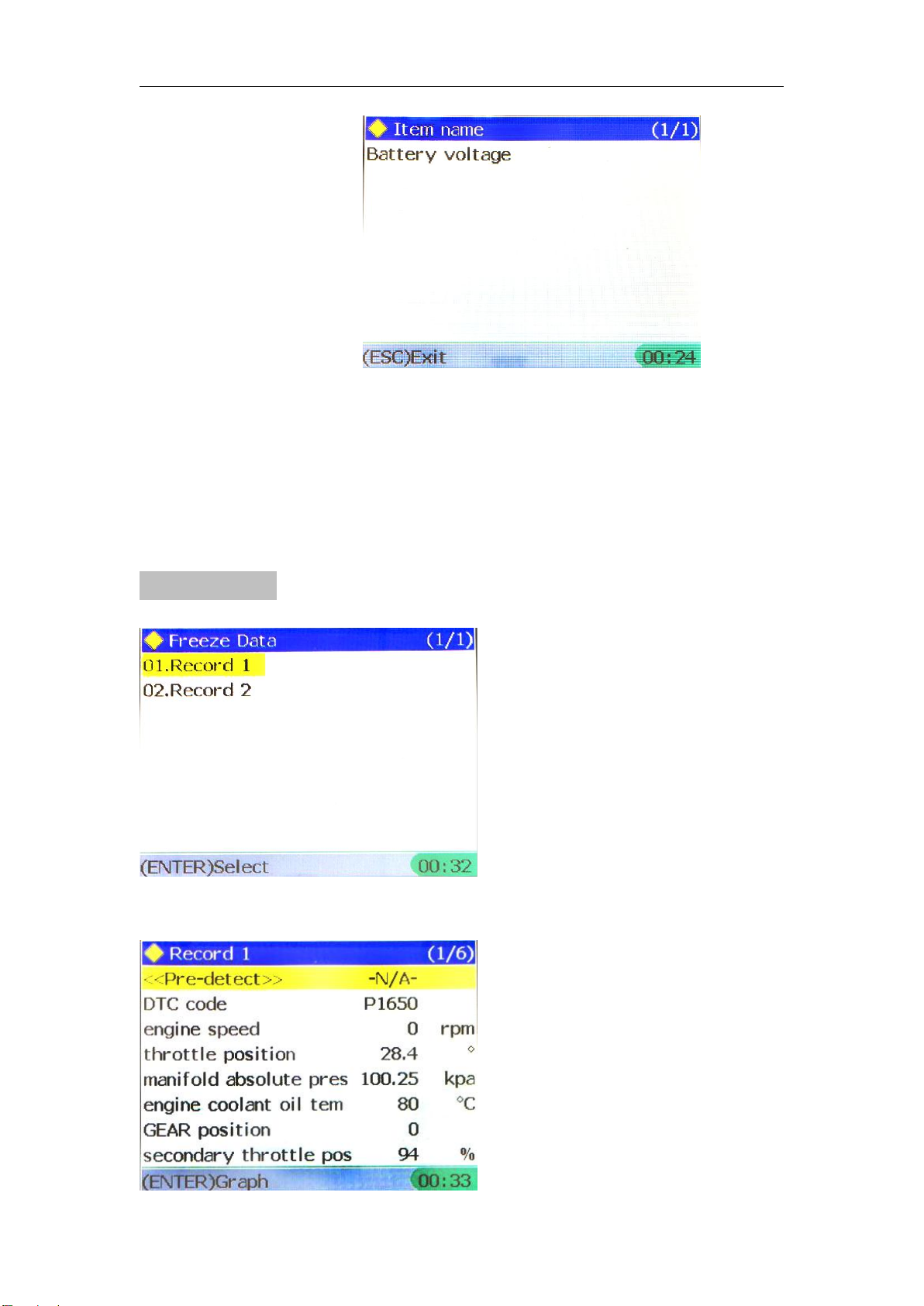

Just as below in yellow:
Please press [F2] if you want to know the item introduction
in detais
03.Freeze frame Data
In the function list select Freeze frame Data displays:
Freeze frame Data option:
●Press <Enter>：

深圳宙斯特科技有限公司
- 12 -
04.Read fault Data
In the function list select Read fault Data displays:
Read Fault Code option:
●Press <Enter>：
05.Erease Fault Code:
In the function list select Erase Fault Code will display:

深圳宙斯特科技有限公司
- 13 -
Note! Before erase fault code please switch on the key and not to start engine.
Press YES to erase fault code.

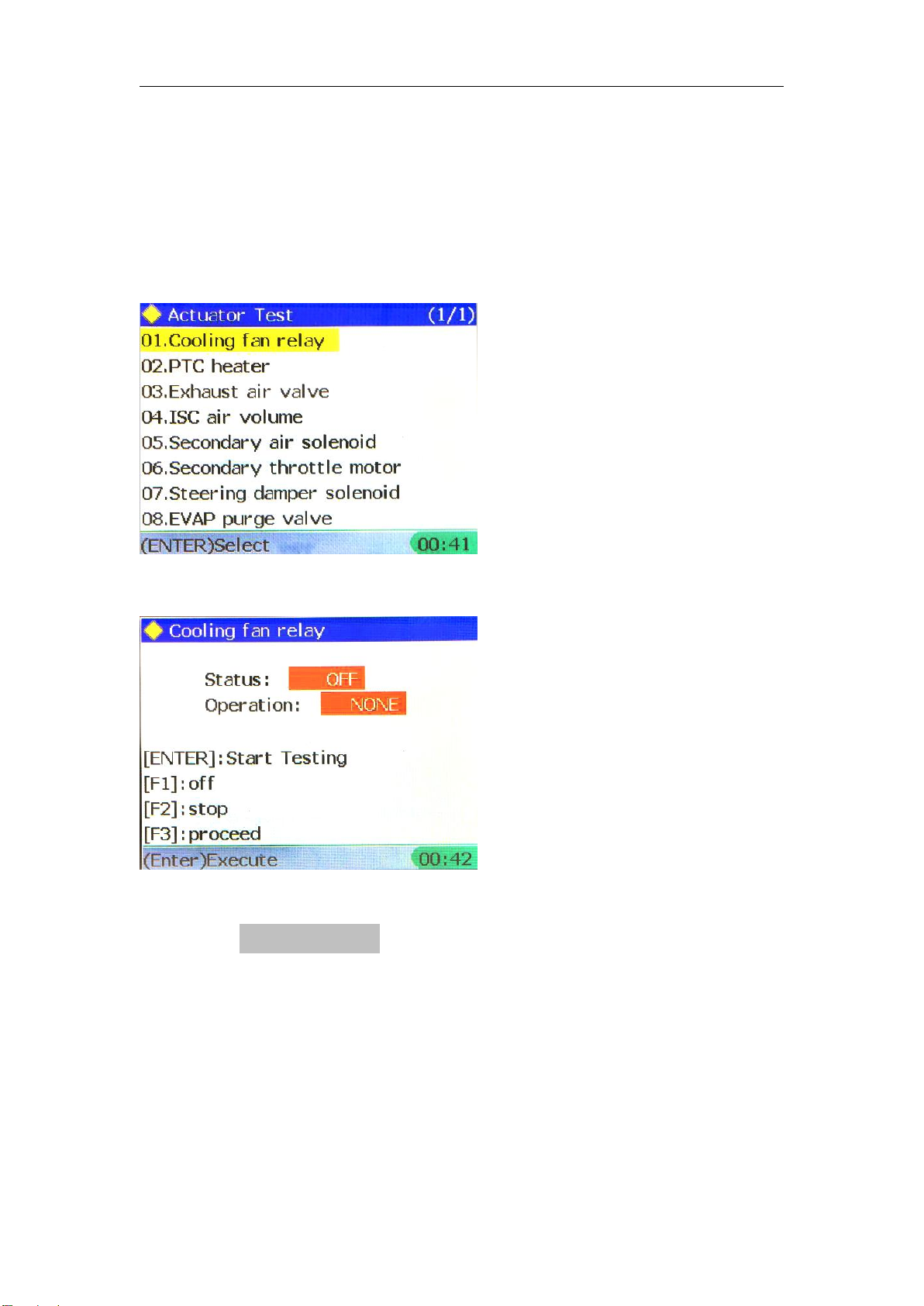

06.Actuators Test:
In the function list select Actuators Test will display:
●Press <Enter>：
Part 4 System Settings And View Version
Select menu SYSTEM SETUP , Press <Enter> to enter next menu, as below:

深圳宙斯特科技有限公司
- 14 -
1. Basic setup
This function can set whether the buzzer sound, and modify the current language.
Press UP or DOWN to select item, Press LEFT or RIGHT to modify the option’s
values.

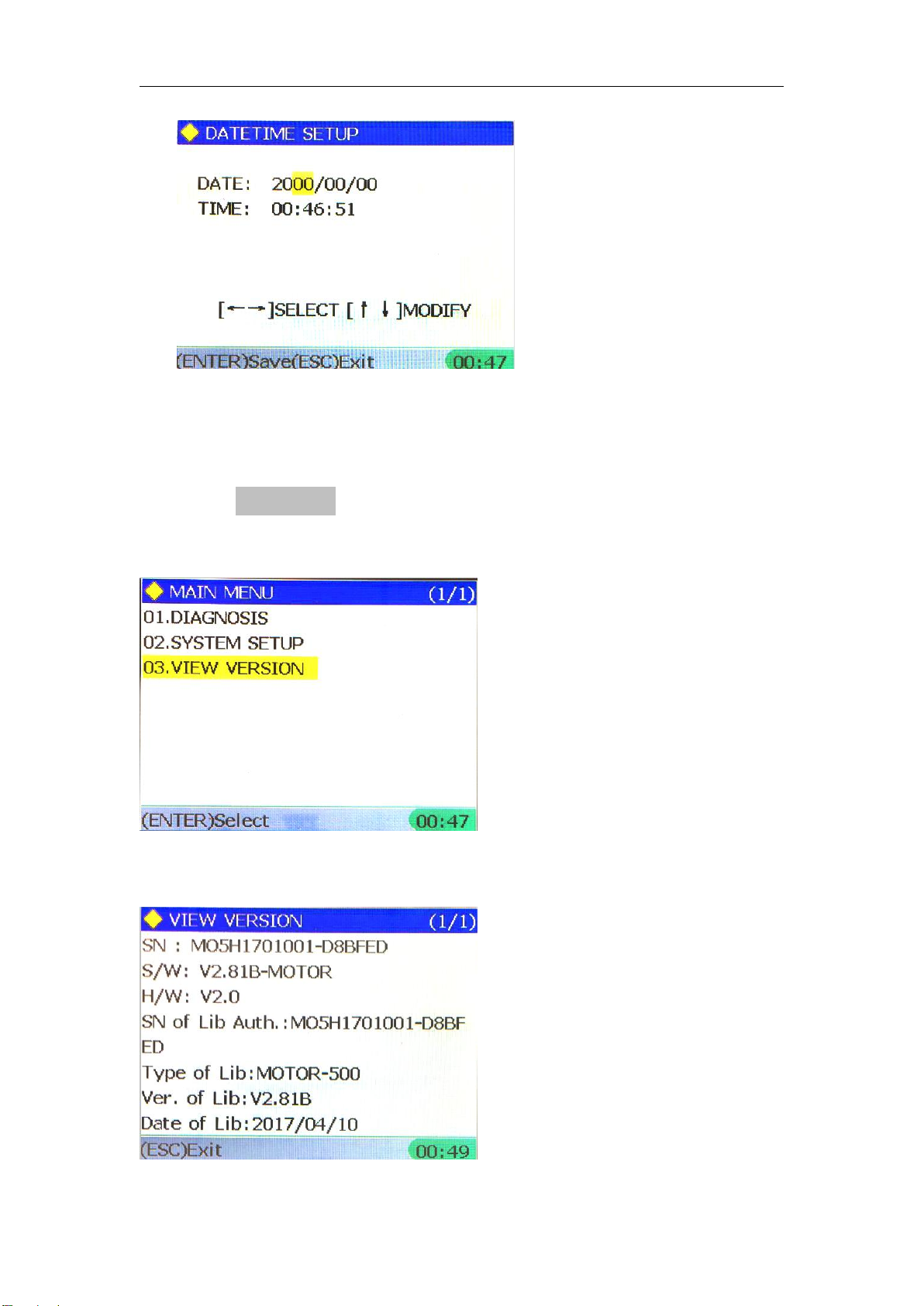

2. Date and time setup
This feature can be set the date and time of the host.

深圳宙斯特科技有限公司
- 15 -
Press LEFT or RIGHT to select item, Press UP or DOWN to modify the option’s
values.
3. View Version
Select menu View Version , Press <Enter> to enter next menu, as below:
●Press <Enter>：

深圳宙斯特科技有限公司
- 16 -
Note:
1. The clock chip need to use button batteries (3.0 ~ 3.3 V) power supply, prevent
clock data is lost when the power is cut off.
2. If battery low, date/time will be set to zero when the power is cut off, but does not
affect the use of other functions.
Part 5 Offline Upgrade
1. Extract the new package to a new folder;
2. Plug the SD card through the card reader to the PC and delete all files of the SD
card;
Sd card on the PC
3. Copy all the files to SD card from the folder which have the extracted files;
4. After finish copying, Unplug the SD card and insert to Scanner;

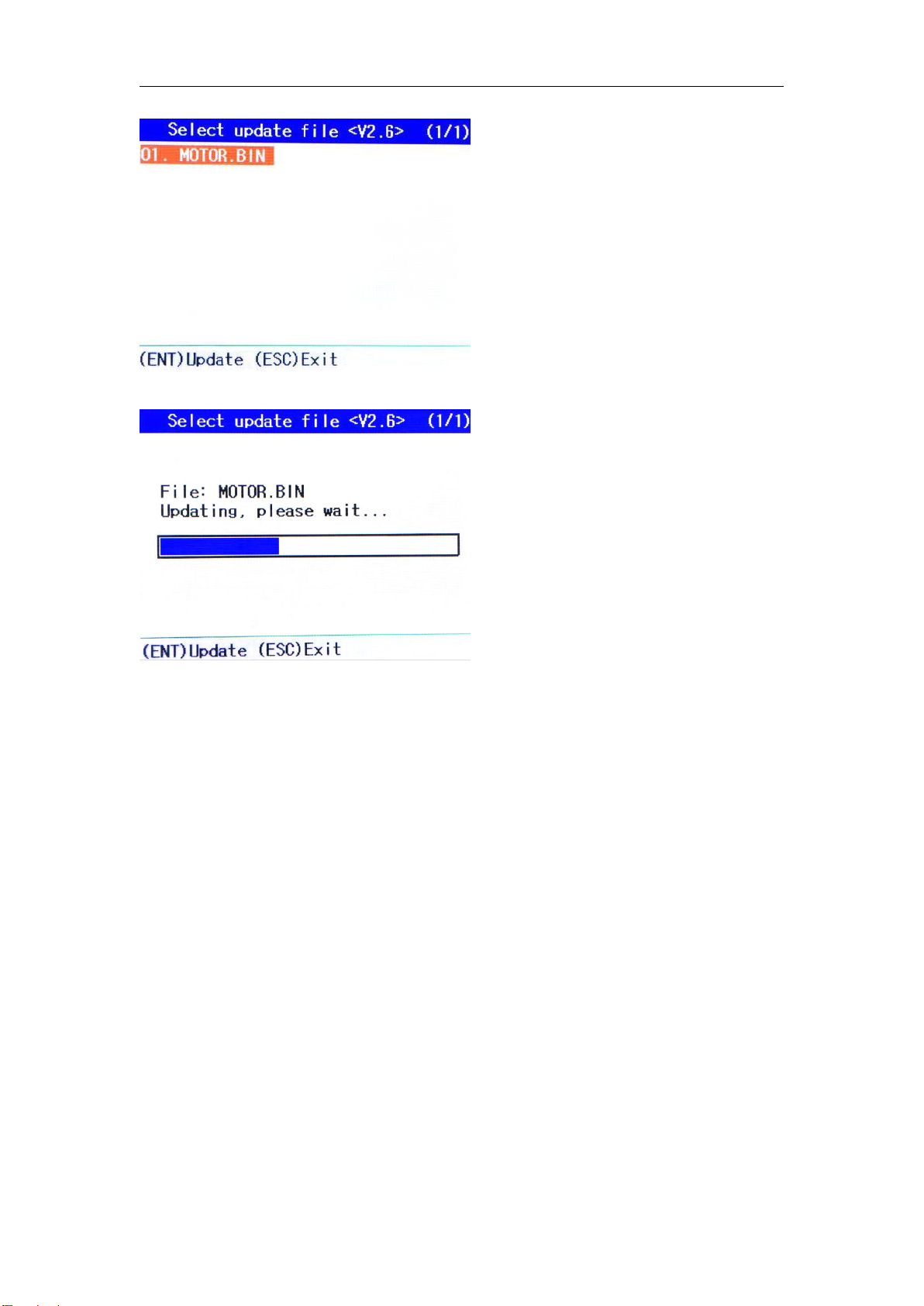

5. Use USB cable to connect the PC and Scanner, and then appear as below:

深圳宙斯特科技有限公司
- 17 -
图(1)
图(2)
Press ENT to upgrade or press ESC to cancel.
※Note: The scanner use SD card format for FAT32, please pay attention to when
formatting the SD card, otherwise the tool will not be able to work properly.
