Diamond Aircraft DA-20 Katana 2012 Technical specifications

Diamond
AIRCRAFT
DA-20 Katana
FLIGHT MANUAL Day/Night
100 hp
Revision 6
Incremental Revision
Change Instructions
Doc # DA202-100 January 18, 2012 Page 1 of 3
Revision 6
CHANGE INSTRUCTIONS
Revision 6 of the DA20-A1-100 AFM, Document Number DA202-100, dated January 18, 2012 is a complete
Manual re-issue. To bring Revision 5 (dated 22 August, 2006) of your manual to the Revision 6 state,
remove all pages of each chapter and insert the new pages as indicated below. Keep the Tabs.
NOTE: The AFM is printed single-sided.
Remove: Chapter 0 – pages 0-1 to 0-9. Insert: Chapter 0 – pages 0-1 to 0-10.
Change:
(1) The Footer was changed on all pages to have a correct and consistent Date, Revision and Page
Numbering format.
(2) Pages 0-4, 0-5: List of Effective Pages updated.
Rev bars inserted adjacent to the changed pages due to content change.
(3) Page 0-6: Record of Revisions updated.
(4) Page 0-8: Revision Log updated.
(5) Page 0-9: Revision Highlights page added. New page.
(6) Page 0-10: Changed page number due to new page added.
Remove: Chapter 1 – pages 1-1 to 1-14. Insert: Chapter 1 – pages 1-1 to 1-14.
Change:
(1) The Footer was changed on all pages to have a correct and consistent Date, Revision and Page
Numbering format.
CAUTION, WARNING and NOTE blocks put to same theme font throughout Chapter.
(2) Page 1-8: Intro para and Warning revised. Added alternate replacement for the EVANS NPG+
waterless coolant with a 50/50 Glycol type coolant – Re: Service Bulletin DA20-72-03L, Rev 2.
Remove: Chapter 2 – pages 2-1 to 2-17. Insert: Chapter 2 – pages 2-1 to 2-17.
Change:
(1) The Footer was changed on all pages to have a correct and consistent Date, Revision and Page
Numbering format. “DOT Approved” added to each page.
CAUTION, WARNING and NOTE blocks put to same theme font throughout Chapter.
(2) Page 2-8 – Revised paragraph 2.13 and reformatted the Note.
(3) Page 2-9 – Revised the placards in paragraph 2-15.
(4) Page 2-15 – Revised Placard added for aircraft without SB DA20-72-03L installed.
Remove: Chapter 3 – pages 3-1 to 3-18. Insert: Chapter 3 – pages 3-1 to 3-18.
Change:
(1) The Footer was changed on all pages to have a correct and consistent Date, Revision and Page
Numbering format. “DOT Approved” added to each page.
CAUTION, WARNING and NOTE blocks put to same theme font throughout Chapter.

Diamond
AIRCRAFT
DA-20 Katana
FLIGHT MANUAL Day/Night
100 hp
Revision 6
Incremental Revision
Change Instructions
Doc # DA202-100 January 18, 2012 Page 2 of 3
Revision 6
Remove: Chapter 4 – pages 4-1 to 4-18. Insert: Chapter 4 – pages 4-1 to 4-18.
Change:
(1) The Footer was changed on all pages to have a correct and consistent Date, Revision and Page
Numbering format. “DOT Approved” added to each page.
CAUTION, WARNING and NOTE blocks put to same theme font throughout Chapter.
(2) Page 4-9: Caution added to Para 4.4.2 Before Starting engine.
(3) Page 4-10: Spelling of Tanis corrected.
(4) Pages 4-15 and 4-16: Notes for Carburetor Icing revised. Paras renumbered.
(5) Page 4-17: Changed due to pagination.
Remove: Chapter 5 – pages 5-1 to 5-15. Insert: Chapter 5 – pages 5-1 to 5-15.
Change:
(1) The Footer was changed on all pages to have a correct and consistent Date, Revision and Page
Numbering format. “DOT Approved” added to each page.
CAUTION, WARNING and NOTE blocks put to same theme font throughout Chapter.
Remove: Chapter 6 – pages 6-1 to 6-21. Insert: Chapter 6 – pages 6-1 to 6-15.
Change:
(1) The Footer was changed on all pages to have a correct and consistent Date, Revision and Page
Numbering format. “DOT Approved” added to each page.
CAUTION, WARNING and NOTE blocks put to same theme font throughout Chapter.
(2) Page 6-13: Table re-formatted to show “Arm” column. Reduced the row size considerably.
(3) Page 6-14: Part number for the RPM Indicator changed.
(4) Page 6-15: Table re-formatted to show “Arm” column. Reduced the row size considerably.
Remove: Chapter 7 – pages 7-1 to 7-18. Insert: Chapter 7 – pages 7-1 to 7-18.
Change:
(1) The Footer was changed on all pages to have a correct and consistent Date, Revision and Page
Numbering format.
(2) Page 7-9. Caution added to Para 7.8 CANOPY.
(3) Page 7-12. Warning revised related to moving the propeller.
Graphic revised and page re-formatted.
(4) Page 7-15. Warning revised related to moving the propeller.

Diamond
AIRCRAFT
DA-20 Katana
FLIGHT MANUAL Day/Night
100 hp
Revision 6
Incremental Revision
Change Instructions
Doc # DA202-100 January 18, 2012 Page 3 of 3
Revision 6
Remove: Chapter 8 – pages 8-1 to 8-7. Insert: Chapter 7 – pages 8-1 to 8-8.
Change:
(1) The Footer was changed on all pages to have a correct and consistent Date, Revision and Page
Numbering format.
(2) Page 8-1: Table of Contents numbering revised. Item 8.6 GROUND DE-ICING added.
(3) Page 8-8: New page. Para 8.6 GROUND DE-ICING added to the new page.
Remove: Chapter 9 – pages 9-1 and 9-2. Insert: Chapter 9 – pages 9-1 and 9-2.
Change:
(1) The Footer was changed on the pages to have a correct and consistent Date, Revision and Page
Numbering format.
(2) Header added to the Chapter pages.
Remove: Chapter 9 Supplement 1
pages S1-1 to S1-3. Insert: Chapter 9 Supplement 1 pages S1-1 to S1-3.
Change:
(1) The Footer was changed on the pages to have a correct and consistent Date, Revision and Page
Numbering format. “DOT Approved” added to each page.
NOTE: Only pages that were revised due to technical changes are shown by a revision bar in the List of
Effective Pages and on the actual page changed.
Those pages with changes made only to the footer, header or font theme do not show revision bars,
are not included in the Record of Revisions and are not included in the Revision Highlights page.

Page 0 - 1
FLIGHT MANUAL
DA 20/100
Category of Airworthiness : UTILITY
Applicable Airworthiness Requirements : AWM Chapter 523-VLA
Serial No. :
Registration :
Date of Issue : 19 June 2000
Document No. : DA202-100
This manual must be carried in the aircraft at all times! Scope and revision status can be found in the List
of Effective Pages and in the Record of Revisions.
The pages identified as "DOT-appr." in the List of Effective Pages are approved by:
Signature William Jupp
Chief, Flight Test
For Director, Aircraft Certification
A
uthorit
y
Trans
p
ort Canada
Date of approval 19 June 2000
This airplane is to be operated in compliance with the information and limitations contained herein.

DIAMOND AIRCRAFT DA 20/100 Flight Manual
Doc # DA202-100 January 18, 2012 Page 0 - 2
Revision 6
PREFACE
Congratulations on your choice of the DA 20/100 KATANA.
Safe handling of an airplane increases and ensures your safety and provides you with many hours of
enjoyment. For this reason you should take the time to familiarize yourself with your KATANA airplane.
We ask that you carefully read this Flight Manual and pay special attention to the recommendations
given. A careful study of the manual will reward you with many hours of trouble-free flight operation of
your KATANA airplane.
All rights reserved. Reproduction of this manual or any portion
thereof by any means without the express written permission of
DIAMOND AIRCRAFT INDUSTRIES prohibited.
Copyright ©by DIAMOND AIRCRAFT INDUSTRIES,
London, Ontario
Canada

DIAMOND AIRCRAFT DA 20/100 Flight Manual
Doc # DA202-100 January 18, 2012 Page 0 - 3
Revision 6
TABLE OF CONTENTS
Chapter
GENERAL 1
OPERATING LIMITATIONS 2
EMERGENCY PROCEDURES 3
NORMAL OPERATING PROCEDURES 4
PERFORMANCE 5
WEIGHT AND BALANCE / EQUIPMENT LIST 6
DESCRIPTION OF THE AIRPLANE AND ITS SYSTEMS 7
HANDLING, PREVENTIVE AND CORRECTIVE MAINTENANCE 8
SUPPLEMENTS 9

DIAMOND AIRCRAFT DA 20/100 Flight Manual
Doc # DA202-100 January 18, 2012 Page 0 - 4
Revision 6
LIST OF EFFECTIVE PAGES
Chapter Page Date Chapter Page Date
0 0-1 January 18, 2012 3 DOT-appr 3-1 January 18, 2012
0-2 January 18, 2012 DOT-appr 3-2 January 18, 2012
0-3 January 18, 2012 DOT-appr 3-3 January 18, 2012
0-4 January 18, 2012 DOT-appr 3-4 January 18, 2012
0-5 January 18, 2012 DOT-appr 3-5 January 18, 2012
0-6 January 18, 2012 DOT-appr 3-6 January 18, 2012
0-7 January 18, 2012 DOT-appr 3-7 January 18, 2012
0-8 January 18, 2012 DOT-appr 3-8 January 18, 2012
0-9 January 18, 2012 DOT-appr 3-9 January 18, 2012
0-10 January 18, 2012 DOT-appr 3-10 January 18, 2012
DOT-appr 3-11 January 18, 2012
1 1-1 January 18, 2012 DOT-appr 3-12 January 18, 2012
1-2 January 18, 2012 DOT-appr 3-13 January 18, 2012
1-3 January 18, 2012 DOT-appr 3-14 January 18, 2012
1-4 January 18, 2012 DOT-appr 3-15 January 18, 2012
1-5 January 18, 2012 DOT-appr 3-16 January 18, 2012
1-6 January 18, 2012 DOT-appr 3-17 January 18, 2012
1-7 January 18, 2012 DOT-appr 3-18 January 18, 2012
1-8 January 18, 2012
1-9 January 18, 2012 4 DOT-appr 4-1 January 18, 2012
1-10 January 18, 2012 DOT-appr 4-2 January 18, 2012
1-11 January 18, 2012 DOT-appr 4-3 January 18, 2012
1-12 January 18, 2012 DOT-appr 4-4 January 18, 2012
1-13 January 18, 2012 DOT-appr 4-5 January 18, 2012
1-14 January 18, 2012 DOT-appr 4-6 January 18, 2012
DOT-appr 4-7 January 18, 2012
2 DOT-appr. 2-1 January 18, 2012 DOT-appr 4-8 January 18, 2012
DOT-appr 2-2 January 18, 2012 DOT-appr 4-9 January 18, 2012
DOT-appr 2-3 January 18, 2012 DOT-appr 4-10 January 18, 2012
DOT-appr 2-4 January 18, 2012 DOT-appr 4-11 January 18, 2012
DOT-appr 2-5 January 18, 2012 DOT-appr 4-12 January 18, 2012
DOT-appr 2-6 January 18, 2012 DOT-appr 4-13 January 18, 2012
DOT-appr 2-7 January 18, 2012 DOT-appr 4-14 January 18, 2012
DOT-appr 2-8 January 18, 2012 DOT-appr 4-15 January 18, 2012
DOT-appr 2-9 January 18, 2012 DOT-appr 4-16 January 18, 2012
DOT-appr 2-10 January 18, 2012 DOT-appr 4-17 January 18, 2012
DOT-appr. 2-11 January 18, 2012 DOT-appr 4-18 January 18, 2012
DOT-appr 2-12 January 18, 2012
DOT-appr 2-13 January 18, 2012
DOT-appr 2-14 January 18, 2012
DOT-appr 2-15 January 18, 2012
DOT-appr 2-16 January 18, 2012
DOT-appr 2-17 January 18, 2012

DIAMOND AIRCRAFT DA 20/100 Flight Manual
Doc # DA202-100 January 18, 2012 Page 0 - 5
Revision 6
Chapter Page Date Chapter Page Date
5 DOT-appr 5-1 January 18, 2012 7-14 January 18, 2012
DOT-appr 5-2 January 18, 2012 7-15 January 18, 2012
DOT-appr 5-3 January 18, 2012 7-16 January 18, 2012
DOT-appr 5-4 January 18, 2012 7-17 January 18, 2012
DOT-appr 5-5 January 18, 2012 7-18 January 18, 2012
DOT-appr 5-6 January 18, 2012
DOT-appr 5-7 January 18, 2012 8 8-1 January 18, 2012
DOT-appr 5-8 January 18, 2012 8-2 January 18, 2012
DOT-appr 5-9 January 18, 2012 8-3 January 18, 2012
DOT-appr 5-10 January 18, 2012 8-4 January 18, 2012
DOT-appr 5-11 January 18, 2012 8-5 January 18, 2012
DOT-appr 5-12 January 18, 2012 8-6 January 18, 2012
DOT-appr 5-13 January 18, 2012 8-7 January 18, 2012
DOT-appr 5-14 January 18, 2012 8-8 January 18, 2012
DOT-appr 5-15 January 18, 2012
9
9-1 January 18, 2012
6 DOT-appr. 6-1 January 18, 2012 9-2 January 18, 2012
DOT-appr 6-2 January 18, 2012
DOT-appr 6-3 January 18, 2012 Supp. 1 S1-1 January 18, 2012
DOT-appr 6-4 January 18, 2012 S1-2 January 18, 2012
DOT-appr 6-5 January 18, 2012 S1-3 January 18, 2012
DOT-appr 6-6 January 18, 2012
DOT-appr 6-7 January 18, 2012
DOT-appr 6-8 January 18, 2012
DOT-appr 6-9 January 18, 2012
DOT-appr 6-10 January 18, 2012
DOT-appr 6-11 January 18, 2012
DOT-appr 6-12 January 18, 2012
DOT-appr 6-13 January 18, 2012
DOT-appr 6-14 January 18, 2012
DOT-appr 6-15 January 18, 2012
7 7-1 January 18, 2012
7-2 January 18, 2012
7-3 January 18, 2012
7-4 January 18, 2012
7-5 January 18, 2012
7-6 January 18, 2012
7-7 January 18, 2012
7-8 January 18, 2012
7-9 January 18, 2012
7-10 January 18, 2012
7-11 January 18, 2012
7-12 January 18, 2012
7-13 January 18, 2012

DIAMOND AIRCRAFT DA 20/100 Flight Manual

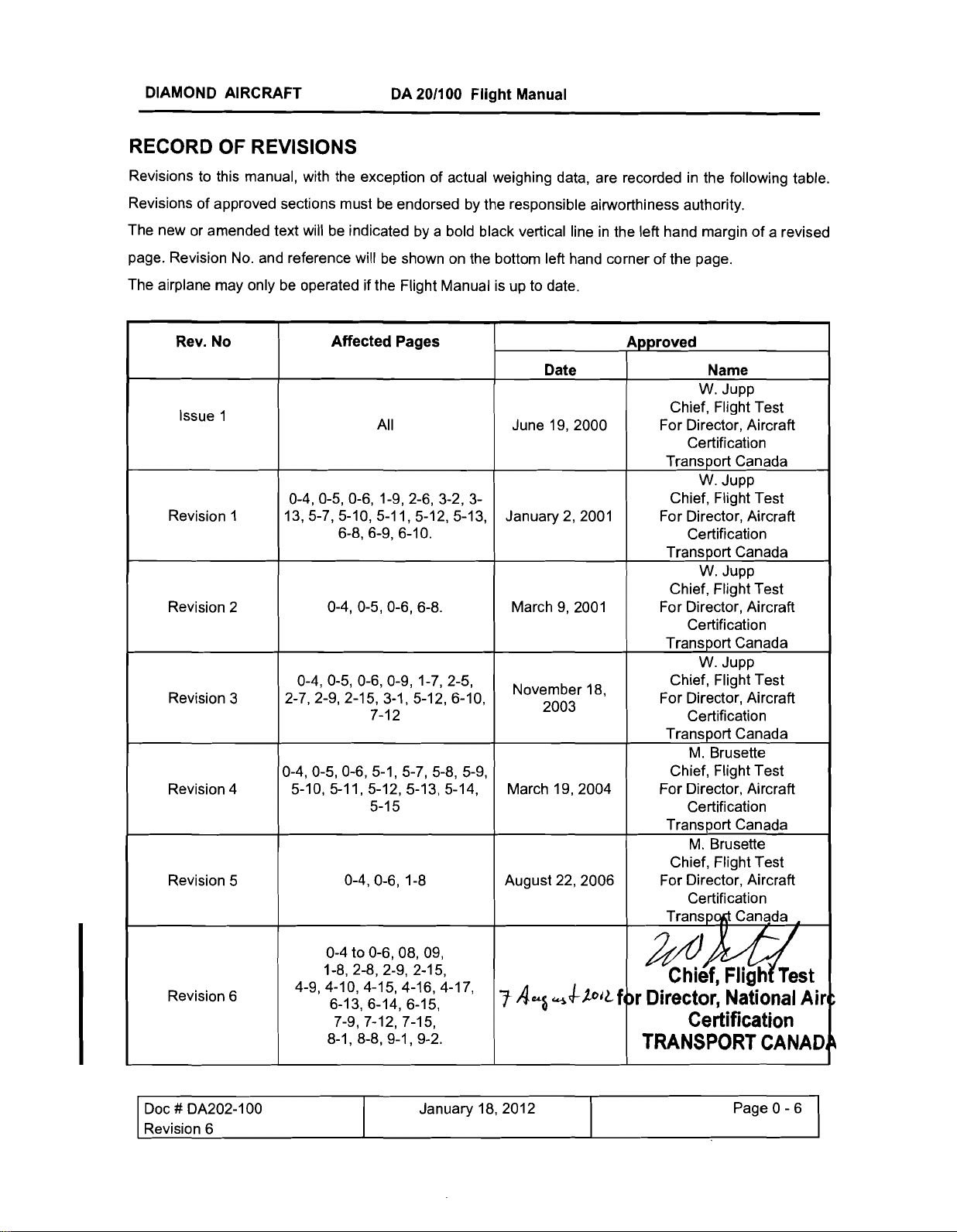

RECORD OF REVISIONS
Revisions
to this manual, with the exception of actual weighing data, are recorded in the following table.
Revisions of approved sections must
be endorsed by the responsible airworthiness authority.
The new or amended text will
be indicated by a bold black vertical line in the left hand margin of a revised
page. Revision
No. and reference will be shown on the bottom left hand corner ofthe page.
The airplane may only
be operated if the Flight Manual is up to date.
Rev. No Affected Pages Approved
Date Name
Issue 1 All June
19, 2000
W. Jupp
Chief, Flight Test
For Director, Aircraft
Certification
Transport Canada
Revision 1
0-4,0-5,0-6,1-9,2-6,3-2,3-
13,5-7,5-10,5-11,5-12,5-13,
6-8,6-9,6-10. January 2,2001
W. Jupp
Chief, Flight Test
For Director, Aircraft
Certification
Transport Canada
Revision 2 0-4, 0-5, 0-6, 6-8. March
9, 2001
W. Jupp
Chief, Flight Test
For Director, Aircraft
Certification
Transport Canada
Revision 3
0-4,0-5,0-6,0-9, 1-7,2-5,
2-7,2-9,2-15,3-1,5-12,6-10,
7-12
November
18,
2003
W. Jupp
Chief, Flight Test
For Director, Aircraft
Certification
Transport Canada
Revision 4
0-4,0-5,0-6, 5-1, 5-7, 5-8, 5-9,
5-10, 5-11,5-12,5-13,5-14,
5-15 March 19, 2004
M. Brusette
Chief, Flight Test
For Director, Aircraft
Certification
Transport Canada
Revision 5 0-4, 0-6,
1-B August22,2006
M. Brusette
Chief, Flight Test
For Director, Aircraft
Certification
TransPQ ~ Canada
Revision 6
0-4 to 0-6, 08,
09,
1-B, 2-8, 2-9, 2-15,
4-9,4-10,4-15,4-16,4-17,
6-13,6-14,6-15,
7-9,7-12,7-15,
8-1,
B-B, 9-1, 9-2.
1- ACL~ ~J-).Oll.. f
M}~,
Chief, Fligh Test
pr Director, National Air
Certification
TRANSPORT CANAD ~
Doc # DA202-100 January
1B, 2012
Page 0 - 6
Revision 6

DIAMOND AIRCRAFT DA 20/100 Flight Manual
Doc # DA202-100 January 18, 2012 Page 0 - 7
Revision 6
[INTENTIONALLY LEFT BLANK]

DIAMOND AIRCRAFT DA 20/100 Flight Manual
Doc # DA202-100 January 18, 2012 Page 0 - 8
Revision 6
REVISION LOG
This log should be used for control of all revisions issued and installed in this manual. The affected
pages of any revision as well as the Record of Revisions must be inserted into the manual upon receipt.
The pages superseded by the revision must be removed and destroyed. The Revision Log should be
updated by hand. Changes are identified on those pages affected by a revision bar.
Rev. No. Date Issued: Inserted On: Inserted By:
Issue 1 June 19, 2000 June 19, 2000 Diamond Aircraft
Revision 1 January 2, 2001 January 2, 2001 Diamond Aircraft
Revision 2 March 9, 2001 March 9, 2001 Diamond Aircraft
Revision 3 November 18, 2003 November 18, 2003 Diamond Aircraft
Revision 4 March 19, 2004 March 19, 2004 Diamond Aircraft
Revision 5 August 22, 2006 August 22, 2006 Diamond Aircraft
Revision 6 January 18, 2012

DIAMOND AIRCRAFT DA 20/100 Flight Manual
Doc # DA202-100 January 18, 2012 Page 0 - 9
Revision 6
REVISION HIGHLIGHTS
Changes of technical material in Revision 6 of the AFM are described below and are indicated in the text
pages by revision bars in the margin adjacent to the change. The footer has been changed on all
pages of the manual to be consistent and correct. This will not show in the Revision Highlights Page.
Chapter Pages Highlights
0 0-4 and 0-5 List of Effective Pages revised. Rev bars inserted adjacent to the
changed pages.
0-6 Record of Revised Pages and Approval for Revision 6.
0-8 Revision Log entries.
0-9 Revision Highlights page added for Revision 6.
0-10 Changed due to pagination with new page added.
1 1-8
Intro para and Warning revised.
Added alternate replacement for the EVANS NPG+ waterless
coolant with a 50/50 Glycol type coolant - DA20-72-03L, Rev 2
2 2-8 Revised paragraph 2.13 and reformatted the Note.
2-9 Revised the placards in paragraph 2-15.
2-15 Revised placard added for aircraft without DA20-72-03L, Rev 2.
4 4-9 Caution added to Para 4.4.2 Before Starting engine.
4-10 Typo corrected Tannis to Tanis
4-15 and 4-16 Notes for Carburetor Icing revised. Paras renumbered.
4-17 Changed due to pagination.
6 6-13 Table re-formatted to show “Arm” column.
6-14 Part number for the RPM Indicator changed.
6-15 Table re-formatted to show “Arm” column.
7 7-9 Caution added to Para 7.8 CANOPY.
7-12
Warning revised related to moving the propeller.
Graphic revised and page re-formatted.
7-15 Warning revised related to moving the propeller.
8 8-1
Table of Contents numbering revised.
Item 8.6 GROUND DE-ICING added.
8-8 Para 8.6 GROUND DE-ICING added.
9 9-1 and 9-2 Header added to the Chapter.

DIAMOND AIRCRAFT DA 20/100 Flight Manual
Doc # DA202-100 January 18, 2012 Page 0 - 10
Revision 6
SUBSCRIPTION SERVICE
Diamond Aircraft Publications Revision Subscription Contacts
To ensure safe operation and maintenance of the DA20/100 Katana aircraft, it is recommended
that operators verify that their documentation is at the correct issue/revision levels. For revision
and subscription service please contact the following:
1. DA20/100 Katana related manuals and publications.
North America, Australia, South Africa: Europe, Other:
Diamond Aircraft Industries Inc.
Customer Support
1560 Crumlin Sideroad
London, Ontario
Canada
N5V 1S2
www.diamondair.com
Diamond Aircraft Industries GmbH
Customer Support
N.A. Otto-Strasse 5
A-2700 Wiener Neustadt
Austria
www.diamond-air.at
Phone:
Fax: [phone] Phone: Fax: [phone] 011-43-2622-26780
2. Rotax 912 Engine related manuals and publications.
North America: Austria:
Rotech Research Canada LTD.
6235 Okanagan Landing Road
Vernon, British Columbia
Canada
V1H 1M5
www.rotec.com
HB- FLUGTECHNIK GES.M.B.H.
Dr. Adolf Scharf Str. 44
A-4053HAID
www.rotax.bombardier.com
Phone:
Fax: [phone] Phone: Fax: 07229 / 79104/79117 07229 / 79104 15
OR Contact your authorized Rotax Engine distributor as listed in the back of the 912 Operators Manual.
3. Hoffmann Propeller Model HO-V352 related manuals and publications.
North America, Australia, South Africa: Europe, Other:
Diamond Aircraft Industries Inc.
Customer Support
1560 Crumlin Sideroad
London, Ontario
Canada
N5V 1S2
www.diamondair.com
Hoffmann Propeller GmbH. & Co.
Customer Support
Kupferlingstr. 9
D-83022 Rosenheim
Germany
Phone:
Fax: [phone] Phone: Fax: [phone] 011-49-8031-1878-78

DIAMOND AIRCRAFT
DA 20/100 Flight Manual
General
Doc # DA202-100
January 18, 2012
Page 1 - 1
Revision 6
CHAPTER 1
GENERAL
1.1. INTRODUCTION 1- 1
1.2. CERTIFICATION BASIS 1- 2
1.3. WARNINGS, CAUTIONS, AND NOTES 1- 2
1.4. THREE-VIEW-DRAWING OF AIRPLANE 1- 3
1.5. DIMENSIONS 1- 4
1.6. ENGINE 1- 5
1.7. PROPELLER 1- 5
1.8. FUEL 1- 6
1.9. LUBRICANT AND COOLANT 1- 7
1.10. WEIGHT 1- 9
1.11. LIST OF DEFINITIONS AND ABBREVIATIONS 1-10
1.12. CONVERSION FACTORS 1-14
1.1. INTRODUCTION
The Airplane Flight Manual has been prepared to provide pilots and instructors with information for the
safe and efficient operation of this airplane.
This Manual includes the material required by JAR-VLA and Transport Canada Airworthiness Manual
(AWM) Chapter 523-VLA. It also contains supplemental data supplied by the airplane manufacturer that
can be useful to the pilot.
The Flight Manual conforms to a standard equipped DA 20/100 KATANA. Any optional equipment
installed on request of the customer (COMM, NAV, etc.) is not considered.
For the operation of optional equipment the Operation Manual of the respective vendor must be used.
For permissible accessories refer to the equipment list, Section 6.5.

DIAMOND AIRCRAFT
DA 20/100 Flight Manual
General
Doc # DA202-100
January 18, 2012
Page 1 - 2
Revision 6
1.2. CERTIFICATION BASIS
The DA 20/100 has been approved by Transport Canada in accordance with the Canadian Airworthiness
Manual (AWM) Chapter 523-VLA. The Type Certificate No. A-191, originally issued on July 29th, 1994,
has been revised to include the DA20/100.
Category of Airworthiness: UTILITY
Noise Certification Basis: a) Canadian Airworthiness Manual Chapter 516
b) FAA Part 36
1.3. WARNINGS, CAUTIONS, AND NOTES
The following definitions apply to warnings, cautions, and notes used in the Flight Manual:
WARNING
means that the non-observation of the corresponding procedure leads to an
immediate or important degradation of the flight safety.
CAUTION
means that the non-observation of the corresponding procedure leads to a
minor or to a more or less long term degradation of flight safety.
NOTE
draws the attention to any special item not directly related to safety but which
is important or unusual.

DIAMOND AIRCRAFT
DA 20/100 Flight Manual
General
Doc # DA202-100
January 18, 2012
Page 1 - 3
Revision 6
1.4. THREE-VIEW-DRAWING OF AIRPLANE

DIAMOND AIRCRAFT
DA 20/100 Flight Manual
General
Doc # DA202-100
January 18, 2012
Page 1 - 4
Revision 6
1.5. DIMENSIONS
1.5.1 Overall Dimensions
Span:
35 ft 7 in
(10.84 m)
Length:
23 ft 6.0 in
( 7.17 m)
Height:
6 ft 11.0 in
( 2.10m)
1.5.2 Wing
Airfoil:
Wortmann FX 63-137/20 HOAC
Wing Area:
125 sq.ft. (11.6 m2)
Mean Aerodynamic
Chord (MAC):
3 ft 6.9 in ( 1.09 m)
Aspect Ratio:
10.0
Dihedral:
+4° nominal
Sweep of Leading Edge:
+1° nominal
1.5.3 Horizontal Stabilizer
Angle of Incidence :
-2.5° ±0.5°
Span:
8 ft 8 in (2.65 m)
1.5.4 Landing Gear
Track:
6 ft 3 in (1.90 m)
Wheel Base:
5 ft 9 in (1.75 m)
Tire Size:
Nose:
4.00-4 (TOST)
5.00-4 (GOODYEAR)
Main:
15 x 6.00-5 (GOODYEAR) or
5.00 x 5, 6 Ply (TSO C62)
Tire Pressure:
Nose:
26 psi (1.8 bar)
Main:
33 psi (2.3 bar)
Main tires must be same brand, model and size.

DIAMOND AIRCRAFT
DA 20/100 Flight Manual
General
Doc # DA202-100
January 18, 2012
Page 1 - 5
Revision 6
1.6. ENGINE
Rotax 912S, 4 Cylinder, 4 Stroke-Engine, horizontally opposed, liquid cooled cylinder heads, air-cooled
cylinders.
Propeller drive via integrated reduction gear.
Reduction Ratio:
2.43 : 1
Displacement:
82.5 cu.in. (1.352 liters)
Output Power:
100 hp (73.5 kW)
at
2385 RPM
1.7. PROPELLER
Two-bladed variable pitch propeller,
manufactured by HOFFMANN,
Constant speed, hydraulic pitch control
model HO-V352F/170FQ OR
model HO-V352F/C170FQ
Range of Pitch Angle:
10 - 35
Diameter:
5 ft 6.9 in (1.70 m)

DIAMOND AIRCRAFT
DA 20/100 Flight Manual
General
Doc # DA202-100
January 18, 2012
Page 1 - 6
Revision 6
1.8. FUEL
Approved Fuel Grades:
AVGAS 100LL
Automotive Gasoline, Unleaded, Minimum
95 RON or 91 AKI
RON = Research Octane Number
MON = Motor Octane Number
AKI = Anti Knock Index =
Total Fuel Capacity:
Specifications: Europe - EN 228
USA - ASTM D4814
Canada –CAN/CGSB-3.5-94
(or more current issue)
20.1 US gal. (76 liters)
Usable Fuel:
19.5 US gal. (74 liters)
Unusable Fuel:
0.6 US gal. ( 2 liters)
CAUTION
Use of automotive gasoline containing alcohol (e.g.: methanol or
ethanol) other than specified in the above listed specifications, is not
permitted.
NOTE
Petroleum suppliers provide automotive gasoline of varying volatilities, depending on the
season and climatic zone. Fuels with higher volatility (“cold weather” grade fuels) are
more susceptible to fuel vapour formation than fuels with lower volatility (“hot weather”
grade fuels), at equal temperatures. Use of fuels dispensed in winter or in colder climatic
zones, under high ambient temperature conditions, increases the risk of vapor formation
and subsequent possible engine malfunction.
MON + RON
2

DIAMOND AIRCRAFT
DA 20/100 Flight Manual
General
Doc # DA202-100
January 18, 2012
Page 1 - 7
Revision 6
1.9. LUBRICANT AND COOLANT
1.9.1. Lubricant
Use only motor oil with API classification SF or SG or higher.
Due to high stresses in the reduction gears, a 4 stroke motorcycle oil of a registered brand with gear
additives that meets API classification SF or SG are highly recommended.
The viscosity should be selected according to the various climatic conditions using the following table.
CAUTION
Do not use aviation lubricant!
When operating with AVGAS100LL fuel do not use synthetic oil.
Oil Capacity: Minimum
: 3.0 liters (3.2 US qt.)
Maximum
: 3.4 liters (3.6 US qt.)
