Diamond Aircraft DV 20 KATANA 100 Technical specifications

AIRPLANE FLIGHT MANUAL
DV20
with Rotax 912 S
Category of Airworthiness
Applicable Airworthiness
Requirements
Serial No.
Registration
Date of Issue
Document No.
: Normal
: JAR-VLA including
Amendment VLAl92/1
: 20 Aug 1999
: 4.01.20-E
This manual is part of the airplane DV 20 Katana 100 and must be carried on board at all
times! Scope and revision status can be found in the List of Effective Pages and in the
Record of Revisions. The pages identifi
ed as "ACG-appr." in the List of Effective Pages are
approved by:
Signature
Authority
Stamp
Date of approval
12. Okt. 19 99
This airplane is to be operated in compliance with the information and limitations contained
herein.
DIAMOND AIRCRAFT INDUSTRIES GMBH
N.A. OTTO-STR. 5
A-2700 WR. NEUSTADT
AUSTRIA Page O..{)

DV 20 Flight Manual •
Diamond
AIRCR AFT
Intra

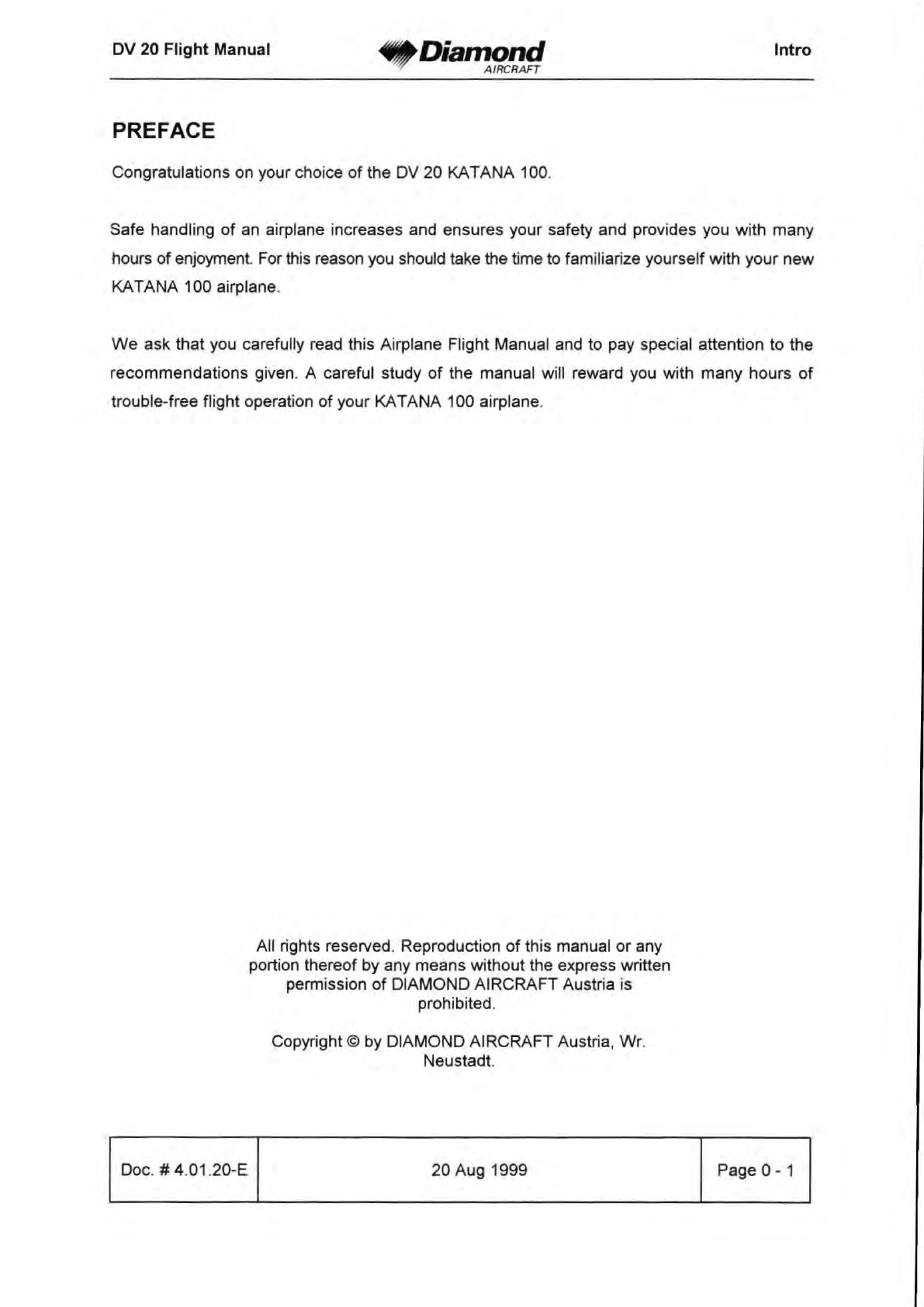

PREFACE
Congratulations on your choice of the DV 20 KATANA 100.
Safe handling of
an airplane increases and ensures your safety and provides you with many
hours of enjoyment. For this
reason you should take the time to familiarize yourself wi th your new
KATANA 100 airplane.
We ask that
you carefully read this Airplane Flight Manual and to pay special attention to the
recommendations given. A careful study of the manual will reward you with many hours of
trouble-free flight operation of your KATANA 100 airplane.
Doc. # 4.
01 .20-E
All rights reserved. Reproduction
of this manual or any
portion thereof by any means without the express written
permission of DIAMOND AIRCRAFT Austria
is
prohibited.
Copyright ©
by DIAMOND AIRCRAFT Austria, Wr.
Neustadt.
20 Aug 1999 Page 0 - 1

DV 20 Flight Manual •
Diamond
AIR CRAFT
Intro

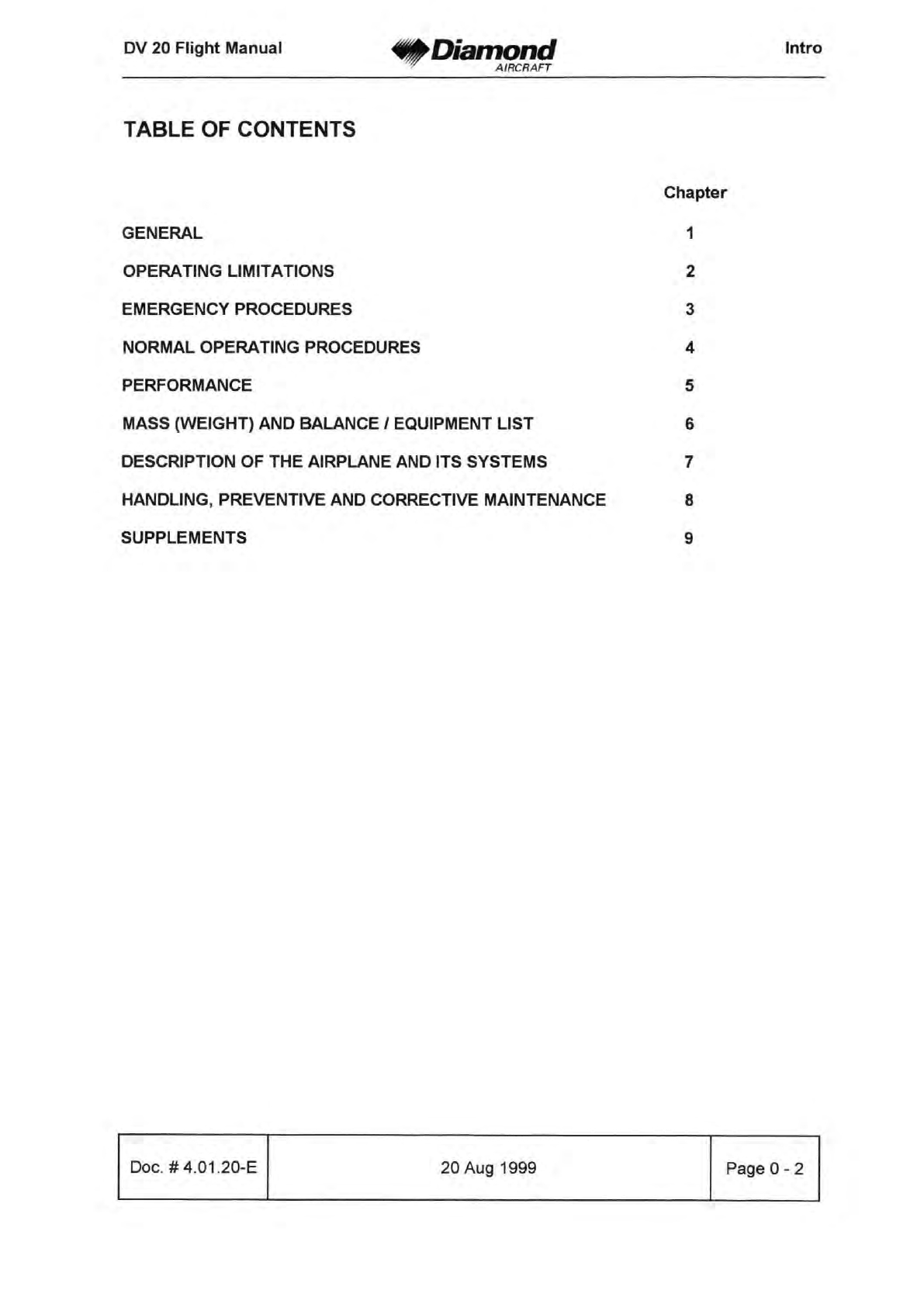

TABLE OF CONTENTS
Chapter
GENERAL 1
OPERATING LIMITATIONS 2
EMERGENCY PROCEDURES 3
NORMAL OPERATING PROCEDURES 4
PERFORMANCE 5
MASS (WEIGHT) AND BALANCE I EQUIPMENT LIST 6
DESCRIPTION OF THE AIRPLANE AND ITS SYSTEMS 7
HANDLING, PREVENTIVE AND CORRECTIVE MAINTENANCE 8
SUPPLEMENTS 9
IDoc. # 4.01 .20-E I 20 Aug 1999 Page 0 - 2

DV 20 Flight Manual
•
Diamond
AIRCRAFT
Intro

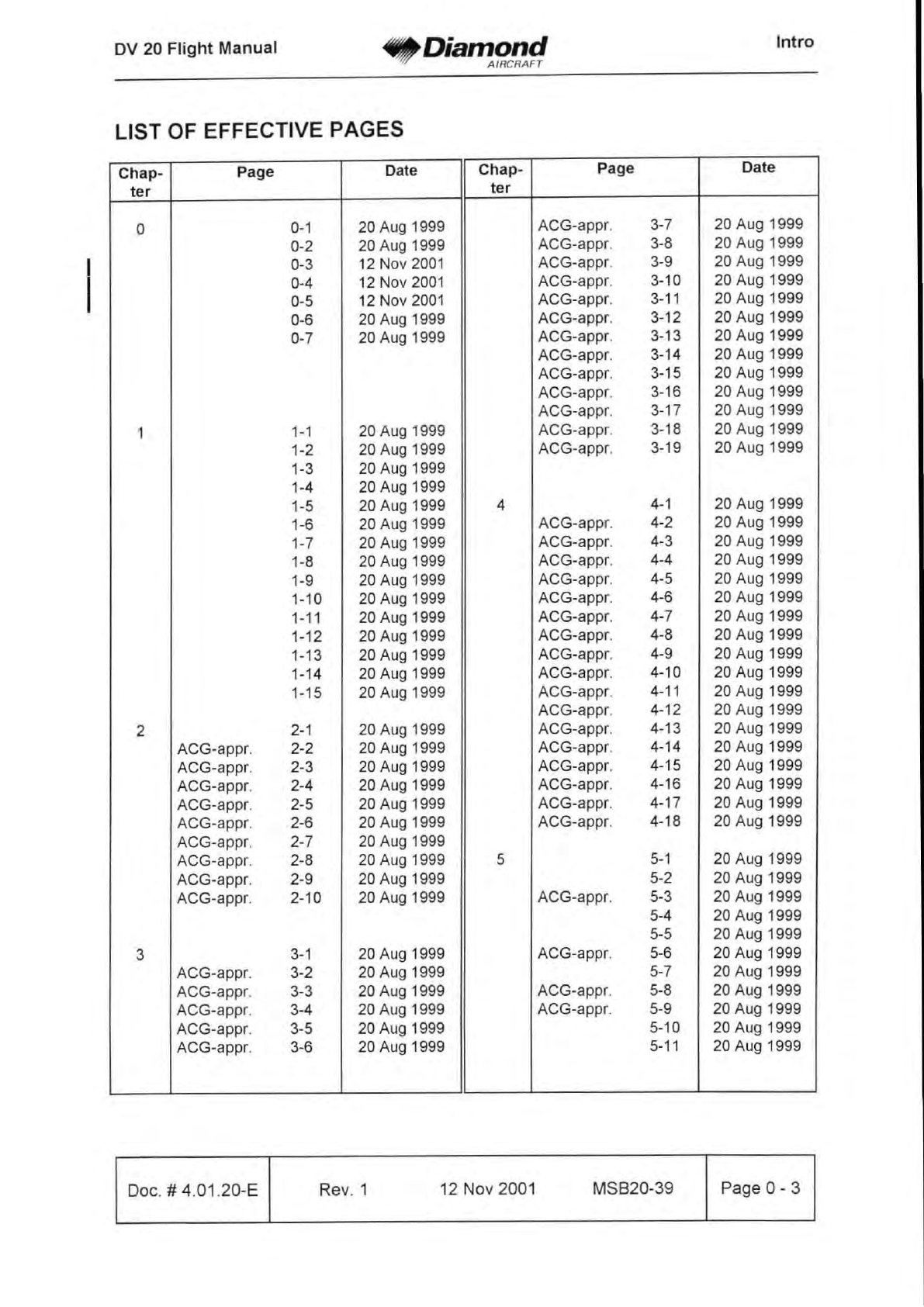

LIST OF EFFECTIVE PAGES
Chap-
Page Date Chap- Page Date
ter ter
0
0-1
20 Aug 1999 ACG-appr. 3
-7 20 Aug 1999
0-2 20
Aug 1999 ACG-appr. 3-8 20 Aug 1999
0-3 12
No v 2001 ACG-appr. 3-9 20 Aug 1999
0-4 12
No v 2001 ACG-appr. 3-10 20 Aug 1999
0-5 12
Nov 2001 ACG-appr.
3-11 20 Aug 1999
0-6 20
Aug 1999 ACG-appr. 3-12 20 Aug 1999
0-7 20 Aug 1999 ACG-appr. 3-13 20 Aug 1999
ACG-appr. 3-14 20 Aug 1999
ACG-appr. 3-15 20 Aug 1999
ACG-appr. 3-16 20 Aug 1999
ACG-appr. 3-17 20 Aug 1999
1
1-1
20 Aug 1999 ACG-appr. 3-18 20 Aug 1999
1-2 20
Aug 1999 ACG-appr. 3-19 20 Aug 1999
1-3 20
Aug 1999
1-4 20
Aug 1999
1-5 20
Aug 1999 4
4-1 20 Aug 1999
1-6 20
Aug 1999 ACG-appr. 4-2 20 Aug 1999
1-7 20
Aug 1999 ACG-appr. 4-3 20 Aug 1999
1-8 20
Aug 1999 ACG-appr. 4-4 20 Aug 1999
1-9 20
Aug 1999 ACG-appr. 4-5 20 Aug 1999
1-10 20
Aug 1999 ACG-appr. 4-6 20 Aug 1999
1-11 20
Aug 1999 ACG-appr. 4-7 20 Aug 1999
1-12 20
Aug 1999 ACG-appr. 4-8 20 Aug 1999
1-13 20
Aug 1999 ACG-appr. 4-9 20 Aug 1999
1-14 20
Aug 1999 ACG-appr. 4-10 20 Aug 1999
1-15 20
Aug 1999 ACG-appr.
4-11 20 Aug 1999
ACG-appr. 4-12 20 Aug 1999
2
2-1 20 Aug 1999 ACG-appr. 4-13 20 Aug 1999
ACG-appr. 2-2 20
Aug 1999 ACG-appr. 4-14 20 Aug 1999
ACG-appr. 2-3 20
Aug 1999 ACG-appr. 4-15 20 Aug 1999
ACG-appr. 2-4 20
Aug 1999 ACG-appr. 4-16 20 Aug 1999
ACG-appr. 2-5 20
Aug 1999 ACG-appr. 4-17 20 Aug 1999
ACG-appr. 2-6 20
Aug 1999 ACG-appr. 4-18 20 Aug 1999
ACG-appr. 2-7 20
Aug 1999
ACG-appr. 2-8 20 Aug 1999 5
5-1 20 Aug 1999
ACG-appr. 2-9 20 Aug 1999 5-2 20 Aug 1999
ACG-appr. 2-10 20 Aug 1999 ACG-appr. 5-3 20 Aug 1999
5-4 20 Aug 1999
5-5 20 Aug 1999
3
3-1 20 Aug 1999 ACG-appr. 5-6 20 Aug 1999
ACG-appr. 3-2 20
Aug 1999 5-7 20 Aug 1999
ACG-appr. 3-3 20
Aug 1999 ACG-appr. 5-8 20 Aug 1999
ACG-appr. 3-4 20
Aug 1999 ACG-appr. 5-9 20 Aug 1999
ACG-appr. 3-5 20
Aug 1999 5-10 20 Aug 1999
ACG-appr. 3-6
20 Aug 1999
5-11
20 Aug 1999
Doc. # 4.01 .20-E Rev. 1 12 Nov 2001 MSB20-39 Page 0 - 3

DV 20 Flight Manual
• Diamond
AIRCRAFT
Intro
Chap- Page Date Chap- Page Date
ter ter
5-12 20 Aug 1999 8 8-1
20 Aug 1999
5-13 20 Aug 1999 8-2 20 Aug 1999
ACG-appr. 5-14 20 Aug 1999 8-3 20 Aug 1999
5-15
20 Aug 1999 8-4 20 Aug 1999
8-5 20 Aug 1999
6
6-1 20 Aug 1999 8-6
20 Aug 1999
6-2
20 Aug 1999
6-3
20 Aug 1999
ACG-appr. 6-4 20 Aug 1999
6-5 20 Aug 1999 9
9-1
20 Aug 1999
6-6
20 Aug 1999
6-7 20 Aug 1999
6-8 20 Aug 1999
ACG-appr. 6-9
20 Aug 1999
6-10 20 Aug 1999
6-11
20 Aug 1999
6-12 20 Aug 1999
6-13 20 Aug 1999
6-14
20 Aug 1999
6-15 20 Aug 1999
6-16 20 Aug 1999
6-17 20 Aug 1999
6-18
20 Aug 1999
7
7-1
20 Aug 1999
7-2 20 Aug 1999
7-3
20 Aug 1999
7-4 20 Aug 1999
7-5 20 Aug 1999
7-6 20 Aug 1999
7-7 20 Aug 1999
7-8 12 Nov
2001
7-9 20 Aug 1999
7-10 20 Aug 1999
7-11
20 Aug 1999
7-12 20 Aug 1999
7-13
20 Aug 1999
7-14 20 Aug 1999
7-15 20 Aug 1999
7-16 20 Aug 1999
7-17 20 Aug 1999
Doc. # 4. 01 . 20-E
Rev. 1
12 Nov 2001
MSB20-39
Page 0 - 4

DV 20 Flight Manual
.Diam,.~!'J!
Intro

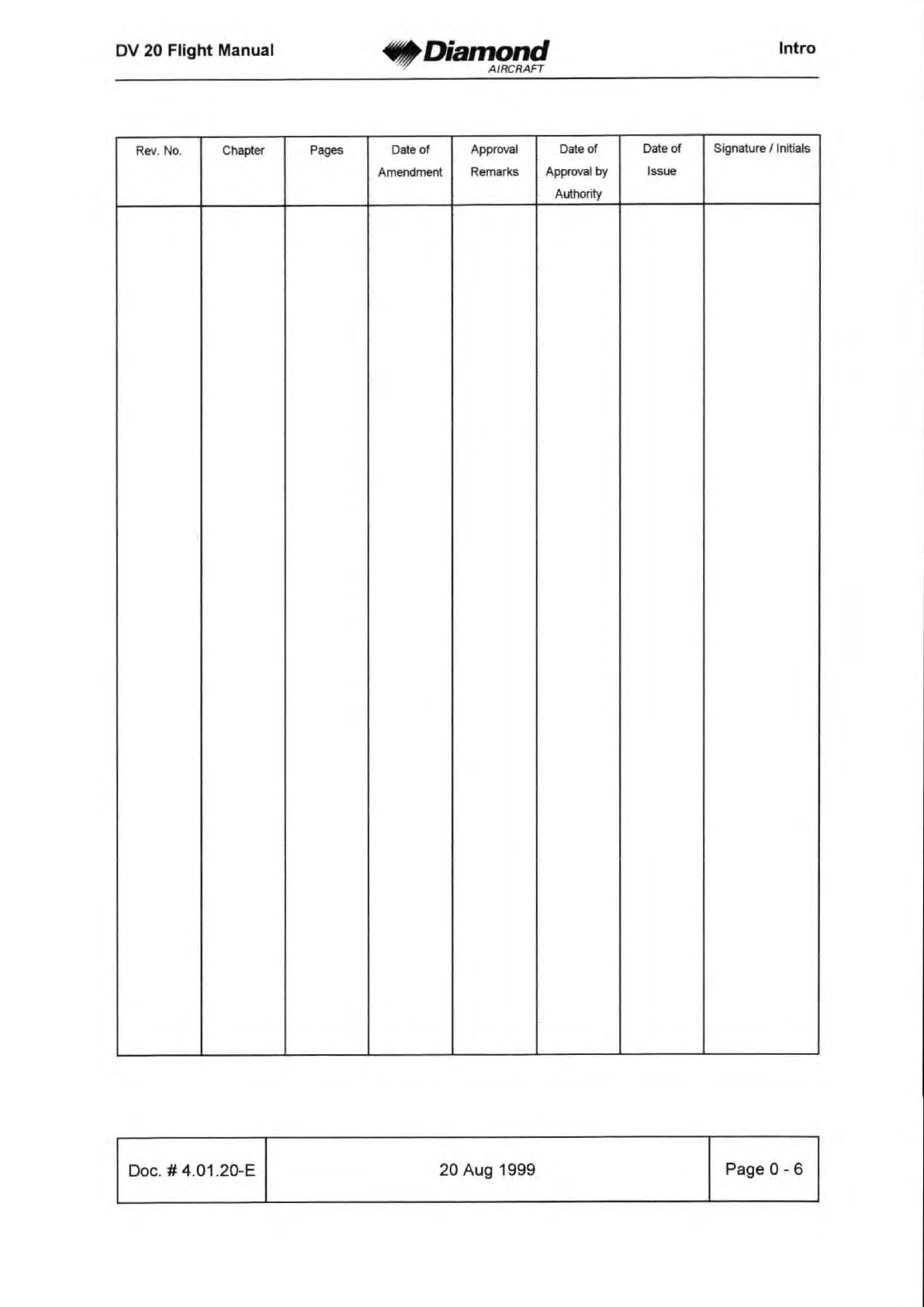

RECORD OF REVISIONS
Any revisions to the present manual, with the exception of actual weighing data, must be
recorded
in the following table. Revisions of approved sections must be endorsed by the
responsible airworthiness authority.
The new or amended text will
be indicated by a bold black vertical line in the left hand margin
of a revised page. Revision No . and reference will be shown on the bottom of the page.
The airplane may only
be operated if the Flight Manual is up to date.
Rev . Chap- Pages
Date of Approval Date of
Date Inserted Signature I
No .
ter
Amendment Remarks Approval by Initials
Authority
&"'HOl~
<> .\\''"- ~
0
0-3 Ih ru 0-5
:> ,lit. ~~- ~)
1h,iNJV>
~ ~ .. ~
'l~~\
1 12
Nov 200 1
,~,\,
~ No" ZOD(
~""~
7 7-8
~
\ ~,
/
Doc.# 4. 01 .20-E
Rev . 1 12 Nov 2001 MSB20-39 Page 0 - 5

DV 20 Flight Manual •
Oiamond
AIR CRAFT
Intra
Rev . No . Chapter
Pages
Date of Approva l
Date of
Date of Signature I Initials
Amendment
Remarks
Approval by Issue
Authority
Doc. # 4. 01 .20-E 20 Aug 1999 Page 0 - 6

DV 20 Flight Manual •Diamoncl
1.1.
1.
2.
1.3.
1.4.
1.5.
1.6.
1.7.
1.8.
1.
9.
1.10.
1.11.
1.12.
AIRCRAFT

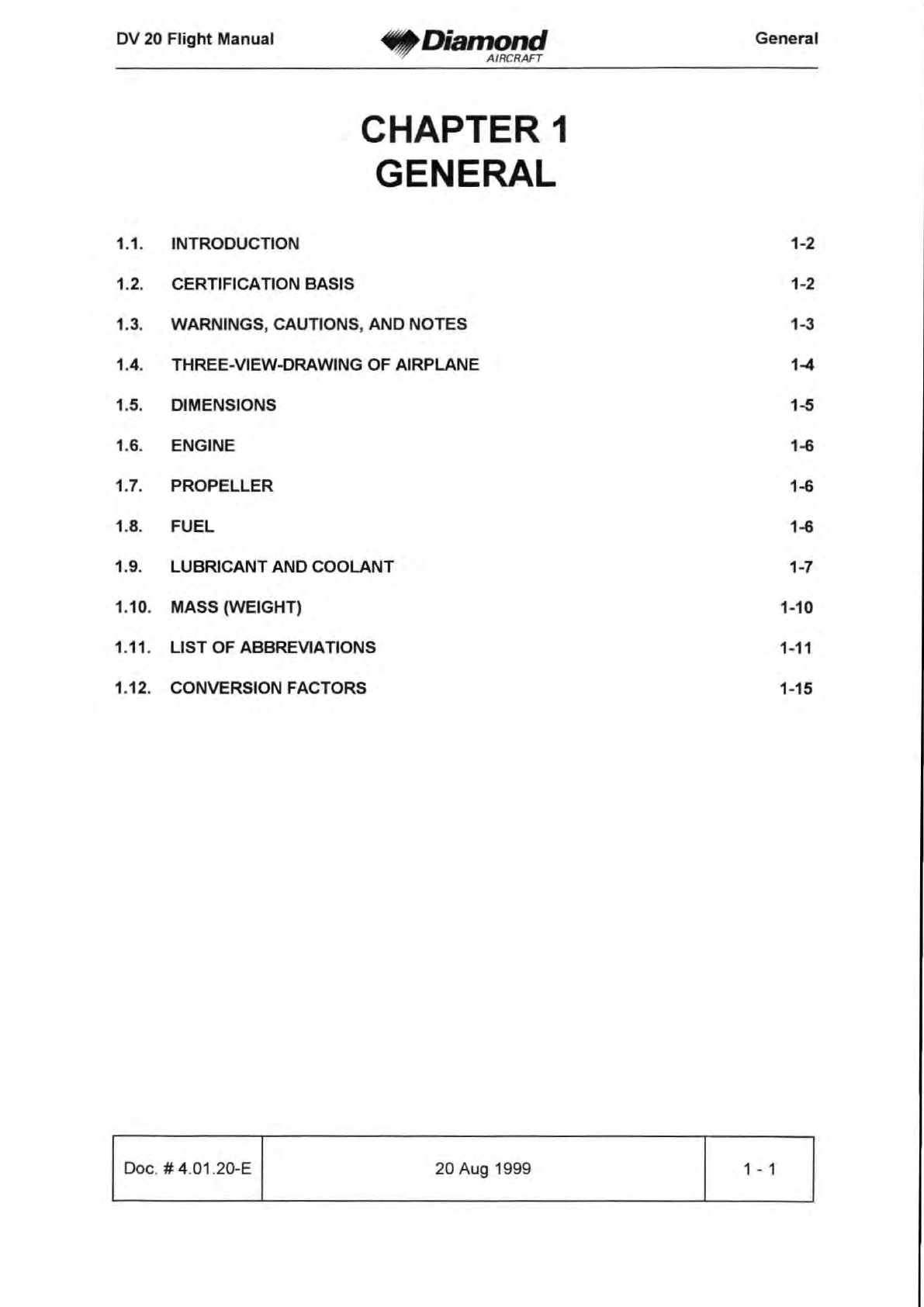

CHAPTER 1
GENERAL
INTRODUCTION
CERTIFICATION BASIS
WARNINGS, CAUTIONS, AND NOTES
THREE-VIEW-DRAWING OF AIRPLANE
DIMENSIONS
ENGINE
PROPELLER
FUEL
LUBRICANT AND COOLANT
MASS (WEIGHT)

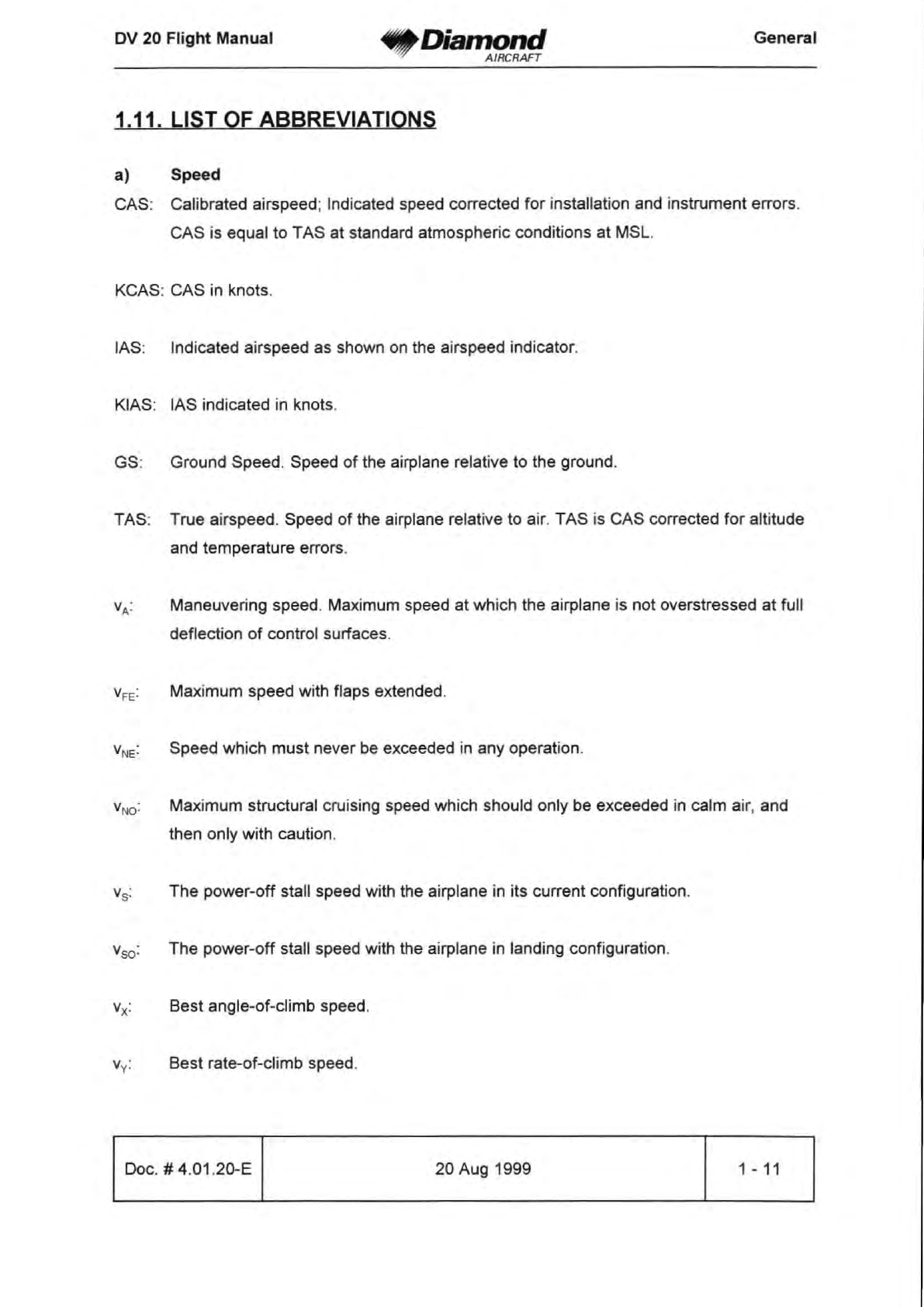

LIST OF ABBREVIATIONS
CONVERSION FACTORS
IDoc. # 4. 01 .20-E I 20 Aug 1999
General
1-2
1-2
1-3
1-4
1-5
1-6
1-6
1-6
1-7
1-10
1-11
1-15
1 - 1

DV 20 Flight Manual •
Diamond
AIRCRAFT
General

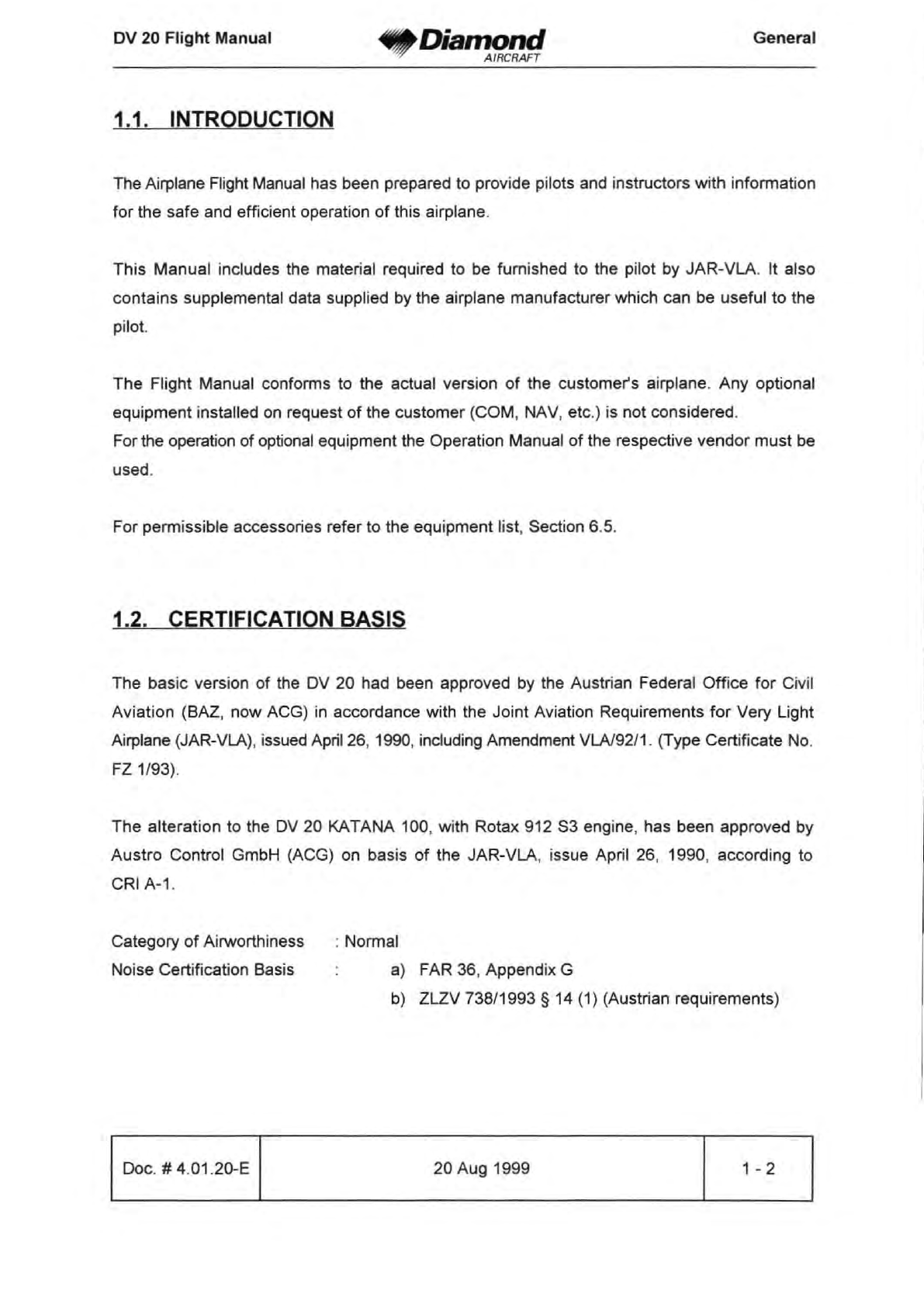

1.1. INTRODUCTION
The Airplane Flight Manual has been prepared to provide pilots and instructors with information
for the safe and efficient operation of this airplane.
This Manual includes the material required to be furnished to the pilot by JAR-VLA. It also
contains supplemental data supplied by the airplane manufacturer which can be useful to the
pilot.
The Flight Manual conforms to the actual version of the customer's airplane. Any optional
equipment installed on request of the customer (COM, NAV, etc.) is not considered.
For the operation of optional equipment the Operation Manual of the respective vendor must be
used.
For permissible accessories refer to the equipment list, Section 6.5.
1.2. CERTIFICATION BASIS
The basic version of the DV 20 had been approved by the Austrian Federal Office for Civil
Aviation (BAZ, now ACG) in accordance with the Joint Aviation Requirements for Very Light
Airplane (JAR-VLA), issued April 26, 1990, including Amendment VLN92 /1. (Type Certificate No .
FZ 1/93).
The alteration to the DV 20 KATANA 100, with Rotax 912 S3 engine, has been approved by
Austro Control GmbH (ACG) on basis of the JAR-VLA, issue April 26, 1990, according to
CRI A-1 .
Category
of Airworthiness
Noise Certificati
on Basis
I Doc.#4 . 01 .20-E I
: Normal
a) FAR 36, Appendix G
b) ZLZV 738/1993 § 14 (1) (Austrian requirements)
20 Aug 1999 1 - 2

DV 20 Flight Manual •
Diamond
AIRCRAFT
General

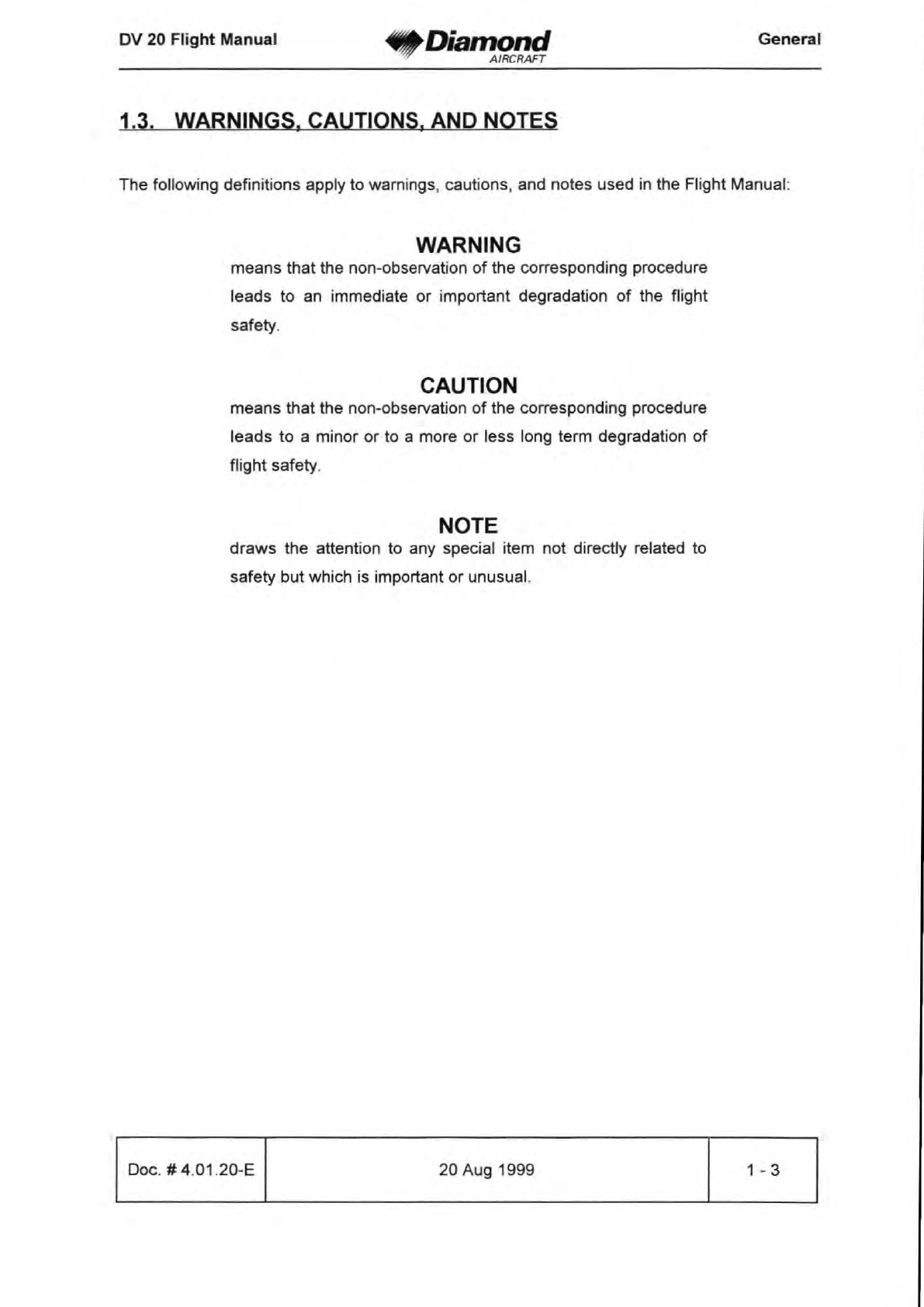

1.3. WARNINGS. CAUTIONS. AND NOTES
The following definitions apply to warnings, cautions, and notes used in the Flight Manual:
WARNING
means that the non-observation of the corresponding procedure
leads to an immedia
te or important degradation of the flight
safety.
CAUTION
means that the non-observation of the corresponding procedure
leads to a minor or
to a more or less long term degradation of
flight safety.
NOTE
draws the attention to any special item not directly related to
safety but which is important or unusual.
Doc. # 4.
01 .20-E I 20 Aug 1999 1 - 3

DV 20 Flight Manual •
Diamond
AIR C RAFT
General
1.4. THREE-VIEW-DRAWING OF AIRPLANE
23 ft. 10 .6 in.
I·
I
~~~-------
I
I
I
I /
.5 ft. 8.9 in .• /
I
I
I
I
I
I
3.2 in
6 ft. 2.8 in .
35 ft. 4.3 in.
IDoc. # 4. 01 .20-E I 20
Aug 1999 1 - 4

DV 20 Flight Manual
1.5. DIMENSIONS
OVERALL DIMENSIONS
Span without ACL
Span with ACL
Length
Width
WINGS
Airfoil
Wing area
Mean aerodynamic chord
(MAC)
Aspect Ratio
Dihedral
Sweep of Leading Edge
AILERON
Area
FLAPS
Area
HORIZONTAL STABILIZER
Area
Elevator Area
Angle of incidence
VERTICAL STABILIZER
Area
Rudder Area
LANDING GEAR
Track
Whee
lbase
Nose wheel
Main wheel
IDoc. # 4. 01 .20-E I
•
Diamond
AIRCRAFT
10. 78 m (35 ft 4.3 in)
10. 84 m (35 ft 6.7 in)
7.28 m (23 ft 10.6 in)
1.76 m
(5 ft 9.3 in)
Wortmann
FX 63-137/20 HOAC
11 .6 m2 (124.8 sq . ft .)
1.09 m (3 ft 6.9 in)
10.0
+4°
+1 °
0.658 m2 (7 .08 sq. ft.)
1.236 m2 (13.30
sq .ft.)
1.692 m2 (18.21
sq .ft.)
0.
441 m2 (4.75 sq . ft .)
·2 °
1. 134 m2 (12.21 sq .ft.)
0.426 m2 (4.59
sq .ft.)
1.90 m
(6 ft 2.8 i n)
1.75 m (5 ft 8.9 in)
300*100/4.00-4
380*150/15*6.00
·5
20 Aug 1999
General
1 ·5

DV 20 Flight Manual •
Diamond
AIRCRAFT
General

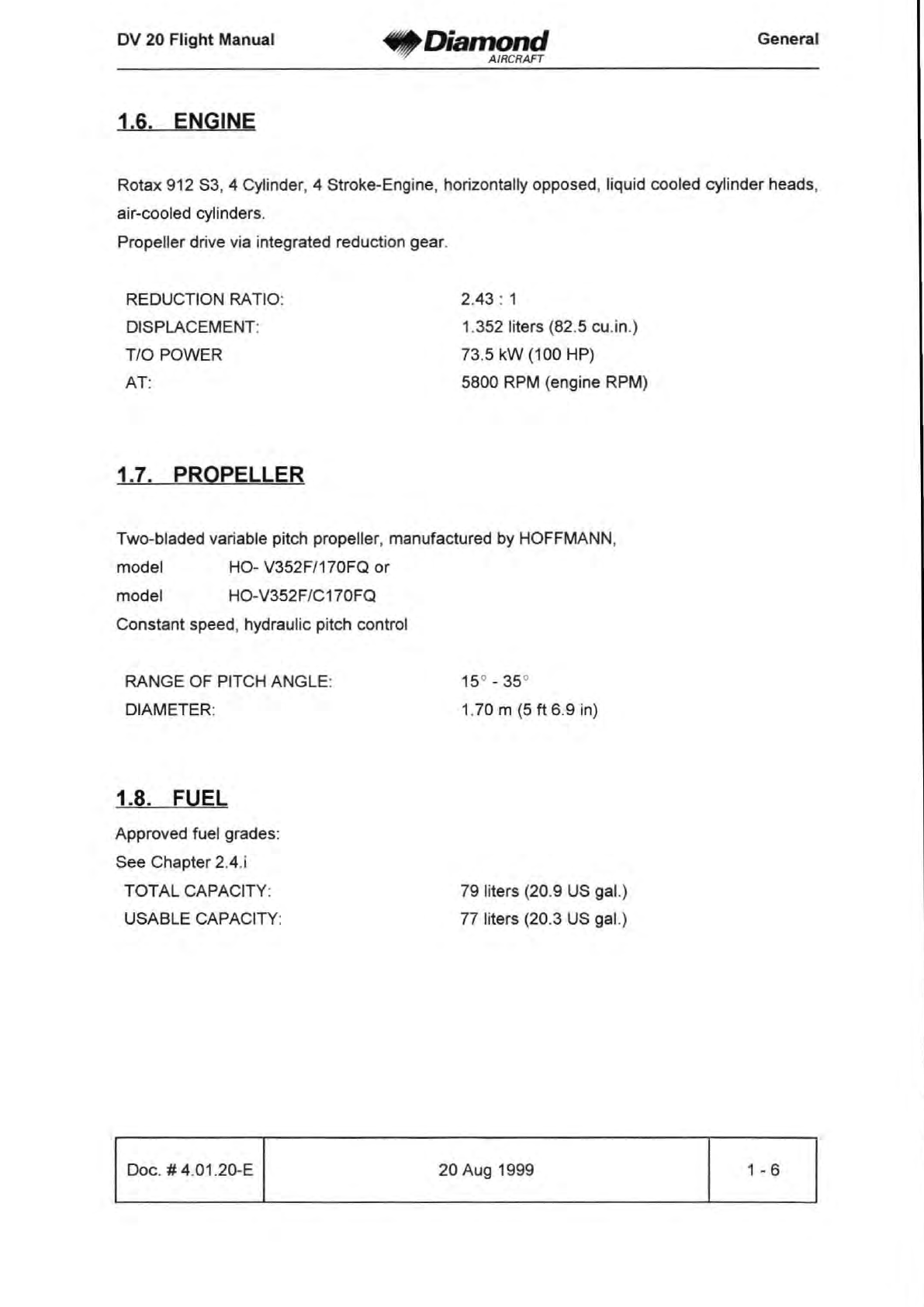

1.6. ENGINE
Rotax 912 S3, 4 Cylinder, 4 Stroke-Engine, horizontally opposed, liquid cooled cylinder heads,
air-cooled cylinders.
Propeller drive via integrated reduction gear.
REDUCTION RATIO:
DISPLACEMENT:
T/O POWER
AT :
1.7. PROPELLER
2.43 : 1
1.352 liters (82.5 cu. in .)
73.5 kW (100 HP)
5800 RPM (engine RPM)
Two-bladed variable pitch propeller, manufactured by HOFFMANN,
model HO- V352F/170FQ or
model HO-V352F/C170FQ
Constant speed, hydraulic pitch control
RANGE OF PITCH ANGLE:
DIAMETER:
1.8. FUEL
Approved fuel grades:
See Chapter 2.4.i
TOTAL CAPACITY:
USABLE CAPACITY:
IDoc. # 4. 01 .20-E I
15° - 35°
1.70 m
(5 ft 6.9 in)
79 liters (20.9 US gal.)
77 liters (20.3 US gal.)
20 Aug 1999 1 - 6

DV 20 Flight Manual •
Diamond
A IRC RAFT
1.9. LUBRICANT AND COOLANT
1.9.1. LUBRICANT

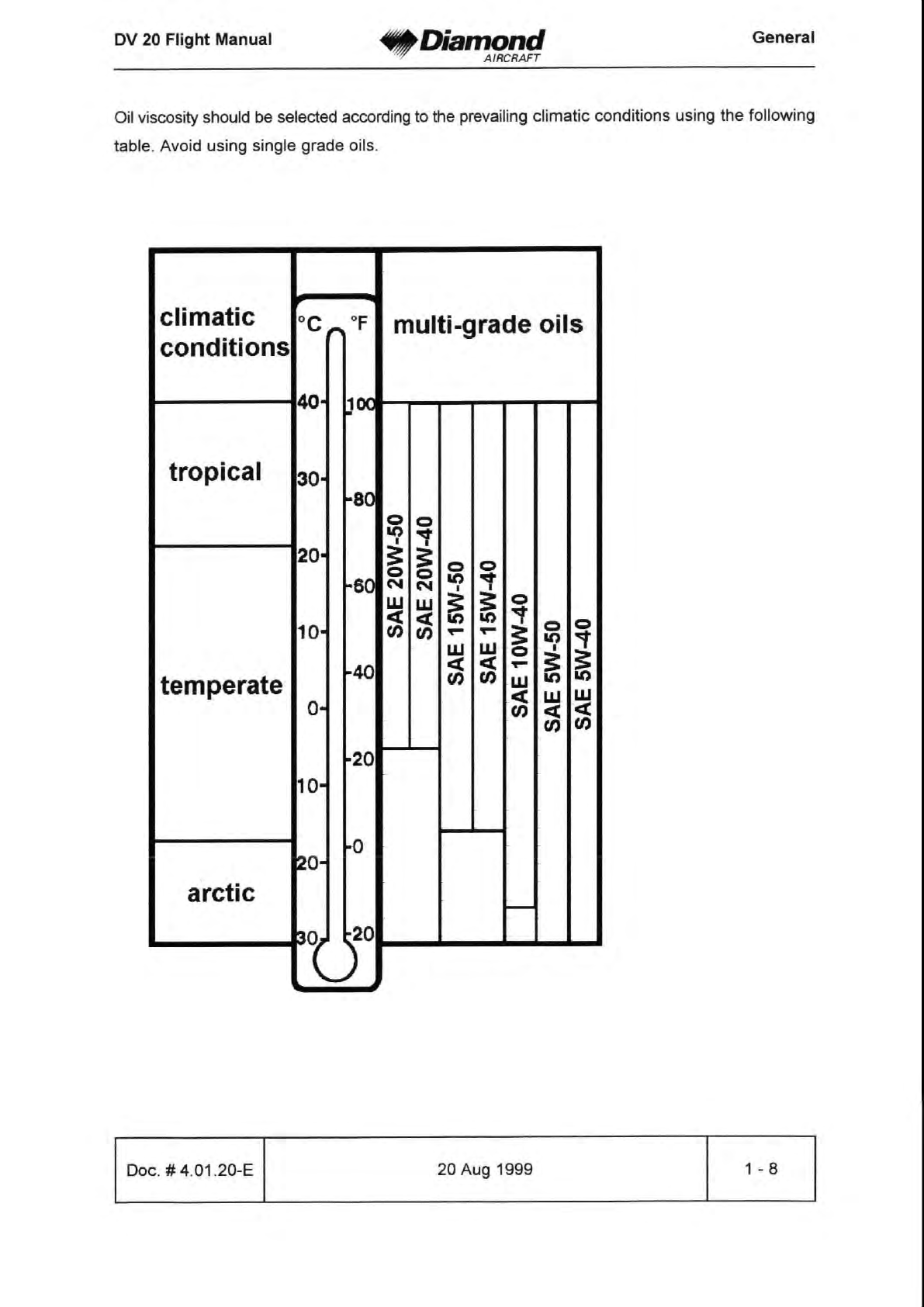

Use only motorcycle oil of a registered brand with gear additives.
Use only oil with API-classification "SF" or "SG".
CAUTION
Do not use aviation lubricant!
General
Due to high stress in the reduction gears, oils with gear additives such as high performance
motor cycle oils are required. Because ofthe incorporated friction clutch, oils with friction modifier
additives are unsuitable
as this could result in a slipping clutch during normal operation. Heavy
duty 4-stroke motor cycle oils meet all the requirements. These oils are usually no mineral oils
but semi-or fully-synthetic oils.
Oils primarily used for Diesel engines are generally unsuitable due to insufficient high-
temperature properties and additives which favour clutch-slipping.
CAUTION
If the engine is run on AVGAS 100 LL, the following maintenance
work is required every 50 hours of operation:
Oil Capacity:
oil filter change
oil change
oil level check
Furthermore
avoid continuous use of carburetor heat and
avoid running engine
on idle longer than necessary.
Minimum : 2.0 liters
(2.1 US qt.)
Maximum : 3.0 liters (3 .2 US qt.)
Doc. # 4.
01 .20-E 20 Aug 1999 1 - 7

DV 20 Flight Manual •
Diamond
AIRCRAFT General
Oil viscosity should be selected according to the prevailing climatic conditions using the following
table. Avoid using single grade oils.
climatic 0C,.. OF multi-grade oils
conditions
40
J'"
tropical 30 -80 0 0
II)
"'t
I
20
~
~
0 0
f-60
II)
"'t
N N I
W W
~ ~
0
« «
oq.
I 0 0
10
U)
U)
....
....
;:
Ir!
"'t
w w 0
1-40
« «
....
~ ~
temperate
U)
U)
w
« w w
0
U)
« «
U) U)
20
10-
~o-
0
arctic -
~tJ°
IDoc. # 4.01.20-E I 20 Aug 1999 1 - 8

DV 20 Flight Manual •
Diamond
AIRCRAFT
General
1.9.2. COOLANT
Ensure that only automotive antifreeze solution designed for aluminum engines is used (e .g.
BASF Glysantin Antikorrosion).
CAUTION
Use of low quality coolants may result in sediments within the cooling
system and partial occlusion of lines, degrading the
eff iciency of the
cooling system.
Mixing ratio:
SO to 60% antifreeze concentrate with additives against corrosion mixed with 40 to SO % pure
water shall be used, or alternatively
an equivalently premixed coolant.
NOTE
If problems are encountered with boiling after engine stop gradually
increase the percentage of antifreeze concentrate.
At temperatures below
-1S °C (S OF) a mix1ure of approximately 20% pure water to 80%
antifreeze concentrate should be used to attain a very low freezing point.
In all cases the mixing ratio has to comply wi th the manufacturer's recommendations.
Coolant Capacity:
Minimum
Maximum
Equalizing
Reservoir Capacity:
Minimum
Maximum
Doc. #
4.01 .20-E
: 2.4 liters (2.S US qt.)
: 2.Sliters
(2 .6 US qt.)
:
0.1 liters (0 . 11 US qt.)
: 0.2 liters (0 . 21 US qt.)
20 Aug 1999 1 - 9

DV 20 Flight Manual
"Diamond
~ AIRCRAFT
1.10. MASS (WEIGHT)
Maximum take-off mass (weight)
Maximum landing mass (weight)
Empty mass (weight)
Maximum mass (weight)
in baggage
compartment
Maximum useful load (including fuel)
WING LOADING
At maximum take-off mass (weight)
Perfonmance load at max take-off mass
(weight)
IDoc. # 4. 01 .20-E I
: 730 kg (1609 Ibs)
: 730 kg (1609 Ibs)
: See Chapter 6
: 20
kg (44 Ibs)
: See Chapter 6
: 62.80 kg/m2
(3 .92 Ibs/sq.ft.)
: 9. 91 kg/kW (16.1 Ibs/hp)
20 Aug 1999
General
1 - 10

DV 20 Flight Manual •
Diamond
AIRCRAFT
General
1.11. LIST OF ABBREVIATIONS
a) Speed
CAS: Calibrated airspeed; Indicated speed corrected for installation
and instrument errors.
CAS is equal to T AS at standard atmospheric conditions at MSL.
KCAS: CAS in knots.
lAS: Indicated airspeed as shown on the airspeed indicator.
KIAS: lAS indicated in knots.
GS: Ground Speed. Speed of the airplane relative to the ground.
TAS: True airspeed. Speed of the airplane relative to air. TAS is CAS corrected for altitude
and temperature errors.
VA: Maneuvering speed. Maximum speed at which the airplane is not overstressed at full
deflection
of control surfaces.
VFE: Maximum speed with flaps extended.
VNE: Speed which must never be exceeded in any operation.
V NO: Maximum structural cruising speed which should only be exceeded in calm air. and
then only with caution.
vs: The power-off stall speed with the airplane
in its current configuration.
v
so: The power-off stall speed with the airplane in landing configuration.
v
x: Best angle-of-climb speed.
Vy: Best rate-of-climb speed.
Doc. # 4.
01 .20-E 20 Aug 1999 1 -
11

DV 20 Flight Manual
"Diamond
~ AIRCRAFT General

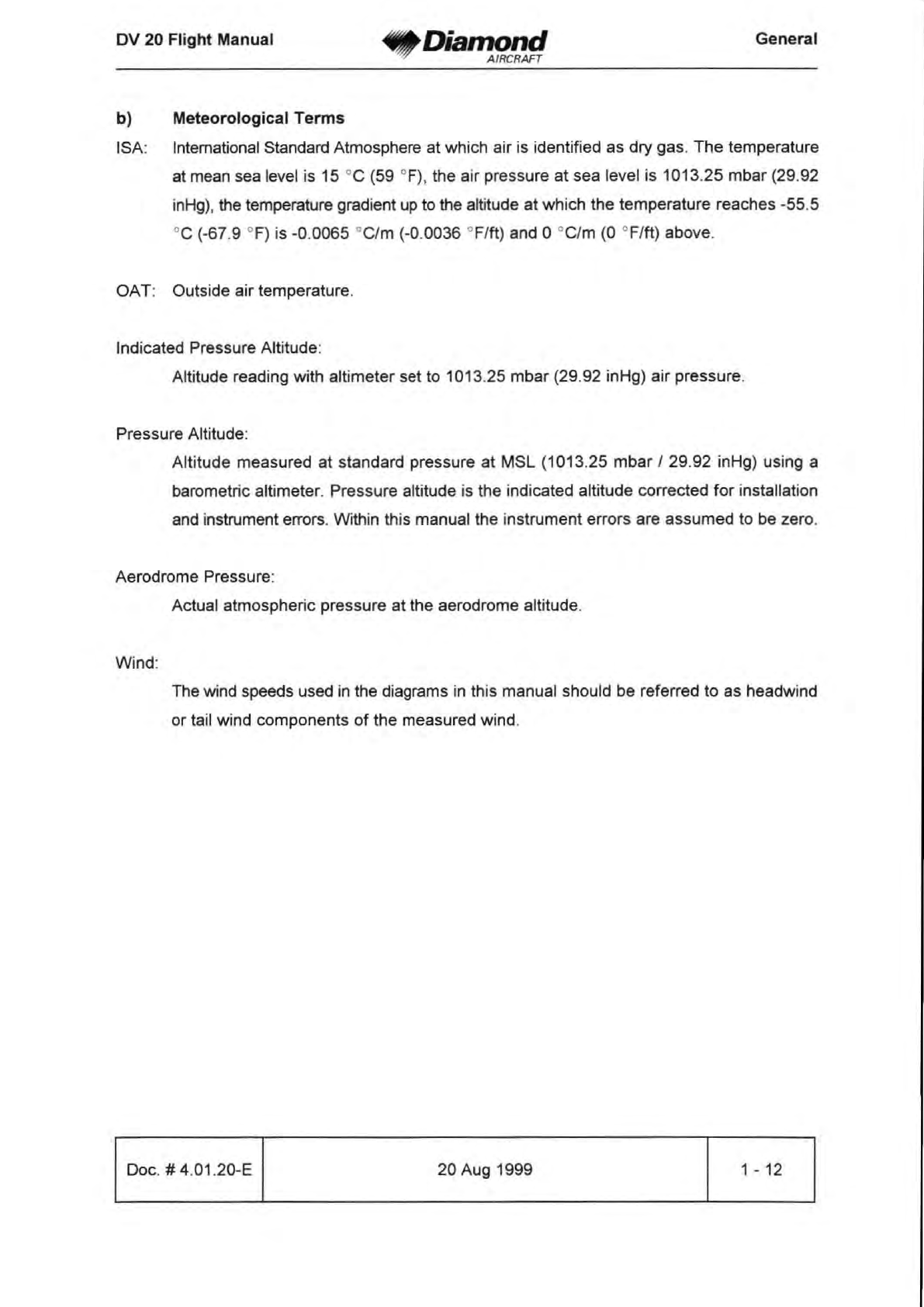

b) Meteorological Terms
ISA: Intemational Standard Atmosphere at which air is identified as dry gas. The temperature
at mean sea level is 15 °C (59 O
F) , the air pressure at sea level is 1013. 25 mbar (29.92
inHg
), the temperature gradient up to the altitude at which the temperature reaches -55.5
°C (-67.9 O F) is -0.0065 °C/m (-0.0036 °F/ tt ) and 0 °C/m (0 °F/ tt ) above.
OAT : Outside air temperature.
Indicated Pressure Altitude:
Altitude reading with altimeter set to 1013.25 mbar (29.92 inHg) air pressure.
Pressure Altitude:
Altitude measured at standard pressure at MSL (1013.25
mbar /29.92 inHg) using a
barometric altimeter. Pressure altitude is the indicated altitude corrected for installation
and instrument errors. Within this manual the instrument errors are assumed to be zero.
Aerodrome Pressure:
Wind:
Actual atmospheric pressure at the aerodrome altitude.
The wind speeds used in the diagrams in this manual should be referred to as headwind
or tail wind components
of the measured wind.
Doc. # 4.
01 .20-E 20 Aug 1999 1 - 12

DV 20 Flight Manual •
Diamond
AIRCRAFT
General
c) Powerplant
Take-off Power:
Maximum engine power for take-o
ff .
Maximum Continuous Power:
Maximum permissible continuous engine output power during flight.
d) Flight Performance and Flight Planning
Demonstrated crosswind component:
The max. speed of the crosswind component at which the maneuverability
of the airplane
during take-off and landing has been demonstrated during type certification test flights.
Service ceiling:
The altitude at wh i ch the maximum rate of climb is 0.5 m/s (100 ftlmin).
e) Mass and Center
of Gravity
Reference Datum (RD):
Station:
An imaginary vertical plane from which all horizontal distances for the center
of gravity
calculations are measured. It is the plane through the leading edge of the wing root rib,
perpendicular
to the longitudinal axis of the airplane.
A defined point along the longitudinal axis which is generally presented as a specific
distance from the reference datum.
Lever Arm:
The horizontal distance from the reference datum
to the center of gravity (of a
component).
Moment:
The mass (weight) of a component multiplied by its lever arm.
Doc. # 4.01 .20-E 20 Aug 1999 1 - 13
