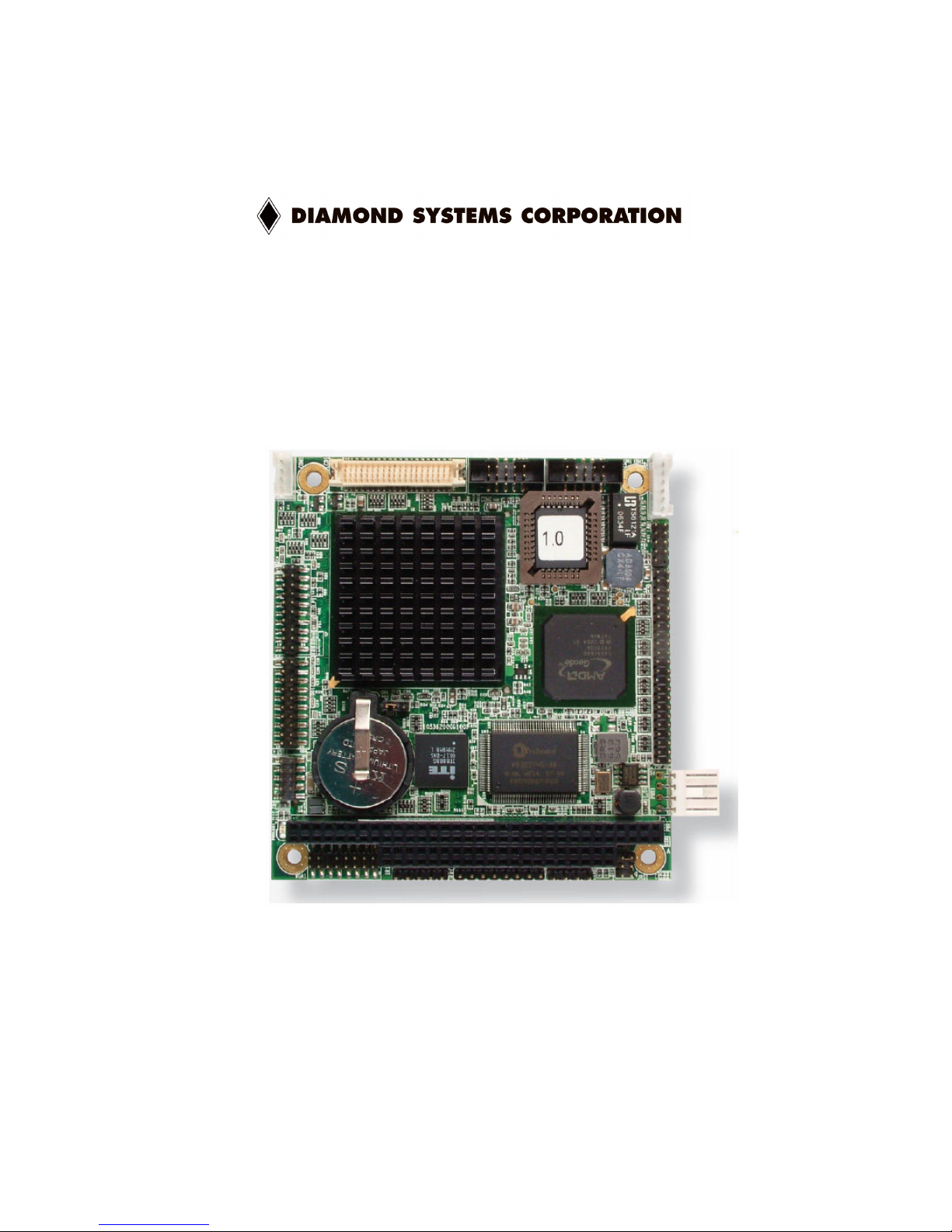

Rhodeus-LC
Low Power AMD Geode™ LX800 PC/104 CPU Module with CRT/LCD, LAN a d CF
User’s Manual
Copyright  2008
Diamond Systems Corporation
1255 Terra Bella Ave.
ountain View, CA 94043
Tel [phone]
www.diamondsystems.com

- i -
Index
Table of Contents
Chapter 1 - Introduction....................................................1
1.1 Copyright Notice.............................................................2
1.2 About User’s Manual .....................................................2
1.3 Warning.............................................................................2
1.4 Replacing the lithium battery ......................................3
1.5 Technical Support ..........................................................3
1.6 Warranty............................................................................4
1.7 Packing List .....................................................................5
1.8 Ordering Information .....................................................5
6SHFL¿FDWLRQ....................................................................6
1.10 Board Dimensions........................................................7
Chapter 2 - Installation ......................................................9
2.1 Block Diagrams............................................................ 10
2.2 Jumpers and Connectors ...........................................11
KBM1: Keyboard & Mouse Connector ..................13
LAN1: Fast Ethernet Connector.............................13
IDE1: 44 pin IDE Connector....................................14
PWR1: Power Supply Connector...........................14
PC/104: PC/104 ISA Interface .................................15
JRS1: COM 2 RS-232/422/485 Select.....................16
LLED1: LAN LED Indicators...................................16
JFRT1: Switches and Indicators............................16
IR1: Intrared Connector ..........................................17
VGA1: CRT Connector............................................17
USB1: USB Connector............................................17
FDD1: 20 pins FDD Connector...............................18
JBAT1: CMOS Setup ...............................................18
LPT1: 20 pins Parallel Port Connector..................19
CON1: RS-422/ 485 Output Connector ..................19
LCD1: TTL LCD Connector.....................................20

- ii -
Index
COM1/ COM2: Serial Port Connector ....................20
CFD1: CompactFlash II Socket ..............................21
2.3 The Installation Paths of CD Driver......................... 22
Chapter 3 - BIOS ................................................................23
3.1 BIOS Introduction........................................................ 24
3.2 BIOS Setup.................................................................... 24
3.3 Standard CMOS Features .......................................... 25
3.4 Advanced BIOS Features........................................... 28
3.5 Advanced Chipset Features...................................... 30
3.6 Integrated Peripherals................................................ 32
3133&,&RQ¿JXUDWLRQV............................................. 39
3.8 PC Health Status.......................................................... 41
3.9 Load Optimized Defaults .......................................... 42
3.10 Set Password ............................................................ 43
3.11 Save & Exit Setup ...................................................... 44
3.12 Exit Without Saving .................................................. 45
3.13 BIOS Beep Sound code list..................................... 46
3.14 BIOS memory mapping............................................ 46
3.15 Award BIOS POST Codes........................................ 47
Chapter 4 - Appendix .......................................................51
4.1 I/O Port Address Map.................................................. 52
4.2 Interrupt Request Lines (IRQ)................................... 53
4.3 DMA Map........................................................................ 53
4.4 Memory Address Map................................................. 54

- 1 -
- 1 -
Introduction
1Chapter 1
Introduction
Chapter 1 - Introduction

- 2 -
Introduction
1.1 Copyright Notice
All Rights Reserved.
The information in this document is subject to change without prior notice in
order to improve the reliability, design and function. It does not represent a
commitment on the part of the manufacturer.
Under no circumstances will the manufacturer be liable for any direct,
indirect, special, incidental, or consequential damages arising from the
use or inability to use the product or documentation, even if advised of the
possibility of such damages.
This document contains proprietary information protected by copyright.
All rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic, or other means in any form without prior written
permission of the manufacturer.
1.2 About User’s Manual
This User’s Manual is intended for experienced users and integrators with
hardware knowledge of personal computers. If you are not sure about any
description in this User’s Manual, please consult your vendor before further
handling.
1.3 Warning
Single Board Computers and their components contain very delicate
Integrated Circuits (IC). To protect the Single Board Computer and its
components against damage from static electricity, you should always follow
the following precautions when handling it :
1. Disconnect your Single Board Computer from the power source when you
want to work on the inside.
2. Hold the board by the edges and try not to touch the IC chips, leads or
circuitry.
3. Use a grounded wrist strap when handling computer components.
4. Place components on a grounded antistatic pad or on the bag that came
with the Single Board Computer, whenever components are separated
from the system.

- 3 -
Introduction
1.4 Replacing the lithium battery
Incorrect replacement of the lithium battery may lead to a risk of explosion.
The lithium battery must be replaced with an identical battery or a battery
type recommended by the manufacturer.
Do not throw lithium batteries into the trashcan. It must be disposed of in
accordance with local regulations concerning special waste.
1.5 Technical Support
Please do not hesitate to e-mail our support team when you need assistancewww.diamondsystems.com
[email protected]

- 4 -
Introduction
1.6 Warranty
This product is warranted to be in good working order for a period of two
years from the date of purchase. Should this product fail to be in good
working order at any time during this period, we will, at our option, replace
or repair it at no additional charge except as set forth in the following terms.
7KLVZDUUDQW\GRHVQRWDSSO\WRSURGXFWVGDPDJHGE\PLVXVHPRGL¿FDWLRQVaccident or disaster.
9HQGRUDVVXPHVQROLDELOLW\IRUDQ\GDPDJHVORVWSUR¿WVORVWVDYLQJVRUDQ\other incidental or consequential damage resulting from the use, misuse of,
or inability to use this product. Vendor will not be liable for any claim made
by any other related party.
Vendors disclaim all other warranties, either expressed or implied, including
EXWQRWOLPLWHGWRLPSOLHGZDUUDQWLHVRIPHUFKDQWLELOLW\DQG¿WQHVVIRUa particular purpose, with respect to the hardware, the accompanying
product’s manual(s) and written materials, and any accompanying hardware.
7KLVOLPLWHGZDUUDQW\JLYHV\RXVSHFL¿FOHJDOULJKWVReturn authorization must be obtained from the vendor before returned
merchandise will be accepted. Authorization can be obtained by calling or
faxing the vendor and requesting a Return Merchandise Authorization (RMA)
number. Returned goods should always be accompanied by a clear problem
description.

-
5
-
Introduct
i
on
1.7 Packing List
If any of the above
i
tems
i
s damaged or m
i
ss
i
ng, contact your vendor
i
mmed
i
ately.
1.8 Ordering Information
Rhodeus-LC
PC/104 CPU module w
i
th AMD Geode™ LX800
(
5
00MHz), 1 x SO-DIMM, CRT/LCD & LAN
Cable K
i
t
(Opt
i
onal)
1 x USB Cable
2
x COM Port Cable
1 x FDD Flat Cable
1 x IDE Cable
1 x Parallel Port Cable
1 x LAN Cable
1 x VGA Cable
1 x KB/MS Cable
1 x Rhodeus-LC
1 x CD-ROM
1 x Qu
i
ck Installat
i
on Gu
i
de

- 6 -
Introduction
6SHFL¿FDWLRQ
Form Factor PC/104 CPU module
Processor AMD Geode™ LX800
Cache 64K L1 cache and 128K L2 cache
Chipset AMD LX800 + CS5536
System Memory 1 x 200 pins DDR SO-DIMM up to 1GB SDRAM
VGA/ LCD Controller
AMD Geode LX series CPU integrated VGA
controller with 2D Engine (Shared memory Max.
64MB)
Ethernet Realtek 8100CL 10/100 base-T Ethernet
LCD Supports 18/24-bit TTL up to 1280 x 1024
I/O Chips W83627HG
BIOS Phoenix-Award BIOS
IDE Interface 1 x Ultra DMA 33, support 2 IDE devices
Serial Port 2 x RS-232 ports
COM2: RS-232/RS-422/RS-485 selectable
Parallel Port / Floppy 1 x SPP/EPP/ECP mode
1 x Floppy connector
KBMS Standard PS/2 Keyboard and Mouse
Universal Serial Bus 2 x USB 2.0 ports
PCI to ISA bridge ITE8888G
Expansion Bus 1 x PC/104 interface
Flash Disk 1 x Type II Compact Flash Disk Socket up to 4GB
Hardware Monitor Integrated in W83627HG
RTC AMD Geode CS5536 built-in RTC with lithium
battery
Power Input Connector 1*4 pins power connector
Operation Temp. -20 - +70oC
Watchdog Timer 1 - 255 Level (Sec. or Min.)
Dimension (L x W) 96 x 90 mm (3.8” x 3.5”)

- 7 -
Introduction
1.10 Board Dimensions
Unit:mm

- 8 -
Introduction
Unit:mm

- 9 -
Installation
2Chapter 2
Installation
Chapter 2 - Installation

- 10 -
Installation
2.1 Block Diagrams
1 x 200pin
SO-DIMM Socket
PCI LAN
Controller
LAN
RJ-45
Analog
R.G.B.
TTL 18/24 bit
VGA
LCD
AMD Geode
LX800 CPU
500MHz
Memory Bus
USB I/F
IDE ATA I/F
1 x IDE
4 x USB
COM1
COM2
LPT1
FDD IrDA
KB
MS
1 x CF
CS5536
AMD Geode Super IO
Controller
PC/104
PCI to ISA
Bridge ISA Bus
LPC I/F
PCI Bus

- 11 -
Installation

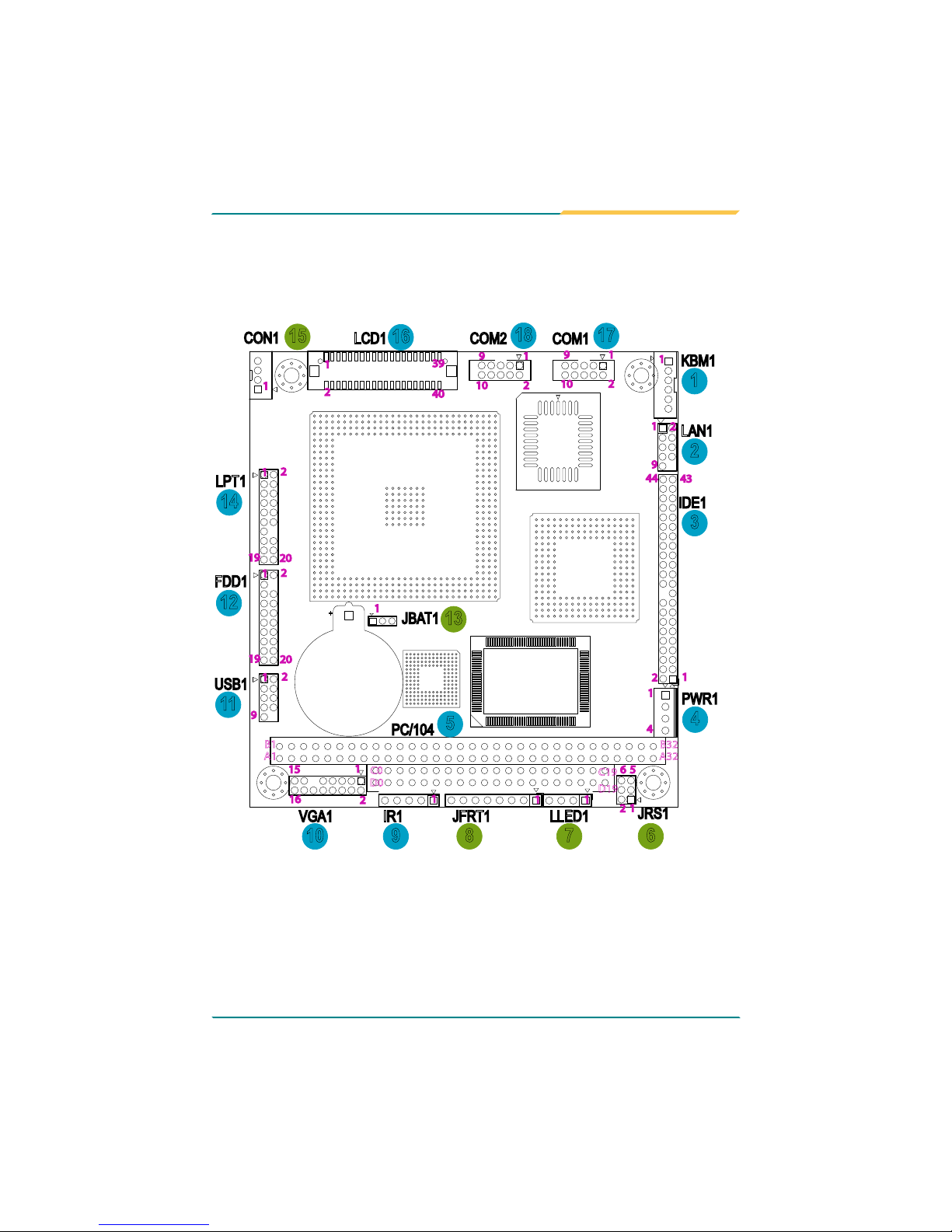

2.2 Jumpers and Connectors
10
91
2
JBAT1
13
COM1
17
KBM1
1
LAN1
2
IDE1
3
COM2
18
LCD1
16
LPT1
14
FDD1
12
USB1
11
VGA1
10
IR1
9
PWR1
4
JFRT1
8
LLED1
7
JRS1
6
PC/104
5
CON1
15
10
91
2
44 43
9
1
1
2
1
4
1
2
65
1
2
C19
B32
A32
D19
11
1
1
16
15 1
2
C0
A1
B1
D0
9
12
20
19
12
20
19
12
40
39
1
12

- 12 -
Installation
Label Function
JRS1 COM2 RS-232/422/485 Select
JBAT1 CMOS Jumper Settings
Jumper / Connector Quick Reference
Jumpers
DIMM1 200 pins DDR SDRAM DIMM Socket
PC104_1 PC/104 for ISA Interface
KBM1 PS/2 Keyboard and Mouse
VGA1 CRT Display
LCD1 TTL LCD Panel Connector
COM1 ~ COM2 Serial Ports
CON1 RS-422/485 Output
IR1 Infrared (IR) Connector
LPT1 Parallel Port
LAN1 LAN Ethernet Connector
LLED1 LAN LED Connector
USB1 USB 1/2 Connector
PWR1 Power Connector Small 4P
JFRT1 Front Panel (Switches and Indicators)
FDD1 Floppy Disk Drive Connector
IDE1 Primary IDE Connector
CFD1 Compact Flash Socket
Connectors

- 13 -
Installation
KBM1: Keyboard & Mouse Connector (1)
Connector type: 2.0mm pitch 1x6 pins wafer connector
Pin Description
1 KB_DATA
2 GND
3 MS_DATA
4 KB_CLK
5 KB_VCC
6 MS_CLK
1
LAN1: Fast Ethernet Connector (2)
Pin Description Pin Description
1 TX+ 2 TX-
3 RX+ 4 N/C
5 N/C 6 RX-
7 N/C 8 N/C
9 GND 10 N/C (Key)
10
9
12
Connector type: 2.0mm pitch 2x5 pin header

- 14 -
Installation
PWR1: Power Supply Connector (4)
Pin Description
1 +5V
2 GND
3 GND
4 +12V
1
IDE1: 44 pins IDE Connector (3)
Pin Description Pin Description
1 IDE RESET 2 GND
3 DATA7 4 DATA8
5 DATA6 6 DATA9
7 DATA5 8 DATA10
9 DATA4 10 DATA11
11 DATA3 12 DATA12
13 DATA2 14 DATA13
15 DATA1 16 DATA14
17 DATA0 18 DATA15
19 GND 20 N/C (Key)
21 REQ 22 GND
23 IO WRITE 24 GND
25 IO READ 26 GND
27 IO READY 28 IDESEL
29 DACK 30 GND
31 IRQ14 32 N/C
33 ADDR1 34 DIAG
35 ADDR0 36 ADDR2
37 CS#2 38 CS#3
39 IDEACTP 40 GND
41 +5V 42 +5V
43 GND 44 N/C
44
43
2
1
Connector type: 2.0mm pitch 2x22 pin header
Connector type: 2.54mm pitch 1x4 pins wafer one wall connector

- 15 -
Installation
PC/104: PC/104 ISA Interface (5)
A1
B1
A32
B32
D19
C19
D0
C0
Pin Description Pin Description Pin Description Pin Description
D0 GND C0 GND A1 IOCHCK# B1 GND
D1 MEMCS16# C1 SBHE# A2 SD7 B2 RST_DRV
D2 IOCS16# C2 LA23 A3 SD6 B3 +5V
D3 IRQ10 C3 LA22 A4 SD5 B4 IRQ9
D4 IRQ11 C4 LA21 A5 SD4 B5 N/C
D5 IRQ12 C5 LA20 A6 SD3 B6 DREQ2
D6 IRQ15 C6 SA19 A7 SD2 B7 N/C
D7 IRQ14 C7 SA18 A8 SD1 B8 0WS#
D8 DACK0# C8 SA17 A9 SD0 B9 +12V
D9 DREQ0 C9 MEMR# A10 IOCHRDY B10 GND
D10 DACK5# C10 MEMW# A11 AEN B11 SMEMW#
D11 DREQ5 C11 SD8 A12 SA19 B12 SMEMR#
D12 DACK6# C12 SD9 A13 SA18 B13 IOW#
D13 DREQ6 C13 SD10 A14 SA17 B14 IOR#
D14 DACK7# C14 SD11 A15 SA16 B15 DACK3#
D15 DREQ7 C15 SD12 A16 SA15 B16 DREQ3
D16 +5V C16 SD13 A17 SA14 B17 DACK1#
D17 MASTER# C17 SD14 A18 SA13 B18 DREQ1
D18 GND C18 SD15 A19 SA12 B19 REFRESH#
D19 GND C19 GND A20 SA11 B20 SYSCLK
A21 SA10 B21 IRQ7
A22 SA9 B22 IRQ6
A23 SA8 B23 IRQ5
A24 SA7 B24 IRQ4
A25 SA6 B25 IRQ3
A26 SA5 B26 DACK2#
A27 SA4 B27 TC
A28 SA3 B28 BALE
A29 SA2 B29 +5V
A30 SA1 B30 ISA_CLK
A31 SA0 B31 GND
A32 GND B32 GND
Connector type: PC104 PRESS FIT 2x20P connector

- 16 -
Installation
JFRT1: Switches and Indicators (8)
It provides connectors for system indicators that provides light indication of
the computer activities and switches to change the computer status.
Connector type: 2.54mm pitch 1x8 pin header.
Pin Description
1 RESET+
2 RESET-
3 PWRLED+
4 PWRLED-
5 HDD LED+
6 HDD LED-
7 SPK OUT+
8 SPK OUT-
1
,WFDQEHFRQ¿JXUHG&20WRRSHUDWHLQ5656RU56PRGHConnector type: 2.00mm pitch 2x3 pin header.
Select 1-2 3-4 5-6
RS-232 (Default) ON OFF OFF
RS-422 OFF ON OFF
RS-485 OFF OFF ON
JRS1: COM 2 RS-232/422/485 Select (6)
6
5
2
1
6
5
2
1
6
5
2
1
LLED1: LAN LED indicators (7)
Pin Description
1 LAN1_ACTIVE-
2 LAN1_ACTIVE+
3 LAN1_LINK-
4 LAN1_LINK+
1
Connector type: 2.54mm pitch 1x4 pin header.

- 17 -
Installation
USB1 supports two USB 2.0 w/ 480MB/s by pin header
Pin Description Pin Description
1 +5V 2 +5V
3 USBD- 4 USBD-
5 USBD+ 6 USBD+
7 GND 8 GND
9 GND 10 N/C (Key)
USB1: USB Connector (11)
10
9
12
VGA1: CRT Connector (10)
Pin Description Pin Description
1 RED 2 GREEN
3 BLUE 4 N/C
5 GND 6 GND
7 GND 8 GND
9 N/C 10 GND
11 N/C (Key) 12 VDDAT
13 HSYNC 14 VSYNC
15 VDCLK 16 N/C
16
15
12
IR1: Infrared Connector (9)
Connector Type: 2.54mm pitch 5 pins header
Pin Voltage
1 +5V
2 N/C
3 IRRX
4 GND
5 IRTX
1
Connector type: 2.0mm pitch 2x5 pin header
Connector type: 2.0mm pitch 2x5 pin header
