Diamond View DV154 User manual

DIAMOND VIEW DV154
Colour TFT LCD Monitor
15” (38.1 cm) LCD Panel Size

Copyright 2001, Mitsubishi Electric Australia Pty. Ltd. All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system
or translated into any language or computer language, in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission.

i
Table of Contents
1
1Important Safety Instructions ..........................................1
2
2Features.............................................................................2
3
3Unpacking the Monitor.....................................................3
4Monitor Overview .............................................................4
5
5Hardware Installation .......................................................5
6
6Windows Software Installation ........................................6
Windows 95 ......................................................................6
Windows 98 ......................................................................6
Windows Me (Millennium Edition) .....................................7
Windows 2000 ..................................................................7
Windows XP .....................................................................8
7
7Setting the Display Resolution........................................9
Choosing the Best Resolution...........................................9
Supported Graphics Modes and Refresh Rate Selection10
8
8Adjusting the Monitor.....................................................12
Picture Optimisation........................................................12
Manual Picture Adjustment .............................................12
Restoring the Factory Default Settings ...........................14
On Screen Display Functions .........................................15
9
9Frequently Asked Questions .........................................16
1
10 0Specifications .................................................................18
1
11 1Service Contacts.............................................................20

ii
Disclaimer
Mitsubishi Electric Australia Pty. Ltd. makes no representations or
warranties, either expressed or implied, with respect to the contents hereof
and specifically disclaims any warranties, merchantability or fitness for any
particular purpose. Further, Mitsubishi Electric Australia reserves the right
to revise this publication and to make changes from time to time in the
contents hereof without obligation to notify any person of such revision or
changes.
Diamond View is a registered trademark of Mitsubishi Electric Australia Pty. Ltd.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
All other trademarks remain the property of their respective owners.
Reference Information
For future reference, write the following information about your monitor
in the space below. The serial number is found on the back of the
product or on the bottom of its stand.
Monitor Information
Product Name: Diamond View DV154
Serial Number:
Date of Purchase:
Dealer Information
Dealer:
Telephone
Number:
Address:

1
1
1 Important Safety Instructions
Please read the following safety instructions before installing or cleaning
your Diamond View monitor:
1. Unplug the monitor’s power cable from the wall outlet before cleaning.
Do not use liquid or aerosol cleaners. Use a soft cloth to clean the
monitor housing.
2. Slots and openings on the back or top of the cabinet are provided for
ventilation. They must not be blocked or covered. This product should
never be placed near or over a radiator or other heat source, or used in
a built-in installation unless proper ventilation is provided.
3. Never push objects of any kind, or spill liquid of any kind into this
product.
4. Do not attempt to service this product yourself as opening or removing
covers may expose you to dangerous voltages or other hazards.
5. If any abnormal operation or accident (such as dropping the unit)
occurs, disconnect the monitor from the wall power outlet and contact
qualified service personnel.
6. Turn the audio volume control of the built-in speakers to minimum (0)
and turn the monitor off before connecting or disconnecting any audio
cable.

2
2
2 Features
Your Diamond View DV154 Monitor features:
♦XGA (1024 x 768 pixel) Resolution LCD Panel
♦High Brightness – 250 cd/m2
♦High Contrast Ratio – 400:1
♦True Colour Display
With dithering support, the Diamond View DV154 monitor enhances
the visual effect and offers you better image quality.
♦High Quality Ratiometric Expansion
With any resolution within the monitor’s specified range, your
Diamond View DV154 monitor can expand the image to full screen.
♦Auto Adjustment Function
The auto-adjustment key automatically optimises the displayed
image.
♦Plug and Play Compatibility with MicrosoftWindows95, 98,
2000, Me and XP
♦Space Saving - only 190 mm deep
♦Light Weight - only 3.5 kg
♦Lower Power Consumption
40 W maximum during operation with audio.
♦Power Saving
Power management complies with VESA DPMS standard. When the
system is idle (in monitor off mode), the monitor automatically cuts its
power consumption to less than 3 W.
♦On Screen Display
Allows you to adjust all settings simply using on-screen menus.
♦Built-in Stereo Amplifier and Speakers

3
3
3 Unpacking the Monitor
Please check that the following items are included with your monitor. If they
are missing or damaged, please contact your place of purchase
immediately.
Locate the model name and the serial number label on the back of your
monitor, and write the details of the monitor and your place of purchase in
the space on page (ii) of this manual for future reference.
User's
Manual
LCD monitor User’s Manual Utilities and Drive
r
Floppy Diskette
Audio Cable Power Cord
Extension Base

4
4
4 Monitor Overview
Front View Back View
32
1
1. Audio jack for audio cable
2. Video jack for video cable
3. Power jack for power cable

5
5
5 Hardware Installation
Your monitor is equipped with an automatic power supply with a voltage
range from 100 to 240 Volts AC at a frequency of 50 to 60 Hz. Make sure
that your local power supply is within the supported range. If you are
unsure, please contact your electricity supplier.

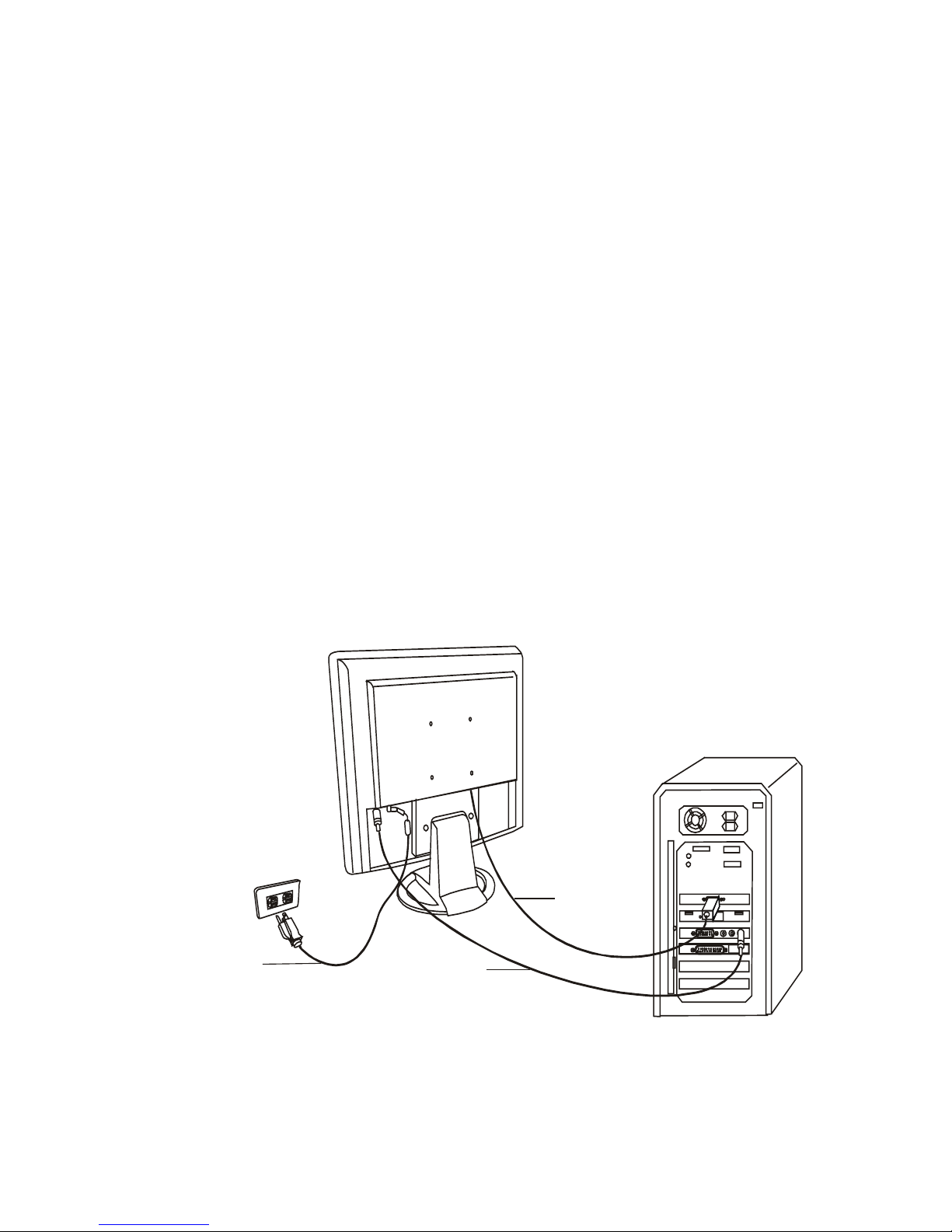

To install your Diamond View DV154 monitor:
1. Make sure that the power to the computer and the power to the monitor
are both turned off.
2. Connect the blue connector of the monitor’s D-sub cable to the VGA
output of the computer‘s graphics card.
3. Connect the stereo audio cable from the monitor’s audio jack to the
audio output of your computer’s sound card.
4. Connect the power cord from the monitor’s power jack to an AC power
socket. Please make sure, that you have easy access to the power
socket so you can disconnect the unit from the power socket should
you need to.
Signal cable
Audio cable
Power Cord

6
6
6 Windows Software Installation
To get the best performance with Windows 95, 98, Me, 2000 or XP you
should use the Windows driver supplied with your DV154 monitor.
Windows 95
The first time you start Windows after connecting your new monitor, the
system will detect it and automatically install the driver for Plug and Play
displays. To install the Diamond View DV154 driver and colour profile:
1. Insert the Diamond View LCD Monitor Utilities floppy disk into your
floppy disk drive.
2. Right-click on the Windows desktop and select Properties, or open the
Control Panel and double-click Display.
3. From the Display Properties window, select the Settings tab and then
click the Advanced Properties button at the bottom, right corner.
4. Select the Monitor tab and then click the Change button.
5. Click the Have Disk button at the bottom right corner. The Install From
Disk window will appear with the floppy drive A:\ selected. Click OK.
6. Select DV154 from the list and click OK again to install the driver.
7. You will be returned to the Advanced Graphics Properties dialogue
box. Close this window by clicking OK and confirm the subsequent
messages by clicking Yes. Click OK and then Yes once more.
8. The installation is now complete, click OK to close Display Properties.
Windows 98
The first time you start Windows after connecting your new monitor, the
system will detect it and automatically start the Add New Hardware wizard.
1. Click the Next button. Select Search for the best driver for your
device (recommended) and click Next.

7
2. Insert the Diamond View LCD Monitor Utilities floppy disk into your
floppy disk drive. Select the Floppy disk drive check box and click
Next.
3. Click Next again and then click Continue. The driver and monitor
colour profile will be installed. Click Finish to complete the installation.
Windows Me (Millennium Edition)
The first time you start Windows after connecting your new monitor, the
system will detect it and automatically start the Add New Hardware wizard.
1. Insert the Diamond View LCD Monitor Utilities floppy disk into your
floppy disk drive. Select the Floppy disk drive check box and click
Next.
2. Select Search for the best driver for your device (recommended),
tick the Removable Media (Floppy, CD-ROM,…) and click Next.
3. Click Next again and then Finish to complete the installation
Windows 2000
The first time you start windows after connecting your new monitor, the
system may detect your DV154 monitor automatically and start the Add
new hardware wizard. If so, carry out these instructions beginning at step
6. Otherwise, to install the monitor driver and ICC colour profile:
1. Right-click on the Windows desktop and select Properties, or open the
Control Panel and double-click Display.
2. From the Display Properties dialogue box, select the Settings tab.
Click the Advanced…. button at the bottom, right corner.
3. Select Monitor then click Properties.
4. Select the Driver tab and click Update Driver.
5. The Upgrade Device Driver Wizard will start. Click Next.
6. Insert the Diamond View LCD Monitor Utilities disk into your floppy disk
drive.
7. Select Display a list of the known drivers for this device so that I
can choose a specific driver and click Next.

8
8. In the next window, click Have Disk. The Install From Disk dialogue
box will open. The default drive is the floppy disk drive, A:\. Click OK.
9. Select the DV154 LCD monitor from the list and then click Next twice.
10. The Digital Signature Not Found window might appear. Click Yes and
then click Finish to complete the driver installation.
Windows XP
Windows will load its default Plug & Play Monitor driver the first time that
you start the computer with the DV154 monitor connected. This default
driver will operate correctly. Be sure to read chapters 7 and 8 for
instructions on setting your monitor for optimal performance.
If you wish to install the Diamond View DV154 monitor driver and ICC
colour profile:
1. Right-click on the Windows desktop and select Properties, or open the
Control Panel and double-click Display.
2. From the Display Properties dialogue box, select the Settings tab.
Click the Advanced…. button at the bottom, right corner.
3. Select Monitor then click Properties.
4. Select the Driver tab and click Update Driver.
5. Insert the Diamond View LCD Monitor Utilities diskette into your floppy
disk drive.
6. Select Install the software automatically (recommended) and click
Next.
7. Click Continue and then Finish.
NOTE: A hardware installation dialogue box may appear informing you that
the monitor drivers are not Logo tested. If it does, click on Continue
Anyway and then click Finish to complete the driver installation.

9
7
7 Setting the Display Resolution
Choosing the Best Resolution
All Liquid Crystal Displays (LCDs) have a fixed resolution that is the same
as the maximum resolution that may be displayed on the LCD monitor. In
the case of the DV154 the LCD resolution is 1024 x 768 pixels. This is also
known as the native resolution of the LCD monitor. Lower resolutions can
be displayed at full screen through an interpolation circuit. However the
lower resolution must be expanded and the quality of the displayed image
is not as good as that available when the native resolution is displayed. For
optimal performance from any LCD monitor, you must use the monitor’s
native resolution.
If you are using Windows, you can change the resolution as follows:
1. Double-click the Display icon in the control panel.
2. Select the Settings tab from the Display Properties dialogue box.
There is a slider on the right-hand side in the middle of the dialogue
box that alters the displayed resolution. Set the resolution to 1024x768.
For Windows NT users only: select a refresh rate of either 60 Hz or 75 Hz
and click Test. A test pattern will be displayed. Make sure that there
are no error messages shown by the monitor. If an error message is
displayed, check the resolution and refresh rate settings or choose a
different refresh rate.
3. Click OK to close Display Properties.
If you are using an Apple Macintosh, you may change the resolution by:
1. Click the Apple icon at the top, left corner of the screen, select Control
Panel and then select Monitors & Sound.
2. Select a resolution of 1024 x 768 pixels with either 60 Hz or 75 Hz
refresh rate.
3. If refresh rates of 60 Hz or 75 Hz are not available, click
Recommended in the Show drop-down box and change it to All.
Select the resolution and refresh rate as above.
4. A colour depth of either Thousands or Millions is recommended.

10
Supported Graphics Modes and Refresh Rate Selection
There is no need to choose the highest possible refresh rate when using an
LCD monitor. It is not technically possible for an LCD monitor to flicker.
Even at a refresh rate of 60 Hz you will get an absolutely flicker-free image.
For best results, it is important that you set the graphics adaptor to use one
of the monitor’s preset display modes shown in Table 1 on the next page.
Other graphics signals may be displayed poorly or not at all. Note that the
DV154’s preset modes correspond to VESA or Apple Macintosh standard
graphics signals for these resolutions. All recent models of graphics
adaptor should be able to support these modes. For the native resolution of
1024 x 768 pixels, for example, refresh rates of 60, 70 and 75 Hertz are
supported.
With Windows 95, 98, ME, 2000 or XP you can change the refresh rate of
the graphics signal as follows:
1. Double click the Display icon in the control panel.
2. From the Display Properties dialogue box, select the Settings tab and
click the Advanced Properties button.
3. Select the Adapter tab. The refresh rate selection field is located in the
centre, at the bottom of the dialogue box.
4. Choose a refresh rate that corresponds with one of the factory modes
from the table below.
5. Click Apply, and then OK twice.
Please Note:
•Graphics modes that are not listed in the table may not be supported.
For an optimal picture it is recommended that you choose a graphics
mode with a resolution of 1024 x 768 pixels that is listed in Table 1 on
the next page. Resolutions of 640 x 480, 800 x 600 and 1024 x 768
pixels are supported. The default setting may require some adjustment
before use.
•The displayed image may show some distortion or noise that can be
caused by the signal from the VGA card if it does not correspond with
the usual standard. This is not however, a problem with the monitor. If

11
it is still visible after using the Automatic adjustment, you can usually
improve the displayed image by manually adjusting the phase,
horizontal position and pixel frequency settings using the "Geometry"
menu. See Chapter 8, Adjusting the Monitor, for more details.
•When you shut Windows down you may see interference lines on your
screen. This caused by the manner in which Windows controls the
graphics card at this point and is normal with all LCD monitors.
•To extend the service life of the product, we recommend that you use
your computer's power management functions to turn the monitor off
after extended idle periods.
Incoming display mode (Input timing)
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Dot Clock
Frequency
(MHz)
Remark
640x350 31.47(P) 70.08(N) 25.17 DOS
720x400 31.47(N) 70.08(P) 28.32 DOS
640x480 31.47(N) 60.00(N) 25.18 DOS
640x480 37.86(N) 72.80(N) 31.5 VESA
640x480 37.50(N) 75.00(N) 31.5 VESA
800x600 35.16(P) 56.25(P) 36.00 VESA
800x600 37.88(P) 60.32(P) 40.00 VESA
800x600 48.08(P) 72.19(P) 50.00 VESA
800x600 46.86(P) 75.00(P) 49.50 VESA
1024x768 48.36(N) 60.00(N) 65.00 VESA
1024x768 56.48(N) 70.10(N) 75.00 VESA
1024x768 60.02(P) 75.00(P) 78.75 VESA
Table 1

12
8
8 Adjusting the Monitor
Picture Optimisation
The easiest way to obtain an optimal picture is by using the Auto button.
This only works reliably if the graphics adaptor is set to use one of the
monitor’s factory modes (see Table 1 in the previous chapter) and if you
are displaying an appropriate full-screen test pattern.
Windows users should run the adjustment software (Auto.exe) from the
Utilities floppy disk to display the correct test pattern. Press the Auto button
with the test pattern displayed. You can quit Auto.exe by clicking the left
mouse button once and clicking on Exit.
Test patterns for other operating systems, in TIFF and JPEG file formats,
are also available from the File Downloads section of Mitsubishi Electric
Australia’s web site at www.mitsubishi-electric.com.au. Follow the link to
the TFT LCD monitors page and download a pattern with the resolution that
you need. Display the test pattern at its actual size (100% zoom), preferably
at full screen and then press the monitor’s Auto button.
The monitor will remember your settings and use them whenever you turn
the monitor on. Note that you may need to readjust the monitor if it is
connected to a different computer or if the computer’s graphics adaptor is
replaced.
If you are still not satisfied with the result, you can enhance the image by
using the monitor’s manual adjustment functions.
Manual Picture Adjustment
Adjustments to the displayed image and audio volume are made using the
On-Screen Display (OSD), and the buttons on the front of the monitor.
The user’s controls include Power, AUTO, decrease (3), increase (4), Exit
and Enter.

13
Auto Automatically adjusts the vertical position, pixel phase, horizontal
position and pixel clock.
Exit Return to the main menu or exit the OSD menu without saving.
Press the exit key when the OSD is not displayed to adjust the
audio volume.
Enter Enter sub-menus, select items, save changes.
3Reduce the value of a setting. Move the selection cursor to the left.
Press to adjust Contrast if the OSD is off.
4Increase the value of a setting. Move the selection cursor to the
right. Press to adjust Brightness if the OSD is off.
To manually adjust the image:
1. Display the adjustment test pattern. This is the best way to observe
changes as you adjust the image. Windows users should run the
Auto.exe test pattern program provided on the Utilities floppy diskette.
For non-Windows operating systems, you also can use the test pattern
described in the previous section or another full-screen image, for
example the desktop of the operating system.
2. Open the OSD menu by pressing the Enter button on the monitor.
3. Press 3or 4to select the Geometry submenu and then press Enter.
4. Press 3or 4to select Clock and then press Enter.
5. Check the current setting. Increase or decrease the sampling clock to
get the optimum picture. Look at the centre section of the test pattern
that has alternating black and white vertical lines that are each 1 pixel
wide. There should be no vertical noise bands visible within the image.
The centre section will clearly show the alternating black and white
Auto Exit Ente r
A
uto Exit Enter Power

14
lines or a uniform level of noise will appear across the image once the
clock adjustment is correct. Close the clock submenu by pressing Exit.
6. Select Horizontal Position and press Enter.
7. Adjust the horizontal position so that the image is centred. Its width
should be the same as the visible width of the screen. Press Exit.
8. If some noise or distortion is still visible in the centre section of the test
pattern, select Phase and press Enter.
9. Adjust the Phase of the monitor’s sampling clock to optimise the
displayed image. The alternating black and white lines should be
clearly visible. Press Exit.
10. Press Exit twice to close the OSD menu and save your changes.
If you are still not satisfied with the result, try repeating the procedure using
a graphics signal that has a different refresh rate.
Please Note:
You must use one of the factory modes. If the Auto button is not working,
or the NON PRESET MODE message is shown on the OSD you are not
using one of the supported modes. If you are having difficulties generating
a supported mode, ask your computer dealer or the distributor or
manufacturer of your graphics card for assistance.
The procedures described in this chapter should be performed for every
resolution and type of graphics signal that you wish to use. For example, if
a particular application requires a resolution of 800 x 600 pixels, but all
other applications use the monitor’s native resolution, you will need to
display the test pattern and make adjustments twice.
The monitor will remember your settings and use them whenever you turn
the monitor on. Note that you may need to re-adjust the monitor if it is
connected to a different computer or if the computer’s graphics adaptor is
replaced.
Restoring the Factory Default Settings
Return to the factory settings for any display mode by pressing Enter to
open the OSD, selecting Information and then press the Enter button to
restore the default settings. The Recall function only affects the graphics
mode that is currently displayed.

15
On Screen Display Functions
The On Screen Display (OSD) provides functions that allow you to adjust
the displayed image, change the audio volume, reset the monitor and get
information about the displayed graphics signal.
The OSD has five functional groups for Luminance, Geometry, Colour,
Miscellaneous functions and Auto Setup.
Luminance Brightness and Contrast
Geometry Horizontal and Vertical Position.
Pixel Clock – Adjusts the sampling frequency for the
Analogue (VGA) to Digital signal conversion.
Phase – Adjusts the phase of the pixel clock to
eliminate sampling noise.
Colour Adjust the Red, Green and Blue colour levels.
Information Shows the Horizontal and Vertical frequencies of the
current graphics signal.
Allows the factory default settings to be restored.
Miscellaneous OSD Position – Change the OSD position.
Language – Select from 8 OSD languages.
OSD Time – Sets the time limit the OSD will be
displayed on the screen.
Volume – Sets the audio volume for the speakers.

16
9
9 Frequently Asked Questions
The image is blurred, how can I get the best quality picture?
♦Read chapter 7, Setting the Display Resolution, and select a graphics
signal with the correct resolution and refresh rate. Then read chapter 8,
Adjusting the Monitor, and make adjustments to the displayed image
based on these instructions.
♦Have you used a VGA extension cable?
If so, remove the extension cable and check the displayed image. Has
the image quality improved? Optimise the image using the procedures
in chapter 8 with the extension cable removed. Reconnect the
extension cable once the image has been optimised. Depending on the
characteristics and type of the extension cable, some blurring or
distortion may occur due to conduction losses of the extension cable.
You can minimise these losses by using an extension cable with better
conduction quality or with a built-in booster.
♦Does the blurring only occur at resolutions lower than the native
(maximum) resolution?
Please read chapter 7, Setting the Display Resolution. Select a
graphics signal that uses the monitor’s the native resolution (1024 x
768 pixels).
Why does the image look yellow, blue or pink instead of showing the
correct colours?
♦The most common cause of this problem is a loose VGA signal cable or
connector. Check that the cable is securely connected to the computer.
♦Check the VGA signal cable for damage. If any pins are bent or broken
off, contact your dealer or an authorised Mitsubishi Electric service
agent (see Chapter 11 for details).
