DIG FS50 User manual

INTRODUCTION
THANK YOU for purchasing the DIG model FS50 Vacation Drip Watering Kit. Please take the ti me to read
through the enclosed instructions and follow them step-by-step. If you have any questions, please call our
customer service line at 1-800-344-2281. Use FS50 Vacation Drip Watering Kit to maximize your efficient
use of water and have abundant growth in your planters or patio. If you decide to expand your system, all
the necessary parts are available individually.
STEP-BY-STEP INSTALLATION
STEP 1: Connecting to a hose end or a faucet.
a) Connect the timer to the faucet.
b) Attach the backflow device to the timer.
c) Attach the pressure regulator to the backflow device and
move to step # 2.
STEP 1A: Connecting to a showerhead
If you are on vacation, you can water all your indoor plants by
connecting the system to a showerhead.
a) Remove the showerhead and connect the 1/2 in. FNPT side x
3/4 in. connector to the showerhead arm.
b) Connect the 3/4 in. MNPT side x MHT nipple to the connector.
c) Connect the timer to the faucet.
d) Attach the backflow device to the timer.
e) Attach the pressure regulator to the backflow device and move to
step # 2.
OPTION 1: To apply water-soluble fertilizer, or if you are unsure of the water quality, we highly recommend
us in. #12 - 1/2 in. filter/fertilizer applicator. It will remove debris that may otherwise clog the emitters and
foggers. This unit should be installed after the backflow device.
STEP 2: Microtubing placement
a) Unroll the 1/4 in. microtubing and lay it out in the area of the planters,
containers and baskets to be watered.
STEP 3: Connect in. 3/4 in. FHT to microtubing
a) Connect the 3/4 in. FHT x 1/4 in. adaptor to the microtubing by forcing the end
of the microtubing into the fitting while moving the microtubing from side to side.
b) Attach the 3/4 in. adaptor to the pressure regulator.
STEP 4: Microtubing installation
Near each container, basket or planter cut the microtubing and insert a 1/4 in. tee
(soaking microtubing in hot water will ease installation). Make sure to leave the
ends of the 1/4 in. microtubing open so you can flush the line before completion.
STEP 5: Connecting 1/4 in. fittings
a) Run microtubing from the center of the containers to the 1/4 in. tee.
b) Connect one end of the microtubing to the 1/4 in. tee.
c) 2 in. to 4 in. from the 1/4 in. tee cut the microtubing and connect a 1/4 in. ball valve
to allow a better control of flow rate for individual container needs.
STEP 6: Installing the drip emitters or foggers
a) Attach a drip emitter or fogger to the ends of the microtubing.

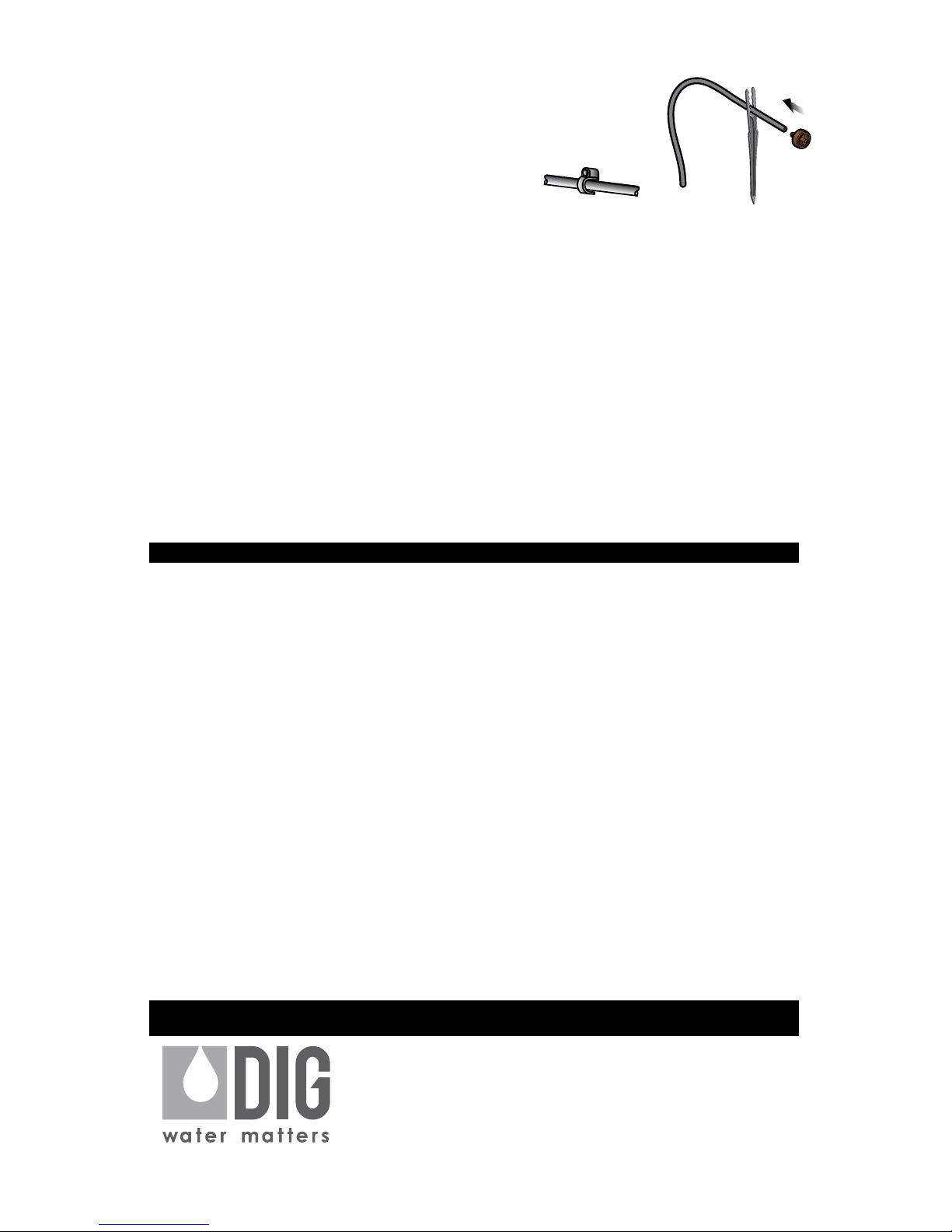

b) Attach a 1/4 in. tubing holder stake to the microtubing closes to the dripper.
c) Put the 1/4 in. tubing holder stake near the plant.
INSTALLATION INSTRUCTIONS
Model FS50
Vacation Drip Watering Kit
Timer
Backflow
Preventer
Pressure
Regulator
3/4 in. MNPT x
MHT Nipple
3/4 in. x 1/2 in.
FNPT Adapter

NOTE: For containers measuring up to 15 in. use one dripper.
15 in. to 24 in. use one fogger. Containers larger than 24 in. use an extra dripper
or fogger every 15 in. Larger containers may require additional drippers.
STEP 7: Secure microtubing
a) Secure the microtubing to the containers or planter using
C-clamps.
STEP 8: System starts up
a) Turn the water on, and flush the line for 10 to 20 seconds to clean out any debris inside the system.
b) Close the end of the microtubing using the goof plug, or a dripper if you have a planter or basket at the
end of the line.
c) Turn the water on again and adjust the flow on each group of drippers or foggers as needed by turning
the knob on the ball valve.
d) Make sure that the system is working correctly without any leaks.
STEP 9: Programming
a) Program the timer (see timer instruction)
Tip: program the timer for duration of 2 to 3 minutes, 2 to 3 days a week.
KIT CONTAINS:
• 1 - battery operated timer • 1 - backflow device • 1 - pressure regulator • 1 - 3/4 in. FHT microtubing
adaptor • 1 - 3/4 in. x 1/2 in. FNPT adaptor for a showerhead • 1 - 3/4 in. FHT x MNPT nipple • 14 - .5 GPH
drippers • 6 - 1 GPH drippers • 2 - foggers • 60 ft. of 1/4 in. microtubing • 22 - 1/4 in. tees • 20 - 1/4 in.
tubing stake holders • 2 - fogger stake holders • 4 - 1/4 in. ball valves • 10 - C-clamps • 2 - goof plugs
and instruction manuals for timer and kit
1210 Activity Drive
Vista, CA 92081, USA
e-mail: [email protected]
www.digcorp.com
DIG CORPORATION 3 YEAR WARRANTY
DIG CORPORATION warrants these products to be free from defects in material and workmanship for a period of three
years from date of purchase. This warranty does not cover damage resulting from accident, misuse, neglect, modification,
improper installation or subjection to line pressure in excess of 100 PSI. This warranty shall extend only to the original
purchaser of the product for use by the purchaser. This warranty shall not cover batteries or any malfunction of the product
due to battery failure. The obligation of DIG CORPORATION under this warranty is limited to repairing or replacing at its
factory this product which shall be returned to the factory within three years after the original purchase and which on
examination is found to contain defects in material and workmanship.
DIG CORPORATION SHALL IN NO EVENT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND; THE
SOLE OBLIGATION OF DIG BEING LIMITED TO REPAIR OR REPLACEMENT OF DEFECTIVE PRODUCTS. SOME STATES DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO YOU.
Unattended use for prolonged periods without inspection to verify proper operation is beyond the intended use of this
product, and any damage resulting from such use shall not be the responsibility of DIG CORPORATION. There are no
warranties which extend beyond the description on the face hereof. In the case of purchase of the product for use other
than, for irrigation purposes, DIG CORPORATION hereby disclaims any implied warranties including any warranties of
merchantability and fitness for a particular purpose. In the case of the purchase of the product for personal, family or
household purposes, DIG CORPORATION disclaims any such warranties to the extent permitted by law. To the extent that
any such disclaimer or implied warranties shall be ineffectual, then any implied warranties shall be limited in duration to a
period of three years from the date of the original purchase for use by the purchaser. Some states do not allow limitation
on how long an implied warranty lasts, so the above limitation may not apply to you. In order to obtain performance under
this warranty, the unit must be returned to the factory, along with proof of purchase indicating original date of purchase,
shipping prepaid, addressed as follows: DIG CORPORATION, 1210 Activity Drive, Vista, CA 92081. Repaired or replaced units
will be shipped prepaid to the name and address supplied with the unit returned under warranty. Allow four weeks for
repairs and shipping time. Repair of damaged units not otherwise within warranty may be refused or done at a reasonable
cost or charge at the option of DIG CORPORATION. This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
1-800-344-2281 FAX: [phone]
062011 DIG CORP 26-025
Printed in the USA
