Digigram IQOYA X/LINK Series User manual

IQOYA X/LINK range user manual
IQOYA X/LINK range
IP audio codecs
User manual for:
IQOYA X/LINK-LE, -ST, -DUAL, -AES67
Applies from firmware version 3.12, February 2023
Date
Changes
Document Status
June, 4, 2020
Appendix A,GPIO description: N.C and N.O pins were inverted.
Released
November 2020
New settings for DVB information tables in MPEG-TS streams (Send section).
Released
January 2021
HLS multi bitrate encoding and streaming
Released
March 2021
Added insertion of data associated to an audio program in a TS stream.
In contribution, mono is sent to left and right for encoding and decoding; and stereo is mixed down to mono for
encoding / decoding.
Released
November 2021
Documentation update for EMC standards and safety rules.
Released
January 2022
Support for Akamai MSL4 CDN (HTTP with and without authentication - Digest SHA-256 & MD5).
Icecast/Shoutcast decoding, added support of the permanent redirection error code (301)
Released
July 2022
Possibility to set the WEB Service API protocol to HTTPS (default mode) or HTTP (less security).
Released
December 2022
Configuration of the duplication of the output signal to analog and AES3 outputs Required transcoding channels. This
feature is available for all X/LINK flavours with the exception of X/LINK-AES67.
Released
January 2023
Improvement of the management of the front panel vu-metres when importing a configuration with mono channels made
from a previous firmware from version 3.05 (audio configuration or full configuration).
MPEG-TS streams are now generated by default with the “Maximum_Bitrate_Descriptor” in the PMT, and the
“ES_Rate_flag” in the PES.
Released
February 2023
GPIO connectors were inverted in previous manual versions. Fxed
Released
1

IQOYA X/LINK range user manual
Note regarding the presentation of this document:
IQOYA X/LINK devices feature two modes of use :
● The ‘Program Distribution’ mode of use
● And the ‘Remote Broadcasting’ mode of use
These two modes are described in the WORKING PRINCIPLES chapter.
In this document, the chapters specific to the "Program Distribution" mode of use are presented
with a green background and the chapters specific to the "Remote Broadcasting" mode of use are
presented with a blue background. The chapters which are relevant for both modes of use are
presented on a white background.
TABLE OF CONTENTS
INFORMATION FOR THE USER 8
2. KEY HARDWARE FEATURES 10
2.1. IQOYA X/LINK-LE 10
2.2. IQOYA X/LINK-ST 10
2.3. IQOYA X/LINK-DUAL 10
2.4. IQOYA X/LINK-AES67 11
3. KEY SOFTWARE FEATURES 11
3.1. Supported I/O channels 11
3.2. Standard features 11
3.3. Optional software features 12
2.4 Supported audio algorithms 13
3 PHYSICAL INTERFACES 13
4.1. IQOYA X/LINK-ST, X/LINK-DUAL and X/LINK-AES67 front Panel 13
4.1.1. LEDs 13
4.1.2. LCD display and keypad 14
4.1.3. SDHC card reader 14
4.1.4. Headphones output 14
4.1.5. Navigating menus on LCD display 14
4.2. IQOYA X/LINK/LE front Panel 16
4.2.1. LEDs 16
3.3 IQOYA X/LINK-ST, X/LINK-LE, X/LINK-DUAL back Panel 17
3.4 IQOYA X/LINK-AES67 back Panel
4 WORKING PRINCIPLES 17

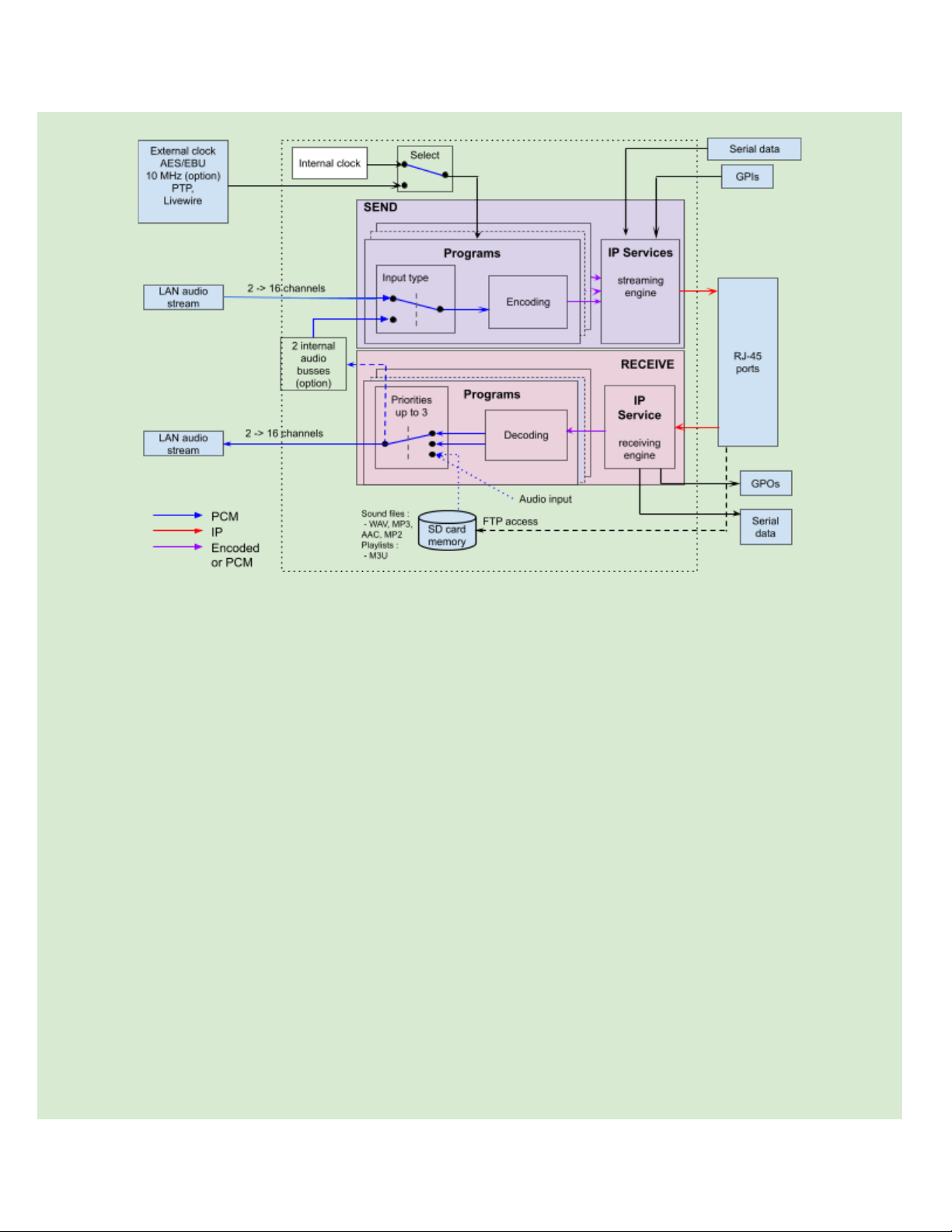

4.1 Working principles in “Program Distribution” mode of use 18
4.1.1 IQOYA X/LINK-ST & X/LINK-LE 18
4.1.2 IQOYA X/LINK-DUAL 18
2

IQOYA X/LINK range user manual
4.1.3 IQOYA X/LINK-AES67 19
4.1.4 Audio inputs and outputs 20
4.1.5 Programs 20
4.1.6 IP services 21
4.1.7 Audio buses 21
4.2 Working principles in “Remote Broadcasting” mode of use 21
4.2.1 IQOYA X/LINK-ST & X/LINK-LE 21
4.2.2 IQOYA X/LINK-DUAL 22
4.2.3 IQOYA X/LINK-AES67 23
4.2.4 Audio inputs and outputs 24
4.2.5 IP codec instances 24
4.2.6 Contacts and Address book 24
4.2.6 Call profiles and Call profile list 25
5. INSTALLATION 25
5.1. Grounding the IQOYA X/LINK 25
5.2. Connecting IQOYA X/LINK to the network 25
5.3. Enabling / disabling the hardware bypass function 26
5.4. Powering up IQOYA X/LINK 26
5.5 Steps to follow to configure IQOYA X/LINK in “Program Distribution” mode of use 26
5.6 Steps to follow to configure IQOYA X/LINK in “Remote Broadcasting” mode of use 27
6. Accessing IQOYA X/LINK WEB pages 28
7. Configuration from the WEB pages 30
8. WEB pages organization 31
8.1 WEB pages organization in “Program Distribution” mode of use 31
8.1.1 “Preferences” category of menus 31
8.1.1.1 Preferences −> System 32
8.1.1.1.1 Preferences −> System −> Properties 32
8.1.1.1.2 Preferences −> System −> Audio Clock 33
8.1.1.1.2.1 PTP clock source 33
8.1.1.1.2.2 Livewire (Slave) 35
8.1.1.1.3 Preferences −> System −> Audio setup 36
8.1.1.1.4 Preferences −> System −> Alarms setup 37
8.1.1.1.5 Preferences −> System −> Logs 39
8.1.1.1.6 Preferences −> System −> Download / Upload 39
8.1.1.1.7 Preferences −> System −> SD card 40
8.1.1.1.8 Preferences −> System −> SD card backup 40
8.1.1.1.9 Preferences −> System −> Firmware update 40
8.1.1.1.10 Preferences −> System −> Password 42
8.1.1.1.11 Preferences −> System −> Shutdown / Restart 42
8.2.3.1.11 Preferences −> System −> Switch mode of use 43
8.1.1.2 Preferences −> Services 43
8.1.1.2.1 Preferences −> Services −> NTP 43
8.1.1.2.2 Preferences −> Services −> FTP 44
8.1.1.2.3 Preferences −> Services −> SSH 45
8.1.1.2.4 Preferences −> Services −> SNMP 45
8.1.1.2.5 Preferences −> Services −> HTTPS 45
8.1.1.2.6 Preferences −> Services −> Publish / Discover 46
8.1.1.2.6 Preferences −> Services −> WEB Service 46
3

IQOYA X/LINK range user manual
8.1.1.3 Preferences −> Network 47
8.1.1.3.1 Preferences −> Network −> Eth1 (-> Eth4) 47
8.1.1.3.2 Preferences −> Network −> VLAN 48
8.1.1.3.3 Preferences −> Network −> IP routing 50
8.1.1.3.4 Preferences −> Network −> HTTP stream proxy 50
8.1.1.4 Preferences −> Auxiliary data 50
8.1.1.4.1 Preferences −> Auxiliary data −> Serial port 50
8.1.1.4.2 Preferences −> Auxiliary data −> GPIO 51
8.1.1.4.3 Preferences −> Auxiliary data −> UDP 53
8.1.2 Audio I/Os category of menus 54
8.1.2.1 Audio I/O −> Input 54
8.1.2.1.1 Audio I/O −> Input −> VU meters 54
8.1.2.1.2 Audio I/O −> Input −> settings 56
8.1.2.2 Audio I/O −> Output 59
8.1.2.2.1 Audio I/O −> Output −> VU meters 59
8.1.2.2.2 Audio I/O −> Output −> settings 60
8.1.2.3 Audio I/O −> Audio Bus 62
8.1.2.3.1 Audio I/O −> Audio Bus −> Vu meters 63
8.1.2.3.2 Audio I/O −> Audio Bus −> Settings 63
8.1.3 “Send” category of menus 64
8.1.3.1 Send −> Programs 64
8.1.3.2 Send −> IP services 67
8.1.4 “Receive” category of menus 79
8.1.4.1 Receive −> IP services 79
8.1.4.2 Receive −> Programs 83
8.1.5 Status 93
8.2 WEB pages organization in “Remote Broadcasting” mode of use 93
8.2.1 “Operations” page 94
8.2.1.1 Call window when no communication is in progress 96
8.2.1.2 Place a call 97
8.2.1.3 Accept or reject a call 98
8.2.1.5 Call window when a communication is in progress 98
8.2.1.6 Hang up a call 99
8.2.2 “Connections” category of menus 100
8.2.2.1 Connections −> Network 100
8.2.2.1.1 Connections −> Network −> ETHx 101
8.2.2.1.2 Connections −> Network −> VLAN 103
8.2.2.1.3 Connections −> Network −> IP routing 104
8.2.2.2 Connections −> IP codecs 104
8.2.2.2.1 Connections −> IP codecs −> SIP accounts 104
8.2.2.2.1.1 Declare a new SIP account 105
8.2.2.2.1.2 Edit a SIP account 106
8.2.2.2.1.3 Delete a SIP account 106
8.2.2.2.2 Connections −> IP codecs −> IP codec configuration 107
8.2.2.2.2.1 Create a new IP codec instance 107
8.2.2.2.2.2 Enable IP codec instances 112
8.2.2.2.2.3 Edit an IP codec instance 113
8.2.2.2.2.4 Disable IP codec instances 115
8.2.2.2.2.5 Delete IP codec instances 116
8.2.2.3 Connections −> Profiles 116
4

IQOYA X/LINK range user manual
8.2.2.3.1 Add a call profile 117
8.2.2.3.2 Edit a call profile 121
8.2.2.3.2 Delete call profiles 121
8.2.3 “Advanced settings” category of menus 122
8.2.3.1 Advanced settings −> System 122
8.2.3.1.1 Advanced settings −> System −> Properties 122
8.2.3.1.2 Advanced settings −> System −> Audio Clock 124
8.2.3.1.2.1 PTP clock source 124
8.2.3.1.2.2 Livewire (Slave) 126
8.2.3.1.3 Advanced settings −> System −> Audio setup 127
8.2.3.1.4 Advanced settings −> System −> Logs 128
8.2.3.1.5 Advanced settings −> System −> Download / Upload 129
8.2.3.1.6 Advanced settings −> System −> SD card 129
8.2.3.1.7 Advanced settings −> System −> SD card backup 129
8.2.3.1.8 Advanced settings −> System −> Firmware & License update 130
8.2.3.1.9 Advanced settings −> System −> Password 131
8.2.3.1.10 Advanced settings −> System −> Shutdown / Restart 132
8.2.3.1.11 Advanced settings −> System −> Switch mode of use 132
8.2.3.2 Advanced settings −> services 133
8.2.3.2.1 Advanced settings −> services−> NTP 133
8.2.3.2.2 Advanced settings −> services−> FTP 134
8.2.3.2.3 Advanced settings −> services−> SSH 135
8.2.3.2.4 Advanced settings −> services−> HTTPS 135
8.2.3.2.5 Advanced settings −> services−> Publish / Discover 136
8.2.4 Audio I/Os category of menus 136
9. Managing sound files and playlists via FTP 136
10. Specifications 136
10.1. IQOYA X/LINK-LE and X/LINK-ST 137
10.1.1. CONFIGURATION 137
10.1.2. CONNECTIVITY 137
10.1.3. ANALOG INPUTS 137
10.1.4. ANALOG LINE OUTPUTS 138
10.1.5. AES3 INPUTS 138
10.1.6. AES/3 OUTPUTS 139
10.1.7. AES67/RAVENNA 139
10.1.8. Livewire 139
10.1.9. HEADPHONES OUTPUT 139
10.1.10. OTIONAL SYNCHRONIZATION INPUTS 140
10.1.11. ANALOG AUDIO PERFORMANCES 140
11. APPENDIX A: GPIO’s CONNECTORS 141
12. APPENDIX B: SERIAL PORT (RS232 ON DB9) 144
13. APPENDIX C: TYPICAL LATENCY VALUES 145
14. APPENDIX E: AVAILABLE FEC’s FOR RAW RTP STREAMING (no TS encapsulation) 148
15. APPENDIX F: REDUNDANT DUAL STREAMING 150
16. APPENDIX G: MPEG-TS AUXILIARY DATA 152
5

IQOYA X/LINK range user manual
16. APPENDIX H: Modifying Maximum_Bitrate_Descriptor and ES_Rate_flag via the configuration file 153
Important Safety Information: read carefully before using this equipment!
Follow these instructions and keep them in a safe place! Keep in mind that damages due to failure to
observe the instructions contained in this manual are not covered by warranty.
Instructions importantes de sécurité: lire soigneusement avant d’utiliser l’équipement!
Lisez et suivez ces instructions. Conservez-les pour consultation ultérieure! Les dommages dus au
non-respect des instructions contenues dans ce manuel ne sont pas couverts par la garantie.
Wichtige Sicherheitshinweise: vor Inbetriebnahme des Gerätes sorgfältig lesen!
Befolgen Sie die Anweisungen und bewahren Sie sie für spätere Fragen auf! Bei Schäden, die durch
Nichtbeachten dieser Bedienungsanleitung verursacht werden, erlischt der Garantieanspruch!
Throughout this manual, this pictogram is used to alert
the user to the risk of electric shock.
This pictogram is used to alert the user to important
operating or maintenance instructions
This pictogram is used to alert the user that the device has
multiple power sources.
WARNING - Risk of electric shock
Do Not Open the Cabinet
There are no user-serviceable components inside this
product. Opening the cabinet may present a shock
hazard, and any modification to the product will void
your warranty. If it is necessary to open the device for
maintenance or advanced configuration purposes, this
is to be done by qualified personnel only after
disconnecting the power cord and network cables!
WARNING - MULTIPLE POWER SOURCES
Power supply
The device is to be connected only to power supplies
as specified in this manual and marked on the
equipment.
This equipment must be earthed!
Do not block any of the ventilation openings!
Humidity
To reduce the risk of fire or shock, do not expose this
device to rain or moisture. Do not place objects filled
with liquid on this device.
Installation Location
To ensure proper operation and to avoid safety
hazards, the device must be installed in a 19“ rack
mount chassis. The electrical installation of the building
should dispose of easily accessible disconnecting
means in the immediate vicinity of the device.
If rack installation is not possible, place it on a firm and
level surface. The use of a supply lead with a power
plug respecting the legal standards in the country of
use is obligatory. The sockets outlets to which the
equipment is connected must be easily accessible.
Avoid installation in extremely hot or cold locations, or
in an area that is exposed to direct sunlight or heating
equipment. Avoid moist or humid locations.
Connection of this product to an IT power supply
system is only in Norway.
In Finland and Sweden the equipment is not intended to
be connected to a telecom network for the Ethernet
ports.
AVERTISSEMENT: risque de choc
électrique
Ne pas ouvrir l’appareil
L’ouverture du coffret peut produire un risque de choc
électrique, et toute modification du produit annule votre
garantie. S’il est nécessaire d’ouvrir l’appareil pour
l’entretien ou la configuration avancée, cela doit être fait
par du personnel qualifié, après avoir débranché le
cordon d’alimentation et les câbles réseaux !
AVERTISSEMENT - Sources d’alimentation
multiples
Alimentation
Il est primordial de connecter l’appareil à une
alimentation électrique telle que spécifiée dans ce
manuel d´utilisateur et sur le matériel même.
Cet équipement doit être raccordé à la terre !
N’obstruer aucune ouverture de ventilation !
Humidité
Afin de réduire les risques de feu ou de choc,
n’exposez pas cet appareil à la pluie ou l’humidité. Ne
placez pas d'objet contenant un liquide sur l’appareil.
Installation, mise en place
Afin d’assurer le fonctionnement correct et de minimiser
les risques potentiels liés à la sécurité, l’appareil doit
être installé dans un châssis 19 pouces. Si cela ne
vous est pas possible, placez-le sur une surface solide
et plane. Prévoir dans l’installation électrique du
bâtiment un dispositif de sectionnement aisément
accessible et à proximité immédiate de l’appareil.
L’utilisation d’un câble d’alimentation avec une fiche de
prise de courant respectant les normes en vigueur dans
le pays d’utilisation est obligatoire. De plus, les prises
de courant sur lesquelles sont branchées l'équipement
doivent être aisément accessible
Évitez une installation dans des endroits très chauds ou
très froids ainsi que dans des lieux exposés
directement au soleil. Évitez les lieux présentant un
excès d’humidité.
Le raccordement de ce produit à un régime
d’alimentation IT n’est possible qu’en Norvège.
WARNUNG - Stromschlaggefahr
Gerät nicht öffnen
Öffnen des Geräts kann eine Gefährdung durch
Stromschlag und Erlöschen der Garantie zur Folge
haben. Reparaturarbeiten und Änderungen der
Hardwarekonfiguration dürfen nur von qualifiziertem
Personal nach entfernen der Strom- und Netzwerkkabel
durchgeführt werden.
WARNUNG – MEHRERE STROMQUELLEN
Stromversorgung
Das Gerät darf nur mit der in dieser
Bedienungsanleitung und auf dem Gerät angegebenen
Stromversorgung betrieben werden.
Erdung ist zu gewährleisten!
Belüftungsschlitze nicht verdecken!
Wasser und Feuchtigkeit
Um Brand- oder Stromschlagrisiken zu vermeiden, darf
das Gerät nicht mit Feuchtigkeit in Berührung kommen.
Aufbau des Geräts
Um den einwandfreien Betrieb zu gewährleisten und
Sicherheitsrisiken zu vermeiden, sollte das Gerät in
einem 19-Zoll Baugruppenrahmen montiert werden. Die
elektrische Installation des Gebäudes sollte über einen
leicht zugänglichen Trennschalter in unmittelbarer Nähe
des Geräts verfügen Nur wenn die Installation im Rack
nicht möglich ist, stellen Sie das Gerät auf einen festen,
waagerechten Untergrund.
Die Verwendung eines Anschlußkabels und eines
Steckers, die die im Benutzungsland gültigen Normen
erfüllen, ist obligatorisch. Des weiteren muß die
Steckdose für einen eventuellen Problemfall leicht
zugänglich sein.
Meiden Sie Standorte in der Nähe von Wärme- oder
Feuchtigkeitsquellen sowie direkte Sonneneinstrahlung.
Anschluß dieses Produktes an eine spezielle
IT-Stromversorgung ist nur in Norwegen genehmigt.
6

IQOYA X/LINK range user manual
Cleaning
Clean only with a soft, dry cloth. If necessary, after
disconnecting the unit’s cables, wipe it with a soft cloth
dampened with mild soapy water, then with a fresh
cloth with clean water. Wipe dry immediately with a dry
cloth. NEVER use benzene, aerosol cleaners, thinner,
alcohol or any other volatile cleaning agent. Do not use
abrasive cleaners, which may damage the finish of
metal or other parts.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or
plug is damaged, liquid has been spilled, the apparatus
has been exposed to rain or moisture, does not operate
normally, or has been dropped.
Moving the device
Before moving the unit, be certain to disconnect any
cables that connect with other components.
Nettoyage
Nettoyez uniquement avec un chiffon doux et sec. Si
nécessaire, après avoir débranché le cordon
d'alimentation, essuyez-le avec un chiffon doux
humidifié avec de l´eau savonneuse puis rincez-le à
l´aide d' un chiffon propre et d'eau claire.
Séchez-le immédiatement avec un chiffon sec.
N’utilisez JAMAIS utiliser d'essence, de nettoyants en
aérosols, d'alcool ou tout autre agent nettoyant volatile.
N’utilisez pas de produits nettoyants abrasifs qui
pourraient endommager les finitions métalliques ou
d'autres pièces.
Réparation
Lorsque l’appareil a été endommagé quelle qu’en soit
la cause ou qu’il ne fonctionne pas normalement, toute
réparation doit être effectuée par du personnel qualifié.
Avant de transporter l'unité, assurez-vous d'avoir bien
déconnecter le cordon d’alimentation ainsi que tous les
câbles la reliant à d'autres appareils.
Reinigen des Geräts
Säubern Sie das Gerät nur mit einem weichen,
trockenen Tuch. Bei Bedarf verwenden Sie ein mit
mildem Seifenwasser befeuchtetes Tuch, nachdem Sie
die Netzanschlusskabel aus der Steckdose gezogen
haben, anschließend ein weiches, mit klarem Wasser
befeuchtetes Tuch. Trocken Sie das Gerät sofort im
Anschluß. Keinesfalls Benzol, Verdünner oder sonstige
starke Lösungsmittel oder Scheuerreiniger verwenden,
da hierdurch das Gehäuse beschädigt werden könnte.
Lassen Sie etwaige Reparaturen nur von
qualifizierten Fachleuten durchführen!
Sollten das Netzkabel oder der Netzstecker beschädigt
sein, oder sollte das Gerät selbst beschädigt worden
sein (z. B. durch Eindringen von Feuchtigkeit durch Fall
auf den Boden), oder sollte es nicht ordnungsgemäß
funktionieren oder eine deutliche Funktionsabweichung
aufweisen, so ist es von qualifizierten Fachleuten zu
reparieren.
Disposal of the device:
European Directive 2012/19 / EU on Waste of Electrical and Electronic
Equipment (WEEE), requires that the devices used household goods are
not thrown into the normal municipal waste stream.
Used devices should be collected separately in order to optimize the rate
of recovery and recycling of the materials of which they are made and
reduce the impact on human health and the environment.
Mise au rebut de l’appareil
La directive Européenne 2012/19/UE sur les Déchets
des Equipements Electriques et Electroniques (DEEE), exige que les appareils
ménagers usagés ne soient pas jetés dans le flux normal des déchets
municipaux.
Les appareils usagés doivent être collectés séparément afin d’optimiser le taux
de récupération et le recyclage des matériaux qui les composent et réduire
l’impact sur la santé humaine et l’environnement.
7

IQOYA X/LINK range user manual
INFORMATION FOR THE USER
“This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own
expense.”
Warning
This is a class A product. In a domestic environment this product may cause radio interference
in which case the user may be required to take adequate measures.
CAN ICES-3 (A) / NMB-3 (A)
User safety
EMC
User safety
EMC
European Directive 2014/35/UE "Low Voltage Directive
Europe: EN 62368-1 (2014)
International: IEC 62368-1 (2014)
European Directive: EMC 2014/30/UE
Radio disturbance :
International : CISPR32 (2015+AMD1/2019) Class A
European : EN55032 (2015+A1&A11/2020) Requirements for
Information
Technology Equipment (ITE)
Immunity: International : CISPR35 (2016)
IEC 61000-6-2 (2016)
European : EN55035 (2017+A11/2020) (ITE)
EN 61000-6-2 (2019)
Harmonics: International : IEC 61000-3-2 (2018+A1:2020)
European : EN 61000-3-2 (2019)
Voltage changes : International : IEC 61000-3-3
(2013+A1:2017+A2:2021)
European : EN 61000-3-3 (2014+A1/2019)
United States: CFR 47, FCC Part 15, Subpart A (Class A Digital Device)
& Industry Canada ICES-003 (Issue 7 – 2020)
8

IQOYA X/LINK range user manual
In order to guarantee compliance with the above standards in an installation, the following must be done:
● the provided cables must not be modified.
● additional cables used must have their respective shield connected to each extremity.
● Attach a ground wire to the chassis (ideally the ground wire has a ring terminal). Connect the other end of the ground wire to a good electrical
ground point.
● The equipment’s PE and building’s PE must be connected (socket outlet with PE required).
● The sockets outlets to which the equipment is connected must be easily accessible
● The maximum altitude to comply with the above standards is 2000m. IQOYA can however operate at higher altitudes.
The limits specified in the standards are designed to provide reasonable protection against harmful interference in an industrial installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
● reorient or relocate the receiving antenna.
● increase the separation between the equipment and the receiver.
● connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
● consult the dealer or an experienced audio/television technician for help.
Note:
Connecting this device to peripheral devices that do not comply with CLASS A requirements or using an unshielded peripheral data cable could also result
in harmful interference to radio or television reception. The user is cautioned that any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this equipment. To ensure that the use of this product does not contribute to
interference, it is necessary to use shielded I/O cables.
Copyright 2015 - Digigram. All rights reserved.
No portion of this manual may be reproduced without prior written consent from Digigram. The copyright protection claimed here includes photocopying,
translation and/or reformatting of the information contained in this manual.
While every effort has been made to ensure accuracy, Digigram is not responsible for errors, omissions or typos, and reserves the right to make
improvements or changes in the products and programs described without notice.
Digigram and the Digigram logo, and IQOYA are registered trademarks or trademarks of Digigram S.A.. HE-AAC and AAC-(E)LD are registered trademarks
or trademarks of Fraunhofer IIS. All other trademarks are property of their respective holders.
Digigram Digital
Headquarters
84 Allée Galilée
38330 Montbonnot - France
You have just acquired a Digigram IQOYA X/LINK and we congratulate you!
The manual at hand will guide through installation, configuration, and operation. For any software related issue, please refer
to the specific documentation provided in its online help.
9

IQOYA X/LINK range user manual
2. KEY HARDWARE FEATURES
2.1. IQOYA X/LINK-LE
● 1U rack
● Two internal redundant power supply units (2x220 VAC, optionally 220VDC / -48VDC)
● 4 Ethernet ports via RJ-45 connectors. 1 x 100 Mbits/s, and 3 x 100/1000 Mbits/s ports
● 2 balanced analog line inputs and outputs
● 1 AES/3 input and output
● Switchable hardware by-pass on inputs to outputs in case of power supply failure
● 1 RS232 port for auxiliary data tunneling
● 8 GPIO’s
● External synchronization: AES3 input, PTP clock, Livewire clock
● Status LEDs
● SDHC card reader
● 6.35mm headphones jack with volume knob and codec input/output selection
2.2. IQOYA X/LINK-ST
● 1U rack
● Two internal redundant power supply units (2x220 VAC, optionally 220VDC / -48VDC)
● 4 Ethernet ports via RJ-45 connectors. 1 x 100 Mbits/s, and 3 x 100/1000 Mbits/s ports
● 2 balanced analog line inputs and outputs
● 1 AES/3 input and output
● Switchable hardware by-pass on inputs to outputs in case of power supply failure
● 1 RS232 port for auxiliary data tunneling
● 8 GPIO’s
● External synchronization: AES/3 input, PTP clock,
● Front panel LCD display and keypad
● Status LEDs
● SDHC card reader
● 6.35mm headphones jack with volume knob and codec input/output selection
2.3. IQOYA X/LINK-DUAL
● 1U rack
● Two internal redundant power supply units (2x220 VAC, optionally 220VDC / -48VDC)
● 4 Ethernet ports via RJ-45 connectors. 1 x 100 Mbits/s, and 3 x 100/1000 Mbits/s ports
● 4 balanced analog line inputs and outputs
● 2 AES/3 input and output
● Switchable hardware by-pass on the first stereo inputs to outputs in case of power supply failure
● 1 RS232 port for auxiliary data tunneling
● 4 GPIO’s if the 10 MHz / 1 PPS external synchro input(s) are used (optional)
● External synchronization: AES/3 input, PTP clock, Livewire clock
● Front panel LCD display and keypad
● Status LEDs
● SDHC card reader
10

IQOYA X/LINK range user manual
● 6.35mm headphones jack with volume knob and codec input/output selection
2.4. IQOYA X/LINK-AES67
● 1U rack
● Two internal redundant power supply units (2x220 VAC, optionally 220VDC / -48VDC)
● 4 Ethernet ports via RJ-45 connectors. 1 x 100 Mbits/s, and 3 x 100/1000 Mbits/s ports
● 1 RS232 port for auxiliary data tunnelling
● 8 GPIO’s, or 4 GPIO’s if the 10 MHz / 1 PPS external synchro input(s) are used (optional)
● External synchronization: 10 MHz (optional), PTP clock, Livewire clock
● Front panel LCD display and keypad
● Status LEDs
● SDHC card reader
● 6.35mm headphones jack with volume knob and codec input/output selection
3. KEY SOFTWARE FEATURES
3.1. Supported I/O channels
Number of mono input / output
channels of the codec
Type of audio I/Os
X/LINK-ST &
X/LINK-LE
2 / 2
Analog, AES/3, AES67, Ravenna, Livewire (standard
mode)
X/LINK-DUAL
4 / 4
Analog, AES/3, AES67, Ravenna, Livewire (standard
mode)
X/LINK-AES67
From 2 / 2 to 16 / 16
AES67, Ravenna, Livewire (standard mode)
3.2. Standard features
Two modes of use: “Program Distribution” mode and “Remote Broadcasting” mode.
Distribution mode
● Simultaneous encoding, decoding
● Multi-format encoding and multi-protocol streaming of each input.
● Streaming protocols: ARTP, UDP, Icecast/Shoutcast, HLS multi-bitrate
● Support for SIP signalling protocol including SIP presence information
● Support for symmetric RTP
● Contact list management
● Call profile management
● Possibility to place calls choosing the correspondent in an address book and the call profile in a call profile list and to
accept or deny incoming calls.
11

IQOYA X/LINK range user manual
● Support of unicast, multi-unicast, multicast, multi-multicast addressing
● Support of IGMPv3
● MPEG-TS/IP streaming with or without DVB information tables, and insertion of associated program data (serial data
and triggers).
● VLAN Tagging + DSCP
● Asymmetric algorithmic encoding/decoding
● 3 decoding priorities per output program, with choice of the audio source on each priority: IP service (RTP, UDP,
HTTP), file, playlist and audio input
● Automatic switching to a lower decoding priority in case of upper priority failure
● Possibility to disable/enable any defined priority
● Possibility to stop streaming upon input silence detection with adjustable silence threshold and duration.
● Decoding of a stereo source to a mono output, with possibility to mix left and right channels
● Dual port redundant streaming with optional time diversity up to 3 second
● Selectable FECs for ACIP RTP streams (from +10% to +100% IP bandwidth)
● Pro MPEG Cop#3 FEC for MPEG-TS streams (line, columns)
● Automatic audio format detection on the decoder
● Real-time metrics on network path quality (jitter, lost packets, duplicated packets, disordered packets) for the primary
stream as well as for the FEC stream.
● Adjustable jitter buffer
● Management of lost packets, disordered packets, duplicated packets, and AAC error concealment
● In-band auxiliary data tunnelling: serial and status (serial via RS232 or UDP, Status via GPIOs or UDP)
● WEB user rights management
● NTP synchronization (date and time)
● Save / load full codec configuration
● Save / load audio configuration
● Remote firmware update
● Audio still active during firmware upload
● Firmware version N and N-1 locally stored
● SNMPv2c SET, GET, Traps
● WEB Service API (in distribution mode)
Features specific to the contribution mode
● Support of DHCP
● Support for SIP signalling protocol including SIP presence information
● Support for symmetric RTP
● Asymmetric algorithmic encoding/decoding
● Contact list management
● Call profile management
● Possibility to place calls choosing the correspondent in an address book and the call profile in a call profile list and to
accept or deny incoming calls.
3.3. Optional software features
● IP streams transcoding. X/LINK-ST, X/LINK-DUAL, X/LINK-AES67
On IQOYA X/LINK-LE, X/LINK-ST and X/LINK-DUAL, optional transcoding channels (audio buses) can be used to
duplicate the decoded audio to both the analog and digital AES3 outputs.
● Multi-protocol streaming: X/LINK-LE
● NTP based audio synchronization
12

IQOYA X/LINK range user manual
● 1+1 redundancy
2.4 Supported audio algorithms
Included
Otional
● linear 16/20/24-bit PCM
● ITU G.711/722
● ISO MPEG-1/2 Layer I, Layer II, Layer III
● AAC-LC, HE-AACv1 (LC+SBR), HE-AACv2(LC+SBR+PS),
AAC-LD, AAC-ELD
● Opus
3 PHYSICAL INTERFACES
4.1. IQOYA X/LINK-ST, X/LINK-DUAL and X/LINK-AES67 front Panel
4.1.1. LEDs
PSU1
Status of the first internal power supply unit. Blue if PSU is ok. Off for PSU failure.
PSU2
Status of the second internal power supply unit. Blue if PSU is ok. Off for PSU failure.
Network
Green: all the enabled network interfaces are up.
Orange: at least one of the enabled network interface is down
Red: no network connection on all the network interfaces
Send
Green: “Send” activity is normal.
Red: Failure on a sender.
Receive
Green: “Receive” activity is normal
Red: at least one active receiver has no audio source
Status
Green flashing if the unit is ok.
13

IQOYA X/LINK range user manual
Fail-over
Green in case at least one output program has switched to a backup audio source
SD
Flashes when SDHC card is accessed
4.1.2. LCD display and keypad
Next menu or sub-menu
Previous menu or sub-menu
Previous item in the menu, or increase the selected value
Next item in the menu, or decrease the selected value
Validate the selected action
4.1.3. SDHC card reader
Supports SDHC cards, used for:
- saving/loading of the codec configuration
- Storing backup playlists and sound files
4.1.4. Headphones output
Allows audio monitoring.
The push button allows the selection of the audio source to be monitored.
For IQOYA X/LINK-ST and X/LINK-LE: encoder input, decoder output
For X/LINK-DUAL and X/LINK-AES67, it selects the audio that is assigned to vu-meter A or vu-meter B. This assignment is
made from the LCD front panel and keypad.
4.1.5. Navigating menus on LCD display
Use the arrow keys to navigate in the menus, and the Ok key to confirm a choice.
System
(Home page)
Eth1
Eth2
Eth3
Eth3
Monitoring
A(*)
Monitoring
B(*)
Status
(**)
Host Name
Enable
Enable
Enable
'yes)
Enable
Ana IN1 L
Ana IN1 R
Ana OUT1 L
Ana OUT1 R
Clock source: internal,
AES IN1, AES IN2,
PTP, 10 mHz
Valeur (ex: 48000 Hz)
Device Name
IPv4 @
IPv4 @
IPv4 @
IPv4 @
AES IN1 L
AES IN1 R
AES OUT1 L
AES OUT1 R
PTP
OFF, Sync, Eth, source
IP@
System Time
Speed
Mode
Speed
Mode
Speed
Mode
Speed
Mode
Ana IN2 L
Ana IN2 R
Ana OUT2 L
Ana OUT2 R
SNMP: On / Off
System Date
Link Status
Status
Status
Status
AES IN2 L
AES IN2 R
AES OUT2 L
AES OUT2 R
FTP: On/Off
NTP Server URL1
Mac @
Mac @
Mac @
Mac @
AES67 IN1 L
AES67 IN1 R
AES67 OUT1 L
AES67 OUT1 R
NTP date and time
On/Off
14

IQOYA X/LINK range user manual
NTP Server URL2
DHCP
DHCP
DHCP
DHCP
AES67 IN2 L
AES67 IN2 R
AES67 OUT2 L
AES67 OUT2 R
Audio Synchro on NTP
On / Off - Sync / Not
sync
Serial Number
Subnet
mask
Subnet
mask
Subnet
mask
Subnet
mask
AudioBus1 L
AudioBus1 R
AudioBus1 L
AudioBus1 R
Audio synchro on PTP
On / Off - Sync / Not
sync
Firmware version
Gateway
Gateway
Gateway
Gateway
AudioBus2 L
AudioBus2 R
AudioBus2 L
AudioBus2 R
Clock source: internal,
AES IN1, AES IN2,
PTP, 10 mHz
Valeur (ex: 48000 Hz)
Analog bypass /
AES bypass
Primary
DNS
Primary
DNS
Primary
DNS
Primary
DNS
Apply factory
settings
Alternate
DNS
Alternate
DNS
Alternate
DNS
Alternate
DNS
Restart
Halt
Remount SD card
Unmount SD card
Copy config to SD
Restore config
from SD
Firmware update
Screen Dimmer
(*) Note about Monitoring.
The name of the inputs and outputs displayed on the LCD screen are the names configured from the input and output
settings WEB pages.
(**) The following menus are only available in “Remote Broadcasting” mode of use:
Select codec
(1) Call C<#N>
(2) Contacts
C<#N>
(3) Recent calls
C<#N>
(4) Profiles
C<#N>
Codec instance #1:
<I/O channels>: <Contact name>
<SIP address or RTP listening port>
Ok key leads to submenu (1)
CALL/ HANGUP
<Contact to be called>
Contact entry #1:
<Contact Name>
<SIP address or
IP address (****)>
Recent call #1:
<Name of the remote>
<SIP address or
IP address (****)>
Call profile #1:
<Call profile name>
Codec instance #2:
<I/O channels>: <Contact name>
<SIP address or RTP listening port>
Ok key leads to submenu (1)
SELECT CONTACT (***)
<Selected contact>
Ok key leads to submenu (2)
Contact entry #2:
<Contact Name>
<SIP address or
IP address (****)>
Recent call #2:
<Name of the remote>
<SIP address or
IP address (****)>
Call profile #2:
<Call profile name>
⁞
RECENT CALLS (***)
<Selected recent call>
Ok key leads to submenu (3)
⁞
⁞
⁞
Codec instance #N:
<I/O channels>: <Contact name>
SELECT PROFILE (***)
<Selected profile>
Contact entry #N:
<Contact Name>
Recent call #N:
<Name of the remote>
Call profile #N:
<Call profile name>
15

IQOYA X/LINK range user manual
<SIP address or RTP listening port>
Ok key leads to submenu (1)
Ok key leads to submenu (4)
<SIP address or
IP address (****)>
<SIP address or
IP address (****)>
LAST MESSAGE
<Message following a call
failure>
CONTACT NAME
<Contact name of this
codec>
REGISTRATION NAME
<SIP address of this codec>
(***) Items not available during a communication.
(****) Depending on whether the contact is accessible via SIP or Symmetric RTP
4.2. IQOYA X/LINK/LE front Panel
4.2.1. LEDs
PSU1
Status of the first internal power supply unit. Blue if PSU is ok. Off for PSU failure.
PSU2
Status of the second internal power supply unit. Blue if PSU is ok. Off for PSU failure.
Power
Green if internal power is ok
Send
Green: Send activity is normal.
Red: at least one active sender has a failure
Receive
Green: Receive activity is normal
Red: at least one active receiver has no audio source
System
Green flashing if unit is ok.
Fail-over
Green in case at least one output program has switched to a backup audio source
SD
Flashes when SDHC card is accessed
16

IQOYA X/LINK range user manual
3.3 IQOYA X/LINK-ST, X/LINK-LE, X/LINK-DUAL back Panel
3.4 IQOYA X/LINK-AES67 back Panel
17

IQOYA X/LINK range user manual
4 WORKING PRINCIPLES
IQOYA X/LINK features two modes of use :
● The ‘Program Distribution’ mode of use: In this mode, the available functions and the graphical user interfaces are
suitable for the needs of fixed installations like STL and SSL links, delivery of WEB radios to CDNs, program delivery
to DVB/cable operators, IP audio transcoding, etc ...
● The ‘Remote Broadcasting’ mode of use: In this mode, the available functions and the graphical user interfaces are
suitable for the needs of temporary audio over IP connections like live remote broadcasts, intercom, etc ...
At first power up, the user is prompted to choose the mode of use either from the front panel (except IQOYA X/LINK-LE) or
from the configuration web interface. Later it is possible to switch from one mode to another from the configuration web
pages.
4.1 Working principles in “Program Distribution” mode of use
4.1.1 IQOYA X/LINK-ST & X/LINK-LE
IQOYA X/LINK allows at the same time:
● Encoding two audio channels in multiple audio formats, and streaming over IP
● Decoding IP audio streams to two output channels
● Transcoding IP audio streams (optional)
Schematic diagram of IQOYA X/LINK-ST & X/LINK-LE
4.1.2 IQOYA X/LINK-DUAL
IQOYA X/LINK-DUAL allows at the same time:
● Encoding four audio channels in multiple audio formats, and streaming over IP
18

IQOYA X/LINK range user manual
● Decoding IP audio streams to four output channels
● Transcoding IP audio streams (optional)
Schematic diagram of IQOYA X/LINK-DUAL
4.1.3 IQOYA X/LINK-AES67
IQOYA X/LINK-AES67 allows at the same time:
● Encoding 16 audio channels in multiple audio formats, and streaming over IP
● Decoding IP audio streams to 16 output channels
● Or transcoding IP audio streams (optional)
19

IQOYA X/LINK range user manual
Schematic diagram of IQOYA X/LINK-AES67
4.1.4 Audio inputs and outputs
The audio inputs receive the audio signals to be encoded. They can be analog, or AES/3, or LAN audio (RAVENNA or
AES67 or Livewire). Each source can be encoded several times at different formats, and streamed to several destinations.
Audio samples decoded by X/LINK are played to the selected audio output. An audio output can be analog, or AES/3, or
LAN audio ( AES67 or RAVENNA or Livewire) .
Note that decoded audio samples can also be sent to internal audio buses, and audio buses can also be sources to be
encoded. This optional feature is used for transcoding IP audio streams.
4.1.5 Programs
In the encoding section of IQOYA X/LINK, a program is the encoding of one or several audio inputs. A program is then
defined by the following parameters:
● the audio mode: mono, stereo, multi-channel.
● the audio inputs that receive the signal to be encoded. The number of inputs is given by the audio mode. Stereo
and multi-channel modes refer to consecutive inputs.
● the audio format: algorithm, bitrate, sampling frequency.
On the decoding part of IQOYA X/LINK, a program is the decoding of an audio source to the audio output. A program can
be composed of three decoding priorities, with automatic switching from a priority to another in case the audio source is
lost. Audio sources of the decoding priorities can be:
● an RTP stream (raw RTP),
● a HTTP stream (Icecast/Shoutcast),
● audio inputs,
● sound files or playlists stored locally.
20
