Digisol DG-SC7100P-10 User manual
DG-SC7100P-10
Day/Night SPEED DOME POE IP Camera with
IR CUT FILTER and 10x OPTICAL ZOOM
User Manual
V1.0
2012-06-22
As our products undergo continuous development the specifications are subject to change without prior notice
DG-SC7100P-10 User Manual
2
COPYRIGHT
Copyright © 2011 by this company. All rights reserved. No part of this publication may
be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into
any language or computer language, in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written
permission of this company
This company makes no representations or warranties, either expressed or implied, with
respect to the contents hereof and specifically disclaims any warranties, merchantability
or fitness for any particular purpose. Any software described in this manual is sold or
licensed "as is". Should the programs prove defective following their purchase, the
buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all
necessary servicing, repair, and any incidental or consequential damages resulting from
any defect in the software. Further, this company reserves the right to revise this
publication and to make changes from time to time in the contents thereof without
obligation to notify any person of such revision or changes.
Trademarks:
DIGISOL™ is a trademark of Smartlink Network Systems Ltd. All other trademarks
are the property of the respective manufacturers.
Safety
This equipment is designed with the utmost care for the safety of those who install and
use it. However, special attention must be paid to the dangers of electric shock and
static electricity when working with electrical equipment. All guidelines of this and of
the computer manufacturer must therefore be allowed at all times to ensure the safe use
of the equipment.
DG-SC7100P-10 User Manual
3
Federal Communication Commission
Interference Statement
FCC Part 15
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to Part 15 of the FCC Rules. These limitations are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into a different outlet from that to which the receiver is
connected.
• Consult your local distributors or an experienced radio/TV technician for help.
• Shielded interface cables must be used in order to comply with emission limits
Changes or modifications to the equipment, which are not approved by the party
responsible for compliance could affect the user's authority to operate the equipment.
DG-SC7100P-10 User Manual
4
FCC Caution
This equipment must be installed and operated in accordance with provided instructions
and a minimum 20 cm spacing must be provided between computer mounted antenna
and person’s body (excluding extremities of hands, wrist and feet) during wireless
modes of operation.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the authority to operate equipment.
Federal Communication Commission (FCC) Radiation
Exposure Statement
This equipment complies with FCC radiation exposure set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the FCC radio frequency
exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches)
during normal operation.
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
The equipment version marketed in US is restricted to usage of the channels 1-11 only.
DG-SC7100P-10 User Manual
5
INDEX
1. Product Information............................................................................................................... 8
1-1 Product Introduction .................................................................................................... 8
1-1 Safety Instructions....................................................................................................... 9
1-2 System Requirements.............................................................................................. 10
1-3 Package Contents..................................................................................................... 11
1-4 Get Familiar with your new Network Dome Camera........................................... 12
1-5 Installation of the Network IP Camera.................................................................... 14
1-6 Ceiling-mount / Wall-mount Installation................................................................. 19
2. Using Network Dome Camera by Web Interface........................................................... 23
2-1 Locate the IP address of Network IP Camera....................................................... 23
2-2 Connect to dome camera’s Web User Interface................................................... 25
2-3 Viewing Live Video..................................................................................................... 30
2-4 Client Settings............................................................................................................ 34
3. Advanced Configuration..................................................................................................... 36
3-1 System......................................................................................................................... 38
3-2 Security........................................................................................................................ 40
3-3 Network ....................................................................................................................... 42
3‐3‐1Generalsetuppage ................................................................................................... 42
3‐3‐2Advancedsetuppage ................................................................................................ 45
3-4 IP Filter ........................................................................................................................ 47
3-5 Video............................................................................................................................ 49
3‐5‐1ImageSetting ............................................................................................................ 50
DG-SC7100P-10 User Manual
6
3‐5‐2VideoSetting............................................................................................................. 51
3‐5‐3OverlaySetting .......................................................................................................... 54
3-6 Audio............................................................................................................................ 56
3-7 Motion.......................................................................................................................... 57
3-8 PTZ Control................................................................................................................. 59
3-9 Event............................................................................................................................ 61
3‐9‐1Settings...................................................................................................................... 62
3‐9‐2Media ........................................................................................................................ 64
3‐9‐3EventServer .............................................................................................................. 65
3-10 Recording to SD Card............................................................................................. 70
3-11 Log ............................................................................................................................. 71
3-12 Device Info................................................................................................................ 72
3-13 Maintenance............................................................................................................. 73
3-14 Language.................................................................................................................. 74
4. Using SKYROS iView software......................................................................................... 75
4-1 Installing SKYROS iView Software......................................................................... 75
5 Getting familiar with SKYROS iView Software................................................................. 83
5-1 Configure SKYROS iView ........................................................................................ 89
5‐1‐1Device........................................................................................................................ 90
5‐1‐2Recording .................................................................................................................. 93
5‐1‐3System ....................................................................................................................... 96
5‐1‐4Schedule.................................................................................................................... 99
5‐1‐5Event........................................................................................................................ 102
DG-SC7100P-10 User Manual
7
5‐1‐6Security ................................................................................................................... 104
5-2 Video Playback......................................................................................................... 106
5‐2‐1StartVideoPlayback ............................................................................................... 106
5‐2‐2AdvancedSearch ..................................................................................................... 108
5‐2‐3EventSearch............................................................................................................ 112
5‐2‐4VideoPlayback........................................................................................................ 116
6. Appendix............................................................................................................................ 119
6-1 Specification ............................................................................................................. 119
6-2 Troubleshooting........................................................................................................ 120
6-3 Glossary.................................................................................................................... 121
DG-SC7100P-10 User Manual
8
1. Product Information
1-1 Product Introduction
DG-SC7100P-10 is a Speed Dome IP camera with 10x Optical Zoom. The speed dome
camera is designed in such a way making it an ideal solution for drop-ceiling mounting
for indoor applications. With its 360 degree continuous Pan and 180 degree Tilt, the
camera can monitor a larger area. The 10x optical zoom gives a detailed view of the
area under surveillance. With the latest H.264 compression standard, users can stream
high quality video at low bandwidth and storage capacity requirements. The IR cut
filter offers a true image quality during day/night operations. This IP camera has one
Digital input for receiving triggers from external device for notifying about an activity
in the area covered by the camera. It can also send a Digital output to an external
device, if the IP camera detects an activity.
DG-SC7100P-10 supports PoE, which helps in easy installation by eliminating the need
of a dedicated power source for the camera.
Other features of this Network IP Camera include:
360°Pan-tilt control, there is no dead spot that this dome camera can’t see.
Powerful 10x optical zoom.
Video output port - supports video output to other video devices or DVR. Video
output supports both NTSC / PAL video standard.
DI/DO (Digital input / Digital output) interface, you can connect to external
devices for remote control and automation.
Audio in-out interface provides audio communication capability.
No pre-installed software is required to view video and do the configuration, all
you need is network connection and a web browser.
3GPP Mobile Surveillance Supported.
ONVIF Compliant.
Supports IEEE802.3af power over Ethernet standard.
DG-SC7100P-10 User Manual
9
1-1 Safety Instructions
In order to keep the safety of users and your properties, please follow the safety
instructions as mentioned below. The warranty will become void if you disobey these
safety instructions.
1. This Network Dome Camera is a sophisticated electronic device; DO NOT drop it
from a height.
2. DO NOT place this dome camera at hot / humid places, and avoid direct sunlight.
3. Accessories of this IP Camera like power supply are dangerous to small children.
KEEPTHIS IPCAMERA OUT OF REACH OF CHILDREN.
4. If you want to use this dome camera at places that may be spilled by water or dirt, a
secure and water-proof camera housing is required.
5. DO NOT pull any cord that is connected to this dome camera by force.
6. This camera will get heated up after being used for a long time. Refrain from
touching the dome camera with hand, or cover this dome camera with paper or
cloth.
7. Never connect powered cable to the dome camera’s DI/ DO contacts.
8. If the dome camera falls into water when powered, DO NOT attempt to retrieve it
back yourself. Find a qualified electrical technician for help.
DG-SC7100P-10 User Manual
10
1-2 System Requirements
Windows XP, Vista or Win 7 operating system (both 32 or 64 bits version)
2GB of system memory
1GB of Display card memory
20GB of available hard disk space on system drive
DG-SC7100P-10 User Manual
11
1-3 Package Contents
Before you start using this IP camera, please check if there’s anything missing in the
package, and contact your dealer of purchase to claim for missing items:
1. DG-SC7100P-10 Speed Dome POE IP Camera (1 No.)
2. Switching Power Adapter (12V DC, 2A)
3. Installation Guide CD (includes User Manual, QIG, Utility & Firmware)
4. Ceiling Mounting bracket A (1 No.)
5. Ceiling Mounting bracket B (1 No.)
6. Ceiling Mounting bracket C (1 No.)
7. I/O signal cable (1 No.)
8. Screws package (1 No.)
Mounting bracket AMounting bracket BMounting bracket C
DG-SC7100P-10 User Manual
12

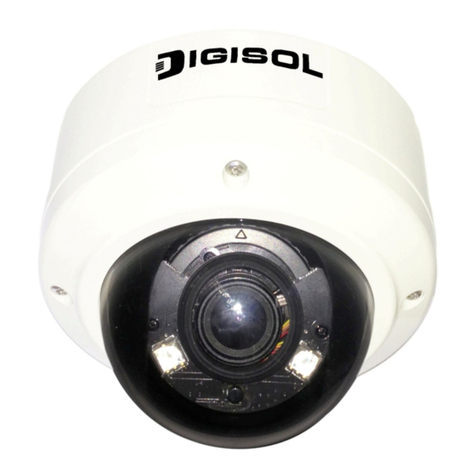

1-4 Get Familiar with your new Network Dome Camera
Rear View:
Sr. No. Item Description
1 Ethernet Connect to your local area network by Ethernet cable.
Left LED: Power Indicator
Right LED: LAN connectivity
2 I/O Digital input / output dry contacts. Connects to external
peripherals by wire. See next page for pin definitions.
WARNING: DO NOT CONNECT POWERED
CABLE.
3 Video Out Connect to other video peripherals by RCA cable.
4 Audio In-out Connect to audio peripherals by 3.5” audio cable.
5 DC 12V Connects to 12VDC power adapter output.
DG-SC7100P-10 User Manual
13
DI/DOPINASSIGNMENT
Item Description
1. Relay Digital Output ground
2. Relay Digital Output1
3. DI Digital Input 1
4. GND Signal ground
5. RS-485+ RS-485 signal positive(+)
6. RS-485- RS-485 signal negative(-)
SD card slot
Note: The SD card slot is available in the IP camera. Open the top portion of the
camera as shown in the figure above. The slot as highlighted in the figure will be
visible.
DG-SC7100P-10 User Manual
14
1-5 Installation of the Network IP Camera
Please follow the below mentioned instructions to setup your new dome camera. To
mount the IP camera on the wall or ceiling, please refer to next section.
Please note: You may wish to fix the camera to the ceiling or wall before you connect
these cables.
1.Insert Ethernet cable to ‘Ethernet’ port located at the back of dome camera. The
other end of Ethernet cable should connect to your local area network.
DG-SC7100P-10 User Manual
15
2.Connect IO signal cable to IO port located at the back of dome camera.
You can skip this step if you don’t have external I/O devices to connect.
DG-SC7100P-10 User Manual
16
3.Use a RCA cable (not supplied in accessory kit) to connect ‘Video Out’ port, and
connect the other end of RCA cable to peripherals which support video input, like
DVR, VTR, or television.
You can skip this step if you don’t need to connect other video peripherals.
DG-SC7100P-10 User Manual
17
4. Connect audio cable to “Audio in-out” port located at the back of dome camera,
and connect the other end of audio cable to audio peripherals like amplifier or
microphone.
You can skip this step if you don’t want to use audio peripherals.
5. Insert the AC adapter to the power outlet on the wall.
DG-SC7100P-10 User Manual
18
6. Insert the other end of AC adapter to “DC 12V” located at the back of dome
camera.
If everything is correct, you should see the LED light next to the Ethernet port lit up. If
not, please recheck installation procedures listed above again. If you still cannot get
dome camera work, please contact your dealer of purchase for help.
DG-SC7100P-10 User Manual
19
1-6 Ceiling-mount / Wall-mount Installation
1.Use 3 screws (supplied with the package) to securely fix ceiling mounting bracket A
on the wall or ceiling.
2) When mounting on concrete wall / ceiling, please use supplied plastic plugs
to fasten screws in the wall / ceiling, never use screws alone.
avoid IP dome camera from falling down.
NOTE:
1) Please refrain from mounting the camera on a thin wooden wall / ceiling to
DG-SC7100P-10 User Manual
20
If you want to fix the IP dome camera to ceiling / wall plate, kindly perform the below
mentioned steps:-
a.Take ceiling mounting bracket B and draw a circle by pen or pencil along the inner
circle of mounting bracket B, then use appropriate tool to cut a hole on the wall /
ceiling plate.
b.Fasten mounting bracket A on the wall / ceiling.
c. Put mounting bracket B behind the wall / ceiling plate.
WALLPLATE
