This document will guide you through the basic installation
process for your new D-Link Network Camera.
DCS-3112
Quick Installation Guide
HD Day & Night Network Camera

D-Link DCS-3112 Quick Install Guide
2
ENGLISH
DCS-3112 Quick Install Guide
This installation guide provides basic instructions for installing the DCS-3112 Network
Camera on your network. For additional information about how to use the camera,
please see the User’s Manual which is available on the CD include in this package or
from the D-Link support website.
Installation Steps
1. Verify the package contents against the list below.
2. Hardware Overview
3. Hardware Installation
4. Conguration with Wizard
5. Adjust the Zoom/Focus
1. Package Contents
 DCS-3112 Network Camera
 Camera Stand
 Manual and Software on CD-ROM
 CAT5 Ethernet Cable
 Power Adapter
 Quick Install Guide
 C-CS Mount Adapter (5mm Ring)
If any of the above items are missing, please contact your reseller.

D-Link DCS-3112 Quick Install Guide 3
ENGLISH

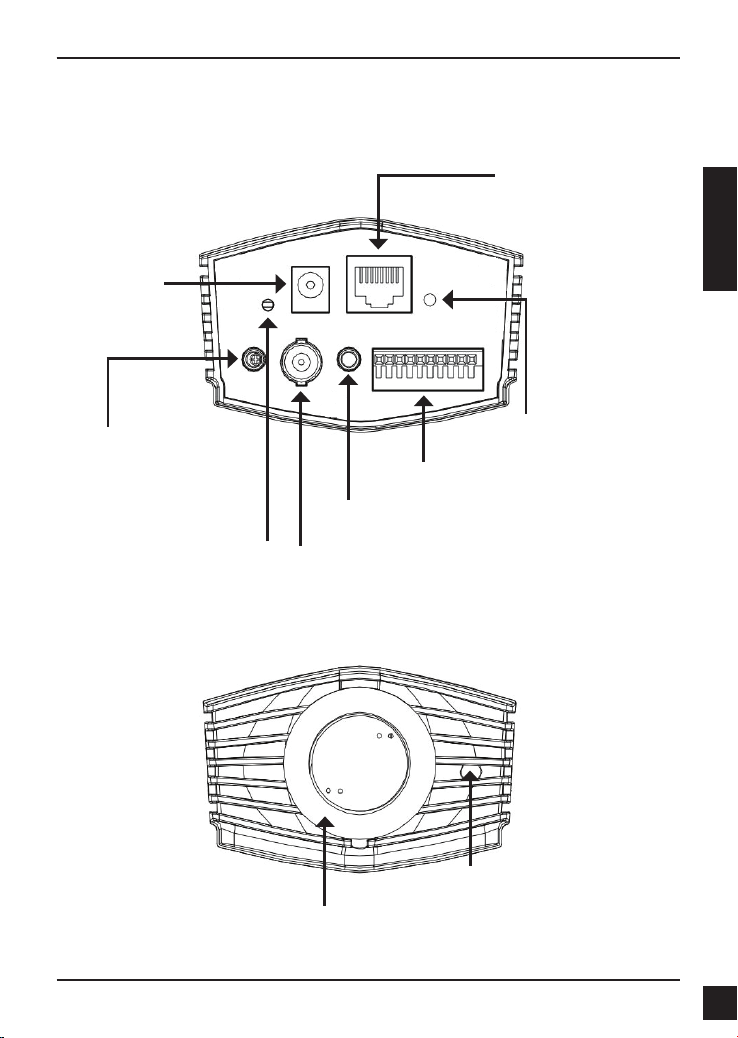

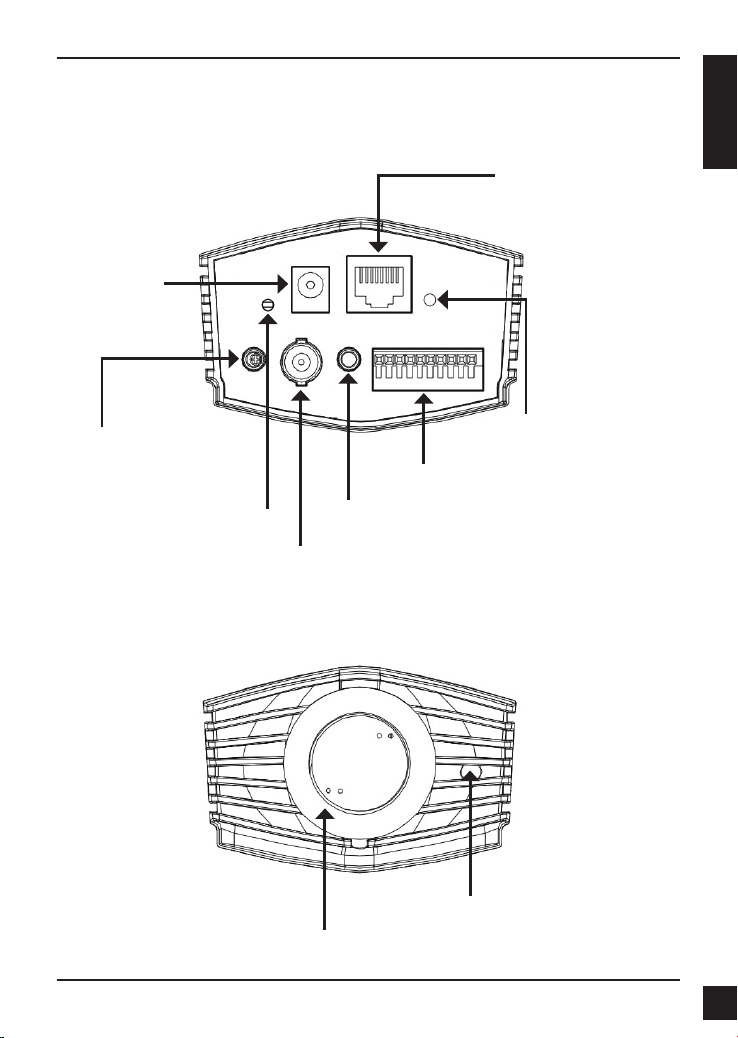

2. Hardware Overview
LED
Power and network indicator
I/O Connector
I/O connectors for external devices
BNC
Analog video output
Reset
Press and hold this button
for 10 seconds to reset the
camera
Audio In
Audio input connector for a
microphone
DC Power
12V DC
Audio Out
Audio output for external speakers.
Ethernet (PoE)
RJ-45 connector for Ethernet
which can also be used to power
the camera using PoE
Lens Connector
Connect to a CS mount
ICR Sensor
The IR-Cut Removable sensor judges
lighting conditions and switches from
color to infrared accordingly
Rear Panel
Front Panel

D-Link DCS-3112 Quick Install Guide
4
ENGLISH

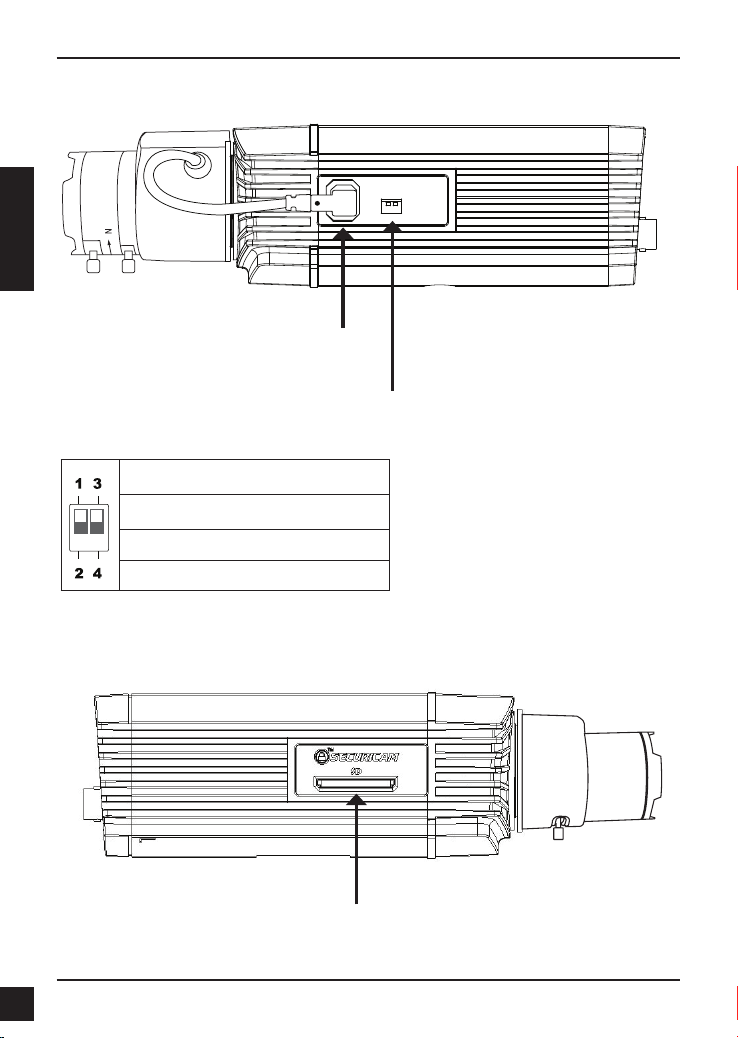

1. AES: Auto Electric Shutter
2. DC IRIS: Toggle auto iris (DC drive)
3. NTSC: TV output signal selector
4. PAL: TV output signal selector
Right Panel
Left Panel

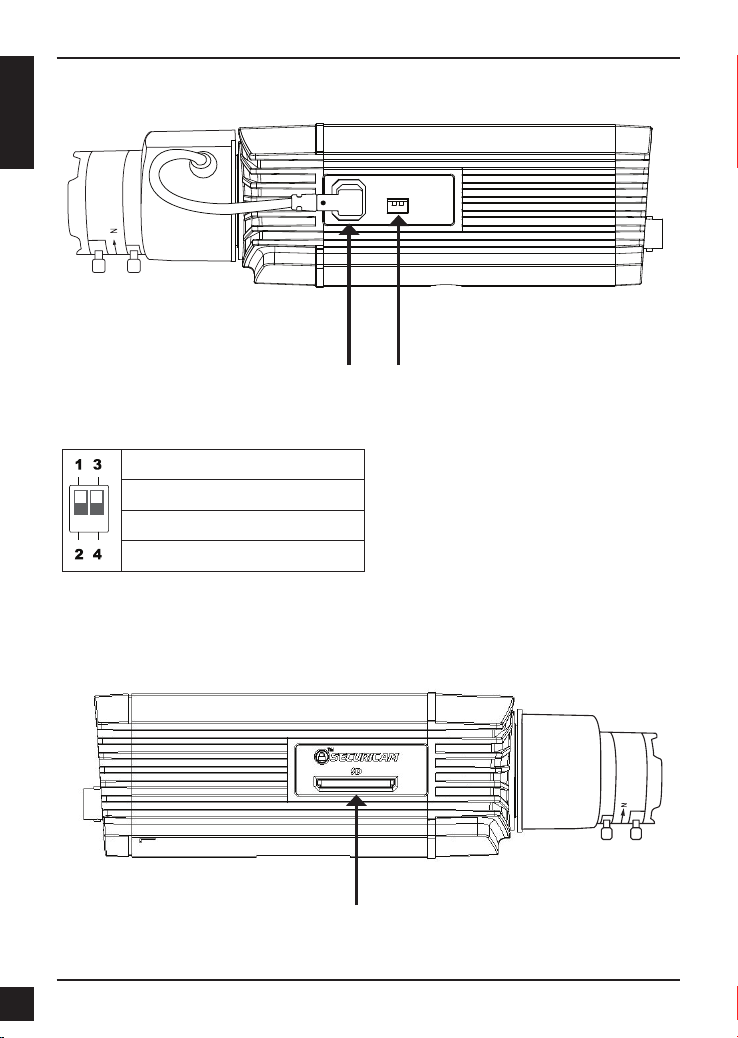

SD Card Slot
Local SD card for storing
recorded images and video
DC-Iris Connector
Connector for DC auto iris lens DIP Switch
Toggles between several regional formats.
1 AES
2 DCIRIS
3 NTSC
4 PAL
1
2
3
4

D-Link DCS-3112 Quick Install Guide 5
ENGLISH
3. Hardware Installation

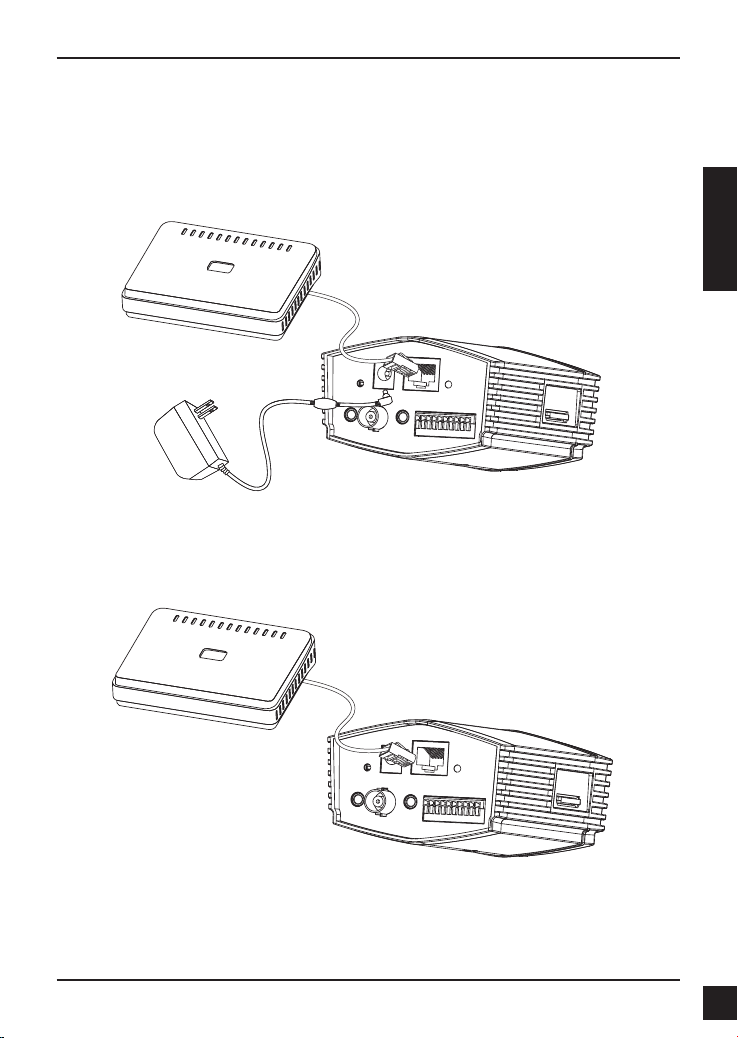

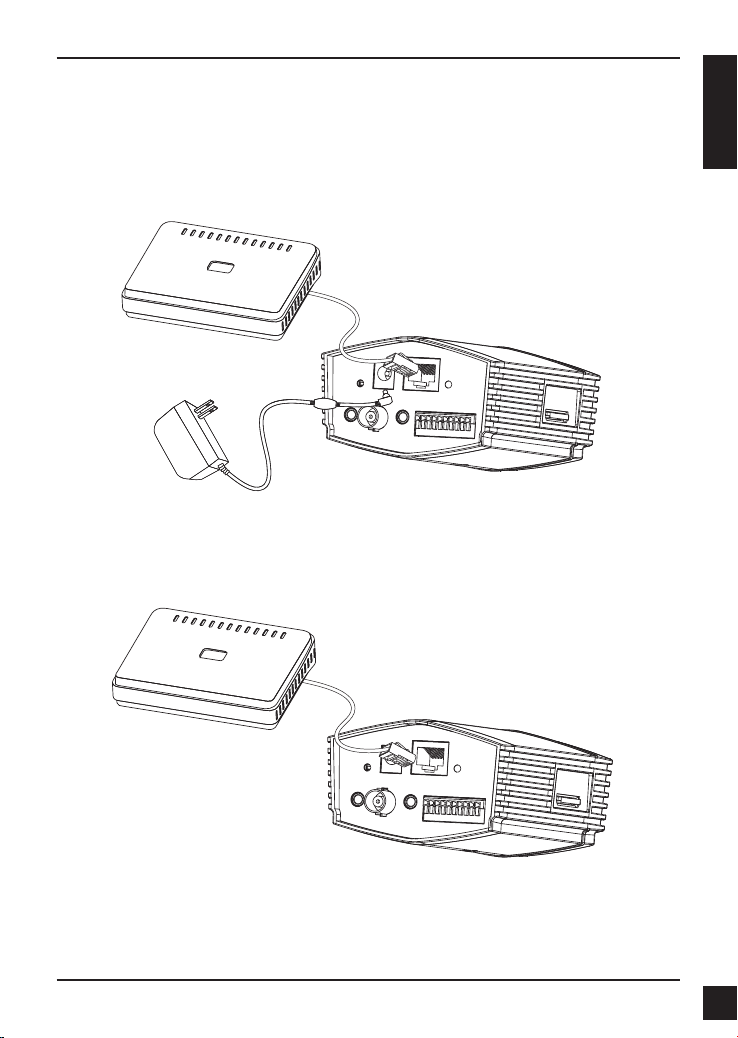

Basic Connection (without PoE)
Connect the camera to your switch or router via Ethernet cable.
Connect the supplied power cable from the camera to a power outlet.
Connection Using a PoE Switch
If using a PoE switch or router, connect the network camera via Ethernet cable.
PoE will transmit both power and data over a single cable.
Note: Once power has been established, the LED will turn red. When the device has
obtained an IP address and is accessible, the LED will turn green.

D-Link DCS-3112 Quick Install Guide
6
ENGLISH

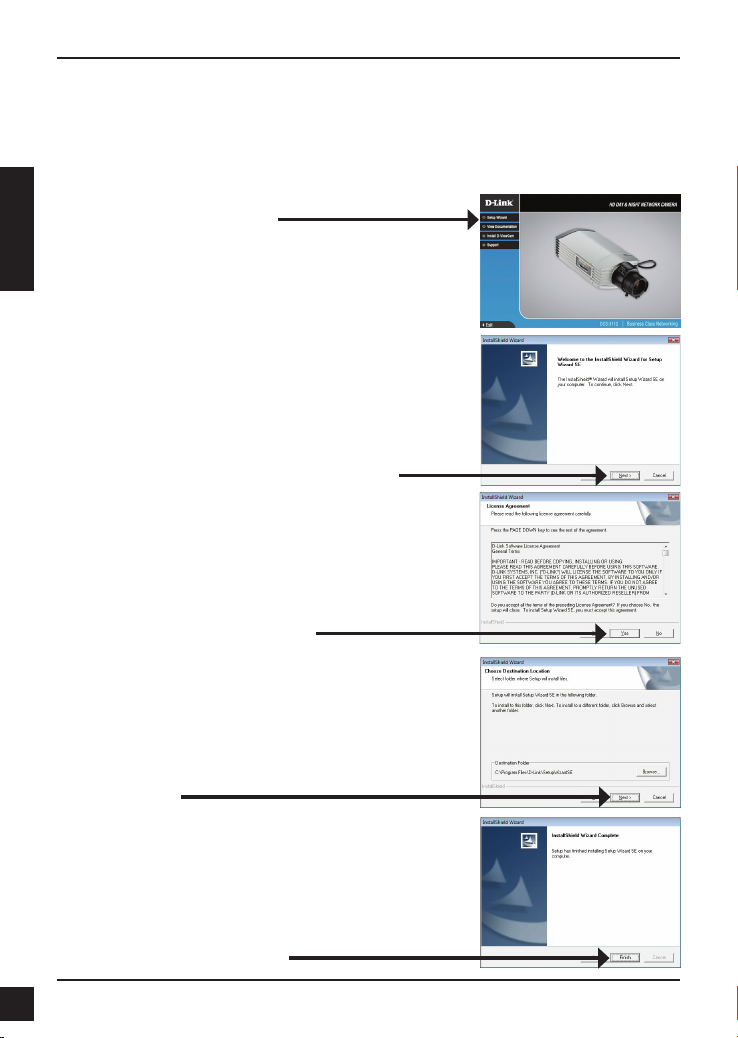

4. Conguration with Wizard

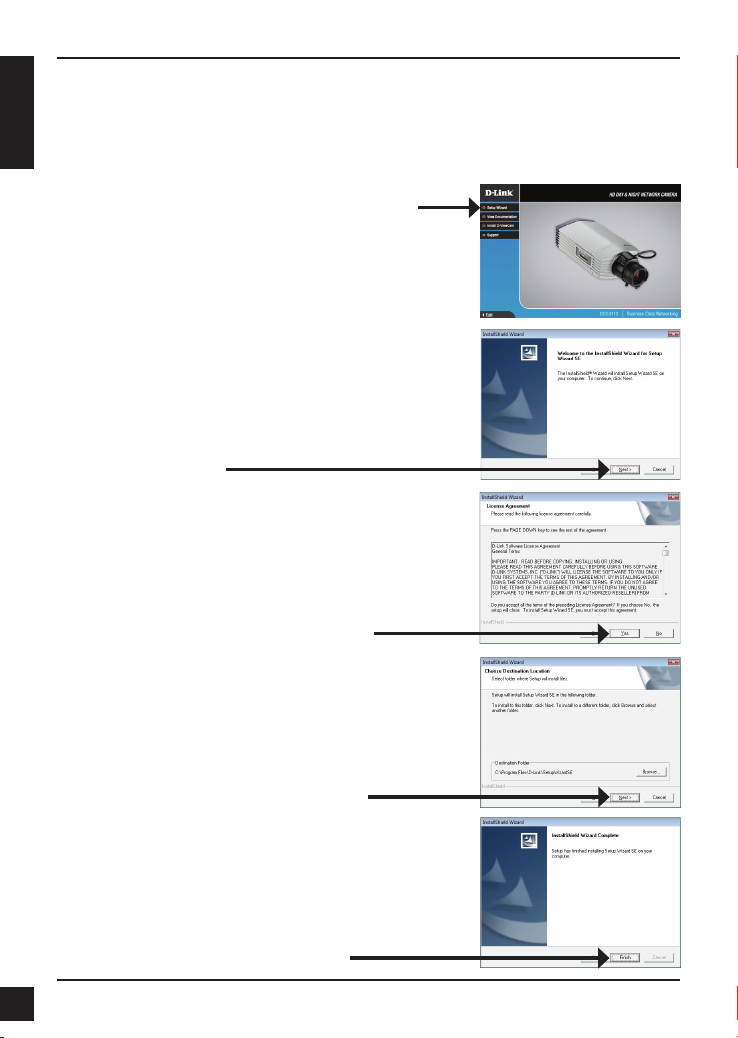

Click Installation Wizard to begin the installation.
Insert the DCS-3112 CD into your computer's CD-ROM drive to begin the installation. If
the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start
automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive
letter of your CD-ROM drive.
After clicking Setup Wizard, the following window will
open.
Click Next to continue.
Click Yes to accept the License Agreement.
Click Finish to complete the installation.
To start the installation process, click Next.
Note: The installation may take several minutes to
nish.

D-Link DCS-3112 Quick Install Guide 7
ENGLISH

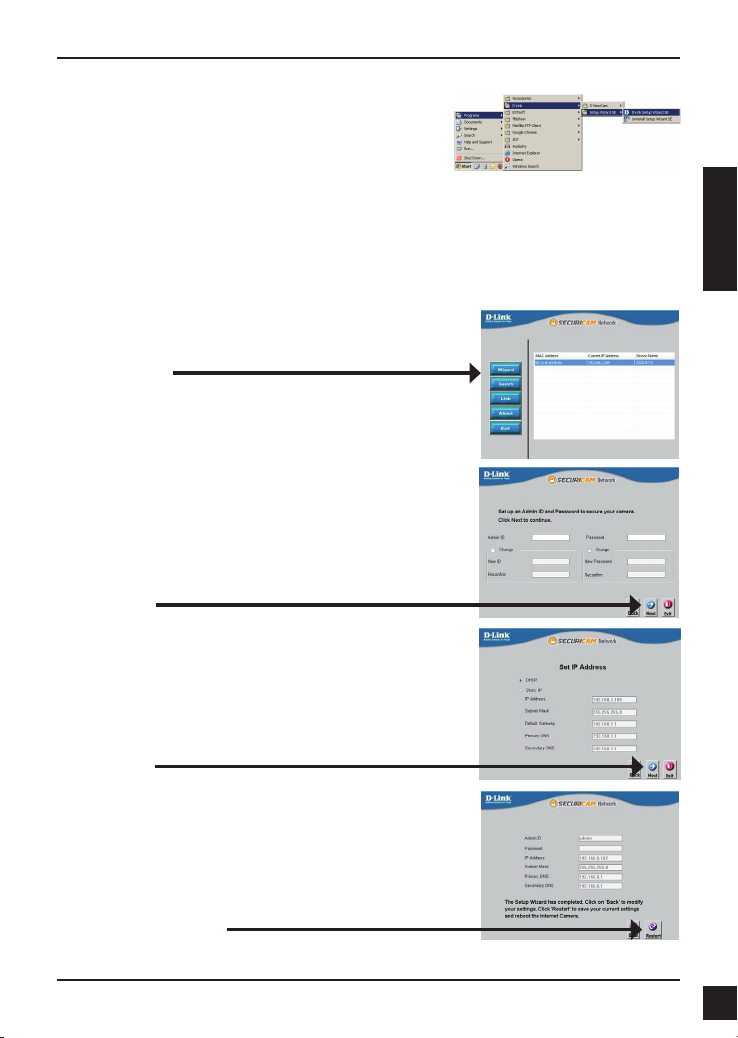

Click on the D-Link Setup Wizard SE icon that was
created in your Windows Start menu.
Start > D-Link > Setup Wizard SE
Take a moment to conrm your settings and click Restart.
Select DHCP if your camera obtains an IP address
automatically when it boots up. Select static IP if the
camera will use the same IP address each time it is
started.
Click Next, to proceed to the next page.
Enter the Admin ID and password. When logging in for
the rst time, the default Admin ID is admin with the
password left blank.
Click Next, to proceed to the next page.
The Setup Wizard will appear and display the MAC
address and IP address of your camera(s). If you have
a DHCP server on your network, a valid IP Address
will be displayed. If your network does not use a
DHCP server, the network camera's default static IP
192.168.0.20 will be displayed.
Click the Wizard button to continue.

D-Link DCS-3112 Quick Install Guide
8
ENGLISH

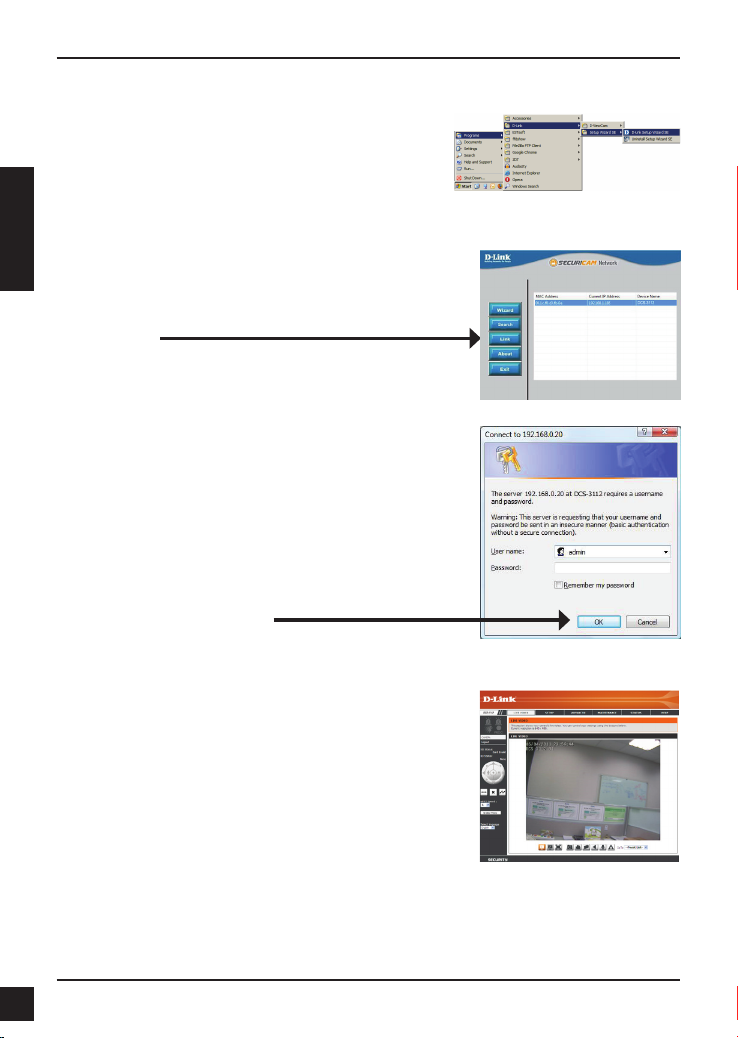

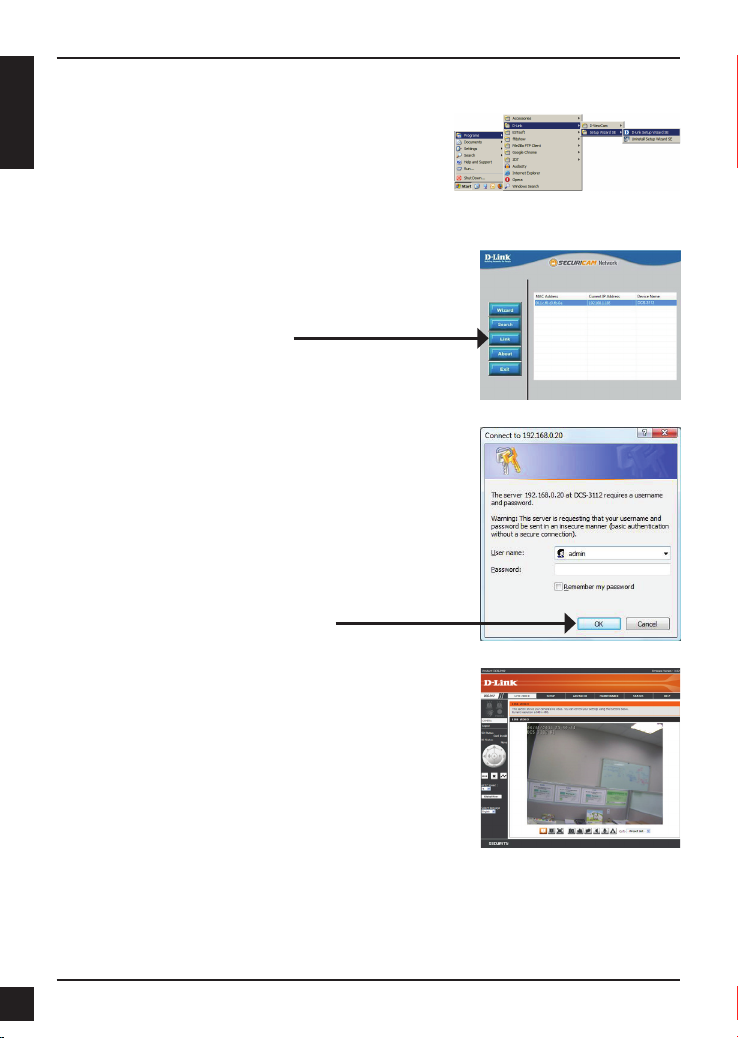

Viewing Camera via Web Browser
Click on the D-Link Setup Wizard SE icon that was
created in your Windows Start menu.
Start > D-Link > Setup Wizard SE
This section shows your camera’s live video. You
can select your video prole and view or operate
the camera. For additional information about web
conguration, please refer to the user manual included
on the CD-ROM or the D-Link website.
Enter admin as the default username and leave the
password blank. Click OK to continue.
Select the camera and click the button labeled "Link"
to access the web conguration.
The Setup Wizard will automatically open your web
browser to the IP address of the camera.

D-Link DCS-3112 Quick Install Guide 9
ENGLISH
5. Adjust the Zoom/Focus

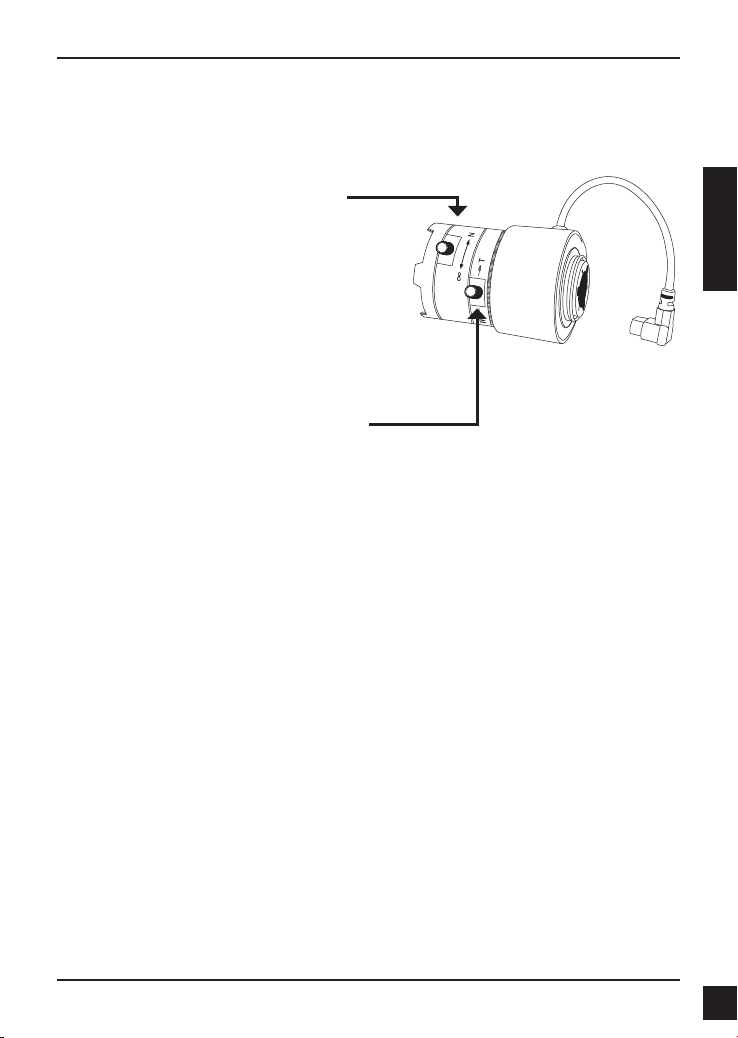

Adjust Zoom Ratio
Unscrew the focus controller to loosen
the zoom controller. Adjust the zoom
factor by moving the controller the left or
right until the desired range is achieved.
Tighten the zoom controller once
completed.

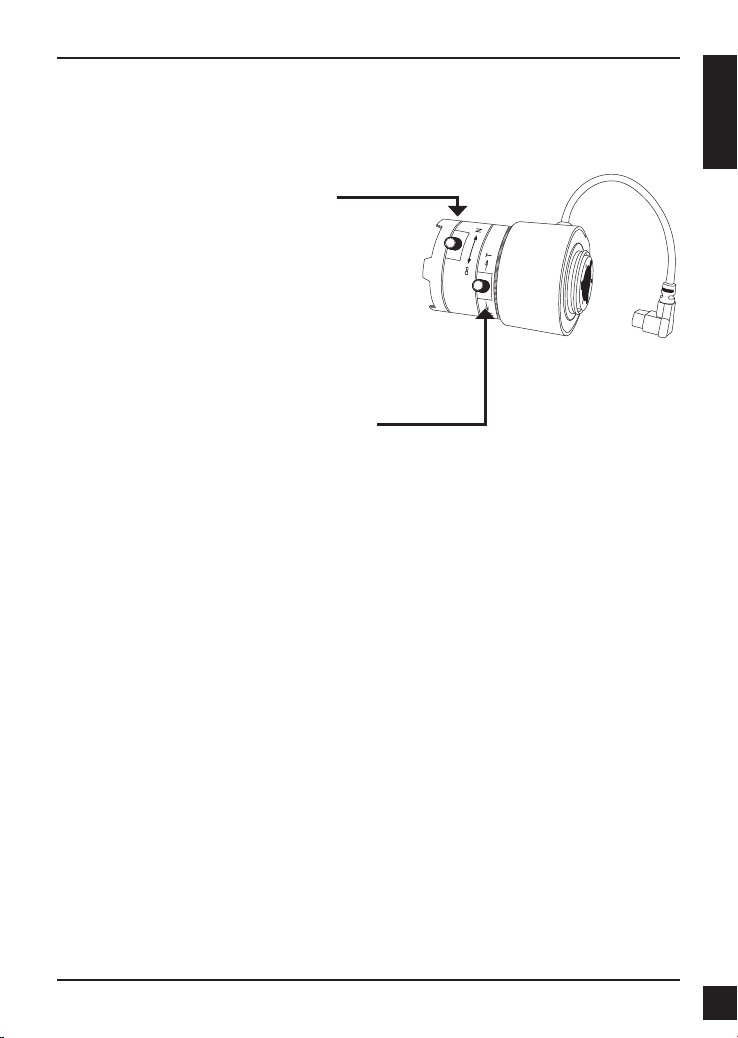

Adjust Focus
Unscrew the focus controller to loosen
it. Adjust the focal range by moving
the controller to the left or right until
the image is clear. Tighten the focus
controller once completed.

D-Link DCS-3112 Quick Install Guide
10
ENGLISH
