DEClaser 3500 Printer
Internal Fax Modem
Installation Guide
EK-D350P-IG.A01
Digital Equipment Corporation
Maynard, Massachusetts
Part Number 194683-001 - 08/12/94 - - Saved by digital - -
Rev # - File Name FAXMODM2.DOC

. . . . . . . . . . . . . . . . . . . . . . .
First Printing, June 1994
Digital Equipment Corporation makes no representations that the use of its products
in the manner described in this publication will not infringe on existing or future
patent rights, nor do the descriptions contained in this publication imply the
granting of licenses to make, use, or sell equipment or software in accordance with
the description.
Possession, use, or copying of the software described in this publication is
authorized only pursuant to a valid written license from Digital or an authorized
sublicensor.
Digital Equipment Corporation 1994. All Rights Reserved.
Printed in the U.S.A.
The following are trademarks of Digital Equipment Corporation: DECimage Plus,
DEClaser, DECnet, DECprint, DECserver, DECstation, LATprint,
OpenDECconnect, OpenVMS, PrintServer, ULTRIX, VAX, VAXstation, Digital,
and the DIGITAL logo.
All other trademarks and registered trademarks are the property of their respective
holders.
The software described in this guide is furnished under a license agreement or
nondisclosure agreement. The software may be used or copied only in accordance
with the terms of the agreement.
2
Part Number 194683-001 - 08/12/94 - - Saved by digital - -
Rev # - File Name FAXMODM2.DOC

. . . . . . . . . . . . . . . . . . . . . . .
FEDERAL COMMUNICATIONS
COMMISSION NOTICE
Class B Equipment
FCC ID: A09-LN14X-FX
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
n Reorient or relocate the receiving antenna.
n Increase the separation between the equipment and receiver.
n Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
n Consult the dealer or an experienced radio or television
technician for help.
3
Part Number 194683-001 - 08/12/94 - - Saved by digital - -
Rev # - File Name FAXMODM2.DOC

. . . . . . . . . . . . . . . . . . . . . . .
This digital apparatus does not exceed the Class B limits for radio
noise emissions from digital apparatus as set out in the
interference-causing equipment standard entitled "Digital
Apparatus," ICES-003 of the Department of Communications.
Cet appareil numérique respecte les limites de bruits
radioélectriques applicables aux appareils numériques de Classe B
prescrites dans la norme sur le matériel brouilleur : "Appareils
Numériques", NMB-003 édictée par le ministre des
Communications.
Modifications
The FCC requires the user to be notified that any changes or
modifications made to this device that are not expressly approved
by Digital Equipment Corporation may void the user's authority to
operate the equipment.
Cables
Connections to this device must be made with shielded cables with
metallic RFI/EMI connector hoods in order to maintain compliance
with FCC Rules and Regulations.
U.S. REGULATIONS GOVERNING THE
USE OF FACSIMILE DEVICES
This equipment complies with Part 68 of the FCC rules. Located
on the Fax board is a label that contains, among other information,
the FCC Registration Number and Ringer Equivalence Number
(REN) for this equipment. Upon request, you must provide this
information to your telephone company.
The REN is useful to determine the quantity of devices you may
connect to your telephone line and still have all of those devices
ring when your telephone number is called. In most, but not all,
areas the sum of the RENs of all devices connected to one line
should not exceed five (5.0). To be certain of the number of
devices you may connect to your telephone line, as determined by
the REN, you should contact your local telephone company to
determine the maximum REN for your calling area. The REN for
this device is 0.8B.
4
Part Number 194683-001 - 08/12/94 - - Saved by digital - -
Rev # - File Name FAXMODM2.DOC

. . . . . . . . . . . . . . . . . . . . . . .
If your telephone equipment causes harm to the telephone network,
the telephone company may discontinue your service temporarily.
If possible, they will notify you in advance. But, if advance notice
is not practical, you will be notified as soon as possible. You will
also be informed of your right to file a complaint with the FCC.
Your telephone company may make changes in its facilities,
equipment, operations, or procedures that could affect the proper
functioning of your equipment. If they do, you will be notified in
advance to give you an opportunity to maintain uninterrupted
telephone service.
If you experience trouble with this telephone equipment, contact
your local telephone company for information on obtaining service
or repairs. The telephone company may ask that you disconnect
this equipment from the network until the problem has been
corrected or until you are sure that the equipment is not
malfunctioning.
CAUTION: Users should not attempt to make such
connections themselves, but should contact the
appropriate electrical inspection authority, or electrician,
as appropriate.
This equipment may not be used on coin service provided by the
telephone company. Connection to party lines is subject to state
tariffs.
5
Part Number 194683-001 - 08/12/94 - - Saved by digital - -
Rev # - File Name FAXMODM2.DOC

. . . . . . . . . . . . . . . . . . . . . . .
CANADIAN REGULATIONS GOVERNING
THE USE OF FACSIMILE DEVICES
NOTE: The Canadian Department of Communications label
identifies certified equipment. This certification means that the
equipment meets certain telecommunications network protective,
operations, and safety requirements. The Department does not
guarantee the equipment will operate to the user's satisfaction.
Before installing the equipment, users should ensure that it is
permissible to be connected to the facilities of the local
telecommunications company. The equipment must also be
installed using an acceptable method of connection. In some cases,
the company's inside wiring associated with a single line individual
service may be extended by means of a certified connector
assembly (telephone extension cord). The customer should be
aware that compliance with the above conditions may not prevent
degradation of service in some situations.
Repairs to certified equipment should be made by an authorized
Canadian maintenance facility designated by the supplier. Any
repairs or alternations made by the user to this equipment, or
equipment malfunctions, may give the telecommunications
company cause to request the user to disconnect the equipment.
Users should ensure for their own protection that the electrical
ground connections of the power utility, telephone lines and
internal metallic water pipe system, if present, are connected
together. This precaution may be particularly important in rural
areas.
CAUTION: Users should not attempt to make such
connections themselves, but should contact the
appropriate electrical inspection authority, or electrician,
as appropriate.
The Load Number (LN) assigned to each terminal device denotes
the percentage of the total load to be connected to a terminal loop,
which is used by the device, to prevent overloading. The
termination on a loop may consist of any combination of devices
subject only to the requirement that the total of the Load Numbers
of all devices does not exceed 100.
The Load Number for this device is "4".
6
Part Number 194683-001 - 08/12/94 - - Saved by digital - -
Rev # - File Name FAXMODM2.DOC

. . . . . . . . . . . . . . . . . . . . . . .
ELECTROSTATIC DISCHARGE
A discharge of static electricity from a finger or other conductor
may damage circuit boards or other static-sensitive devices. This
type of damage may reduce the life expectancy of the device. To
prevent electrostatic damage, observe the following precautions:
n Avoid hand contact by transporting and storing parts in
static-safe containers.
n Keep electrostatic-sensitive parts in their containers until
they arrive at static-free work stations.
n Place parts on a grounded surface before removing them
from their container.
n Avoid touching pins, leads, or circuitry.
n Always be properly grounded when touching a static-
sensitive component or assembly.
GROUNDING METHODS
Use one or more of the following grounding methods when
handling or installing electrostatic-sensitive parts:
n Use a flexible wrist strap with a minimum of 1 megohm ±10
percent resistance in the ground cord that is connected to a
grounded workstation or the printer chassis. To provide
a proper ground, wear the strap snug against the skin.
n Use heel straps, toe straps, or boot straps on both feet at
standing workstations. Stand on conductive floors or
dissipating floor mats.
n Use conductive field service tools.
n Use a portable field service kit with a folding static-
dissipating work mat.
If you do not have the proper grounding equipment, have an
Authorized Service Provider install the part.
NOTE: For additional information on static electricity, or
assistance with the installation of this product, contact your
Authorized Service Provider.
7
Part Number 194683-001 - 08/12/94 - - Saved by digital - -
Rev # - File Name FAXMODM2.DOC

. . . . . . . . . . . . . . . . . . . . . . .
KIT CONTENTS
n One Fax Modem board
n Screws
n Telephone cord with modular connection
[RJ11 (USA) or CA11 (Canada)]
n Fax software and documentation
ITEMS NEEDED FOR INSTALLATION
n Internal Fax Modem Option Kit
n Nonmagnetic Phillips screwdriver
CAUTION: To avoid electrostatic damage to the
printer option and/or system controller board, follow
the safety precautions outlined in "Electrostatic
Discharge."

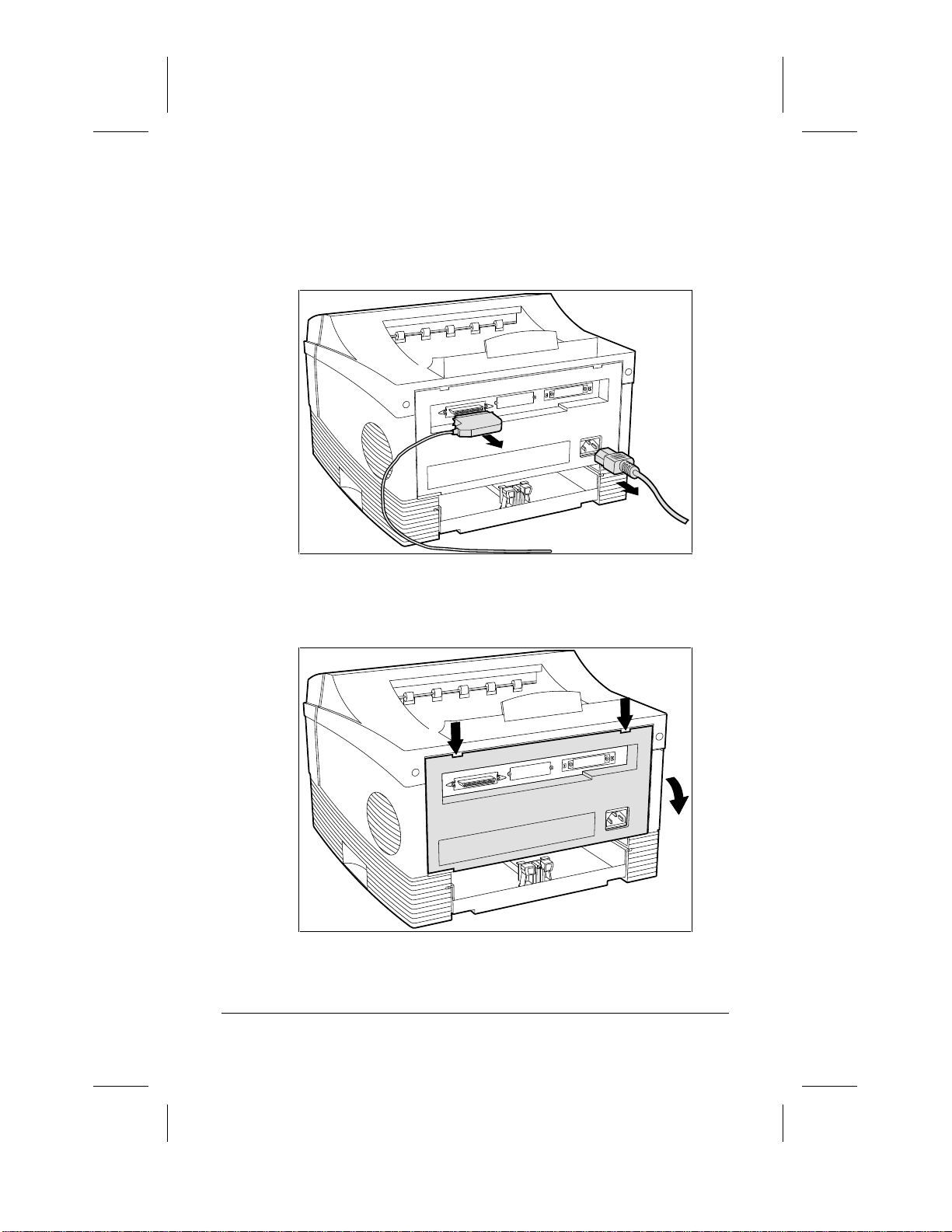

STEP 1
TURN THE PRINTER OFF (O) AND UNPLUG THE POWER
CORD.
8
Part Number 194683-001 - 08/12/94 - - Saved by digital - -
Rev # - File Name FAXMODM2.DOC

. . . . . . . . . . . . . . . . . . . . . . .
!WARNING: Turn the printer off and unplug the AC
power cord before attempting to remove the system
controller board. Failure to do so may result in an
electrical shock or damage to the printer.
WARNUNG: Schalten Sie den Drucker aus und
ziehen Sie den Stecker des Netzteil-Adapters, bevor
Sie die Systemsteuerungskarte ausbauen.
Andernfalls besteht die Gefahr elektrischer Schläge
oder einer Beschädigung des Druckers.
AVERTISSEMENT: Mettez l'imprimante hors
tension et débranchez le cordon d'alimentation
secteur avant d'enlever la carte contrôleur. Toute
omission de votre part risquerait de provoquer une
décharge électrique ou d'endommager l'imprimante.
AVVERTENZA: Spegnere la stampante e staccare il
cavo di alimentazione CA prima di rimuovere la
scheda del controller del sistema al fine di evitare
scosse elettriche o danni alla stampante.
ADVERTENCIA: Apague la impresora y desenchufe
el cable de alimentación de CA antes de extraer la
tarjeta controladora del sistema o, del lo contrario,
se puede producir una descarga electrostática o se
puede estropear la impresora.
WAARSCHUWING: Schakel de printer uit en neem
de stekker uit het stopcontact voordat u de systeem-
controllerkaart verwijdert. Als u dit niet doet, kunt
u een elektrische schok krijgen of de printer
beschadigen.
9
Part Number 194683-001 - 08/12/94 - - Saved by digital - -
Rev # - File Name FAXMODM2.DOC

. . . . . . . . . . . . . . . . . . . . . . .
STEP 2
DISCONNECT ALL CABLES FROM THE PRINTER.
STEP 3
PRESS DOWN ON THE TABS TO OPEN AND LOWER THE
REAR COVER.
10
Part Number 194683-001 - 08/12/94 - - Saved by digital - -
Rev # - File Name FAXMODM2.DOC

. . . . . . . . . . . . . . . . . . . . . . .
STEP 4
1
2
3
LOOSEN THE SCREWS AND REMOVE THE SYSTEM
CONTROLLER BOARD.
1 Thumbscrews
2 System Controller Board
3 Rear Cover
STEP 5
2
21
3
REMOVE THE BLANK PLATE COVERING AN
INTERFACE CONNECTOR SLOT.
1 Blank Plate
2 Mounting Posts
3 Retaining Bracket
11
Part Number 194683-001 - 08/12/94 - - Saved by digital - -
Rev # - File Name FAXMODM2.DOC

. . . . . . . . . . . . . . . . . . . . . . .
STEP 6
J9 J7
PLUG THE MODEM INTERFACE CONNECTOR INTO
LOCATION J7 OR J9 AND SECURE.
Be sure that the screws are inserted through the insulator cover
when securing the modem to the mounting posts.
12
Part Number 194683-001 - 08/12/94 - - Saved by digital - -
Rev # - File Name FAXMODM2.DOC

. . . . . . . . . . . . . . . . . . . . . . .
STEP 7
1
2
3
REINSTALL AND SECURE THE CONTROLLER BOARD
AND CLOSE THE REAR COVER.
1 Thumbscrews
2 System Controller Board
3 Rear Cover
STEP 8
RECONNECT ALL CABLES.
13
Part Number 194683-001 - 08/12/94 - - Saved by digital - -
Rev # - File Name FAXMODM2.DOC

. . . . . . . . . . . . . . . . . . . . . . .
STEP 9
CONNECT THE TELEPHONE CORD FROM A WALL
JACK TO THE "LINE" JACK ON THE MODEM.
!WARNING: Always disconnect the Internal Fax
Modem from the telephone system when installing
options or when covers are removed from the printer.
ADVERTISSEMENT : Déconnectez toujours le
modem fax du système téléphoneque lorsque vous
installez une option ou déposez le capot de
l'imprimante.
ADVERTENCIA: Desconecte siempre el Módem Fax
del sistema telefónico al instalar opciones o al retirar
las cubiertas de la impresora.
STEP 10
IF A TELEPHONE AND THE FAX MODEM SHARE THE
SAME LINE, CONNECT ANOTHER CORD FROM THE
TELEPHONE TO THE "PHONE" JACK ON THE MODEM.
Picking up the receiver of the associated telephone during data
communications may cause data transmission errors.
14
Part Number 194683-001 - 08/12/94 - - Saved by digital - -
Rev # - File Name FAXMODM2.DOC

. . . . . . . . . . . . . . . . . . . . . . .
STEP 11
PLUG IN AND TURN ON (O) THE PRINTER.
STEP 12
PRINT A HARDWARE REPORT.
Using the printer control panel:
1. Press the Menu key. The printer is placed offline and in
menu mode.
2. Go to the Reports menu to print a Hardware Report.
3. After printing the report, press Online (En ligne, Inlinea,
En línea) to place the printer back online.
4. Verify that the Fax board is listed on the report.
15
Part Number 194683-001 - 08/12/94 - - Saved by digital - -
Rev # - File Name FAXMODM2.DOC

. . . . . . . . . . . . . . . . . . . . . . .
TROUBLESHOOTING
If the option you just installed is not listed on the Hardware Report,
you should:
1. Make sure that the Fax Modem is properly attached and
firmly secured to the J7 or J9 connector.
2. Rerun the Hardware Report.
3. If the option is still not listed, move the Fax Modem board
to the other connector (J7 or J9).
4. Rerun the Hardware Report.
5. If the Fax Modem is still not listed, contact your Authorized
Service Provider.
WHERE TO GO FROM HERE
Your Fax Modem option kit contains software to use with the Fax
Modem. Refer to the software package that contains your
operating system for fax utility installation instructions. If no
Operation Guide is supplied for your system, online documentation
is available in the software utility.
SETTING THE FAX CLOCK
After installing the Fax board, you should set the clock. This can
be done through the Fax menu on the printer control panel or by
using the Administrator Utility that ships with the option. Refer to
the printer User's Guide for instructions on using the control panel.
16
Part Number 194683-001 - 08/12/94 - - Saved by digital - -
Rev # - File Name FAXMODM2.DOC
