DECmau 900TL
INSTALLATION
TheDECmau900TLisaTokenRingMultistationAccessUnit(MAU).Asamember
ofDigital’sTokenRingproductfamily,itoperatesinaDEChub900MultiSwitch,ora
single-slothub(DEChubONEMAU900TL).TheMAUconnectsuptoeightstations
using 100-ohm shielded or unshielded cable with RJ45 connectors, and 150-ohm
IBMType1datacableusinganimpedencematchingtransformercable. Itoperates
at 4 or 16 Mb/s and incorporates speed detection. The MAU can also be managed
by optional HUBwatch management software.
PK–02580–IL
DEChub ONE MAU 900TL DECmau 900TL
LKG–8137-93I

FCC NOTICE – Class A Computing Device:
This equipment generates, uses, and may emit radio frequency energy. The equipment has been
typetestedandfoundtocomplywiththelimitsforaClassAcomputingdevicepursuanttoSubpart
J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such radio
frequency interference when operated in a commercial environment. Operation of this equipment
in a residential area may cause interference; in which case, measures taken to correct the
interference are at the user’s expense.
The following are trademarks of Digital Equipment Corporation:
DEC, DEChub, DEChub ONE, DECmau, DECrepeater, Digital, the DIGITAL logo,
HUBwatch, and MultiSwitch.
EK–DTMAU–IN. A01
July, 1993
The information in this document is subject to change without notice and should not be
construed as a commitment by Digital Equipment Corporation. Digital Equipment Corp-
oration assumes no responsibility for any errors that may appear in this document.
Copyright 1993 by Digital Equipment Corporation
All Rights Reserved.
Printed in U.S.A.
VCCI NOTICE – Class 1 Computing Device:
This equipment is in the 1st Class category (information equipment to be used in commercial
and/or industrial areas) and conforms to the standards set by the Voluntary Control Council for
Interference by Data Processing Equipment and Electronic Office Machines aimed at preventing
radio interference in commercial and/or industrial areas.
Consequently,whenusedinaresidentialareaorinanadjacentareathereto,radio interferencemay
be caused to radios and TV receivers, etc.
Read the instructions for correct handling.

Copyright


2 DECmau 900TL

PK–02586–IL

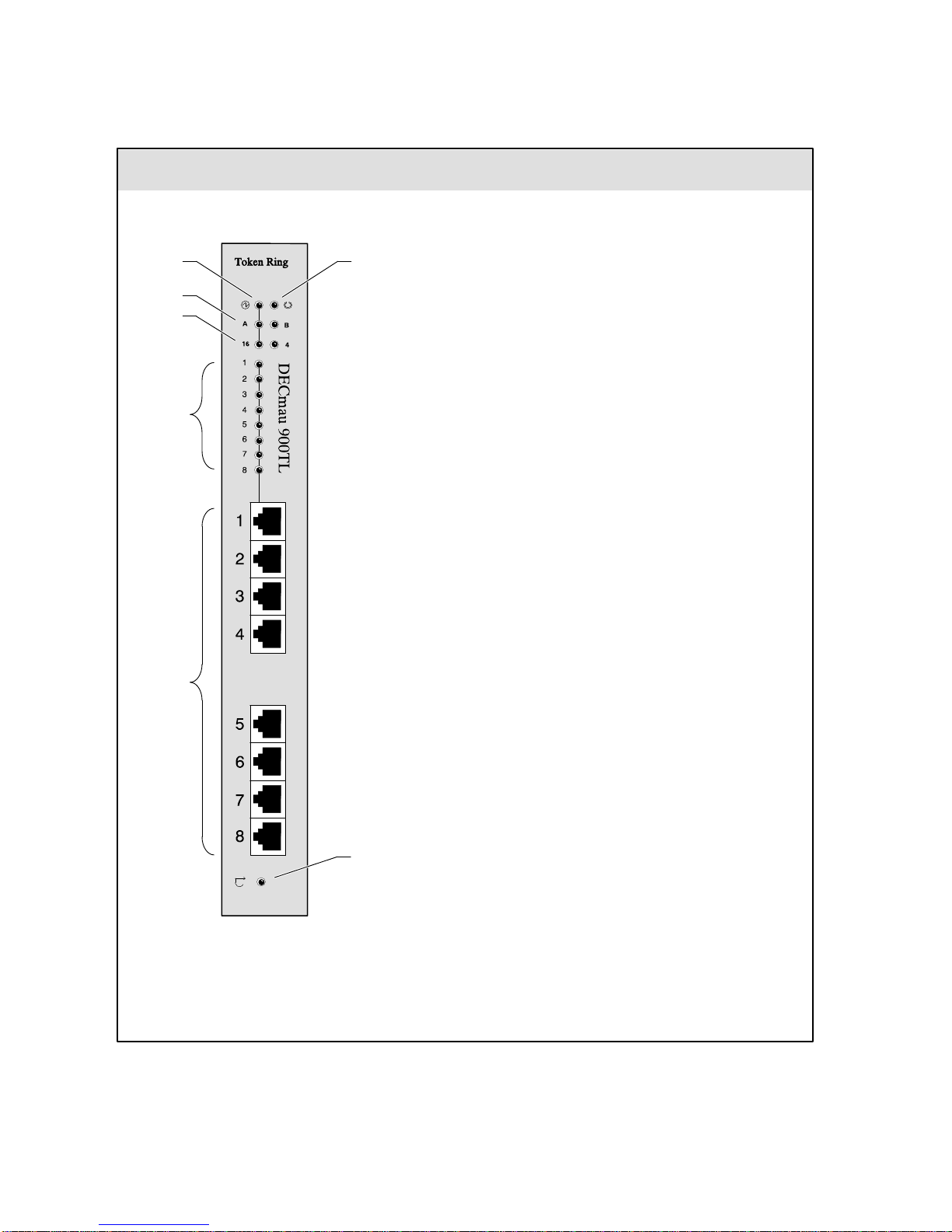

1 ) Power LED. Lights when the MAU has power.
2 ) Module OK LED. Lights when the MAU passes its
self-test. If the MAU fails its self-test, the OK LED is
off.
3 ) Ring A/B LEDs. In a hub, either the A LED or the B
LED is on to show the ring. In a standalone MAU,
both Ring LEDs are always off.
4 ) Speed LEDs. Either the 16 LED or the 4 LED is on
to show the ring speed.
5 ) Eight Lobe LEDs. Lights when a station has access
to the network.
6 ) Eight Lobe Connectors. Connects a station to the
network.The MAUconnects upto eightstations with
shieldedorunshielded100-ohmcable,and150-ohm
IBMType1datacableusinganimpedencematching
transformer cable (Digital part number BN26T-03).
7 ) Reset Switch. Resets the MAU to factory defaults.
To reset: while turning on the power, press the reset
switch with a pen or screwdriver.
Front Panel
Notes:
The DECmau 900TL has speed detect, which
ensures the integrity of the network. At startup, a
MAU determines the ring speed based on the
speed settings of the majority of the stations on the
ring and the Ring Out port. In a hub, the MAU then
connects to the appropriate ring in the hub. After
startup, speed detect prevents stations with the
wrong speed setting from connecting to the net-
work.
Network management can override any of the
MAU’s factory default settings.
DECmau 900TL 3
LKG-8145-93I
6
4
3
5
1 2
7

Note:
TherearpanelshownhereisusedonlywhentheMAU
is in a single-slot hub configuration.
1 ) Ring In LED. Lights with a Ring In connection.
2 ) Ring Out LED. Lights with a Ring Out connection.
3) PowerConnector.Providespowerconnectionforthe
MAU.
4 ) Ring In Connector. Connects Ring In to the Ring
Out connector of a MAU or repeater.
5 ) Ring In Autowrap Switch. Determines whether the
MAU automatically loops back when it detects a
disconnected link on Ring In. If the Ring In port
connects to a device with Digital’s Autowrap, set the
switch to 1 to enable Autowrap. If the Ring In port
connects to a device without Digital’s Autowrap, set
the switch to 0 to disable Autowrap.
6 ) Ring Out Connector. Connects Ring Out to the Ring
In connector of a MAU or repeater.
7 ) RingOutAutowrapSwitch.Determineswhetherthe
MAU automatically loops back when it detects a
disconnected link on Ring Out. If the Ring Out port
connects to a device with Digital’s Autowrap, set the
switch to 1 to enable Autowrap. If the Ring Out port
connects to a device without Digital’s Autowrap, set
the switch to 0 to disable Autowrap.
8 ) Not used. Reserved for out-of-band network
management.
Rear Panel of DEChub ONE MAU 900TL
4DECmau 900TL
LKG-8146-93I
2
1
3
4
5
6
7
8


a. Loosen the screw on the single-slot
hub until it disengages.
b. With one hand holding the front of
the MAU, and your other hand
holding the single-slot hub,
carefully pull the two units apart.
WhenyouinstallaMAUinaDEChub900MultiSwitch,youdonothavetoturnoffthehubpower.
Remove the single-slot hub (if necessary).
If you want to install a DEChub ONE MAU 900TL in a hub,
you need to remove the single-slot hub.
1
Install the MAU in the hub. a. Align the MAU’s 48-pin connector
with any available 48-pin slot on the
hub.
b. Place the MAU’s bottom mounting
tabintothemountingslotonthehub.
c. RocktheMAUintoplace.Youheara
‘‘click” when the MAU is seated.
Installing a MAU in a DEChub 900 MultiSwitch
DECmau 900TL 5
2
The release lever is
lifted and clicks
back into place
as the module
is seated.
LKG–8139-93I
Mounting
tab

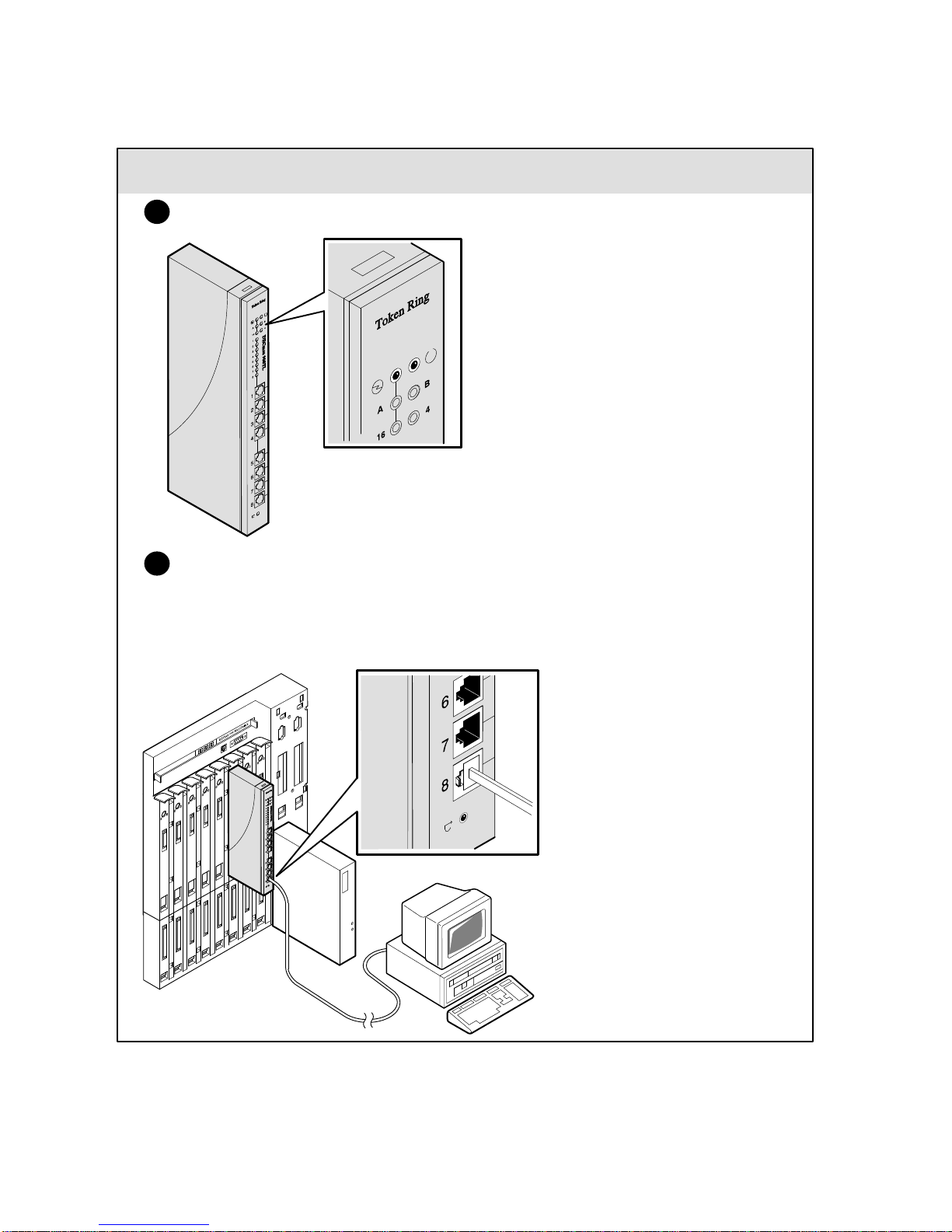

Connect station cables to any
available lobe connector on the
MAU. For 150-ohm applications,
you also need an impedence
matching transformer cable
(Digital part number BN26T-03).
Connect station cables.
4
PK–02570–IL
Installing a MAU in a DEChub 900 MultiSwitch (continued)
6DECmau 900TL
Verify power.
3
With power on in the hub, verify that the
Power and Module OK LEDs are on.
LKG–8141-93I
Module installation for a
DEChub 900 MultiSwitch
is complete.
LKG–8140-93I

a. SettheRingInandtheRingOutAutowrap
switches to 1 or 0.
b. Set the switch to 1 to enable Autowrap
when the Ring In or Ring Out port
connects to a device with Digital’s Auto
wrap, there is only one MAU in the
network, or the port is not connected to
the network. Otherwise, set the switch to
0 to disable Autowrap.

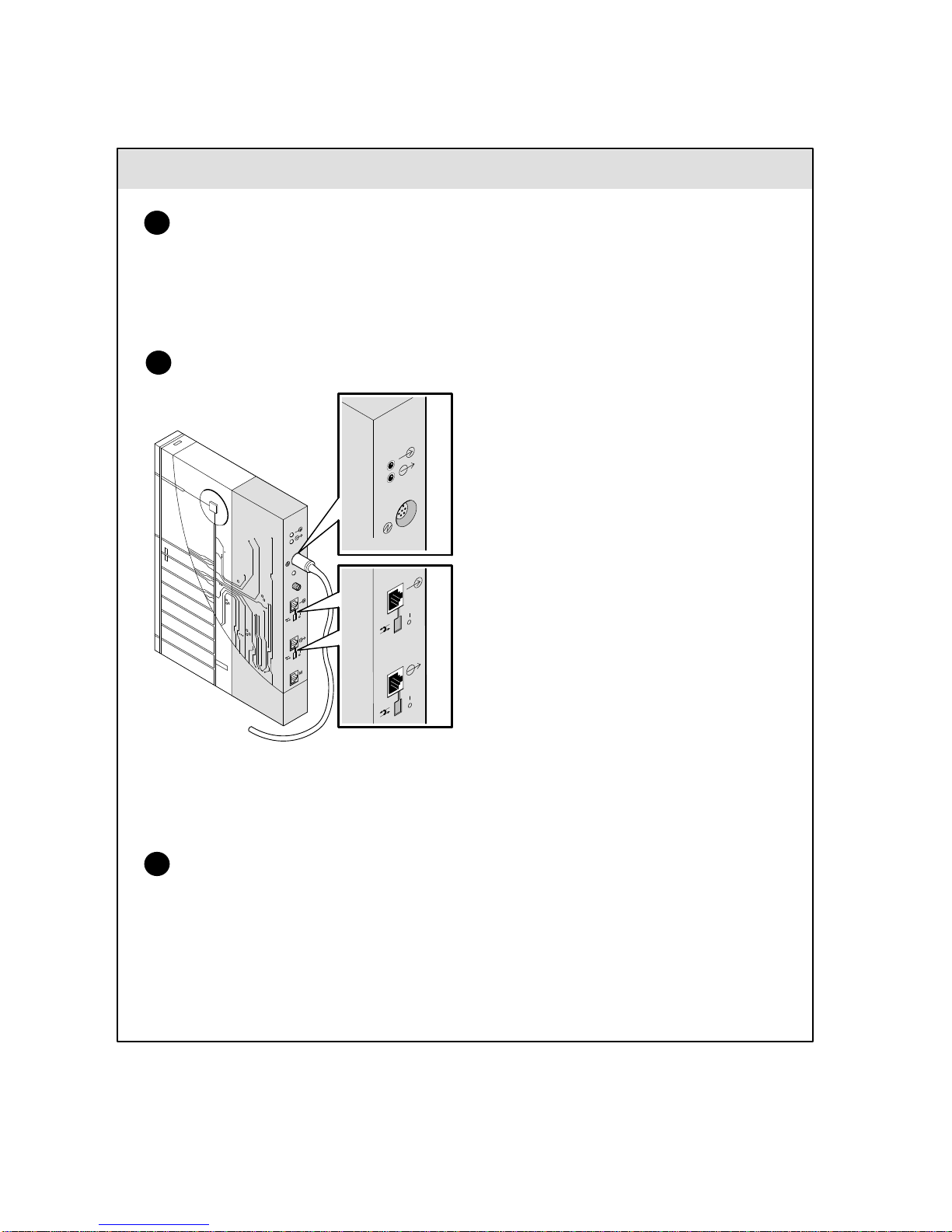

Mount MAU (optional).
1
Connect power supply.
3a. Connect the power supply cable to
the power connector.
b. Plug the power supply into a wall
outlet.
SetAutowrapswitches.
2
You can place the MAU on a table, mount it on a wall, or mount it in a standard 19-inch rack
using a shelf assembly, Digital part number H9544-MS.
Forawallmounting,positiontwoscrews19.7centimeters(7.75inches)apartonthewall.Turn
screws until tight and then back off two turns. Hang the MAU using the keyholes.
Installing a DEChub ONE MAU 900TL
DECmau 900TL 7
LKG–8142-93I
To
power
supply


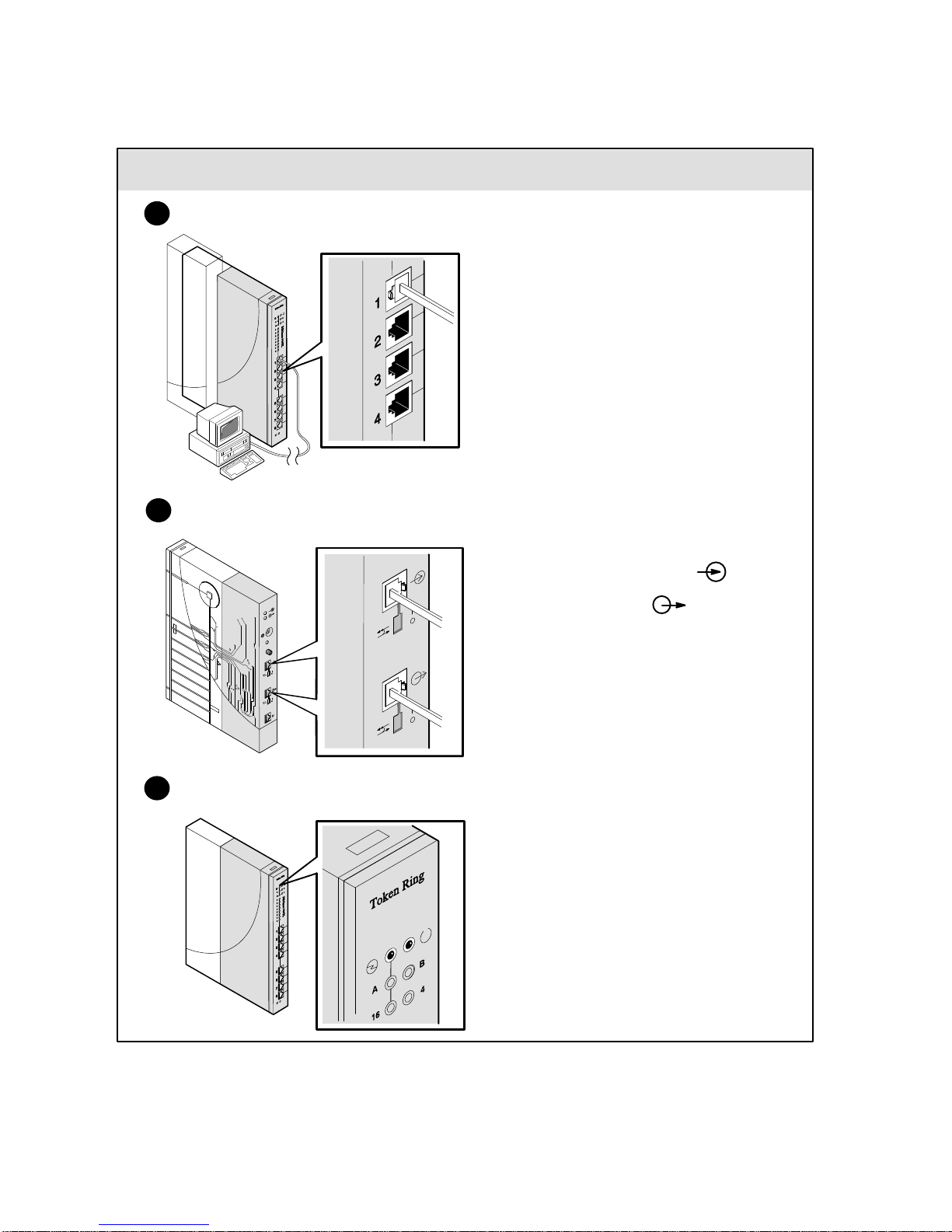

If a MAU is being added to an existing
network,connectRingIn totheRing
Outconnectorof aMAUorrepeater,and
connect Ring Out to the Ring In
connector of a MAU or repeater.
Connect station cables.
4
Check LEDs.
6
Withpower on,verify thatthe Powerand
Module OK LEDs are on.
Install a MAU to adjacent MAUs or repeaters.
5
Connect station cables to any available
lobe connector on the MAU. For
150-ohm applications, you also need an
impedence matching transformer cable
(Digital part number BN26T-03).
Installing a DEChub ONE MAU 900TL (continued)
8DECmau 900TL
Module installation for a
DEChub ONE MAU 900TL
is complete.
LKG–8143-93I

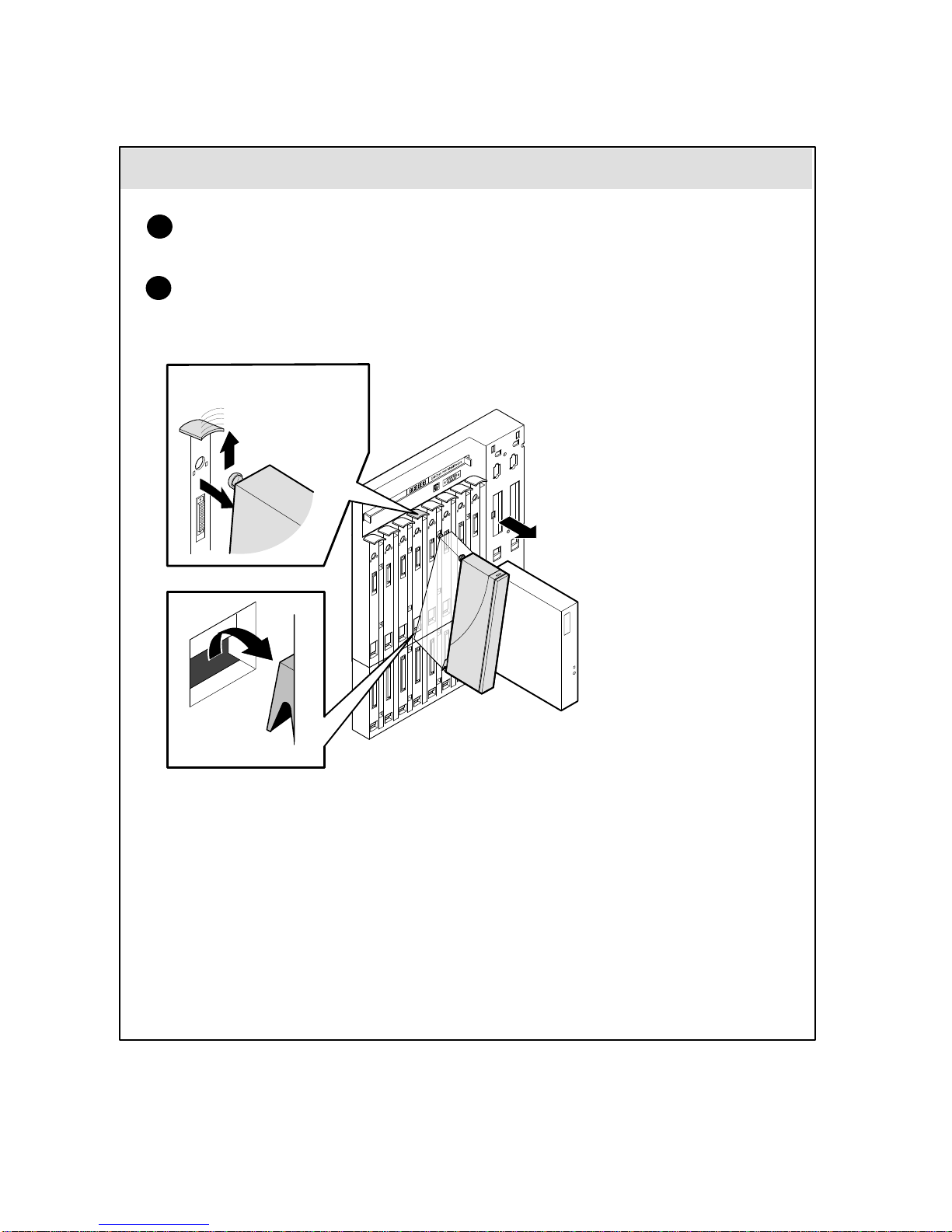

Removing a MAU from a DEChub 900 MultiSwitch
a. Lift up the Release lever on the
hub.
b. Pivot the MAU back on its
bottom mounting tab until it
disengages from the hub.
DECmau 900TL 9
Note:
When you remove a MAU from the
hub, do not turn off the hub power.
Remove the MAU from the hub.
1
2
Disconnect the station connector cables from the MAU.
The release lever is
lifted and clicks
back into place
as the module
is removed.
LKG–8144-93I
Mounting
tab

LED Summary
LED1Off On Flashing
Power No Power Power OK
Module OK Self-test failed Self-test OK
or not operating
4/16 Mb/s No activity Valid speed or
management set
speed
Lobe Inactive Connected to network Continuous single flash: network
management disabled port.
Continuous double flash: wrong speed.
Hub MAU ONLY:
Ring A/B Not connected Connected to Ring A Continuous single flash: network
or Ring B management disabled port.
A and B alternately flash: MAU needs an
upgrade or an upgrade is in progress.
DEChub ONE ONLY:
Ring In/ Inactive or Connected to network Continuous single flash: network
Ring Out wire fault management disabled port.
Continuous double flash: wrong speed.
1Scroll: During power-up self-tests, all LEDs, except the Power LED, indicate a scrolling
pattern.
The LEDs indicate status by being on, off, and flashing. Flashing LEDs indicate special situations.
Thereare twoflashing patternsanda scrollpattern. When anLED indicatesacontinuoussingle-flash
pattern, network management has disabled the port. A continuous double-flash pattern indicates the
wrong speed. In a scroll pattern, the LEDs turn on and off in a set order.
10 DECmau 900TL

Cabling
Table 1 lists the Token Ring industry guideline for the maximum lobe length of shielded twisted-pair
(STP) and unshielded twisted-pair (UTP) cable.
Table 1 Industry Lobe Length Guideline
LobelengthsforDigital’sMAUsexceedtheindustryguideline. Specifically,lobelengthscanbelonger
than the industry guideline for STP cable and UTP level 5 cable at 4 Mb/s. See Table 2, Digital Lobe
Length Guideline, for the maximum lobe lengths for Digital’s MAUs. Also refer to either “DEChub 900
MultiSwitchConfiguration orDEChub ONE Configurations”below formore configuration information.
Table 2 Digital Lobe Length Guideline1
1All distances include patch cables and hub connections.
Digital recommends that you keep lobe lengths within the maximums found in the industry guideline
whenever possible. This allows for future network expansion and upgrade. When current needs
dictatethelongerlobelengths,youcanincreaselobelengthsuptothemaximumsinDigital’sguideline
without any negative effect on the network.
DEChub 900 MultiSwitch Configuration
Multiple Hubs
A repeater is needed in each hub to connect hubs in a multiple hub network. Refer to the
appropriate Token Ring repeater manual for specific information.
DEChub ONE Configurations
Unshielded Twisted-Pair Cable Configurations:
Multiple MAUs in One Wiring Closet at 16 Mb/s
At 16 Mb/s, a maximum of five MAUs can be in one wiring closet without affecting maximum lobe
length. Subtract 10 meters from the lobe lengths in Table 2 for each additional MAU above five in a
wiring closet.
Multiple Wiring Closets
Digital recommends that you use repeaters to segment the ring in a network with multiple wiring
closets. In some situations, only one, or no repeaters, are required. Refer to the appropriate
Token Ring repeater manual for specific information.
UTP STP
Speed Level 3 Level 5
4 Mb/s 100 m (327 ft) 100 m (327 ft) 100 m (327 ft)
16 Mb/s 65 m (213 ft) 100 m (327 ft) 100 m (327 ft)
DECmau 900TL 11
UTP STP
Speed Level 3 Level 5
4 Mb/s 100 m (327 ft) 200 m (655 ft) 376 m (1235 ft)
16 Mb/s 65 m (213 ft) 100 m (327 ft) 173 m (569 ft)

Cabling (continued)
Digital recommends that you use repeaters to segment the ring in a network with multiple wiring
closets. In some situations, only one, or no repeaters, are required. Refer to the appropriate Token
Ring repeater manual for specific information.
When distances exceed the lobe lengths in Table 2, or if the MAU does not have Digital’s Autowrap
functionality, two repeaters are required.
When a MAU has Autowrap enabled, only one repeater is required per wiring closet if the distance
between the wiring closets does not exceed the distances shown in Table 2.
WithUTPlevel5cableat4Mb/s,norepeatersarerequiredwithmultiplewiringclosetsifthetotalcable
budget is within the distances shown in Table 3.
For UTP level 3 cable at 4 Mb/s, divide all distances in Table 3 by 1.3.
Table 3 Total Cable Budget for UTP Level 5 Cable at 4 Mb/s1
W i r i n g C l o s e t s
MAUs 0 1 2 3 4 5 6
1210 m (689 ft) 206 m (675 ft)
2192 m (630 ft) 189 m (620 ft) 185 m (607 ft)
3175 m (574 ft) 171 m (561 ft) 168 m (551 ft) 164 m (538 ft)
4157 m (515 ft) 154 m (505 ft) 150 m (492 ft) 147 m (482 ft) 143 m (469 ft)
5140 m (459 ft) 136 m (446 ft) 133 m (436 ft) 129 m (423 ft) 126 m (413 ft) 122 m (400 ft)
6122 m (400 ft) 119 m (390 ft) 115. m (377 ft) 112 m (367 ft) 108 m (354 ft) 105 m (344 ft) 101 m (331 ft)
1All distances include patch cables.
Total cable budget = maximum lobe length + adjusted ring length
Adjusted ring length = total trunk length – shortest trunk length
12 DECmau 900TL
Connector Pins
Name 1 2 3 4 5 6 7 8
Ring In RS422 RX+ RS422 RX– Transmit– Receive+ Receive– Transmit+ RS422 TX– RS422 TX+
Ring Out not used not used Receive– Transmit+ Transmit– Receive+ not used not used
Lobe not used not used Receive– Transmit+ Transmit– Receive+ not used not used
Shielded Twisted-Pair Cable Configuration:
Digitalsupportsindustrystandardsforshieldedtwisted-pair (STP)cable. Refer tothe
IBMTokenRing
Network Introduction and Planning Guide
for specific information on STP cable.
Cable Connector Specifications
Table4lists the signalnamesofeach pin associatedwiththeRing In, RingOut,andLobe connectors.
The shaded area in the table indicates signals used only by Token Ring.
Table 4 MAU Connector Signal Names

Problem Solving
If ... Then ... Do This ...
DEChub 900 MultiSwitch and DEChub ONE
Power LED is off. MAU does not have power. Verify that outlet has power.
Check power connection to MAU.
Replace power supply.
Replace MAU.
Module OK LED is off. MAU failed self-test. Replace MAU.
Ring A and B LEDs alternately MAU needs an upgrade If you have network management,
flash. or an upgrade is in progress. do a downline load;
otherwise, replace MAU.
Wait for upgrade to complete.
Both Speed LEDs are off. No activity is on the network. Start up at least one station.
Lobe LED is off after station Station cannot access Check lobe cabling for crossover
completes self-test network. between transmit and receive
wires. All cables, including patch
cables, must be straight through.
Lobe LED indicates a Network management To change setting, you can use
continuous single flash disconnected station from the network management commands
pattern. network. or the MAU’s Reset switch.
Lobe LED indicates a MAU and station have different Change the speed setting of the
continuous double flash speed settings. station.
pattern.
DECmau 900TL 13


Problem Solving (continued)
If ... Then ... Do This ...
DEChub 900 MultiSwitch ONLY
Lobe, Ring In, Ring Out, Network management has To change settings, you can use
Ring A/B LEDs flash together. disabled MAU. network management commands
or the MAU’s Reset switch.
MAU does not connect to Network management will not Check speed and hub
hub. connect MAU to hub. settings for incorrect network
management overrides.
MAU does not work DEChub 90 only supports A DEChub 900 MultiSwitch
in DEChub 90. Ethernet networks. supports Token Ring networks.
DEChub ONE ONLY
Ring In or Ring Out LED Network management To change setting, you can use
indicates a continuous disconnected the MAU’s network management commands
single flash pattern. RI or RO port. or the MAU’s Reset switch.
Ring In or Ring Out LED MAU and ring have different Change the speed setting of the
indicates a continuous speed settings. stations or the ring.
double flash pattern.
Lobe, Ring In and Ring Out Network management has To change settings, you can use
LEDs flash together. disabled MAU. network management commands
or the MAU’s Reset switch.
Vendor’s MAU or repeater Vendor’s unit is incompatible Set Autowrap switches on the
causes loopback on ring.with Digital’s Autowrap. DECmauorDECrepeateradjacent
to the vendor’s unit to 0.
Network crashes when a MAU Vendor’s unit does not have Set Autowrap switches on the
or repeater fails. Digital’s Autowrap. DECmauorDECrepeateradjacent
to the failed unit to 1.
14 DECmau 900TL

Product Specifications
Product Specification In a Hub DEChub ONE
Size 27.3 x 11.2 x 3.2 cm 27.3 x 17.0 x 3.2 cm
(10.8 x 4.4 x 1.2 inches) (10.75 x 6.7 x 1.25 inches)
Weight .82kg (1.5 lb) 1.09kg (2.0 lb)
Operating temperature 5°C to 50°C (41°F to 122°F) 5°C to 50°C (41°F to 122°F)
Relative humidity 10% to 95% non-condensing 10% to 95% non-condensing
Altitude Sea level to 4800 m (16,000 ft) Sea level to 4800 m (16,000 ft)
Power Supply Hub provides Provided by:
H7082–AB
Input Power 1.0 A @ +5.1 Vdc 1.0 A @ +5.1 Vdc
Connectors RJ-45 RJ-45
Agency certification UL, TÜV, CSA, FCC, VDE UL, TÜV, CSA, FCC, VDE
Acoustics: Preliminary No acoustic noise No acoustic noise
declared values per ISO
9296 and ISO 7779
Schallemissionswerte: keine meßbaren Schallemissionen keinemeßbarenSchallemissionen
Vorläuge Werteangaben
nach ISO 9296 und ISO
7779/DIN EN27779
Associated Document
DEChub 900 MultiSwitch This manual provides overview, installation, and problem-
Owner’s Manual solving information for the DEChub 900 MultiSwitch.
DECmau 900TL 15
