Digital Life HDMID4 User manual

Operating Instructions
1
HDMISplitter
HDMID4
Operating
Operating
Operating
Operating Instructions
Instructions
Instructions
Instructions
Dear
Dear
Dear
Dear Customer
Customer
Customer
Customer
Thank you for purchasing this product. For optimum performance and safety, please read these
instructions carefully before connecting, operating or adjusting this product. Please keep this manual for
future reference.
FEATURES
FEATURES
FEATURES
FEATURES
Distributes 1 HDMIsource to 4 HDMIDisplays simultaneously.
Supports resolution up to 1080p
, cascades above 4 layers
Supports High Definition Audio: Dolby TrueHD, DTS-HD Master Audio
Supports 30/36bit deep color display.
Support 3D video format
DC 5v power
NOTICE
NOTICE
NOTICE
NOTICE
Our company reserve the right to make changes in the hardware, packaging and any accompanying
documentation without prior written notice.
http://www.digitallife.net.au

Operating Instructions
2
TABLE
TABLE
TABLE
TABLE OF
OF
OF
OF CONTENTS
CONTENTS
CONTENTS
CONTENTS
Specifications
Package Contents
Panel Descriptions
Connecting and Operating
M aintenance
Product Service
Warranty
SPECIFICATIONS
SPECIFICATIONS
SPECIFICATIONS
SPECIFICATIONS
Operating Temperature Range
-5 to +35 ℃( +23 to +95 ℉)
Operating Humidity Range 5 to 90%RH (No Condensation)
Input Video Signal 0.5-1.0 Volts P-P
Input DDC Signal 5 volts p-p(TTL)
Data transfer speed rate 6.75Gbps(Maximum)
Support Video Format
DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P
3D video
Vertical Frequency range 60Hz
HDMI Output HDMI 1.3 b+HDCP1.2
Support Video Color Format xv-YCC/deep color 36bit
Support Audio Format DTS-HD Master Audio 、Dolby true-HD etc.
Transmission Distance 15m( Maximum )over standard HDMI cable/26AWG
Power consumption 5watts(Maximum)
Dimension (L × W × H) 115x62x25mm
Net Weight 210g
Gross Weight 520g
Gift box measurement L20.5xW15xH5.7cm
Master carton measurement L43*W32*H31cm 20PCS/CTN
Note: Specifications are subject to change without notice. Mass and dimensions are a pproximate.
PACKING
PACKING
PACKING
PACKING CONTENTS
CONTENTS
CONTENTS
CONTENTS
1) Main Unit. 1x4 HDMI S plitter
2) DC5V 2A Power Supply
3) Operating Instructions

Operating Instructions
3
PANEL
PANEL
PANEL
PANEL DESCRIPTIONS
DESCRIPTIONS
DESCRIPTIONS
DESCRIPTIONS

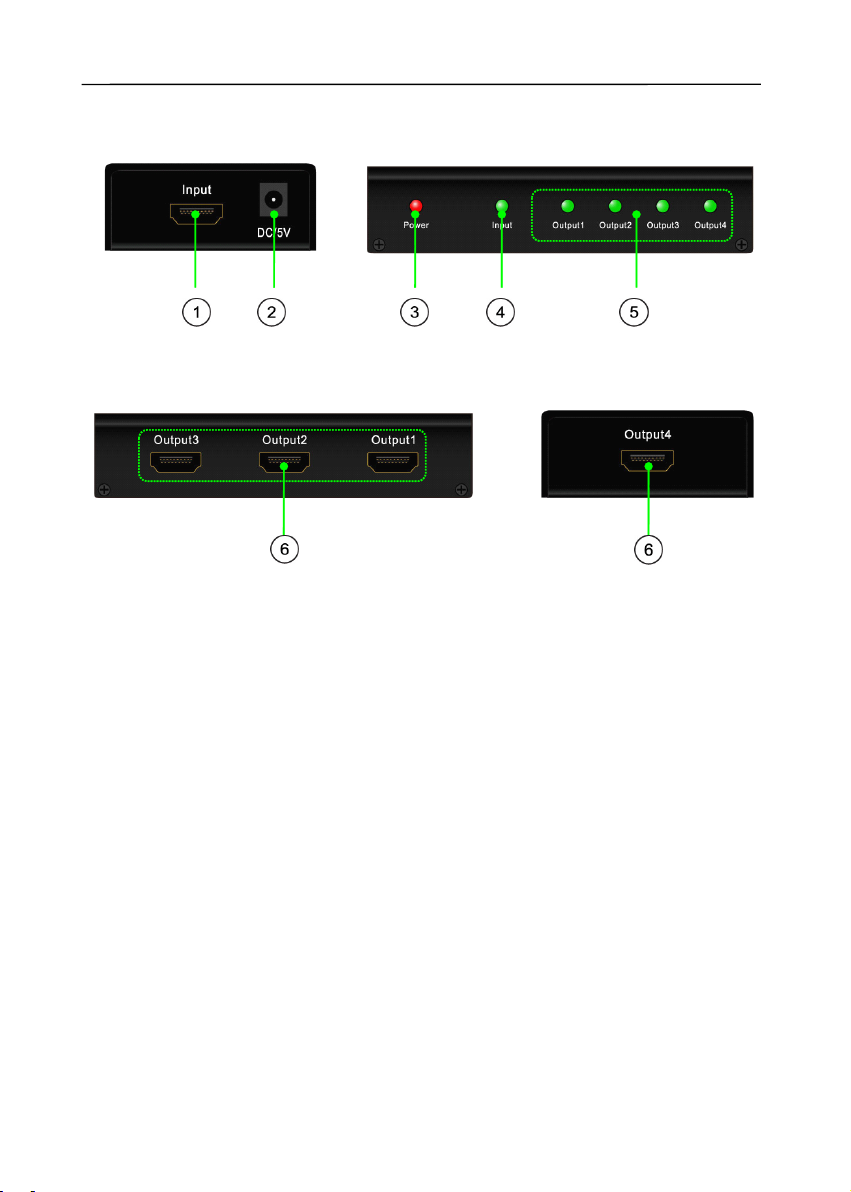

Left Panel Front Panel
Rear Panel Right Panel
①HDMI input port ②Power input
③P ortIndicator of power input ④Indicator of HDMI input
⑤Indicator of HDMI output ⑥HDMI o utput ports
CONNECT
CONNECT
CONNECT
CONNECT ING
ING
ING
ING AND
AND
AND
AND OPERAT
OPERAT
OPERAT
OPERAT ING
ING
ING
ING
1) Connect the HDMI signal sources (Such as PS3, STB etc) in to HDMI input.
2) Connect the HDMI display device ( S uch as HD-LCD, HD-DLP) into HDMI output.
3) Plug the 5VDC power supply into power input port and the unit is ready to use.
Attention: Insert/Extract cable s gently.
MAINTENANCE
MAINTENANCE
MAINTENANCE
MAINTENANCE
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit.
PRODUCT
PRODUCT
PRODUCT
PRODUCT SERVICE
SERVICE
SERVICE
SERVICE
1) Damage
Damage
Damage
Damage requiring
requiring
requiring
requiring service:
service:
service:
service:
The unit should be serviced by qualified service personnel if:
(a) The DC power supply cord or AC adaptor has been damaged;
(b) Objects or liquids have gotten into the unit;
(c) The unit has been exposed to rain;
(d) The unit does not operate normally or exhibits a marked change in performance;
(e) The unit has been dropped or the cabinet damaged.
2) Servicing
Servicing
Servicing
Servicing Personnel:
Personnel:
Personnel:
Personnel: Do not attempt to service the unit beyond that described in

Operating Instructions
4
these operating instructions.Refer all other servicing to authorized servicing personnel.
3) Replacement
Replacement
Replacement
Replacement parts:
parts:
parts:
parts: When parts need replacing ensure the servicer uses parts
specified by the manufacturer or parts that have the same characteristics as the
original parts. Unauthorized substitutes may result in fire, electric shock, or other
hazards.
4)
4)
4)
4) Safety
Safety
Safety
Safety check:
check:
check:
check: After repairs or service, ask the servicer to perform safety checks
to confirm that the unit is in proper working condition.
WARRANTY
WARRANTY
WARRANTY
WARRANTY
If your product does not work properly because of a defect in material s or workmanship, our Company
(referred to as "the warrantor" ) will, for the length of the period indicated as below, (Parts(1)Year,
(Parts(1)Year,
(Parts(1)Year,
(Parts(1)Year, Labor(90)
Labor(90)
Labor(90)
Labor(90)
Days)
Days)
Days)
Days) which starts with the date of original purchase ("Limited Warranty period"), at its option either(a)
repair your product with new or refurbished parts, or (b) replace it with a new of a refurbished product. The
decision to repair or replace will be made by the warrantor.
During the "Labor" Limited Warranty period there will be no charge for labor.
During the "Parts" warranty period, there will be no charge for parts. You must mail-in your product during
the warranty period. This Limited Warranty is extended only to the original purchaser and only covers
product purchased as new. A purchase receipt or other proof of original purchase date is required for
Limited Warranty service.
M
M
M
M AIL
AIL
AIL
AIL -I
-I
-I
-I N
N
N
N S
S
S
S ERVICE
ERVICE
ERVICE
ERVICE
When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original
carton. Include a letter detailing the complaint and provide a day time phone and/or email address where
you can be reached.
LIMITED
LIMITED
LIMITED
LIMITED WARRANTY
WARRANTY
WARRANTY
WARRANTY LIMITS
LIMITS
LIMITS
LIMITS AND
AND
AND
AND EXCLUSIONS
EXCLUSIONS
EXCLUSIONS
EXCLUSIONS
1) This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES
NOT COVER normal wear and tear or cosmetic damage.
The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment,
or failures which are caused by products not supplied by warrantor, or failures which result from accidents,
misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments,
misadjustment of consumer controls, improper maintenance, power line surge, lightning damage,
modification, or service by anyone other than a Factory Service center or other Authorized Servicer, or
damage that is attributable to acts of God.
2) THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY COVERAGE".
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE
USE OF THIS PRODUCT, OR ARISING OU T OF ANY BREACH OF THIS WARRNTY. (As example s , this excludes
damages for lost time, cost of having someone remove or re-install an installed unit if applicable,
travel to and from the service, loss of or damage to media or image s , data or other recorded content. The
items listed are not exclusive, but are for illustration only.)
3) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE
YOUR RESPONSIBILITY.
