Stahl SolCineX Plug User manual

Operating Instructions
SolConeX 
Plug
> G579/12

Contents
2212485 / 7579615300
2011-09-13·BA00·III·en·00
SolConeX Plug
G579/12
1 Contents
1 Contents ................................................................................................................2
2 General Information ...............................................................................................2
3 Intended Use .........................................................................................................2
4 General Safety Instructions ...................................................................................3
5 Conformity to Standards ........................................................................................3
6 Transport and Storage ..........................................................................................3
7 Technical Data ......................................................................................................4
8 Dimensions ............................................................................................................4
9 Arrangement of Contact Pins and Terminal Marking ............................................5
10 Assembling and Dismantling .................................................................................6
11 Installation .............................................................................................................6
12 Putting into Service ...............................................................................................7
13 Maintenance, Overhaul and Repair .......................................................................8
14 Cleaning ................................................................................................................8
15 Accessories and Spare Parts ................................................................................8
16 Disposal .................................................................................................................8
17 EC Declaration Of Conformity ...............................................................................9
2 General Information
2.1 Manufacturer
R. STAHL Schaltgeräte GmbH
Am Bahnhof 30
74638 Waldenburg
Germany
Tel: [phone]
Fax: [phone]
Internet: www.stahl-ex.com
2.2 Operating Instructions Information
ID-No.: 212485 / 7579615300
Publication Code: 2011-09-13·BA00·III·en·00
Subject to alterations.
3 Intended Use
The plug G579/12 is electrical equipment. It connects portable and stationary electrical
equipment as well as cables and circuits.

212485 / 7579615300
2011-09-13·BA00·III·en·00
General Safety Instructions
3
SolConeX Plug
G579/12
4 General Safety Instructions
The devices must be used only for the intended purpose. Incorrect or impermissible use
or non-compliance with these instructions invalidates our warranty provision. No changes
to the device are permitted. Use the device only if it is undamaged and clean.
Observe the following information during installation and operation:
National and local safety regulations
National and local accident prevention regulations
National and local assembly and installation regulations
Generally recognized technical regulations
Safety instructions in these operating instructions
Characteristic values and rated operating conditions on the rating and data plates
Additional instruction plates fixed directly to the device
5 Conformity to Standards
The relevant standards are listed in the EC Declaration of Conformity.
6 Transport and Storage
Transport and storage are only permitted in the original packing.
WARNING
Installation, maintenance, overhaul and repair may only be carried out by appropriately
authorised and trained personnel.

Technical Data
4212485 / 7579615300
2011-09-13·BA00·III·en·00
SolConeX Plug
G579/12
7 Technical Data
8 Dimensions
Version G579/12 plug
Rated operational voltage max. 690 V
Rated operational current 63 A
)100 Hz, 50 A
Rated insulation voltage max. 750 V
Connection cross-section max. 16 mm2
Cable entries 24 ... 36 mm cable diameter
Tightening torque max. 2 Nm
Ambient temperature - 20 ... + 40 °C
- 45 ... + 55 °C on request
Enclosure material Polyamide
Degree of protection IP66 acc. to IEC/EN 60529
Dimensional Drawings (All Dimensions in mm) - Subject to Alterations
04511E00
[mm]
A 260
B84
C 69.5
D112

212485 / 7579615300
2011-09-13·BA00·III·en·00
Arrangement of Contact Pins and Terminal Marking
5
SolConeX Plug
G579/12

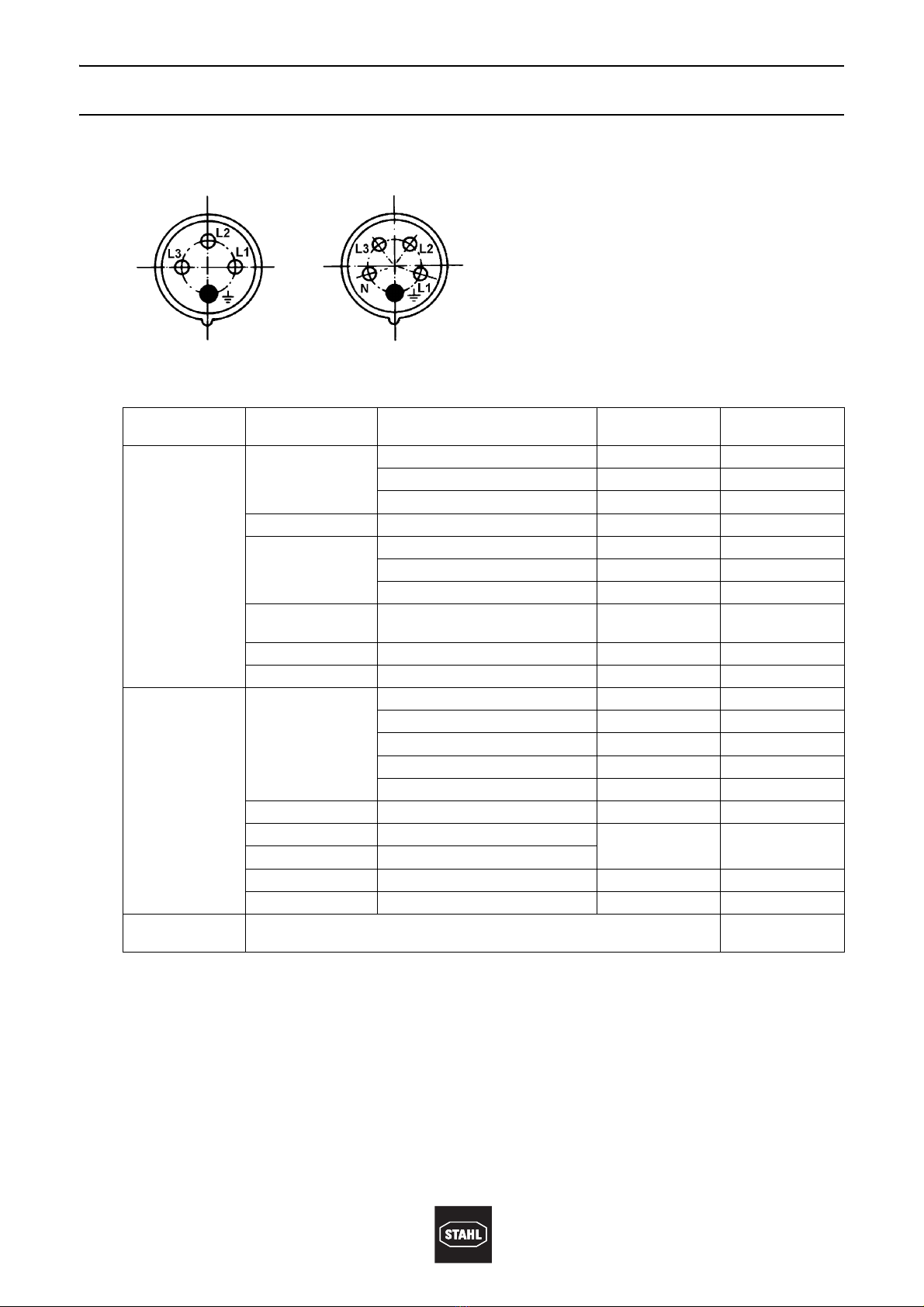

9 Arrangement of Contact Pins and Terminal Marking
View of the contact pins from the front. The illustrations show the 6 h position.
Colour code and arrangement of the earth contact pin, relative to polarizing slot, for different voltages and frequencies 
according to IEC/EN 60309-2
1) Mainly for ship installations
2) Only for refrigerated containers (according to ISO standards)
3) Not standardized but recommended preferred position
4) Colour code in accordance with voltage colour code
09191E00 09196E00
3 P + PE 3P + N + PE
No. of poles Frequency Rated operational voltage Colour code Earth contact 
position
3 P + PE 50 and 60 Hz 100 ... 130 V yellow 4 h
200 ... 250 V blue 9 h
380 ... 415 V red 6 h
60 Hz 440 ... 460 V 1) red 11 h
50 and 60 Hz 480 ... 500 V black 7 h
600 ... 690 V black 5 h
after isolating transformer 4) 12 h
50 Hz
60 Hz
380 V 2)
440 V 2)
red 3 h
100 ... 300 Hz > 50 V green 10 h 3)
> 300 ... 500 Hz > 50 V green 2 h
3P + N + PE 50 and 60 Hz 57 / 100 ... 75 / 130 V yellow 4 h
120 / 208 ... 144 / 250 V blue 9 h
200 / 346 ... 240 / 415 V red 6 h
277 / 480 ... 288 / 500 V black 7 h
347 / 600 ... 400 / 690 V black 5 h
60 Hz 250 / 440 ... 265 / 460 V red 11 h
50 Hz 220 / 380 V 2) red 3 h
60 Hz 250 / 440 V 2)
100 ... 300 Hz > 50 V green 10 h
> 300 ... 500 Hz > 50 V green 2 h
Any no. of poles All nominal operating voltages and/or frequencies not covered by other 
arrangements.
1 h

Assembling and Dismantling
6212485 / 7579615300
2011-09-13·BA00·III·en·00
SolConeX Plug
G579/12
10 Assembling and Dismantling
Operating position
When unplugged, the plug should be suspended, with the contact pins pointing 
downward.
11 Installation
Electrical connection
The conductor must be carefully connected.
The conductor insulation must reach to the clamping points.
Do not damage the conductor (nicking) when removing the insulation.
Select suitable cables to be used and appropriate way of leading them to ensure that
the maximum permitted conductor temperature and the maximum permitted surface
temperature is not exceeded.
Protective conductor connection
A protective conductor is always required.
Connection
Loosen screws (A) and extract the plug insert manually from the enclosure.
Loosen clamp (C) and pressure screw (B).
Remove the dust protection plate, and take out the pressure ring and seal.
Push the cable (cable diameter max. 35 mm) through the pressure screw, 
pressure ring, seal and enclosure.
If necessary, increase the internal diameter of the seal by trimming it to match the 
cable diameter.
To protect the contact pins against pollution, a suitable protective cap should
be used (For R. STAHL order no. see "Spare parts and accessories").
09192T00
A = Screw
B = Pressure screw
C = Clamp
D = Strain relief
E = Guiding groove

212485 / 7579615300
2011-09-13·BA00·III·en·00
Putting into Service
7
SolConeX Plug
G579/12

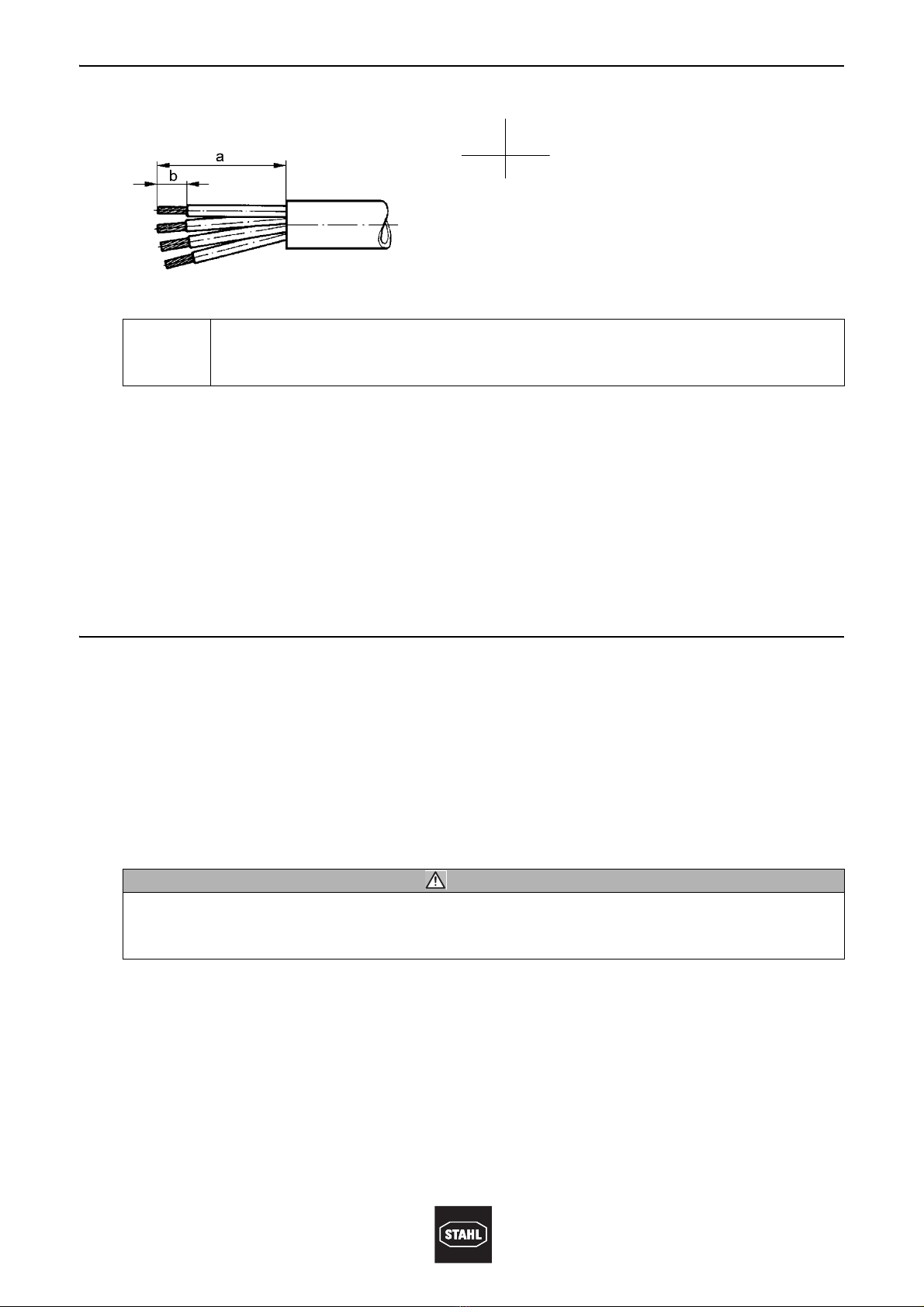

Strip the insulation from the cable (see figure).
Connect the cable to the plug insert. The stripped cable ends must be pushed fully 
underneath the clamping plate.
Align the cable such that the clamping points are not under strain.
Mount the strain relief (D).
Fasten the plug insert in the enclosure such that key and guiding groove (E) match.
Press the seal into the enclosure.
Place the pressure ring on the seal.
Tighten the pressure screw (B).
Secure the pressure screw with the clamp (C).
12 Putting into Service
Before putting into service
Make sure that the components are not damaged.
Make sure that the device has been installed correctly.
Remove any foreign objects from the device.
Check if cable glands and stopping plugs are tight.
Check if screws and nuts are fastened tightly.
Inspect the cable glands for signs of damage.
Check the tightening torques.
Make sure that the bayonet lock is tightened correctly.
09290T00
On the connection side, the contact pin carrier is marked with "Abisolation"
(insulation stripped) next to the protective conductor connection symbol. 
The indentation below indicates the correct stripping length.
WARNING
The plug may only be used when fully mounted.
The plug pin surface must not be damaged.
Excessive tightening of the components can impair the degree of protection.
a
[mm]
b
[mm]
80 17

Maintenance, Overhaul and Repair
8212485 / 7579615300
2011-09-13·BA00·III·en·00
SolConeX Plug
G579/12
13 Maintenance, Overhaul and Repair
The following details must be checked during maintenance:
Cables are held securely in place by the terminals
Compliance with the permissible temperatures
Damage to the enclosure and seals
Surface of the plug pins for damage
Maintenance information
If required, clean plug pins
After 1000 mating cycles, lubrication, after previous cleaning, with the lubricating oil
KLÜBERALFA KRA 3-730 is recommended.
14 Cleaning
The device may only be cleaned with a damp cloth.
15 Accessories and Spare Parts
16 Disposal
The national waste disposal regulations have to be observed.
WARNING
Do not open when live!
The functioning of the plug must always be checked after any system short-circuit.
WARNING
It is not allowed to use lubricating greases based on mineral oils!
WARNING
Use only original R. STAHL accessories and spare parts.
Designation Illustration Description Art. no. Weight
kg
Protective cap
05365E00
for protection against pollution 153730 0.120

212485 / 7579615300
2011-09-13·BA00·III·en·00
EC Declaration Of Conformity
9
SolConeX Plug
G579/12
17 EC Declaration Of Conformity
