Digital Watchdog Compressor DW-ENHD16 User manual

Please read this manual thoroughly before use and keep it handy for future reference.
Rev: 0219
Rev: 03/19
USER MANUAL

User manual | 2
CAUTION
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EX-POSE THIS PRODUCT TO RAIN OR
MOISTURE. DO NOT INSERT ANYMETALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER
OPENNINGS ON THE EQUIPMENT.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is in- tended to alert
the user to the presence of dangerous voltage within the products
enclosure that may be of suffi-
cient magnitude to constitute a risk of electric shock
to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the pres-
ence of important operating and maintenance (servicing)instructions
in the literature accompa-
nying the product.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT
OPEN
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK).
NO USER-SERVICABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

FCC COMPLIANCE STATEMENT
CE COMPLIANCE STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC INFORMATION:
This equipment has been tested and found to comply with the limits
for a “Class A” digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated
in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equip
ment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense.
CAUTION:
Changes or modifications not expressly approved by the party responsible for
complian
ce could void the user’s authority to operate the equipment.
This Class A digital apparatus complies with Canadian ICES-003.
Cet
appareil nume
`
rique de la classe A est conforme a
´ la norme NMB-003 du
Canada.
WARNING
This is a Class A product. In a domestic environment this product
may causeradio interference in which
case
the user may be required to take adequatemeasures.
CAUTION
RISK OF EXPLOSION IF
BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES
ACCORDING
TO THE INSTRUCTIONS.

User manual | 4
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (in-
cluding amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience recepta-
cles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manu-
facturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long peri-
ods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the appa-
ratus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
15. CAUTION – THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED SERVICE PERSONNEL
ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER
THAN THAT CONTAINED IN THE OPERATING INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO
SO.
16. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 power source only.
17. ITE is to be connected only to PoE networks without routing to the outside plant.

5 | Compressor™ Onvif Encoder
Table of Contents
Table of Contents ...............................................................................................................................5
1. Overview 7
1.1 Package contents .......................................................................................................................8
1.2 Encoder description....................................................................................................................8
2. Installation 9
2.1 Connecting exterior devices.........................................................................................................9
2.2 Starting the system ..................................................................................................................11
2.3 Quick Setup.............................................................................................................................11
2.3.1 Account......................................................................................................................11
2.3.2 System.......................................................................................................................12
2.3.3 Network .....................................................................................................................12
2.3.4 Time/Date ..................................................................................................................12
3. Live Screen Configuration 13
3.1 Icons in live screen...................................................................................................................14
3.2 Live launcher menu ..................................................................................................................15
3.3 Quick menu .............................................................................................................................16
3.3.1 PTZ control.................................................................................................................17
3.3.2 Status > System log....................................................................................................18
3.3.3 Status > Event............................................................................................................19
3.3.4 Status > Stream..........................................................................................................20
4. Setup menu 21
4.1 General buttons in setup menu..................................................................................................22
4.2 SYSTEM...................................................................................................................................23
4.2.1 System.......................................................................................................................23
4.2.2 Time/Date ..................................................................................................................25
4.2.3 Account > User...........................................................................................................28
4.2.4 Configuration (Config) .................................................................................................30
4.3 CAMERA..................................................................................................................................32
4.3.1 Basic..........................................................................................................................32
4.3.2 Advanced ...................................................................................................................34
4.4 DEVICE ...................................................................................................................................36
4.4.1 Display.......................................................................................................................36
4.4.2 PTZ > PTZ..................................................................................................................41
4.4.3 Serial Device > Serial Device........................................................................................42

User manual | 6
4.5 EVENT.....................................................................................................................................43
4.5.1 System.......................................................................................................................43
4.5.2 Alarm In.....................................................................................................................44
4.5.3 Motion........................................................................................................................47
4.5.4 Video Loss > Setup .....................................................................................................49
4.5.5 Notification.................................................................................................................50
4.6 NETWORK...............................................................................................................................52
4.6.1 Basic > WAN Port........................................................................................................52
4.6.2 DVRNS/DDNS .............................................................................................................53
4.6.3 E-Mail.........................................................................................................................55
4.6.4 Notification Server.......................................................................................................56
5. Webviewer Error! Bookmark not defined.
5.1 How to monitor with webviewer ................................................................................................58
5.1.1 In case of selecting Viewer (Internet Explorer)...............................................................59
5.1.2 In case of selecting Setup............................................................................................60
6. Products Specifications 61

7 | Compressor™ Onvif Encoder
1. Overview
This chapter describes the encoder, its components and their terms and features.
This manual introduces a 16ch HD Encoder which monitors and controls HD analog cameras.
Users can monitor HD analog cameras through network and also can be monitored by local HDMI monitor.
The device features include the following:
•The most cost-effective path to IP
•Supports HD-Analog, HD-TVI and all CVBS signals up to 2.1MP/1080p resolution
•Connect your analog cameras to DW Spectrum® IPVMS or any ONVIF approved CMS
•Convert up to 16 analog cameras to an IP video signals
•Real-time 480fps 2.1MP/1080p, 720p and 960H resolution at local monitoring output
•Simultaneous streaming
•Works with DW Spectrum® IPVMS recording license (needs 4 x DW-SPCP04LSC004, sold sep-
arately)
•Support motion detection
•Support two-way audio (4 input, 1 output)
•1x RS-485 Interface for PTZ control
•Search and playback from DW Spectrum® IPVMS
•Frame rate and bandwidth control
•4 alarm input, 1 alarm output
•Event notifications via e-mail with image
•ONVIF conformant, Profile S

User manual | 8
1.1 Package contents
The device package contents consist of the following:
Note
Please check all components involved.
Table 1-1 Package contents
No
Name
No
Name
1 Encoder 3 Quick guide
2 DC Power Adapter & Power cord
1.2 Encoder description
Refer to the diagrams below for buttons description and ports on the back of the encoder.
Figure 1-1 Name and Connection of each front section
Table 1-2 Name and Function of each front section
No.
Name
Function
1 Power is on/off.
2 Not in use.
3 The encoder is being accessed remotely via the network.
4 USB port The encoder includes 2 USB ports
Figure 1-2 Name and Connection of each rear section
134
2

9 | Compressor™ Onvif Encoder
2. Installation
Mount and install any external devices such as cameras, sensors and microphones according to the installation
instructions. Connect the external devices to the encoder’s rear based on the diagram above. Below is an example
of a proper connection between the Compressor, the cameras, and your remote monitoring software.

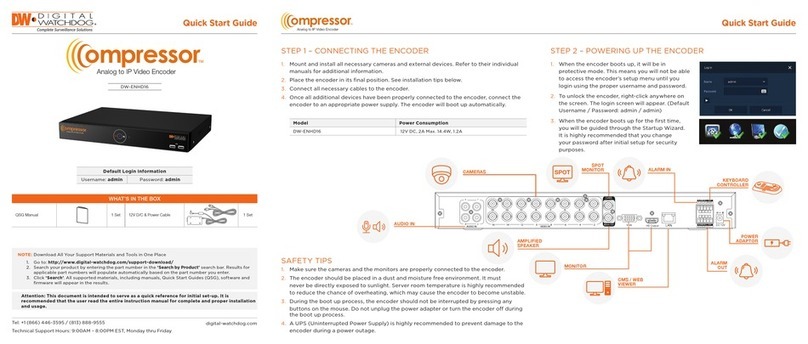

Figure 2-1 Connection map
2.1 Connecting exterior devices
How to connect external devices to the ports in the back of the device:
1 Place the unit in a stable flat surface.
2 Do NOT install the device too close to the wall. Protrusive connectors in the rear of the unit may be forcedly
curved or pressed, which can cause fires, electric shocks, or injury.
3 When connecting external devices to the encoder, make sure the system is off and the power cable is discon-
nected.
4 Connect analog cameras to the video in ports in the back of the encoder. The encoder will detect the camera’s
signal automatically upon connection.
5 Connect a microphone to the audio input ports and a speaker to the audio output port. Be sure to check
regulations in the area whether recording to be legal or not.
6 Connect a monitor to the VGA, HDMI or CVBS port.

User manual | 10
7 Connect a network cable to the network port.
8 Connect an alarm and RS485 devices to the terminal block as needed.
9 Connect a USB mouse to either one of the USB ports in front panel of the unit.
10 Once all external devices are connected properly, connect the encoder to an adequate power supply using the
included cables.
Note
The encoder does not have a power button. The system boots up automatically upon
connection to an external power source.
