802.11ac Wireless USB Adapter
U1233, WU1200
User Manual
Company: HAOLIYUAN (SHENZHEN) ELECTRONIC CO., LTD
Name / Position: Albee shen / PM Tel:[phone]ext.818861350
Fax:[phone]ext.818861350 Email:A[email protected] Address:17708
Rowland Street. City of Industry, CA 91748 United States

2/ 15
Chapter 1. Introduction
Thank you for purchasing the wireless 802.11b/g/n/a/ac USB
adapter! This adapter is mini size design and you are able to plug it
into the USB port. Excepting common wireless standards
802.11b/g/n, this wireless adapter is also 802.11ac compatible -
data transfer rate is 300/867Mbps.
1.1 Product Features
◆Complies with IEEE 802.11ac , IEEE 802.11a,IEEE 802.11n, IEEE
802.11g and IEEE 802.11b standards
◆Provides USB2.0 connector
◆Provides 300/867Mbps receiving rate and 300/867Mbps sending
rate
◆Supports 20MHz/40MHz/80MHz frequency width
◆Auto-detects and changes the network transmission rate
◆Provides two work modes: Infrastructure and Ad-Hoc
◆Supports 64/128-bit WEP, WPA, WPA2 encryption methods and
802.1x security authentication standard
◆Supports WPS (Wi-Fi Protected Setup) encryption method to free
you from remembering long passwords
◆Easy-to-install, plug and play
◆Supports Windows VISTA/Win7/
Win8/Win8.1/Win10/Linux/Macintosh
1.2 Package contents
The following contents should be found in your box:
◆One Wireless 802.11b/g/n/a/ac USB adapter
◆One CD (include driver/utility/user manual)
Note: If any of the listed contents are damaged or missing, please
contact the retailer from whom you purchased the product for
assistance.

3/ 15
CHAPTER 2: Quick Installation Guide
2.1 Driver Installation
Please follow the following instructions to install your new
wireless USB Adapter:
2.1.1
Insert the USB wireless network card into an empty USB 2.0 port
of your computer when computer is switched on. Never use force
to insert the card, if you feel it‟s stuck, flip the card over and try
again.
2.1.2

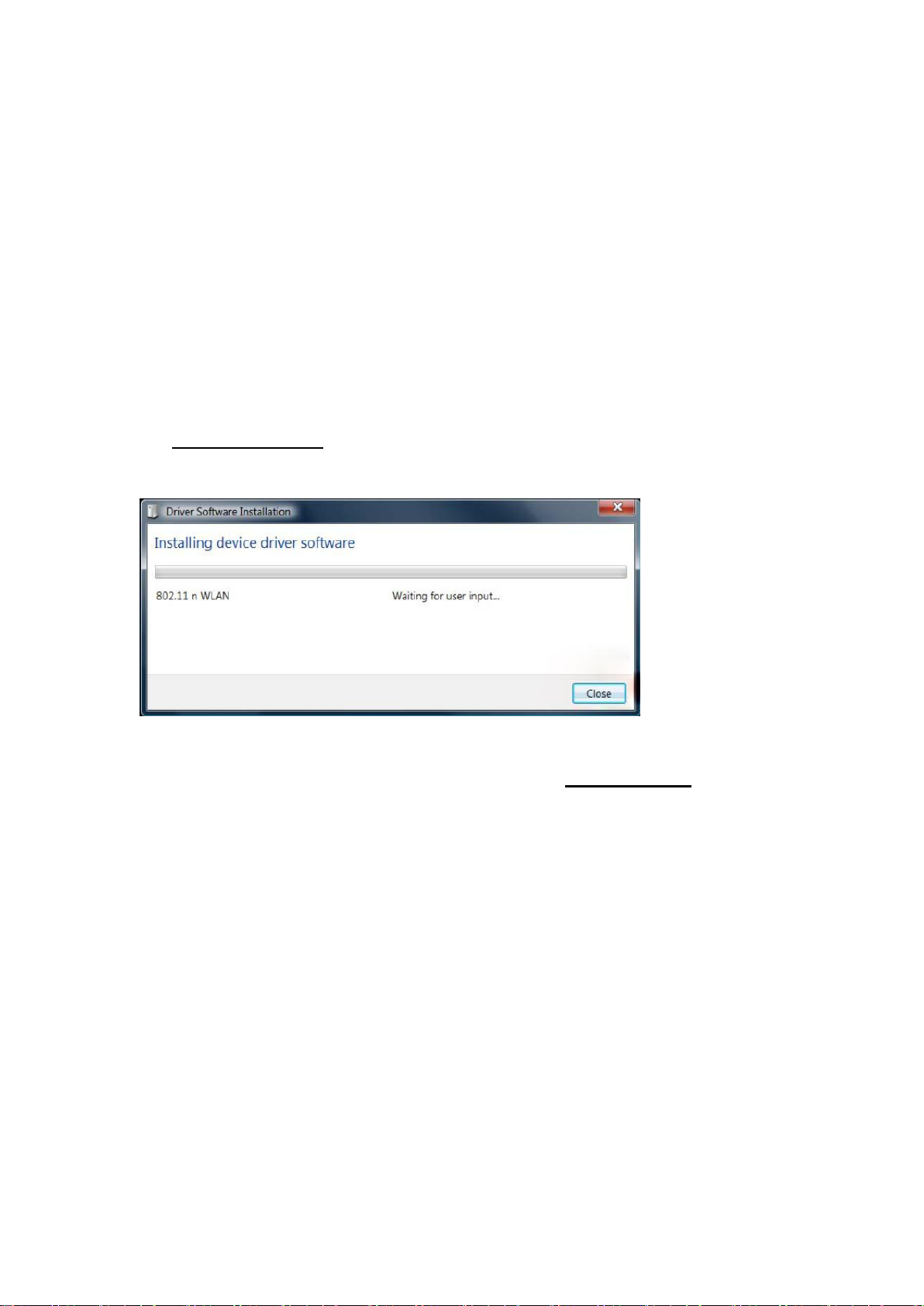

The following message will appear on your computer, click
„Cancel / Close‟.
Under Windows Vista and Windows 7
2.1.3

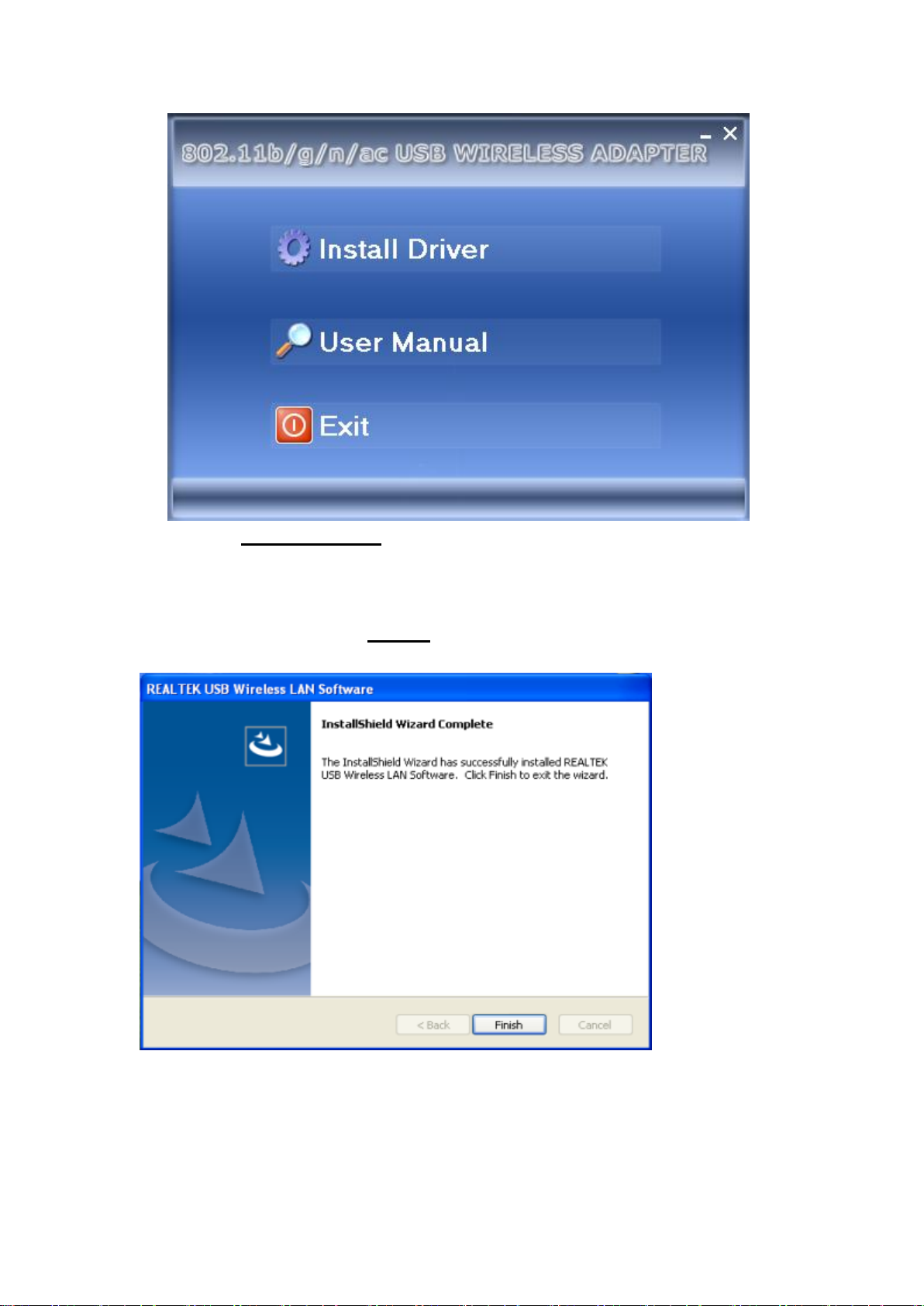

Insert the driver CD into your CD-ROM. You can see autorun
screen below. if not, you can double click „autorun.exe‟ on CD.

4/ 15
Click „Install Driver‟ to start the installation procedure
2.1.4
Once the installation is finished the computer will be asked to
reboot. you can click „Finish‟ and reboot the computer to finish the
installation of driver files.
2.1.5
A new icon will appear near the clock of system tray:

5/ 15
Left-click the icon will launch wireless network configuration
utility, and you can right-click the icon to show the quick menu of
configuration utility. This icon also uses different color to show the
status of wireless connection:
Wireless connection is established, good signal reception.
Wireless connection is established, weak signal reception.
Connection is not established yet.
Wireless network card is not detected.
For detailed instructions of wireless network configuration utility,
please see next chapter.
2.2 Connect to Wireless Access Point
To use wireless network, you have to connect to a wireless
access point first. You can either use Client utility (comes with
network card driver), or Windows Zero Config utility (comes with
Windows operating system).
2.2.1 Using Client Utility
Please follow the following instructions to use Client
configuration utility to connect to wireless access point.
1. Left-click the Client configuration utility icon located at
lower-right corner of computer desktop, and configuration menu
will appear:
HERE!
2. Wireless utility will appear. Click „Available Network‟ menu to
search for wireless access points nearby.

6/ 15

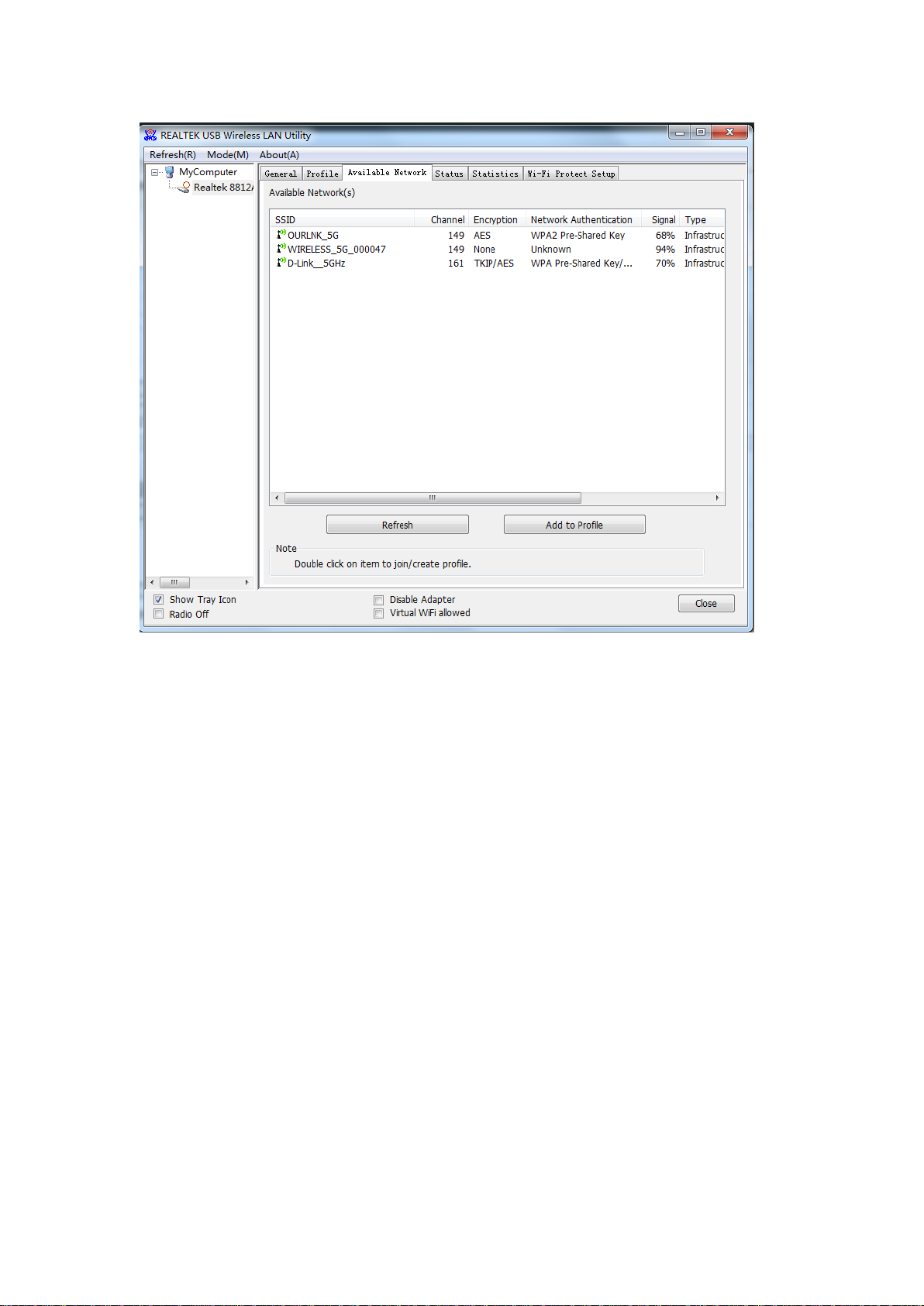

3. Please wait for a while, and all wireless access points which can
be reached by this wireless network card will be displayed here.

7/ 15
If the wireless access point you wish to connect does not appear
here, you can click „Refresh‟ button to scan for wireless access
points again; if the wireless access point you‟re looking for still not
appear, try to move the computer closer.

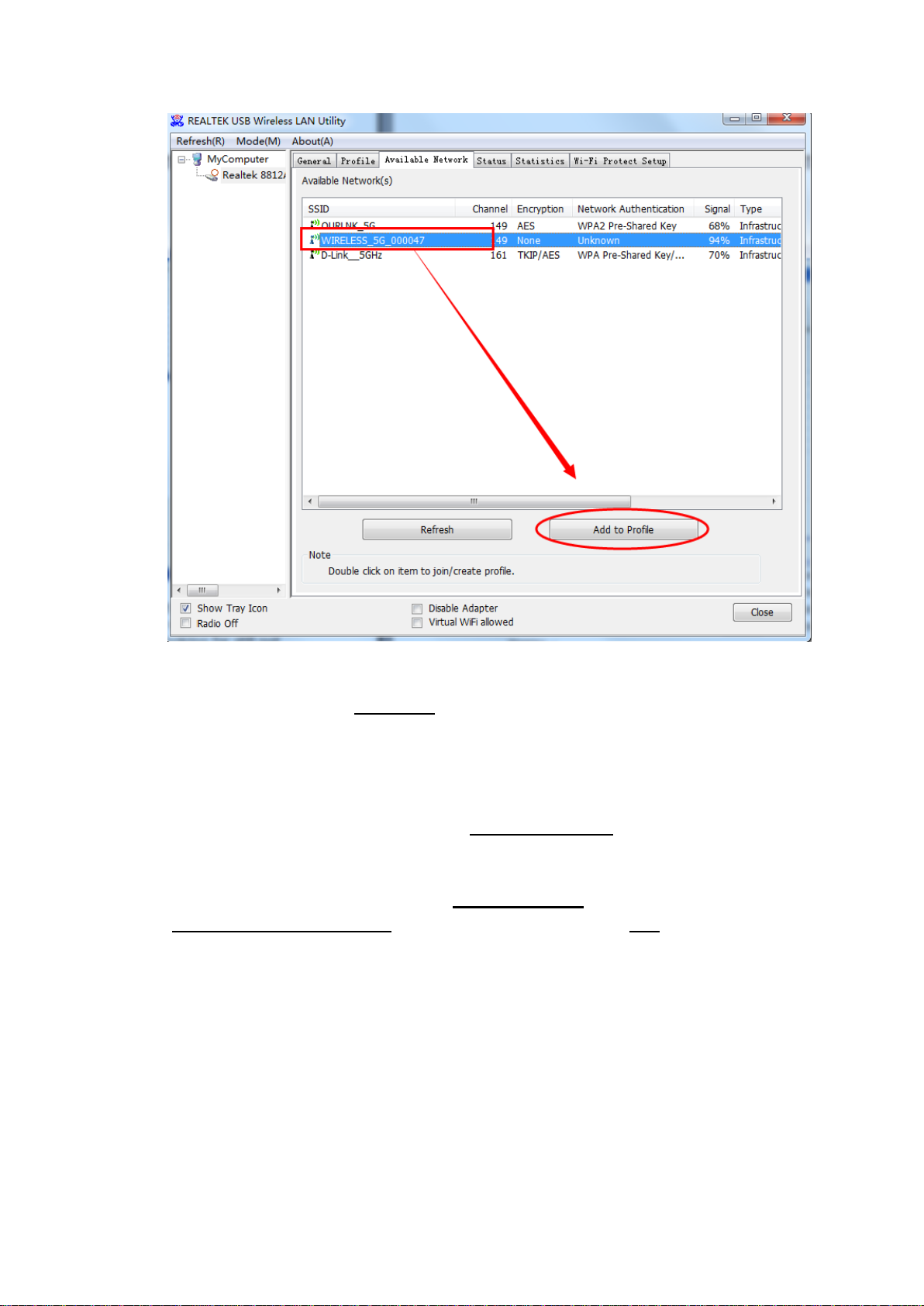

When the access point you‟re looking for is on the list, left-click it
and then double click it or click „Add to Profile‟.

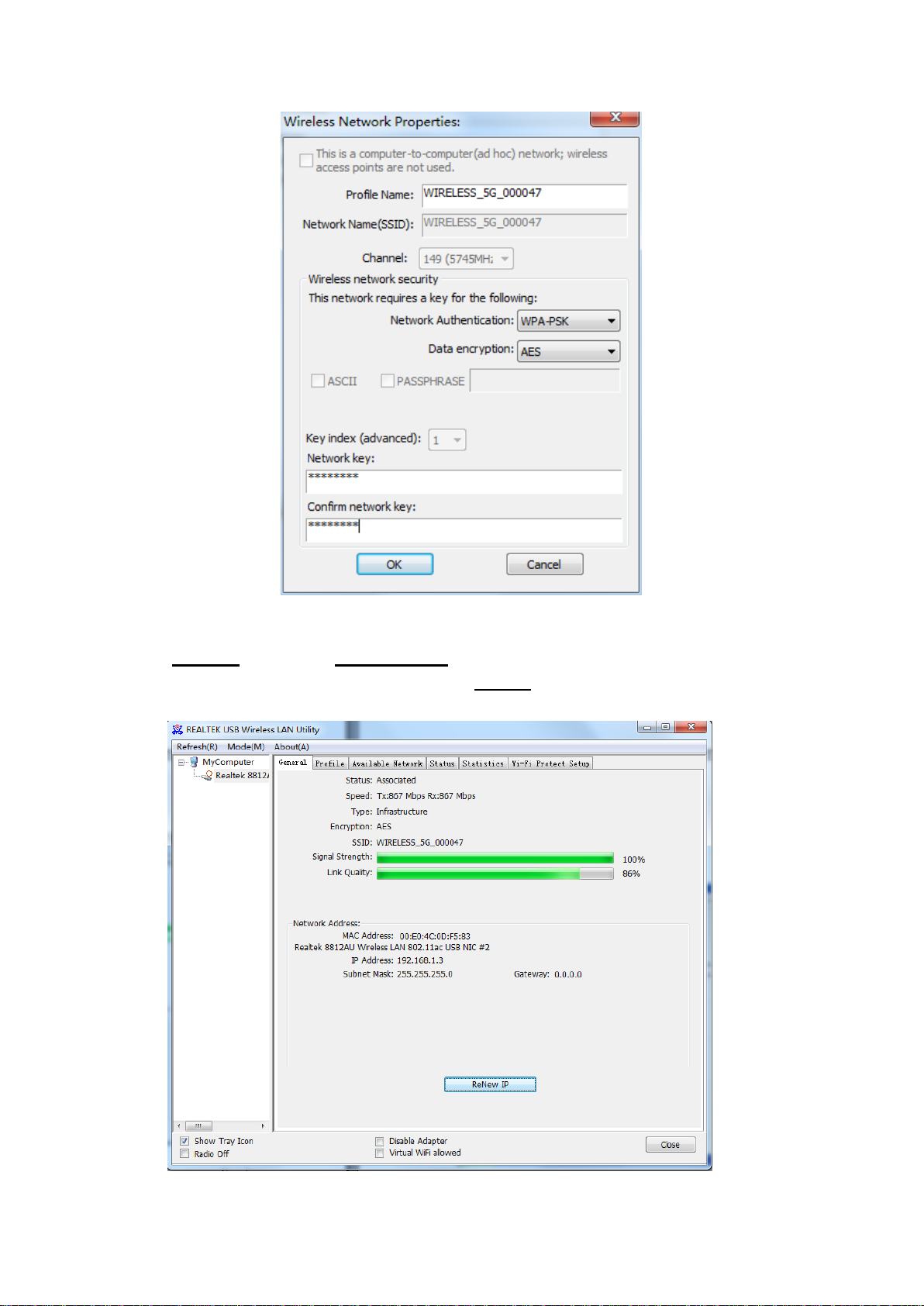

4. If a password (Network Key) is required to access the wireless
access point, please input it in „Network key‟ (and input it again in
„Confirm network key‟ for confirmation). Click „OK‟ when
password is properly inputted.

8/ 15
5. Network card will attempt to connect to access point now, this
may require few seconds to minutes, please be patient. When the
„Status‟ become „Associated‟, your computer is connected to
access point you selected. Click „Close‟ to close configuration
menu.

9/ 15
NOTE: If you connected to an access point but the connection has
been dropped soon, please check security settings and re-check
password spelling.
2.2.2 Using WPS Connect
Wi-Fi Protected Setup (WPS) is the latest wireless network
technology which makes wireless network setup become very
simple. If you have WPS-enabled wireless access point, and you
want to establish a secure connection to it, you don‟t have to
configure the wireless access point and setup data encryption by
yourself. All you have to do is to go to the WPS setup page of this
wireless card, click a button, and then press a specific button or
enter a set of 8-digit code on the wireless access point you wish to
establish a secure connection - just three simple steps!
For older wireless access points, it‟s possible to perform a
firmware upgrade to become a WPS-enabled access point. Since
they may not have a hardware button to press for WPS setup, you
can use an alternative WPS setup method - input the pin code.
Every WPS-compatible wireless network card support pin code
configuration method; you can just input the code to wireless
access point, and the wireless access point and wireless network
card will do the rest for you.
This wireless network card is compatible with WPS. To use this
function, the wireless access point you wish to connect to must
support WPS function too. Now, please follow the following
instructions to establish secure connection between WPS-enabled
wireless access point and your wireless network card.
This wireless network card supports 2 kinds of WPS: PIN code
and Push-Button.
Please follow the following instructions to setup WPS:
1. Right-click Client configuration utility icon, and click „Open
Config Utility‟.

10 / 15
2. Click „Wi-Fi Protect Setup‟ menu.
3. You can use PIN code or Push-Button configuration, and
WPS-compatible wireless access point must use the same type of
WPS. For instructions on setup each type of WPS, see next 2
chapters for detailed instructions.
PIN Code

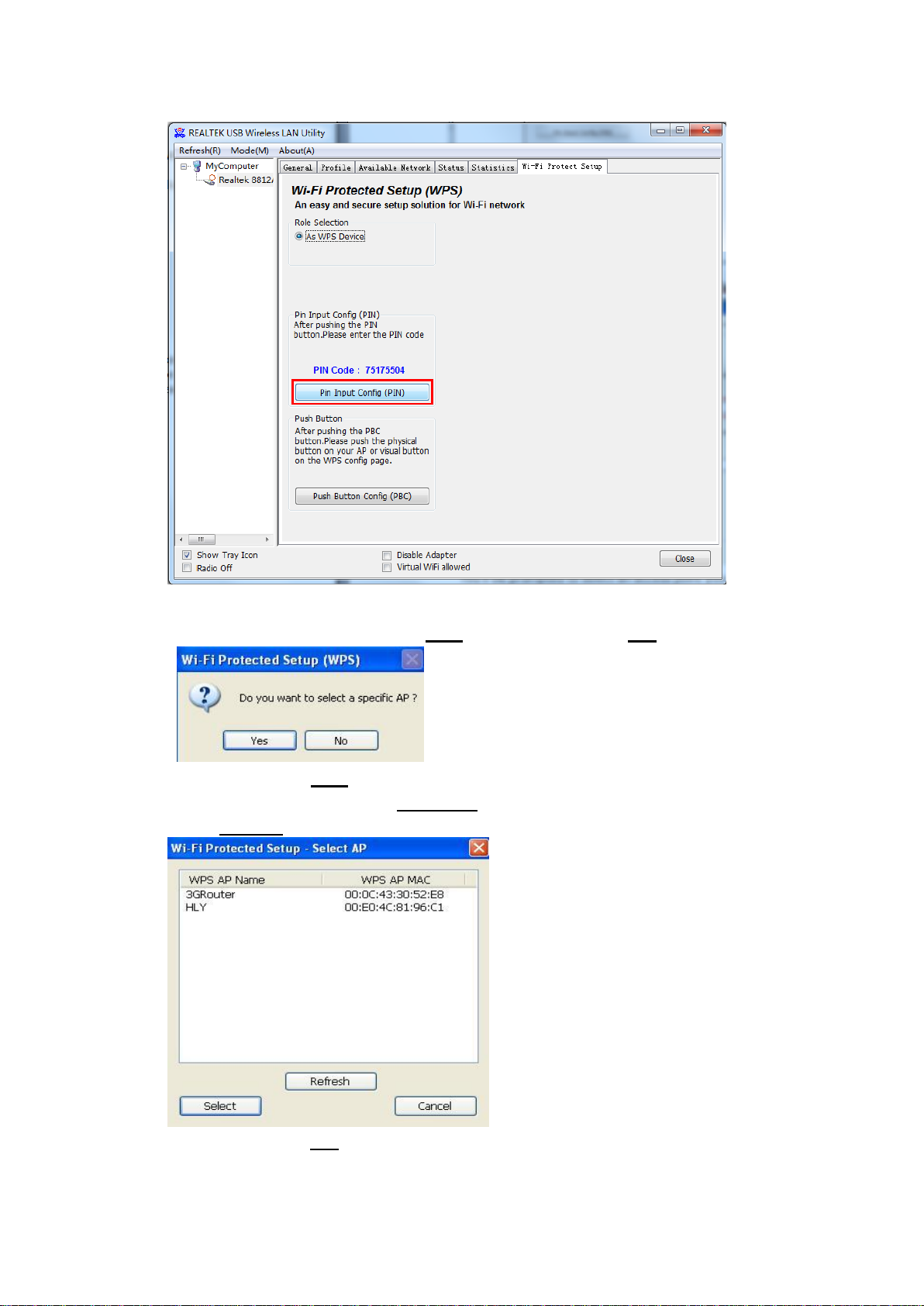

To use PIN Code, please click „Pin Input Config (PIN)‟ button:

11 / 15
You‟ll be prompted to select an access point you wish to connect.
If you know its SSID, click „Yes‟, otherwise click „No‟.
If you select „Yes‟, a list of all WPS-compatible AP nearby will be
displayed; you can click „Refresh‟ to rescan, then select an AP and
click „Select‟ button.
If you select „No‟, wireless network card will prompt you to enter
8-digit PIN code into your AP, without selecting an AP in advance.

12 / 15
After you select „Yes‟ or „No‟ in previous step, network card will
attempt to connect to WPS-compatible AP, and an 8-digit number
will appear. Please input this number to AP‟s configuration menu
within 2 minutes, and network card will establish secure
connection with AP automatically.
To stop this procedure before connection is established, click
„Cancel‟.
Push Button
To use Push-Button WPS configuration, please click „Push
Button Config (PBC)‟ button. This is the easiest way to establish
secure connection by WPS, but if there‟re more than one
WPS-compatible AP using Push-Button config, please use PIN Code
instead.

13 / 15
Click “Push Button Config(PBC)”, a message box will appear:
Please activate Push-Button function on wireless access point
now, and wireless network card will establish secure connection
with access point within one minute.
CHAPTER 3: Troubleshooting
If you encounter any problem when you‟re using this wireless
network card, don‟t panic! Before you call your dealer of purchase
for help, please check this troubleshooting table, the solution of
your problem could be very simple, and you can solve the problem
by yourself !
Scenario
Solution
I can‟t find any
wireless access
point / wireless
device in „Site
Survey‟ function.
1. Click „Refresh‟ for few more times and see if
you can find any wireless access point or
wireless device.
2. Please move closer to any known wireless
access point.
3. Ad hoc‟ function must be enabled for the
wireless device you wish to establish a direct
wireless link.
4. Please adjust the position of network card
(you may have to move your computer if
you‟re using a notebook computer) and click
„Refresh‟ button for few more times. If you
can find the wireless access point or wireless
device you want to connect by doing this, try
to move closer to the place where the wireless
access point or wireless device is located.
Nothing happens
when I click
„Open Config
1. Please make sure the wireless network card is
inserted into your computer‟s USB port.
2. Reboot the computer and try again.

14 / 15
Utility‟
3. Remove the card and insert it into another
USB port.
4. Remove the driver and re-install.
5. Contact the dealer of purchase for help.
I can not establish
connection with a
certain wireless
access point
1. Click „Add to Profile‟ for few more times.
2. If the SSID of access point you wish to
connect is hidden (nothing displayed in „SSID‟
field in „Site Survey‟ function), you have to
input correct SSID of the access point you
wish to connect. Please contact the owner of
access point to ask for correct SSID.
3. You have to input correct passphrase /
security key to connect an access point with
encryption. Please contact the owner of
access point to ask for correct passphrase /
security key.
4. The access point you wish to connect only
allows network cards with specific MAC
address to establish connection. Please go to
„Status‟ menu and write the value of „MAC
Address‟ down, then present this value to
the owner of access point so he / she can add
the MAC address of your network card to his /
her access point‟s list.
The network is
slow / having
problem when
transferring large
files
1. Move closer to the place where access point is
located.
2. There could be too much people using the
same radio channel. Ask the owner of the
access point to change the channel number.
Please try one or more solutions listed above.

15 / 15
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
WIFI 5180~5240 MHz Indoor use only.
As the design, this device is ensuring that an emission is maintained within the band
of operation under all conditions of normal operation as specified in the users manual.
