Dilux AP6528 User manual

User Manual
Decorative Lighting –Floor Recessed Series
China Factory: Block 5, Lianjian Science &
Technology lndustrial Park, Crossing of Huarong
Road, Dalang Sub-District, Longhua, ShenZhen
City, Guangdong, China
Tel: [phone]
Fax: [phone]
HK Office: Unit 1901, 19th Floor, NanYang Plaza,
No. 57 Hung To Road, Kwun Tong, Kowloon,
Hong Kong
Tel: [phone]
Fax: [phone]

Contents
I. Installation Guide
1) AP6528 Installation Guide 3
①Surface Mounted
2) AP2811 / AP2011 Installation Guide 4
①Trim/ Trimless Recessed
II. Cutting Instruction 5
III. Precautions (Storage, Warranty, Frequently Asked Questions) 6

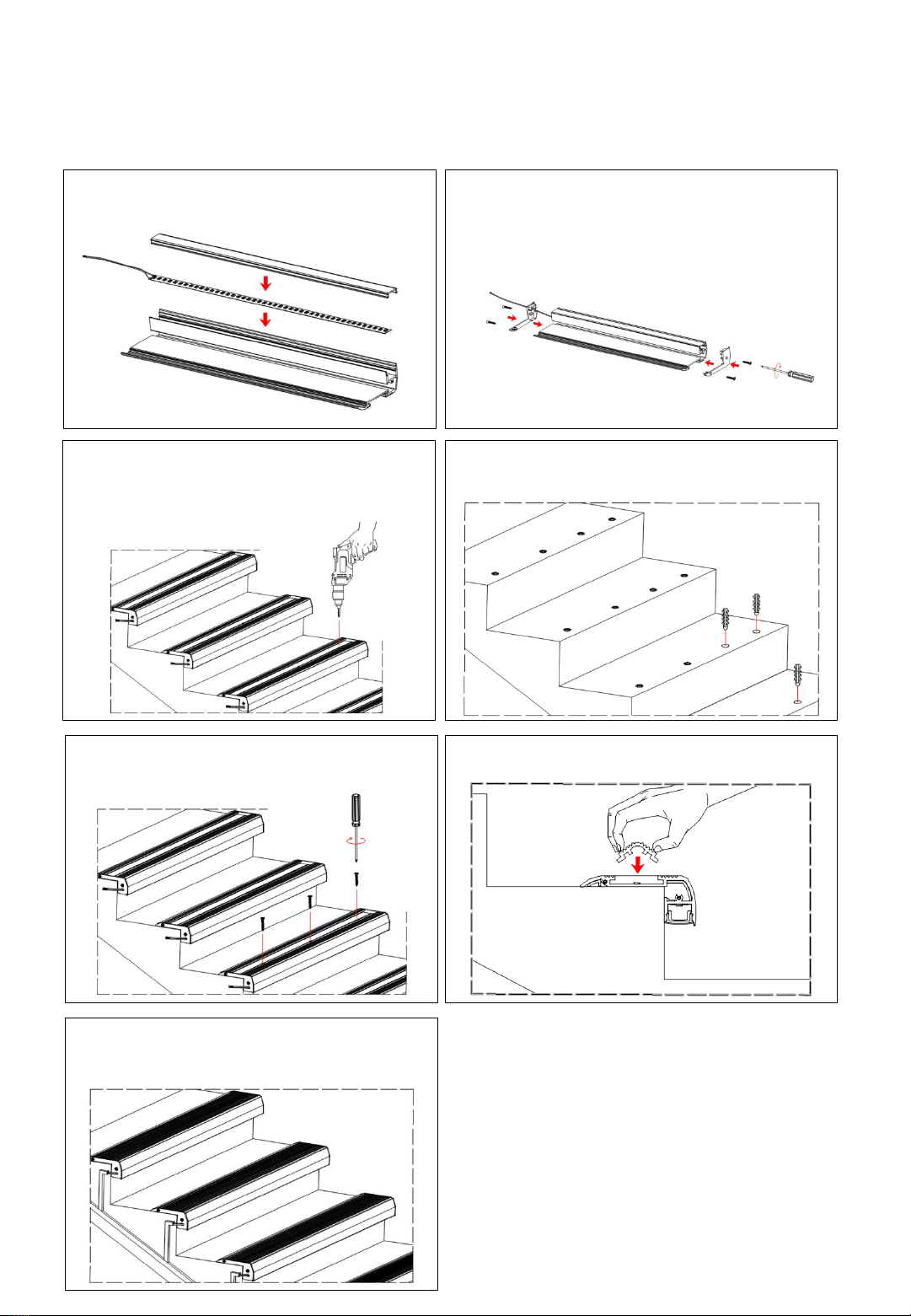

Installation Guide（AP6528 ）
Surface mounted
3. Place the aluminum profile on the stair step which
to be installed, drill a few holes in the mounting
groove of the profile with a ∮5mm diameter and drill
directly into the step about 30mm deep.
4. Remove the profile and insert the expansion anchors
into the small hole of the steps.
6. Pinch the plastic strip, insert it into the profile
mounting groove, and press it flat.
5. Then put the corresponding aluminum profile
back on the original step and fix it on the step
with screws.
1. Attach the strip light to the inner bottom of the
aluminum profile, and then cover with the PC cover.
2. Assemble the two end caps at the two ends of
the aluminum profile with screws.
7. Finally, connect the DC cable of the profile to
the power supply which comply with the standard
requirements and the installation completed.

Installation Guide（AP2811 / AP2011 ）
Trim / Trimless Recessed
3. Slot the area where the aluminum profile is to be
installed (refer to the slot size, AP2011: width 20mm.
depth 11mm; AP2811: width 22mm. depth 11mm).
Preset DC power at one end of the mounting slot
and glue on the bottom of the mounting slot
5. After the glue is cured, the profile is firmly adhered.
The installation is completed.
1. Attach the strip light to the inner bottom
of the aluminum profile, and then cover with
the PC cover.
4. Connect the DC cable of the profile to the preset
DC power supply, place the profile into the mounting
slot, and press it into the slot.
2 Cover with the PC cover, then fix the two end caps
at the two ends of the aluminum profile with screws.

Cutting Instruction
1 According to the length of the multiple of the strip light minimum cutting unit,
measure the aluminum profile and mark the area need to be cut, and the cutting
blade is biased toward the portion to be cut.
2. Cautions：
It is recommended to slow down the speed when cutting. If the speed is too fast, the mask will be
damaged.
The inner profile do not install with strip light when cutting.
Fix it firmly when cutting, the fracture after cutting should be flat and not skewed. Round off the
fracture, ensure there is no burr, and the metal debris in the profile should be cleaned.
Recommended cutting speed 1000-1200rpm

Precautions
1. Storage should be dry, clean and ventilated;
2. Should be equipped with shelves or cabinets for linear lights;
3. Should have corresponding fire prevention measures；
4. Linear lights (including accessories) should be categorize for managed, storage and labeled;
5. Keep the instructions and packing boxes of lighting fixtures, accessories and light sources etc. for future checking;
6. The lighting fixture should be wiped and maintained regularly. It is recommended to maintain once or twice a
quarter.
7. When wiping the fixture, use a clean, soft cloth. After wiping, put it in a clean transparent plastic bag and an
appropriate place;
8. Do not rinse directly with water.
Warranty Instruction
1. Under normal conditions of use, the product is warranted for three years. During the warranty period, the
product fails, if the product is inspected by the company, the product of the same model will be replaced free
of charge.
2. One of the following conditions is not covered by the warranty：
(1) Damage to the product if it is not used as required by the instructions;
(2) The situation in which the user disassembles the internal parts and improperly damages the product;
(3) The product is seriously damaged or deformed.
Storage Management
1. During the installation, ensure the wire is connected properly base on the marking of the wire end and the
electricity operation is prohibited.
2. Electronic components such as power supplies are strictly prohibited from being disassembled;
3. The lighting fixture should be wiped and maintained regularly. It is recommended to maintain once or twice a
quarter. Pay attention to electricity safety and check the fastening of the installation parts;
4. Avoid hit by external objects when using.
Use Maintenance

Frequently Asked Questions
Q: Some parts of the linear light are not bright?
A: If it is not bright in some parts, there should be defect of LED chip of the LED strip. It is recommended to replace the defected
LED strip.
Q: The entire linear light do not work?
A: First check if the line wiring is properly connected, and then check if the power supply is working properly. If it is the problem of
power supply, please replace the power supply.
Q: If the linear light is flicking?
A: It may be caused by loose contact. Please check the wiring again. If it is normal, please check whether the power supply is
overloaded. If both of the above conditions are normal, it may be caused by the power supply. Please check the power supply.
Q: The installed linear light cannot be dimmed？
A : Please check if your wiring is correct. If the wiring is normal, there may be an abnormality in the power dimming control module.
Q: The two same linear lights appear one darker than the other？
A: It may be a problem with the power output. If you are using our power supply, it may be a power overload protection. Please
ensure one power supply do not connect with too many light sources.
