TOPIC-LIGHT TPL308 Series User manual

LED Mini Studio PAR
RGBW 3x8W 4in1
LED Mini Studio PAR
RGBW 3x8W 4in1
LED Mini Studio PAR
RGBW 3x8W 4in1
TOPIC LIGHT CO., LTD
TPL308 LED PAR SERIES
Manual

Table of contents
1. Safety instructions ............................................................................................................................ 3
1.1. For safe and efficient operation ............................................................................................... 3
2. Designated use ................................................................................................................................ 4
2.1. Overhead installation ............................................................................................................... 5
3. Introduction ....................................................................................................................................... 7
4. Connections ..................................................................................................................................... 7
4.1. Electrical connections .............................................................................................................. 7

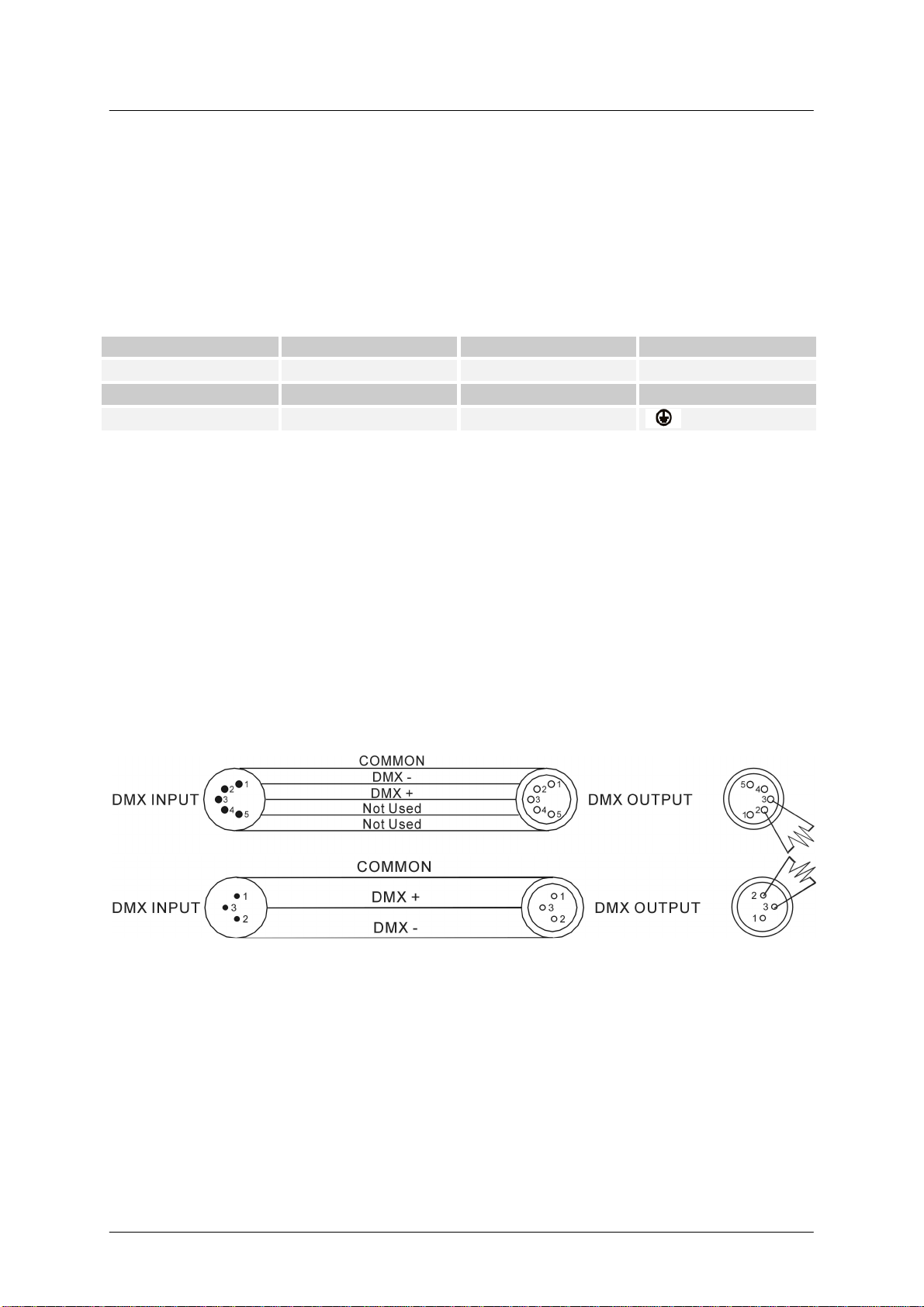

4.2. DMX connections .................................................................................................................... 7
4.3. DMX connection with terminator.............................................................................................. 7
5. Control .............................................................................................................................................. 8
5.1. Structure of the menu .............................................................................................................. 8
6. DMX chart ........................................................................................................................................ 9
6.1. DMX mode 1 (1 channel) ......................................................................................................... 9
6.2. DMX mode 2 (2 channels) ..................................................................................................... 10
6.3. DMX mode 3 (5 channels) ..................................................................................................... 11
6.4. DMX mode 4 (6 channels) ..................................................................................................... 11
6.5. DMX mode 5 (8 channels) ..................................................................................................... 11
7. Technical data ................................................................................................................................ 12
LED Mini Studio Par 3x8W RGBW
2/13

1. Safety instructions
• This
device is suitable for indoor use (not outdoors) only.
•
All modifications to the device will void the warranty.
•
Repairs are to carry out by skilled personnel only.
•
Use only fuses of the same type and original parts as spare parts.
•
Protect the unit from rain and humidity to avoid fire and electric shocks.
•
Make sure to unplug the power supply before opening the
1.1.
For safe and efficient operation
Be careful with heat and extreme temperature
Avoid exposing it to direct rays of the sun or near a heating appliance.
Not put it in a temperature bellow 32
Keep away from humidi
ty, water and dust
Do not place the set in a location with high humidity or lots of dust.
Containers with water should not be placed on the set.
Keep away from sources of hum and noise
Such as transformer motor, tuner, TV set and amplifier.
To avoid placing on un-
stable location
Select a level and stable location to avoid vibration.
Do not use chemicals or volatile liquids for cleaning
Use a clean dry cloth to wipe off the dust, or a wet soft cloth for stubborn dirt.
If out of work, contact sales
agency immediately
Any troubles arose, remove the power plug soon, and contact with an engineer for repairing, do not
open the cabinet by yourself, it might result a danger of electric shock.
Take care with the power cable
Never pull the power cable to re
move the plug from the receptacle, be sure to hold the plug. When not
using the device for an extended period of time, be sure to disconnect the plug from the receptacle.
Important:
Damages caused by the disregard of this user manual are not subject to
accept liability for any resulting defects or problems. Make sure the electrical connection is carried out
by qualified personnel. All electrical and mechanical connections have to be carried out according to
the European safety standards.
device is suitable for indoor use (not outdoors) only.
All modifications to the device will void the warranty.
Repairs are to carry out by skilled personnel only.
Use only fuses of the same type and original parts as spare parts.
Protect the unit from rain and humidity to avoid fire and electric shocks.
Make sure to unplug the power supply before opening the
For safe and efficient operation
Be careful with heat and extreme temperature
Avoid exposing it to direct rays of the sun or near a heating appliance.
Not put it in a temperature bellow 32
°F /0°C, or exceeding 104°F /40°C.
ty, water and dust
Do not place the set in a location with high humidity or lots of dust.
Containers with water should not be placed on the set.
Keep away from sources of hum and noise
Such as transformer motor, tuner, TV set and amplifier.
stable location
Select a level and stable location to avoid vibration.
Do not use chemicals or volatile liquids for cleaning
Use a clean dry cloth to wipe off the dust, or a wet soft cloth for stubborn dirt.
agency immediately
Any troubles arose, remove the power plug soon, and contact with an engineer for repairing, do not
open the cabinet by yourself, it might result a danger of electric shock.
Take care with the power cable
move the plug from the receptacle, be sure to hold the plug. When not
using the device for an extended period of time, be sure to disconnect the plug from the receptacle.
Damages caused by the disregard of this user manual are not subject to
warranty. The dealer will not
accept liability for any resulting defects or problems. Make sure the electrical connection is carried out
by qualified personnel. All electrical and mechanical connections have to be carried out according to
Use only fuses of the same type and original parts as spare parts.
Protect the unit from rain and humidity to avoid fire and electric shocks.
Make sure to unplug the power supply before opening the
housing.
Any troubles arose, remove the power plug soon, and contact with an engineer for repairing, do not
move the plug from the receptacle, be sure to hold the plug. When not
using the device for an extended period of time, be sure to disconnect the plug from the receptacle.
warranty. The dealer will not
accept liability for any resulting defects or problems. Make sure the electrical connection is carried out
by qualified personnel. All electrical and mechanical connections have to be carried out according to
LED Mini Studio Par 3x8W RGBW
3/13

2. Designated use
This device was developed for professional use on stages, in discos, theatres etc. The device is only
approved for a connection up to 230V 50/60 Hz AC voltage and only for indoor use.
Regular breaks during operation increase the lifetime of your device.
Avoid convulsions or any form of forceful impact during the installation or the start-up of the device.
Make sure that the device is not exposed excessive heat, humidity or dust at the place of installation.
Take care that no cables are lying around. You would endanger your own safety and also the safety of
a third party.
It is not allowed to operate or store the device in an environment in which spray water, rain, humidity
or fog is expected. Humidity or very high atmospheric humidity could reduce the isolation of the device
and could cause deathly electric shocks. If you use fog devices the device has not be exposed to a
direct smoke jet. There has to be a safety distance of at least 0,5m between this device and the fog
machine. Make sure that the saturation of the fog has to enable a visibility of at least 10m.
The ambient temperature has to be between 0°C and +40°C. Avoid direct sunlight and close proximity
to heaters. You have also to attend it during the transport in closed motor vehicles.
Operate the device not during thunderstorms. Surge voltages could destroy the device. Unplug the
power supply during thunderstorms.
During the installation the use of the mounting bracket is obligatory.
Surrounding objects or surfaces should not be in contact with the device.
Make sure that during the installation and removal of the device the area below the place of
installation is basically cordoned off. This also applies to implementation of service.
The device has basically been protected by a suitable safety.
Make familiar yourself with the functions of the device before start-up. People without the experience
should not handle with the device. The most cause of functional disorder is inappropriate handling.
Do not use chemicals or volatile liquids for cleaning. Use a clean dry cloth to wipe off the dust, or a
wet soft cloth for stubborn dirt.
For transport use the original packing or designated accessory to avoid damages during the transport.
For reasons of safety unauthorized changes are forbidden.
A usage of the device which differs from usages which are described in this manual can cause
damages of the device. In that case the warranty expires. Additional you should notice that every
differed usage is related with dangers and can cause e.g. an electrical short, fire, electric shock or
crash.
LED Mini Studio Par 3x8W RGBW
4/13

2.1.
Overhead installation
Danger of life!
You have to observe the regulations of BGV C1 (formerly VBG 70) and
EN60598-2-
17
The suspension devices have to be build and measured so they can withstand for an hour the tenfold
of the payload without suffering a permanent detrimental deformation.
Basically installation has to be made by using a se
suitable net. The second suspension must be designed and attached so no part of the installation can
fall down in case of failure.
During construction, reconstruction and deconstruction unnecessary stay in the
areas, on lightning bridges, under elevated work stations or any other danger zones is forbidden.
The operator is obliged to following safety
- Before the first start-
up or after critical changes before
expert.
-
Review in the frame of the inspection test at least all four years by an expert. .
-
Review by a qualified person at least once a year.
How to carry out the overhead installation:
In tidal fall you should
install the device out of the lounge area of people
IMPORTANT!
Overhead installation requires a high level of experience. This includes knowledge of
calculating the payload, used installation material and safety inspections of the used material and the
pr
ojector whereas the required experience is not limited to this. Do not try to carry out installation
yourself under any circumstances if you are not qualified. Contact a professional installer. An
inappropriate installation can lead to injuries and/or dama
It is not allowed to install the device in the grip area of people.
If the device may hang from the ceiling or from high beams, the use of truss systems is mandatory.
The device may not be installed so it can swing freely in the room.
Please note: Crashing down items can cause serious injuries! Do not install the projector, if you doubt
the safety of a possible installation form!
Before installation make sure that the mounting surface has the ability to carry the tenfold point load of
the own weight of the device.
Mount the device with the mounting
During overhead installation the device must be always secured by a safety rope which is designed to
hold the twelvefold weight
of device. Only safety ropes with quick
may be used. Hang up the safety rope in the hole of the mounting bracket. Direct the rope over the
truss or an appropriate fastening point. Hang up the end in the fastening element an
locking nut. A safety rope once exposed to failing load or damaged may not be used furthermore.
Overhead installation
Danger of life!
You have to observe the regulations of BGV C1 (formerly VBG 70) and
17
Installations are to carry
out by skilled personnel only.
The suspension devices have to be build and measured so they can withstand for an hour the tenfold
of the payload without suffering a permanent detrimental deformation.
Basically installation has to be made by using a se
cond separate suspension. This can be e.g. a
suitable net. The second suspension must be designed and attached so no part of the installation can
During construction, reconstruction and deconstruction unnecessary stay in the
range of moving
areas, on lightning bridges, under elevated work stations or any other danger zones is forbidden.
The operator is obliged to following safety
-related and mechanical facilities:
up or after critical changes before
restarting it has to be checked by an
Review in the frame of the inspection test at least all four years by an expert. .
Review by a qualified person at least once a year.
How to carry out the overhead installation:
install the device out of the lounge area of people
Overhead installation requires a high level of experience. This includes knowledge of
calculating the payload, used installation material and safety inspections of the used material and the
ojector whereas the required experience is not limited to this. Do not try to carry out installation
yourself under any circumstances if you are not qualified. Contact a professional installer. An
inappropriate installation can lead to injuries and/or dama
ged properties.
It is not allowed to install the device in the grip area of people.
If the device may hang from the ceiling or from high beams, the use of truss systems is mandatory.
The device may not be installed so it can swing freely in the room.
Please note: Crashing down items can cause serious injuries! Do not install the projector, if you doubt
the safety of a possible installation form!
Before installation make sure that the mounting surface has the ability to carry the tenfold point load of
Mount the device with the mounting
-
bracket to your trussing system using an appropriate clamp.
During overhead installation the device must be always secured by a safety rope which is designed to
of device. Only safety ropes with quick
-
release safety fastener elements
may be used. Hang up the safety rope in the hole of the mounting bracket. Direct the rope over the
truss or an appropriate fastening point. Hang up the end in the fastening element an
locking nut. A safety rope once exposed to failing load or damaged may not be used furthermore.
You have to observe the regulations of BGV C1 (formerly VBG 70) and
out by skilled personnel only.
The suspension devices have to be build and measured so they can withstand for an hour the tenfold
cond separate suspension. This can be e.g. a
suitable net. The second suspension must be designed and attached so no part of the installation can
range of moving
areas, on lightning bridges, under elevated work stations or any other danger zones is forbidden.
restarting it has to be checked by an
Review in the frame of the inspection test at least all four years by an expert. .
Overhead installation requires a high level of experience. This includes knowledge of
calculating the payload, used installation material and safety inspections of the used material and the
ojector whereas the required experience is not limited to this. Do not try to carry out installation
yourself under any circumstances if you are not qualified. Contact a professional installer. An
If the device may hang from the ceiling or from high beams, the use of truss systems is mandatory.
Please note: Crashing down items can cause serious injuries! Do not install the projector, if you doubt
Before installation make sure that the mounting surface has the ability to carry the tenfold point load of
bracket to your trussing system using an appropriate clamp.
During overhead installation the device must be always secured by a safety rope which is designed to
release safety fastener elements
may be used. Hang up the safety rope in the hole of the mounting bracket. Direct the rope over the
truss or an appropriate fastening point. Hang up the end in the fastening element an
d tie up the
locking nut. A safety rope once exposed to failing load or damaged may not be used furthermore.
LED Mini Studio Par 3x8W RGBW
5/13

The maximum drop exceed must not exceed 20cm.
A safety rope once exposed to failing load or damaged may not be used furthermore.
Adjust the desired inclination angle via the mounting bracket and tighten the screw
LED Mini Studio Par 3x8W RGBW
6/13

3. Introduction
Thank you for buying the Mini Studio PAR RGBW 3x8W 4in1. It is a powerful device.
For a successful installation and operation, please read this manual carefully.
4. Connections
4.1.Electrical connections
If you wish to change the power supply settings, see the chapter Appendix. Connect the fixture to the
mains with the enclosed power cable and plug. The earth has to be connected.
Cable (EU) Cable (US) Pin International
Brown Black Live L
Light blue White Neutral N
Yellow/Green Green Earth
4.2.DMX connections
To make a DMX512 connection go ahead like it is described in the picture. Make sure that you use
shielded cable. 3pole or 5pole XLR cables are suitable.
Important! After the last device the line has to be terminated. In order to do this you have to solder a
120Ω resistor between the pins Data + and Data -. You can solder this end resistor on a 3pin or 5pin
XLR: Plug this adapter into the DMX output of the device.
4.3.DMX connection with terminator
Where the DMX cable has to run a long distance or the equipment is operated in an electrically noisy
environment like a disco for installations, we recommend using a DMX terminator. This prevents
corruption of the digital control signal by electrical noise. The DMX terminator is simply an XLR
connector with a 120 Ω resistor between pins 2 and 3, which is then plugged into the XLR output
socket of the last device in the series. Please look to the bottom drawings.
LED Mini Studio Par 3x8W RGBW
7/13

5. Control
Push MENU to reach the first menu and use UP/DOWN to get to submenu. To open submenu you
have to push ENTER, here you can also reach other menu items with UP/DOWN buttons, confirm with
ENTER. Push MENU to store your settings.
Note: If you have chosen a DMX mode you have to step back to ADDR and press ENTER, the DMX
mode is activated.
5.1.Structure of the menu
Menu Submenu Function
Addr A001-A512 Setting the DMX address.
Shnd Sh1-Sh9 Choose one of 9 automatic programs.
SPEd SP00-SP31 Setting the program speed slow-fast.
SLAV
SL1 DMX Mode 1
SL2 DMX Mode 2
SL3 DMX Mode 3
SL4 DMX Mode 4
SL5 DM’X Mode 5
SLA The device works as slave.
SenS Off The sound-to-light mode is deactivated.
1-100 Setting the microphone sensitivity.
Soud Sou1 Color change in sound-to-light mode.
Sou2 Color change with flash in sound-to-light mode.
ALLC 0-255 Dimmer 0-100%
rEd r000-r255 Dimmer red 0-100%
GrEE G000-G255 Dimmer green 0-100%
bLUE b000-b255 Dimmer blue 0-100%
UIt U000.U255 Dimmer white 0-100%
Led
ON Display on
30 Display off after 30s
60 Display off after 60s
90 Display off after 90s
reset Reset
SIgn blnd If the DMX signals gets lost all values will be set to 0.
FrEE If the DMX signal gets lost all values will be hold. .
LED Mini Studio Par 3x8W RGBW
8/13

6. DMX chart
6.1.DMX mode 1 (1 channel)
Channel Value
from Value to Function
1
Color macros
0 6 No function
7 13 Color 1
14 20 Color 2
21 27 Color 3
28 34 Color 4
35 41 Color 5
42 48 Color 6
49 55 Color 7
56 62 Color 8
63 69 Color 9
70 76 Color 10
77 83 Color 11
84 90 Color 12
91 97 Color 13
98 104 Color 14
105 111 Color 15
112 118 Color 16
119 125 Color 17
126 132 Color 18
133 139 Color 19
140 146 Color 20
147 153 Color 21
154 160 Color 22
161 167 Color 23
168 174 Color 24
175 181 Color 25
182 188 Color 26
189 195 Color 27
196 202 Color 28
203 209 Color 29
210 216 Color 30
217 223 Color 31
224 230 Color 32
231 237 Color 33
238 244 Color 34
245 255 Color 35
LED Mini Studio Par 3x8W RGBW
9/13

6.2.DMX mode 2 (2 channels)
Channel Value
from Value to Function
1
Color macros
0 6 No function
7 13 Color 1
14 20 Color 2
21 27 Color 3
28 34 Color 4
35 41 Color 5
42 48 Color 6
49 55 Color 7
56 62 Color 8
63 69 Color 9
70 76 Color 10
77 83 Color 11
84 90 Color 12
91 97 Color 13
98 104 Color 14
105 111 Color 15
112 118 Color 16
119 125 Color 17
126 132 Color 18
133 139 Color 19
140 146 Color 20
147 153 Color 21
154 160 Color 22
161 167 Color 23
168 174 Color 24
175 181 Color 25
182 188 Color 26
189 195 Color 27
196 202 Color 28
203 209 Color 29
210 216 Color 30
217 223 Color 31
224 230 Color 32
231 237 Color 33
238 244 Color 34
245 255 Color 35
2 0 255 Dimmer 0-100%
LED Mini Studio Par 3x8W RGBW
10/13

6.3.DMX mode 3 (5 channels)
Channel Value
from Value to Function
1 0 255 Dimmer red LEDs 0-100%
2 0 255 Dimmer green LEDs 0-100%
3 0 255 Dimmer blue LEDs 0-100%
4 0 255 Dimmer white LEDs 0-100%
5 0 255 Dimmer 0-100%
6.4.DMX mode 4 (6 channels)
Channel Value
from Value to Function
1 0 255 Dimmer red LEDs 0-100%
2 0 255 Dimmer green LEDs 0-100%
3 0 255 Dimmer blue LEDs 0-100%
4 0 255 Dimmer white LEDs 0-100%
5 0 3 No function
4 255 Strobe slow-fast
6 0 255 Dimmer 0-100%
6.5.DMX mode 5 (8 channels)
Channel Value
from Value to Function
1 0 255 Dimmer red LEDs 0-100%
2 0 255 Dimmer green LEDs 0-100%
3 0 255 Dimmer blue LEDs 0-100%
4 0 255 Dimmer white LEDs 0-100%
5 0 3 No function
4 255 Strobe slow-fast
6 0 255 Dimmer 0-100%
7
Special functions
0 31 No function
32 63 Ramp up
64 95 Ramp down
96 127 Ramp up/down
128 159 Color fade
160 191 Color change (3 colors)
192 223 Color change (7 colors)
224 255 Sound-to-light
8 0 255 Setting the speed or the microphone sensitivity
LED Mini Studio Par 3x8W RGBW
11/13

7. Technical data
Power supply
Voltage AC 110-240 V; 50/60 Hz
Power consumption max. 60 W
Light source
LM type LED 4in1
Color spectrum RGBW
Power 24 W
Number / Power 3 x 8W
Optics
Beam angle 25°
Controlling
Sound-to-light Yes
Automatic Yes
Master-Slave Yes
DMX512 Yes
Number of channels 1/2/5/6/8 channels
Hardware
Protection class IP20
Skill Indoor
Dimensions (L/W/H) 155 x 200 x 270 mm
Weight 2,06 kg
LED Mini Studio Par 3x8W RGBW
12/13

LED Mini Studio Par 3x8W RGBW
