5Star Systems Spica 250M User manual

USER MANUAL
SPICA 250M

5Star Systems – Spica 250M – User manual
Tel: [phone]
2
1. Safety .................................................................................................................................................. 3
1.2 Safety instructions.......................................................................................................................... 3
1.3 Operating determinations............................................................................................................... 4
2. Introduction.......................................................................................................................................... 5
2.1 Beam path ..................................................................................................................................... 5
2.2 Technical specifications ................................................................................................................. 5
2.3 Description of the device................................................................................................................ 7
3. Installation............................................................................................................................................ 8
3.1 Fitting the lamp .............................................................................................................................. 8
3.2 Lamp adjustment ......................................................................................................................... 10
3.3 Inserting/Exchanging gobos ......................................................................................................... 10
3.4 Connection to the mains…………………………………………………………………………………….11
3.5 DMX 512 connections .................................................................................................................. 12
4. Rigging the fixture .............................................................................................................................. 12
5. Addressing......................................................................................................................................... 14
6. Remotely controllable functions.......................................................................................................... 15
6.1 Lamp ........................................................................................................................................... 15
6.2 Switching on and off the lamp by Control board............................................................................ 15
6.3 Colour wheel................................................................................................................................15
6.4 Rotating gobo wheel .................................................................................................................... 15
6.5 3-facet rotating prism ................................................................................................................... 16
6.6 Focus........................................................................................................................................... 16
6.7 Dimmer/Shutter/Strobe................................................................................................................. 16
6.8 Fan.............................................................................................................................................. 16
7. Control Board..................................................................................................................................... 16
7.1 Main functions.............................................................................................................................. 17
7.2 SPEC – Special functions ............................................................................................................ 18
8. Error and information messages......................................................................................................... 21
9. DMX-Protocol .................................................................................................................................... 23
9.1 Functions of the control channels – 16 and 8 bit protocol.............................................................. 23
10. Maintenance and cleaning................................................................................................................ 24
11. Appendix.......................................................................................................................................... 25

5Star Systems – Spica 250M – User manual
Tel: [phone]
3
1. Safety
1.2 Safety instructions
Every person involved with installation and maintenance of this device has to:
- be qualified
- follow the instructions of this manual
CAUTION!
Be careful with your operations. With a voltage of 230V
you can suffer a dangerous electric shock when
touching the wires!
This device has left our premises in absolutely perfect condition. In order to maintain this condition and
to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and
warning notes written in this manual.
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
Never let the power-cord come into contact with other cables! Handle the power-cord and all connections
with the mains with particular caution!
Make sure that the available voltage is not higher than stated on the rear panel.
Always plug in the power plug least. Make sure that the power-switch is set to OFF-position before you
connect the device to the mains. The power-plug has to be accessible after installing the device.
Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and
the power-cord from time to time.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the
power cord by the plug. Never pull out the plug by tugging the power-cord.
This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor
to earth.
The electric connection, repairs and servicing must be carried out by a qualified employee.
Do not connect this device to a dimmer pack.
Do not switch the fixture on and off in short intervals as this would reduce the lamp’s life.
During the initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective.
Do not touch the devices housing bare-handed during its operation (housing becomes hot)!

5Star Systems – Spica 250M – User manual
Tel: [phone]
4
For replacement use lamps and fuses of same type and rating only.
CAUTION! EYEDAMAGES!
Avoid looking directly into the light source
(meant especially for epileptics) !
1.3 Operating determinations
This device is a moving-head spot for creating decorative effects. This product is only allowed to be
operated with an alternating current of 230 V, 50 Hz and was designed for indoor use only.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the device
switched off until it has reached room temperature.
Never run the device without lamp!
Do not shake the device. Avoid brute force when installing or operating the device.
Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always
hold the fixture at the transport handles.
When choosing the installation-spot, please make sure that the device is not exposed to extreme heat,
moisture or dust. There should not be any cables lying around. You endanger your own and the safety
of others!
The minimum distance between light-output and the illuminated surface must be more than 1 meter.
Make sure that the area below the installation place is blocked when rigging, deranging or servicing the
fixture.
Always fix the fixture with an appropriate safety-rope. Fix the safety-rope at the correct holes only.
Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly
fastened.
The lamp must never be ignited if the objective-lens or any housing-cover is open, as discharge lamps
may explode and emit a high ultraviolet radiation, which may cause burns.
The maximum ambient temperature ta = 45° C must never be exceeded. Otherwise, the lamp is switched
off and the fixture is out of operation for 5 minutes.
CAUTION!
The lens has to be replaced when it is obviously damaged, so that its
function is impaired, e. g. due to cracks or deep scratches!
Operate the device only after having familiarized with its functions. Do not permit operation by persons
not qualified for operating the device. Most damages are the result of unprofessional operation!

5Star Systems – Spica 250M – User manual
Tel: [phone]
5
CAUTION!
The lamp has to be replaced when it is damaged
or deformed due to the heat!
Please use the original packaging if the device is to be transported.
Please consider that unauthorized modifications on the device are forbidden due to safety reasons!
If this device will be operated in any way different to the one described in this manual, the product may
suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers
like short-circuit, burns, electric shock, burns due to ultraviolet radiation, lamp explosion, crash etc.
2. Introduction
Unpack your SPICA 250M and make sure that there are no damages caused by transportation.
Should there be any, please consult your local dealer and do not take the device into operation.

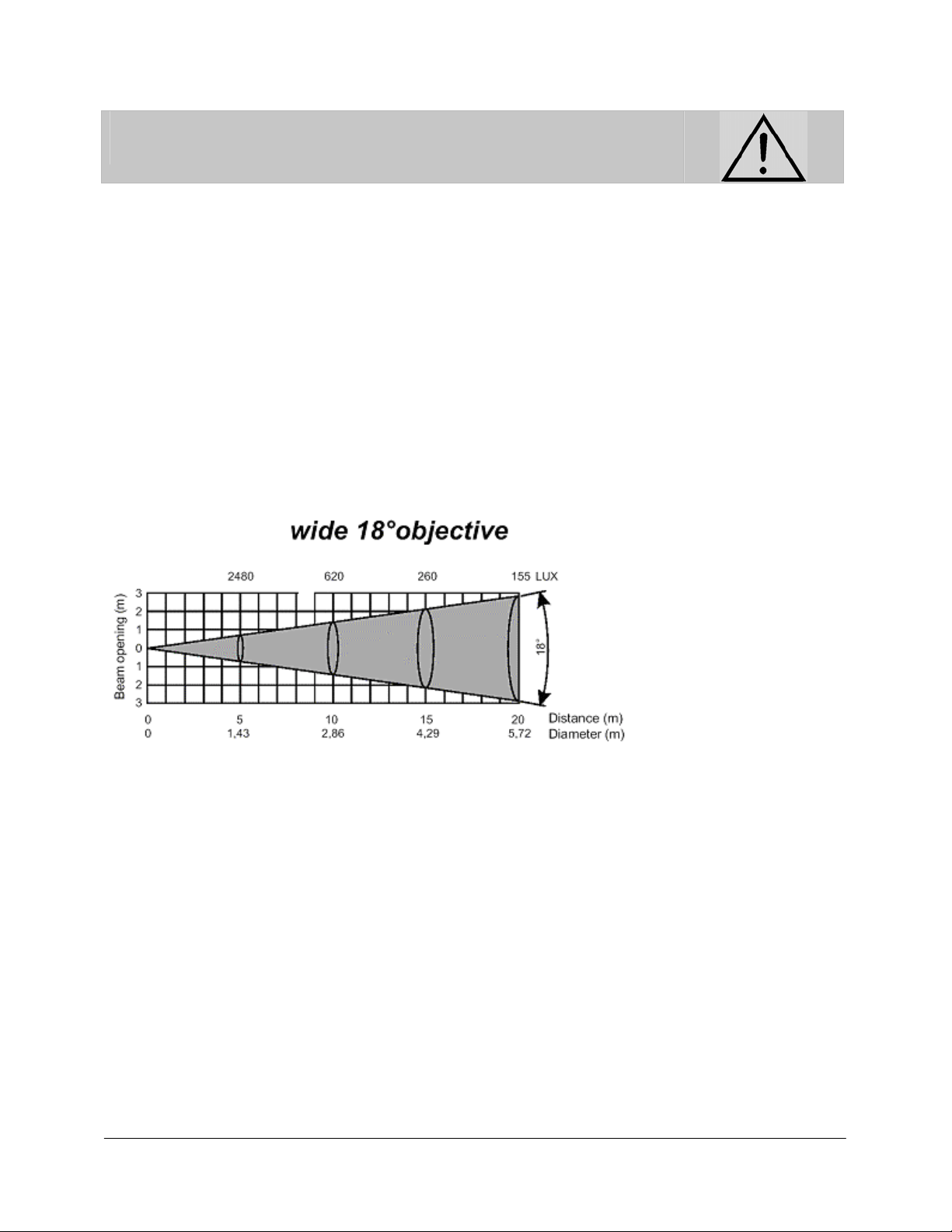

2.1 Beam path
2.2 Technical specifications
Power supply
EU-model: 210/230/250V AC, 50/60 Hz ~
Fuse: T 3.15A, 250V
US-model: 100/115/208/230 V AC, 50/60Hz ~
Fuse: T 6.3 A
Power consumption: 500W
Lamp
Sylvania BA 250/2 GY-9.5, 8900ºK included
Optical System
High luminous-efficiency parabolic mirror and double condenser system
Standard 18° focused beam angle
All lenses are anti-reflection coated

5Star Systems – Spica 250M – User manual
Tel: [phone]
6
Colours
8 trapezoid dichroic-filters plus white
Colour-wheel with variable rotation speed
Rotating gobos
- 5 metal gobos rotating in both directions at different speeds
- Gobo indexing
- Rotating gobo-wheel cont. rotation
- Outside diameter 37 mm, image diameter 30 mm.
Strobe
Strobe effect with variable speed (1 - 10 flashes per second)
Dimmer
Smooth dimmer from 0 - 100 %
Prism
3-facet-prism rotating in both directions at different speeds
Focus
Motorized focus from near to far
Motor
10 high quality stepping-motors controlled by microprocessors
Electronics
Digital serial input DMX-512
16 control-channels (full 16 bit protocol):
Channel 1: Horizontal mirror-movement 8 bit
Channel 2: Fine Horizontal mirror-movement 16 bit
Channel 3: Vertical mirror-movement 8 bit
Channel 4: Fine Vertical mirror-movement 16 bit
Channel 5: Pan/Tilt speed
Channel 6: Fan speed, On/Off lamp, reset
Channel 7: Colours
Channel 8: No function
Channel 9: Prism-wheel
Channel 10: Prism-rotation
Channel 11: Rotating gobos
Channel 12: Gobo rotation, gobo indexing
Channel 13: No function
Channel 14: Focus
Channel 15: Shutter, strobe
Channel 16: Dimmer
Pan/Tilt
Pan movement range 530°
Tilt movement range 280°
8/16 bit movement resolution
Automatic Pan / Tilt position correction
Maximum PAN-movement 530° in 2.65 s
Maximum TILT-movement 280° in 1.68 s

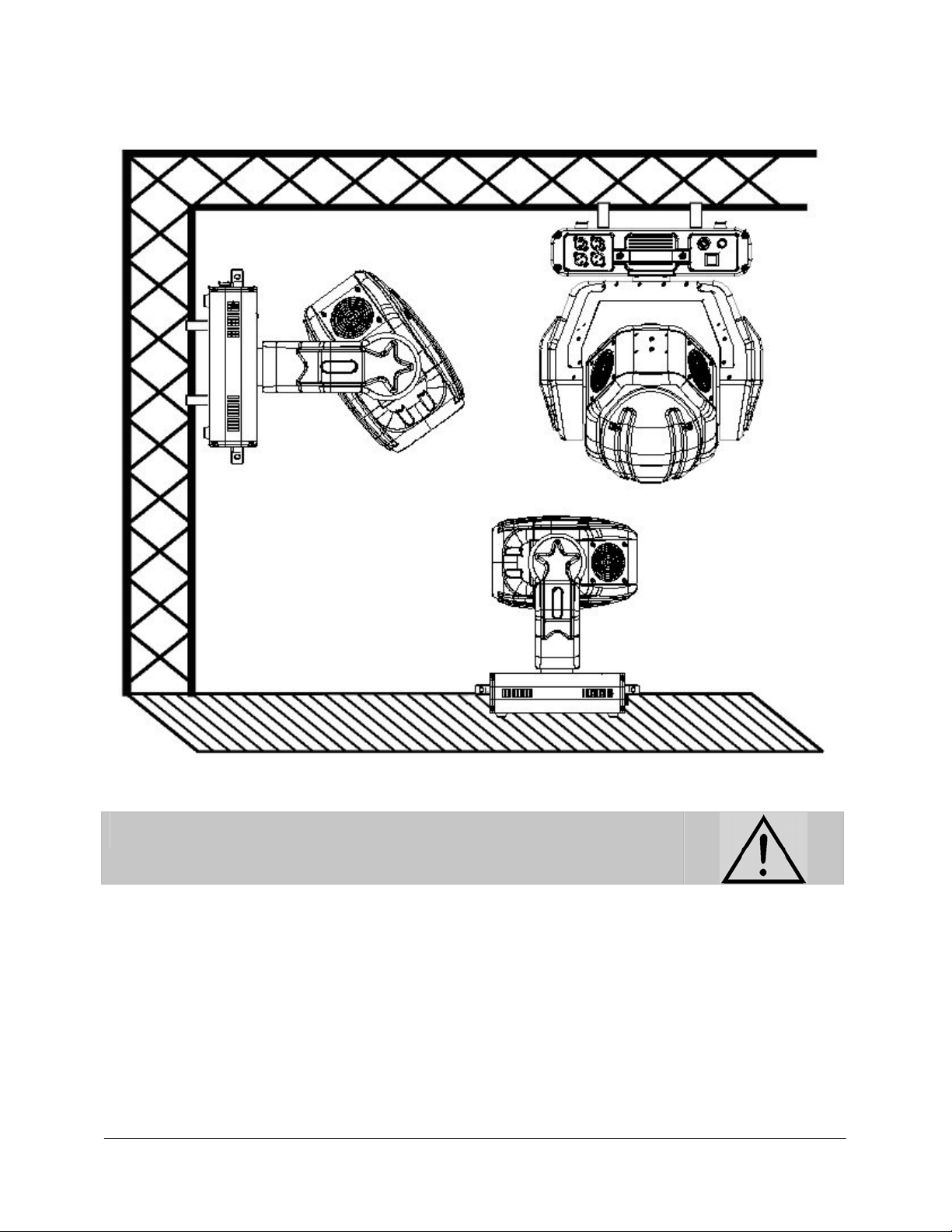

Rigging
Stands directly on the floor
Mounts horizontally or vertically with 2 clamps

5Star Systems – Spica 250M – User manual
Tel: [phone]
7
2 truss orientation
Safety chain/cord attachment point
Temperatures
Maximum ambient temperature ta: 45° C
Maximum housing temperature tB (steady state): 80° C
Dimensions and weight
Length of base (including handles): 373 mm
Width of yoke: 427 mm
Height (head horizontal): 459 mm
Weight (net): 18 kg
Shipping weight: 25 kg

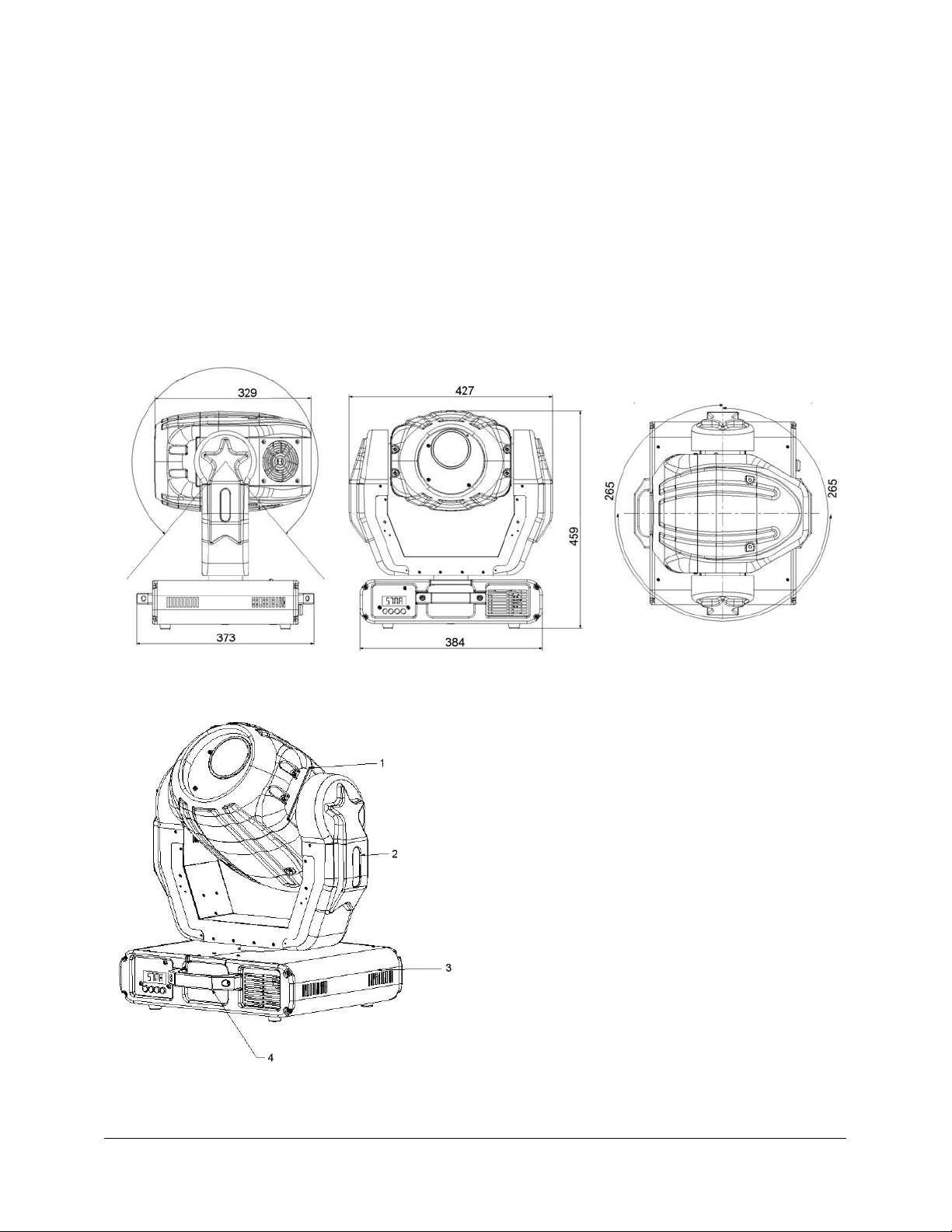

2.3 Description of the device
1 - Moving Head 3 - Base
2 - Yoke 4 - Carrying handles

5Star Systems – Spica 250M – User manual
Tel: [phone]
8
5 - Power-switch
6 - DMX output
7 - DMX input
8 - Power cord
9 - Fuse holder
10 - Mode-button
11 - Enter-button
12 - Up-button
13 - Down-button
14 - Display
3. Installation
3.1 Fitting the lamp

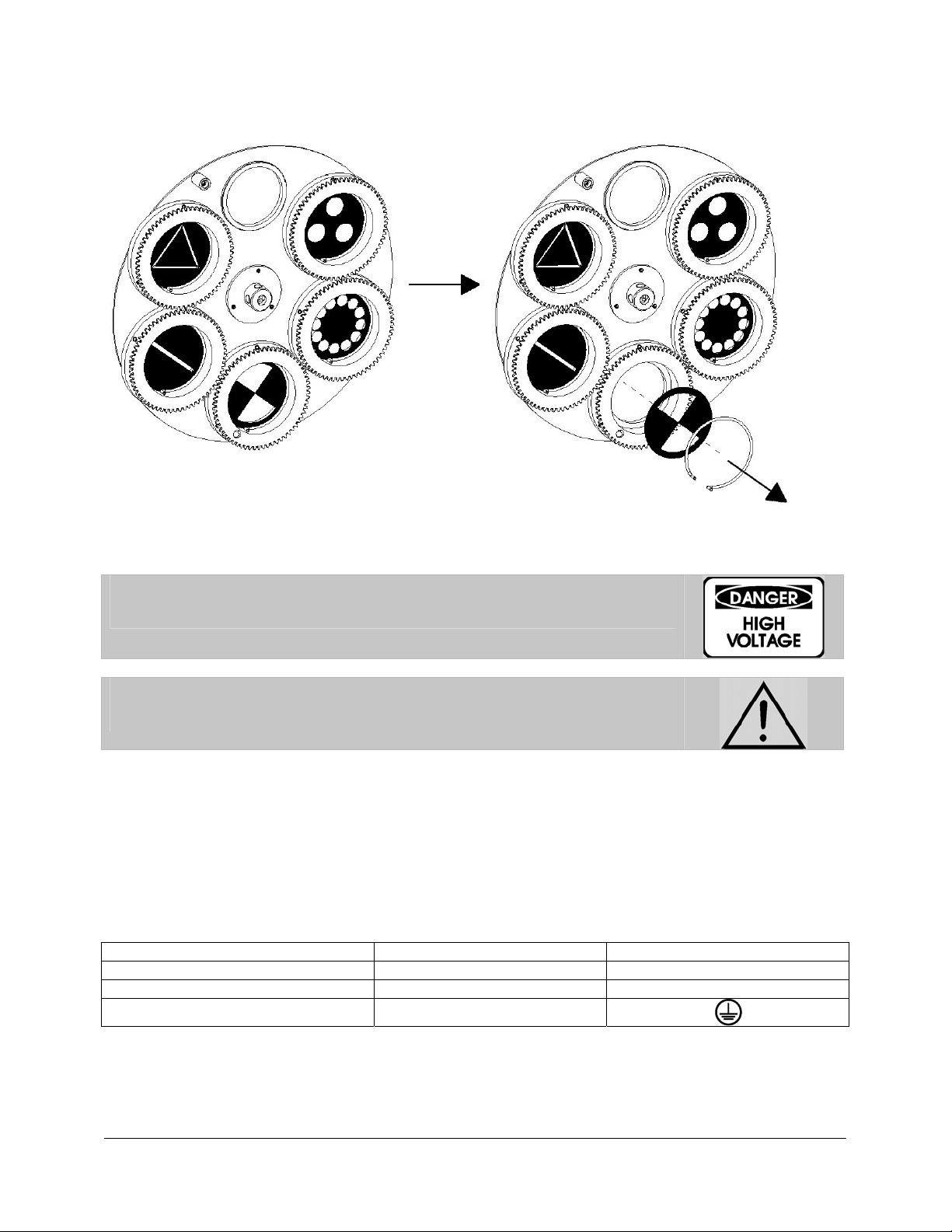

To insert the lamp MSD 230V/250W or MSD 230V/200W open the top cover of the head (see the
drawings to identify which cover is top) by loosening the 2 Phillips screws on top of plastic cover. Then
open the small lamp cover by loosening 2 fastening screws (see the drawing).
DANGER!
Install the lamps with the device switched off only.
Unplug from mains before !
If changing the lamp, remove the old lamp from the socket. Insert the lamp to the socket.
Do not install a lamp with a higher wattage! A lamp like this generates temperatures the device is not
designed for.

5Star Systems – Spica 250M – User manual
Tel: [phone]
9
Damages caused by non-observance are not subject to warranty. Please follow the lamp manufacturers
notes!
Do not touch the glass-bulb bare-handed during the installation! Make sure that the lamp is installed
tightly into the lamp holder system.
Adjust the optimal distance 1-1.5 mm from the lens by turning the screw "A" (see the drawings "Lamp
adjustment" below).
Then close the small lamp cover by tighten 3 fastening screws again.
Reclose the top cover of the head and tighten the 4 Phillips screws.
Before striking the lamp, reset the "LAti" counter in the main menu of the Control Board, by pressing
the "Up" and "Down" buttons in one time and then confirming with the Enter-button.
Do not operate this fixture with opened housing cover!

5Star Systems – Spica 250M – User manual
Tel: [phone]
10
3.2 Lamp adjustment
The SPICA 250M lamp holder is aligned at the factory. Due to differences between lamps, fine adjustment
may improve light performance.
Strike the lamp and focus the light on a flat surface (wall). As the optimum distance of lamp from lens was
adjusted during the installing or changing the lamp (by turning the screw "A"), it is necessary to adjust only
the second position by turning the screw "B", in order to centre the hot-spot (the brightest part of the
beam).
If the Hot Spot seems to be too bright, you can lower its intensity by moving the lamp closer to the
reflector. Do so by turning screw "A" until the light is evenly distributed.
If the light on the edge seems to be brighter as in the centre, the lamp is too close at the reflector. In this
case, you need to move the lamp away from the reflector until the light is evenly distributed and the
beam appears bright enough.
3.3 Inserting/Exchanging gobos
To insert the gobos open the top cover of the head by loosening the 2 Phillips screws on the top op plastic
cover.
If you wish to use other forms and patterns as the standard-gobos, or if gobos are to be exchanged,
please follow the instructions below:
Rotating gobo-wheel
Remove the fixation-ring with an appropriate tool. Remove the gobo and insert the new gobo. Press the
fixation-ring together and insert it in front of the gobo.

5Star Systems – Spica 250M – User manual
Tel: [phone]
11
DANGER!
Install the gobos with the device switched off only. Unplug from mains
before!
CAUTION!
Never unscrew the screws of the rotating gobo as the ball bearing will
otherwise be opened!
3.4 Connection to the mains
Connect the fixture to the mains with the enclosed power-plug.
The earth has to be connected!
Cable Pin International
Blue Neutral L
Brown Live N
Yellow/Green Earth

5Star Systems – Spica 250M – User manual
Tel: [phone]
12
3.5 DMX 512 connections
Only use a stereo shielded cable and 3-pin XLR-plugs and connectors in order to connect the controller
with the fixture or one fixture with another.
The wires must not come into contact with each other; otherwise the
fixtures will not work at all, or will not work properly.
Occupation of the XLR-connection
DMX - output DMX-input
XLR mounting-socket: XLR mounting-plug:
1 - Ground
2 - Signal (-)
3 - Signal (+)
1 - Ground
2 - Signal (-)
3 - Signal (+)
If you are using the standard controllers, you can connect the DMX-output of the controller directly with
the DMX-input of the first fixture in the DMX-chain. If you wish to connect DMX-controllers with other
XLR-outputs, you need to use adapter-cables.

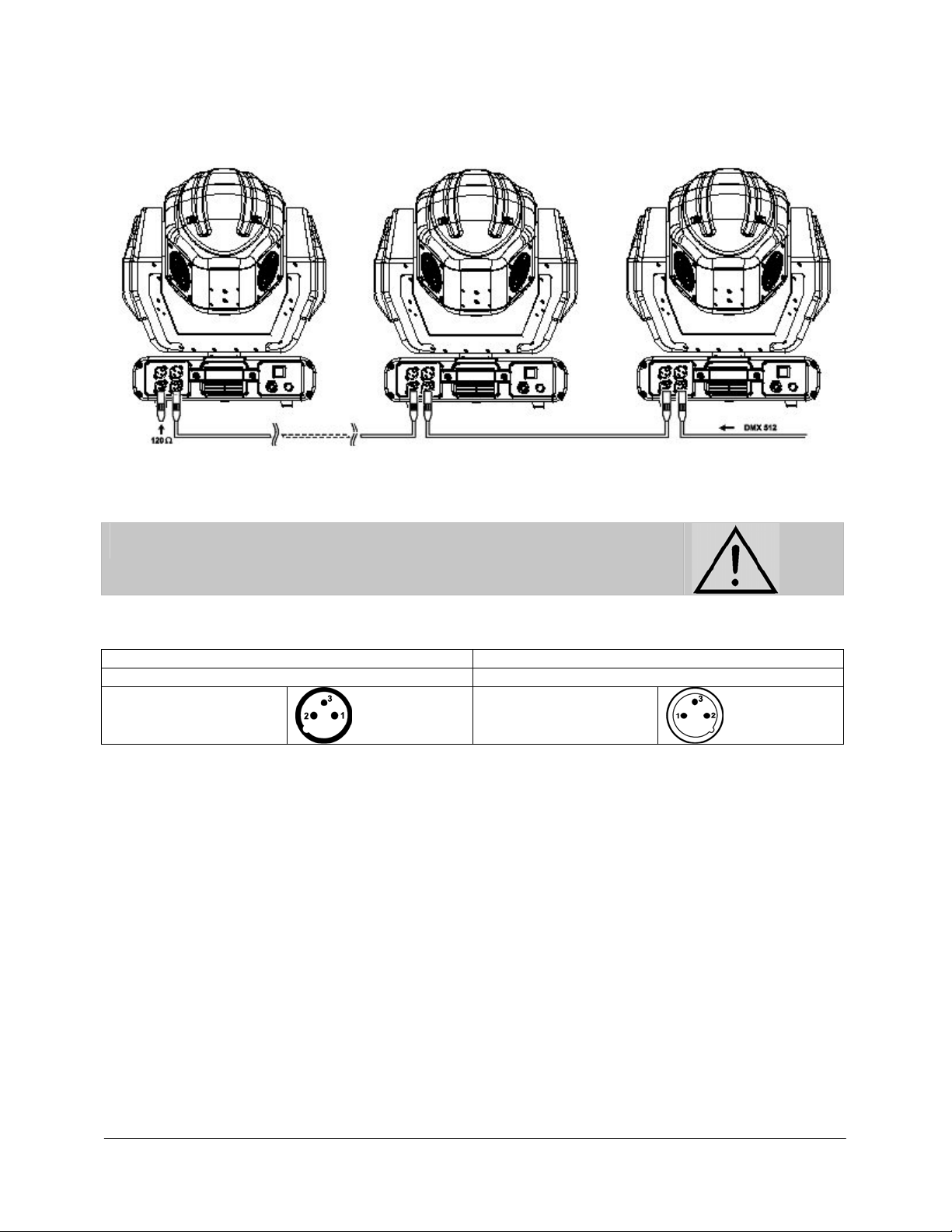

Building a serial DMX-chain
Connect the DMX-output of the first fixture in the DMX-chain with the DMX-input of the next fixture.
Always connect one output with the input of the next fixture until all fixtures are connected.
Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a 120 Ohm
resistor between Signal (ñ) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the
last fixture.

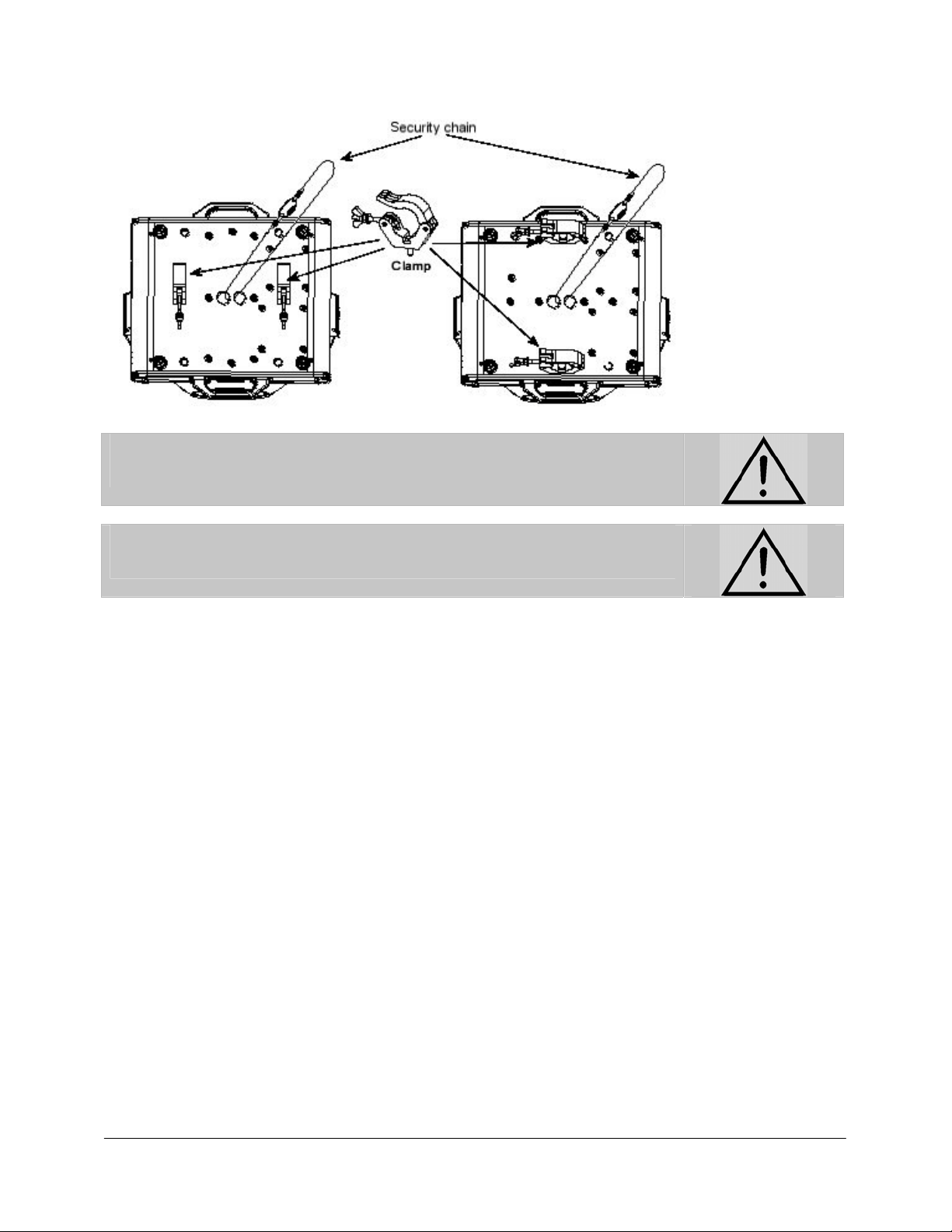

4. Rigging the fixture
The SPICA 250M can be placed directly on the stage floor or rigged in any orientation on a truss
without altering its operation characteristics (see the drawing).
The fixtures base enables to be mounted in two ways. Use the clamps with screws M10 - check
the base bottom.

5Star Systems – Spica 250M – User manual
Tel: [phone]
13
Ensure that the structure (truss) to which you are attaching the fixtures is
secure.
Install a safety wire that can hold at least 10 times the weight of the fixture. Never use the carrying
handles for secondary attachment.

5Star Systems – Spica 250M – User manual
Tel: [phone]
14
Danger of fire!
When installing the device, make sure there is no highly inflammable material
(decoration articles, etc.) in between a distance of min. 0,5 m.
Warning!
Use 2 clamps to rig the fixture on the truss. Follow the instructions mentioned at
the bottom of the base. Make sure that the device is fixed properly!
5. Addressing
The control board on the front panel of the SPICA 250M allows you to assign the DMX fixture
address, which is defined as the first channel from which the SPICA 250M will respond to the
controller.
If you set, for example, the address to channel 5, the SPICA 250M will use the channel 5 to 20 for
control.
Please, be sure that you don’t have any overlapping channels in order to control each SPICA 250M
correctly and independently from any other fixture on the DMX data link.
If two, three or more SPICA 250M´s are addressed similarly, they will work similarly.
For address setting follow this procedure
1. Switch On the SPICA 250M and wait until the fixture reset has finished ("rSt" is flashing at the
display).
2. Press the [Mode] key in order to access the main menu. Browse through the menu by pressing the
[Up] and [Down] keys until the display shows "A001". Confirm by pressing [Enter] key and the letter
"A" will flash.
3. Use the [Up] and [Down] keys to select the desired address.
4. Confirm by pressing [Enter] or [Mode] to cancel.
Controlling
After having addressed all SPICA 250M, you may now start operating these via your lighting
controller.
Note:
After switching on, the SPICA 250M will automatically detect whether DMX 512 data is received or not.

5Star Systems – Spica 250M – User manual
Tel: [phone]
15
If there is no data received at the DMX-input, the display will start to flash "A001" with actually set
address.
This situation can occur if:
- the 3 PIN XLR plug (cable with DMX signal from controller) is not connected with the input of the Spica
250M
- the controller is switched off or defective, if the cable or connector is defective or the signal wires are
swap in the input connector.
Note:
It’s necessary to insert the XLR termination plug (with 120 Ohm) in the last lighting in the link in order to
ensure proper transmission on the DMX data link.
6. Remotely controllable functions
6.1 Lamp
The SPICA 250M is run with a MSD 250W/200W lamp.
A relay inside of the SPICA 250M allows you to switch On and Off the lamp via itself control board
on the front panel or via your controller without affecting the rest of the lighting.
6.2 Switching on and off the lamp by Control board
1. Switch On the SPICA 250M and wait until the fixture reset has finished.
2. Press the [Mode] key in order to access the main menu. Browse through the menu by pressing the
[Up] and [Down] keys until the display shows "LAMP". Confirm by pressing [Enter] key.
3. Use the [Up] and [Down] keys to select "On" for switch On the lamp and "Off" for switch Off the
lamp and press [Enter] to confirm or [Mode] to cancel.
Note:
It is also important to note, that the discharge lamp is cold restrike types, that means, that they have to
be cold before re-striking. For this reason, you have to wait 5 minutes (max. speed of fan must be
adjusted) after having switched Off the lamp before you can switch it back On again. If you try to switch
On the lamp within 5 minutes after having switched it Off, the SPICA 250M will store this information
and automatically ignite the lamp when the 5 minutes period has expired. The message "HEAt" will
appear on the control board display at the back side of the SPICA 250M. If the ignition of the lamp is
seven times unsuccessful, on the display will appear "LA.Er", meaning that the lamp could be damaged or
even missed, or there could be a failure on the ignitor or ballast.
6.3 Colour wheel
The SPICA 250M features a colour-wheel with 9 colour positions - 8 of these with dichroic colors
and the last one open. The wheel can be positioned between two adjacent colors in any position. It is
also possible to rotate the color-wheel continuously at different speeds - the so-called "Rainbow effect”
is created.
6.4 Rotating gobo wheel
The rotating gobo-wheel includes 5 metal gobos in both directions, indexable, rotating gobo wheel cont.
rotation slow to fast. The gobos have an outside diameter of 37 mm and an image diameter of 29 mm.

5Star Systems – Spica 250M – User manual
Tel: [phone]
16
3-facet prism rotating in both directions at different speeds.
6.5 3-facet rotating prism
3-facet prism rotating in both directions at different speeds
6.6 Focus
Motorized focus enables the beam to be focused anywhere on stage.
6.7 Dimmer/Shutter/Strobe
Smooth 0 - 100 % dimming is provided by the combined mechanical dimmer/shutter unit. This unit may
also be used for strobe effect (1 - 10 flashes per second)
6.8 Fan
The SPICA 250M is cooled by two axial fans - one each in the projector head and one in the base.
The speed of the fan (and of course the noise) can be continuously reduced if very quiet performance
is required.
By the Control Board using the "FAnS" function you can choose 4 types of low fan speed operating:
1. "HIGH" - high (max.) speed of fans
The cooling fans work on max. speed (max. cooling)
2. "rEG" - continuous controlling of the fan speed
the fan automatically raises its speed in order to control inside temperature of the lighting, if the
temperature inside increases about certain level (the low fan speed reduces the cooling of the lighting).
This cycle can repeat several times until the temperature inside is on suitable level.
3. "LoOF" - low speed/Switch Off the lamp operating
the fan keeps the adjusted low speed until the temperature exceeds max. inside temp. then the
SPICA 250M automatically switches Off the lamp.
4. "LoHI" - low/high speed of the fan operating
the fan keeps the adjusted low speed until the temperature exceeds max. inside temp. of the fixture,
then the SPICA 250M automatically switch from low to high the fan speed.
7. Control Board
The control board situated on the front panel of the SPICA 250M offers several features. You can
simply set the lighting address, read the number of lamp or unit hours, switch On and Off the lamp, run
test show, make a reset and also use special functions for manual, demo and service purposes.
The main menu is accessed by pressing the [Mode] key - press this one so many times until the
display shows message "A001" (with actually stored address). Browse through the menu by the pressing

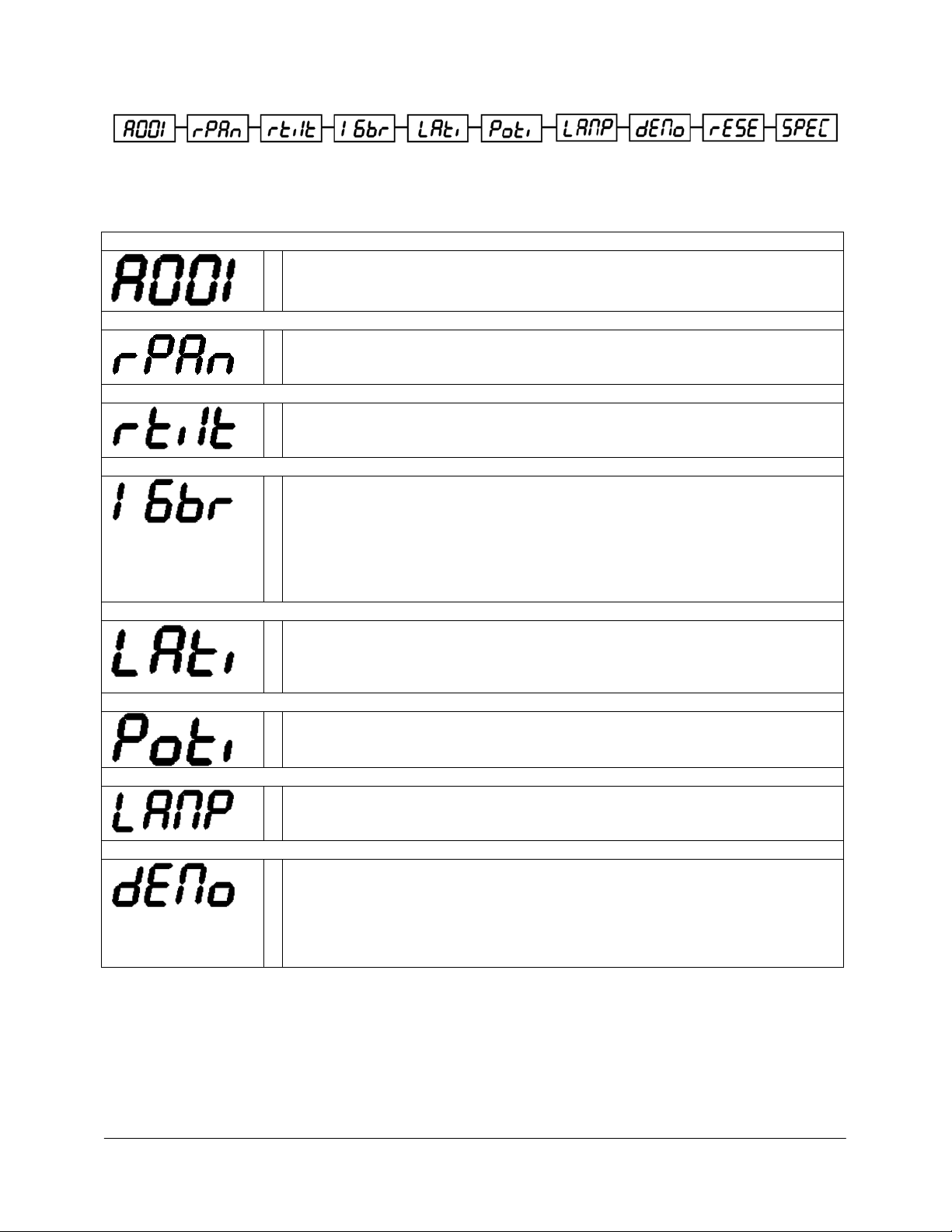

[Up] and [Down] keys - the display shows step by step these messages: A001, rPAn, rTilt, 16br, Lati,
Poti, LAMP, dEMo, rESE, SPEC. Press [Enter] if you wish to select one of them. The functions provided
are described in the following sections and the function hierarchy is shown below.

5Star Systems – Spica 250M – User manual
Tel: [phone]
17
7.1 Main functions
DMX 512 Address settings
The letter "A" flashes. Use the [Up] and [down] keys to select required
address (001 - 497) and press [Enter] to confirm or [Mode] to cancel and
return to the main menu.
Pan reverse
This function allows you to invert the pan movement. Use the [Up] and [Down]
keys to select "On" if you wish this feature or "Off" if you don’t wish this feature
and press [Enter] to confirm or [Mode] to cancel and return to the main menu.
Tilt reverse
This function allows you to invert the tilt movement. Use the [Up] and [Down]
keys to select "On" if you wish this feature or "Off" if you don’t wish this feature
and press [Enter] to confirm or [Mode] to cancel and return to the main menu.
Movement resolution
By this function you can adjust the desired movement resolution 8 or 16 bit.
Use the [Up] and [Down] keys to select "On" if you wish the 16bit high
resolution or "Off" if you wish only 8 bit resolution and press [Enter] to confirm
or [Mode] to cancel and return to the main menu. Note: If you adjust the 16 bit
resolution the fixture will occupy 16 DMX channels, if you adjust the 8 bit
resolution, the fixture will be operated by only 14 DMX channels. Please, check
the DMX protocol.
Lamp On time
This option enables you to read the total number of hours that the lamp has
been powered On. Press [Enter] or [Mode] to return to the main menu. In
order to reset the counter to 0, you have to hold the [Up] and [Down]-button
and press the [Enter]-button.
Power On time
By this option you can read the total number of hours that the SPICA 250 has
been powered On. Press [Enter] or [Mode] to return to the main menu.
Switch On/Off the lamp
Use the [Up] and [Down] keys to select "On" if you wish the switch On the
lamp or "Off" if you wish switch Off the lamp and press [Enter] to confirm or
[Mode] to cancel and return to the main menu.
Demo sequences
This function allows you to run a special demo-test sequences without an
external controller, which will show you some possibilities of using SPICA
250M. Press [Up] and [Down] keys to select the "Mod1" or "Mod2"
sequences. The "Mod1" is suitable for projections on the wall, ceiling or ground
without any head-movement, the "Mod2" uses all SPICA 250 functions and
therefore is good for a complete introduction of the fixture.

5Star Systems – Spica 250M – User manual
Tel: [phone]
18
Reset Function
Press [Enter] key to run reset. This option enables the SPICA 250 to index all
effects (functions) and return to their standard positions.
7.2 SPEC – Special functions
Use the [Up] and [Down] keys to browse through the special functions and select the one by pressing
[Enter].
.
Manual control of effects
This function allows you to control manually the channel functions of the fixture.
Use the [Up] and [Down] keys to select desired function and press [Enter] to
adjust the effect or [Mode] to cancel and return to the menu.

5Star Systems – Spica 250M – User manual
Tel: [phone]
19
Lamp On automatically
This function enables to switch On the lamp automatically after switching On the
fixture. Use the [Up] and [Down] keys to select `On` if you wish to switch On the
lamp automatically after switching On the fixture or ´Off`` if you wish the lamp off
after switching On the fixture and press [Enter] to confirm or [Mode] to cancel
and return to the menu.
DMX values
Readout DMX values of each channel received by the fixture. Use the [Up] and
[Down] keys to select desired channel and press [Enter] to read its value
coming to the fixture or [Mode] to cancel and return to the menu.
Automatic blackout of Display
This function allows you to keep the display On or to turn Off automatically 2
min. after last pressing any key on the control board. Use the [Up] and [Down]
keys to select "On" if you wish to keep the display “On” or "Off" if you wish to
turn Off automatically 2 minutes after last pressing any key on the control board
and press [Enter] to confirm or [Mode] to cancel and return to the menu.
Display intensity
By this function you can adjust from 20 to 100 the intensity of the display. Use
the [Up] and [Down] keys to select the level of the display intensity and press
[Enter] to confirm or [Mode] to cancel and return to the menu.
Lamp Off via DMX
This function allows you to switch Off the lamp by DMX. Use the [Up] and
[Down] keys to select "On" if you want to switch Off the lamp by DMX or "Off" if
you don’t want to switch Off the lamp by DMX and press [Enter] to confirm or
[Mode] to cancel and return to the menu.
Temperature
Temperature readouts of fixture inside in Celsius. Inside temperatures below
70° C are not critical. 70° C and more lead to the lamp being switched off.
Please note that the outside temperature should not exceed 45° C.
Low fan speed operating
By using this function you can choose 4 types of low fan speed operating.
Browse through this menu by the pressing [Up] and [Down] keys - the display
shows step by step these messages: "HIGH, reG, LoOF, LoHI". Press [Enter]
if you wish to select one of them or [Mode] to cancel and return to the menu.
High (max.) speed of fans
The cooling fans work on max. speed (max. cooling)
Continuous controlling of the fan speed
The fan keeps the adjusted low speed until the temperature exceeds max.
inside temp., then the SPICA 250M automatically switches Off the lamp.

5Star Systems – Spica 250M – User manual
Tel: [phone]
20
Low/high speed of the fan operating
the fan keeps the adjusted low speed until the temperature exceeds max.
inside temp of the fixture, then the SPICA 250M automatically switch from low
to high the fan speed.
Default settings
Press [Enter] to reset all fixture personalities (not the adjusting functions) to the
default values. On the display will appear “rst” meaning that the fixture makes
the reset. See the table of personality setting and their positions.
Adjusting the default positions of colour, gobo and effect wheels
By this function you can calibrate and adjust the colour, gobo and effect wheels
to their standard/right positions. Use the [Up] and [Down] keys to browse
through the adjusting menu - the display shows step by step these messages:
"PAn, Tilt, SPEd, Colo, EFEC, Prot, rGOB, Grot, Foc, Stro, dimr, FCAL" by
which you can adjust the fixture to the required/desired position (0-255) before
the function calibration. Then when the positioning is finished use the last
"FCAL" function (Fixture calibration).
1. Calibration via the control board
Press [Enter] and the [Up] and [Down] keys in order to display the following messages: "Colo,
EFEC, rGob, Grot" for very smooth function calibration. Select one of them, press [Enter] and
