Directed Electronics Avital 2300 User manual

Avital 2300
Owner's Guide

i
©2001 Directed Electronics, Inc.
Limited Lifetime
Consumer Warranty
For a period of one calendar year from the date of purchase of this auto-security
device, Directed Electronics, Inc. promises to the ORIGINAL PURCHASER to repair or
replace (with a comparable reconditioned model), free of cost, any electronic control
module which proves to be defective in workmanship or material under normal use,
SO LONG AS THE SYSTEM WAS SOLD, INSTALLED, AND SERVICED BY A PROFESSIONAL
AUTO INSTALLER, AND REMAINS IN THE CAR IN WHICH THE SYSTEM WAS ORIGINALLY
INSTALLED.If warranty service is necessary you must have a clear copy of your sales
receipt containing all of the information shown on the following page.
After the first calendar year, from the date of purchase of this auto-security device,
Directed Electronics, Inc., promises to the ORIGINAL PURCHASER to repair or replace
(with a comparable reconditioned model) any electronic control module which proves
to be defective in workmanship or material under normal use FOR A CHARGE OF
$45.00, SO LONG AS THE SYSTEM WAS SOLD, INSTALLED, AND SERVICED BY A PRO-
FESSIONAL AUTO INSTALLER, AND REMAINS IN THE CAR IN WHICH THE SYSTEM WAS
ORIGINALLY INSTALLED. If warranty service is necessary you must have a clear copy
of your sales receipt containing all of the information shown on the following page.
This warranty contains the entire agreement relating to warranty and supersedes all
previous and contemporaneous representations or understandings, whether written or
oral. IN ANY EVENT, DEI IS NOT LIABLE FOR THE THEFT OF THE VEHICLE AND/OR ITS
CONTENTS.
This warranty is void if the product has been damaged by accident, unreasonable use,
neglect, improper service or other causes not arising out of defects in materials or
construction. This warranty is nontransferable and does not apply to any unit that
has been modified or used in a manner contrary to its intended purpose and does not
cover batteries. The unit in question must be returned to the manufacturer, postage
prepaid. This warranty does not cover labor costs for the removal, diagnosis, trou-
bleshooting or reinstallation of the unit. For service on an out-of-warranty product a
flat rate fee by model is charged. Contact your authorized dealer to obtain the ser-
vice charge for your unit.
These systems are a deterrent against possible theft. Directed Electronics, Inc. is not
offering a guarantee or insuring against the theft of the automobile or its contents
and disclaims any liability for the theft of the vehicle and/or its contents. Directed
Electronics does not authorize any person to create for it any other obligation or lia-
bility in connection with this security system.

ii ©2001 Directed Electronics, Inc.
TO THE MAXIMUM EXTENT ALLOWED BY LAW, ANY AND ALL WARRANTIES ARE EXCLUD-
ED BY THE MANUFACTURER AND EACH ENTITY PARTICIPATING IN THE STREAM OF COM-
MERCE THEREWITH. THIS EXCLUSION INCLUDES BUT IS NOT LIMITED TO THE EXCLU-
SION OF ANY AND ALL WARRANTY OF MERCHANTABILITY AND/OR ANY AND ALL WAR-
RANTY OF FITNESS FOR A PARTICULAR PURPOSE AND/OR ANY AND ALL WARRANTY OF
NON-INFRINGEMENT OF PATENTS, IN THE UNITED STATES OF AMERICA AND/OR
ABROAD. NEITHER THE MANUFACTURER OR ANY ENTITIES CONNECTED THEREWITH
SHALL BE RESPONSIBLE OR LIABLE FOR ANY DAMAGES WHATSOEVER, INCLUDING BUT
NOT LIMITED TO ANY CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, TOWING,
REPAIR, REPLACEMENT, DAMAGES FOR LOSS OF TIME, LOSS OF EARNINGS, COMMERCIAL
LOSS, LOSS OF ECONOMIC OPPORTUNITY AND THE LIKE. NOTWITHSTANDING THE
ABOVE, MANUFACTURER DOES OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR
THE CONTROL MODULE AS DESCRIBED ABOVE. Some states do not allow limitations on
how long an implied warranty will last or the exclusion or limitation of incidental or
consequential damages. This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
$2,500 Limited Theft Protection Guarantee
Terms and Conditions. Available only in the USA. In the event that your vehicle is
stolen and not recovered, Directed Electronics, Inc. will refund to the original pur-
chaser of the Avital system up to $2,500 of your insurance deductible. This vehicle
protection guarantee is valid only if:
(1) The installation was performed by an authorized Avital dealer.
(2) The warranty registration card is completed and mailed within ten (10) days of
purchase.
(3) At the time of the theft, the system was fully functional and not in “valet mode.”
(4) The vehicle and its contents were insured at the time of the theft.
(5) The insurance company and the police have been notified and a written stolen
vehicle report was issued by the Police Department.
(6) No less than thirty (30) days after the police report was issued, you mail
Directed Electronics, Inc. clear photocopies of the following documents:
a. Proof of Purchase OR provide the system model and name of the company
that installed the system.
b. The stolen vehicle report issued by the police.
c. Insurance coverage documents for the stolen vehicle, clearly showing all the
details, including the vehicle identification number and the insurance
deductible amount.
d. A dated declaration signed by you the owner of the vehicle, attesting that
the vehicle has been stolen for more than thirty (30) days and has not been
recovered.

iii
©2001 Directed Electronics, Inc.
This vehicle theft protection is effective for one (1) year from the date of purchase
and is limited to one claim. This vehicle theft protection guarantee is valid only for
the theft of the entire vehicle and specifically excludes any other considerations,
including, but not limited to, damage caused to the vehicle, theft of parts, contents
or any other consequential damages. Once Avital Technologies verifies that all the
above listed terms and conditions have been met, a check for the insurance
deductible (up to $2,500) will be mailed within thirty (30) days.
Make sure you have all of the following information from your dealer:
A clear copy of the sales receipt, showing the following:
■Date of purchase
■Your full name and address
■Authorized dealer's company name and address
■Type of alarm installed
■Year, make, model and color of the automobile
■Automobile license number
■Vehicle identification number
■All security options installed on automobile
■Installation receipts

1
©2001 Directed Electronics, Inc.
Table of Contents
Limited Lifetime Consumer Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i
What Is Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Your Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
FCC/ID Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Transmitter Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Standard Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Using Your System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Disarming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Disarming Without a Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Panic Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Remote-Controlled Silent Arm/Disarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Valet Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Remote-Controlled Valet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Nuisance Prevention Circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Arming Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Disarming Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Table of Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Stealth Coding™Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
High Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Programming Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Security & Convenience Expansions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Installation Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Glossary Of Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Quick Reference Guide (Removable) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

2©2001 Directed Electronics, Inc.
Standard Configuration

3
©2001 Directed Electronics, Inc.
What is Included
■A control module
■Two 4-button remote transmitters
■A zone 2 impact sensor on-board the control module
■A high-powered siren
■A fault-proof starter interrupt relay on-board the control module
■An LED system status indicator
■A push-button Valet®switch
Important Information
Congratulations on the purchase of your state-of-the-art vehicle
security system. This system has been designed to provide years of
trouble-free operation. By carefully reading this guide prior to
using your system, you will maximize the use of this product and
its features.
Your vehicle security system has no specific maintenance require-
ments. The remote transmitter is powered by a lightweight 3-volt
lithium battery that will last approximately one year under normal
use. When the battery begins to weaken, the LED on the remote
transmitter will dim and you will notice reduced operating range
System Maintenance

4©2001 Directed Electronics, Inc.
when using the remote transmitter. To access the battery for
replacement, remove the rear cover of the remote with a small,
flat-blade screwdriver.
Your warranty card must be returned and the barcode serial num-
ber must not be removed. If the warranty card is not returned, no
warranty will be honored on your unit. It is also necessary to keep
your proof of purchase, which reflects that the product was
installed by an authorized dealer. Make sure you receive the war-
ranty card from your dealer.
This device complies with Part 15 of FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause
harmful interference, and (2) This device must accept any inter-
ference received, including interference that may cause undesired
operation.
Caution: Changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to
operate this device.
FCC/ID Notice
Your Warranty

5
©2001 Directed Electronics, Inc.
Transmitter Functions
This system is programmable, making it possible to assign any
remote button to any specific receiver function. The remote initially
comes programmed with Standard Configuration, but may also be
customized by an authorized dealer. The buttons in all instructions
in this manual correspond to a Standard Configuration remote.
Button
Pressing arms the security system and locks the vehicle doors
(if connected).
Button
Pressing disarms the security system and unlocks the vehicle
doors (if connected). If configured for progressive unlocking,
pressing will only unlock the driver’s door, and a second press
of will unlock the remaining passenger doors.
Button
An optional accessory (such as trunk release), remote-controlled
silent arm/disarm and remote-controlled Valet®are controlled by
pressing . (Silent arm/disarm and remote-controlled Valet®work
by pressing for less than one second. An optional accessory
output is controlled by pressing and holding for 1.5 seconds.)
This accessory output controls_____________________________.
Standard Configuration

6©2001 Directed Electronics, Inc.
Button
Pressing and holding for 1.5 seconds activates the Panic
Mode.
and Buttons
An optional accessory convenience or expansion function that you
have added to your system can be activated by pressing and
simultaneously.
This accessory output controls_____________________________.
and Buttons
Another optional accessory convenience or expansion function that
you have added to your system can be activated by pressing
and simultaneously.
This accessory output controls_____________________________.
Using Your System
The buttons described in all instructions in this manual correspond
to a standard configuration transmitter, unless otherwise specified.
You can arm the security system by pressing for one second.
When the system arms, you will hear a short siren sound (chirp)
and the parking lights will flash once. If the power door locks are
Arming

7
©2001 Directed Electronics, Inc.
controlled by the system, the doors will also lock. Once armed, the
status LED will flash once per second to indicate that the system
is actively protecting your vehicle. If you hear a second chirp after
arming and notice that the status LED is flashing in a grouped pat-
tern, this signals Bypass Notification. Bypass Notification is
described in detail in the Diagnostics section of this manual.
Your security system can also be programmed for Passive Arming.
With Passive Arming, the system automatically arms itself 30 sec-
onds after the ignition has been turned off and the last door has
been closed. During the 30-second Passive Arming countdown, the
status LED will flash twice as fast as it does when the system is
armed. If the system is programmed for Passive Arming, care must
be taken to prevent the keys from being locked in the vehicle.
NOTE: If any protected entry point, such as a door or switch-protected
trunk or hood, is open, Passive Arming will not engage. Additionally, each
time a sensor is triggered during the Passive Arming countdown, the
countdown starts over.
Arming the security system protects your vehicle in the following ways:
■Light impacts trigger a warn away response, causing the siren
to chirp and the parking lights to flash for a few seconds.
■Heavy impacts trip a trigger sequence, which consists of the
siren sounding continuously and the parking lights flashing
for 30 seconds.
■If a door is opened, the siren immediately starts chirping and
the parking lights start flashing to provide an instant
response. Three seconds later, the siren output changes to a
continuous blast. This two-stage progressive response allows

8©2001 Directed Electronics, Inc.
you time to disarm the security system with your remote
transmitter, in case the door is inadvertently opened while
the system is armed.
■Turning on the ignition key triggers the same two-stage pro-
gressive response as opening a door.
■The starter interrupt prevents the vehicle’s starter from cranking.
Press to disarm the security system when it is already armed.
If the power locks are controlled by the system, the doors will also
unlock. Disarming is confirmed when the parking lights flash twice
and the siren emits two chirps. The status LED will also stop flash-
ing. The siren chirping either four or five times when disarming
indicates Tamper Alert, which is described in the Diagnostics
section of this guide.
If your remote transmitter is lost or damaged, you can manually
disarm the security system. To disarm the system without a trans-
mitter, you must have the vehicle's ignition key and know where
the Valet switch is located. Be sure to check with your installer at
the time of installation for the location of the Valet switch.

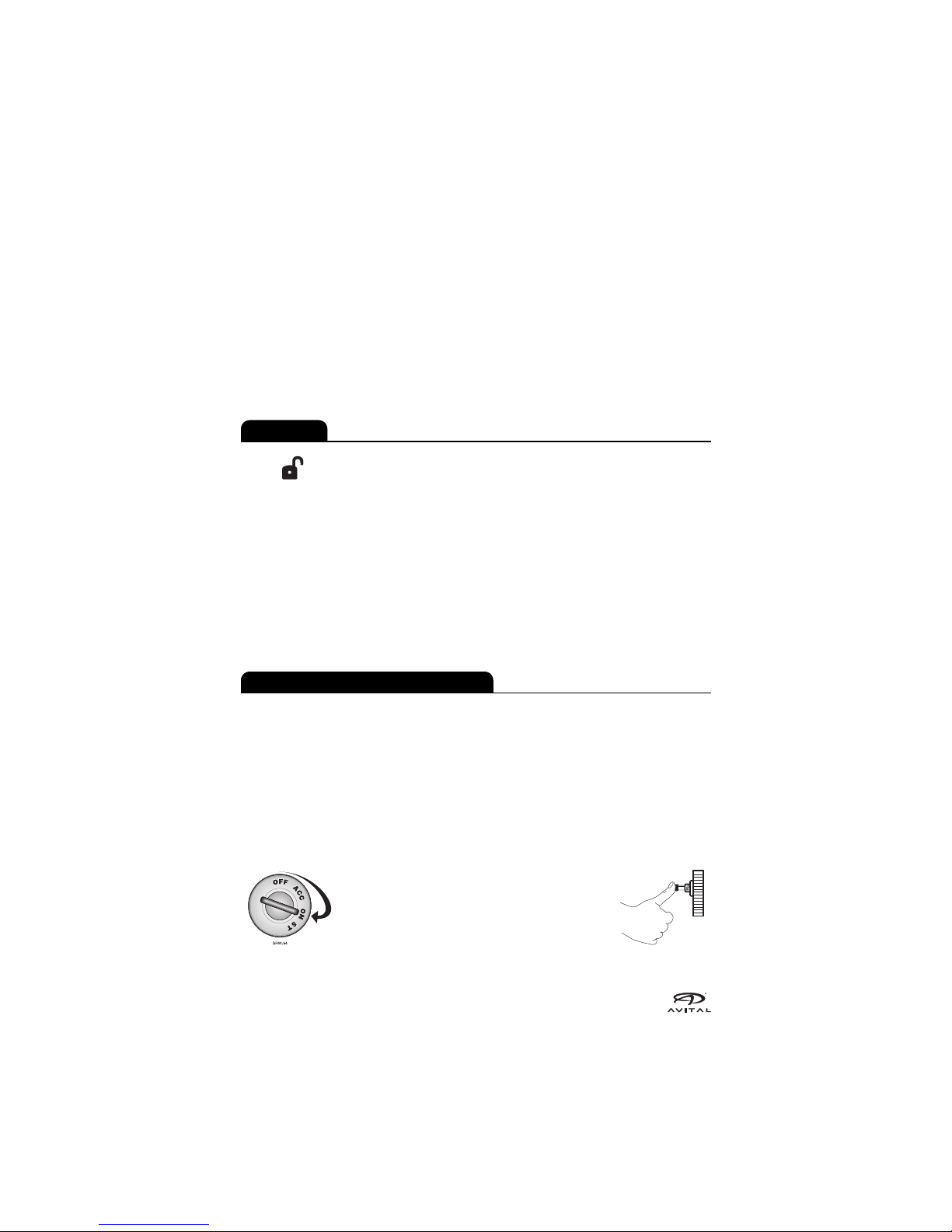

To disarm the security system, turn
the ignition key on and press the
Valet switch within 15 seconds. The
system should now disarm. If the
system does not disarm, you may
DRW-35
Disarming Without a Transmitter
Disarming

9
©2001 Directed Electronics, Inc.
have waited too long to press the Valet switch; turn the ignition
off and repeat the process.
Location of Valet Switch_________________________________
If you are threatened in or near your vehicle, you can press
for 1.5 seconds to trigger Panic Mode on your security system and
attract attention. The siren will sound and the parking lights will
flash for 30 seconds. To stop Panic Mode at any time, press ,
, or on the remote.
Use the remote-controlled silent arm/disarm to temporarily turn
off the arm or disarm chirps by briefly pressing before either
arming or disarming. The confirmation chirp(s) will then be elimi-
nated for that one operation only. To permanently turn off the arm
and disarm chirps, contact your installation dealer.
NOTE: The warn away response to lighter impacts is bypassed if the sys-
tem is armed using the silent arm/disarm. This ensures that the siren
does not chirp in an environment where you do not want chirps to be
emitted. The system is still capable of being triggered by heavier impacts;
only the warn away response generated by light impacts is bypassed.
Valet Mode prevents your security system from arming and
triggering either automatically or with the remote transmitter.
In Valet Mode, the system will not arm, but all convenience
functions (door locks, trunk release, etc.) remain operational.
Valet Mode
Remote-Controlled Silent Arm/Disarm
Panic Mode

10 ©2001 Directed Electronics, Inc.
This feature is useful when washing or servicing your vehicle.
You can access Valet Mode either manually or from the remote.
To enter or exit Valet Mode with the Valet switch:
1. Turn the ignition on.
2. Turn the ignition off.
3. Press and release the
Valet switch within 10
seconds.
The status LED will light solidly if you are entering Valet Mode and
will turn off if you are exiting Valet Mode.
You can also enter or exit Valet Mode by using the remote
transmitter:
1. Open any vehicle door.
2. Press .
3. Press .
4. Press again.
The status LED will light solidly if you have entered Valet Mode and
will turn off if you have exited Valet Mode.
Remote-Controlled Valet
DRW-35

11
©2001 Directed Electronics, Inc.
Your security system has Nuisance Prevention Circuitry™(NPC™) to
prevent annoying false alarms. This circuitry is designed to prevent
repetitive trigger sequences due to faulty door pinswitches or envi-
ronmental conditions such as thunder, jackhammers, airport
noise, etc.
Here's how it works: If the alarm is triggered by the same sensor
or switch three times within a 60 minute period, your system
interprets this pattern of triggers as false alarms. After the third
trigger, NPC™ignores, or bypasses, that sensor or switch (along
with any other sensors or switches sharing the same zone) for 60
minutes. If the bypassed sensor is triggered again while it is
already being bypassed, the 60-minute bypass period will start over,
ensuring that a sensor that is continually being triggered will
remain bypassed.
The vehicle doors are protected differently by NPC™. If your secu-
rity system is triggered by an open door for three, full 30-second
cycles (one and one half minutes), the system will bypass the
doors until the trigger ceases.
NOTE: Arming and disarming the system does not reset the NPC™. The
only ways to reset a bypassed zone are for that zone not to be triggered
for 60 minutes or to turn the ignition key on. When testing your system,
it is important to remember that NPC™ can cause zones to be bypassed
and appear to not work. If five chirps are heard when disarming the sys-
tem, NPC™ has been engaged. To clear the NPC™ memory, simply turn the
ignition key on.
Nuisance Prevention®Circuitry

12 ©2001 Directed Electronics, Inc.
Diagnostics
The microprocessor at the heart of your system has the ability to
constantly monitor all of the switches and sensors connected to it.
It can detect any faulty switches or sensors and prevent them from
disabling the entire system. It can also record and report any trig-
gers that occur when you are away from your vehicle.
If the system is armed at the same time that an input is active
(door opening, sensor triggering, etc.), you will hear one chirp to
indicate arming and a second chirp a few seconds later to indicate
Bypass Notification. A Bypass Notification chirp means that the sys-
tem ignores the input that was active when the system was armed,
until that input ceases. Three seconds after that input ceases, the
system will resume normal monitoring. For example, if your vehicle
has an interior light exit delay and you arm the system before the
light turns off, you may hear a Bypass Notification chirp. Three sec-
onds after the light turns off, however, normal monitoring resumes.
NOTE: Bypass Notification does not occur when the system is in silent
arm/disarm mode or if the chirps have been programmed not to sound.
Your system has a Tamper Alert feature that notifies you of system
triggers that occur while you are away from your vehicle. If you
hear four chirps when you disarm, this indicates that the system
Disarming Diagnostics
Arming Diagnostics

13
©2001 Directed Electronics, Inc.
was triggered in your absence. If you hear five chirps when you
disarm, this indicates that a specific zone was triggered so many
times that the NPC™has bypassed that zone. In both cases, the
pattern of the flashing status LED indicates which zone was trig-
gered (see Table of Zones). The LED does not, however, report when
warn away responses have activated; it only reports triggered
sequences. The system retains this information in its memory and
will continue to chirp four or five times each time the system is
disarmed, until the next time the ignition is turned on.
A zone is represented by the number of LED flashes used by the
system to identify a particular type of input. Standard input assign-
ments are listed in the following table, along with spaces to write
in any optional sensors or switches that you have had installed.
ZONE
(Number of DEALER-INSTALLED
LED Flashes) DESCRIPTION OPTIONS
1Instant trigger for optional
hood or trunk pins
2A heavier impact detected by
the on-board shock sensor
3Door switch trigger
5Ignition trigger
NOTE: The LED does not report when the warn away response has been
activated; it only reports triggered sequences.
Table of Zones

14 ©2001 Directed Electronics, Inc.
Stealth Coding™
Technology
The receiver and transmitter use mathematical formulas called
algorithms to change their codes each time the transmitter is used.
This Stealth Coding™Technology has been developed to increase
the security of the unit. By following this set code sequence, the
receiver and transmitter stay synchronized, even if the transmitter
is used out of range of the vehicle. If, however, the transmitter is
pressed many times out of range, or the battery is removed, the
transmitter may get temporarily out of sync and fail to operate the
system. To resynchronize the transmitter, simply press several
times within range of the vehicle. The system will automatically
resynchronize and the transmitter will respond normally.
High Frequency
Your system transmits and receives at 434 MHz. This provides a
cleaner spectrum with less interference and a more stable signal.
Enjoy a phenomenal increase in range, even in areas with high
radio interference.

15
©2001 Directed Electronics, Inc.
Programming Options
Programming options control your system's normal, operational
set-up. Most options do not require additional parts, but some may
require installation labor.
This system's programming options are listed below, with the fac-
tory default settings in bold:
■Active arming (only with the transmitter) or passive arming
(automatic arming 30 seconds after the last vehicle door is
closed).
■Active door locking (only when arming with the transmitter)
or passive door locking (selectable only when Passive Arming
has been programmed).
■Arming and disarming confirmation siren chirps can be pro-
grammed on or off.
■Ignition controlled door lock feature, on or off. With this fea-
ture on, the doors will lock three seconds after the ignition
key is turned on, and unlock when the ignition is turned off.
The system also prevents the doors from locking when the
ignition is turned on while any vehicle door is open.

16 ©2001 Directed Electronics, Inc.
Security & Convenience
Expansions
Listed below are some of the many expansion options available for
use with your system. Please consult your dealer for a detailed
explanation of all the available options.
Audio Sensor: Metal on glass, glass cracking, and breaking glass
produce distinctive acoustic signatures. The 506T audio sensor uses
a microphone to detect these sounds, and then analyzes them with
proprietary acoustic software to determine if the glass has been
tampered with or broken.
Backup Battery: The 520T Backup Battery ensures that the system
stays armed, triggers the alarm and keeps the optional starter
interrupt active if main battery power is disconnected.
Field Disturbance Sensor: An invisible dome of coverage is estab-
lished by the 508D "radar" sensor. The security system will respond to
any intrusions into this field by initiating the triggered sequence.
Power Locks: This system offers lock outputs that can control
some manufacturers' power door lock systems. For other systems,
additional parts may be required.
Power Trunk Release: The output of the system can operate
a factory power release for the vehicle's trunk or hatch. An option-
al relay is required. If the factory release is not power-activated,
then DEI's 522T trunk release solenoid can be added in most cases.
