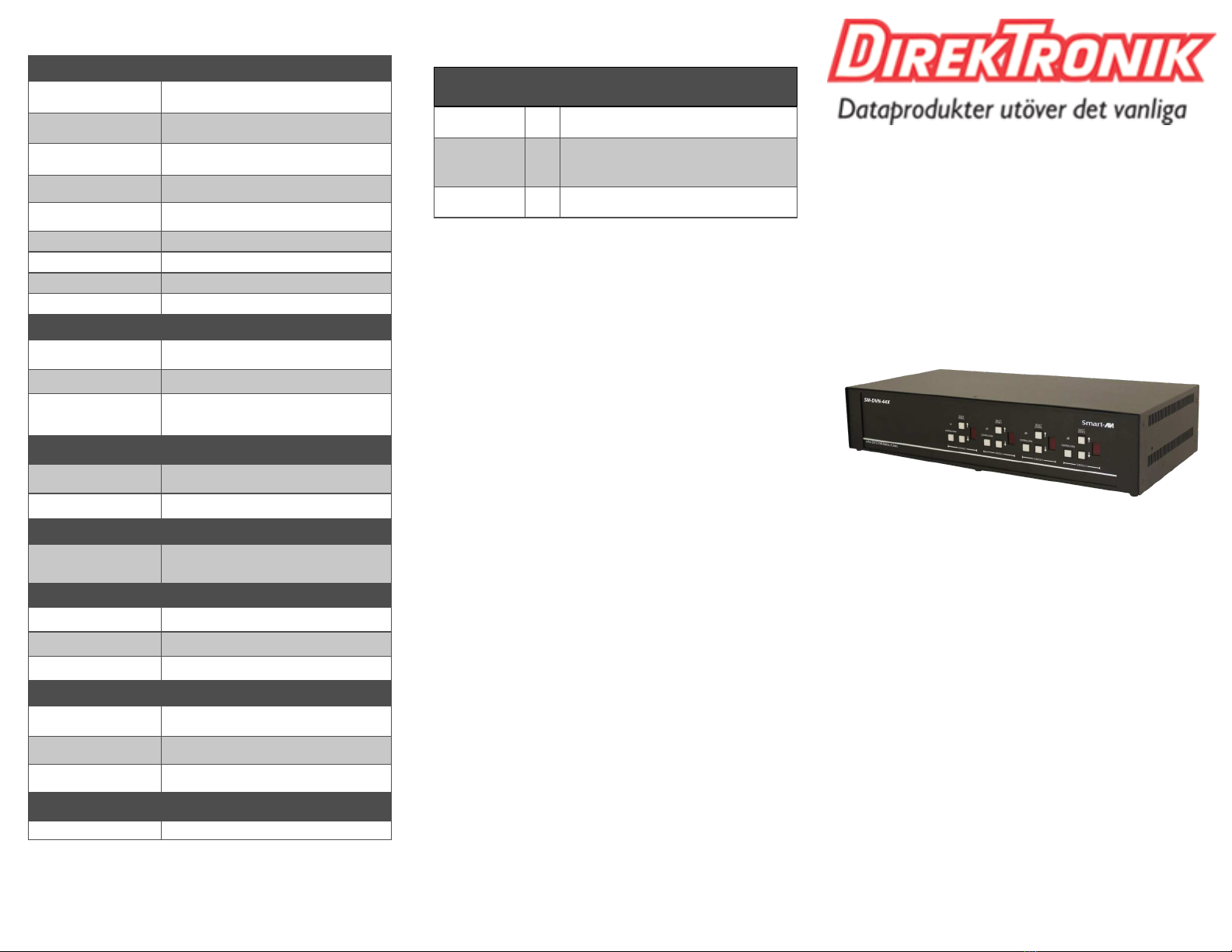

DirekTronik SDVN-44-X-S User manual

SM-DVN-44X
Quick Start Guide
A full Manual can be downloaded from
www.smartavi.com/SM-DVN-44-X/
Matrix KVM Switch
WHAT’S IN THE BOX
PART NO. QTY DESCRIPTION
SDVN-44-X-S 1 4-port, 4 User DVI-D Matrix KVM Switch
PS12VD2A 1 12V DC, 2A power adapter with center-
pin positive polarity.
1 Quick Start Guide
NOTICE
The information contained in this document is subject
to change without notice. SmartAVI makes no
warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material. No part of this document may be
photocopied, reproduced, or translated into another
language without prior written consent from SmartAVI,
Inc.
Toll Free: (800) AVI-2123
Phone: [phone]
2455 W. Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
smartavi.com
ADVANCED 4-PORT, 4 USERS
SINGLE-HEAD DVI-D MATRIX
KVM SWITCH WITH AUDIO
TECHNICAL SPECIFICATIONS
VIDEO
Format DVI Dual Link; DVI Single-Link; VGA
Maximum Pixel Clock 165 MHz
Input Interface (4) DVI-D 29-pin (female)
Output Interface (4) DVI-D 29-pin (female)
Resolution 2560 x 1600 @ 60Hz
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
USB
Signal Type USB 2.0, 1.1, and 1.0 w/ internal hub
Input Interface (4) USB Type B
Output Interface
(8) USB 1.1 Type A for KVM Devices;
(8) USB 2.0 Type A Transparent
AUDIO
Input (8) Connector Stereo 3.5mm Female
Output (1) Connector Stereo 3.5mm Female
POWER
Power Requirements 12V DC, 2A power adapter with center
-pin positive polarity
ENVIRONMENT
Operating Temp 32° to 104° F (0° to 40° C)
Storage Temp -4° to 140° F (-20° to 60° C)
Humidity 0-80% RH, non-condensing
CONTROL
Front Panel Push Buttons with LED indicators
RS-232 Via Serial @ 9600 bps
Hot Keys Via Keyboard
OTHER
Emulation Keyboard, Mouse and Video
Best.nr: 20103409

FRONT PANEL
 Contol/View - Toggle between Control and View mode
 UP- Increment channel, loop back to 1 after 4
 DOWN - Decrement channel, loop back to 4 after 1
 Press and hold the Control/View button, then press the DOWN
button - disables the display and KM control for that user.
HARDWARE INSTALLATION
1. Ensure that power is turned off or disconnected from the unit and the computers.
2. Use DVI cables to connect the DVI output ports from each computer to the corresponding DVI-D IN
ports of the unit.
3. Use a USB cable (Type-A to Type-B) to connect a USB port on each computer to the respective USB
ports of the unit.
4. Optionally connect a stereo audio cable (3.5mm to 3.5mm) to connect the audio output of the
computers to the AUDIO IN ports of the unit.
5. Connect monitors to the DVI-D OUT console ports of the unit using DVI cables.
6. Connect a USB keyboard and mouse in the two USB console ports.
7. Optionally connect stereo speakers to the AUDIO OUT port of the unit.
8. Finally, power on the Matrix by connecting a 12VDC power supply to the power connector, and then
turn on all the computers.
EDID LEARN
The KVM is designed to learn the EDID of the
monitor connected to Console 1 upon power up.
In the event of connecting a new monitor to the
KVM, a power re-cycle is required.
SYSTEM CONTROL
There are three ways to control the SM-DVN-44X:
Keyboard HotKeys, RS-232 Serial Commands,
and Front Panel Buttons.
The settings for the serial connection are as
follows: Baud rate: 9600; Data Bits: 8;
Parity: None; Stop Bits: 1; Flow Control: None.
The following commands can be used:
Command HotKey RS-232
Switch Control [CT][CT]c[#] //c[u][#]
Switch View [CT][CT]v[#] //v[u][#]
Audio Only [CT][CT]a[#] //a[u][#]
Learn EDID [CT][CT]e<CR> //e <CR>
SW Reset [CT][CT]r //r <CR>
Status Query N/A //?? <CR>
Current HK
Trigger
[Alt][Alt][Alt]
k0 <CR>
//hk <CR>
Update HK Trig-
ger
[HK][HK] k
[1|2|3] <CR>
N/A
Note—All HotKey and RS-232 commands end
with <CR>
Chart Key
[CT] = Ctrl
[u] = User Console to update [1-4]
<CR> = Carriage Return (Enter Key)
[HK] = Current Hot Key Trigger
